USER MANUAL DO7280S DOMO

Exterior view of a modern vacuum cleaner with orange handle and silver casing (no visible text or symbols)

DO7280S

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

* Enkel in België, Nederland, Luxemburg, Frankrijk en Duitsland.
* Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
* Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
* Only in Belgium, the Netherlands, Luxemburg, France and Germany.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

VOORZORGSMAATREGELEN

Person holding a yellow and silver cleaning brush with a handle, no visible text or symbols

Filter stofreservoir:

Product photo of a portable device with orange cover, black lid, and circular base (no text or symbols visible)

Labeled diagram of a vacuum cleaner with numbered parts for identification

MESURES DE PRECAUTION

Close-up of hands holding an orange and silver vacuum cleaner with a handle, no visible text or symbols

Product photo of a smart vacuum cleaner with orange lid and circular base, no visible text or symbols

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

VORSICHTSMASSNAHMEN

Person holding an orange vacuum cleaner with a silver handle and metal tray, no visible text or symbols

Product photo of a portable device with orange lid, black base, and circular components (no text or symbols visible)

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.

• Only use the appliance for its intended use.
  • Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Do not use the appliance or the plug with wet hands.
• Do not put any objects into the openings of the vacuum cleaner. Do not use the vacuum cleaner when an opening is blocked. Keep the openings in the appliance free of dust, lint, hair and other objects that may reduce the air flow.
• Immediately switch off the vacuum cleaner when the air supply, the floor brush or the telescopic tube is blocked. Remove the objects that cause the blockage before turning your vacuum cleaner back on.
• Keep hair, loose clothes, fingers and other body parts away from any openings and moving parts.
• Switch off the appliance before removing the plug from the socket.

• Be extra careful when cleaning stairs.

• Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

• Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.
• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.
• Unplug the appliance before connecting the hose.
• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without dust bag and/or filter.

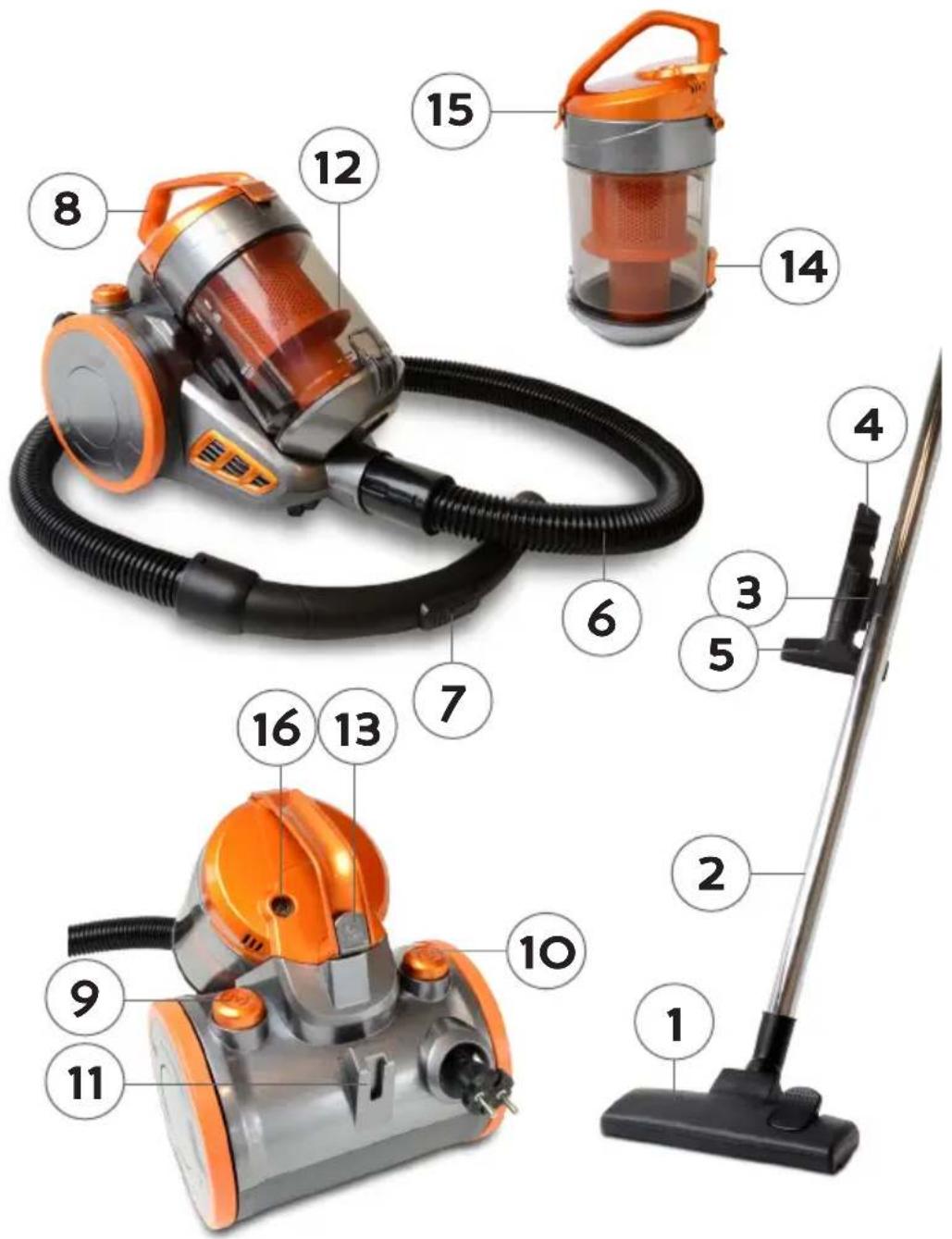

PARTS

1. Floor brush
2. Tubes
3. Storage clip
4. Crevice nozzle with small brush
5. Small floor brush
6. Flexible hose
7. Handle with air vent
8. Dust container handle
9. On/off button with suction power control
10. Cord rewinding button
11. Parking slot
12. Transparent dust container
13. Release button dust container
14. To open the dust container
15. To open the filter compartment
16. Full dust container indicator

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

PRECAUTIONS

• If the floor brush or tube is blocked, immediately switch off the vacuum cleaner. Remove the blockage before switching it on again.
• Do not use the vacuum cleaner too close to heating appliances or radiators.
  • Make sure you have dry hands when plugging in the vacuum cleaner.
• Remove all large and sharp objects from the floor before vacuuming to prevent the filter from getting damaged.
• When removing the plug from the socket, always pull the plug itself. Never pull the cord.

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power outlet when assembling or removing any parts.

1. Flexible hose: put the flexible hose into the air inlet at the front of the vacuum cleaner and turn it clockwise until it clicks into place.
2. Metal tubes: Connect the 2 metal tubes. Attach the tubes to the handle. Attach the floor brush to the tubes.
3. Accessories: crevice nozzle with small brush and small floor brush. With storage clip, to be attached to the tube.

INSTRUCTIONS FOR USE

Before using the vacuum cleaner, you need to sufficiently unwind the cord. Then put the plug into the power outlet. The yellow marker on the cord indicates the ideal maximum length to unwind the cord. Never unwind the cord further than the red marker.

1. Press the on/off button to start vacuuming.
2. Set the suction power by turning the on/off button. The handle of the tube also has an air vent which can be opened or closed for more or less suction power.
3. Press the on/off button again to switch off the appliance.
4. To rewind the cord, remove the plug from the outlet and hold the plug in your hand while pressing the cord rewinding button with your other hand. Hold the plug to prevent the plug or cord from causing any damage during rewinding.

CLEANING THE DUST CONTAINER AND FILTERS

Before cleaning the vacuum cleaner or its parts, you always need to switch off and unplug the vacuum cleaner.

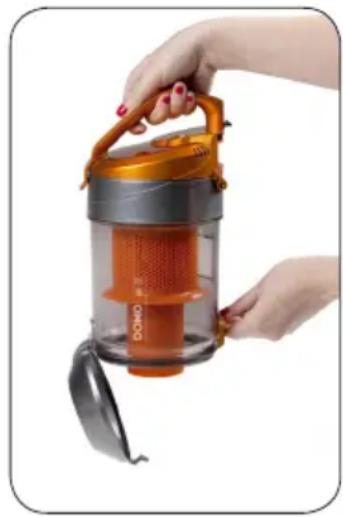

Dust container:

1. Grasp the handle of the dust container and press the silver button on top of the container. Carefully pull the dust container upwards. The dust container will slide out of the vacuum cleaner.

2. At the side of the dust container there is a button to open the container.

3. Hold the dust container over a dust bin. Slide the button down, the bottom of the dust container will open and the dust will fall out.

4. If you want to clean the inside of the dust container more thoroughly, you can remove the transparent part of the dust container by turning it counterclockwise to unlock.

Hand holding a yellow and orange Dono vacuum cleaner with a metal handle, no visible text or symbols on the device itself.

Dust container filter:

You can now clean the filter that is placed inside the dust container. Open the lid at the top of the dust container. You can now take out the filter in its holder. If you want to clean the filter, remove the filter from its holder and beat it or rinse it under running water. Make sure to air dry the filter and its holder thoroughly before placing it back into the dust container.

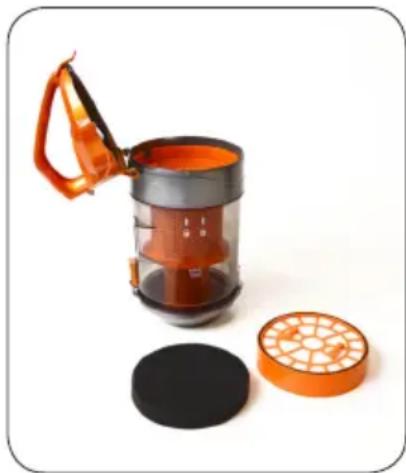

Air outlet HEPA filter:

This filter cleans the air before it leaves the vacuum cleaner. The air filter is placed in the bottom of the

vacuum cleaner. Remove the lid and take out the filter. Clean the filter under running water and let it dry thoroughly before placing it back into the compartment.

Product photo of a portable air purifier with orange lid, showing internal structure and packaging (no text or symbols visible)

During regular cleaning it will suffice to beat the filters so the dust is removed. It is recommended to rinse the filters 3 or 4 times a year. Dry them completely or replace them if necessary. Place the filters back into the vacuum cleaner when they are completely dry.

CAUTION:

• Always use the vacuum cleaners with its filters in place. If not, this may cause loss of suction power or damage to the motor.
• Always remove the plug from the power outlet before cleaning the filters.
• Do not clean the filters in the dishwasher.
• Do not use a hair dryer to dry the filters.

PRECAUCIONES IMPORTANTES

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Hand holding an orange vacuum cleaner with a metal handle and orange filter inside (no text or symbols visible)

Product photo of a portable device with orange lid, black base, and orange filter cover (no text or symbols visible)

Filtro de salida de aire HEPA:

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

UPOZORNĚNÍ

Hand holding an orange and silver vacuum cleaner with a handle, no visible text or symbols

Product photo of a portable device with orange lid, black base, and orange filter casing (no text or symbols visible)
