USER MANUAL DO219SV DOMO

Green and black vacuum cleaner with extended arm (no visible text or symbols)

DO219SV

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Labeled diagram of a vacuum cleaner with numbered parts for identification

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

DE HANDSTOFZUIGER

Two views of a mechanical device showing a tool and a button, both without any text or symbols.

Close-up of a black vacuum cleaner with a button labeled 'CLICK' pointing to the side (no other text or symbols visible)

DE STEELSTOFZUIGER

Close-up of a black vacuum cleaner with a button labeled 'CLICK' (no other text or symbols visible)

Black and white photo of a compact electric spray gun with a clear glass casing (no visible text or symbols)

GEBRUIK

Black and white photo of a vacuum cleaner with adjustable arm and base (no visible text or symbols)

Technical line drawing of two electrical switch components (no text or symbols)

REINIGING EN ONDERHOUD

HET STOFRESERVOIR

Hand holding a black industrial spray gun with a black handle and arrow indicating motion (no text or symbols visible)

DE FILTERS IN HET STOFRESERVOIR

Two plastic filter components labeled A and B, shown side by side (no text or symbols on the objects themselves)

Close-up of a mechanical component with concentric rings and a circled area, no visible text or symbols.

Hand holding a black spray gun device with a clear glass container (no visible text or symbols)

Close-up of a mechanical device with a circular lens and two separate washers (no visible text or symbols)

Close-up of a mechanical component with a metallic bracket and internal structure, showing no visible text or symbols.

Close-up of mechanical components including a lever and a clamping device (no visible text or symbols)

PROBLEEM EN OPLOSSING

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black vacuum cleaner device with a 'CLICK' button and arrow indicator (no text or symbols on the device itself)

Close-up of a black vacuum cleaner with a 'CLICK' button and arrow indicator (no text or symbols on the device itself)

Black handheld vacuum cleaner with clear glass casing and control panel (no visible text or symbols)

Black vacuum cleaner with adjustable arm and base mount (no visible text or symbols)

Technical line drawings of two mechanical components (no text or symbols)

NETTOYAGE ET ENTRETIEN

Hand holding a black spray gun with an arrow pointing to the handle (no text or symbols visible)

Two plastic filter components labeled A and B, shown side by side (no text or symbols on the objects themselves)

Close-up of a mechanical component with concentric rings and a highlighted circular area (no text or symbols)

Hand holding a black vacuum cleaner with a clear lid, no visible text or symbols

Close-up of a black mechanical device with circular lens and two separate washers (no text or symbols visible)

Close-up of a mechanical component with a black housing and an arrow pointing to a feature (no visible text or symbols)

Close-up of mechanical components, possibly a tool or bracket, with no visible text or symbols.

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts for identification

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

DER HANDSTAUBSAUGER

Two views of a mechanical device with arrows indicating motion, one showing a tool and the other showing a presser or actuator (no text or symbols present)

Close-up of a black vacuum cleaner with a button labeled 'CLICK' pointing to the side (no other text or symbols visible)

DER STAUBSAUGER

Close-up of a black vacuum cleaner with a button labeled 'CLICK' pointing to the side (no other text or symbols visible)

Black vacuum cleaner with clear glass body and control panel (no visible text or symbols)

GEBRAUCH

Black and white photo of a vacuum cleaner with adjustable arm and base (no visible text or symbols)

WANDBEFESTIGUNG

Technical line drawings of two electrical switch components (no text or symbols)

Hand holding a black handheld device with a black handle and arrow indicator (no visible text or symbols)

DIE FILTER IM STAUBBEHÄLTER

Two plastic filter components labeled A and B, shown side by side (no text or symbols on the objects themselves)

Close-up of a mechanical component with concentric rings and a circled area, no visible text or symbols.

Hand holding a black vacuum cleaner device with a handle, no visible text or symbols

Close-up of a black mechanical device with threaded body and two circular washers (no visible text or symbols)

Close-up of a mechanical component with a black housing and an arrow pointing to a feature (no visible text or symbols)

Close-up of mechanical components with no visible text or symbols

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g., electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

• Read all instructions before use.
• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children cannot be allowed to play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.
• This appliance is suitable to be used in a household environment and in similar surroundings such as:
  · Kitchen for personnel of shops, offices or other similar professional surroundings
  · Farms
  · Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar
• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  · Never immerse the appliance, the cord or the plug in water or any other liquid.

• Keep the cord away from sharp edges and hot parts or other heat sources.
  · Before use, remove all packaging materials and any promotional stickers.

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

· Make sure that the air intake or the floor suction opening do not become blocked.

· Make sure that the machine does not come into contact with liquids.

- First charge a new battery up completely.

- Pull the plug from the outlet when the vacuum cleaner is fully charged.

- This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

· Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

- Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

- Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.

- Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.

- Never use the appliance without a filters. This will damage the motor and render it unusable.

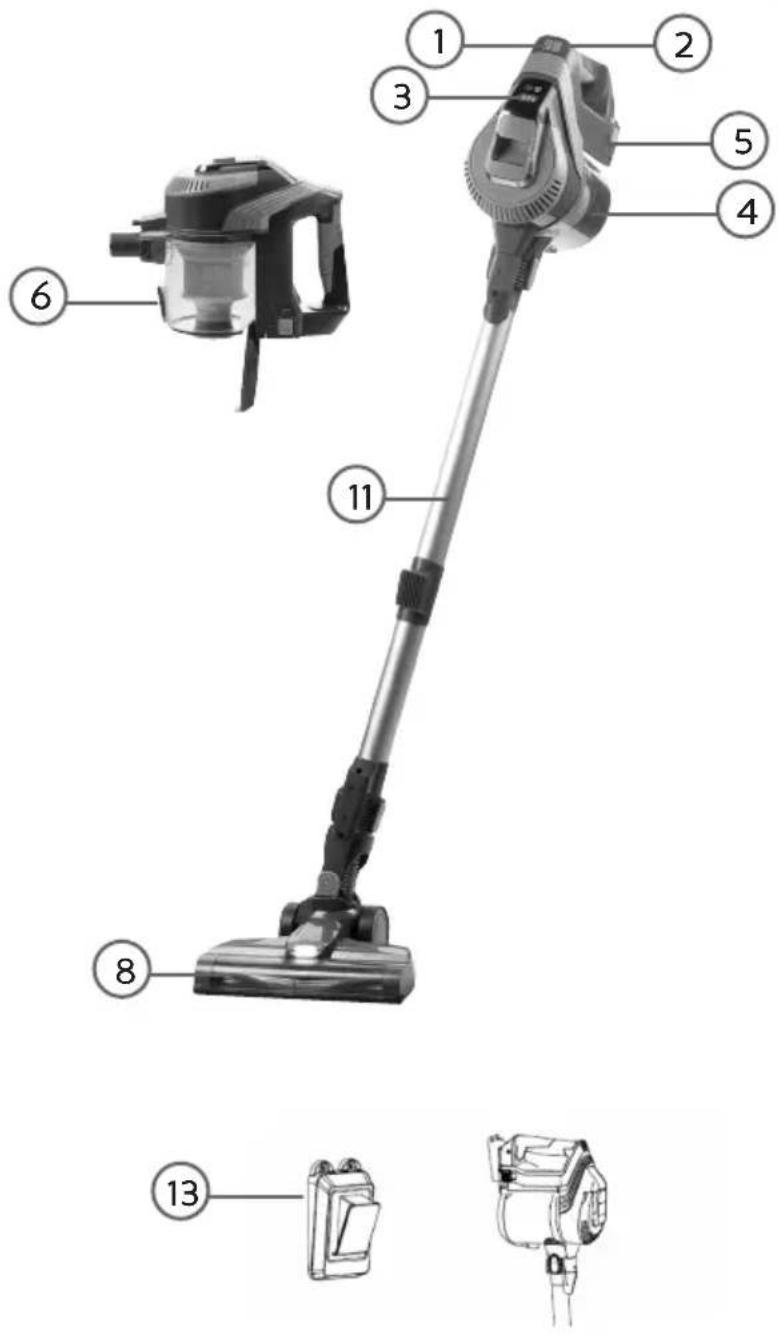

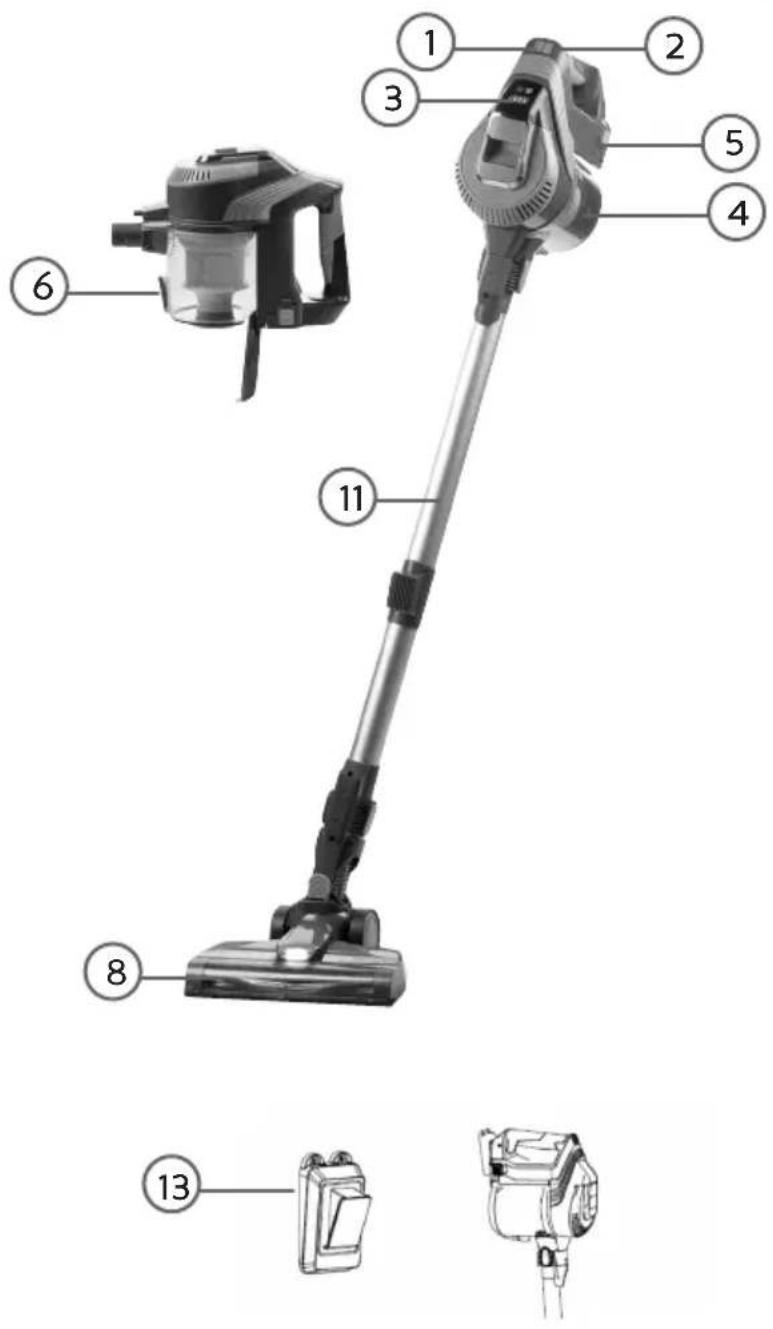

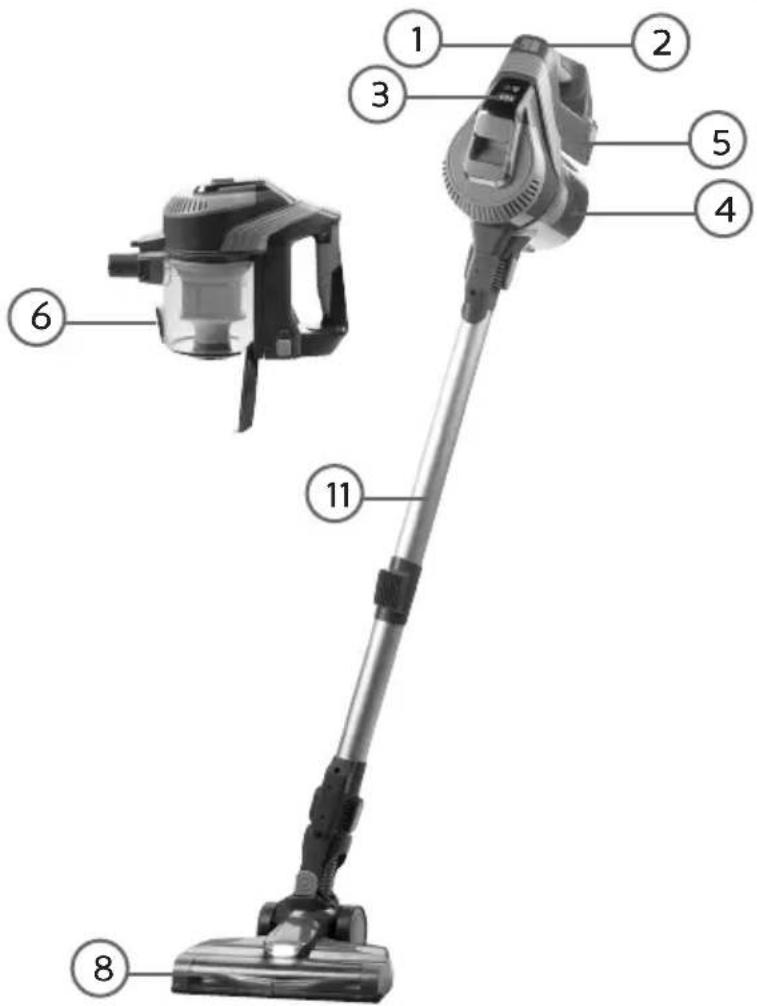

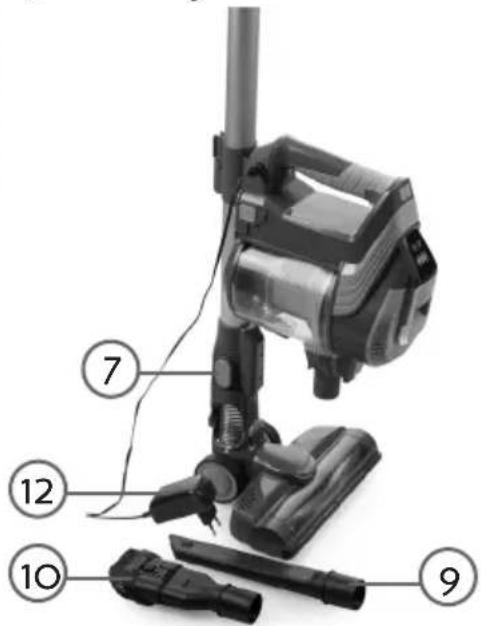

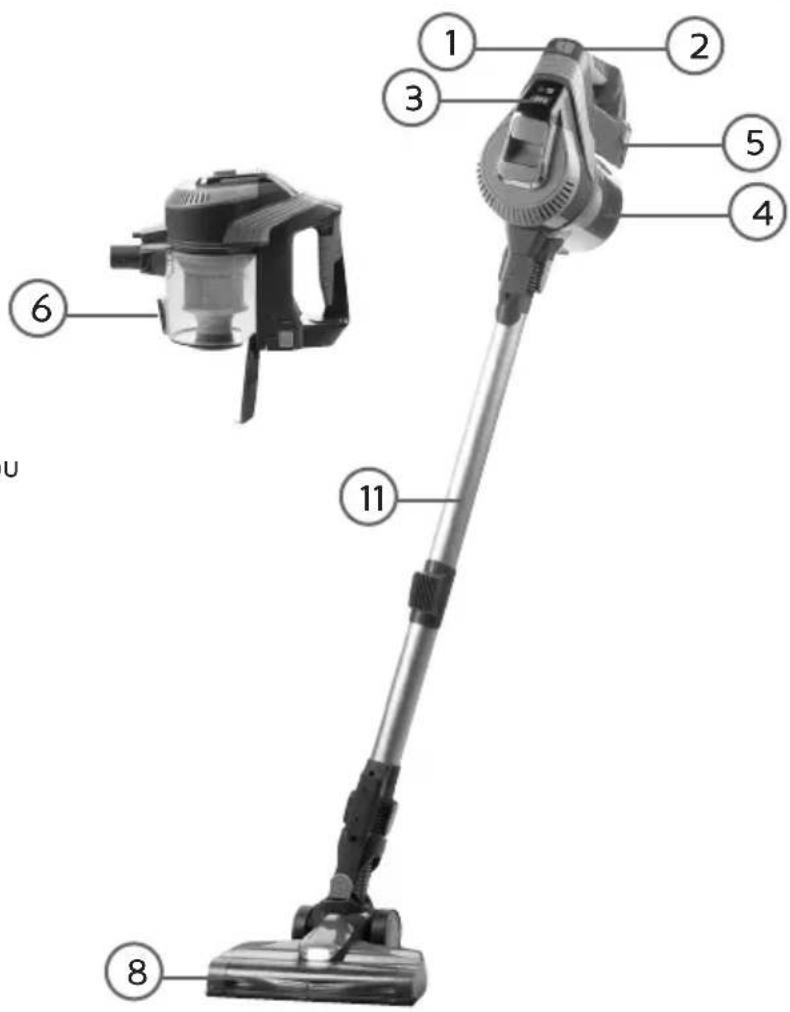

PARTS

1. On-off button
2. Speed control
3. Battery charge indicator
4. Dust reservoir
5. Motor compartment
6. Unlock button for dust reservoir
7. Release button floor nozzle
8. Floor nozzle with rotating floor brush
9. Crevice vacuum cleaner
10. Dust brush
11. Tube
12. Adapter
13. Wall fixing

Labeled diagram of a vacuum cleaner with numbered parts for identification

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

MONTAGE

THE HAND VACUUM CLEANER

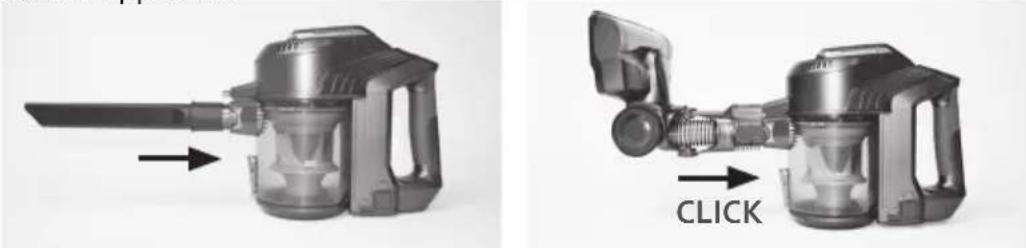

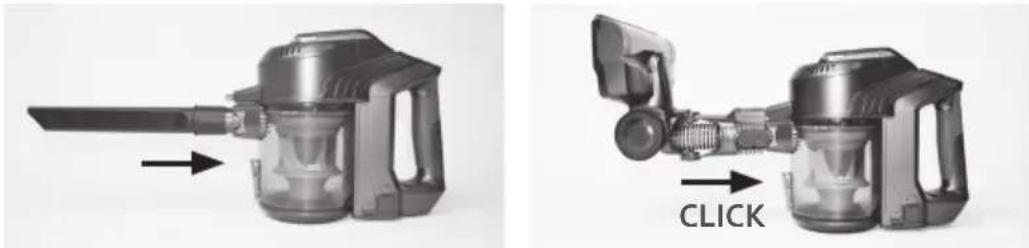

1. Click the floor brush, dust brush or crevice tool securely into place in the opening on the front of the appliance.

Two views of a mechanical device with arrows indicating process steps (no text or symbols present)

1. Insert the batteries at the bottom of the motor compartment. Push until it clicks into place in the motor compartment.

Close-up of a black industrial vacuum cleaner with a click button indicator (no text or symbols on the device itself)

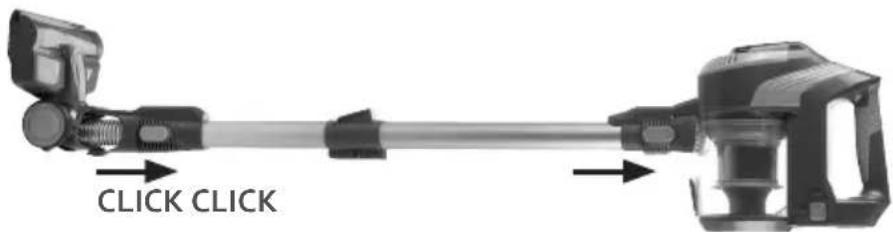

1. Click the tube firmly into place in the vacuum opening on the front of the machine.
2. Click the floor brush, dust brush or the crevice tool firmly into place in the tube.

CLICK CLICK

1. Insert the batteries at the bottom of the motor compartment. Push until it clicks into place in the motor compartment.

Close-up of a black industrial vacuum cleaner with a click button indicator (no text or symbols on the device itself)

To disassemble the appliance, remove the various parts step by step: the floor brush, the crevice tool, the dust brush and the tube. To do this, press the release button and remove the relevant part by pulling it firmly.

CHARGING

• First connect the adapter to the machine and put the adapter in the outlet.
• The battery level indicator will now light up and indicate when the machine is fully charged.
  · To extend the life cycle of the battery, you should regularly charge the machine fully, and allow the battery to run flat.

- Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

Black vacuum cleaner with clear lid and control panel (no visible text or symbols)

USE

• Press the on-off switch on the handle to turn the machine on. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. The dirt will be collected in the dust reservoir.
• Press the speed control to increase or lower the suction power. The ECO or MAX indicator lamp will light up:

· ECO: low suction power. The appliance and the battery will also use less power.
- MAX: maximum suction power for stubborn dirt.

• The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button again or press the speed control.
• For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine.

ACCESOIRES

You can attach the following accessories to the vacuum:

· Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.
- Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

STORAGE

STORE UPRIGHT

• Place the floor nozzle on the handle. Remove the motor unit from the handle.
• The handle with floor nozzle can remain upright. You can push the motor unit onto the fixing on the handle.

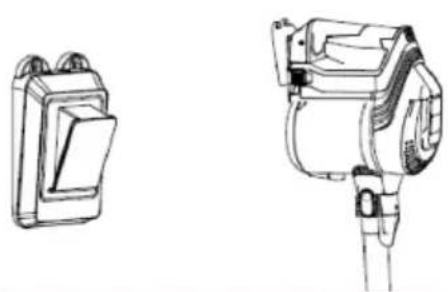

WALL FIXING

· Hold the wall fixing in a vertical position against the wall.
- Mark the holes with a pencil.
- Drill the holes in the wall and insert the plugs supplied.
- Use the screws to secure the wall fixing.
- Place the motor unit on the fixing to store it.

Black and white photo of a vacuum cleaner with adjustable arm and base (no visible text or symbols)

Technical line drawings of two mechanical components, one with a switch and the other a motor or pump assembly (no text or symbols)

CLEANING AND MAINTENANCE

THE DUST CONTAINER

Never exceed the maximum indicator on the dust container.

Empty the dust container by pressing the release button on the bottom. The dust container falls open and you can then remove the coarse dirt.

Hand holding a black handheld device with a hand pointing to the left side (no visible text or symbols)

THE FILTERS IN THE DUST CONTAINER

There are two filters in the dust container: the plastic coarse dirt filter (A) and the HEPA filter (B).

Two types of filter or filter components labeled A and B, shown side by side (no text or symbols on the objects themselves)

1. Remove the dust container from the motor compartment of the chopper by rotating it clockwise. Make sure that the mark on the motor unit is aligned with the release lock symbol.

2. Pull the filters out of the dust reservoir. Remove the HEPA filter from the coarse dirt by pulling it upwards. Blow compressed air through the filters to clean them. You can also wash the filters under running water. Take care to dry them completely before using them again in the appliance.

3. Return the HEPA filter to the course dirt filter.

4. Return both filters to the dust container. Ensure that the notch in the filter is lined up with the raised part of the container.

Close-up of a mechanical component with a circular highlight and concentric rings (no text or symbols visible)

1. Return the dust container to the motor compartment by rotating it anti-clockwise. Make sure that the mark on the motor unit is aligned with the lock symbol.

THE FILTERS IN THE MOTOR COMPARTMENT

There are two filters in the motor section.

1. Use the release button at the top of the motor compartment to open it and raise the

cover.

Hand holding a black vacuum cleaner with a handle, no visible text or symbols

1. Remove the two dust filters. Blow compressed air through the filters to clean them. You can also wash the filters under running water. Take care to dry them completely before using them again in the appliance.

Close-up of a black mechanical component with circular lens and two separate wash rings (no text or symbols visible)

1. Return the filters to the motor compartment. Ensure that the black filter is at the top. Return the cover to the motor compartment. To do this, first hook the cover onto the front of the motor compartment and then click the cover into place.

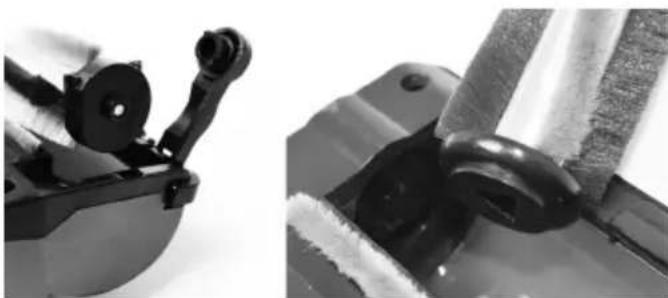

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.

2. Use a screwdriver to undo the lock on the bottom of the floor brush. You can then lift the lock upwards.

Close-up of a mechanical component with a curved internal structure and an arrow indicating direction (no text or symbols visible)

1. Remove the rotating floor brush from the floor nozzle.

2. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.

3. Then place the rotating brush back in the floor brush. Make sure that the triangle on the rotating brush is aligned with the triangle in the floor brush. On the other side, the round end of the rotating brush needs to be tilted downwards.

Close-up of mechanical components including a lever and a cylindrical component (no visible text or symbols)

1. Use a screwdriver to put the lock back in place.

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

PROBLEM AND SOLUTION

Problem Solution
The machine does not start up.	The battery is empty. Charge the machine.The battery is not inserted properly. Insert the battery until it clicks into place.
The machine does not vacuum.	The filters are dirty/the dust reservoir is full.The floor nozzle is clogged/the floor brush is blocked.The nozzle opening is clogged.Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	The machine is not sufficiently charged. Charge the machine fully and try again.The battery is broken or old. Replace the battery.Stuck hairs.Remove the hairs stuck on the brushes.
The indicator light does not burn while charging.	There is poor contact.Check that the adapter is connected properly.Remove the dust on the connector of the upright vacuum cleaner

ENVIRONMENTAL GUIDELINES

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Labeled diagram of a vacuum cleaner with numbered parts including handle, socket, and clip

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

ENSAMBLAJE

Two views of a mechanical device with arrows indicating motion, one showing a tool and the other showing a valve (no text or symbols present)

Close-up of a black vacuum cleaner with a button labeled 'CLICK' (no other text or symbols visible)

LA ASPIRADORA VERTICAL

Close-up of a black vacuum cleaner with a 'CLICK' button and arrow indicator (no text or symbols on the device itself)

Black vacuum cleaner with clear glass body and control panel (no visible text or symbols)

USO

Black vacuum cleaner with attached stand and metal frame (no visible text or symbols)

Technical line drawings of two mechanical components (no text or symbols)

LIMPIEZAY MANTENIMIENTO

Hand holding a black handheld device with a circular handle and arrow indicator (no visible text or symbols)

Two types of filter or filter components labeled A and B, shown side by side without any text or symbols on the objects themselves.

Close-up of a mechanical component with concentric rings and a highlighted circular feature (no text or symbols)

Hand placing a black spray gun into a black vacuum cleaner (no text or symbols visible)

Close-up of a black mechanical component with circular lens and two separate rings (no text or symbols visible)

Close-up of a mechanical component with a curved internal structure and an arrow indicating direction (no text or symbols visible)

Close-up of mechanical components including a lever and a curved pipe assembly (no visible text or symbols)

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts for identification

Labeled diagram of a vacuum cleaner with numbered parts for identification

13

SESTAVENÍ

RUČNÍ VYSAVAČ

Two views of a mechanical device with arrows indicating motion, one showing a tool and the other showing a presser or actuator (no text or symbols present)

1. Zespodu vysavače vložte baterie. Baterii zatlačte do vysavače dokud se nezacvakne.

Close-up of a black vacuum cleaner with a button labeled 'CLICK' pointing to the side (no other text or symbols visible)

KLASICKÝ TYČOVÝ VYSAVAČ

Close-up of a black vacuum cleaner device with a 'CLICK' button and arrow indicator (no text or symbols on the device itself)

Black industrial vacuum cleaner with clear glass body and control panel (no visible text or symbols)

POUŽITÍ

Black and white photo of a vacuum cleaner with adjustable arm and stand (no visible text or symbols)

Technical line drawings of two electrical components (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

ZÁSOBNÍK PRACHU

Hand holding a black handheld device with a circular handle and arrow indicator (no visible text or symbols)

FILTRY UVNITŘ ZÁSOBNÍKU NA PRACH

Two mechanical components labeled A and B, shown side by side without any text or symbols on the parts themselves.

Close-up of a mechanical component with a circular highlight, no visible text or symbols

Hand holding a black industrial vacuum cleaner with liquid inside (no visible text or symbols)

Close-up of a black mechanical device with circular lens and two white washers (no text or symbols visible)

Close-up of a mechanical component with a central shaft and internal structure, no visible text or symbols

Close-up of mechanical components including a lever and a curved tool, both without any visible text or symbols.

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed-out trash bin and no text, indicating hazardous material

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts for identification

1 2 3 4 5 6 U 11 8

13

ZOSTAVENIE

RUČNÝ VYSÁVAČ

1. Vezmite štrbinovou alebo podlahovú hubicu a nasadte ju pevne na vysávač.

Two views of a mechanical device showing a tool and a button, with no visible text or symbols.

Close-up of a black vacuum cleaner with a button labeled 'CLICK' (no other text or symbols visible)

KLASICKÝ TYČOVÝ VYSÁVAČ

Close-up of a black vacuum cleaner device with a 'CLICK' button and arrow indicator (no text or symbols on the device itself)

Black vacuum cleaner with clear glass body and control panel (no visible text or symbols)

POUŽITIE

Black and white photo of a vacuum cleaner with adjustable arm and base (no visible text or symbols)

Technical line drawings of two electrical components: a switch and a motor (no text or symbols)

ČISTENIE A ÚDRŽBA

ZÁSOBNÍK PRACHU

Hand holding a black handheld device with a circular handle and arrow indicator (no visible text or symbols)

FILTRE VNÚTRI ZÁSOBNÍKA NA PRACH

Two types of filter or filter components labeled A and B, shown side by side (no text or symbols on the objects themselves)

Close-up of a mechanical component with concentric rings and a highlighted circular area (no text or symbols)

Hand holding a black industrial vacuum cleaner with a glass lid and handle (no visible text or symbols)

Close-up of a black mechanical device with circular lens and two separate rings (no text or symbols visible)

Close-up of a mechanical component with a black housing and internal structure, showing a small arrow pointing to a specific area (no text or symbols visible)

Close-up of mechanical components, including a lever and a coiled spring (no visible text or symbols)

1. Na koniec pomocou skrutkovača opät vložte plastové zámky a kefu uzamknite.

ČISTENIE PRÍSTROJA

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
