USER MANUAL DO1006S DOMO

Exterior view of a black and gold vacuum cleaner with coiled tubing (no text or symbols visible)

DO1006S

Handleiding Stofzakloze	stofzuiger
Mode d'emploi Aspirateur	sans sac
Gebrauchsanleitung Beutelloser Staubsauger
Instruction booklet Bagless vacuum cleaner
Manual de instrucciones Aspiradora sin bolsa
Istruzioni per l'uso Aspirapolvere senza sacco
Návod k použití Bezsačkový vysavač
Návod na použitie Bezvreckový vysávač

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Labeled diagram of a vacuum cleaner with three parts: handle, body, and blade, showing internal components and part numbers.

13 12 15 14

16 17 18 19

MONTAGE

Close-up of a blue and black vacuum cleaner with a brush, showing mechanical components and a downward arrow indicating motion (no text or symbols visible)

TELESCOPISCHE BUIS

Line drawing of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a ruler with an arrow indicating measurement direction (no text or symbols)

Diagram showing a mechanical assembly with a tool and component, no text or symbols present

ACCESSOIRES

Close-up of a robotic vacuum cleaner with blue mesh and mechanical components (no visible text or symbols)

Hand holding a blue and silver portable water dispenser with a black handle, no visible text or symbols

Close-up of a blue and silver mechanical component with a handle and internal structure (no visible text or symbols)

Close-up of a black plastic component with multiple circular holes, no visible text or symbols

Blue plastic filter component with mesh texture and a small protrusion (no text or symbols visible)

DE FILTERS

Circular black object with a white center, possibly a lid or container (no text or symbols visible)

Close-up of a black electronic device's top component with a white arrow pointing to a connector (no visible text or symbols)

Close-up of a black mesh vent with a white arrow pointing to the vent (no text or symbols visible)

Close-up of a hand pressing down on a grid-patterned device with an arrow indicating leftward movement (no text or symbols visible)

Black plastic tray with grid pattern and a small protrusion, no visible text or symbols

OPGELET

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a water purifier with three parts: handle, interior, and blade, showing components 1, 2, and 3.

12 13 14 15

19 16 17 18

MONTAGE

Close-up of a blue and black vacuum cleaner with a downward arrow indicating motion (no text or symbols visible)

TUBE TÉLESCOPIQUE

Illustration of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating force (no text or symbols)

Diagram showing a mechanical assembly with a tool and component, no text or symbols present

ACCESSOIRES

Labeled diagram of a hairdryer with numbered parts for identification

UTILISATION

Close-up of a black and silver robotic vacuum cleaner with blue filter, no visible text or symbols

Hand holding a blue and silver portable water dispenser with a handle, next to a black tool (no text or symbols visible)

Close-up of a blue plastic container with a metallic lid and a handle, showing internal components (no text or symbols visible)

Close-up of a black plastic electrical plug socket with multiple circular holes (no text or symbols visible)

Blue plastic filter component with mesh texture and a small protrusion (no text or symbols visible)

LES FILTRES

Circular object with a black ring and white interior, labeled with number 1 (no text or symbols on the object itself)

Close-up of a mechanical component with labeled ports and a highlighted internal cavity (no text or symbols visible)

Close-up of a black mesh vent with a white arrow pointing to the vent (no text or symbols visible)

Close-up of a hand pressing a grid on a device (no visible text or symbols)

Black plastic tray with a grid pattern, no visible text or symbols

ATTENTION

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a water purifier with labeled parts including handle, valve, and base

12 13 14 15

19 16 17 18

MONTAGE

Close-up of a blue and black vacuum cleaner with a downward arrow indicating motion (no text or symbols visible)

TELESKOPROHR

Illustration of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a lever and handle, no text or symbols present

ZUBEHÖR

Labeled diagram of a hair dryer with numbered parts for identification

GEBRAUCH

Close-up of a black and silver robotic vacuum cleaner with blue filter bands (no visible text or symbols)

Hand holding a blue and silver water dispenser with a black handle, next to a black tool (no text or symbols visible)

Close-up of a blue and silver mechanical device with a handle and internal components (no visible text or symbols)

Close-up of a black plastic connector with multiple circular holes (no text or symbols visible)

Blue plastic filter component with mesh texture and a small protrusion (no text or symbols visible)

DIE FILTER

Circular object with a black ring and white interior, labeled with number 1 (no text or symbols on the object itself)

Close-up of a mechanical component with a black connector and mounting holes, labeled with number 2 (no text or symbols on the object itself)

Close-up of a black mesh vent with a white arrow pointing to the grille (no text or symbols visible)

Close-up of a hand pressing down on a grid-patterned device with an arrow indicating leftward movement (no text or symbols visible)

Black rectangular plastic tray with grid pattern, no visible text or symbols

ACHTUNG

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
- farm houses;
· by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

· Always connect the appliance to an earthed socket.

- Do not let the cord hang on a hot surface or on the edge of a table or counter top.

- Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

- Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

- Only use the vacuum cleaner as described in this instruction booklet.

- Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.

· Do not touch the plug or the vacuum cleaner when you have wet hands.

- Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.

- Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.

- Be extra careful when cleaning stairs.

- Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

- Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.

- Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.

- Unplug the appliance before connecting the hose.

· Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.

- Do not use the vacuum cleaner without dust bag and/or filter.

SAVE THESE INSTRUCTIONS

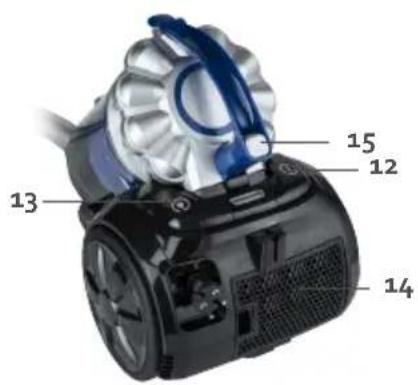

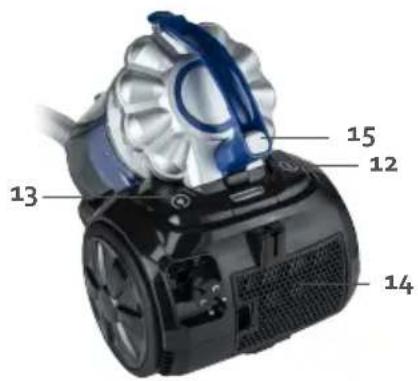

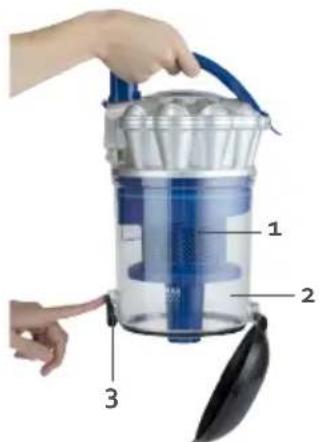

PARTS

1. Filter dust reservoir
2. Dust reservoir
3. Button to empty the dust reservoir
4. Floor nozzle
5. Button to extend/retract brushes
6. Telescopic tube
7. Sliding button for tube length
8. Handle for hose with valve
9. Flexible hose
10. Connector for the hose
11. Handle
12. On/off button
13. Button for cord roll-up system.
14. Air exhaust
15. Button to empty the dust reservoir
16. Crevice vacuum cleaner
17. Furniture nozzle
18. Duster
19. Hard floor brush

8 9 11 6 7 5 4 10

Labeled diagram of a water dispenser with three parts: handle, handle, and blade, showing internal components and hand gesture.

12 13 14 15

19 16 17 18

ASSEMBLY

Always unplug the appliance from the socket before removing or connecting parts. Make sure that the dust reservoir is always in the correct position.

FLEXIBLE HOSE

• Assembly: Push the coupling of the flexible hose into the connector hole until you hear it click.
  · Disassembly: to unlock, press the unlock buttons on the sides of the connector.

Close-up of a blue and black vacuum cleaner with a downward arrow indicating motion (no text or symbols visible)

TELESCOPIC TUBE

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. To do this, push the slide button forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.

3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a ruler with an arrow indicating measurement direction (no text or symbols)

Diagram of a mechanical assembly with a tool and component, no text or symbols present

ACCESSORIES

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...

2. Dust brush: for furniture, shelves,...

3. Furniture nozzle: for easy, quick and thorough cleaning of upholstered furniture

4. Floor brush: for vacuuming hard flooring

Labeled diagram of a vacuum cleaner with numbered parts 1, 2, 3, and 4

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and off, press the foot pedal with the symbol. The suction can be controlled using the valve on the handle of the hose. The appliance has a strong suction force. This could cause the end of the floor nozzle to attach to the floor. If you want to reduce the suction force, you can slide open the valve on the handle of the hose or you can use the hard floor nozzle.

· Carpets: ensure that the switch on the floor nozzle is set to

- Hard floors: ensure that the switch on the floor nozzle is set to .

1. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

CLEANING AND MAINTENANCE

EMPTYING AND CLEANING THE DUST RESERVOIR

Empty the dust reservoir regularly. Make sure that the dust in the dust reservoir does not exceed the maximum level.

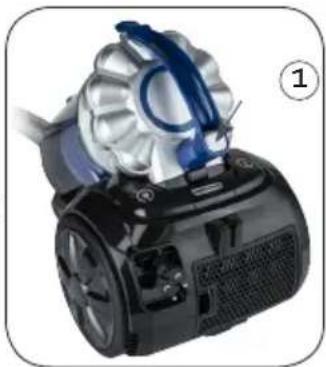

1. Take the handle of the vacuum cleaner and press the button. Carefully remove the dust reservoir from the vacuum cleaner.

2. Hold the dust reservoir above the dustbin. Press the button to empty the dust reservoir. The bottom will click open and the dust will fall out.

3. If necessary, wipe the dust reservoir clean with a soft, damp cloth.

4. Once the dust is removed, close the bottom until you hear it click.

Close-up of a black and silver robotic vacuum cleaner with blue filter and control panel (no visible text or symbols)

Hand holding a blue and white portable water dispenser with a handle, next to a black tool (no text or symbols visible)

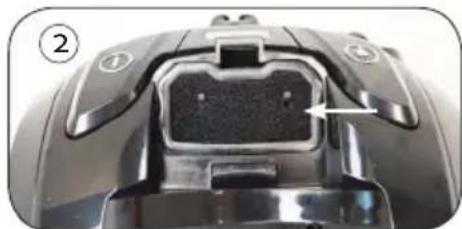

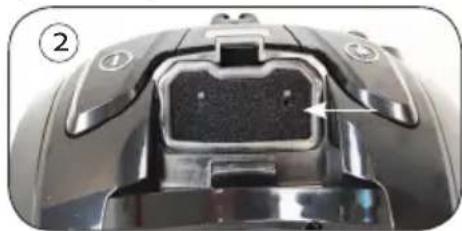

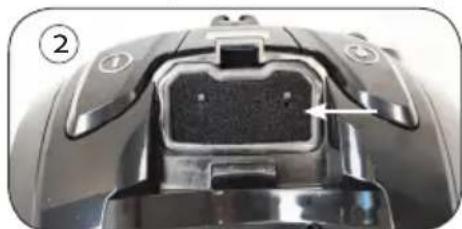

To prevent losing suction after emptying the dust reservoir, it is essential that the long interior filter is checked for blockages.

1. To do this, completely remove the dust reservoir by unscrewing the handle counter-clockwise. Keep an eye on the slots of the dust reservoir.
2. Then open the bottom of the filter system. The round filter is now visible.

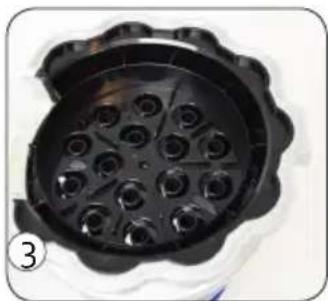

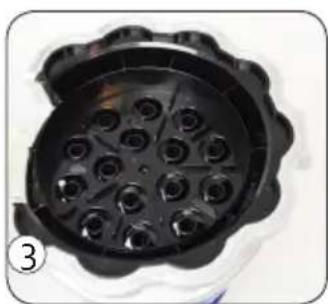

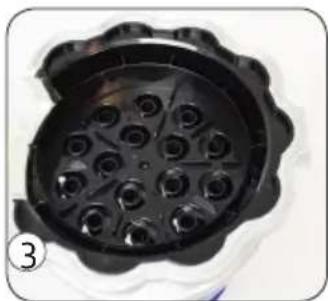

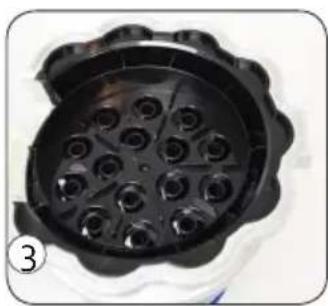

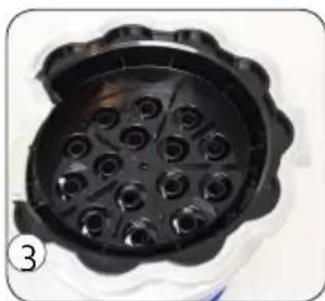

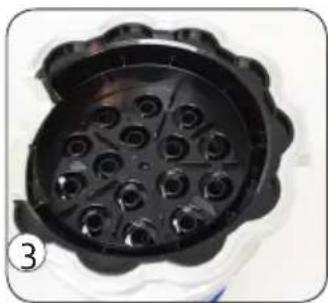

3. Take it out of the appliance so that the cyclones are visible. Clean the plastic filter, both the top and the bottom of the plastic filter, so that all of the holes are dust-free. If you do this with water, make sure that the plastic filter is completely dry before using it again.

Close-up of a blue plastic device with a metallic lid and handle, showing internal components (no text or symbols visible)

Close-up of a black plastic connector with multiple circular holes (no text or symbols visible)

Blue plastic mechanical component with mesh texture and a cylindrical top (no visible text or symbols)

THE FILTERS

The appliance has 3 filters. In a normal cleaning session, it is sufficient to tap out the filters. It is recommended that you thoroughly clean the filters under tepid running water 3 to 4 times per year. Make sure that it is completely dry before putting it back in the appliance. You can also replace them if necessary. Avoid direct sunlight or intense overheating. Never put the filters in the washing appliance to prevent deformation. Do not use abrasive or cleaning products and wash from the bottom of the filter.

1. The round filter is located above the dust reservoir.

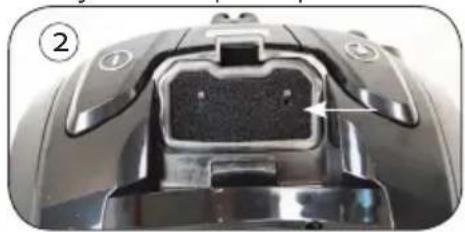

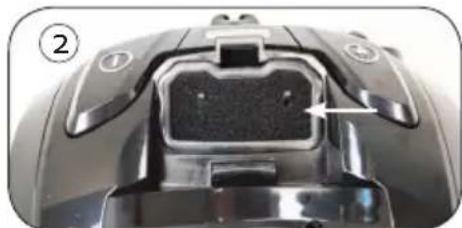

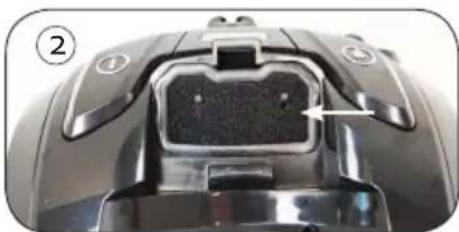

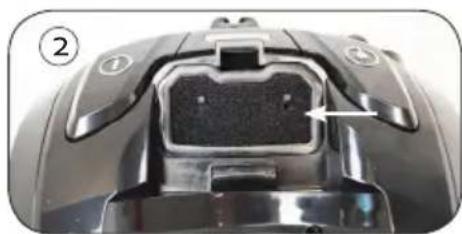

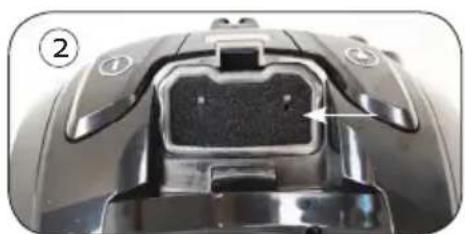

2. When you take the dust reservoir out of the appliance, you will see the filter at the air intake of the appliance. Always make sure that it is free of dust and dirt.

Circular object with a black ring and white interior, labeled with number 1 (no text or symbols on the object itself)

Close-up of a black electronic device's top component with a white arrow pointing to a connector (no visible text or symbols)

1. On the back of the appliance there is a grille for the hepa filter. This can be easily removed by pushing the clip of the grille to the right, and taking the grill out of the appliance. Take the hepa filter out of the appliance by pushing the clip to the left.

Close-up of a black plastic door with a white arrow pointing to the grille (no text or symbols visible)

Close-up of a hand pressing down on a grid-patterned device with an arrow indicating leftward movement (no text or symbols visible)

Black plastic tray with grid pattern and a small protrusion, labeled with number 3 (no text or symbols on the tray itself)

PLEASE NOTE:

· Make sure that all components are correctly assembled before using the vacuum cleaner again.
• Always use the vacuum cleaner with the filters intact. If you do not do this, you may lose suction force or damage the motor.
· Unplug the plug before cleaning the filters.
· Do not put the filter into the dishwasher.
· Do not use a hairdryer to dry the filters.

FREQUENTLY ASKED QUESTIONS

Problem Cause Solution
The appliance does not start.	The appliance is not plugged in.	Put the plug in the socket.
	The appliance is not turned on. Press the on/off switch.
The appliance stops working.	The appliance has overheated, so the safety was tripped. This can be caused by dirty filters or a blockage.	Allow the appliance to cool completely. When the appliance has cooled down, it will function again. Clean the filters and check that the hose is not clogged.
The suction is too weak.	The appliance is not correctly assembled, so the suction is being lost.	Check that everything is assembled correctly. Remove all of the accessories and then replace them step by step in their place.
	The dust reservoir is full. Empty the dust reservoir and make sure that it does not exceed the maximum level.
	The hose is clogged. Insert the hose in the reverse manner (with the handle) in the suction opening of the appliance. The clog will be suctioned to the other side, which will free the hose.
	The filters are dirty. Carefully clean the filters as described in this manual. It is very important that you already thoroughly clean the filters.
	The valve on the handle of the hose is open.	Close the valve.
	The filters are congested. Over time, the pores in the filters will become congested. Replace the filters.
There is a burning smell from the appliance.	The appliance is overheated. Immediately switch off the appliance and let the appliance cool down. Clean the dust reservoir and the filters.
The red light on the back of the appliance lights up.	The filters are dirty or the hose is clogged.	Clean the filters and make sure that you remove the clog. Always pick up all large objects before you start to vacuum.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Diagram of a vacuum cleaner with labeled parts including handle, blade, and feather, showing internal structure and component positioning.

12 13 14 15

16 17 18 19

MONTAJE

Close-up of a blue and black vacuum cleaner with a downward arrow indicating motion (no text or symbols visible)

TUBO TELESCÓPICO

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a ruler with an arrow indicating measurement direction (no text or symbols)

Diagram showing a mechanical device being inserted into a housing, labeled with number 3 (no text or symbols on the diagram itself)

ACCESORIOS

Labeled diagram of a vacuum cleaner with numbered parts 1 to 4

USO

Close-up of a black and silver robotic vacuum cleaner with blue filter, no visible text or symbols

Hand holding a blue and white portable water dispenser with a handle, next to a black tool (no text or symbols visible)

Close-up of a blue and silver mechanical device with a handle, showing internal components and a small white object (no text or symbols visible)

Close-up of a black plastic connector with multiple circular holes (no text or symbols visible)

Blue plastic filter component with mesh texture and a small protrusion (no text or symbols visible)

LOS FILTROS

Circular black ring with white center, no visible text or symbols

Close-up of a black electronic device's top component with a white arrow pointing to a connector (no text or symbols visible)

Close-up of a black mesh vent with a white arrow pointing to the grille (no text or symbols visible)

Close-up of a black arrow pointing to a grid-patterned panel on a device (no text or symbols visible)

Black rectangular plastic tray with grid pattern, no visible text or symbols

ATENCIÓN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a water purifier with three parts: handle, body, and bulb

12 13 14 15

19 16 17 18

MONTAGGIO

Close-up of a blue and black vacuum cleaner with a brush, showing mechanical components and a downward arrow indicating motion (no text or symbols visible)

TUBO TELESCOPICO

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a measuring tape with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a lever and handle, no text or symbols present

ACCESSORI

Black plastic cleaning brush with labeled parts (1, 2, 3, 4), no text or symbols beyond labels

UTILIZZO

Close-up of a black and white handheld vacuum cleaner with blue filter bands (no visible text or symbols)

Hand holding a blue and white portable device with a handle, next to a black tool (no visible text or symbols)

Close-up of a blue and silver mechanical device with a handle and internal components (no visible text or symbols)

Close-up of a black plastic component with multiple circular holes, no visible text or symbols

Blue plastic filter component with mesh texture and a small protrusion (no text or symbols visible)

I FILTRI

Circular object with a black ring and white interior, labeled with number 1 (no text or symbols on the object itself)

Close-up of a mechanical component with a labeled section (②), showing internal components and a central connector (no text or symbols beyond the number)

Close-up of a black mesh vent with a white arrow pointing to the vent (no text or symbols visible)

Close-up of a hand pressing a grid on a device, with an arrow pointing to the grid (no text or symbols visible)

Black plastic tray with a grid pattern, no visible text or symbols

ATTENZIONE

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a water purifier with labeled parts including handle, base, and funnel

13 12 15 14

19 16 17 18

SESTAVENÍ

Illustration of a blue and black vacuum cleaner with a plug, showing mechanical components and airflow direction (no text or symbols)

TELESKOPICKÁ TRUBICE

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Diagram showing a syringe being inserted into a clamp, labeled with number 3 (no text or symbols on the diagram itself)

PŘÍSLUŠENSTVÍ

Labeled diagram of a hairdryer with numbered parts for identification

POUŽITÍ

Close-up of a black and silver robotic vacuum cleaner with blue handle and control panel (no visible text or symbols)

Hand holding a blue and white portable device with a handle, next to a black tool (no visible text or symbols)

Close-up of a blue plastic container with a yellow lid and a blue handle, showing internal contents (no text or symbols visible)

Close-up of a black plastic connector with multiple circular holes (no text or symbols visible)

Blue plastic filter component with mesh texture and a small protrusion (no text or symbols visible)

FILTRY

Circular object with a black ring and white interior, labeled with number 1 (no text or symbols on the object itself)

Close-up of a mechanical component with a highlighted internal part and numbered annotation (no readable text or symbols)

Close-up of a black mesh vent with a white arrow pointing to the vent (no text or symbols visible)

Close-up of a hand pressing down on a grid-patterned device with an arrow indicating leftward movement (no text or symbols visible)

Black plastic filter component with grid pattern and handle (no text or symbols visible)

POZNÁMKA:

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a water purifier with three parts: handle, body, and funnel

12 13 14 15

16 17 18 19

ZOSTAVENIE

Close-up of a blue and black vacuum cleaner with a downward arrow indicating motion (no text or symbols visible)

TELESKOPICKÁ TRUBICA

Illustration of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a pen with an arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a tool and component, no text or symbols present

PRÍSLUŠENSTVO

Labeled diagram of a hairdryer with numbered parts for identification

POUŽITIE

Close-up of a black and silver robotic vacuum cleaner with blue filter bands (no visible text or symbols)

Hand holding a blue and silver water dispenser with a handle, next to a black tool (no text or symbols visible)

Close-up of a blue plastic container with a yellow handle and metallic casing, showing internal components and an arrow indicating direction (no text or symbols)

Close-up of a black plastic electrical plug with multiple circular holes (no text or symbols visible)

Close-up of a blue plastic filter component with a mesh grille and a small protrusion (no text or symbols visible)

FILTRE

Circular object with a black ring and white interior, labeled with number 1 (no text or symbols on the object itself)

Close-up of a mechanical component with a highlighted internal part and an arrow indicating a feature (no text or symbols visible)

Close-up of a black plastic door with a white arrow pointing to the grille (no text or symbols visible)

Close-up of a hand pressing down on a grid-patterned device with an arrow indicating leftward movement (no text or symbols visible)

Black plastic tray with grid pattern and a small protrusion, no visible text or symbols

POZNÁMKA:

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
