USER MANUAL DO1198FR DOMO

White DOMO air fryer with digital temperature display and food bowl (no visible text or symbols)

EN Instruction booklet Double air fryer

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Exploded view diagram of a white air fryer with labeled parts in Chinese

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

BEDIENINGSPANEEEL

1 2 3 4 5 8:0:00 (I SHAKE I) 8:0:00 (I SHAKE I) 11 10 8 69 7 UPPER TEMP TIME SMART COOK MENU DUAL LOWER

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

5 6 7 8 5 7 6

PANNEAU DE COMMANDE

1 2 3 4 5 8:0:08 (1 SHAKE 1) 8:0:08 (1 SHAKE 1) 11 10 8 69 7 UPPER TEMP TIME SMART COOK MENU DUAL LOWER

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

BEDIENFELD

1 2 3 4 5 8:8:88 (I SHAKE I) 8:8:88 (I SHAKE I) 11 10 8 69 7 UPPER TEMP TIME SMART COOK MENU DUAL LOWER DII

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

CAUTION: the appliance gets very hot during use and stays hot for some time after use. Keep the power cord away from hot parts and don't cover the appliance.

• Place the appliance on a flat, stable and heat-resistant surface.
• Do not place the appliance against a wall or other appliances. Always leave a free space of at least 30 cm around the appliance.
• Do not place anything on top of the appliance.
• Make sure that all ingredients stay in the basket, so that they do not come into contact with the heating elements.
• Do not cover the air inlet or outlet when the appliance is switched on.
• Never fill the frying pan with oil.
• Do not touch the inside of the appliance when it is in use.
• When the appliance is operating, hot steam may escape from the air inlet and/or outlet. Keep your hands and face at a safe distance. Also be careful when taking the frying pan out of the air fryer. Hot steam or air may escape.
• When you see dark smoke coming from the appliance, immediately pull the plug out of the socket. Wait until the smoke development has stopped before removing the frying pan from the air fryer.
• Let the appliance cool down for at least 30 minutes before moving or cleaning it.

- The equipment shall be touched only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to cool down before getting touched.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

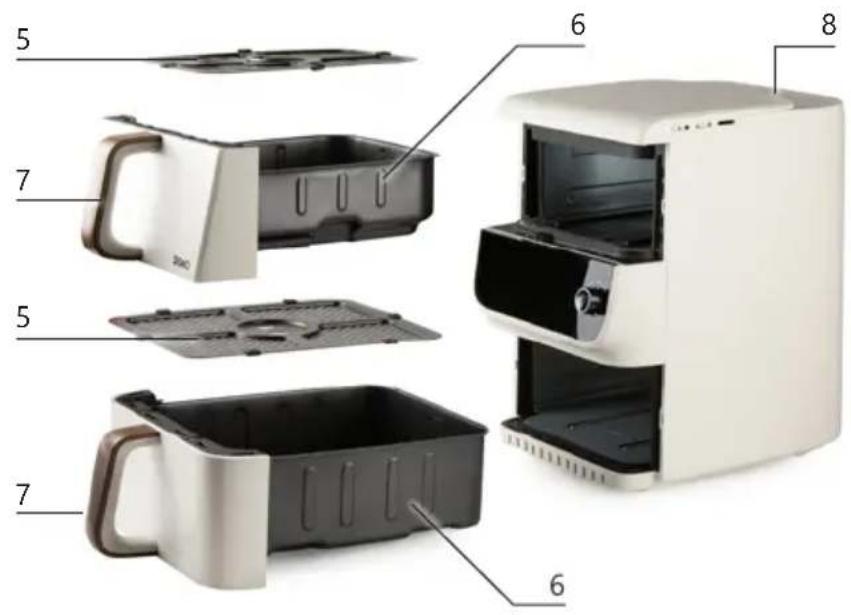

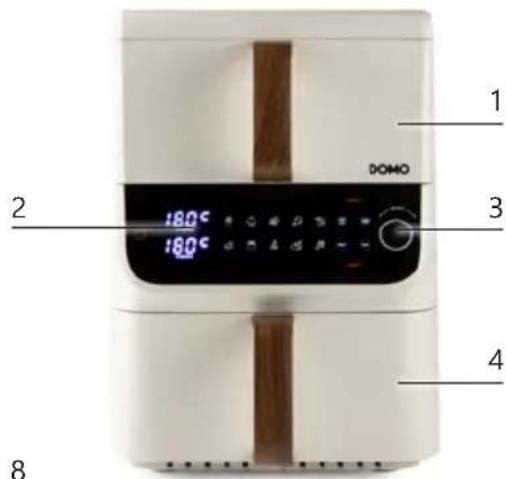

PARTS

1. Upper tray
2. Control panel with display
3. Control button
4. Bottom tray
5. Cooking grille
6. Frying basket
7. Handle
8. Air outlet openings
9. Air inlet opening

1 DOMO 2 180°C 180°C 3 4 8

Exploded view diagram of a food air fryer with labeled parts in Chinese

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

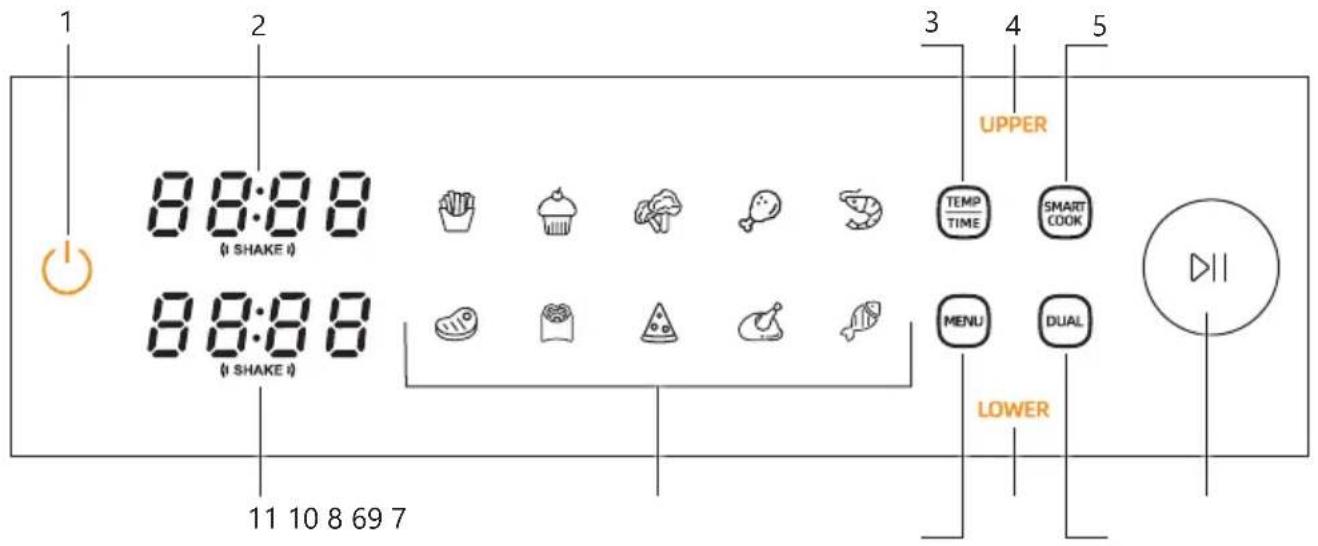

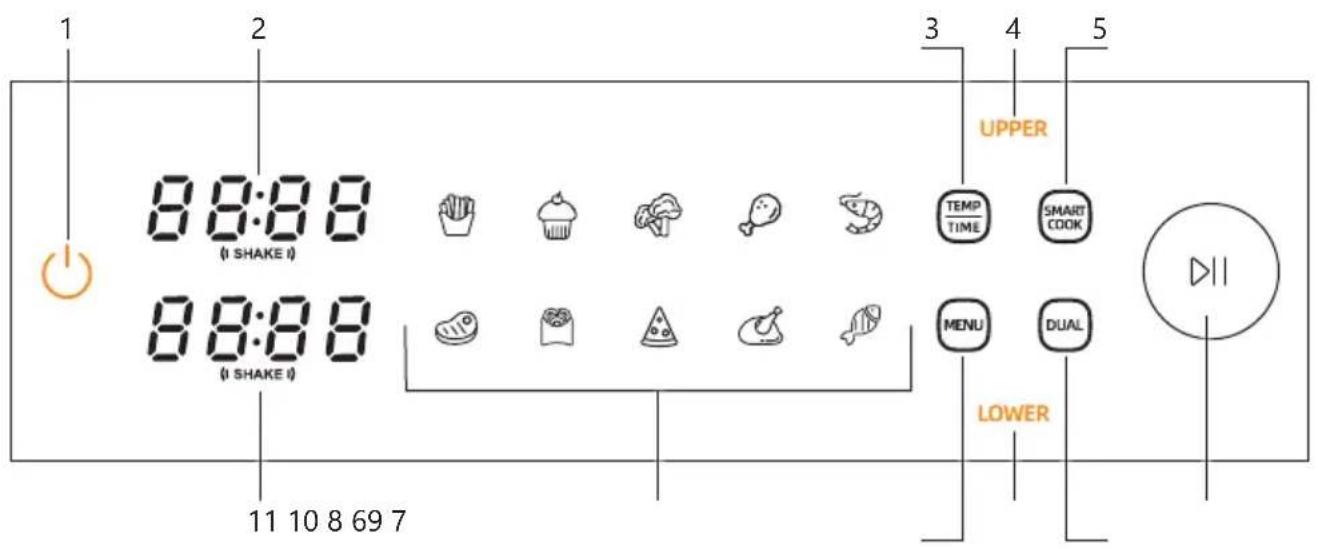

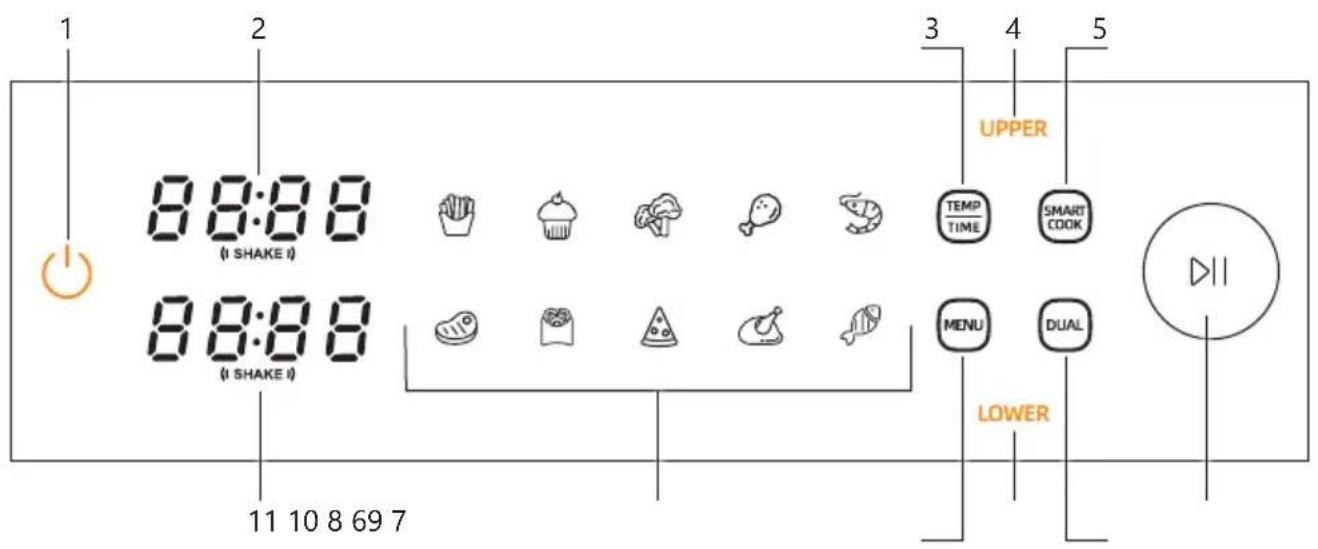

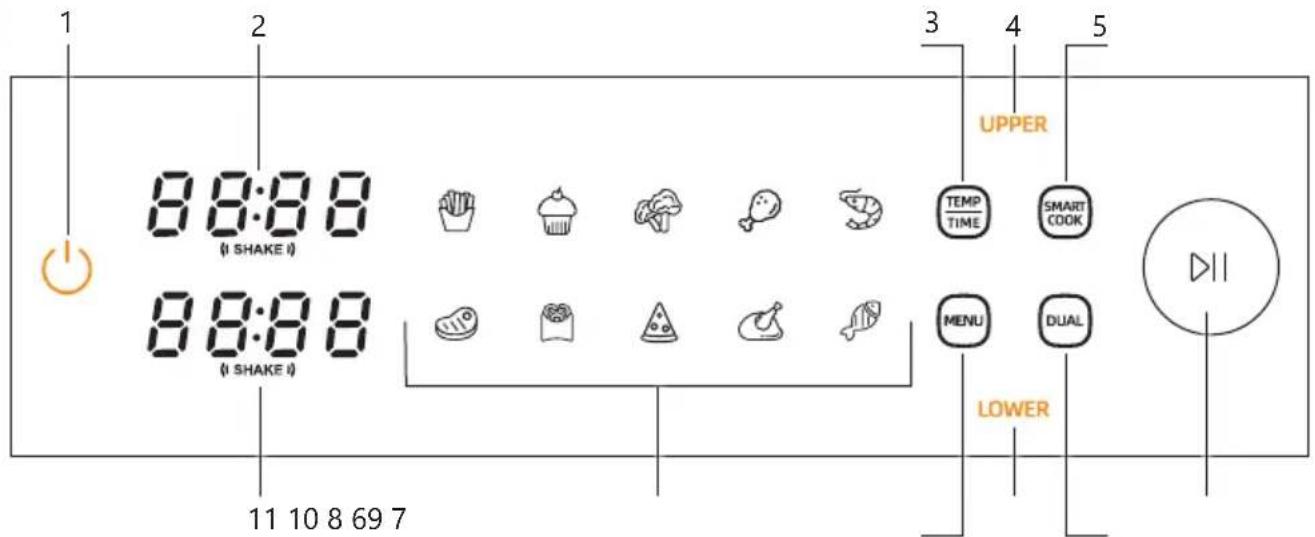

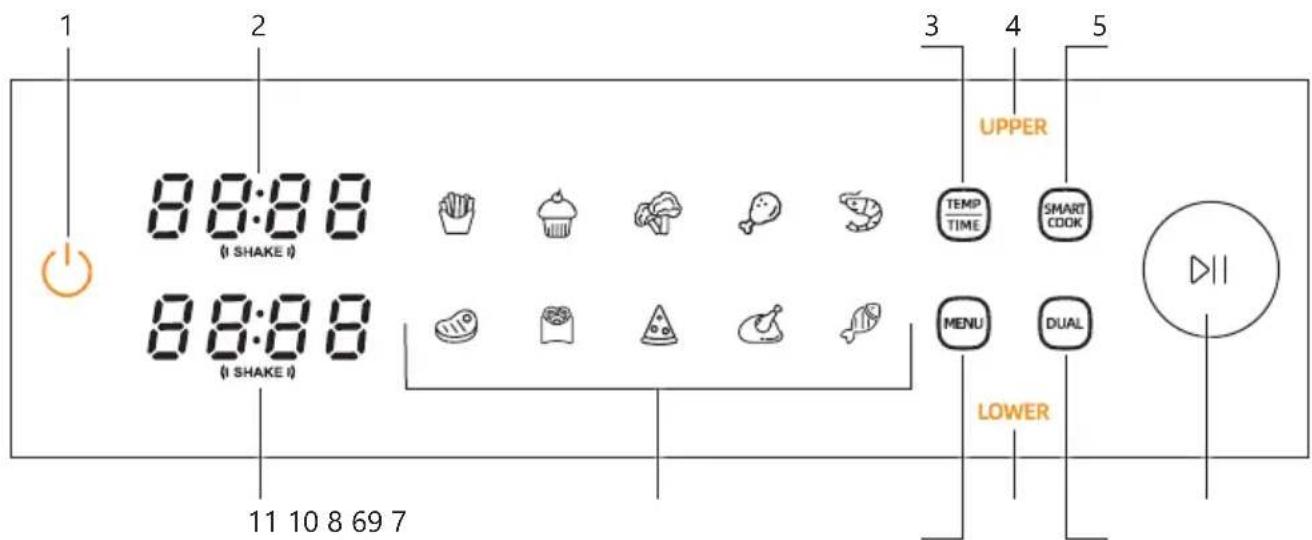

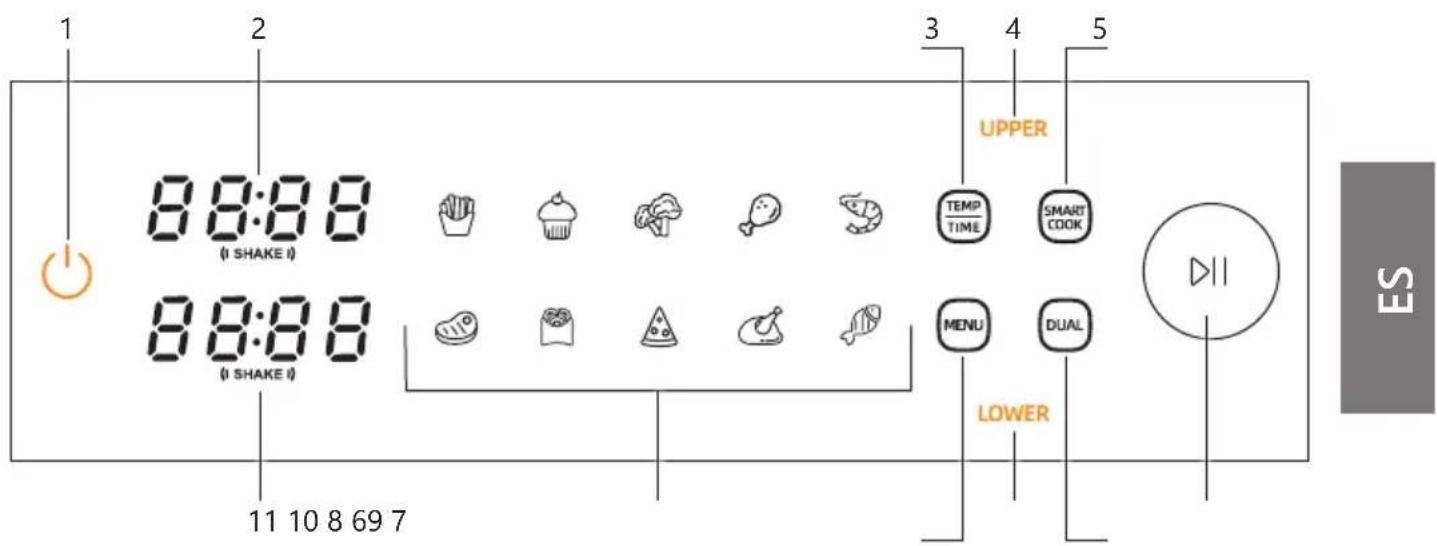

CONTROL PANEL

1 2 3 4 5 UPPER TEMP TIME SMART COOK 88:88 (I SHAKE I) 88:88 (I SHAKE I) 11 10 8 69 7 MENU DUAL LOWER DII

1. Power button
2. Top tray display
3. Temperature/timer setting
4. Upper cooking drawer control knob
5. Smart cook: button to stop both drawers cooking at the same time
6. Control knob: selection rotary knob and start/pause push button
7. Dual: button to set both drawers with the same settings
8. Lower cooking drawer control knob
9. Menu button to select automatic programme
10. Indicator lights for programs
11. Bottom tray display

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  Do not remove the rubber pads on the fryer grille. These are part of the device and hold the grille in place.
• Clean the frying baskets and grilles with warm water, washing up liquid and a non-abrasive sponge. These parts are also dishwasher safe.
• Wipe the inside and outside of the air fryer clean with a soft cloth.
  ⚠️You may never add any frying oil or fat in the frying baskets.

USE

1. Place the appliance on a flat, stable and heat-resistant surface. Make sure that there is at least 30 cm of free space around the appliance.

2. Make sure the grilles are placed in the frying baskets. Push the grille into place so that it sits level on the bottom.

⚠️Do not place any oil or fat in the frying baskets.

1. Slide the empty frying baskets with grille into the air fryer. Make sure the small tray is placed at the top and the large tray at the bottom.

⚠️ Never use the frying baskets without the grille inside.

1. Plug the power cord into a socket. A beep indicates that the device is in standby mode.

2. Remove the frying basket from the appliance. Place the ingredients in the frying basket with the grille. Do not overload the basket so that the ingredients do not touch the heating elements. Make sure that there is a minimum of 2 cm distance between the ingredients and the heating elements.

3. Put the filled basket back in the device.

4. Press the on/off button to make the desired settings.

5. Press the control button of the desired tray: "UPPER" or "LOWER".

6. Press temperature/timer setting to set the desired temperature and timer. Successively pressing this button will display the temperature or cooking time of the selected tray.

7. Set the desired temperature using the selection dial. This ranges from 80 to 200°C. Turn left to decrease the temperature, turn right to increase it. Then press temperature/timer setting to move to cooking time.

8. Select the desired cooking time using the selection dial. The timer can be set from 1 to 60 minutes. Turn left for less time, turn right to increase the time.

9. If you want to use the other cooking tray as well, press the control button of the corresponding tray ("UPPER" or "LOWER") and set the temperature and cooking time as described above.

10. Press the start/pause button to start. The set timer and temperature appear alternately on the display of the selected drawer(s).

⚠️ You can pause the appliance if you want to add/remove ingredients during use or if you want to adjust the temperature or timer. Press the start/pause button. The temperature/cooking time display will flash to indicate that the appliance is paused. Afterwards, if you want the device to continue working, press the start/pause button again.

1. You can take the frying basket out of the appliance in between to shake up the ingredients or to check how fried your food is. The device will stop working automatically, the display shows "OPEN". The appliance simply resumes working when you slide the frying basket back into the appliance (unless the set time has elapsed).

When both cooking drawers are in operation, they both stop working when one of the drawers is removed from the appliance. Both drawers will continue to work when both drawers are pushed back into place.

1. "OFF" appears in the display of the corresponding drawer(s) after the cooking time has elapsed. The appliance fan will stay on for a short period and then switch off automatically. A beep will sound 5 times to indicate the device is switched off. You can also turn it off earlier by pressing the power button. The appliance fan stays on for a short time before it turns off.

2. Remove the frying pans from the appliance and place it on a heat-resistant holder. You can gently shake the preparation into a bowl or remove it from the frying basket with heat-resistant tongs that won't scratch the non-stick coating of the frying basket.

⚠️ Be careful when shaking out the tray. Excess fat may leak out.

SMART COOK: BOTH TRAYS STOP COOKING AT THE SAME TIME

Use this function to set the timer so the preparations (with different cooking time and temperature) will be ready in the two cooking trays at the same time. Place food in both trays from the start.

1. Press "UPPER" and set the desired temperature and timer.
2. Press "LOWER" to adjust the desired settings there.
3. Press the SMART COOK button so that both drawers stop cooking at the same time.
4. Press the start/pause button. The cooking tray with the longest cooking time will start first. The display shows "Hold" for the other tray. This drawer will start up automatically when the timer

reaches the point that both drawers will finish at the same time. An audible signal will sound 5 times to indicate that the 2nd drawer has started.

1. When finished, an audible signal will sound 5 times, the air fryer will ventilate for a while, and then it will switch itself off automatically.

DUAL: BUTTON FOR SETTING BOTH SIDES IDENTICALL

Press this button if you want to use the appliance with the same setting for both baking trays. By pushing this button, you ling both trays to each other. If you do this, the desired settings only have to be chosen once. Now press the start button.

When the "UPPER" or "LOWER" button is pressed after selecting the DUAL button, the DUAL function is cancelled and the 2 cooking drawers will again operate independently.

SHAKE FOOD REMINDER

The appliance is equipped with a function that reminds you to shake the food in the air fryer during use to obtain an even frying result. Halfway through the frying process, the "SHAKE" symbol will light up on the display to remind you to shake or turn the food in the air fryer. An audible signal will also sound. If you do nothing, the symbol will remain lit.

The appliance does not pause automatically, it will only pause if you briefly remove the frying basket from the appliance. It will continue working (if the timer is still running) once you slide the basket back into the appliance.

COMMENTS

- You can briefly remove one of the drawers from the appliance during the cooking time to shake up the ingredients or check the cooking. The unit will automatically stop working, and "OPEN" will appear on both displays. The appliance will resume operating as normal when you slide the frying basket back into the appliance (if the set time has not yet elapsed). The unit will not continue to operate while one of the drawers is removed from the unit.

- An acoustic signal is emitted for each setting you set on the device.

- You can adjust the set temperature or time at any time while the unit is in operation.

- Excess oil is collected in the frying basket.

- If your food is not ready after the set time has elapsed, you can always switch the appliance back on for a few minutes.

- After the appliance has been switched off, it will continue to run for a while to cool down. "End" appears on the display. Then a beep sounds to indicate that the appliance is now completely off.

- There is no need to preheat the appliance. You can add three minutes to the desired baking time if necessary for frozen products.

- If you just want to warm something up in the air fryer, you can set it to 150^ for 10 minutes.

AUTOMATIC PROGRAMS

The device has 10 automatically set programs. To set one of these, first select the desired drawer by pressing "UPPER" or "LOWER" (or "DUAL" for both drawers together) and then press the MENU button until you have selected the desired programme (the indicator light of the selected programme will flash). If you wish, you can use the temperature/timer setting to adjust the temperature or timer a little more in the selected programme. ress the start/pause button to activate this program.

After the baking time has elapsed, a beep will sound 5 times and "End" will appear on the display. The appliance will continue to ventilate for a while and then switch off automatically.

fries pastry vegetables						party snack	pizza chicken		fish
18 min.	50 min.	12 min.	20 min.	15 min.	16 min.	8 min.	8 min.	40 min.	12 min.
200 °C	150 °C	160 °C	200 °C	160 °C	200 °C	200 °C	180 °C	190 °C

These programmes are only given as an indication. The results depend on the size, shape and amount of the food.

IMPORTANT FRYING TIPS

• It is recommended to shake the fries every 5 minutes, so that they are baked evenly. This also applies to other, smaller snacks that cover each other when they are inserted in the grille.
• You can add a table spoon of oil for a crunchier result, for instance olive oil, sunflower oil or groundnut oil. Mix this oil well with the raw fries before placing the fries in the grille. Other ingredients can be sprayed with oil or coated with oil with a brush. Always make sure that there is no excessive oil added in the grille or frying pan. Do not use too much oil. Then the fries will become less crisp and greasy.
• Put fresh, raw fries in water for 30 minutes before frying them, so that the starch of the potatoes is washed away. Dry them thoroughly afterwards.
  • Do not cook very greasy foods in this air fryer.
• When you are preparing greasy ingredients, white smoke might come out of the appliance. However, this does not affect the operation of the appliance or the end result. Also when the air fryer is not properly cleaned, or if any oil is left behind in the frying pan, white smoke might develop.
  • Snacks that can be cooked inside an oven can also be cooked inside this air fryer.
• Smaller quantities are fried more evenly than larger quantities.
  • Thinner fries will be crispier than thicker fries.
• Place a baking tin or oven tray on the grille if you want to make a cake or quiche, or fragile or stuffed ingredients.
  • You can also use this air fryer to reheat ingredients. Set the air fryer to 150^ C, for 10 minutes.
• Ingredients that need to be cooked at the same temperature can be placed inside the basket together and cooked together.
  • Frozen products do not need to be thawed beforehand.
• You can use baking paper or aluminum foil or trays in the grille of the air fryer, but do be very careful when you do this. Do not cover the whole bottom of the grille. The air should be able to circulate well through the appliance, the grille and the ingredients. Also, there should be enough food on the paper or foil, so that it stays in place. Otherwise, the strong air flow will cause the paper or foil to be sucked into the heating elements, which could cause fire. Make sure that the baking paper or aluminum foil is larger than the food itself. However, the paper or foil should not come out of the grille.
• Oven snacks always give the best, crispiest result. But also frozen snacks suitable for a regular air fryer can be fried in this appliance.

BAKING TIMES AND TEMPERATURES

The table below holds a few guidelines for cooking and frying different ingredients. Caution: these are merely guidelines. The times also depend on the quantity and thickness of the food. Also always take into account the above mentioned frying tips.

Fries, fresh first 18 min. 140°C
	then 12 min. 180°C
Fries, frozen 12-20 min. 200°C
Potato wedges 18-22 min. 180°C
Croquettes 15 min. 185°C
Cheese croquettes, frozen 12 min. 180°C
Chicken nuggets, fish sticks and other snacks 6-10 min. 200°C
Chicken fillet 15 min. 200°C
Chicken schnitzel, frozen 12 min. 180°C
Steak	8-12 min. 180°C
Fish	10-15 min. 180°C
Mushrooms	3-4 min.	180°C
Spring rolls	8-13 min. 200°C
Drumsticks 15-20 min. 180°C
Meatballs	6 min.	180°C
Hamburger	6-10 min. 180°C
Satay	10 min. 190°C
Prawns	6 min.	180°C
Egg, boiled hard	12 min. 160°C
Egg, boiled soft	6-7 min.	160°C
Vegetables	15 min. 200°C
Vegetable fries - hard	10-13 min. 200°C
Vegetable fries - soft	7 min.	200°C
Apples	7 min.	180°C
Banana	7 min.	200°C
Puff pastry snacks	10 min. 180°C
Ready to bake bread rolls	7 min.	200°C
Cake	20 min. 165°C
Muffins	15-20 min. 160°C

CLEANING AND MAINTENANCE

• Clean the appliance after each use.
• Do not use any metal or abrasive cleaning products. These could damage the appliance.
• Unplug the appliance.

• Let the appliance cool down for at least 30 minutes before moving or cleaning it.

• Wipe the outside of the appliance clean with a damp cloth.

• Clean the frying pan and grille with warm water, some washing-up liquid and a non-abrasive sponge. The frying baskets and grilles are dishwasher safe.
• Clean the inside of the appliance with warm water and a soft sponge.
• Clean the heating element with a brush to remove any food residues.
• Dry all parts thoroughly.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not work. • Check if the appl	iance is connected to a working power socket.• Check both baking trays are fully inserted in the appliance. If not, the appliance will not operate.• Set the desired timer or temperature and then press the start/pause button.
The ingredients in the air fryer are not cooked. •	Place fewer ingredients in the air fryer. Smaller portions ensure a more even baking result.• Increase the timer or temperature.
The ingredients in the air fryer are not cooked evenly.	• The recommendation is to shake the food regularly in the air fryer or to turn the food.
The fried food is not crispy. • Only use preparations suitable for an oven or air fryer.• Coat the ingredients with oil for a crispier baking result.• Increase the temperature.
Smoke is coming out of the appliance during operation.	• You are using ingredients with too much oil or fat. Only use ingredients or preparations suitable for an oven or air fryer.• You used too much oil when preparing the food. Next time, use a bit less oil.• The appliance was not cleaned properly and/or there is too much oil remaining in the fryer. Clean the appliance and fryer basket thoroughly after each use.

SPECIFICATIONS

Model DO1198FR
Voltage	220-240V~ 50/60 Hz
Power 2500 W
Energy consumption standby-mode after 10 minutes 0.5 W

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

Exploded view diagram of a 3.5 air fryer with labeled parts in Chinese

PANEL DE CONTROL

1 2 3 4 5 UPPER TEMP TIME SMART COOK 8:0:00 (I SHAKE I) 8:0:00 (I SHAKE I) 11 10 8 69 7 MENU DUAL LOWER ES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Exploded view diagram of a Danish air fryer with labeled parts in English and Chinese

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

PANNELLO DI CONTROLLO

1 2 3 4 5 8:8:88 (I SHAKE I) 8:8:88 (I SHAKE I) 11 10 8 69 7 UPPER TEMP TIME SMART COOK MENU DUAL LOWER DII

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

White cylindrical device with a circular vent and label '9' pointing to its side (no text or symbols on the device itself)

5 6 7 8 5 7 6

OVLÁDACÍ PANEL

1 2 3 4 5 8:00:88 (I SHAKE I) 8:00:88 (I SHAKE I) 11 10 8 69 7 UPPER TEMP TIME SMART COOK MENU DUAL LOWER DII

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

White cylindrical device with a circular vent and label pointing to the number 9 (no text or symbols on the device itself)

Exploded view diagram of a white air fryer with labeled parts in Chinese

OVLÁDACÍ PANEL

1 2 3 4 5 8:0:88 (I SHAKE I) 8:0:88 (I SHAKE I) 11 10 8 69 7 UPPER TEMP TIME SMART COOK MENU DUAL LOWER

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
