USER MANUAL DO246SV DOMO

Black and red compact vacuum cleaner with extended arm and blue tip, isolated on white background (no text or symbols)

EN Instruction booklet Stick vacuum cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Labeled diagram of a vacuum cleaner with numbered parts and internal cross-sections

Product assembly diagram showing step-by-step installation of a 200W CECB air conditioner with labeled parts and final product photo

MUURBEVESTIGING

Product diagram of a vacuum cleaner with a 120 cm height dimension标注 (no text or symbols on the device itself)

OPLADEN

Close-up of a hand holding a black handheld device with a pen inserted, no visible text or symbols

OPMERKINGEN:

Close-up of a black vacuum cleaner with red scroll wheel and black head (no text or symbols visible)

Black cylindrical electronic device with red handle (no visible text or symbols)

Two black plastic connector components with red connectors, shown in two different states of assembly (no text or symbols visible)

Close-up of a car interior showing a red circular button and a white handle, with no visible text or symbols.

Close-up of a red and black handheld device with a circular dial indicator (no visible text or symbols)

Close-up of a red and black handheld device with circular ports and indicator lights (no readable text or symbols)

OPMERKING:

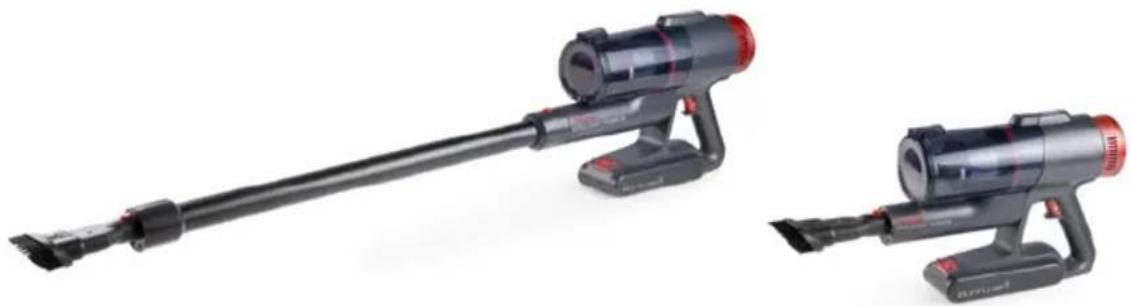

Two black vacuum cleaner units with red filter bands, shown from different angles (no text or symbols visible)

INDICATIELAMPJES

Close-up of a vacuum cleaner's pipe joint with red components, showing mechanical assembly (no text or symbols visible)

Close-up of a vacuum cleaner pouring liquid into a black container (no text or symbols visible)

Close-up of a hand holding a black vacuum cleaner with red lid, showing internal components (no text or symbols visible)

4 b c d a

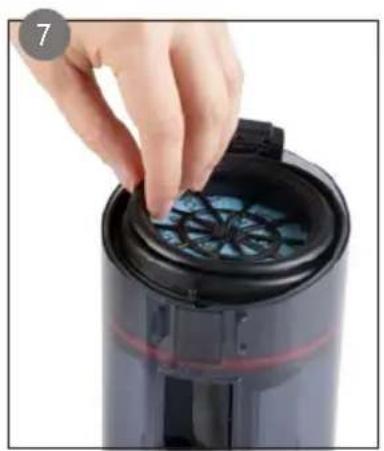

Close-up of a hand placing a blue plastic component into a black cylindrical device (no text or symbols visible)

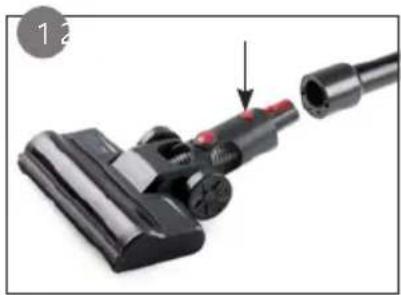

DE VLOERBORSTEL SCHOONMAKEN

Close-up of a black vacuum cleaner with red adjustment knob and cable, no visible text or symbols

Close-up of a black industrial machine component with visible cooling fan and mounting base (no text or symbols)

b a

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Labeled diagram of a vacuum cleaner with numbered parts and internal components shown in a zoomed-in view.

AVANT LA PREMIÈRE UTILISATION

Exploded view of a vacuum cleaner assembly showing internal components and parts (no text or symbols visible)

SUPPORT MURAL

Product photo of a black vacuum cleaner with attached bracket and 120 cm height dimension (no text or symbols on device body)

CHARGE

Close-up of a hand holding a black handheld device with a pen inserted, showing no visible text or symbols.

premières fois.

REMARQUES :

Black vacuum cleaner with red handle and black body (no visible text or symbols)

Black cylindrical electronic component with red handle, isolated on white background (no text or symbols)

Two black plastic clip accessories with red connectors, shown from different angles (no text or symbols visible)

Close-up of a car seatbelt mechanism with a red button and arrow indicator (no text or symbols)

Close-up of a red and black handheld device with a circular dial indicator (no readable text or symbols)

Close-up of a red and black handheld device with 'DONO' branding and circular ports (no readable text or symbols beyond branding)

REMARQUE :

Two black vacuum cleaner units with red filter bands, shown from different angles (no text or symbols visible)

LES TÉMOINS

Close-up of a vacuum cleaner's lever assembly with red adjustment points (no text or symbols visible)

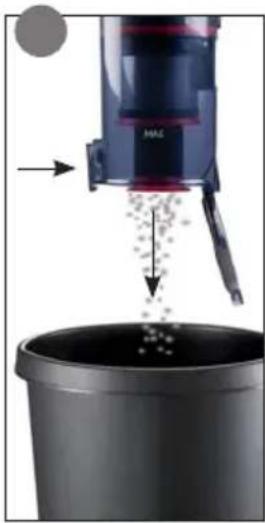

Close-up of a vacuum cleaner pouring liquid into a black container (no text or symbols visible)

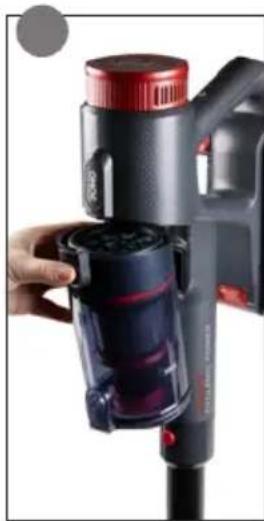

Close-up of a hand holding a black vacuum cleaner with red lid, showing internal components and handle (no text or symbols visible)

4 b c d a

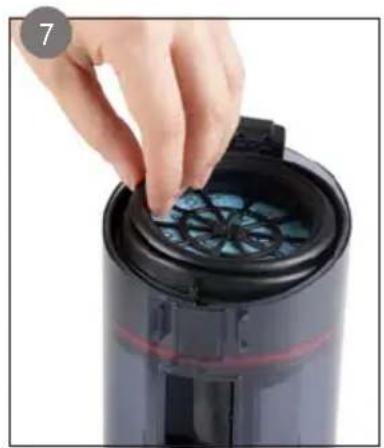

Close-up of a hand placing a blue circular component into a black cylindrical device (no text or symbols visible)

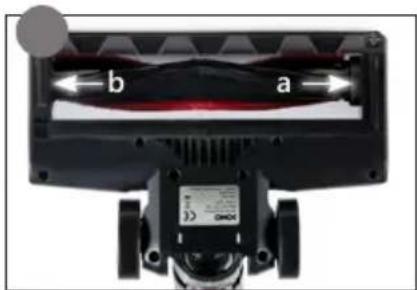

NETTOYER LA BROSSE DE SOLS

Close-up of a black vacuum cleaner with red adjustment knob and cable, no visible text or symbols

Close-up of a black industrial machine with visible internal components and a circular arrow indicating motion (no text or symbols)

b a

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Product assembly diagram showing a vacuum cleaner being inserted into a device, with close-up details of the component (no text or symbols visible)

WANDBEFESTIGUNG

Product diagram of a vacuum cleaner with a 120 cm height dimension标注 (no text or symbols on the device itself)

AUFLADEN

Close-up of a hand holding a black handheld device with a small cable inserted, no visible text or symbols

ANMERKUNGEN:

Close-up of a black vacuum cleaner with red scroll wheel (no visible text or symbols)

Black cylindrical electronic device with red handle (no visible text or symbols)

Two black plastic connectors with red adjustment knobs, shown from different angles (no text or symbols visible)

Close-up of a car seatbelt mechanism with a red button and arrow indicator (no text or symbols)

Close-up of a red and black handheld device with a circular button and indicator lights (no readable text or symbols)

Close-up of a red and black handheld device with 'DONO' branding and speaker icons (no readable text beyond branding)

ANMERKUNG

Two black vacuum cleaner devices with red filter tips, shown from different angles (no text or symbols visible)

KONTROLLLEUCHTEN

Close-up of a mechanical device with red components and a 22.2V xJ/mm2 label, showing a close-up of a pipe joint (no readable text or symbols)

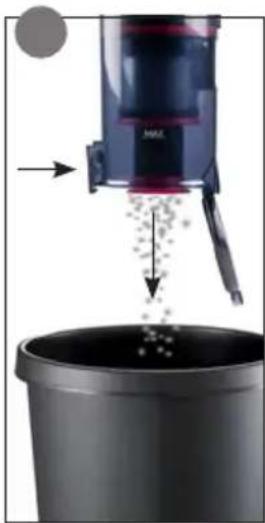

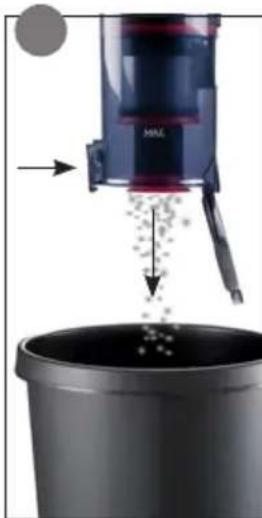

Close-up of a vacuum cleaner pouring liquid into a black container (no text or symbols visible)

Close-up of a hand holding a black vacuum cleaner with red lid and purple internal components (no visible text or symbols)

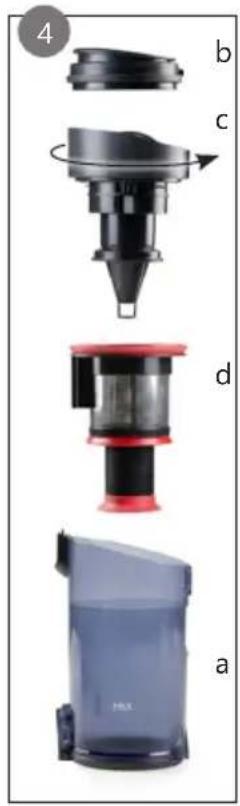

4 b c d a

Hand placing a blue petri dish into a black digital water heater (no text or symbols visible)

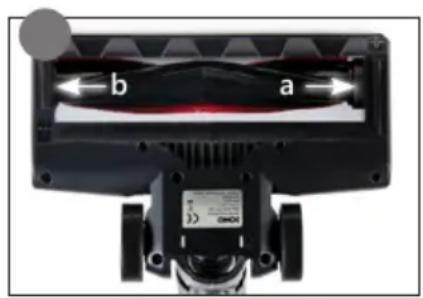

Close-up of a black vacuum cleaner with red buttons and a blue handle, showing a step indicator (no text or symbols visible)

Close-up of a black industrial fan or motor component with a circular arrow indicating rotation (no visible text or symbols)

a b

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Avoid vacuuming large objects and items that could become entangled in the brush (long hair, plastic bags, string, etc.). Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
• Never use the appliance without filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

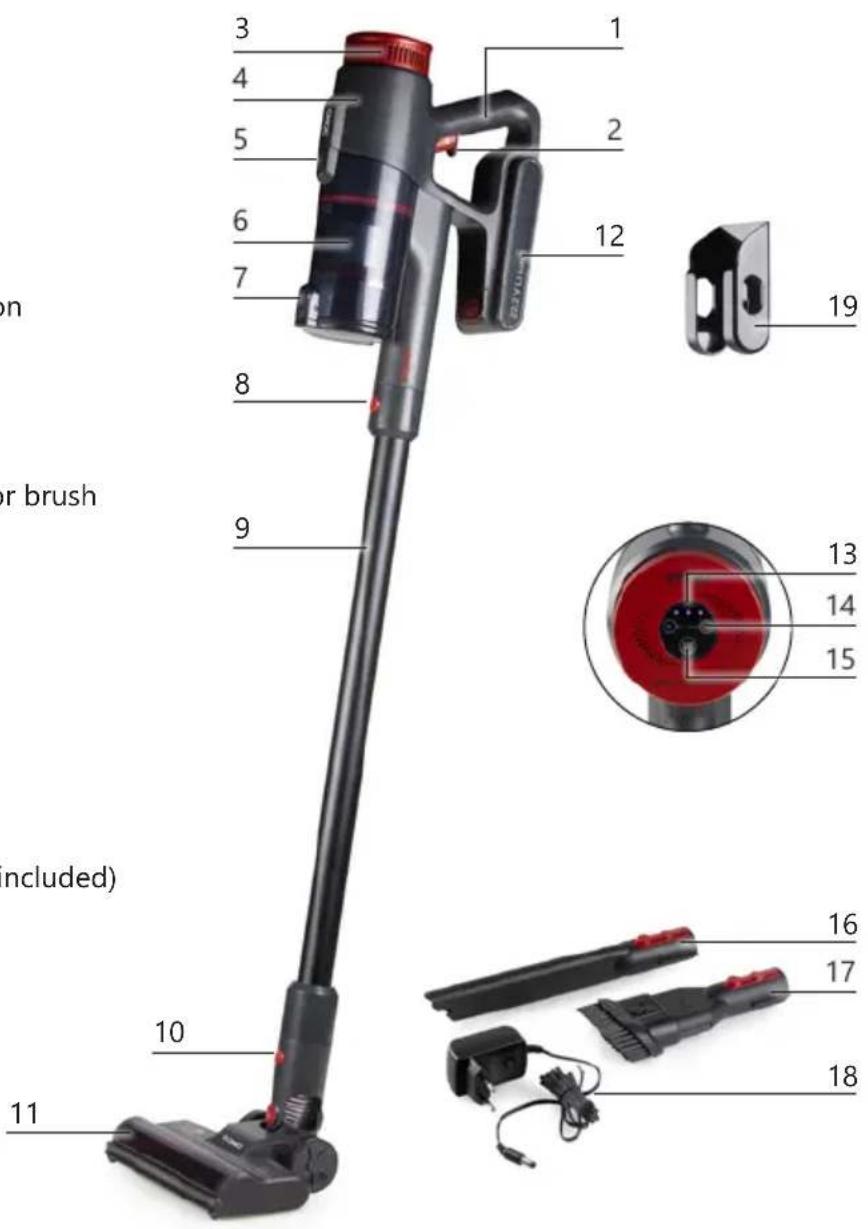

PARTS

1. Ergonomic handle
2. On/off button
3. Exhaust filter cover
4. Motor compartment

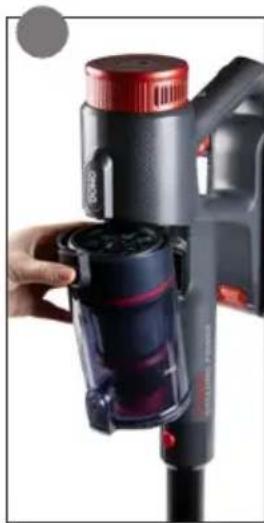

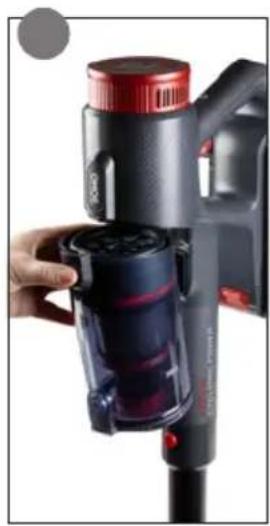

5. Dust container release button
6. Dust container
7. Dust container lid release button
8. Metal tube release button
9. Metal tube
10. Release button floor nozzle
11. Floor nozzle with rotating floor brush
12. Removable battery
13. Battery level indicator lights
14. Indicator lights (Eco/Turbo)
15. Mode button (Eco/Turbo)
16. Long crevice tool
17. 2-in-1 fabric brush
18. Adapter
19. Wall fixing (screws and plugs included)

3 1 4 2 5 6 12 7 8 9 19 or brush 13 14 15 (included) 10 16 17 18 11

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  • Assemble all the parts:

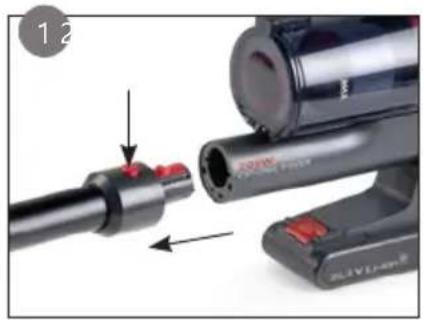

• Slide the wand assembly into the motor part until it clicks into place. Make sure the power pins slide into the intended holes properly.

• Slide the floor attachment on to the wand assembly until it clicks into place. Make sure the power pins slide into the intended holes properly.
• Slide the battery into the battery holder at the bottom of the motor part until it clicks into place.

1 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 20 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 200W CYCLEPACUMBER 20

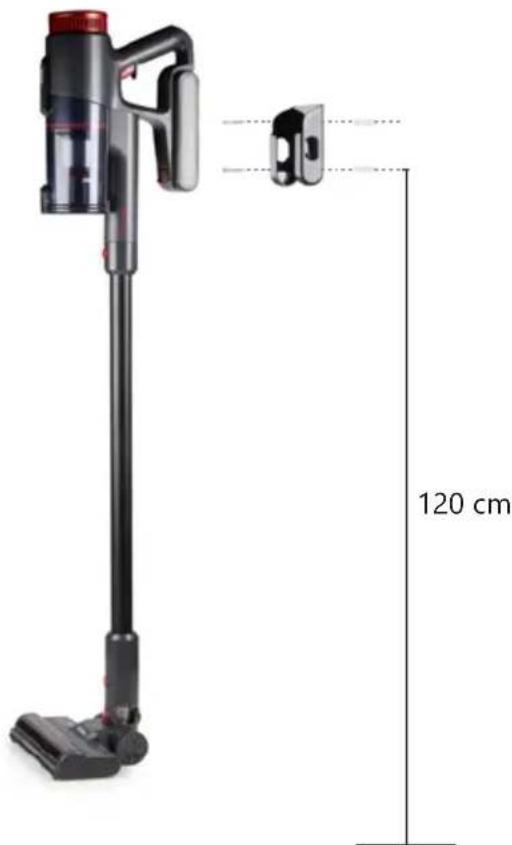

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount, whereby the bottom hole is at least 120 cm from the ground.
2. Insert the supplied plugs into the wall.
3. Fix the wall mount using the supplied screws.
4. To store the device, simply hang it on the wall mount.

Product diagram of a vacuum cleaner with a 120 cm height dimension标注 (no text or symbols on the device itself)

CHARGING

• Connect the adapter into the battery via the provided connection, and then plug the adapter into the wall socket.
• The battery level indicator lights will flash (see also "Indicator lights"). The battery is fully charged when all three lights are on.
• The machine cannot be started during charging.
• Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.
• It is recommended that the battery be fully charged for the first three charges.

Close-up of a hand holding a pen next to a black handheld device (no visible text or symbols)

NOTES:

- Battery charging may take longer under the following conditions:

• if the room temperature is higher than 30^ C ;

• if the vacuum cleaner is charged immediately after being used.

• It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.

• Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.
• The recommendation is to disconnect the battery and adapter if the vacuum cleaner is not used for more than two months. To ensure a longer lifespan, the battery must be charged at least once every two months.
• The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.

USE

1. Choose the correct accessory for the cleaning task you want to carry out:

- Floor attachment with rotating floor brush: suitable for floors and carpets. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

Close-up of a black vacuum cleaner with red buttons and black body (no visible text or symbols)

- Long crevice tool: for corners, cracks, skirting board edges and hard-to-reach places.

Black cylindrical object with red handle, possibly a battery or scanner (no visible text or symbols)

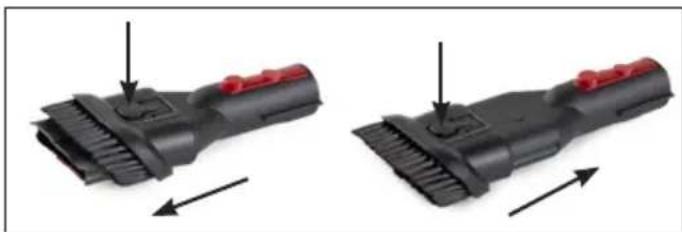

- 2-in-1 fabric brush: use on upholstered surfaces, keyboards, lamps, curtains, blinds, ventilation openings, etc. The brush offers extra friction to make it easier to loosen hair and dust stuck on fabric. Use the short crevice tool for regular cleaning of small surfaces. To switch between brush and crevice tool, press the button to unlock the brush and slide it up or down.

Two black plastic connector components with red connectors, shown in two sequential states of change (no text or symbols visible)

1. Press the on/off button. The vacuum cleaner starts working. Press again to stop.

Close-up of a car interior showing a red circular component with an arrow pointing to it (no text or symbols visible)

1. Press the mode button to switch between the two suction power levels: ECO (energy efficient) or TURBO (maximum suction power).

Close-up of a red and black handheld device with a circular indicator light (no readable text or symbols)

Close-up of a red and black handheld device with a circular button and indicator lights (no readable text or symbols)

NOTE:

The various accessories can be clicked onto the wand assembly (stick vacuum cleaner) or directly onto the motor part, without the handle (hand vacuum cleaner).

Two black vacuum cleaner units with red filter tips, shown from different angles (no text or symbols visible)

INDICATOR LIGHTS

There are indicator lights at the top of the motor part to show the battery level:

- While charging from low to high: the indicator lights will flash alternately until all three lights are on.

- During use: the indicator lights turn off alternately (from right to left) as the battery level decreases.

- The last (left) light flashes: the battery is almost empty. Turn off the vacuum cleaner and put it on charge.

- All three lights flash at the same time: the rotating floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.

CLEANING AND MAINTENANCE

CLEANING THE APPLIANCE

Clean the appliance with a slightly moist soft cloth. Dry the machine off well. Never submerge the appliance in water!

CLEANING THE DUST RESERVOIR

Clean the dust container and filters at least once a month to maintain optimal performance.

1. Disconnect the wand assembly from the motor part.
2. Hold the dust container over a rubbish bin and press the release button to open the cover. Empty the dust container.
3. Close the dust container, slide the dust container release button down, and detach the dust container from the motor part.
4. Hold the dust container (a), remove the HEPA inlet filter (b), then lift out the filter compartment (c+d). Turn the upper part anti-clockwise and pull the inner part (c) out of the outer coarse filter (d).
5. Wash all the parts under cold running water, including the dust container.
6. Allow all the parts to dry completely before reassembling them.
7. Make sure all the parts fit together nicely when assembling before clicking the dust container back into the motor part.

Close-up of a mechanical assembly showing a pipe being inserted into a cylindrical component, with red components and arrows indicating motion (no text or symbols visible)

Product diagram showing a vacuum cleaner pouring liquid into a black container (no text or symbols)

Close-up of a hand holding a black and red handheld vacuum cleaner with a blue internal component (no visible text or symbols)

4 b c d a

Close-up of a hand placing a blue petri dish into a black cylindrical device (no text or symbols visible)

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Slide the switch backwards to unlock the floor brush.
3. Gently remove any hair and dirt from around the brush; do this by hand or carefully with a knife.
4. Rinse the brush under cold running water.
5. Allow the brush to dry completely before reassembling it.
6. To refit the brush, place the right side of the brush against the gear (a) and push the left side (b) until it clicks into place.
7. Push the nozzle back onto the stick. The machine is now again ready for use.

Close-up of a black vacuum cleaner with red adjustment knob, showing mechanical assembly (no text or symbols visible)

Close-up of a mechanical device with a red laser beam and circular component, no visible text or symbols

b a

Do not immerse unit, cord, or plug in water or other liquid.
⚠️Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The machine does not start up. • The battery is empty. Charge the machine.
Loss of suction. • The filters are dirty/the dust reservoir is full.• The floor nozzle is clogged/the floor brush is blocked.• Clean the machine as described in this manual.
The rotating floor brush is not rotating.	• The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.• The floor brush is assembled incorrectly. Follow the instructions to correctly assemble the floor brush as described in this manual.
All the indicator lights are flashing simultaneously.	• The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for at least 10 minutes and contact a doctor.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Labeled diagram of a vacuum cleaner with numbered parts and internal components

Product assembly diagram showing a vacuum cleaner being inserted into a device, with close-up details and no visible text or symbols.

SOPORTE MURAL

Product photo of a black vacuum cleaner with attached bracket and 120 cm height dimension (no text or symbols on device body)

120 cm

CARGA

Close-up of a hand holding a small pen next to a black handheld device (no visible text or symbols)

Close-up of a black vacuum cleaner with red buttons and black body (no text or symbols visible)

Black cylindrical object with red handle, possibly a battery or sensor component (no visible text or symbols)

Two black plastic connector components with red adjustment knobs, shown in two sequential states (no text or symbols)

Close-up of a red car seatbelt with a white arrow pointing to the button (no text or symbols visible)

Close-up of a red and black handheld device with a circular sensor or indicator panel (no visible text or symbols)

Close-up of a red and black handheld device with speaker grille and control buttons (no readable text or symbols)

COMENTARIO

Two black vacuum cleaner units with red filter tips, shown from different angles (no text or symbols visible)

LÁMPARAS INDICADORAS

Close-up of a mechanical assembly showing a pipe fitting with red components and a close-up view of a cylindrical component (no text or symbols visible)

Close-up of a vacuum cleaner pouring liquid into a black container (no text or symbols visible)

Close-up of a hand holding a black vacuum cleaner with red lid and blue internal components (no visible text or symbols)

4 b c d a

Close-up of a hand placing a blue glass container into a black cylindrical device (no text or symbols visible)

IMPIAR EL CEPILLO DE SUELO

Close-up of a black vacuum cleaner with red adjustment knob and cable, no visible text or symbols

Close-up of a black industrial fan or motor with a red indicator light and a circular arrow pointing to it (no visible text or symbols)

a b

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Labeled diagram of a vacuum cleaner with numbered parts and internal components shown in a technical view.

PRIMA DELL'USO

Product assembly diagram showing a vacuum cleaner being inserted into a device, with close-up details (no text or symbols visible)

SOSTEGNO A PARETE

Product photo of a black vacuum cleaner with attached bracket and 120 cm height dimension (no text or symbols on device body)

CARICARE

Close-up of a hand inserting a black device into a device casing (no visible text or symbols)

NOTE:

Black vacuum cleaner with red handle and black body, isolated on white background (no text or symbols visible)

Black cylindrical electronic device with red handle (no visible text or symbols)

Two black plastic connectors with red adjustment knobs, shown from different angles (no text or symbols)

Close-up of a car interior showing a red button labeled 'S' with an arrow pointing to it (no text or symbols beyond the button)

Close-up of a red and black handheld device with a circular dial indicator (no readable text or symbols)

Close-up of a red and black electronic device with a circular display and indicator lights (no readable text or symbols)

NOTE:

Two variants of a black vacuum cleaner with red headrests, shown from different angles (no text or symbols visible)

INDICATORI LUMINOSI

Close-up of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Close-up of a vacuum cleaner pouring liquid into a black container (no text or symbols visible)

Close-up of a black and red vacuum cleaner with attached cylindrical device (no visible text or symbols)

4 b c d a

Close-up of a hand placing a black plastic container into a black cylindrical device (no text or symbols visible)

PULIRE LA SPAZZOLA PER I PAVIMENTI

Close-up of a black vacuum cleaner with red adjustment knob and cable, no visible text or symbols

Close-up of a black industrial machine with a red LED indicator and circular arrow indicator (no visible text or symbols)

b a

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Labeled diagram of a vacuum cleaner with numbered parts and internal components

PŘED PRVNÍM POUŽITÍM

Product assembly diagram showing step-by-step installation of a 200W CECB/STONER vacuum cleaner with labeled parts and final product photo.

DRŽÁK NA STĚNU

Product diagram of a vacuum cleaner with a 120 cm height dimension标注 (no text or symbols on the device itself)

NABÍJENÍ

Close-up of a hand holding a black device with a pen inserted, showing no visible text or symbols.

POZNÁMKA

Close-up of a black vacuum cleaner with red buttons and black tray (no visible text or symbols)

Black cylindrical electronic device with red buttons, isolated on white background (no text or symbols)

Two black plastic connector components with red connectors, shown in two sequential states of assembly (no text or symbols visible)

Close-up of a car seatbelt mechanism with a red button and arrow indicator (no text or symbols)

Close-up of a red and gray handheld device with circular ports and indicator lights (no visible text or symbols)

Close-up of a red handheld device with circular ports and a speaker icon (no readable text or symbols)

POZNÁMKA

Two black vacuum cleaner units with red handlebars and black body, displayed against white background (no text or symbols visible)

KONTROLKY

Close-up of a mechanical assembly showing a cylindrical component being inserted into a housing, with no visible text or symbols.

Product diagram showing a vacuum cleaner pouring liquid into a black container (no text or symbols)

Close-up of a hand holding a black and red handheld vacuum cleaner with a blue internal component (no visible text or symbols)

4 b c d a

Hand placing a blue circular component into a black cylindrical device (no text or symbols visible)

ČIŠTĚNÍ PODLAHOVÉ HUBICE

Close-up of a black vacuum cleaner with red buttons and a white handle, showing mechanical components (no text or symbols visible)

Close-up of a black industrial machine component with a circular arrow indicating motion or force, no visible text or symbols.

a b

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Exploded view of a vacuum cleaner assembly showing internal components and final assembly (no text or symbols visible)

DRŽIAK NA STENU

Product diagram of a vacuum cleaner with a 120 cm height dimension标注 (no text or symbols on the device itself)

NABÍJANIE

Close-up of a hand holding a black handheld device with a red button, no visible text or symbols

POZNÁMKA:

Close-up of a black vacuum cleaner with red buttons and black blade (no visible text or symbols)

Black cylindrical electronic component with red clip, isolated on white background (no text or symbols)

Two black plastic clip accessories with red adjustment knobs, shown from different angles (no text or symbols visible)

Close-up of a car interior showing a red button labeled 'S' with an arrow pointing to it (no text or symbols beyond the button)

Close-up of two identical red and black DOWG air purifier head designs (no text or symbols visible)

POZNÁMKA:

Two black vacuum cleaner units with red filter tips, shown from different angles (no text or symbols visible)

KONTROLKY

Close-up of a mechanical device with red components and a blue screw, showing a close-up of a cylindrical component (no text or symbols visible)

Close-up of a vacuum cleaner pouring liquid into a black container (no text or symbols visible)

Close-up of a hand holding a vacuum cleaner's device with red and black casing (no visible text or symbols)

4 b c d a

Close-up of a hand placing a blue petri dish into a black cylindrical device (no text or symbols visible)

ČISTENIE PODLAHOVÉ HUBICA

1. Vysávač obrátte a vysuňte podlahovú hubicu. Najskôr musíte stlačit' uvolňovacie tlačidlo v zadnej časti hubice, a následne hubicu odňat'.

2. Posunutím spínača dozadu odblokujte podlahovú kefu.

3. Rukou alebo nožom jemne odstráňte všetky vlasy a nečistoty z okolia kefy.

4. Umyte kefu pod tečúcou studenou vodou.

5. Pred opätovnou montážou nechajte kefu úplne vyschnút'.

6. Pri výmene kefy priložte pravú stranu kefy k ozubenému koliesku (a) a zatlačte l'avú stranu (b) na miesto, kým nezapadne na miesto.

7. Oba dva klipy po strane podlahovej hubice zacvaknite opät' dole, tak aby sa podlahová hubica zaistila.

Close-up of a black vacuum cleaner with red adjustment knob, showing mechanical assembly (no text or symbols visible)

Close-up of a black industrial machine with a red-lit interior and a circular component, no visible text or symbols.

b a

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
