USER MANUAL DO1167K DOMO

natural_image Modern espresso machine with digital display and two glass cups, accompanied by coffee beans and a waffle in the background (no visible text or symbols on main components)

NL Handleiding Espressomachine

EN Instruction booklet Espresso machine

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - ⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN - 1

text_image 13 OFF/ON 15 Espresso cool 17 Lungo 19 93°C Espresso 2 X Espresso Steam/Water 14 16 18
text_image Steam/Water

DOMO DO1167K - ⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN - 2

DOMO DO1167K - ⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN - 3

text_image 6
text_image Steam/Water 5

DOMO DO1167K - ⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN - 4

REINIGING EN ONDERHOUD

natural_image Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)
natural_image Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - ⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT - 1

text_image 13 OFF/ON 15 Espresso cool 17 Lungo 19 93°C Espresso 2 X Espresso Steam/Water 14 16 18

AVANT LA PREMIÈRE UTILISATION

text_image Diagram illustrating a water filter application process with labeled steps including tap, press, and pump components.

DOMO DO1167K - AVANT LA PREMIÈRE UTILISATION - 1

text_image 6 93°

Conseils

text_image Steam/Water

DOMO DO1167K - Conseils - 1

DOMO DO1167K - Conseils - 2

natural_image Simple line drawing of a handheld device with a handle and arrow indicator (no text or symbols)
text_image 3 Steam/Water 5

DOMO DO1167K - Conseils - 3
natural_image Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)
text_image Labeled diagram of a coffee machine with numbered parts and control panel

DOMO DO1167K - Conseils - 4

text_image 13 OFF/ON 15 Espresso cool 17 Lungo 19 93°C Espresso 2 X Espresso Steam/Water 14 16 18
text_image 1 2 2-cup filter 1-cup filter

DOMO DO1167K - Conseils - 5

text_image 6 93

Tipps

text_image Steam/Water

DOMO DO1167K - Tipps - 1

DOMO DO1167K - Tipps - 2

natural_image Simple line drawing of a handheld device with an arrow pointing to it, no text or symbols present.

HEISSWASSERFUNKTION

text_image Steam/Water 5

DOMO DO1167K - HEISSWASSERFUNKTION - 1

DOMO DO1167K - HEISSWASSERFUNKTION - 2

text_image 8 OFF ON
natural_image Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

+32 14 21 71 91 info@linea2000.be

DOMO DO1167K - HEISSWASSERFUNKTION - 3

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

  • Read all instructions carefully.
    • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.
  • This appliance is only suitable for use in domestic and similar environments, such as:

  • staff kitchen areas in shops, offices and other working environments;

  • farm houses;
  • by clients in hotels, motels and other residential type environments;
    • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

  • Do not operate the appliance with wet hands.
  • The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

  • To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
  • Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

  • Do not overfill the appliance. Never add water above the maximum level marked on the water tank.
  • Do not spill any liquid on the connector.
  • Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.
  • Do not remove the portafilter or the water reservoir while making coffee or steaming milk.
  • Caution should also be taken while removing the porta-filter since the metal parts will be hot.
  • The steam from the steam nozzle is hot. Be careful not to get burned.
  • Only touch the appliance by its buttons and handles. Other surfaces may become hot during use.
  • Never use the appliance without water.
  • Turn off the appliance before removing the water reservoir.
  • The top of the appliance can be used as a cup warmer. This plate gets hot when in use. Do not touch it.
  • Do not place the unit in a cabinet when in use.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

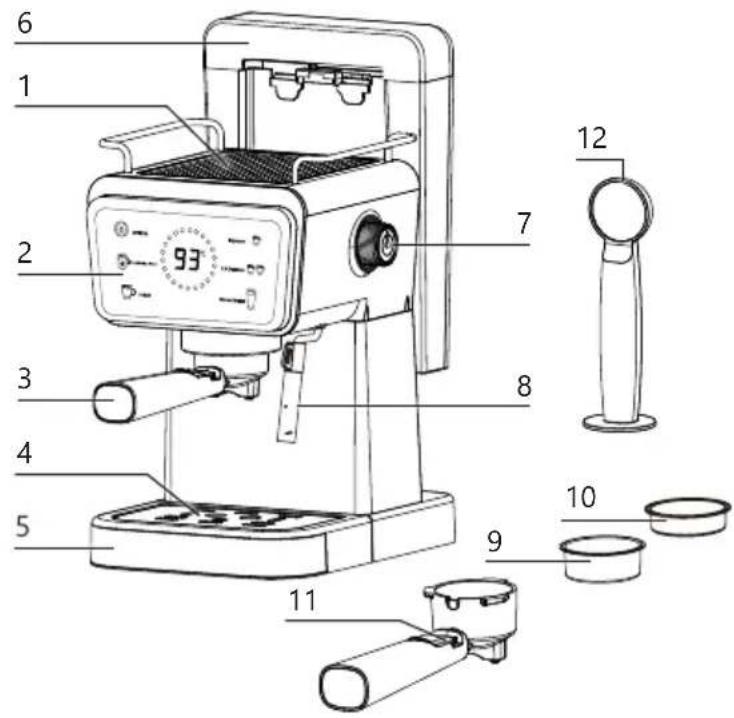

PARTS

  1. Cup warmer
  2. Control panel
  3. Portafilter
  4. Drip tray grille
  5. Drip tray
  6. Water reservoir
  7. Rotary knob (steam/water)
  8. Steam nozzle
  9. Large filter
  10. Small filter
  11. Retainer clip portafilter
  12. Measuring scoop with tamper

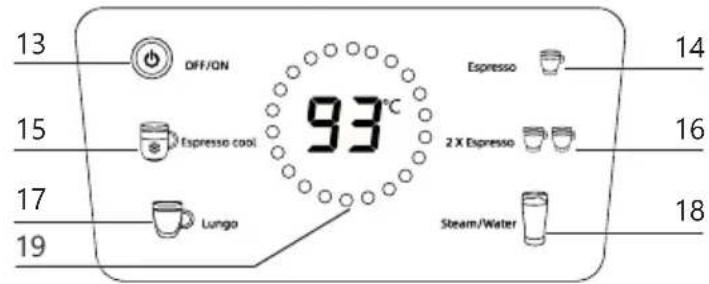

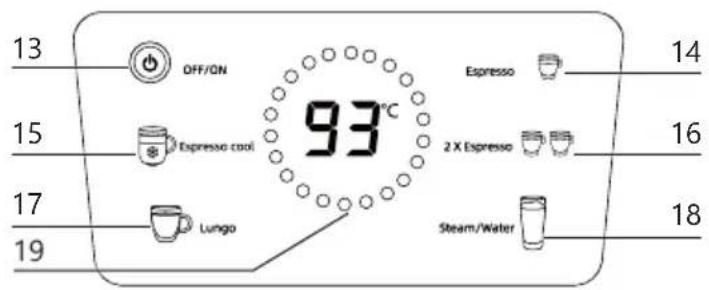

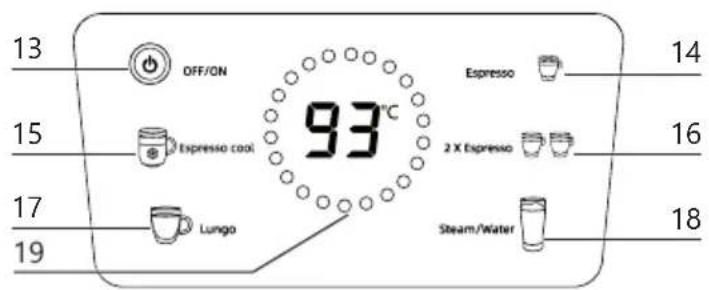

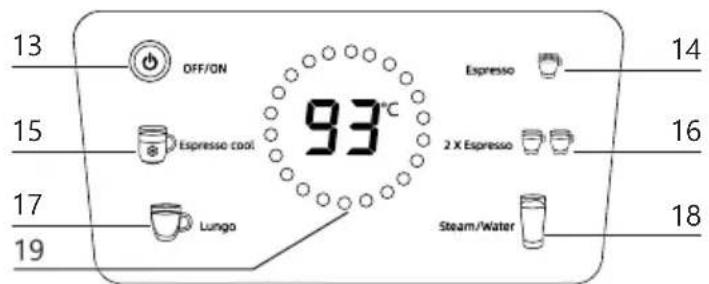

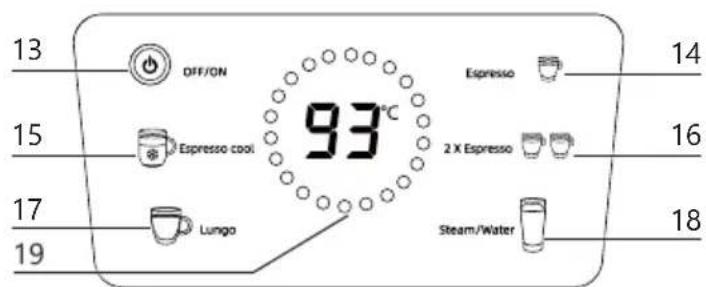

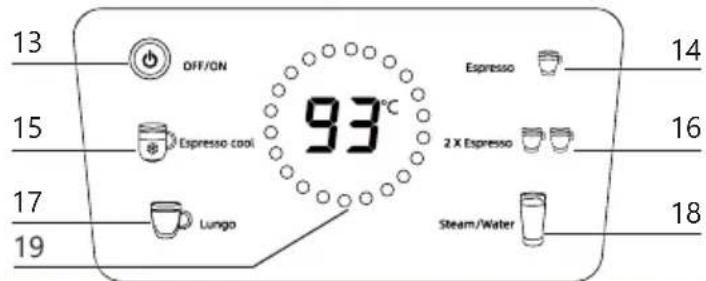

CONTROL PANEL

  1. On/off button
  2. Espresso button
  3. Dual espresso button
  4. Lungo button
  5. Steam/hot water button
  6. Temperature display

  7. Iced coffee "Espresso cool" button

DOMO DO1167K - CONTROL PANEL - 1

text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - CONTROL PANEL - 2

text_image 13 OFF/ON 15 Espresso cool 17 Lungo 19 93°C Espresso 2 X Espresso Steam/Water 14 16 18

BEFORE THE FIRST USE

  • Remove all packaging materials and any promotional stickers.
  • Check that all accessories for the device are present and that the unit is not damaged.
  • Flush out the pipes. First, allow the water to run through without adding ground coffee to the filter of the portafilter. See section: 'use/coffee'. Afterwards, throw away the water.
  • Flush out the steam nozzle. See section: 'use/hot water feature'. Afterwards, throw away the water.
  • Clean all parts with a moist cloth.

USE

COFFEE

  1. Fill the water reservoir with the desired amount of water. Make sure if the level is within the 'MIN' and 'MAX' indicators on the reservoir. The reservoir is removable. Open the lid; lift the reservoir out of the appliance to fill it and then carefully place it back in the appliance.

  2. Plug the power cord into a socket. Make sure that the steam knob is in the off position. Press the on-off button. The display shows the appliance's current temperature.

  3. Select the desired filter: the small filter for an espresso or a Lungo, the large filter for 2 cups, iced coffee or a double espresso. Place the filter in the portafilter. Make sure the dot on the filter is aligned with the groove in the portafilter.

  4. Fill the filter with fresh, finely ground espresso coffee using the measuring spoon (1 scoop for the small filter, 2 scoops for the large filter). Press the ground coffee firmly and evenly using the presser on the back side of the measuring spoon. Remove any excess coffee from the edge. We recommend you fill the filter to 3 ~mm from the edge.

  5. Place the portafilter under the brew group. Hold the handle so that it connects correctly to the open-lock symbol on the appliance and fits into the groove. Turn it slowly to the right, to the closed-lock symbol on the appliance.

  6. Place 1 or 2 cups on the drip tray underneath both spouts.

  7. Press the button for the desired type of coffee. The image on the display flashes as the appliance heats up and makes your selected choice. You will hear a signal as soon as your coffee is ready.

  8. Remove the portafilter from the appliance. Place the retainer clip against the filter and bang the coffee grounds out of the filter. Clean the portafilter and filter and dry it off for the next use.

It is recommended to rinse the water tank each time before putting it back into the appliance. Turn the dial to 'ON' and run water through the steam nozzle for 5 seconds. Then turn the dial back to 'OFF'.

DOMO DO1167K - COFFEE - 1

text_image Illustration showing five steps of a water filter application: tap, press, 2-cup filter, 1-cup filter, and digital device.

DOMO DO1167K - COFFEE - 2

text_image 6 93°

Tips

- A clean coffee maker is essential to make great tasting coffee. Clean the appliance regularly according to the guidelines. Always use fresh, cold water in the coffee maker.

• Store coffee in a dry and cool place.

- The drip catcher can be removed to fit a large cup under the portafilter.

• Always make sure that the ground coffee is evenly spread out in the filter. This improves the permeation effect.

- Pressing the ground coffee with the tamper is an important process and affects the flavour of your espresso. If the coffee is firmly pressed, the water will flow through more slowly and you will get a stronger flavour with more cream.

- To achieve the optimal coffee temperature, we recommend that you heat up the unit and the cup. Use the same method as for preparing coffee, but do not add ground coffee to the filter of the portafilter. Keep your cups above the unit, which acts as a cup warmer.

ICED COFFEE

DOMO DO1167K - ICED COFFEE - 1

Espresso cool

The unit has to be cold in order to prepare iced coffee. Let it cool down first if you just made a hot cup of coffee. Wait 15 minutes. Next, run cold water through the steam nozzle to cool the boiler. Switch on the unit, place a cup under the steam nozzle and turn the dial to the (ON) position. Allow ±2 bags of water to flow and turn the dial back to the (OFF) position. The unit is now ready for use.

Add ice cubes to the water tank. Follow the usual steps for preparing coffee as described under use. For preparation, select "Espresso cool".

STEAM NOZZLE

You use the steam nozzle to froth milk to achieve the perfect cappuccino or latte.

  1. Fill the water reservoir.
  2. Insert the plug in the power socket. Make sure that the steam dial is in the off position. Press the on/off button.
  3. Fill a jug with cold, full-cream milk. (±100 ml milk for 1 cappuccino) Be careful not to overfill the milk jug. Frothing the milk will increase its volume.
  4. Briefly press the steam/hot water button. The image will blink on the display while the unit heats up. If the image remains visible, the unit has reached the right temperature.

  5. Point the steam nozzle over the drip tray. Slowly turn the dial to ON and wait 10 seconds or until all the water has left the steam nozzle.

  6. Turn the steam nozzle towards the milk jug. Bring the milk jug up to the steam wand and insert the steam nozzle a few millimetres into the milk. CAUTION: The steam nozzle itself and the emerging steam are hot. Do not touch the steam nozzle, use the black handle instead.

  7. As the milk expands in volume, keep lowering the jug slightly until the steam nozzle tip is just below the surface of the milk. If you insert the steam nozzle too deeply into the milk, it heats the milk but does not froth air into the milk and no foam will form.

⚠️Do not use the steam feature for more than 5 minutes at a time.

  1. When you obtain the desired amount of foam, turn the rotary knob to the off-position.

  2. Clean the steam nozzle after every use.

⚠️ATTENTION: the steam nozzle may still be really hot.

DOMO DO1167K - STEAM NOZZLE - 1

text_image Steam/Water

DOMO DO1167K - STEAM NOZZLE - 2

DOMO DO1167K - STEAM NOZZLE - 3

natural_image Simple line drawing of a handheld device with an arrow pointing to the handle (no text or symbols)

HOT WATER FEATURE

  1. Fill the water reservoir. Insert the plug in the power socket and press the on/off button.

  2. Place a cup under the steam nozzle.

  3. Press and hold the steam/hot water button for 5 seconds. The image will blink on the display while the unit heats up. If the image remains visible, the unit has reached the right temperature.

  4. Turn the rotary knob (steam/water) to ON. Hot water will flow from the steam nozzle.

DOMO DO1167K - HOT WATER FEATURE - 1

text_image 3 Steam/Water 5

DOMO DO1167K - HOT WATER FEATURE - 2
  1. When you have enough water, turn the dial to the off position.

CLEANING AND MAINTENANCE

  1. Before cleaning the unit, pull the plug out of the power socket and let the unit cool down.
  2. Clean all removable parts (filters, portafilter, measuring scoop with tamper, drip tray, and grille) with clean warm water after use. Dry off the parts before putting them back.
  3. Wipe the unit housing clean with a soft, damp cloth to remove stains.
  4. Flush the unit regularly by brewing without putting ground coffee in the filter.
  5. Wipe the steam nozzle down with a soft, damp cloth. Rinse the steam nozzle after each use with hot water. You can clear the pipe opening using a needle.

Do not immerse unit, cord, or plug in water or other liquid.

⚠️Never use aggressive or abrasive cleaning agents.

DESCALING

When?

After 300 cycles, 'CA' appears on the display indicating that the appliance needs descaling. Regularly descaling ensures the quality of your coffee will be consistent, lowers energy consumption, and extends the espresso machine's working life.

How?

  1. Fill the water reservoir with water and descaling product for espresso machines up to the MAX, diluted according to the instructions on the product packaging.
  2. Place the portafilter with filter but without ground coffee in the unit.
  3. Place a collection container of at least 1.5 litres under the brew head and the steam nozzle. Remove the drip tray if necessary.
  4. Make sure the dial is set to 'OFF'.
  5. Insert the plug in the power socket, turn on the unit.

Phase 1: descaling

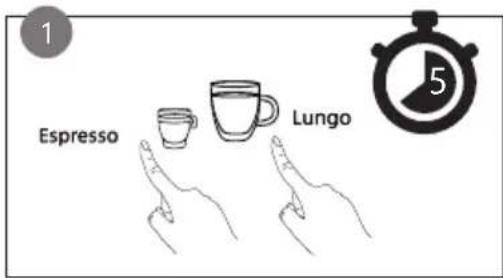

  1. Press the Espresso and Lungo buttons simultaneously for 5 seconds. The Espresso image flashes and the Lungo image is highlighted on the display. 'CA' appears on the display to indicate that the descaling process has been initiated. The appliance will first heat up, then start descaling.
  2. The descaling solution runs through the brew head first. After two minutes, the appliance stops emitting water containing descaling product.
  3. Now turn the dial to the ON position. The rest of the descaling solution now runs through the steam nozzle. This will take several minutes.
  4. When the process completes, the Lungo image flashes on the display and the Espresso image lights up. The initial stage of the descaling procedure has been completed.
  5. Empty the collection container. Now put the collection container back in.

DOMO DO1167K - Phase 1: descaling - 1

text_image 1 Espresso Lungo 5

DOMO DO1167K - Phase 1: descaling - 2

Phase 2: rinsing

  1. The unit must now be flushed with clean water to ensure no lime residue remains. Rinse the water reservoir and fill it with clean water.

  2. Turn the dial to the OFF position. While rinsing, the Espresso image is highlighted and the Lungo image flashes. The water runs through the brew head first. After a few minutes, the appliance stops and no more water is emitted.

  3. Now turn the dial to the ON position. The rest of the water is now emitted through the steam nozzle. This will take several minutes.

  4. Descaling is complete once all the water has passed through the system. You will hear a signal and all the icons will light up on the display.

  5. Turn the dial back to the OFF position and empty the collection container.

  6. Rinse the portafilter under running water. Make sure it's dry before using it again.

DOMO DO1167K - Phase 2: rinsing - 1

DOMO DO1167K - Phase 2: rinsing - 2

Procedure interrupted

If the descaling procedure is interrupted during phase 1 (descaling), unplug the unit and reinsert the plug. Start the procedure from the top.

If the descaling procedure is interrupted during phase 2 (rinsing), remove the water tank. Rinse the tank with water, fill the tank with water and return to the unit. Allow the water to run through the brew head without adding ground coffee to the filter of the portafilter.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The coffee no longer flows. • There is no water in the reservoir. Fill the water reservoir.• The ground coffee is too fine or was compressed too tightly. Empty the filter, rinse it under water and refill it with coffee.• Descale the appliance. See section: 'cleaning and maintaining/descaling'.
No or little steam comes out of the steam nozzle.• There is no water in the reservoir. Fill the water reservoir.• To use the steam feature on the appliance, you must first press the steam/hot water button before turning the dial to ON.• The steam nozzle is blocked. Descale the appliance. See section: 'cleaning and maintaining/descaling'. You can clear the pipe opening using a needle.
Water leaks underneath the appliance. • This happens when you add too much water to the reservoir. Make sure you don't overfill past the MAX indicator.• The drip tray is full of water. Empty the tray.
Water leaks past the filter.• There is ground coffee on the edge of the filter. Remove the excess coffee from the rim.
The filter is stuck in the portafilter.• Make sure the dot on the filter is aligned with the groove in the portafilter. Turn the filter until the small recess is turned to the side of the handle.
During descaling, the water is emitted first through the brew head and not through the steam nozzle.• You forgot to turn the dial to the ON position. When the water stops being emitted, switch the appliance off again and start the descaling procedure again. See section: 'cleaning and maintenance/descaling'.
The display will show 'CA'. • This indicates that the appliance needs descaling. See section: 'cleaning and maintenance/descaling'.

GUIDELINES

DOMO DO1167K - GUIDELINES - 1

natural_image Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

DOMO DO1167K - GUIDELINES - 2

The packaging is recyclable. Please treat the packaging ecologically.

DOMO DO1167K - GUIDELINES - 3

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from info@linea2000.be

GARANTIA

Estimado cliente,

text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - GARANTIA - 1

text_image 13 OFF/ON 15 17 19 Espresso 2 X Espresso Steam/Water 14 16 18 93°C

DOMO DO1167K - GARANTIA - 2

text_image 6 93

Consejos

text_image Steam/Water

DOMO DO1167K - Consejos - 1

DOMO DO1167K - Consejos - 2

natural_image Simple line drawing of a handheld device with a handle and arrow indicator (no text or symbols)
text_image 3 Steam/Water 5

DOMO DO1167K - Consejos - 3

LIMPIEZA Y MANTENIMIENTO

natural_image Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - LIMPIEZA Y MANTENIMIENTO - 1

text_image 13 OFF/ON 15 Espresso cool 17 Lungo 19 93°C Espresso 2 X Espresso Steam/Water 14 16 18

PRIMA DELL'USO

text_image 1 2 2-cup filter 1-cup filter

DOMO DO1167K - PRIMA DELL'USO - 1

text_image 6 93°

Suggerimenti

text_image 4 Steam/Water

DOMO DO1167K - Suggerimenti - 1

DOMO DO1167K - Suggerimenti - 2

natural_image Simple line drawing of a handheld device with a handle and arrow indicator (no text or symbols)
text_image Steam/Water 3

DOMO DO1167K - Suggerimenti - 3
natural_image Symbol of a trash bin crossed with diagonal lines, no text or numbers present
text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - Suggerimenti - 4

text_image 13 OFF/ON 15 Espresso cool 17 Lungo 19 93°C Espresso 2 X Espresso Steam/Water 14 16 18

PŘED PRVNÍM POUŽITÍM

DOMO DO1167K - PŘED PRVNÍM POUŽITÍM - 1

text_image 6 93

Tipy

text_image Steam/Water

DOMO DO1167K - Tipy - 1

DOMO DO1167K - Tipy - 2

natural_image Simple line drawing of a handheld device with a curved handle and arrow indicator (no text or symbols)

HORKÁ VODA Z TRYSKY

text_image 3 Steam/Water 5

DOMO DO1167K - HORKÁ VODA Z TRYSKY - 1

text_image 4 OFF ON +/跨

DOMO DO1167K - HORKÁ VODA Z TRYSKY - 2

Postup prerušen

natural_image Symbol of a trash bin crossed with two crossed lines and a black rectangle below (no text or labels)
text_image Labeled diagram of a coffee machine with numbered parts for identification and assembly reference.

DOMO DO1167K - Postup prerušen - 1

text_image 13 OFF/ON 15 Espresso cool 93°C 17 Lungo 19 Espresso 2 X Espresso Steam/Water 14 16 18

PRED PRVÝM POUŽITÍM

text_image 1 2 2-cup filter 1-cup filter

DOMO DO1167K - PRED PRVÝM POUŽITÍM - 1

text_image 6 93

Tipy

text_image Steam/Water

DOMO DO1167K - Tipy - 1

DOMO DO1167K - Tipy - 2

natural_image Simple line drawing of a handheld device with a handle and arrow indicator (no text or symbols)

HORÚCA VODA Z TRYSKY

text_image Steam/Water 5

DOMO DO1167K - HORÚCA VODA Z TRYSKY - 1

ČISTENIE A ÚDRŽBA

DOMO DO1167K - ČISTENIE A ÚDRŽBA - 1

Postup prerušený

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

DOMO DO1167K - Postup prerušený - 1

text_image QR code image containing encoded data, no visible human-readable text

Webshop

DOMO DO1167K - Postup prerušený - 2

DOMO DO1167K - Postup prerušený - 3

natural_image Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

DOMO DO1167K - Postup prerušený - 4

natural_image Two white plastic electrical connectors with ports and mounting brackets (no visible text or symbols)

DOMO DO1167K - Postup prerušený - 5

natural_image White rectangular container with black interior, no visible text or symbols

DOMO DO1167K - Postup prerušený - 6

natural_image Clear glass coffee maker with black handle and lid (no text or symbols visible)
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : DOMO

Model : DO1167K

Category : Coffee machine
