USER MANUAL DO1179SV DOMO

Exterior view of a black and purple handheld vacuum cleaner (no text or symbols visible)

EN Instruction booklet Stick vacuum cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

24 25 22 23 26 75° 27 A A 28

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

De steelstofzuiger

Diagram showing a vehicle chassis with three sequential stages of assembly (no text or labels)

Product photo of a black and purple handheld vacuum cleaner with attached-mounted device (no visible text or symbols)

Two black mechanical components with labeled parts (1 and 2), no visible text or symbols on the parts themselves.

REINIGING EN ONDERHOUD

HET TOESTEL PROPER MAKEN

Close-up of a black handheld vacuum cleaner with purple filter bands (no visible text or symbols)

Close-up of a black vacuum cleaner with purple cable strap and blue trigger mechanism (no text or symbols visible)

Technical line drawings of a cleaning machine with exploded view and internal components (no text or symbols)

PROBLEEM EN OPLOSSING

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Technical diagram showing a mechanical assembly process with an arrow indicating transformation from a component to a final device.

L'aspirateur-balai

Product photo of a black handheld vacuum cleaner with attached-mounted device (no visible text or symbols)

Two black mechanical components with labeled parts, no visible text or symbols

NETTOYAGE ET ENTRETIEN

NETTOYER L'APPAREIL

Close-up of a black and purple handheld vacuum cleaner (no visible text or symbols)

Close-up of a black handheld vacuum cleaner with purple cable strap (no visible text or symbols)

Simple line drawing of a hand pouring liquid into a bowl (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Three-line diagram showing a mechanical component with no visible text, numbers, or symbols.

Warning symbol for a trash bin with crossed and unshaded lanes, indicating no waste or discharge.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

BEDIENPANEL

Technical line drawing of a mechanical assembly with an orange arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with three sequential stages (no text or symbols)

Two black industrial vacuum cleaner units with purple and black components, shown from different angles (no visible text or symbols)

Two black mechanical components with labeled parts, no visible text or symbols

Close-up of a black vacuum cleaner with purple plastic blade and orange handle (no text or symbols visible)

Close-up of a black vacuum cleaner with purple filter bands (no text or symbols visible)

Simple line drawing of a spray gun pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.
• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.
• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.

- Never use the appliance without filters. This will damage the motor and render it unusable.

- Under extreme circumstances, there could be leakage of the battery.

• If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.
• If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.
• When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out. Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.
• If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

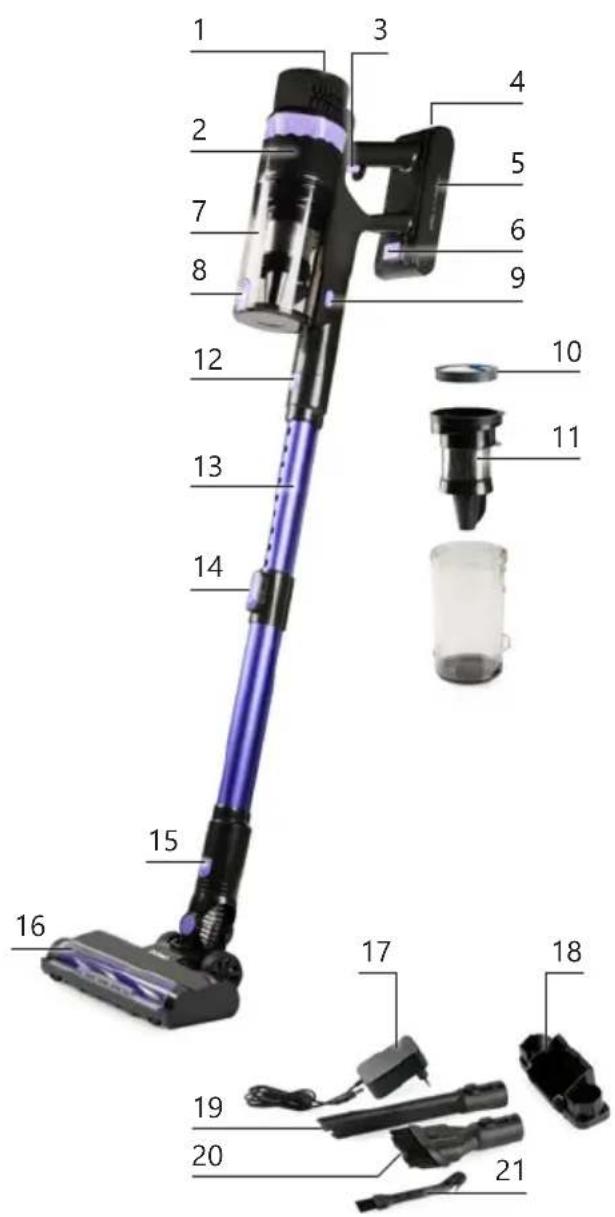

PARTS

1. Control panel
2. Motor
3. On-off button
4. Adapter connection
5. Battery
6. Release the battery
7. Dust reservoir
8. Button to open dust reservoir
9. Unlock button for dust reservoir
10. Round filter
11. Coarse dirt filter
12. Handle release button
13. Telescopic tube
14. Button for tube length
15. Release button floor nozzle
16. Floor nozzle with rotating floor brush
17. Adapter
18. Wall fixing (screws and plugs included)
19. Crevice vacuum cleaner
20. Dust brush
21. Cleaning brush

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

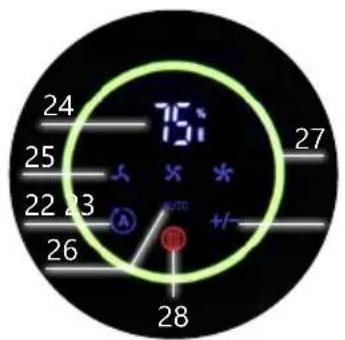

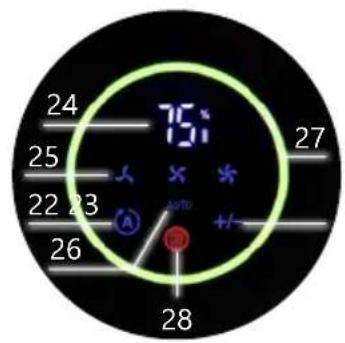

CONTROL PANEL

1. Automatic mode
2. Adjust suction power
3. Battery level indicator
4. Suction power indicator
5. Automatic mode indicator
6. Light ring indicator
7. Full dust container indicator

24 25 22 23 26 28 7:1 27 A +/-

BEFORE THE FIRST USE

ASSEMBLY

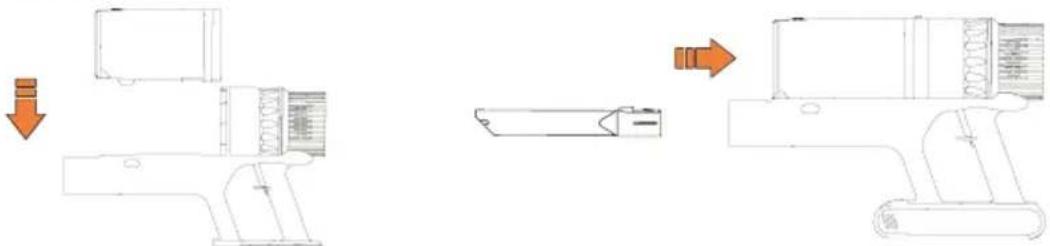

The handheld vacuum

1. Attach the dust container to the motor unit. To do this, first place the top of the reservoir into the motor unit. Then click the bottom of the dust container onto the motor unit.

2. Click the motorised floor brush, the dust brush or the crevice tool into the opening at the front of the appliance.

Technical line drawing showing a mechanical assembly before and after assembly, with no visible text or symbols.

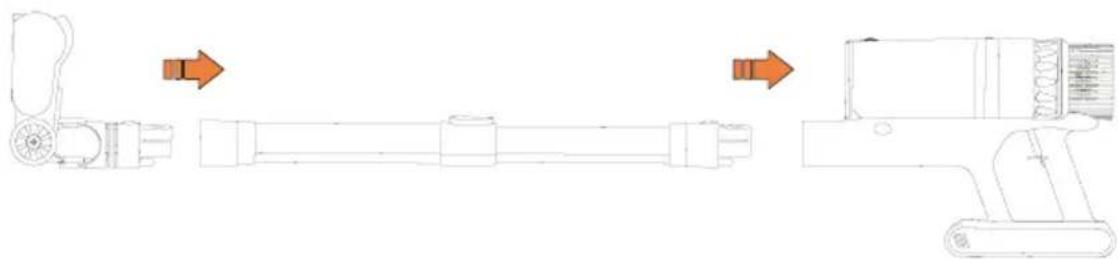

The stick vacuum cleaner

1. Attach the dust container to the motor unit. To do this, first place the top of the reservoir into the motor unit. Then click the bottom of the dust container onto the motor unit.

2. Click the vacuum wand into the suction opening at the front of the appliance. Adjust the telescopic wand to your desired length. To do this, press the button on the wand and pull the upper part to extend it. Then release the button to let the wand click into place.

3. Click the motorised floor brush, the dust brush or the crevice tool into the vacuum wand.

Diagram showing three sequential stages of a mechanical assembly: top view, side view, and final view (no text or symbols)

To disassemble the appliance, remove the following parts one by one: The floor brush (or the crevice tool or dusting brush), the wand and the dust container. To do this, press the release button and remove the relevant part by pulling firmly.

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount. Please ensure the distance between the power socket and the drill holes is no more than 1.3 metres. The minimum height for wall mounting is 1.2 metres.

2. Insert the supplied plugs into the wall.

3. Fix the wall mount using the supplied screws.

4. To store the device, simply hang it on the wall mount.

Product photo of a black handheld vacuum cleaner with purple internal components and a vertical stand (no visible text or symbols)

Please note: A mounting plate is included with the wall mount. This is so you can stick the wall mount to a wall or cupboard without the need for drilling holes. The mounting plate has a self-adhesive panel so that one side adheres to the wall mount and the other side adheres to a wall or cupboard.

1. First remove the film from one side of the mounting plate and then stick this part to the back of the wall mount. Press firmly.
2. Ensure the floor nozzle is attached to the appliance and place it in the wall mount. Allow the floor nozzle to rest on the floor.
3. Then remove the film from the other side
4. and stick the wall mount to the wall.

CHARGING

• Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery. The appliance should be charged for 4-5 hours afterwards.
• It is recommended that the battery be fully charged for the first three charges.
• The temperature while charging should be between 15^ and 25^ . Higher or lower temperatures reduce battery life.
• It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.
• Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.
• The recommendation is to disconnect the adapter if the vacuum cleaner is not used for more than two months. To ensure a longer lifespan, the battery must be charged at least once every two months.
• The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.
• First, place the device into the wall mount and connect the adapter to the device's port, before plugging the adapter into the wall socket.
• To extend the life of the battery, the appliance should be fully charged regularly and the battery should be allowed to drain.
• The appliance will warm up slightly when charging; this is normal.
• The battery symbol will flash on and off while charging. The battery percentage will increase by 5% increments until fully charged at 100%. The green circle will also gradually complete as the device charges. When fully charged, the battery symbol will stop flashing and remain lit.
• If you remove the battery from the device to charge it by pressing the battery release button and sliding it off, you will see a red indicator light flashing on and off on the battery during charging. When the battery is fully charged, this light turns blue.
• The appliance cannot be used while charging.

USE

- Press the on/off button to turn the device on. The device will start in automatic mode, meaning the sensors in the motor section will automatically detect the amount of dust to adjust the suction power accordingly. The suction power is indicated by different colours on the control panel.

- Press the +/- on the control panel to adjust the suction power/speed. A lower suction power means a longer operating time.

You can choose between the following speeds: low, medium, high.

- Press the symbol (A) to switch from any set suction power/speed to automatic mode.

- The selected setting is always clearly visible on the control panel.

- When the battery is low, the battery symbol will flash on and off on the display. The device will then switch itself off.

- The autonomy depends on the type of surface. It will work for less time on carpets than on a hard surface.

- While vacuuming, warm air will come out of the motor compartment. This is normal.

- This appliance must only be used on a dry surface. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. Dirt will collect in the container. Be careful not to suck up large pieces of dirt, as this could block the suction opening and damage the appliance.

- The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button once more.

⚠ For the best results, clean the dust reservoir and the filters after each use. This is better for the suction power and the life span of the machine. Make sure that the dust in the dust reservoir does not exceed the maximum level.

ACCESSORIES

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...

2. Dusting brush: for vacuuming delicate and fragile surfaces such as lampshades, bookshelves, window frames, curtains, etc.

Two black mechanical components with labeled parts, no visible text or symbols

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.

2. Slide the lock on the side of the brush upwards to remove the floor brush.

3. Remove the rotating floor brush from the floor nozzle.

4. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.

5. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.

6. Place the floor brush back into the floor nozzle when it is clean. You will hear a click when the brush is back in place.

7. Push the nozzle back onto the stick. The machine is now again ready for use.

Close-up of a black and purple handheld vacuum cleaner (no visible text or symbols)

Close-up of a black handheld vacuum cleaner with purple filter bands (no text or symbols visible)

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

THE TUBE

Remove the tube and check it for blockages.

THE DUST RESERVOIR

Regularly clean the dust container. The full dust container symbol will light up on the display to indicate that you need to empty and clean the dust container.

1. Never exceed the maximum indicator on the dust container. Remove the wand. Empty the dust container by pressing the button at the bottom of the dust container. The dust container falls open and you can then remove the coarse dirt.

2. Press the dust container release to detach it from the motor section. The dust container contains the following parts:

- Round filter: this dust filter captures the small dust particles.

- Coarse debris filter: this ensures that the large dust particles remain in the dirt receptacle.

- Dirt receptacle: this is where all large dirt particles are collected.

1. Remove the round filter from the coarse dirt filter.

2. Remove the coarse filter from the dust container.

3. You can now clean all the parts separately. We recommend you do this with compressed air. If you do not have compressed air, you can wash out the filters. Make sure they are completely dry before using them again.

4. Reinsert the round filter into the coarse dirt filter.

5. Put the filters back in the dirt receptacle.

6. Put the dirt receptacle back on the motor section. A click will be heard when the dust container is in place.

Diagram showing a device emitting particles into a container with labeled parts and directional arrows

Diagram of a mechanical device with an arrow indicating upward motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

ERROR CODES

The following error messages may be displayed on the screen:

• Full dust container: If this symbol lights up on the display, you need to empty the dust container, clean the dust container and filters, and check for any blockages.

- E1: You have attempted to charge the device with an incompatible adapter (>37V output voltage). Only use the supplied adapter to charge the appliance.

• E4: A short circuit has occurred in the floor brush. Replace the floor brush or have it repaired.

• E3: The motor is blocked. Have this checked/ repaired.

- F4: The floor brush is blocked and no longer rotates. Turn off the appliance and check the floor nozzle for dirt and large particles blocking the brush. Restart the appliance.

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The machine does not start up. The battery is empty.	Charge the machine.
The appliance has stopped working. • The appliance has overheated. Allow the appliance to cool down and clean the appliance.• Check if an error code appears on the display and resolve the issue (see 'error codes').
The appliance stopped working and the lights on the appliance flashed for 10 seconds.	If the wand or filters are blocked, the appliance switches to safety mode and the lights of the appliance will flash. Check and clean the wand and filters.
The machine does not vacuum. • The filters are dirty.• The dust container is full.• The floor brush is blocked.• The suction opening is blocked.• Clean the appliance as described in this manual.
Suction power is reduced significantly. We recommend that you thoroughly clean the filter as well as the dust container and the accessories as described in this manual. If the filters are saturated, they can be reordered.
The display does not light up while charging. • There is no proper contact.• Make sure the adapter is connected properly.
The operating time of the appliance is getting shorter and shorter.	The battery is broken. Contact our customer service.Charge the appliance for a full day and try again. We also recommend that you regularly allow the battery to drain and recharge it fully. The operating life of the appliance will be longer on flat surfaces than on carpets.
Device not charging. Check that the plug is properly inserted. Ensure the correct supplied adapter is used.
Automatic dust detection not working. Check if the stick vacuum cleaner is in automatic mode (see 'usage').
The floor brush no longer rotates. Turn off the appliance and check the floor nozzle for dirt and large particles blocking the brush. Restart the appliance.

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

El aspirador de manija

Diagram showing a mechanical assembly with three stages: top view, side view, and final view (no text or symbols)

Product photo of a black handheld vacuum cleaner with attached stand (no visible text or symbols)

Two black mechanical components with labeled parts, no visible text or symbols

LIMPIEZA Y MANTENIMIENTO

LIMPIAR EL APARATO DE POLVO

Close-up of a black and purple handheld vacuum cleaner (no visible text or symbols)

Close-up of a black vacuum cleaner with purple filter bands and a purple clip (no text or symbols visible)

Technical line drawings of a cleaning or packaging device, showing internal components and assembly (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

PANNELLO DI CONTROLLO

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

La scopa elettrica

Technical line drawing of a mechanical assembly with three stages: top, side, and bottom (no text or symbols)

Product photo of a black vacuum cleaner with attached arm and side-mounted device (no visible text or symbols)

Two black mechanical components with labeled parts (1 and 2), no visible text or symbols on the parts themselves.

Close-up of a black and purple handheld vacuum cleaner (no visible text or symbols)

Close-up of a black vacuum cleaner with purple cable strap (no text or symbols visible)

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

OVLÁDACÍ PANEL

Technical diagram showing a device assembly process with an arrow indicating transformation from a left-side component to a right-side component.

Tyčový vysavač

Diagram showing a mechanical assembly with two sequential steps, no text or symbols present

Product photo of a black handheld vacuum cleaner with attached arm and side-mounted device (no visible text or symbols)

Two black plastic electronic components with labeled parts (1 and 2), no visible text or symbols on the body itself.

ČIŠTĚNÍ A ÚDRŽBA

ČIŠTĚNÍ PŘÍSTROJE

Close-up of a black vacuum cleaner with purple filter bands (no text or symbols visible)

Close-up of a black handheld vacuum cleaner with purple cable strap (no text or symbols visible)

Technical line drawings of a cleaning or cleaning device with exploded and assembled views (no text or symbols)

Diagram showing a trash bin crossed out by two crossed lines, with a blank rectangular bar below.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

24 25 22 23 26 75° 27 A A/m 28

PRED PRVÝM POUŽITÍM

ZLOŽIŤ, ZLOŽENIE

Ručný vysávač

Technical line drawing of a mechanical assembly with an arrow indicating transformation (no text or symbols present)

Tyčový vysávač

Diagram showing a mechanical assembly with three sequential steps: left, middle, and right (no text or symbols present)

Product photo of a black vacuum cleaner with attached stand and handle (no visible text or symbols)

Two black mechanical components with labeled parts (1 and 2), no visible text or symbols on the parts themselves.

ČISTENIE A ÚDRŽBA

ČISTENIE PRÍSTROJA

Close-up of a black handheld vacuum cleaner with purple filter bands (no visible text or symbols)

Close-up of a black handheld vacuum cleaner with purple cable strap (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text or labels)

VYBERATEL'NÉ/VYMENITEL'NÉ BATÉRIE

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
