DO1193T - Grill plate DOMO - Free user manual and instructions

USER MANUAL DO1193T DOMO

White DOMO toaster with two slices of bread, no visible text or symbols on the device itself.

EN Instruction booklet Toaster

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a white appliance with a handle and lid, showing a small rectangular component and a numbered label '7' (no text or symbols on the main subject)

Top-down view of a portable electronic device with a black cable and plug, labeled with number 8 (no text or symbols on the device itself)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a white plastic device with a metallic handle and a rectangular block inserted, labeled '7' (no text or symbols on the device itself)

Top-down view of a vintage television remote control unit with cable and plug, no visible text or symbols

AVANT LA PREMIÈRE UTILISATION

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Close-up of a white microwave oven with a plastic door and a paper clip, labeled with number 7 (no text or symbols on the device itself)

Top-down view of a vintage electronic device with a black cable and plug inserted, labeled with number 8 (no text or symbols on the device itself)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• The bread may burn, therefore do not use the toaster near or below inflammable materials such as curtains.
• The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance when it is in use to avoid burns.
• Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.
• Do not place near objects that may catch fire, such as curtains, towels, etc.
• Do not use the appliance if there is any water in it or the parts are still wet after cleaning.
• Never use sharp or metal objects to remove the toast from the toaster.
• Make sure that the slices of bread are not too thick. Do not wrap them in aluminium foil! It could cause electrical shock or fire.
• Be careful not to toast the bread for too long. It could cause fire.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

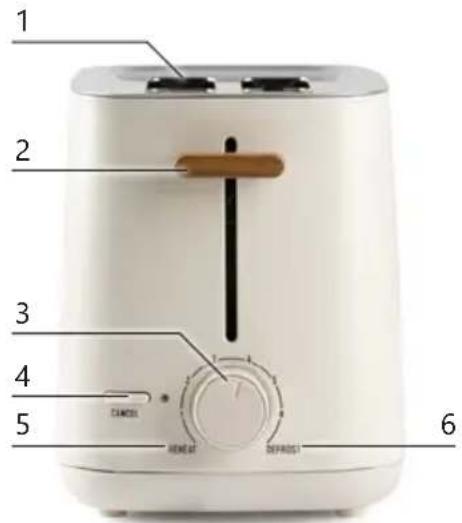

PARTS

1. Slot
2. Breadlift
3. Browning control
4. CANCEL
5. REHEAT
6. DEFROST
7. Crumb tray

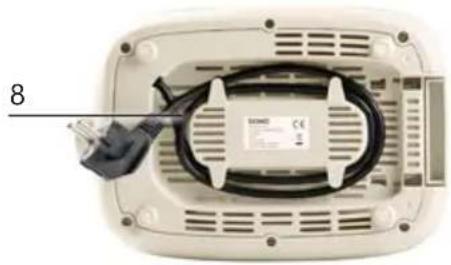

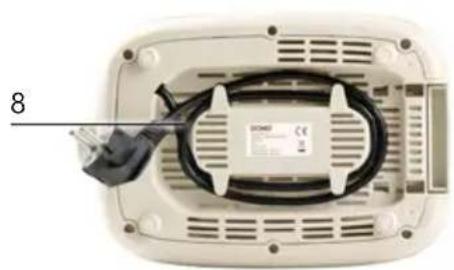

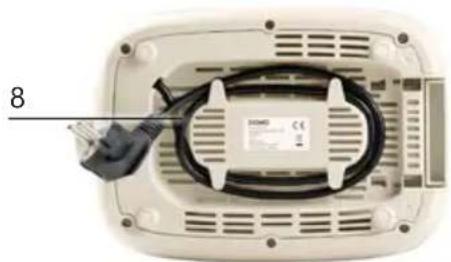

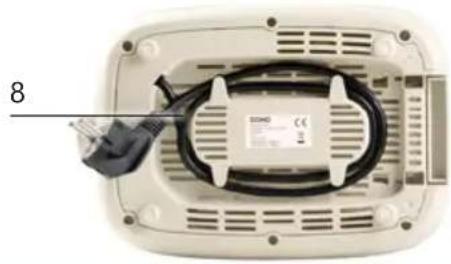

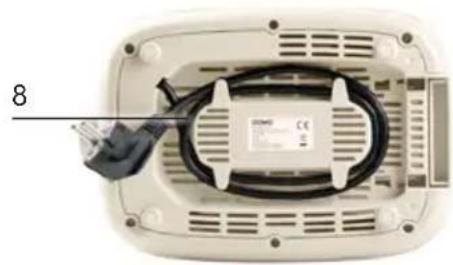

8. Cord storage

1 2 3 4 5 CANCEL HENSAT DEFRIDUS 6

Close-up of a white appliance with a metallic handle and a numbered label '7' pointing to it (no text or symbols on the device itself)

Top-down view of a portable electronic device with a black cable and plug inserted, no visible text or symbols

BEFORE THE FIRST USE

- Remove the packaging, wipe the outside thoroughly with a soft dry cloth.

- Use the toaster for the first time without any bread in it. Press down the breadlift and put the browning control to the maximum (6) position. This way you will burn existing dust that has fallen into the toaster during production or transport. During this first use small smoke and odour development is possible. This is normal.

USE

1. For toasting bread, plug in the toaster.
2. Choose the desired browning degree and put the bread in the slot. Tip: if you only want to toast 1 slice, select a lower browning level than when toasting 2 slices.
3. Press down the breadlift until it clicks. The heating element is now activated. The bread will be centered automatically for even toasting.
4. The toasted bread will pop up automatically when the toasting time has passed. The appliance will automatically switch off.
5. After use, unplug the appliance.

⚠️ Never use any sharp objects to remove the toast from the toaster.

CANCEL BUTTON

The cancel button can be used to interrupt the toasting at any time.

REHEAT FUNCTION

If you want to reheat toasted bread, use the reheat function. Place the bread that you want to reheat in the slot. Turn the browning control to "reheat". Press the bread lift down until it clicks. The bread will heat up briefly without browning. Once the bread is heated, the bread lift will pop up and the toasted bread can be removed from the slot.

DEFROST FUNCTION

To toast frozen bread, use the defrost function. Place the frozen slice of bread in the slot. Turn the browning control to "defrost". Press the bread lift down until it clicks. A longer roasting time is taken into account. Once the bread is toasted, the bread lift will pop up and the toasted bread can be removed from the slot.

CLEANING AND MAINTENANCE

- Remove the plug from the outlet before cleaning the appliance. Allow the appliance to cool completely.

- Wipe the outside of the toaster with a damp cloth and dry thoroughly.

- Do not use a fork or any sharp, metal objects to clean the inside of the toaster. This may damage the heating elements.

- Slide the crumb tray out of the toaster and remove the crumbs. Clean the crumb tray with a damp cloth. Always dry the tray thoroughly before replacing it into the toaster.

- Do not wrap the lead around the appliance. Rather, use the lead storage on the bottom of the toaster.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
There's smoke coming out of the toaster during use.	Press the stop button (CANCEL) to end toasting.
My toast is ready but the toasting time has not yet expired.	Press the stop button (CANCEL) to end toasting.
The appliance emits a burnt smell during use. Clean the appliance and the crumb tray as described in the 'Cleaning and maintenance' section.
The bread is stuck in the slot. Unplug the toaster and let it cool down.Remove the bread carefully so you don't damage the heating elements. Never use a metal object to remove bread.
The bread is toasted too much or not enough. Check the browning control. Set lower if the bread is toasted too much, or higher if it is not toasted enough.

SPECIFICATIONS

Model DO1193T
Voltage 220-240 V~ 50/60 Hz
Power 850-1000 W
Energy consumption in off-mode after 0 minutes 0 W

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Close-up of a white appliance with a handle and lid, showing internal components (no text or symbols visible)

Top-down view of a portable electronic device with a black cable and plug, labeled with number 8 (no text or symbols on the device itself)

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or numbers present)

Close-up of a white microwave oven with a paper feed insert, labeled with number 7 (no text or symbols on the device itself)

Top-down view of a vintage television remote control unit with black cable and plug, no visible text or symbols

PRIMA DELL'USO

Warning symbol for a trash bin with crossed and unshaded lanes, indicating no waste or discharge.

1 2 3 4 5 CANCEL HOLD AT REFRISED 6

Close-up of a white appliance with a metallic handle and a rectangular block inserted, labeled with the number 7 (no text or symbols on the device itself)

Top-down view of a vintage television remote control unit with black cable and connector (no visible text or symbols)

PŘED PRVNÍM POUŽITÍM

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Close-up of a white microwave oven with a metallic drain and a rectangular slot, labeled with number 7 (no text or symbols on the device itself)

Top-down view of a vintage electronic device with a black cable and plug inserted, no visible text or symbols

PRED PRVÝM POUŽITÍM

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
