USER MANUAL DO1112KR DOMO

Black and white Domo kitchen mixer with stainless steel bowl (no visible text or symbols)

DO1112KR

Handleiding Keukenrobot

Mode d'emploi Robot de cuisine

Gebrauchsanleitung Küchenmaschine

Instruction booklet Kitchen machine

Manual de instrucciones Robot de cocina

Istruzioni per l'uso Robot da cucina

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Product catalog image showing various kitchen utensils and kitchenware including a blender, blender, and blender (no text or labels visible)

Close-up of a mechanical component with transparent glass and black parts, no visible text or symbols

Close-up of a mechanical assembly with a spring and mesh component (no visible text or symbols)

Close-up of a mechanical component with a spring attached to a wire mesh, no visible text or symbols

Close-up of a mechanical assembly with a spring-loaded component and mesh wire (no visible text or symbols)

Modern kitchen mixer with blender and bowl (no visible text or symbols)

Opgelet:

Close-up of a black industrial chimney with a circular vent (no visible text or symbols)

Close-up of a black industrial vacuum cleaner with a circular vent and handle (no visible text or symbols)

Three metallic cylindrical containers with perforated surfaces, arranged horizontally (no text or symbols visible)

Close-up of a mechanical component with a central gear-like feature and an arrow pointing to it (no visible text or symbols)

Close-up of three kitchen utensils showing top, side, and side views (no text or symbols visible)

Close-up of a stainless steel T-jointer with a coiled screw and a separate screwdriver (no text or symbols visible)

Four metallic components: circular perforated plate, dot perforated plate, ring with flange, and separate ring (no text or symbols)

Two black industrial kitchen appliances: a hand mixer and a brush (no visible text or symbols)

Close-up of a metal kitchen tool with gears and a screw, no text or symbols visible

Close-up of a metal kitchen tool with various mechanical components (no text or symbols visible)

Close-up of a mechanical component with a central gear-like feature and an arrow pointing to it (no visible text or symbols)

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a rounded square frame (no text or numbers present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Product catalog image showing various kitchen utensils and kitchen equipment (no text or labels visible)

AVANT LA PREMIÈRE UTILISATION

Close-up of a mechanical component with a metallic screw and transparent plastic housing (no visible text or symbols)

Close-up of a mechanical assembly with a spring and mesh component (no visible text or symbols)

Close-up of a mechanical component with a wire mesh and threaded rod (no visible text or symbols)

Close-up of a mechanical component with spring and mesh structure (no visible text or symbols)

Modern kitchen mixer with blender and water dispenser (no visible text or symbols)

Close-up of a black appliance with a white arrow pointing to a circular feature, placed on a metallic base (no text or symbols visible)

Close-up of a black mechanical device with a circular lens and cylindrical body (no visible text or symbols)

Close-up of a black plastic mechanical component with no visible text or symbols

Close-up of a black industrial chimney with a circular vent (no visible text or symbols)

Close-up of a black laboratory glassware device with a circular cap and handle (no visible text or symbols)

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Close-up of three kitchen utensils showing mechanical components (no text or symbols visible)

Close-up of a stainless steel T-jointer with a drill bit and screw, no visible text or symbols

Four metallic components: circular perforated plate, circular perforated plate with holes, and a ring with six protrusions (no text or symbols)

Black kitchen stand mixer with handle and cup (no visible text or symbols)

Close-up of a black mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a metal kitchen tool with gears and a screw, no visible text or symbols

Exploded view of a kitchen tool set including a T-shaped pipe, bolts, and nuts (no text or symbols visible)

Close-up of a mechanical component with a central gear-like feature and an arrow pointing to it (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Three mechanical components with numbered labels (9, 11, 10, 14) shown below each, no readable text or symbols on the parts themselves.

Close-up of a black blender with lid and handle, labeled with number 12 (no text or symbols on the object itself)

Black plastic pipe fitting with four metallic cylindrical components, no visible text or symbols

Mechanical assembly of a kitchen feedstock with no visible text or symbols

Close-up of a mechanical component with a metallic rod and internal structure (no visible text or symbols)

Close-up of a mechanical assembly with a spring-loaded component and meshed base (no visible text or symbols)

Close-up of a mechanical component with a spring and mesh structure (no visible text or symbols)

Close-up of a mechanical assembly with a spring-loaded component and mesh structure (no visible text or symbols)

Modern kitchen mixer with blender and cup, black and white photo (no visible text or symbols)

Achtung:

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Close-up of three kitchen utensils: a top-mounted lid, a black-and-white photo of a mechanical component with a handle, and a close-up view of the end mill (no text or symbols visible)

Close-up of a stainless steel T-brocker with mechanical components, including a knotted screw and a star-shaped tool (no text or symbols visible)

Three circular mechanical components with perforated surfaces, one being cut by an arrow (no text or symbols)

Two kitchen appliances: a black stand mixer and a black brush (no visible text or symbols)

Close-up of a metal kitchen tool with bolts and a screw, no visible text or symbols

Collection of metal pipe fittings and accessories including a knuckle, nut, and plastic components (no text or symbols visible)

Close-up of a mechanical component with a central gear-like feature and an arrow pointing to it (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: in order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- Never leave the appliance unattended while it is functioning.

· Do not use or store this appliance outdoors.

- Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Only use the utensils delivered with the appliance.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

· To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Do not operate the appliance with wet hands.

- A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

- Unwrap the cord completely to prevent overheating of the cord.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Do not allow the power cord supply to run underneath or around the unit.

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

· Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

- Do not use the appliance without ingredients.

- Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

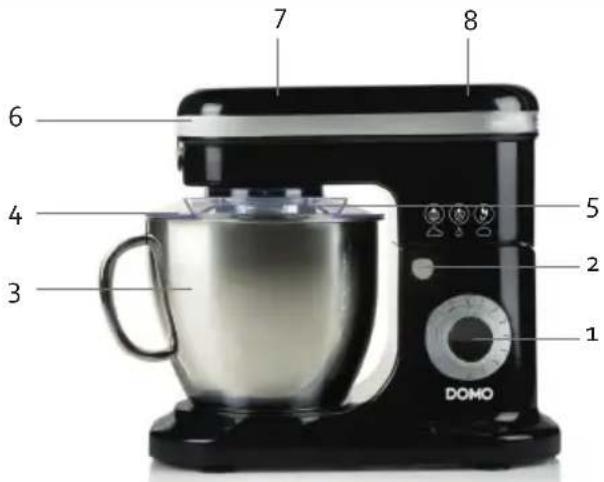

PARTS

1. Speed control
2. Release button multifunctional head
3. Stainless steel mixing bowl
4. Bowl lid
5. Fill opening
6. Connection point for vegetable slicer and meat grinder
7. Multifunctional head
8. Connection point for blender
9. Beater
10. Dough hook
11. Balloon whisk

7 8 6 4 5 2 3 1 DOMO

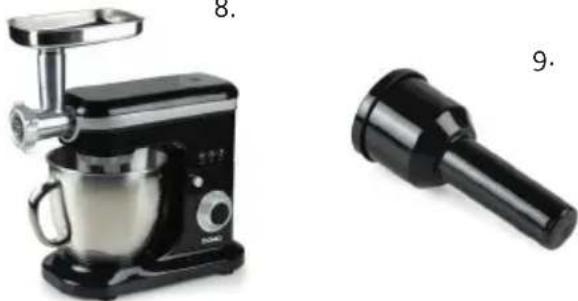

Available separately

1. Blender
2. Vegetable slicer
3. Meat grinder

Three mechanical components with wire mesh structures, labeled 9, 11, 10, and 14 (no text or symbols on the objects themselves)

Close-up of a black and white blender with lid and handle (no visible text or symbols)

Black plastic pipe fitting with three metallic cylindrical containers, no text or symbols visible

Mechanical assembly of a kitchen feedstock with no visible text or symbols

BEFORE THE FIRST USE

• Remove the appliance and the accessories from the packaging. Remove any promotional stickers.
• Wash all removable parts in warm soapy water and dry thoroughly.
  · Never immerse the motor unit in water to avoid electrocution.

USE

KNEADING/BEATING/WHISKING

1. Depending on the nature of the ingredients, the mixing bowl with lid can make 2 kg of dough.
2. Place the appliance on a flat, clean and dry surface.
3. Make sure that the plug is removed from the socket and that the speed control is set to 'o'.
4. Press the release button, push the multifunctional head all the way up until it clicks into place.
5. Put the mixing bowl in the base and turn it clockwise so it locks. Put the ingredients into the bowl.

6. Place the lid on the multifunctional head via the opening provided.

7.

Close-up of a mechanical component with a metallic tool inserted, showing no visible text or symbols.

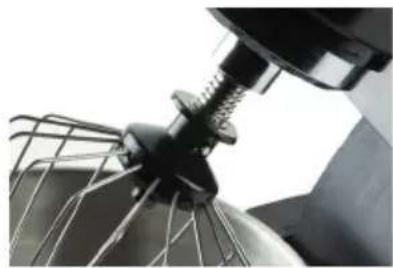

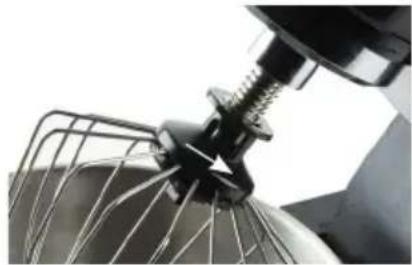

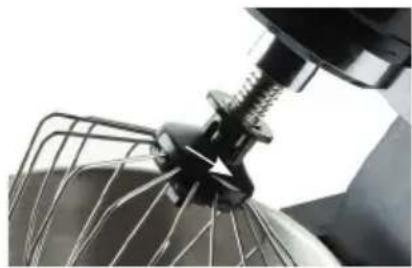

1. Choose the accessory you want to use: beater, dough hook, balloon whisk.

a. Attach the accessory to the head by sliding it around the axis.

b. Turn the accessory a quarter turn counterclockwise.

c. Release the accessory so that it falls into the lock position. Caution: only use the dough hook up to a maximum of speed 1.

a. b. c.

Close-up of a mechanical assembly with a spring attached to a wire mesh component (no visible text or symbols)

Close-up of a mechanical component with a spring and mesh structure (no visible text or symbols)

Close-up of a mechanical assembly with a spring and mesh component (no visible text or symbols)

1. Press the release button back in to push the multifunctional head back down and secure it.
2. Put the plug into the socket and select the desired speed by turning the speed control knob.
3. During the preparation you can add ingredients through the fill opening in the lid.

Caution: Do not use the appliance for longer than 10 minutes at a time. After 10 minutes of use, let the appliance cool down for 30 minutes before using it again.

1. To stop the appliance, turn the speed control knob to the 'o' position.

DISASSEMBLY

1. Remove the plug from the socket.
2. Press the release button to secure the multifunctional head fully at the top.
3. Push the accessory out of the locked position and turn it clockwise a quarter turn. Then slide the accessory off of the drive shaft and remove the accessory. Use caution when removing the accessories since there may be sharp edges.
4. Remove the lid from the multifunctional head by rotating it anti-clockwise.
5. Turn the bowl anti-clockwise to unlock it and remove the bowl.
6. Press the release button in to push the multifunctional head back down and secure it again.

AVAILABLE SEPARATELY

BLENDER

1. Depending on the nature of the ingredients, the blender is capable of mixing 1.4 litres.
2. Put the multifunctional head in a horizontal position and remove the lid from at the top of the head by pulling on it.
3. Add the ingredients to the work bowl and close the work bowl with the lid, including the measuring cup in the feed tube.
4. Place the blender on the connection point and lock the blender by turning it counterclockwise.
5. Use the speed regulator to blend.
6. During blending, it is possible to remove the measuring cup from the lid and add ingredients through the feed tube. Then always close the opening again with the measuring cup.

Modern kitchen mixer with blender and stand mixer (no visible text or labels)

Note:

• Never run the blender empty.
  · Never fill the work bowl with boiling fluids; always allow them to cool to room temperature.
  · If you want to crush ice, do not use more than 9 ice cubes (4×4×2 cm) at a time.

VEGETABLE SLICER

Turn off the machine and pull the plug from the outlet before mounting, removing or cleaning any accessories.

1. Open the lid at the tip of the multifunctional head of the food processor: tilt the lid slightly upwards and remove the lid.
2. The connection point for accessories is revealed.
3. Place the vegetable slicer on the connection point at an angle of 25^ and turn it counterclockwise a quarter turn. You will hear a click when it is attached. The vegetable slicer is now perfectly vertical.

1.2.3.

Close-up of a black appliance with a white arrow pointing to a circular feature, no visible text or symbols.

Close-up of a black industrial sensor or camera component with a circular lens (no visible text or symbols)

Close-up of a black plastic mechanical component with no visible text or symbols

1. Press the grater into the opening of the vegetable slicer. You may select from a cutter and 2 different graters.

2.

Close-up of a black industrial lampshade with a circular vent (no visible text or symbols)

Close-up of a black laboratory instrument with a circular head and central knob (no visible text or symbols)

1. Operate the vegetable slicer with the food processor's speed regulator.
2. Vegetables can be pushed into the vegetable slicer safely by using the pusher.

3. To remove the vegetable slicer: press the unlock button (see diagram) and turn the vegetable slicer clockwise a quarter turn.

4.

Close-up of a mechanical component with a central gear-like feature and an arrow pointing to it (no visible text or symbols)

1. Remove the vegetable slicer and replace the lid onto the connection.
2. Clean and dry all parts thoroughly prior to using them again.

MEAT GRINDER

Turn off the device, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid at the tip of the multifunctional head of the food processor: tilt the lid slightly upwards and remove the lid.

2. The connecting point for accessories is now shown.

3. Place the meat grinder at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when it is securely fastened. Your meat grinder is now in a perfect vertical position.

4. 1. 1.

Close-up of kitchen utensils and a motor handle assembly (no text or symbols visible)

1. For grinding meat insert in succession: the worm wheel and the cutting knife.

2.

Close-up of a stainless steel T-jointer with a coiled screw and a small cross-shaped component (no text or symbols visible)

1. Then make a selection from the grinding discs.
2. Position the notch on the disc at the height of the projecting catch.
3. Connect it altogether with the screw ring.

5.6.

Four metallic components: circular perforated and square perforated, then a ring with flanges (no text or symbols visible)

1. Position the bowl in the best way possible so as to put your meat in it.

2. You can use the pushing rod to press the meat firmly inside.

3.

Two kitchen appliances: a black stand mixer and a black brush (no visible text or symbols)

1. For sausage making, insert the following components:

Close-up of a metal kitchen tool with bolts and a separate screw component (no text or symbols visible)

1. For making stuffed meatballs, insert the following components:

Exploded view of a mechanical component including a T-junction, bolts, and nuts (no text or symbols visible)

1. To remove the meat grinder, press the release button next to the connection point for meat grinder. Make a quarter turn clockwise on the meat grinder. Clean all parts thoroughly and dry carefully before using them again.

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Cleaning: Do not use the dishwasher for cleaning the meat grinder.

CLEANING AND MAINTENANCE

1. Always remove the plug from the socket before cleaning the appliance. Make sure that the speed regulator button is set to "o".
2. Never immerse the motor unit in water or under running water. Clean the motor unit with a soft, damp cloth.
3. Disassemble all accessories according to the instructions under the section 'Disassembly'.
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash, rinse and dry the accessories.
6. To clean the blender, combine warm water with a few drops of detergent in the blender. Put the lid on the blender. Briefly turn the speed regulator to pulse (P) and back. Repeat if needed. Rinse the blender under running water and allow it to drip-dry upside down.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Three wire mesh head models of a kitchen appliance, labeled 9, 11, 10, and 14 (no text or symbols on the devices themselves)

Close-up of a small glass blender with lid and handle (no visible text or symbols)

Black plastic pipe fitting with four metallic cylindrical containers, no text or symbols visible

Mechanical assembly of a metal grater with multiple kitchen utensils and components (no visible text or labels)

Close-up of a mechanical component with a metallic tool inserted, showing no visible text or symbols.

Close-up of a mechanical assembly with a spring and mesh component (no visible text or symbols)

Close-up of a mechanical component with a wire mesh and threaded rod (no visible text or symbols)

Close-up of a mechanical assembly with a spring and mesh component (no visible text or symbols)

Black kitchen mixer with a blender and bowl, no visible text or symbols

Three black industrial vacuum cleaner components with a white arrow indicating a component, shown from top to side (no text or symbols visible)

Product photos of kitchen brush jacks and four plastic grilles (no text or symbols visible)

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Close-up of three kitchen utensils: a brush head, a circular vent, and a metal fork (no text or symbols visible)

Close-up of a stainless steel T-jointer with a coiled screw and a small cross mark, shown without any text or symbols.

Four metallic components: circular perforated plate, dot perforated plate, ring with flange, and separate circular inset (no text or symbols)

Exterior view of a modern kitchen stand mixer (no visible text or symbols)

Close-up of a black mechanical component with a cylindrical shaft (no visible text or symbols)

Close-up of a metal T-shaped tool with multiple metallic components and a separate black-and-white component (no text or symbols visible)

Collection of metal pipe fittings and accessories including a knuckle, washer, and nut (no text or symbols visible)

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a mechanical component with a metallic screw and transparent glass cover (no visible text or symbols)

Close-up of a mechanical assembly with a spring attached to a wire mesh component (no visible text or symbols)

Close-up of a mechanical component with a spring and mesh structure (no visible text or symbols)

Close-up of a mechanical assembly with a spring attached to a metal frame (no visible text or symbols)

Modern kitchen mixer with blender and bowl (no visible text or symbols)

Attenzione:

Three black industrial kitchen appliances with a white arrow pointing to the top component (no text or symbols visible)

Product photos of kitchen brush jacks and four plastic gridded containers (no text or symbols visible)

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Close-up of a black appliance with a white arrow pointing to a circular feature, placed on a dark surface (no text or symbols visible)

Close-up of a black mechanical component with a circular aperture and cylindrical shaft (no visible text or symbols)

Close-up of a metallic kitchen tool with a circular perforated component (no visible text or symbols)

Metallic kitchen tool with threaded shaft and screwdriver, shown alongside a separate mechanical component (no text or symbols visible)

Three metallic mechanical components: a perforated circular component, a perforated circular plate, and a flanged circular ring (no text or symbols visible)

Black kitchen stand mixer with handle and cup (no visible text or symbols)

Close-up of a black mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a metal kitchen tool with bolts and a screw, no visible text or symbols

Collection of metal pipe fittings and nuts, including bolts and nuts (no text or symbols visible)

Close-up of a mechanical component with a central circular feature and an arrow pointing to it (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
