USER MANUAL DO1117G DOMO

Exterior view of a black and gold grating or flatboard appliance with metal brackets and mounting base (no text or symbols visible)

DO1117G

Handleiding Raclette-grill bamboe

Mode d'emploi Raclette-gril bambou

Gebrauchsanleitung Raclette-Grill Bambus

Instruction booklet Raclette-grill bamboo

Manual de instrucciones Raclette-grill

Istruzioni per l'uso Grill Raclette

Návod k použití Raclette gril s bambusovým dekorem

Návod na použitie Raclette gril s bambusovým dekorom

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a wooden knob with a red indicator light and 'MIN' and 'MAX' labels (no other text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a black mechanical component with a red circular end and 'MIN' and 'MAX' labels on its side (no readable text or symbols beyond labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with red circular end and 'MIN' and 'MAX' text labels (no other readable symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- The appliance may not be used with an extension lead or a multiple socket.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

· Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

△CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

· Make sure that the air can circulate freely around the appliance.
· Make sure that the appliance does not come into contact with flammable materials.
- Only use the appliance indoors and be careful with hot areas and materials such as curtains, tablecloths, etc.
- Preferably use a heat-resistant mat underneath the appliance base and make sure that the surface is flat and level.
- Allow the appliance to cool off completely before cleaning or storing it.
· Never touch any hot parts while the appliance is switched on and being used.
· Make sure nothing can touch the heating element.
· Do not move the appliance when it is warm or hot.
· Clean the appliance directly after use because it has been in contact with foodstuffs.
- Keep the appliance free of oil on its parts. Oil is very inflammable.
- Never use any sharp objects such as knives or forks on the different parts, always use wooden spoons/spatulas.
- Do not use a metal scouring pad to clean the appliance. Metal fragments can break off and come into contact with the electrical components of the appliance, causing a short circuit.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

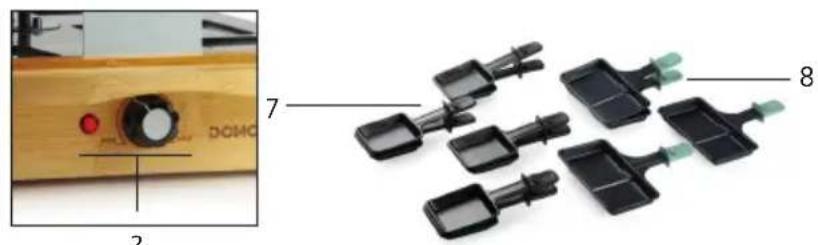

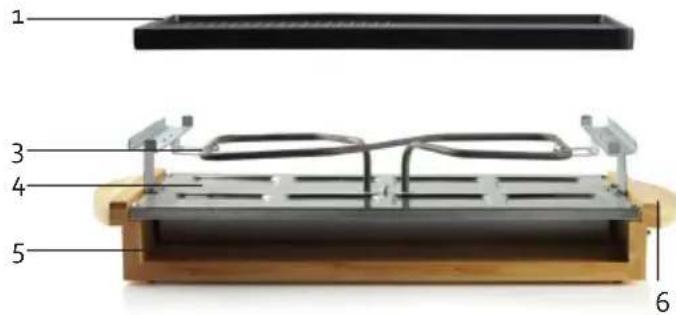

PARTS

1. Baking surface with non-stick coating
2. Thermostat with indication light
3. Heating element
4. Cooking zone for raclette pans
5. Cooling zone for raclette pans
6. Wooden base with handles
7. 8 small raclette pans
8. 4 XL raclette pans

1 3 4 5 6

DOMC 2 7 8

BEFORE THE FIRST USE

• Remove all packing materials and carefully clean the appliance, the grill plate and the raclette pans before the first use (see "Cleaning and maintenance").
• Use a thin layer of vegetable oil in the raclette pans and on the grill plate. This will prevent sticking and cleaning after use will be easier.
• When using the appliance for the first time a small amount of smoke may be released from the heating element. This is completely normal and harmless. For this reason allow the appliance 10-30 minutes to preheat before using for the first time in order to burn any possible remaining residues.
• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.
• Make sure that there is enough ventilation around the grill.

USE

1. Make sure that the grill is switched off (position MIN). Plug into an earthed socket.
2. Use a thin layer of vegetable oil in the raclette pans and on the grill plate. This will prevent sticking and cleaning after use will be easier.
3. Cut meat into small squares to shorten the cooking time. The thickness of the food determines the cooking time. Turn the food often to ensure even cooking.
4. Only use wooden or plastic utensils so you do not damage the anti-stick coating of the grill plate or mini pans.

SETTING OF TEMPERATURE

You can set the temperature of the appliance as required. The temperature ranges from minimum (MIN) to maximum (MAX). A mid-way temperature is recommended.

This switch is also the 'on' switch, and MIN is the off position.

Close-up of a wooden analog device with a red indicator light and two labeled buttons (MIN and MAX) on the left side (no readable text beyond labels)

Turn the temperature regulator to the required position. The red indicator light will

illuminate to indicate that the unit is warming up. Once the set temperature has been reached, this light will turn off again. When the temperature of the grill plate drops, the light will automatically illuminate again to show that the unit is warming up and go out again when the desired temperature is reached.

RACLETTES

• Use a thin layer of vegetable oil on the raclette pans. This will prevent sticking and cleaning after use will be easier.
• For raclettes use approximately 200-250 g special raclette cheese per person. Cut the cheese into thin slices of 2 mm.
• Lay the cheese in the raclette pans and place the mini pans on the appliance in the specially designed slots. The cheese will be ready in about 3-4 minutes. Do not overfill the pans.
  · The above can be prepared with a combination of onions, gherkins, lettuce, baguettes or potatoes.
  · The raclette mini pans are also suitable for frying eggs or new potatoes (small) and even meat.
• The XL raclette pans are slightly larger and deeper so they can be used to cook larger vegetables and other foods.
• Do not touch the pans with bare hands; use the handles.
  · Do not allow the empty raclette pans to heat. Instead, place them in the cooling zone.

CLEANING AND MAINTENANCE

· Clean the appliance after every use.
- Switch off and unplug the appliance before cleaning it. Wait until the appliance has completely cooled down.
- It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.
- All external surfaces can be cleaned with a damp cloth or sponge.
- Clean the grill plate and raclette pans with water and some mild detergent.
- Do not use sharp objects. Only use a wooden scraper.
· Make sure that water can not get into the appliance.
- Never use any aggressive or abrasive cleaning agents. These could cause damage to the non-stick surface layer on the grill plate and pans.
· Do not immerse the appliance in water and never clean it in a dishwasher.
· The raclette pans can be immersed in water and are dishwasher-safe.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a black industrial component with red indicator lights on a wooden surface (no text or symbols visible)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a wooden surface with a red circular button labeled MIN and MAX, no other text or symbols visible.

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with a red circular end and a white circular top, placed on a wooden surface (no visible text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black industrial component with a red indicator light and 'MIN' and 'MAX' labels on a wooden surface (no readable text or symbols beyond labels)

Prohibition sign for a trash bin with crossed lines indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with transparent caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker, and a rectangular container (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
