USER MANUAL DO1147SV DOMO

Exterior view of a modern handheld vacuum cleaner with blue and black body (no text or symbols visible)

EN Instruction booklet Stick vacuum cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and cleaning process (no text or symbols)

MUURBEVESTIGING

Product photo of a vacuum cleaner with a 120 cm height measurement indicator (no text or symbols on the device itself)

OPLADEN

Close-up of a handheld device with a black body and a hand inserting a small plug into it (no visible text or symbols)

OPMERKINGEN:

Close-up of a black vacuum cleaner with blue filter and white head (no text or symbols visible)

Black cylindrical electronic component with blue top, isolated on white background (no text or symbols)

Close-up of a black hairbrush with blue filter bands (no text or symbols visible)

Exterior view of a precision mechanical tool with a long shaft and handle (no text or symbols visible)

Exterior view of a modern vacuum cleaner (no text or symbols visible)

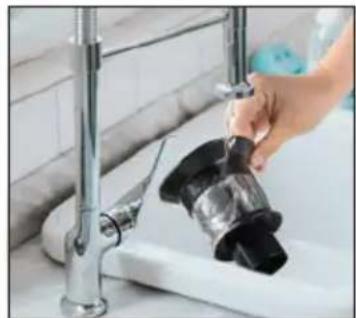

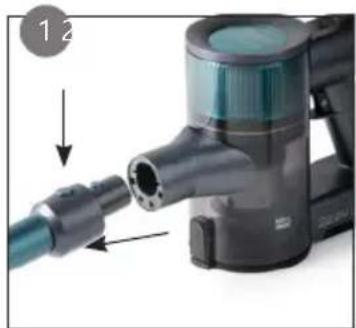

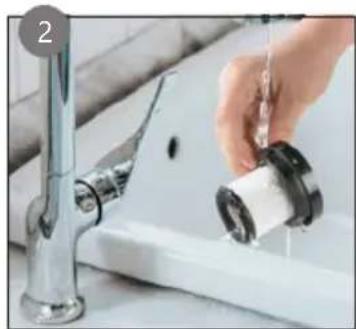

REINIGING EN ONDERHOUD

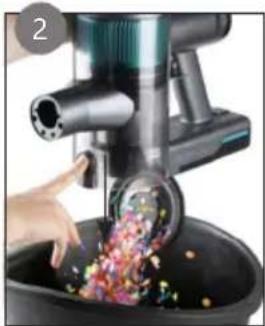

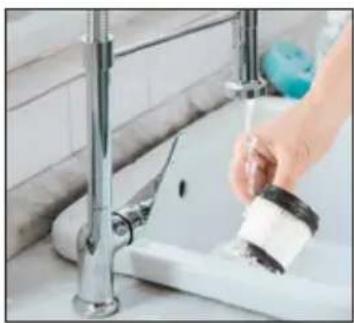

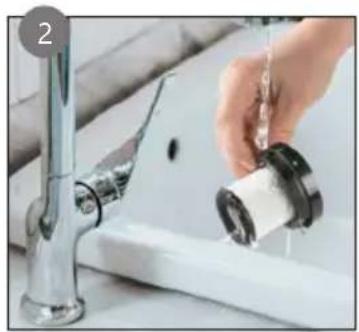

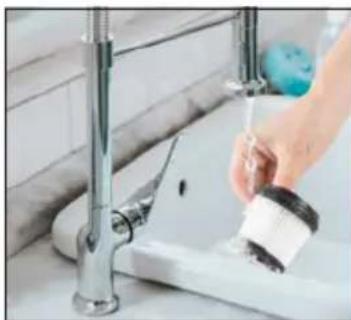

HET TOESTEL SCHOONMAKEN

Close-up of a vacuum cleaner's handle assembly with arrows indicating component alignment (no text or symbols visible)

Close-up of a hand pouring colorful food into a black bowl (no text or symbols visible)

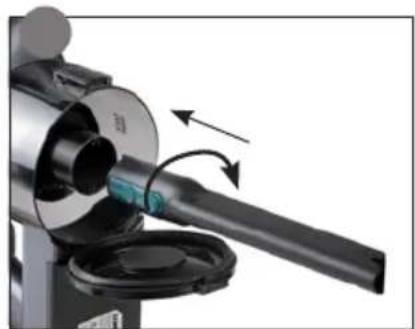

Mechanical device with rotating shaft and housing, showing motion arrows (no text or symbols)

Three labeled kitchen utensils (a, b, c) with a kitchen brush and fan assembly visible, no text or symbols present.

Person washing a black soap dispenser on a kitchen sink (no text or symbols visible)

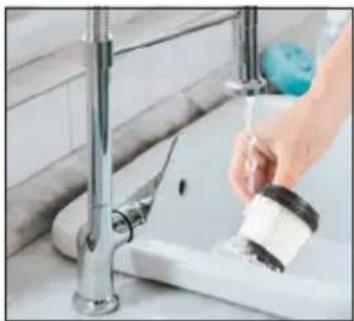

Person using a kitchen sink with a hand pouring liquid from a cup (no visible text or symbols)

Close-up of a 22EV LION brand vacuum cleaner with attached sensor array (no visible text or symbols)

Close-up of a hand adjusting a white cylindrical object next to a stainless steel faucet (no text or symbols visible)

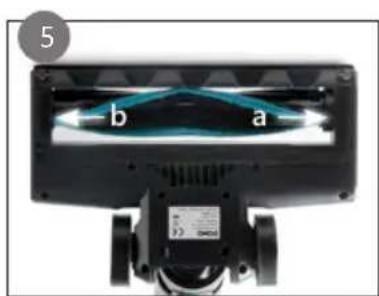

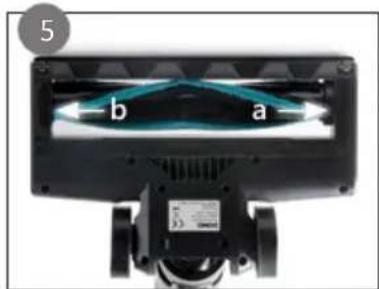

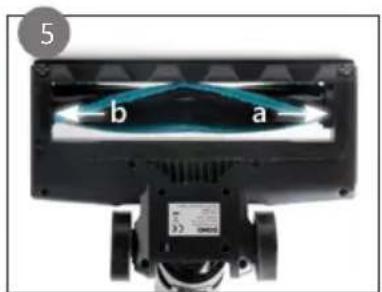

DE VLOERBORSTEL SCHOONMAKEN

Close-up of a black vacuum cleaner with a handle, showing part assembly and cleaning process (no text or symbols visible)

Close-up of a computer monitor with a circular button labeled '2' pointing to the screen (no readable text or symbols)

Close-up of a hand using a sewing machine to cut fabric (no visible text or symbols)

Top-down view of a black industrial device with labeled parts 'a' and 'b', no readable text or symbols beyond labels

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and cleaning process (no text or symbols)

SUPPORT MURAL

Product photo of a vacuum cleaner with a 120 cm height measurement indicator (no text or symbols on the device itself)

CHARGE

Close-up of a Duro-branded vacuum cleaner with a hand adjusting its cable (no visible text or symbols)

REMARQUES :

Close-up of a black vacuum cleaner with a scroll wheel and blue indicator light (no text or symbols visible)

Black cylindrical object with a blue handle, possibly a battery or scanner component (no visible text or symbols)

Close-up of a black plastic electrical plug with blue connectors (no visible text or symbols)

Mechanical tool with a long blue and black shaft, mounted on a stand (no visible text or symbols)

Exterior view of a black vacuum cleaner with a blue handle and green vent (no text or symbols visible)

NETTOYAGE ET ENTRETIEN

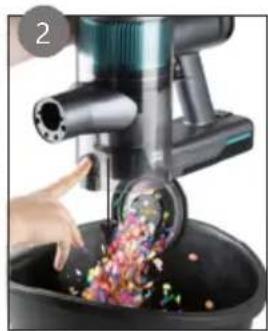

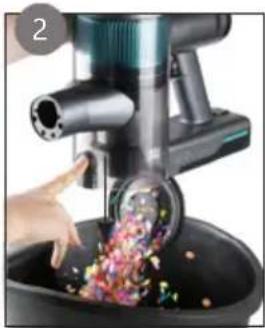

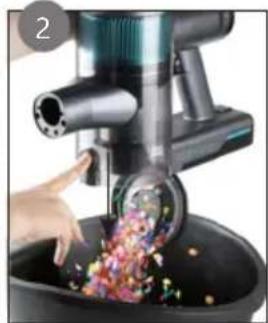

NETTOYER L'APPAREIL

Close-up of a vacuum cleaner's internal component being inserted into a pipe, with arrows indicating the process (no text or symbols visible)

Close-up of a hand pouring colorful granular substance into a bowl (no text or symbols visible)

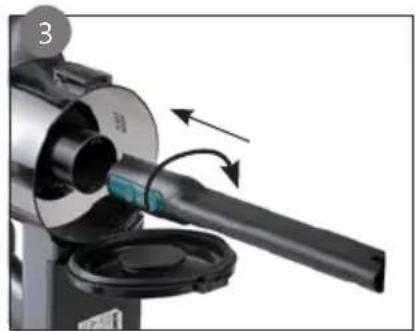

Mechanical device showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

Three labeled kitchen utensils (a, b, c) shown from different angles, with no visible text or symbols beyond labels.

Person using a black plastic shower on a kitchen sink (no text or symbols visible)

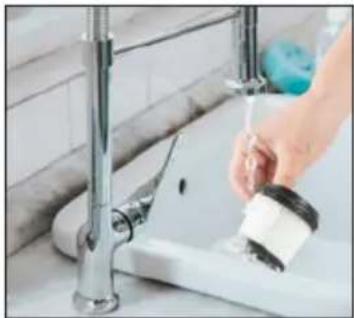

Person using a cleaning tool on a kitchen sink (no visible text or symbols)

Close-up of a 22.2V LION electric spray gun (no visible text or symbols on the device body)

Close-up of a hand holding a small white cylindrical object next to a stainless steel kitchen faucet (no text or symbols visible)

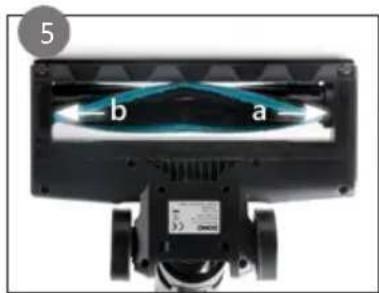

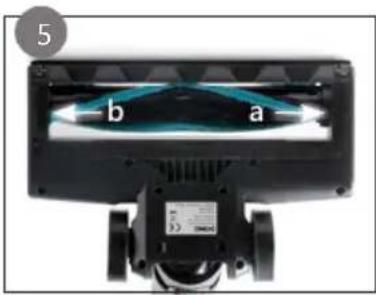

NETTOYER LA BROSSE DE SOLS

Close-up of a black vacuum cleaner being placed on a white surface, with an arrow indicating the process (no text or symbols visible)

Close-up of a computer monitor with a circular button labeled '2' pointing to the screen (no readable text or symbols)

Close-up of a hand using a sewing machine to cut fabric (no visible text or symbols)

Close-up of a black electronic device with blue light beams and labeled parts (a, b), no readable text or symbols beyond labels

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and application (no text or symbols)

WANDBEFESTIGUNG

Product photo of a vacuum cleaner with a 120 cm height measurement indicator (no text or symbols on the device itself)

120 cm

AUFLADEN

Close-up of a hand inserting a small electronic device into a black base (no visible text or symbols)

ANMERKUNGEN:

Close-up of a black vacuum cleaner with a scroll wheel and blue indicator light (no text or symbols visible)

Black cylindrical electronic component with blue contacts, isolated on white background (no text or symbols)

Close-up of a black plastic electrical plug with blue connectors (no visible text or symbols)

Mechanical tool with a long blue and teal rod mounted on a black base (no visible text or symbols)

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Close-up of a vacuum cleaner's handle assembly with pipe connection (no visible text or symbols)

Close-up of a hand pouring colorful granular substance into a black bowl (no text or symbols visible)

Mechanical device with rotating shaft and housing, showing motion arrows (no text or symbols)

Close-up of kitchen utensils and a blender with labeled parts (a, b, c), no text or symbols present.

Person washing a kitchen sink with a black plastic bag attached (no text or symbols visible)

Person using a kitchen sink with a hand holding a small object, no visible text or symbols

Close-up of a 222V Li-ion vacuum cleaner with attached sensor module (no visible text or symbols)

Close-up of a hand holding a small white object next to a metallic faucet (no text or symbols visible)

Close-up of a black vacuum cleaner being placed on a white surface, with an arrow indicating the process (no text or symbols visible)

Close-up of a mechanical component with a circular arrow pointing to a section, no visible text or symbols

Close-up of a hand using a tool to cut or spread a white surface, no visible text or symbols

Close-up of a black electronic device with labeled components 'a' and 'b', no readable text or symbols beyond labels

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Avoid vacuuming large objects and items that could become entangled in the brush (long hair, plastic bags, string, etc.). Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
• Never use the appliance without filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

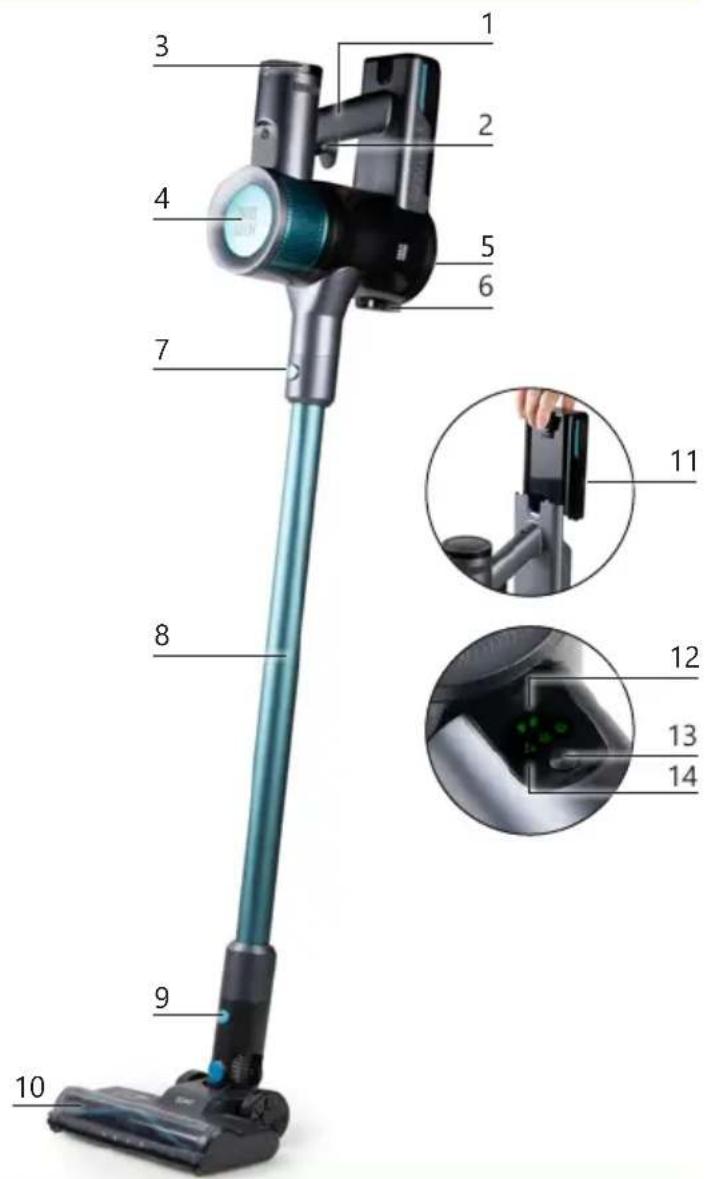

PARTS

1. Ergonomic handle
2. On/off button
3. Exhaust filter cover
4. Motor compartment
5. Dust container
6. Dust container release button
7. Metal tube release button
8. Metal tube
9. Release button floor nozzle
10. Floor nozzle with rotating floor brush
11. Removable battery
12. Battery level indicator lights
13. Mode button
14. Indicator lights suction power levels
15. Long crevice tool
16. 2-in-1 fabric brush
17. Adapter
18. Wall fixing (screws and plugs included)

18 15 16 17

Labeled diagram of a vacuum cleaner with numbered parts and close-up insets showing interior components

BEFORE THE FIRST USE

- Remove all packaging materials and any promotional stickers.

- Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

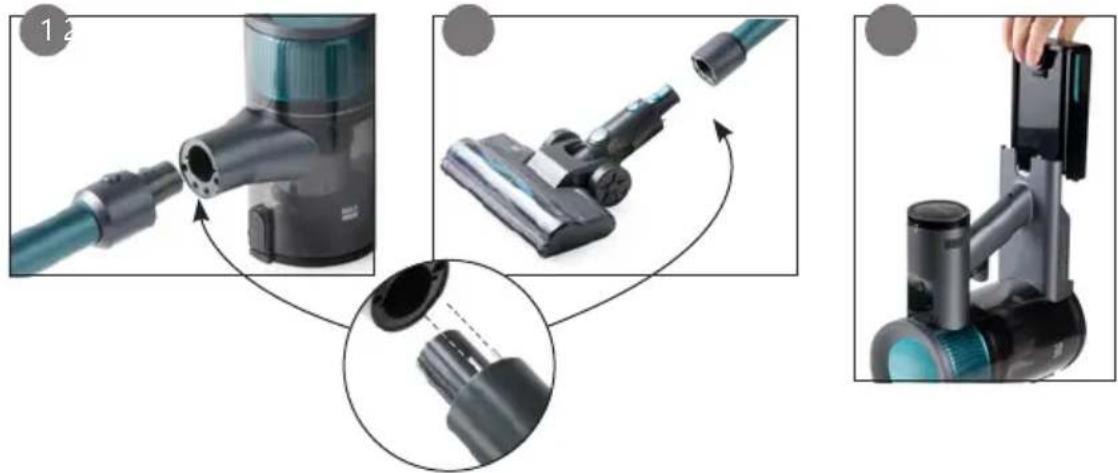

- Assemble all the parts:

1. Slide the wand assembly into the motor part until it clicks into place. Make sure the power pins slide into the intended holes properly.
2. Slide the floor attachment on to the wand assembly until it clicks into place. Make sure the power pins slide into the intended holes properly.
3. Slide the battery into the battery holder at the bottom of the motor part until it clicks into place.

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and application (no text or symbols)

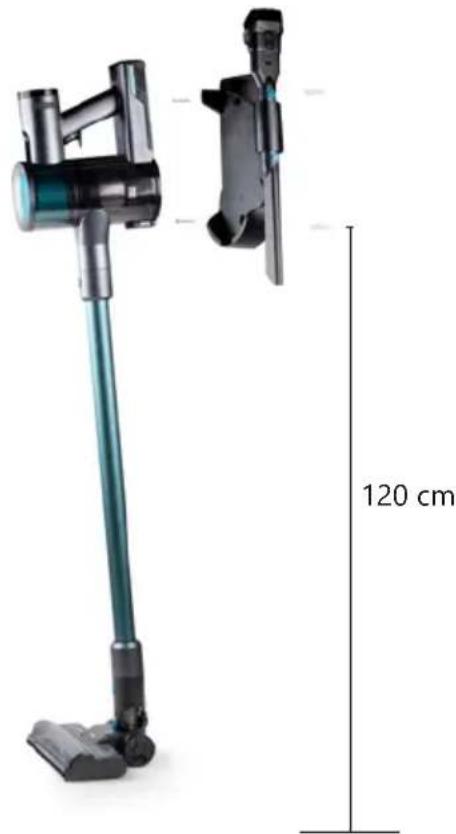

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount, whereby the bottom hole is at least 120 cm from the ground.
2. Insert the supplied plugs into the wall.
3. Fix the wall mount using the supplied screws.
4. To store the device, simply hang it on the wall mount. You can also store accessories on the wall mount, both at the top and bottom. To remove an accessory from the wall mount later, press the release button for the respective accessory.

Product photo of a vacuum cleaner with a 120 cm height measurement indicator (no text or symbols on the device itself)

CHARGING

• If the last (left) light on the battery flashes, then the battery is almost empty. Turn off the vacuum cleaner and put it on charge.
• Connect the adapter into the handle via the provided connection, and then plug the adapter into the wall socket.
• The battery level indicator lights will flash. The battery is fully charged when all three lights are on.
  • The machine cannot be started during charging.
• Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.
• It is recommended that the battery be fully charged for the first three charges.

Close-up of a handheld device with a black DUMO-branded brush and a hand inserting a cable (no visible text or symbols)

NOTES:

• Battery charging may take longer under the following conditions:
• if the room temperature is higher than 30^ C ;
• if the vacuum cleaner is charged immediately after being used.
• It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.
• Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.
• The recommendation is to disconnect the battery and adapter if the vacuum cleaner is not used for more than two months. To remove the battery, press the battery release button (behind the handle) and slide the battery out of the battery holder. To ensure a longer lifespan, the battery must be charged at least once every two months.
• The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.
• The temperature while charging should be between 15 °C and 25 °C. Higher or lower temperatures reduce battery life.

USE

1. Choose the correct accessory for the cleaning task you want to carry out:

2. Floor attachment with rotating floor brush: suitable for floors and carpets. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

3. Long crevice tool: for corners, cracks, skirting board edges and hard-to-reach places.

4. 2-in-1 fabric brush: use on upholstered surfaces, keyboards, lamps, curtains, blinds, ventilation openings, etc. The brush offers extra friction to make it easier to loosen hair and dust stuck on fabric. Use the short crevice tool for regular cleaning of small surfaces. To switch between brush and crevice tool, press the button to unlock the brush and slide it up or down.

Close-up of a black vacuum cleaner with a handle and plastic roller (no visible text or symbols)

Black cylindrical object with blue button, possibly a battery or scanner (no visible text or symbols)

Close-up of a black hairbrush with blue adjustment knob (no text or symbols visible)

1. Press the on/off button. The vacuum cleaner starts working. Press again to stop.

2. Press the mode button to switch between the 3 suction power levels.

low, medium, high

NOTE:

The various accessories can be clicked onto the wand assembly (stick vacuum cleaner) or directly onto the motor part, without the handle (hand vacuum cleaner).

Exterior view of a precision mechanical tool with a long handle and lever (no text or symbols visible)

Exterior view of a modern vacuum cleaner (no text or symbols visible)

CLEANING AND MAINTENANCE

CLEANING THE APPLIANCE

Clean the appliance with a slightly moist soft cloth. Dry the machine off well. Never submerge the appliance in water!

CLEANING THE DUST RESERVOIR

Empty the dust container after each cleaning session. Clean the dust container and filters at least once a month to maintain optimal performance. We advise replacing the filters regularly to ensure an optimal operation of the machine.

1. Disconnect the wand assembly from the motor part.
2. Hold the dust container over a rubbish bin and press the release button to open the cover. Empty the dust container.
3. Remove the coarse filter (a) from the dust container by turning it clockwise. You can use the crevice cleaner as a tool.
4. Turn the HEPA filter (b) counterclockwise and remove the HEPA filter from the outer coarse filter (a). You can loosen the rubber seal (c) of the dust container if it is dirty.

Close-up of a vacuum cleaner's internal structure with pipe connection (no visible text or symbols)

Close-up of a hand pouring colorful granular substance into a black bowl (no text or symbols visible)

Mechanical device showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

Three labeled diagrams (a, b, c) showing different types of kitchen appliances or containers, with no visible text or symbols.

1. Wash all the parts under cold running water.

Person using a black plastic bucket on a kitchen sink (no text or symbols visible)

Person using a tool on a kitchen sink (no visible text or symbols)

1. Allow all the parts to dry completely before reassembling them.

2. Make sure all the parts fit together nicely when assembling, before using the machine again.

CLEANING THE EXHAUST FILTER

Clean the exhaust filter once a month to maintain optimal performance.

1. Loosen the exhaust filter cover. Remove the exhaust filter from the appliance.

2. Knock the dirt out of the filter. Rinse the filter under cold running water.

3. Allow the filter to dry completely before reassembling it.

Close-up of a 22.2V LION electric vacuum cleaner with attached sensor array (no visible text or symbols)

Close-up of a hand holding a small white object next to a metallic kitchen faucet (no text or symbols visible)

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.

2. Slide the switch backwards to unlock the floor brush.

3. Gently remove any hair and dirt from around the brush; do this by hand or carefully with a knife. Rinse the brush under cold running water.

4. Allow the brush to dry completely before reassembling it.

5. To refit the brush, place the right side of the brush against the gear (a) and push the left side (b) until it clicks into place.

6. Push the nozzle back onto the stick. The machine is now again ready for use.

Close-up of a black vacuum cleaner being inserted, with a hand pointing to the component (no text or symbols visible)

Close-up of a mechanical component with a circular arrow pointing to a highlighted section (no visible text or symbols)

Close-up of a hand using a sewing machine to cut fabric (no visible text or symbols)

Close-up of a black electronic device with a blue LED light source and labeled components (a, b), no readable text or symbols beyond labels.

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The machine does not start up. • The battery is empty. Charge the machine.
Loss of suction. • The filters are dirty/the dust reservoir is full.• The floor nozzle is clogged/the floor brush is blocked.• Clean the machine as described in this manual.
The rotating floor brush is not rotating.	• The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.• The floor brush is assembled incorrectly. Follow the instructions to correctly assemble the floor brush as described in this manual.
An icon with a roller brush is flashing.	• The rotating floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.
The last (left) light on the battery is flashing.	• The battery is almost empty. Turn off the vacuum cleaner and put it on charge.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for at least 10 minutes and contact a doctor.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and cleaning process (no text or symbols)

SOPORTE MURAL

Product photo of a green vacuum cleaner with attached black device, shown with 120 cm height dimension (no text or symbols on device body)

CARGA

Close-up of a hand inserting a small electronic component into a black base (no visible text or symbols)

COMENTARIOS:

Close-up of a black vacuum cleaner with blue filter and white head (no text or symbols visible)

Black cylindrical electronic component with blue adjustment knob, isolated on white background (no text or symbols)

Close-up of a black plastic electrical connector with blue connectors (no visible text or symbols)

Close-up of a precision mechanical tool with a long blue handle and black base (no text or symbols visible)

Exterior view of a black handheld vacuum cleaner with a blue handle and green ventilation cover (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

LIMPIAR EL APARATO DE POLVO

Close-up of a vacuum cleaner's handle assembly with arrows indicating component alignment (no text or symbols visible)

Close-up of a hand pouring colorful granular substance into a black bowl (no text or symbols visible)

Mechanical assembly diagram showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

Close-up of three kitchen appliances labeled a, b, and c (no text or symbols on the devices themselves)

Person washing a kitchen sink with a black plastic bag (no text or symbols visible)

Person using a tool on a kitchen sink, no visible text or symbols

Close-up of a 222V Li-ion vacuum cleaner with attached sensor module (no visible text or symbols)

Hand cleaning a kitchen sink with a hand holding a small white object (no text or symbols visible)

LIMPIAR EL CEPILLO DE SUELO

Close-up of a black vacuum cleaner with a plug, showing a step indicator (no text or symbols on the device itself)

Close-up of a computer monitor with a close button and a magnified view of the screen (no visible text or symbols)

Hand using a tool to clean or store items on a white surface (no visible text or symbols)

Top-down view of a black electronic device with two labeled sections (a and b), no visible text or symbols on the device itself.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or numbers present)

Labeled diagram of a vacuum cleaner with numbered parts and close-up insets showing internal components.

PRIMA DELL'USO

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and cleaning process (no text or symbols)

SOSTEGNO A PARETE

Product photo of a green vacuum cleaner with attached black device, shown with 120 cm height dimension (no text or symbols on device body)

120 cm

CARICARE

Close-up of a handheld device with a hand inserting a small component, no visible text or symbols

NOTE:

Close-up of a black vacuum cleaner with a blue handle and silver blade (no text or symbols visible)

Black cylindrical electronic component with blue top, isolated on white background (no text or symbols)

Close-up of a black plastic electrical plug with blue connectors (no visible text or symbols)

Close-up of a precision tool with a long handle and cylindrical head (no visible text or symbols)

Exterior view of a modern vacuum cleaner (no text or symbols visible)

Close-up of a vacuum cleaner's internal component being inserted, showing pipe connection and valve mechanism (no text or symbols visible)

Close-up of a hand pouring colorful granular substance into a black bowl (no text or symbols visible)

Mechanical assembly showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

Three labeled diagrams (a, b, c) showing different types of kitchen appliances or containers, with no visible text or symbols.

Person using a kitchen sink with a black plastic bucket, no visible text or symbols

Person using a cleaning tool on a kitchen sink (no visible text or symbols)

Close-up of a 222V Union 3-branded vacuum cleaner with attached sensor module (no visible text or symbols)

Hand holding a small white object next to a metallic faucet (no text or symbols visible)

PULIRE LA SPAZZOLA PER I PAVIMENTI

Close-up of a black vacuum cleaner being inserted, with a hand pointing to the component (no text or symbols visible)

Close-up of a computer monitor with a magnified view showing internal components (no text or symbols visible)

Close-up of a hand using a tool to clean or store items on a white surface (no visible text or symbols)

Close-up of a black electronic device with a blue LED light source and labeled components 'a' and 'b', no readable text or symbols beyond labels.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and application (no text or symbols)

DRŽÁK NA STĚNU

Product photo of a green vacuum cleaner with attached black device, shown with 120 cm height dimension (no text or symbols on device body)

120 cm

NABÍJENÍ

Close-up of a Duro handheld device with a hand inserting a small component (no visible text or symbols)

POZNÁMKA

Close-up of a black vacuum cleaner with a brush and scroll (no visible text or symbols)

Black cylindrical electronic component with blue contacts, isolated on white background (no text or symbols)

Close-up of a black plastic electrical plug with blue buttons (no visible text or symbols)

Mechanical tool with a long blue and teal rod, mounted on a black stand (no visible text or symbols)

Exterior view of a modern vacuum cleaner (no text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

ČIŠTĚNÍ PŘÍSTROJE

Close-up of a vacuum cleaner's handle assembly with arrows indicating component alignment (no text or symbols visible)

Close-up of a hand pouring colorful granular substance into a black bowl (no text or symbols visible)

Close-up of a mechanical device with a lever and directional arrows indicating motion (no text or symbols)

Three labeled diagrams (a, b, c) showing different types of kitchen appliances or containers, with no visible text or symbols.

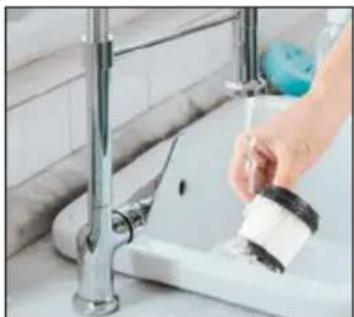

Person washing a kitchen sink with a black plastic cup (no text or symbols visible)

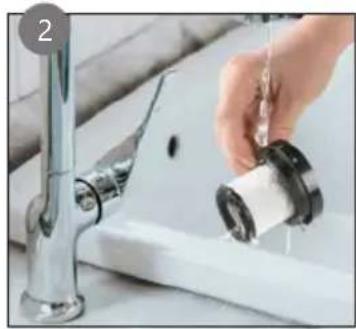

Person using a handheld tool on a kitchen sink (no visible text or symbols)

Close-up of a 222V lion spray gun with attached sensor array (no visible text or symbols)

Close-up of a hand holding a small white object next to a stainless steel faucet (no visible text or symbols)

ČIŠTĚNÍ PODLAHOVÉ HUBICE

Close-up of a black vacuum cleaner with a pipe fitting, showing a step indicator (no text or symbols present)

Close-up of a computer monitor with a highlighted screen and arrow indicator (no readable text or symbols)

Close-up of a hand using a tool to cut or apply a white surface, no visible text or symbols

Close-up of a black electronic device with labeled components 'a' and 'b', no readable text or symbols beyond labels

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Three-step diagram showing a vacuum cleaner's internal structure, assembly, and application (no text or symbols)

DRŽIAK NA STENU

Product photo of a handheld vacuum cleaner with a 120 cm height measurement indicator (no text or symbols on the device itself)

120 cm

NABÍJANIE

• Ak bliká posledná (ľavá) kontrolka batérie, je batéria vybitá. Vypnite prosím vysávač a nabite ho.
• Pripojte adaptér cez dodaný konektor v batérii a potom zapojte adaptér do zásuvky v stene.
• Kontrolky stavu batérie budú blikat'. Batéria je plne nabitá, ked' svieti všetky tri kontrolky.
• Pri priebehu nabíjania nie je možné vysávač zapnút.
• Pri prvom dobíjanie dbajte na to, aby sa batéria nabíjala celých 24 hodín. Jedine takto sa správne "sformátuje".
• Odporúča sa najskôr 3x batériu plne nabit'.

Close-up of a handheld device with a hand inserting a small component (no visible text or symbols)

POZNÁMKA:

Close-up of a black vacuum cleaner with blue filter and white head (no text or symbols visible)

Black cylindrical object with blue top, possibly a battery or scanner (no visible text or symbols)

Close-up of a black plastic connector with blue connectors (no visible text or symbols)

Mechanical tool with a long blue and teal component mounted on a stand (no visible text or symbols)

Exterior view of a modern vacuum cleaner (no text or symbols visible)

ČISTENIE A ÚDRŽBA

ČISTENIE PRÍSTROJA

Close-up of a vacuum cleaner's handle assembly with arrows indicating component alignment (no text or symbols visible)

Close-up of a hand pouring colorful granular substance into a black bowl (no text or symbols visible)

Mechanical device showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

Three labeled mechanical components (a, b, c) showing different types of containers or washers, with no visible text or symbols.

Hand washing a black kitchen sink with a hand valve (no text or symbols visible)

Person using a cleaning tool on a kitchen sink (no visible text or symbols)

Close-up of a 228V LION air purifier device with attached sensor array (no visible text or symbols)

Close-up of a hand holding a small white object near a kitchen sink (no text or symbols visible)

ČISTENIE PODLAHOVÉ HUBICA

1. Vysávač obrátte a vysuňte podlahovú hubicu. Najskôr musíte stlačit' uvolňovacie tlačidlo v zadnej časti hubice, a následne hubicu odňat'.

2. Posunutím spínača dozadu odblokujte podlahovú kefu.

3. Rukou alebo nožom jemne odstráňte všetky vlasy a nečistoty z okolia kefy. Umyte kefu pod tečúcou studenou vodou.

4. Pred opätovnou montážou nechajte kefu úplne vyschnút.

5. Pri výmene kefy priložte pravú stranu kefy k ozubenému koliesku (a) a zatlačte l'avú stranu (b) na miesto, kým nezapadne na miesto.

6. Oba dva klipy po strane podlahovej hubice zacvaknite opät' dole, tak aby sa podlahová hubica zaistila.

Close-up of a black vacuum cleaner with a plug, showing a step indicator (no text or symbols on the device itself)

Close-up of a mechanical device with a circular component and a magnified view showing internal structure (no text or symbols visible)

Close-up of a hand using a tool to cut or spread a white sheet on a machine (no visible text or symbols)

Top-down view of a black electronic device with labeled components (a, b), no readable text or symbols beyond labels

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
