USER MANUAL DO9171SP DOMO

White and green cleaning brush maker with clear glass and green handle (no text or symbols visible)

DO9171SP-DO9172SP

Handleiding My Vegetable

Mode d'emploi My Vegetable

Gebrauchsanleitung My Vegetable

Instruction booklet My Vegetable

Manual de instrucciones My Vegetable

Návod k použití My Vegetable

Návod na použitie My Vegetable

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Diagram of a handwashing device with numbered parts labeled 1 through 7

Top-down view of a white plastic kitchen drawer with cylindrical and brush handles (no text or symbols visible)

3 verschillende messenkegels

Close-up of a white plastic tool tip with a cylindrical base (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft inserted into a glass container (no visible text or symbols)

Prohibition sign with crossed-out trash bin and black prohibition symbol below

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Diagram of a handwashing machine with numbered parts for identification

Top-down view of a white plastic kitchen drawer with circular button labeled '8' (no text or symbols on main objects)

3 cônes différents

Close-up of a white plastic tool tip with a cylindrical base (no visible text or symbols)

Close-up of a laboratory glassware component with a cylindrical rod inserted, no visible text or symbols

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a food blender with numbered parts for identification and assembly reference.

Top-down view of a white plastic kitchen sink with cylindrical fixtures and a hand holding a tool (no text or symbols visible)

Three circular diagrams showing mechanical components inside a cylindrical container, with no visible text or symbols.

MONTAGE

Diagram showing a food cleaning or packaging process with labeled steps including funnel, drop, and final container.

VERWENDUNG

Close-up of a white plastic screw with a cylindrical base and fluted top (no text or symbols visible)

Close-up of a mechanical component with a cylindrical shaft inserted into a transparent container (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
· Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.
  · Only use the appliance for domestic use. The manufacturer can not be held responsible for

accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.
· Never immerse the appliance, the cord or the plug in water or any other liquid.
- Make sure that children do not touch the cord or appliance.
- Keep the cord away from sharp edges and hot parts or other heat sources.
· Before use, remove all packaging materials and any promotional stickers.
- Keep hands and utensils away from the blades and the moving blade cones.
- Do not use the appliance for longer than 1 minute continuously.
· Do not use the appliance to cut/grind meat.
· Never remove the blade cones before the appliance has stopped completely.
· Never push the food into the appliance with your hands. Always use the food pusher.
· Do not use the appliance with food that is too hearty (sugar, meat,...)
- Do not use the appliance when it has fallen or when the blade cones are damaged or incomplete.

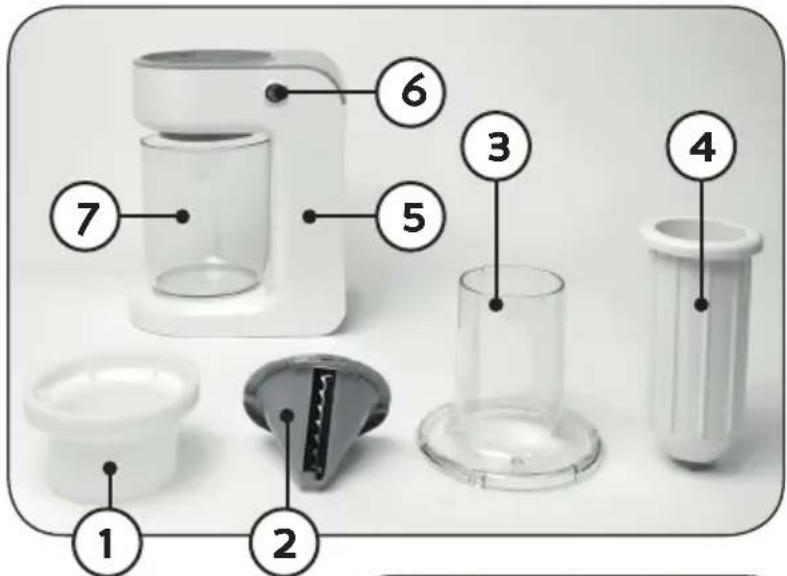

PARTS

1. Gear wheel
2. Blade cone
3. Lid with fill opening
4. Food pusher
5. Motor unit
6. On/off switch
7. Bowl

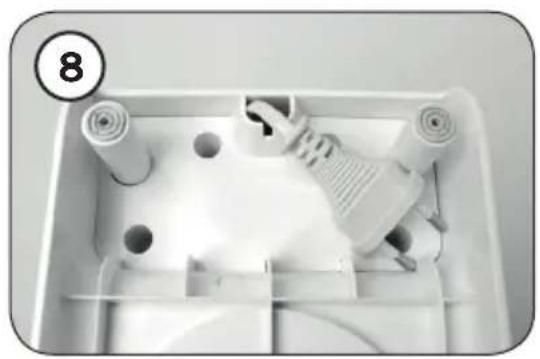

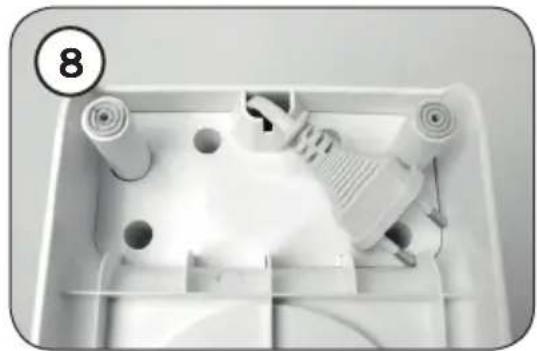

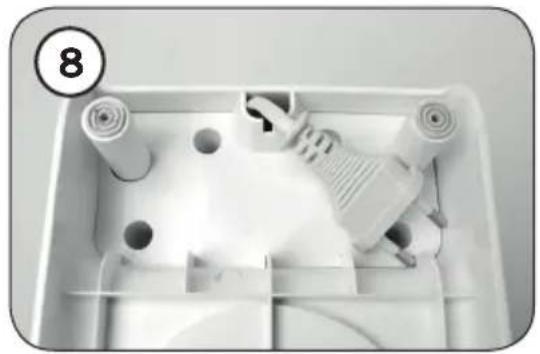

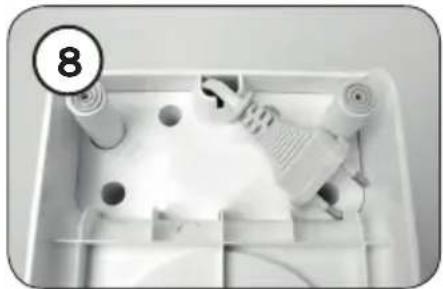

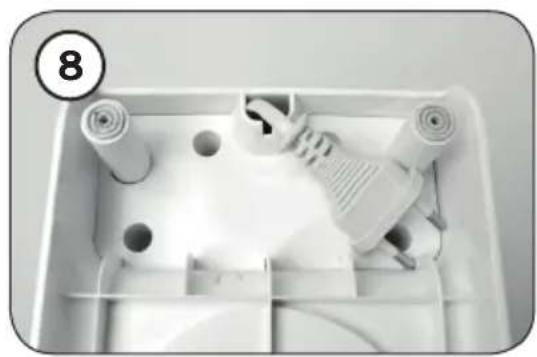

8. Cord storage in the bottom of the appliance

Diagram of a handwashing device with numbered parts for identification

Top-down view of a white plastic tray with circular annotation (number 8) and a hand holding a tool, no visible text or symbols on the tray itself.

3 different blade cones
1. Extra thin: cappellini
2. Thin: spaghetti
3. Wider: tagliatelle

123

Circular object with a metallic rod inserted into a white interior (no text or symbols visible)

Interior view of a cylindrical container with a metallic thermometer inserted (no text or symbols visible)

Close-up of a cylindrical object inside a circular opening, possibly a pipe or container (no visible text or symbols)

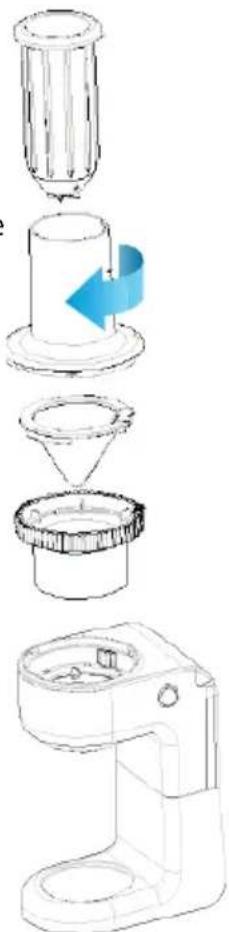

ASSEMBLY

1. Place the appliance on a flat, stable surface.

2. Place the gear wheel in the opening on top of the appliance. Choose one of the three blade cones and place the cone into the gear wheel. Make sure that the cone and gear wheel are well placed. The blade cone should nicely fit into the gear wheel.

3. Place the lid with fill opening and turn clockwise to fasten.

4. Place the bowl onto the platform below the opening.

Diagram showing a food cleaning or packaging process with labeled steps including funnel, drop, and final container.

USE

1. Make sure that the on/off switch is set to 'O' (= off). Plug in the appliance.
2. Prick the vegetable or fruit - peeled or not - onto the cross at the bottom of the food pusher.

Close-up of a white plastic cylindrical object with a textured base and protruding port (no visible text or symbols)

Caution: the vegetable or fruit has to be min. 2,5 cm and max. 6 cm wide. To make nice, long spaghetti it should also have a round or cylinder shape.

1. Now put the food pusher with the vegetable or fruit attached to it into the opening in the lid - with the vegetable/fruit downwards, so that the food touches the blade cone.

Close-up of a mechanical component with a cylindrical shaft inserted into a transparent container (no visible text or symbols)

1. Apply pressure on the food pusher and simultaneously switch the on/off swith to 'I' (= on). The blade cone will now start spinning, and the food will be cut into spaghetti. Push the food pusher downwards during this process, with an even force, so that the food is pushed through the blade cone. Make sure that the vegetable or fruit - and thus also the food pusher - does not spin. The spaghetti will fall into the bowl.

2. Switch the on/off switch to 'O' (= off) when the vegetable or fruit is entirely cut.

3. A small vegetable or fruit cone will now be left behind on the bottom of the food pusher. Remove the cone from the food pusher and add it to your dish or already eat it as an appetizer for the meal.

TIP

Which vegetables and fruits can you spiralise?

· Courgette
· Cucumber
· Winter radishes
- Carrot: yellow, orange, red
· Kohlrabi
· Celeriac
· Parsley roots
· Parsnips
· Daikons
· Pumpkin
- Potato
- Sweet potato
- White and yellow turnips
- Red beets
· Chioggia beets
- Broccoli stalks
- Apples
· Kaki (Japanese persimmon)

CLEANING AND MAINTENANCE

· Switch off and unplug the appliance before removing any parts and before cleaning.
- Clean all removable accessories after each use: lid with fill opening, blade cones, gear wheel, food pusher and bowl. These parts can also be cleaned in the dishwasher.

Caution: the blades are sharp. Be very careful during cleaning.

· Wipe the housing of the appliance clean with a soft, damp cloth. Dry thoroughly.
- Caution: never immerse the motor unit in water.

ENVIRONMENTAL GUIDELINES

Warning sign with crossed-out trash bin and a blank rectangular bar below

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

PRECAUCIONES IMPORTANTES

Labeled diagram of a food blender with numbered parts for identification

Top-down view of a white plastic tray with plastic bottles and a brush, no visible text or symbols

Tres cono portacuchillas diferentes 123

1. Tiras extrafinas: capellini
2. Tiras finas: spaghetti
3. Tiras gruesas: tagliatelle

Circular object with a metallic rod inserted into a gray medium (no text or symbols visible)

Circular object with a metallic rod inserted into a gray medium (no text or symbols visible)

Interior view of a circular pipe with a thermometer inserted (no visible text or symbols)

MONTAJE

Diagram showing a food cleaning or packaging process with labeled steps including funnel, drop, and final container.

USO

Close-up of a white plastic screw with a metallic cylindrical base (no text or symbols visible)

Close-up of a laboratory glassware component with a cylindrical rod inserted into a container (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a handwashing device with numbered parts for identification

Top-down view of a white plastic kitchen drawer with cylindrical and mechanical components (no text or symbols visible)

Close-up of a circular mechanical component with a central rod and textured surface (no visible text or symbols)

Top-down view of a cylindrical object with a metallic rod inserted into a circular opening (no text or symbols visible)

Close-up of a cylindrical object with a metallic rod inserted into a circular opening (no visible text or symbols)

MONTÁŽNÍ

Diagram showing a cleaning or packaging process step with labeled steps and directional arrow

POUŽITÍ

Close-up of a white plastic cylindrical object with a textured base and pointed tip (no visible text or symbols)

Close-up of a laboratory glassware component with a cylindrical rod inserted into it, no visible text or symbols

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed lines and a trash can symbol, indicating no waste or discharge hazard

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a handwashing device with numbered parts for identification

Top-down view of a white plastic kitchen drawer with cutlery and a hand tool (no text or symbols visible)

Circular object with a metallic rod inserted into a gray medium, no visible text or symbols.

Interior view of a cylindrical pipe with a metallic rod inserted (no text or symbols visible)

Interior view of a circular mechanical component with a central spring-like element (no text or symbols visible)

MONTÁŽNE

Diagram showing a cleaning or packaging process with labeled steps including brush, funnel, and motor.

POUŽITIE

Close-up of a white plastic screw with a cylindrical base and fluted tip (no text or symbols visible)

Close-up of a mechanical component with a cylindrical shaft inserted into a glass container (no visible text or symbols)

Warning sign with crossed-out trash bin and a black rectangular block below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
