USER MANUAL MDT24P5AST MIDEA

Capacity: 14 Place Settings

Warning:

Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

version B - 03 - 2021

USER MANUAL

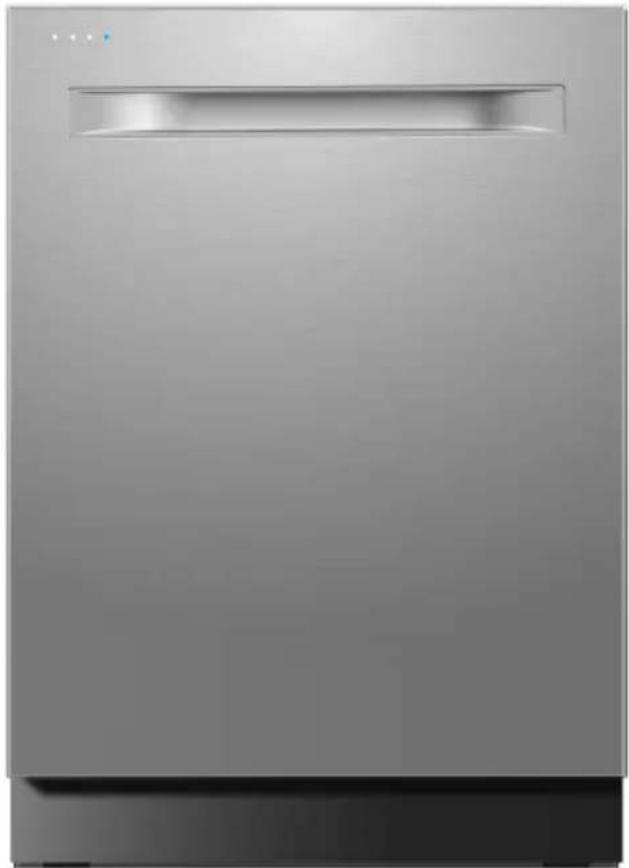

Exterior view of a stainless steel kitchen appliance (no visible text or symbols)

Free 3 months
extension* of the

original limited warranty period! Simply text a picture of your proof of purchase to:

1-844-2 2 4-1 6 1 4

*The warranty extension is for the three months immediately following the completion of the product's original warranty period.

Dear user

Thank you for letting Midea help you "make yourself at home." This manual is part of our commitment to your total satisfaction. Please read this manual carefully before use and keep it in a convenient place for future reference.

To help us serve you better, please consider registering your product using our convenient Midea app MSmartlife, by visiting HYPERLINK http://www.midea.com, or by texting a picture of your proof of purchase to 1-844-224-1614.

By using the text option you will earn an additional 3 month warranty extension immediately following the completion of the product's original warranty.

DISHWASHER SAFETY ....3

OPERATING REQUIREMENTS 7

Location Requirements ....7

Water Supply Requirements ....7

PARTS AND FEATURES 8

Filter System 9

Smart Wash System 9

START UP GUIDE ...... 11

How your Dishwasher Cleans 11

Before Using Your Dishwasher ....11

Using Your New Dishwasher 11

CONTROLS 12

LED Indicator Lights....16

Cycle and Option Charts ....17

Loading Suggestions 21

Upper Rack 22

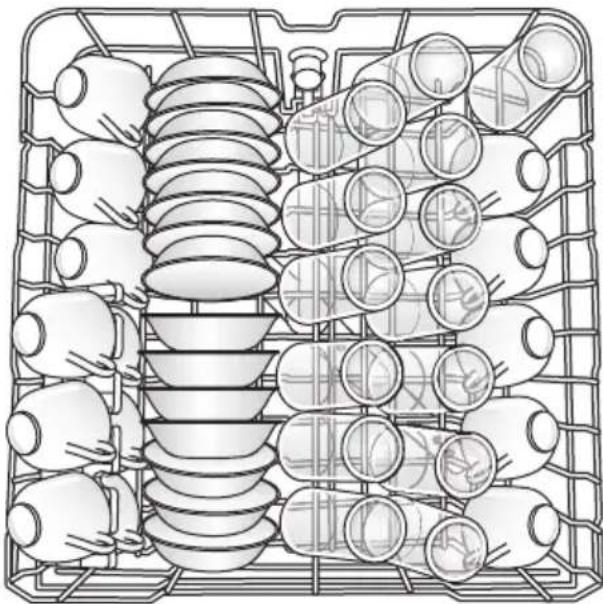

Load Upper Rack 24

Lower Rack 25

Loading Silverware 27

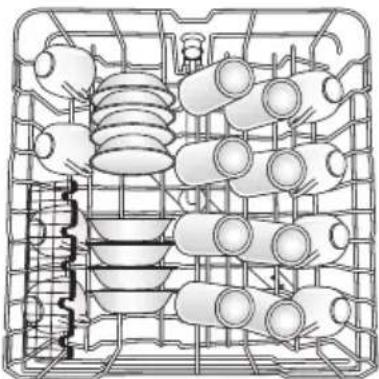

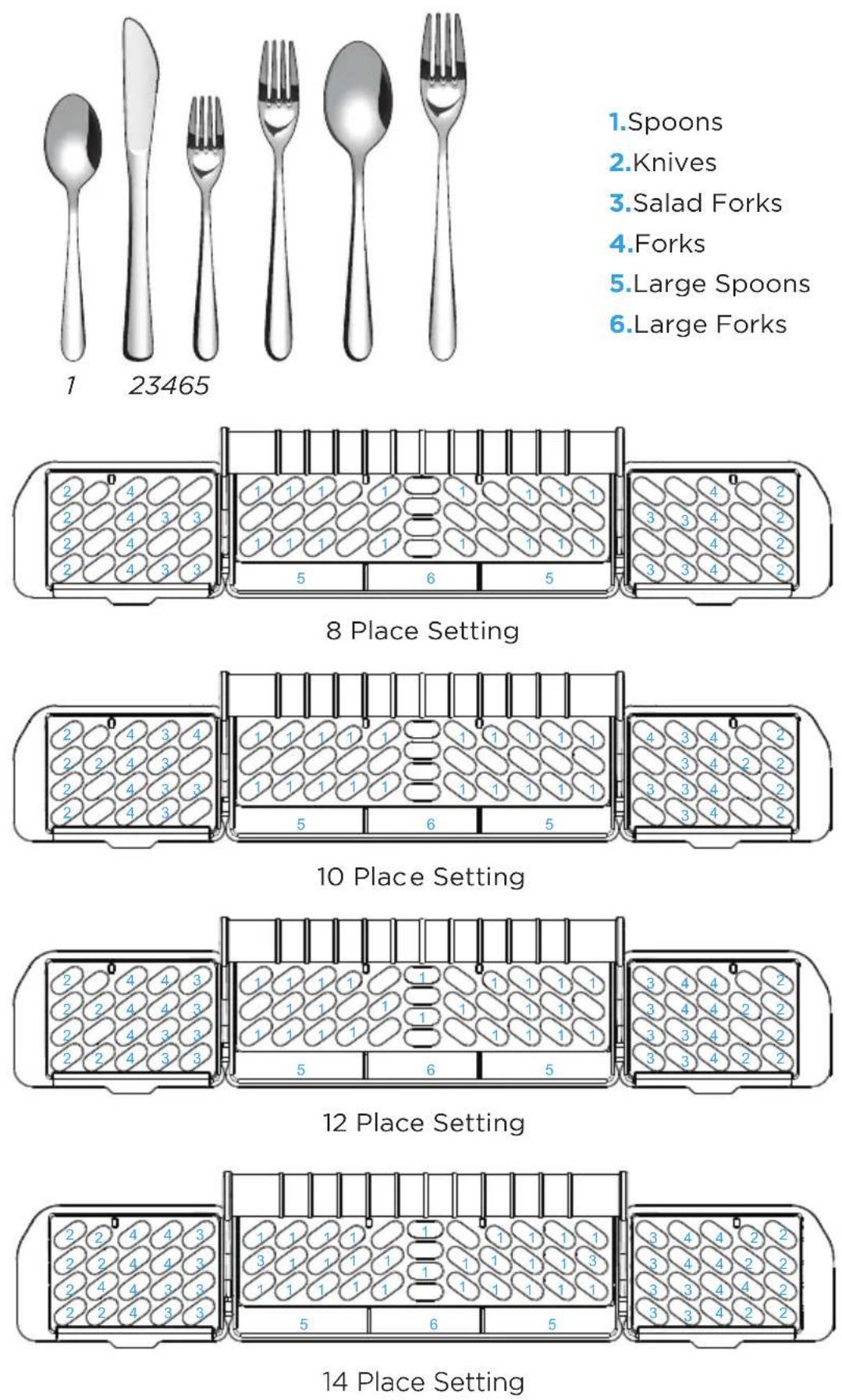

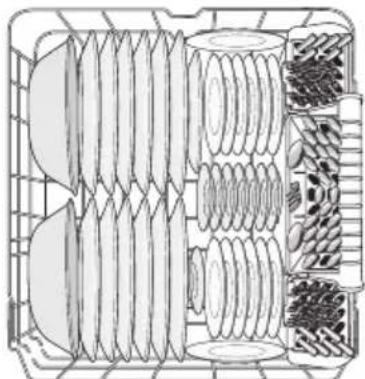

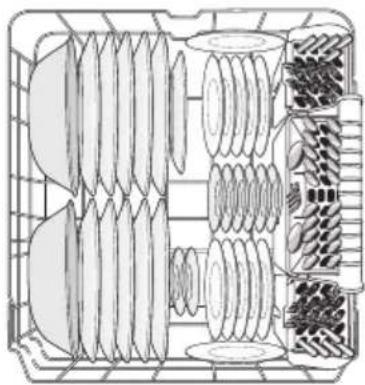

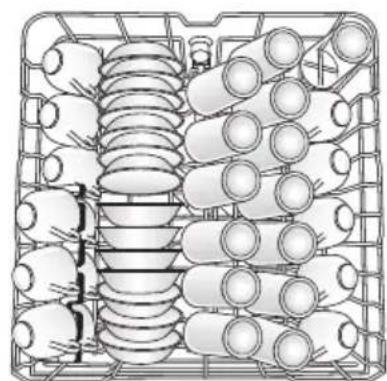

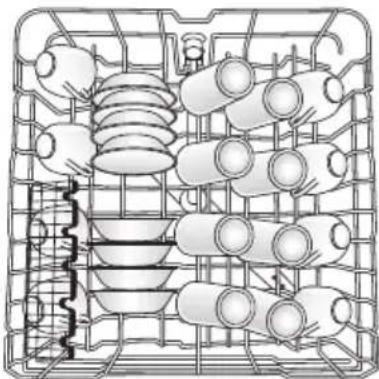

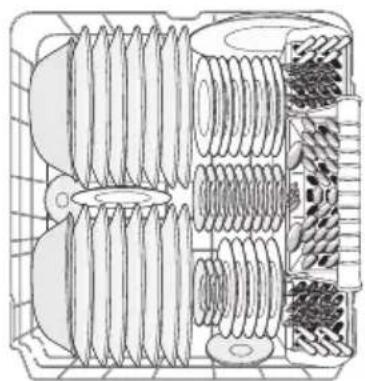

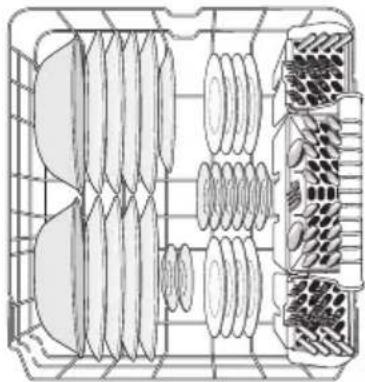

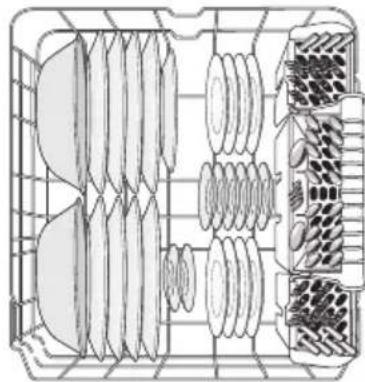

Recommended Load Patterns ....29

DISHWASHER USE 31

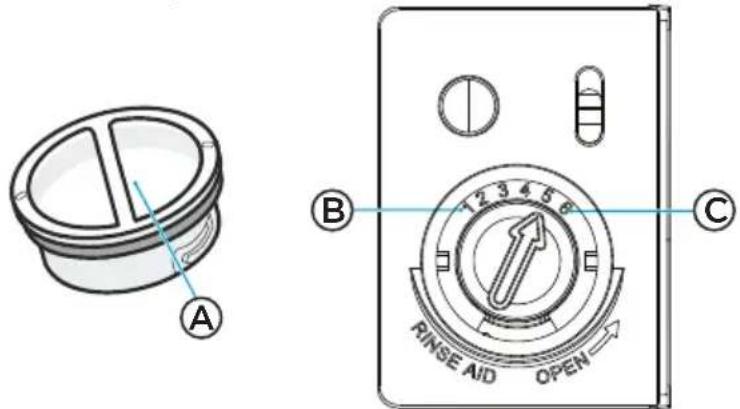

Proper Use of Rinse Aid 32

Washing Special Items 34

DISHWASHER CARE ....35

Cleaning 35

Storing 37

TROUBLESHOOTING 38

Error Codes 43

WARRANTY 44

DISHWASHER SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage property.

WARNING

This symbol indicates the possibility of dangerous voltage constituting a risk of electrical shock is present that could result in death or serious injury.

WARNING/GROUNDING INSTRUCTIONS

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug if provided with the appliance. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. If this appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug, the plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using your dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended function.
• Use only detergents or rinse/wetting agents recommended for use in a dishwasher and keep them out of the reach of children.

• When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal.

• Load sharp knives with the handles up to reduce the risk of cut-type injuries.

- Do not wash plastic items unless they are marked “Dishwasher Safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

- Items that are not dishwasher safe may melt and create a potential fire hazard.

- Do not touch the heating element during or immediately after use.

- Do not operate your dishwasher unless all enclosure panels are properly in place.

• Do not tamper with controls.
• Do not abuse, sit on, or stand on the dishwasher door, or dish racks.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed by a qualified service technician using only original equipment factory replacement parts.
• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Keep young children and infants away from dishwasher when it is operating.
• Do not use the dishwasher if it has a damaged power line or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.
• This manual does not cover every possible condition or situation that may occur.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

WARNING

Simple black-and-white icon of a tilted book with a bookmark, resting on a flat line (no text or symbols)

Tip Over Hazard

• Do not use dishwasher until completely installed.
• Do not push down on open door.
• Doing so can result in serious injury or cuts.

State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive

Harm-www.P65Warnings.ca.gov.

WARNING

Suffocation Hazard

• Before you throw away your old appliance, remove the door or lid so that children cannot hide or get trapped inside your old appliance.
• Failure to follow these instructions can result in death or brain damage.

CAUTION

• Never use harsh chemicals to clean your dishwasher. Some chloride-containing products can damage your dishwasher and may present health hazards!
• Never use steam cleaning products to clean your dishwasher. The manufacturer will not be responsible for the possible damages or consequences.
• To avoid possible dishwasher damage, do not use harsh chemicals, abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels to clean your dishwasher's exterior door panel. Your dishwasher's exterior door panel can be damaged by doing so.
• It is highly recommended that the user become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or contact your installer for more information.
• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.
• NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.
• Protect your dishwasher from the elements. Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.
• Not for outdoor use.

OPERATING REQUIREMENTS

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

• Electrically ground dishwasher.
- Connect ground wire to green ground connector in terminal box.
- Do not use an extension cord.
- Failure to follow these instructions can result in death, fire, or electrical shock.

This dishwasher is designed for operation on an adequately wired individual 120 V, 60 Hz, 15- or 20-amp fused electrical supply with copper wire only. It is recommended that a time-delay fuse or circuit breaker is used, and that a separate circuit serving only this appliance is provided. If an outlet is used, the outlet should be placed in adjacent cabinet.

LOCATION REQUIREMENTS

• Install where dishwasher is protected from the elements. Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. For winter storage information, see “Storing” in the “Dishwasher Care” section.
• Install and level dishwasher on a floor that will hold the weight and in an area suitable for its size and use.

WATER SUPPLY REQUIREMENTS

• The water supply temperature should be 120^ F to 150^ F ( 49^ C to 66^ C).
• The water supply must maintain water pressure between 20 and 80 psi for sufficient flow.

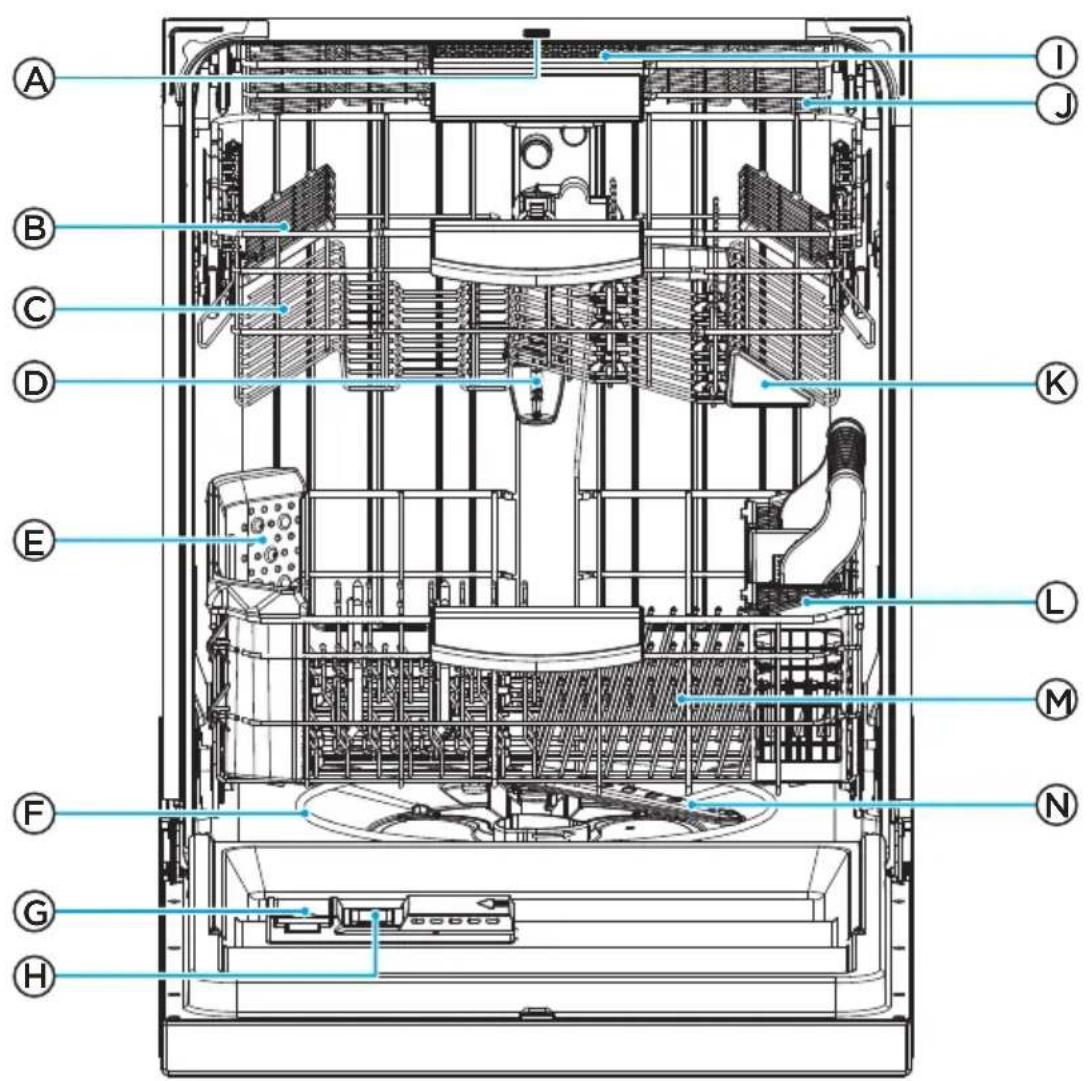

PARTS AND FEATURES

A B C D E F G H I J K L M N

(A) Upper Spray Arm
(B) Cup Shelf
© Upper Rack
(D) Middle Spray Arm
E Angle Wash Spray
(F) Heating Element

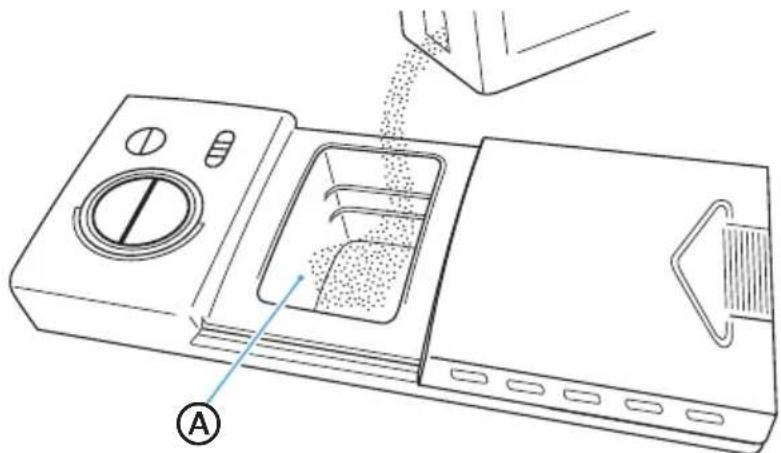

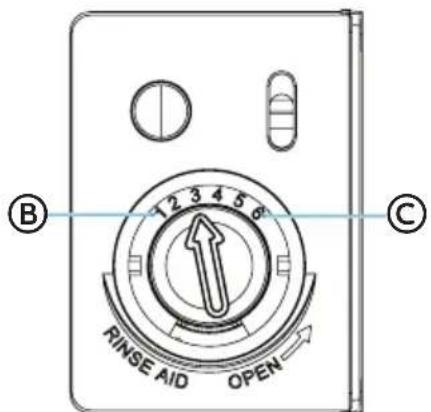

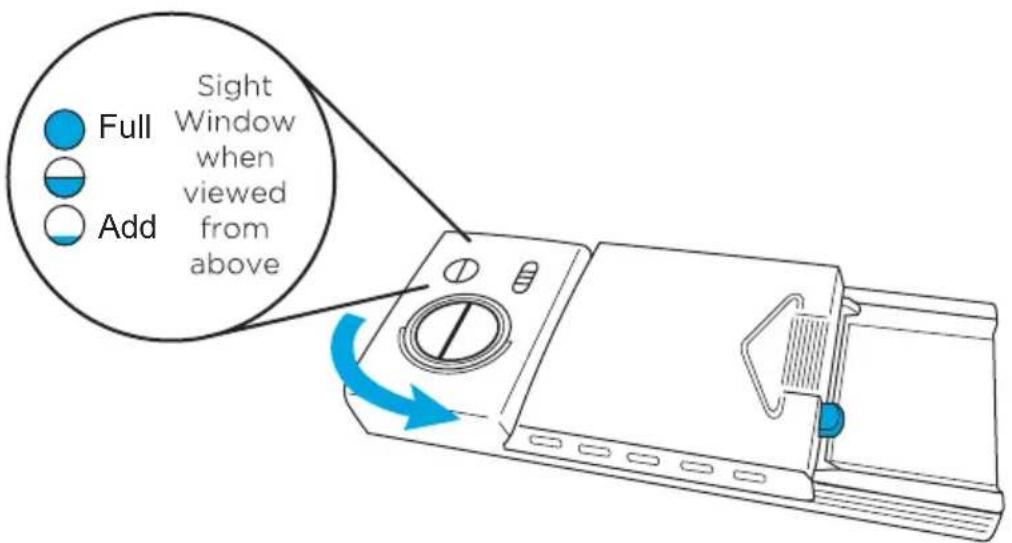

G Rinse Aid Dispenser

H Detergent Dispenser
① Cutlery Shelf

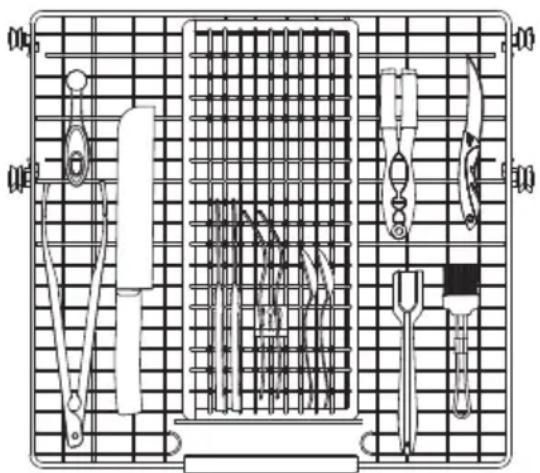

J Third Rack
K Utensil Wash Spray
L Silverware Basket
M Lower Rack
N Lower Spray Arm

SPECIFICATIONS

Capacity: 14 Place Settings
Dimensions (WxDxH): 23	^7/8 " × 24^1/2 " × 33^3/4 " (606 × 623 × 857 mm)
Weight Unpacked:	96 lb
Power Supply:	120 V, 60 Hz
Water Feed Pressure:	20 - 80 psi (138 - 55.2 kPa)

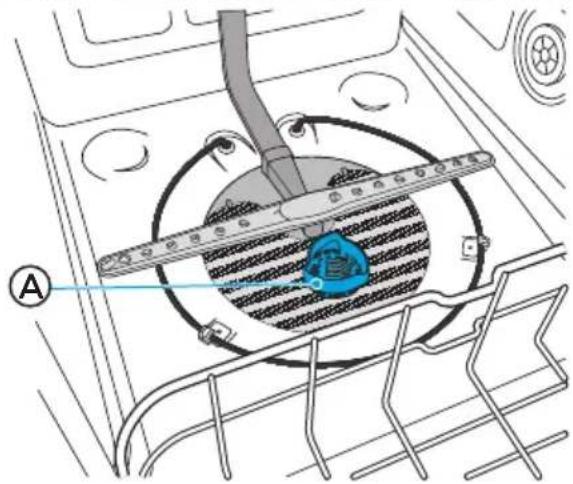

FILTER SYSTEM

Your dishwasher has a multiple filter system, which helps your dishwasher perform better using less water and less energy.

The filter system includes three filters that work in combination to separate dirty and clean water into different chambers.

Technical diagram of a mechanical device with labeled component A and measurement tool

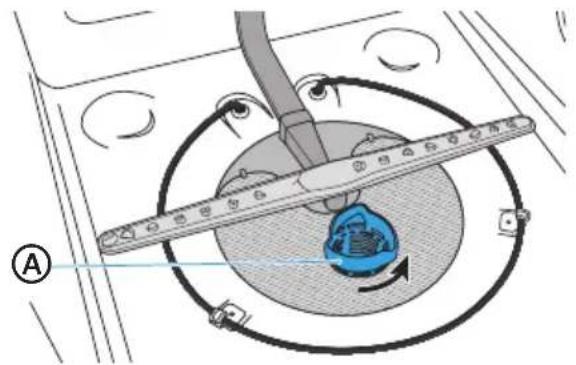

Filter Location

SMART WASH SYSTEM

Your dishwasher has a Smart Wash system which can be used by selecting the Auto cycle.

The Smart Wash system senses the soil level of the load and adjusts the wash cycle accordingly. Your dishwasher can determine the type of cycle required to clean the dishes and will clean more efficiently every time.

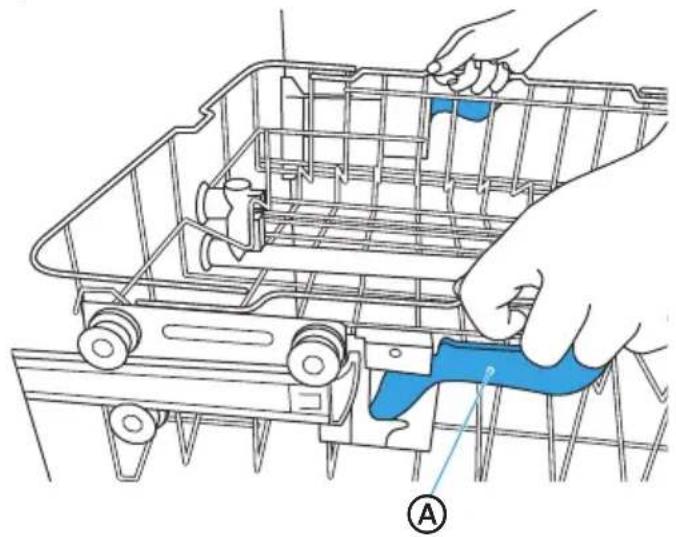

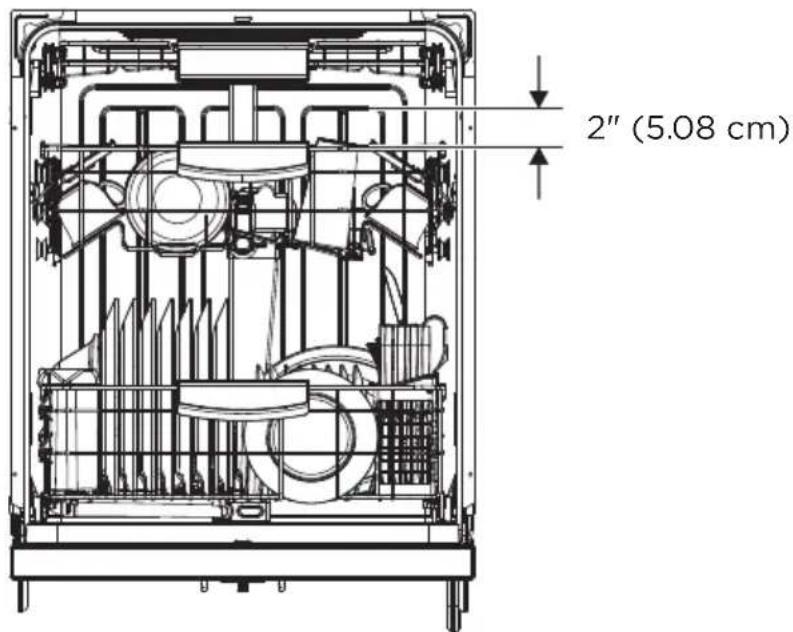

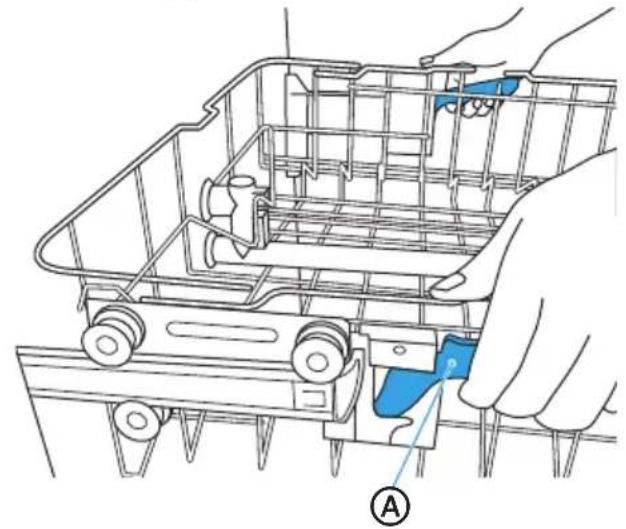

The Adjustable Upper Rack feature allows you to load taller items in either the upper or lower rack.

The upper rack of your dishwasher can be adjusted 2" (5.08 cm).

Adjusting the clearance of the Upper Rack increases or decreases the clearance of the lower rack, as shown.

For instructions, see the "Adjustable Upper Rack" section.

2" (5.08 cm)

START UP GUIDE

IMPORTANT:

• Properly dispose of/recycle all packing material.
• Read this entire User Manual. You will find important safety information and useful operating tips.

HOW YOUR DISHWASHER CLEANS

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces.

The dishwasher fills with water covering the filter area. Water is then pumped through the multiple filters and spray arms. Soil particles are separated from the water and go down the drain as the water is pumped out and replaced with clean water.

The number of water fills will vary depending on the cycle selected.

BEFORE USING YOUR DISHWASHER

1. Check the filters f or debris that may have been introduced from the packaging or during installation. See the "Clean Filters" section.
2. Add Rinse Aid. See "Proper Use of Rinse Aid."

USING YOUR NEW DISHWASHER

NOTE: To decrease cycle time and possibly improve performance, turn on the hot water faucet nearest to the dishwasher until the water runs hot. Turn off the water.

1. Load dishwasher. See "Dishwasher Loading."
2. Add detergent. See "Proper Use of Detergent."

3. Select desired CYCLE and OPTIONS. See "Cycle and Option Charts."

4. Only the Options available for the Cycle selected will illuminate.

5. The controls of the selected Cycle and Options will glow to indicate they are selected.

6. Press START.

IMPORTANT: For the dishwasher to begin operating, the door must be closed within 4 seconds after pressing Start/Cancel.

1. Close the door firmly to latch.

CONTROLS

NOTE: The dishwasher controls can be accessed and operated only when the dishwasher is open.

A POWER

• Turn On - Press and hold POWER for 3 seconds
• Turn Off - Press and hold POWER for 3 seconds

BCYCLES

Press the control for the desired wash cycle. The light above the selected wash cycle illuminates to indicate the cycle selected.

AUTO

Auto cycle uses sensors in the dishwasher to determine the soil level of the dish load, and then adjusts the wash cycle to optimize wash performance, water and energy usage.

HEAVY

Heavy cycle is for pots, pans, casseroles and dinnerware with dried-on or baked on soil.

NORMAL

Normal cycle with only the Heat Dry option selected is recommended to completely wash and dry a full load of normally soiled dishes. The energy usage label is based on this cycle and option combination with the upper rack in the raised position.

DELICATE

Delicate cycle is for items that need special care such as stemware or porcelain.

QUICK

Quick cycle is for lightly soiled or well-rinsed dish loads.

RINSE

Use for pre-rinsing dishes or glasses. This is only a rinse that keeps food from drying on your dishes and reduces odor buildup in your dishwasher until you are ready to wash a full load.

MY WASH

Customizable wash cycle. Wash parameters such as Wash Temp, Dry Level, Angle Wash time and Utensil Wash time can be set in the MSmart APP. Multiple My Wash Cycles can be defined.

NOTE: MY WASH will be unavailable until the parameters have been set in the MSmart APP and the cycle Uploaded to the dishwasher. The dishwasher must be connected to a WiFi network.

OPTIONS

Options enhance the wash cycle. Some Options are available with only certain Wash Cycles. Refer to the "Cycle and Options Charts" to see which Options are available for the wash cycle you selected.

- Press the desired Option control(s). The light above the selected option(s) illuminates to indicate which option(s) have been selected.

SANITIZE

WARNING: Only sanitizing cycles have been designed to meet the requirements for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a certified machine have passed the sanitization performance test.

The sanitize option sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for use in licensed food establishments.

The Sanitize Control illuminates to indicate when the Wash cycle with the Sanitize option is completed. The light will turn off after the door has been opened for 30 seconds.

NOTE: It is possible that the dishwasher may not achieve the required parameters for NSF/ANSI 184, if the temperature of the incoming hot water does not meet the minimum requirement of 120^ F ( 49^ C).

HI TEMP

When the Hi Temp option is selected, the water temperature will be increased to achieve better results during the wash portion, compared to the cycle without Hi Temp option.

HEATED DRY

When the Heated Dry option is selected, the heater will work during the drying process. The Heated Dry process adds time to the wash cycle.

EXTENDED DRY

When the Extended Dry option is selected, the heater and fan operation will be extended to further improve drying performance. The final rinse will be elevated and extend the heated dry time.

ANGLE WASH

Angle Wash will spray wash water from the left corners of the lower rack onto the dishes. The Angle Wash works in conjunction with the lower spray arm to aid in the removal of tough soils.

UTENSIL WASH

Utensil Wash will add a direct spray at the silverware basket to aid in the removal of tough soils and improve the cleaning effect of cutlery.

D W IFI

This button is used for network connections. To connect the appliance to the network, first, switch on the appliance, and press WIFI button for more than 3 seconds. After a short beep the WIFI icon in the panel will start to blink slowly, the unit is connecting to the APP. The WiFi icon on the panel will remain lit when the network connection is successful.

IMPORTANT:

• If the Start Button is pressed during the network connection process, the process will be canceled.
  • Turning Off the Network Connection: (temporarily)
  With the power on and the door open. Press the WIFI button to turn off the WIFI radio, the WIFI icon will turn off. To turn back on the WIFI radio press the WIFI button with power on and door open, the WIFI icon will illuminate.
• Canceling or Resetting the Network Connection:
  With the power on and the door open. Press and hold the WIFI button for 15 seconds to turn off the WIFI radio and reset it to factory default.

WIFI ICON

The WIFI icon indicates the status of the network connection.

WIFI icon states:

Quick Flash-Connecting to the router

Slow Flash-Connecting to the sever

Light on-Link successfully

Light off-WIFI model power off

E A DDITIONAL FEATURES

DELAY

The Delay Time feature allows you to program the dishwasher to begin the selected wash cycle 1 to 24 hours later. Press the DELAY button until the desired hours of delay is shown on the display.

NOTE: Pressing the delay button for 3 seconds will reset the delay back to zero, canceling the delay. until the desired hours of delay is shown on the display.

CTL LOCK (Control Lock)

The Control Lock feature locks all controls to avoid unintentionally changing the dishwasher cycle or starting the dishwasher. The LED next to Control Lock will illuminate to indicate the Control panel is locked.

- Press and hold for 3 seconds QUICK and RINSE at the same time to either activate or cancel the Control Lock option.

Turning off Sound

- Press and hold for 3 seconds AUTO and NORMAL at the same time to deactivate or activate the control tones and the end of cycle tone.

START

START - Press START once and close the door. The cycle will begin.

NOTE: You must close the door within 4 seconds of pressing START.

PAUSE - If you need to pause or cancel a dishwasher cycle in process:

IMPORTANT: Open the door slightly, and then wait for the spray arms and wash action to stop before opening the door completely. Doing this will help keep you from being splashed with hot water.

1. Open the door slightly and wait a few seconds until the wash action stops.
2. Open the door to add or remove items.
3. Press START, and then close the door within 4 seconds.
4. The wash cycle will automatically resume.

CANCEL - To cancel a cycle when the dishwasher is running, open the door slowly. Press and hold START for 3 seconds and close the door.

SCREEN

Rinse Aid

The Rinse Aid indicator icon illuminates when the rinse aid level is low. Rinse Aid should be added to the Rinse Aid dispenser.

Control Lock

The Control Lock indicator icon illuminates to indicate the Control Panel is locked. Press and hold QUICK and RINSE at the same time for 3 seconds to unlock the control panel.

Sanitized

The Sanitized indicator icon illuminates when the cycle using the Sanitize option is finished.

The light turns off 30 seconds after the door is opened.

LED INDICATOR LIGHTS

Located on the front of the dishwasher is a row of four LED lights. These lights will either indicate the progress of the current cycle or alert you to a malfunction by indicating an Error Code.

CYCLE PROGRESS INDICATOR

Status Description
Power OnBlinking	The dishwasher is on, but the cycle has not started.
WashSlow Blinking	The dishwasher is in the Wash stage of the cycle.
RinseSlow Blinking	The dishwasher is in the Rinse stage of the cycle.
DrySlow Blinking	The dishwasher is in the Drying stage of the cycle.
CompletedSolid	The dishwasher has completed all stages of a cycle including Dry.The lights will turn off 30 seconds after opening the door.

ERROR INDICATOR

In situations, which are critical to dishwasher function and safe operation, the control will shut down and indicate an Error code in the display. See "Error Codes" in the Troubleshooting section. If an Error code is displayed, contact Midea Customer Service. They will be able to provide assistance with troubleshooting the problem or locating an authorized service technician.

CYCLE AND OPTION CHARTS

Depending on the Cycle selected, the Options available for selection will illuminate.

Cycle times are approximate and will vary depending on the wash cycle and options selected.

NOTE: Added Options can add more time and use more water.

Hot Water is necessary to activate the dishwasher detergent and melt fatty food residue.

An automatic sensor checks the temperature of the incoming water. If the water is not hot enough, the cycle will be lengthened to heat the water for the main wash.

When the HI-TEMP option is selected to wash heavily soiled loads, additional time to heat the water is required.

The Smart Wash Sensor detects the soil level of the dish load and may increase or decrease cycle time depending on the number of water fills required to clean the load.

A “•” shows what steps are included in each cycle. Temperatures indicate where extra heat is added. Water usage is shown in U.S. gallons/liters.

The user should only be able to select either "Heated Dry" or "Extended Dry", not both at the same time.

"X": shows it is available to be selected

“O”: Can be selected, but cannot be selected if the other Dry option is selected

AUTO

Use this cycle to allow the sensors to determine the wash cycle.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse Final	Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•		113° - 140°F (45° - 60°C)			136.4 -° 149°F (58 -° 65 )°C	•	98-141	3.01 to 5.94 gal. (11.4 to 22.5 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extealed D Dry		Angle Wash	Utensil Wash
X	X	O	O	X	X

HEAVY

Use this cycle for hard to clean, baked on, cookware and harder than normal water conditions.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse Final	Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•	•	140°F (60°C)	•	•	149°F (65°C)	•	149	6.92 gal. (26.2 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extended Dry	Angle Wash	Utensil Wash
X	X	O	O	X	X

NORMAL

Use this cycle for loads with normal amounts of food soil.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse Final	Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•		113° - 131°F (45° - 55°C)			136.4 -° 143.6°F (58 -° 6 )2°C	•	98-136	3.01 to 5.94 gal. (11.4 - 22.5 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extealed D Dry	Angle Wash	Utensil Wash
X	X	O	O	X	X

DELICATE

Use this cycle for lightly soiled or rinsed glassware and fine china.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse Final	Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•		120°F (50 °C)			136.4°F ( )62°C	•	118	5.9 gal. (22.5 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extended Dry	Heated Dry	Angle Wash	Utensil Wash
		○	○

QUICK

Use this cycle for lightly soiled or rinsed dishes and silverware.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse Final Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•		131°F (55°C)		131°F ( )55°C	136.4°F ( )58°C	•	60	4 gal. (15.1 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extended Dry	Heated Dry	Angle Wash	Utensil Wash
		○	○

RINSE

Use this cycle for lightly soiled or rinsed dishes and silverware.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse F	Final Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•							20	2.03 gal. (7.7 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extended Dry	Heated Dry Angle	Wash Utensil Wash

MY WASH

This is a customed cycle. Before using it ,you need to define it on APP.
Pre Wash	Second Pre-Wash	Main Wash	Rinse	Rinse Final	Heated Rinse	Dry	Cycle Time (min)	Water Usage (gal. [L])
•		122°F/31°F/140°F1(50°C/55°C/60°C)			136.4 -°149°F(58 -°65 )°C	•	98-141	3.01 to 5.94 gal.(11.4 to 22.5 L)

AVAILABLE OPTIONS
Sanitize	Hi Temp	Extended Dry	Heated Dry Angle	Wash Utensil Wash

DISHWASHER LOADING

PREPARE DISHES

• Empty liquids from glasses and cups.
• Remove leftover food, bones, toothpicks and other hard items from the dishes and discard.

• It is not necessary to hand-rinse dishes before loading them into the dishwasher with the following exceptions:

• Foods such as mayonnaise, mustard, vinegar, lemon juice and tomato-based products may discolor stainless steel and plastics if allowed to remain on them for any length of time.

• Burned-on foods should be loosened before loading the cookware into the dishwasher.

Illustration of hands using a tool to clean or store items around a circular object (no text or symbols)

LOAD DISHES

• It is IMPORTANT for the water spray to reach all soiled surfaces.
• Load dishes so they are not stacked or overlapping if possible. For best drying results, water must be able to drain from all surfaces.
• Load heavy pots and pans carefully. Heavy items can dent the stainless steel interior of the door if they are dropped or bumped.
• Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not interfere with the spray arm rotation.
• Make sure both the upper and lower spray arms are not blocked and move freely.

Illustration of a hand holding a mechanical component with a blue arrow indicating direction (no text or symbols)

To avoid thumping/clattering noises during operation:

• Make sure lightweight items are secured in the racks.
• Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not touch interior walls or interfere with the rotation of the spray arm.
• Load dishes so they do not touch one another.

NOTE: For built-in models, keep sink drain plugs closed during dishwasher operation to prevent noise transfer through drains.

UPPER RACK

The upper dishwasher rack is designed for cups, glasses, small plates, bowls and plastic items marked dishwasher safe.

The upper rack can be easily adjusted 2" (5 cm) up or down to accommodate taller items in either in the top or bottom rack.

ADJUST UPPER RACK

IMPORTANT:

• Remove all items before adjusting the rack. The rack must be empty.
• Do NOT grasp adjustment arm when raising the upper rack. Grasping the adjustment arm will prevent the upper rack from engaging properly, and damage to dish ware could result if the upper rack releases.

To Raise the Upper Rack:

1. Grasp the uppermost wire on each side of the upper rack, and then lift up until each side clicks.

Illustration of a hand holding a shopping cart with a blue tool, no text or symbols present

(A) Adjustment Arm

To Lower the Upper Rack:

1. Pull up on the adjustment arm located on each side of the upper rack.
2. Lower the upper rack until the rack is level in the lower position.

Illustration of a hand placing a blue plastic component into a shopping cart (no text or symbols)

Adjustment Arm

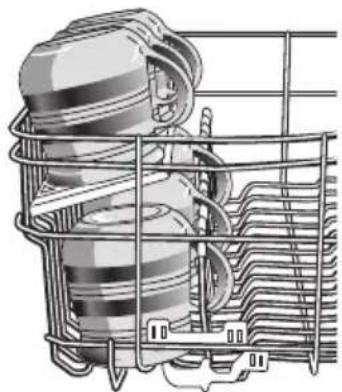

UPPER RACK SHELF

The upper rack has a shelf to accommodate short glasses, cups or cooking utensils such as spatulas.

To Engage the Shelf:

1. Lift straight up on the shelf.
2. Rotate the shelf to the center of the rack.

Technical illustration of a mechanical component with internal structure and mesh framework (no text or symbols)

LOAD UPPER RACK

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Technical line drawing of a mechanical assembly with insulators and housing (no text or symbols)

14 Place Setting

IMPORTANT: Make sure the items loaded in the upper rack do not interfere with the rotation of the middle spray arm located beneath the upper rack. Check for interference by turning spray arm by hand.

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

• Place items so that the open ends face downward for cleaning and draining.
• Load glasses and cups in upper rack only. The lower rack is not designed for glasses and cups. Damage can occur.
• Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage, water spots, and poor cleaning.
• Small bowls, pans and other utensils can be placed in the top rack. Load bowls in the center section for best stability.
• China, crystal and other delicate items must not touch each other during dishwasher operation. Damage may occur.
• Load plastic items so the force of the spray does not move them during the cycle.

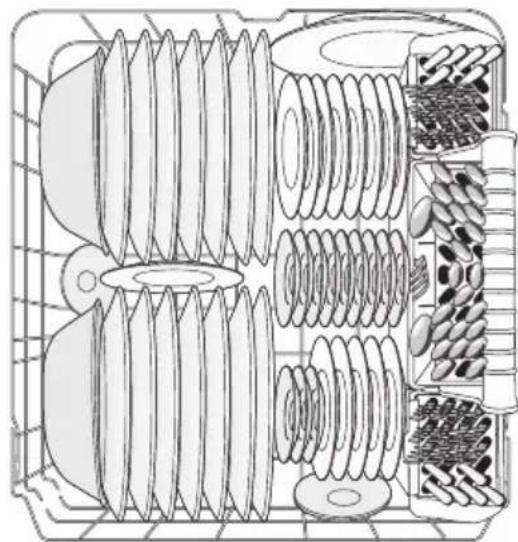

LOWER RACK

The lower rack is designed for plates, soup bowls, cookware and bakeware.

The adjustable upper rack allows you to load items up to 13" in height in the lower rack.

IMPORTANT: Items in the lower rack must be placed so that they do not interfere with the rotation of the spray arms, block the water inlet, or keep the water spray from reaching the detergent dispenser.

Technical line drawing of a mechanical component with internal helical structures (no text or symbols)

14 Place Setting

LOAD LOWER RACK

NOTE: The features on your dishwasher rack may vary from the drawings shown.

• Do not load glasses, cups, or plastic items in the lower rack.
• Load small items in the lower rack only if they are secured in place.
• Load plates, soup bowls, etc. between tines. Do not nest bowls because the spray will not reach all surfaces.
• Do not load items between the bottom rack and the side of the dishwasher tub.
• Place heavily soiled cookware face down in the rack.

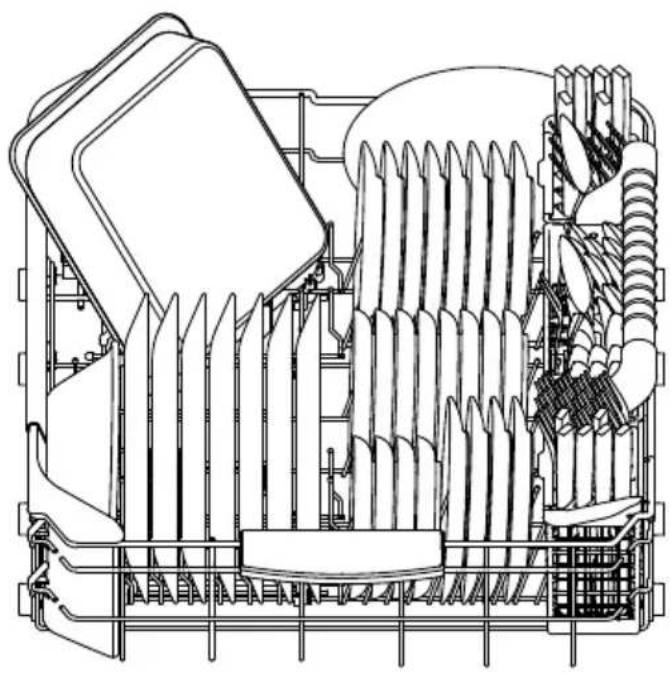

ADJUSTABLE RACK TINES AND ANGLE WASH INTENSIFIED ZONE

The dual purpose tines in the lower rack make it easier to load extra large or hard to fit items such as large casserole dishes and baking sheet and so on. Position the tines without the blue silicone in the up position for normal use, or position the tines with the blue silicone for more flexible loading.

To wash large items like baking sheet in the angle wash zone, you need:

1. Position the blue tines up: Grasp the tip of blue tines, gently rotate the blue tines to vertical posion.
2. Load the baking sheet in appropriate position of blue tines, and face unclean surfaces towards spray nozzles.
3. Minimize overlap between dishes for best results.

1 ROTATE BLUE DIVIDERS TO VERTICAL POSITION.

2 FACE UNCLEAN SURFACES TOWARDS SPRAY NOZZLES.

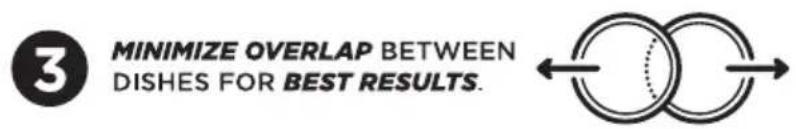

3 MINIMIZE OVERLAP BETWEEN DISHES FOR BEST RESULTS.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

LOADING SILVERWARE

NOTES:

• Do not load silver or silver-plated silverware with stainless steel. These metals can be damaged by contact with each other during washing.
• Some foods (such as salt, vinegar, milk products, fruit juices, etc.), can pit or corrode silverware. DO NOT WASH ALUMINUM COOKWARE IN YOUR DISHWASHER.

THIRD RACK

The Third Rack can be used to load cutlery or other accessories such as spatulas or cooking spoons.

Silverware, knives, and utensils should be loaded in the Third Rack separate from each other in the appropriate positions so they do not nest together.

Technical line drawing of a grid-based mechanical assembly with multiple tool-like components (no text or symbols)

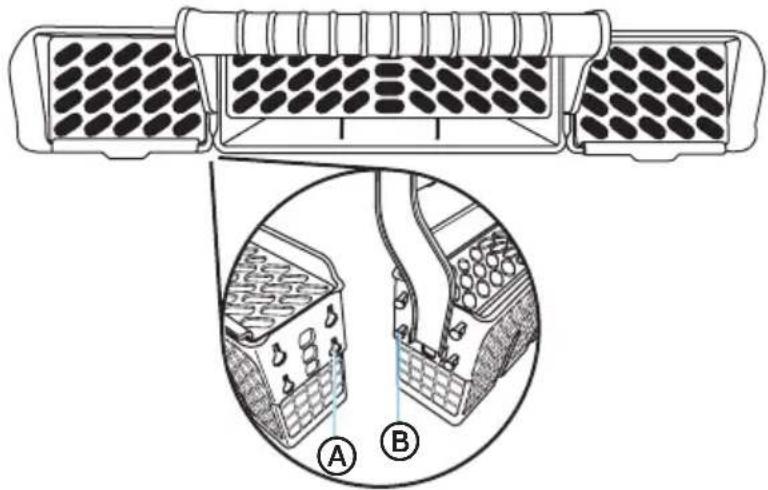

THREE-PIECE SILVER WARE BASKET

The silverware basket consists of three separate sections. For optimum loading flexibility, the center section of the basket can be used individually, joined with one or both side sections or removed.

• Lift handle to remove the silverware basket and set the basket on a counter or table top.
• Lift up on each side section to disengage the center section from the keyhole slots in the side sections.

- Either replace the section(s) in the bottom rack and load the silverware, OR load the silverware while the section(s) are on the countertop and then replace the basket in the bottom rack.

Diagram of a battery cell structure with labeled components A and B, showing internal components and connections.

Ⓐ Keyhole Slots Ⓑ Prongs

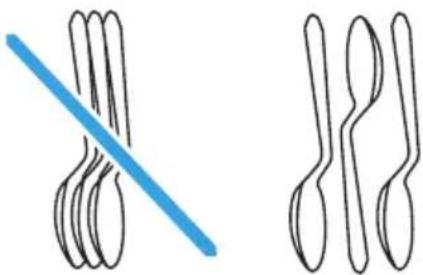

For Best Results:

• Load items with handles down, using the separators to prevent silverware from nesting.
• Place small items such as baby bottle caps, jar lids, corncob holders, etc. in the section(s) with hinged cover(s). Close the cover to hold small items in place.
• Unload or remove the basket before unloading the racks to avoid water drops from falling on the silverware.
• When handles are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.

Two simple line drawings of spoon illustrations, one with a blue diagonal line and the other with three identical handles (no text or symbols)

IMPORTANT: Always load sharp items (knives, skewers, etc.) pointing down. Be sure that nothing protrudes through bottom of the basket or rack that may block the wash arm.

Circular diagram with vertical lines and a central black rectangle, resembling a simplified circuit or schematic (no text or symbols)

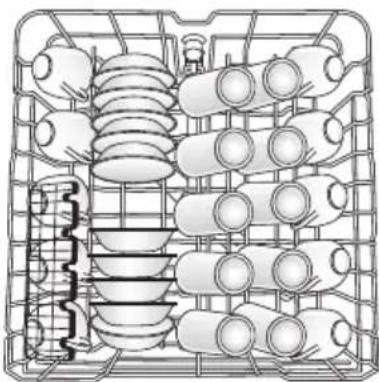

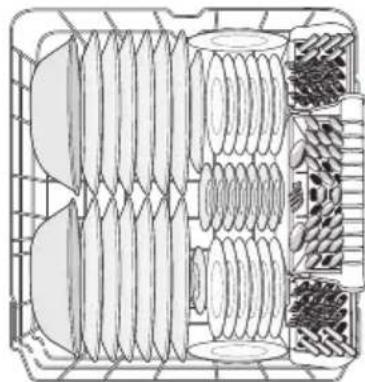

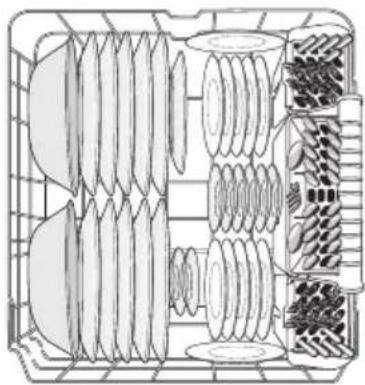

RECOMMENDED LOAD PATTERNS

Diagram of a grid-like structure with multiple circular components arranged in rows (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

Upper Rack 8 place settings Lower Rack 8 place settings

Diagram of a rack with multiple circular objects arranged in rows, no text or symbols present

Top-down schematic of a multi-layered industrial or mechanical assembly with rollers and components (no text or labels)

Upper Rack 10 place settings Lower Rack 10 place settings

Diagram of a multi-layered cylindrical device with internal components, enclosed in a wire cage (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Upper Rack 12 place settings Lower Rack 12 place settings

Technical line drawing of a mechanical assembly with multiple cylindrical components arranged in a grid (no text or symbols)

Cross-sectional diagram of a mechanical assembly showing internal components (no text or labels)

Upper Rack 14 place settings Lower Rack 14 place settings
NOTE: Remove the cutlery basket for additional space in the lower rack.

1.Spoons
2.Knives
3.Salad Forks
4.Forks
5. Large Spoons
6. Large Forks

DISHWASHER USE

PROPER USE OF DETERGENT

IMPORTANT:

• Use automatic dish washing detergent only. Other detergents can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.
• Add detergent just before starting a cycle.
• Store detergent tightly closed in a cool, dry place. Fresh automatic dishwasher detergent results in better cleaning.

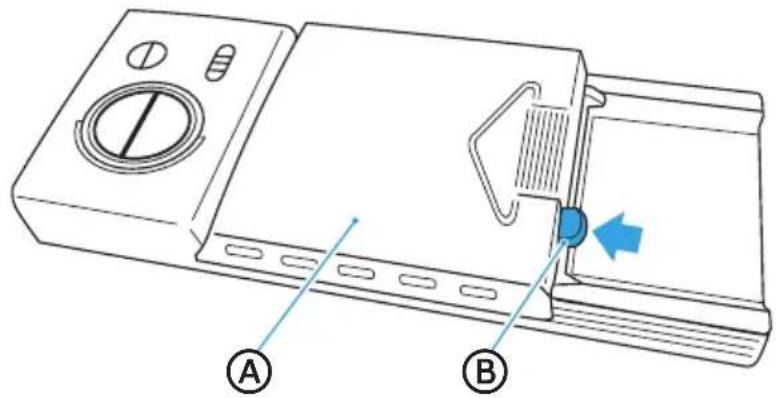

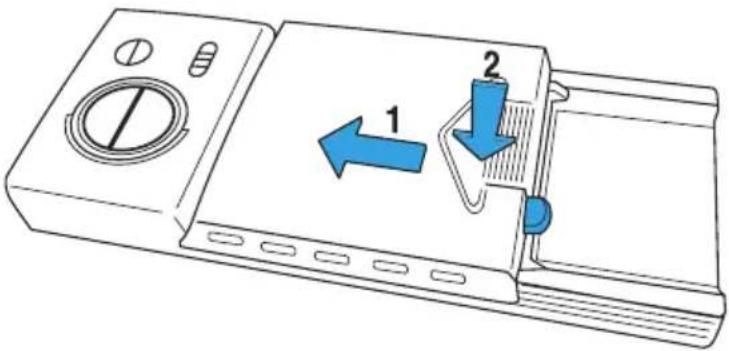

DETERGENT DISPENSER

1. If the dispenser cover is closed, press in on the blue spring latch to release the cover. The cover will slide to the right.

Technical diagram of a device with labeled parts A and B, showing internal components and directional arrow.

Ⓐ Cover
⑧ Blue Cover Latch

1. Add the r recommended amount of detergent to the detergent cup.

NOTE: If using dishwasher detergent in the tablet or pac form, place the detergent in the detergent cup, NOT in the tub to maximize the performance of the detergent.

Technical diagram of a microwave oven with labeled component A and powder dispersion

Ⓐ Detergent Cup

1. Slide the dispenser cover to the left, and then press down on the ridged arrow to close.

Diagram of a device with labeled parts and directional arrows indicating movement or flow

HOW MUCH DETERGENT TO USE

The amount of detergent to use depends on the soil level of your load, the type of detergent used and the hardness of your water.

• If you use too little detergent, dishes won't be clean.
• If you have soft water and use too much detergent, glassware will etch.

Water Hardness

Water hardness varies depending on your water source. For the best results, your dishwasher is designed to operate with water that has a hardness of no more than 7 grains per gallon. Test kits are available from all major appliance parts retail outlets. If your water has a hardness over 8 grains per gallon, you may consider installing a water softener or regularly use an additive to enhance the performance of your detergent.

PROPER USE OF RINSE AID

Rinse aid prevents water from forming droplets that can dry as spots or streaks. A small amount of the rinse aid is released into the final rinse water, which allows water to drain from the dishes.

Rinse aid greatly improves drying performance after the final rinse.

Your dishwasher is designed to use a LIQUID rinse aid. Do not use a solid or bar-type rinse aid.

RINSE AID DISPENSER

Under normal conditions, you will need to fill the rinse aid dispenser approximately once a month. Rinse aid is released through an opening in the dispenser. You do not need to wait until the dispenser is empty to refill it. Try to keep it full, but be careful not to overfill it.

1. Open the dishwasher door.
2. Turn the rinse aid dispenser cap counterclockwise and pull up to remove.

Full Sight Window when viewed from above Add

1. Pour rinse aid into the dispenser until the sight window indicates FULL.

2. You can adjust the amount of the rinse aid released during the rinse. The higher the number the greater the amount of rinse aid released.

3. If your glassware has spots following the cycle, increase the rinse aid setting.

4. If your glassware has streaks after the cycle, decrease the rinse aid setting.

A B C RINSE AID OPEN

Ⓐ Dispenser Cap

B Less

© More

1. Clean up any spilled rinse aid with a damp cloth.
2. Replace the rinse aid cap, and then turn the cap clockwise to close.

If you have doubts about washing a particular item, check with the dishware manufacturer to make sure it is dishwasher safe.

Material	Dishwasher Safe	Comments
Aluminum Possible High water temperature and detergents can affect finish of anodized aluminum. Unfinished aluminum will be discolored.
Disposable Aluminum No Do not wash disposable aluminum pans in the dishwasher These might shift during washing and transfer black marks to dishes and other items.
Bottles and cans No Wash bottles and cans by hand. Labels attached with glue can loosen and clog the spray arms or pump and reduce washing performance.
Cast Iron No Seasoning will be removed and iron will rust.
China / Stoneware Yes Always check manufacturer's recommendations before washing. Antique, hand-painted, or over-the-glaze patterns may fade, gold leaf can discolor or fade.
Crystal Yes Check manufacturer's recommendations before washing. Some types of leaded crystal can etch with repeated washing.
Gold No Gold-colored flatware will discolor.
Glass Yes Milk glass yellows with repeated dishwasher washing.
Hollow-Handle Knives No Handles of some knives are attached to the blade with adhesive that can loosen if washed in the dishwasher.
Pewter Brass, Bronze No High water temperatures and detergent can discolor or pit the finish.
Disposable Plastics No Cannot withstand high water temperatures and detergents.
Plastics Yes Always check manufacturer's recommendations before washing. Plastics vary in their capacity to withstand high temperatures and detergents. Load plastics in top rack only.
Stainless Steel Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish.
Sterling Silver or Silver Plate	Yes Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish.
Tin No Can rust.
Wooden Ware	No Wash by hand. Always check manufacturer's instructions before washing. Untreated wood can warp, crack, or lose its finish.

DISHWASHER CARE

CLEANING

CLEANING THE EXTERIOR

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to clean outside of your dishwasher.

Clean the stainless steel door and handle regularly with a clean, soft cloth to remove debris.

IMPORTANT: Do not use appliance wax, polish, bleach, or products containing chlorine to clean the stainless steel door.

Control Panel

Gently clean the control panel with a clean, soft cloth.

CLEANING THE INTERIOR

The tub is made of stainless steel designed to resist rust and corrosion if the dishwasher is scratched or dented.

Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or create suds.

DOOR GASKET

Clean the steel inner door and tub with a clean, soft damp cloth.

Using a damp cloth, clean around the door gasket regularly to remove food particles.

CONTROL PANEL

Clean the Control Panel gently with a lightly dampened cloth.

CLEANING THE FILTERS

Check and clean the filters regularly for best performance.

1. Remove the lower dishwasher rack.
2. Rotate the Cylinder filter counterclockwise a quarter turn and lift up to remove.

Diagram illustrating a mechanical device with labeled components and motion indicators, including a blue component inside a circular housing.

Ⓐ Cylinder Filter

1. Empty the Cylinder filter and rinse it under running water.

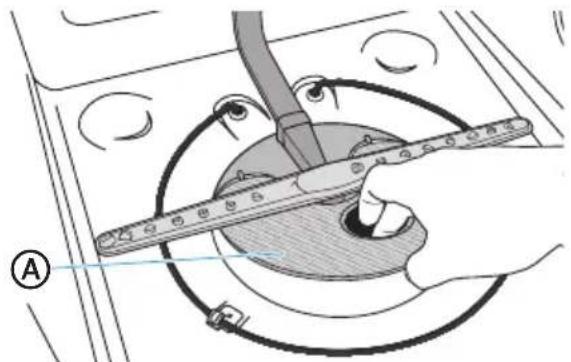

2. Remove the Fine filter.

Diagram showing a hand using a tool to measure a circular component, labeled with circled area A and numbered 1.

Ⓐ Fine Filter

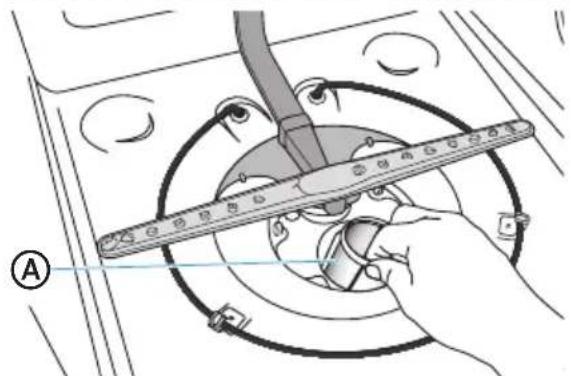

1. Remove the Micr o filter from the bottom of the tub.

Diagram showing a hand using a tool to measure a circular component, labeled with circled area A and numbered parts.

Ⓐ Micro Filter

1. Inspect both the Fine filter and the Micro filter f or debris, and then clean them by holding the filters under slow running water.

NOTE: A stiff, plastic bristle brush may be needed to remove some debris.

1. Reinstall the filters in reverse order making sure the Cylinder filter locks into place.

DRAIN AIR GAP

Check the drain air gap anytime your dishwasher isn't draining well. Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. If a drain is clogged, a drain air gap prevents water from backing up into the dishwasher.

The drain air gap is usually located on top of the sink or countertop near the dishwasher.

NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap.

To Clean the Drain Air Gap:

Clean the drain air gap periodically to ensure proper drainage of your dishwasher. Follow the cleaning instructions provided by the manufacturer.

With most types:

1. Turn off the dishwasher.
2. Lift off the metal cover, and then unscrew the plastic cap.
3. Clean the plastic cap with a toothpick.

STORING

STORING FOR THE SUMMER

Protect your dishwasher during the summer months by turning off the water supply and power supply to the dishwasher.

WINTERIZING YOUR DISHWASHER

Protect your dishwasher and home against water damage caused by freezing water lines. If your dishwasher is left in a seasonal dwelling or could be exposed to near freezing temperatures, have your dishwasher winterized by authorized service personnel.

Prepare for Storage:

1. Turn off electrical power to the dishwasher.
2. Turn off the water supply.
3. Place a pan under the inlet valve, and then disconnect the water line from the inlet valve.
4. Disconnect the drain line from the pump and drain water into the pan.

Prepare for Use:

1. Reconnect the water, drain and electrical power supply.
2. Turn on water and electrical power supply.
3. Fill detergent cup and run the dishwasher through a heated wash cycle.
4. Check the connections for leaks.

TROUBLESHOOTING

DISHWASHER NOT OPERATING PROPERLY

PROBLEM POSSIBLE CA USE SOLUTION
Dishwasher does not run or stops during a cycle	There is no power to the dishwasher.The door is not closed tightly and latched.Most cycles pause for 5 minutes near the start of a cycle to let the dishes soak.Certain cycles repeatedly pause for 15 to 65 seconds during the main wash.The Delay feature is selected.	Replace fuse or reset circuit breaker.Close and latch the door.This is normal, and reduces the energy required to clean the dishes.This is normal.To reset, see “Options” in the Controls section.
Dishwasher does not start a cycle	Control Lock feature is activated.Door not closed within 4 seconds of START button being pressed	Deactivate Control Lock.See “Additional Features” in the Controls section.Close door within 4 seconds of pressing START.
Dishwasher will not fill	The water shutoff valve is not turned on.The door is not closed tightly and latched.Water pressure is too low.	Turn on the water valve.Close and latch the door.Verify a minimum of 20 psi water pressure is maintained during the filling operation.
PROBLEM	POSSIBLE CAUSE SOLUTION
Dishwasher seems to run too long	The water supplied to the dishwasher is not hot enough.The dishwasher runs longer while heating water, and a delay automatically occurs in some wash and rinse cycles until the water reaches the proper temperature.The Sanitize option is selected.The cycle time will vary depending on soil level.Dishwasher is connected to the Cold water supply.	Run the water in the adjacent sink until it gets hot before turning on the dishwasher.The cycle time increases to heat the water to the correct temperature for sanitizing.When heavy soil is detected, the Normal cycle will automatically increase the cycle time.Verify the dishwasher is connected correctly to the Hot water supply.
Water remains in the dishwasherNOTE:A small amount of clean water around the outlet in the bottom of the tub is normal. It keeps the seal lubricated.	The cycle is not complete or it is in a pause.The drain hose is kinked.Straighten the drain hose.The knockout plug is still in the garbage disposal.Drain hose is connected to the garbage disposal, and the garbage disposal is not empty.Drain is clogged. Check the air gap.	The water will drain when the cycle is completed.Remove the knockout plug.Run the garbage disposal until it is empty.
Detergent remains in the dispenser	The cycle has not completed.The detergent is damp or has clumped.An item was blocking the dispenser.The spray arm is blocked. Load the dishes in a manner that does not block the spray arm from rotating freely.	Close the door and press START to complete cycle.Remove detergent and replace with fresh dry dishwasher detergent.Remove item. Remove detergent and replace with fresh dry dishwasher detergent.
Grinding,grating, crunching or buzzing sounds	A hard object or powder detergent granules have entered the wash module.	IMPORTANT: Clear glass is hard to see in water.and could result in a cut wound.Using care, remove the hard object. If the noise was caused by detergent granules, the noise should stop once the detergent is ground up.NOTE: If the noise persists after a complete cycle, call for service.
Beeps	Indicates the wash cycle is completed.NOTE: A rapid beep indicates an error condition.	This is normal.See “Error Codes” for further direction.
Suds in the Tub	Used wrong type of detergent.	Use only detergent approved for automatic dishwashers.
Dishwasher Leaks	Excessive suds caused by using improper detergent.Dishwasher is not level. Level	Use only detergent approved for automatic dishwashers. The Dishwasher. See Installation Instructions.
Rinse Aid light is on	The Rinse Aid level is low.	Add liquid Rinse Aid.

DISHES ARE NOT COMPLETELY CLEAN

PROBLEM	POSSIBLE CAUSE SOLUTION
Food residue remains on the dishes	Dishwasher is not loaded correctly.	See “Dishwasher Loading.”
	The wrong wash cycle for the dish load was selected.	Select the wash cycle based on the most difficult soil in the dishwasher load. If you have some items with heavier soils, use a heavier washing cycle.
	Water temperature is too low.	For best results, the temperature of the incoming water should be a minimum of 120°F (49°C).
	Used incorrect amount of detergent.	Use a minimum of 1 Tbsp. (15 g) detergent per load. Heavy soil and/or hard water generally requires additional detergent.
Food residue remains on the dishes (cont.)	Detergent is too old.	Detergent must be fresh to be effective. Store detergent in a cool, dry area.
	Detergent is caked in the dispenser.	Do not allow detergent to sit for several hours in a wet dispenser. Clean dispenser and refill with fresh, dry detergent.
	The pump or spray arm is clogged with labels from bottles and cans.	Check pump and spray arm for labels and remove the labels.
	The pressure of the water coming into the home is too low.	Water pressure should be 20 to 80 psi (138 to 552 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low.
	High suds are slowing the wash arm.	Use only detergent recommended for the dishwasher. Do not use soap or laundry detergents.

SPOTS AND STAINS ON DISHES

PROBLEM POSSIBLE CAUSE SOLUTION
Spotting and filming on dishes	Rinse Aid dispenser is empty.	Add a liquid rinse aid to the dispenser.
	Hard water. High mineral content in your water	Use a rinse aid and keep the dispenser filled to help eliminate spotting and filming. Increase setting on Rinse aid dispenser 1 number per cycle until spotting is eliminated.
		NOTE: If your water hardness is 13 grains (223 ppm) or above, it is strongly recommended that you install a home water softener.
	Water temperature is too low.	For best results, water should be a minimum 120°F (49°C) as it enters the dishwasher.
	Did not use enough detergent.	Use a minimum of 1 Tbsp. (15 g) of detergent per load. Heavy soil and/or hard water generally require extra detergent.
Spotting and filming on dishes (cont.)	Detergent is too old.	Detergent must be fresh and dry to be effective. Store detergent in a cool, dry area.
	Home water pressure is too low to fill dishwasher properly.	Water pressure to the home should be 20 to 80 psi (138 to 552 kPa) for proper dishwasher fill. A booster pump on the water supply can be added if pressure is too low.
Silica film or etching	Using too much detergent	If you have soft water use less detergent, but do not use less than 1 Tbsp. (15 g) per load.
	The inlet water temperature exceeds 150°F (65°C).	Lower the incoming water temperature.
Black or gray marks on dishes	Aluminum items rubbing dishes during washing. Disposable aluminum items can break down in the dishwasher and cause marking.	Hand wash aluminum items. Remove aluminum markings by using a mild abrasive cleaner.
Orange stains on plastic dishes or dishwasher interior	Large amounts of tomato-based foods on dishes placed in the dishwasher.	Use a stain removal product to remove stains from your dishwasher. Stains will not affect dishwasher performance.

DISHES DO NOT DRY COMPLETELY

PROBLEM POSSIBLE CA USE SOLUTION
Dishes are not completely dryNOTE: Plastics often need towel drying.	Dishes are not loaded properly to allow water drainage.Rinse Aid not used or dispenser is empty.Used an air dry or energy-saving option.	Do not overload dishwasher. Place glasses and cups in the rack so that the bottom surface is slanted to allow water to run off.Use a liquid rinse aid to speed drying and keep the dispenser full.For dryer dishes, select a Cycle that allows a Heated Dry option.

DISHES ARE DAMAGED DURING A CYCLE

PROBLEM POSSIBLE CA	USE SOLUTION
Dishes are chippedNOTE: Some types of china and glassware might be too delicate for automatic dish washing. Wash by hand.	Dishes not loaded properly.Moving the rack in or out of the dishwasher too quickly.	Load the dishes and glasses so they are stable and will not strike together from washing action.Minimize chipping by moving the rack in and out slowly.

ERROR CODES

Code Meanings Cause Solution
E1[WY0Y] [COZ5]				Not enough water flow in allotted time	Low or No water flow.	Confirm water is turned on to the dishwasher. Verify water pressure.NOTE: Water supply must maintain water pressure between 20 and 80 psi for sufficient flow.
E4				Overflow or leak sensor activated	Too much water in the tub or a leak.	First, turn off water to the dishwasher. Check filter system for blockage.IMPORTANT: Watch for broken glass in the filter. If there is no water in the tub, contact Customer Service.
				Communication exception	When the display board can't receive or the main board can't send signal over 20 seconds, the dishwasher will warning for Ed.	Contact Customer Service.

2 YEAR LIMITED WARRANTY

This warranty is provided to the original purchaser at retail (the "Purchaser" or "you") by Midea America Corp. ("Midea" or "we"), which warrants all parts of this Product, as described below. Midea warrants this Product to the Purchaser for personal, family or household use. This warranty covers performance and quality issues in materials and workmanship that appear under normal use and maintenance appearing within two years from the date of purchase. This warranty gives you specific rights, and you may also have other rights that vary from state to state.

WARRA NTY LIMITATIONS

This warranty is given only to the original purchaser at retail in either the United States or Canada and may not be transferred to any subsequent buyer. This warranty does not apply to purchasers of our products for use or resale in a business; a separate commercial warranty may protect those purchasers.

This warranty does not cover any Product failure caused by:

(a) Abuse, damage or use of the Product in violation of the Product instructions.
(b) Modification to any Product or part.
(c) Failure to maintain the Product or part as described in accordance with the Product instructions.
(d) Faulty installation or application.
(e) Use of parts or accessories not compatible with this Product.
(f) Floods, fires, winds, lightning, accidents, corrosive atmosphere, or other conditions beyond Midea's control.
(g) Interruption in electrical service or inadequate electrical service.
(h) Replacement of fuses and replacement or resetting of circuit breakers.
(i) Frozen or broken water pipes, water damage, moisture intrusion, mold or other biological growth.
(j) The use, combination or linking of the Product to other products, processes or materials not provided by Midea.

WARRANTY REMEDY

If any quality or performance issue covered by this warranty is discovered during the warranty period, we will, at our option, repair or replace any such Product. This warranty is limited to Product repair or replacement by an authorized Midea servicer or dealer and does not cover any shipping cost, labor cost, customs duties, inland logistics cost, or cost of service, including any diagnostics, removal, transportation, or reinstallation costs. If we ask, you must return the Product to us.

WARRANTY DISCLAIMER; EXCLUSION OF DAMAGES

This is the only express warranty to consumers that we offer on our Products. ANY IMPLIED WARRANTIES BY MIDEA, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS EXPRESS WARRANTY. Some states and provinces do not allow the exclusion of express warranties and/or limitations on how long an implied warranty lasts, so the above exclusion and/or limitation may not apply to you.

THE REMEDY DESCRIBED ABOVE IS THE ONLY ONE THAT WE WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WE WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, NEGLIGENCE OR OTHER TORT, OR ON ANY STRICT LIABILITY THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you.

WARRANTY CLAIMS PROCESS

For more information or to make a warranty claim, please visit:

https://www.midea.com/us/support

Or contact us at:

Telephone: [phone]

Email: [e-mail]

You must have Your bill of sale, delivery slip, or appropriate proof of purchase to submit a warranty claim. The date of purchase establishes the warranty period, should service be required.

DISPUTE RESOLUTION

ARBITRATION CLAUSE. IMPORTANT. PLEASE REVIEW THIS ARBITRATION CLAUSE. IT AFFECTS YOUR LEGAL RIGHTS.

(a) Parties: This arbitration clause (this "Arbitration Clause") affects your rights against Midea and any of its affiliates or employees or agents, successors, or assigns, all of whom together are referred to below as "we" or "us" for ease of reference.

(b) ARBITRATION REQUIREMENT: EXCEPT AS STATED BELOW, ANY DISPUTE BETWEEN YOU AND ANY OF US SHALL BE DECIDED BY NEUTRAL, BINDING ARBITRATION RATHER THAN IN COURT OR BY JURY TRIAL. "Dispute" will be given the broadest possible meaning allowable by law. It includes any dispute, claim, or controversy arising from or relating to your purchase of this Product, any warranty upon the Product, or the Product's condition. It also includes determination of the scope or applicability of this Arbitration Clause. The arbitration requirement applies to claims in contract and tort, pursuant to statute, or otherwise.

(c) CLASS-ARBITRATION WAIVER: ARBITRATION IS HANDLED ON AN INDIVIDUAL BASIS. IF A DISPUTE IS ARBITRATED, YOU AND WE EXPRESSLY WAIVE ANY RIGHT TO PARTICIPATE AS A CLASS REPRESENTATIVE OR CLASS MEMBER ON ANY CLASS CLAIM YOU MAY HAVE AGAINST US OR WE AGAINST YOU, OR AS A PRIVATE ATTORNEY GENERAL OR IN ANY OTHER REPRESENTATIVE CAPACITY, TO THE MAXIMUM EXTENT PERMITTED BY LAW. YOU AND WE ALSO WAIVE ANY RIGHT TO CLASS ARBITRATION OR ANY CONSOLIDATION OF INDIVIDUAL ARBITRATIONS.

(d) Discovery and Other Rights: Discovery and rights to appeal in arbitration are generally more limited than in a lawsuit. This applies to both you and us. Other rights that you or we would have in court may not be available in arbitration. Please read this Arbitration Clause and consult the rules of the arbitration organizations listed below for more information.

(e) SMALL CLAIMS COURT OPTION: YOU MAY CHOOSE TO LITIGATE ANY DISPUTE BETWEEN YOU AND ANY OF US IN SMALL CLAIMS COURT, RATHER THAN IN ARBITRATION, IF THE DISPUTE MEETS ALL REQUIREMENTS TO BE HEARD IN SMALL CLAIMS COURT.

(f) Governing Law: For residents of the United States, the procedures and effect of the arbitration will be governed by the Federal Arbitration Act (9 U.S.C. § 1 et seq.) rather than by state law concerning arbitration. For residents of Canada, the procedures and effect of the arbitration will be governed by the applicable arbitration law of the province in which you purchased your Product. The law governing your substantive warranty rights and other claims will be the law of the state or province in which you purchased your Product. Any court having jurisdiction may enter judgment on the arbitration award.

(g) Rules of the Arbitration: If the amount in controversy is less than \250,000, the arbitration will be decided by a single arbitrator. If the amount in controversy is greater than or equal to \250,000, the arbitration will be decided by a panel of three arbitrators. The arbitrator(s) will be chosen pursuant to the rules of the administering arbitration organization. United States residents may choose JAMS (1920 Main Street, Ste. 300, Irvine, CA 92614, www.jamsadr.com), or, subject to our approval, any other arbitration organization. In addition, Canadian residents may choose the ADR Institute of Canada (234 Eglinton Ave. East, Suite 405, Toronto, Ontario, M4P 1K5, www.amic.org). These organizations' rules can be obtained by contacting the organization or visiting its website. If the chosen arbitration organization's rules conflict with this Arbitration Clause, the provisions of this Arbitration Clause control. The award of the arbitrator(s) shall be final and binding on all parties.

(h) Location of the Arbitration Hearing: Unless applicable law provides otherwise, the arbitration hearing for United States residents will be conducted in the federal judicial district in which you reside (in your hometown area) or, for Canadian residents, in the province in which you reside, and, if you choose, will be in-person.

(i) Costs of the Arbitration: Each party is responsible for its own attorney, expert, and other costs and fees unless applicable law requires otherwise. Notwithstanding the preceding sentence, and unless applicable law requires otherwise, if you are a consumer under the JAMS rules or the rules of another agreed upon arbitration administrator, Midea will pay or reimburse you for all reasonable fees or costs to the extent required by law or the applicable arbitration administrator's rules. Whether or not required by law or such rules, if you prevail at arbitration on any claim against Midea, Midea will reimburse you for any reasonable fees paid to the arbitration administrator in connection with the arbitration proceedings. Under no circumstances will Midea seek from you payment or reimbursement of any reasonable fees that Midea incurs in connection with the arbitration. If you are required to advance any fees or costs to JAMS or other agreed upon arbitration administrator, but you ask Midea to do so in your stead, Midea will consider and respond to your request.

(j) Survival and Enforceability of this Arbitration Clause: This Arbitration Clause shall survive the expiration or termination, or any transfer, of the warranty on your Product. If any part of this Arbitration Clause, except waivers of class-action rights, is found to be unenforceable for any reason, the remainder of this clause and the warranty shall remain enforceable. If, in a case in which class-action allegations have been made, the waiver of class-action rights under this warranty is found to be unenforceable with respect to any part of the dispute, the parts of the dispute as to which the waiver of class-action rights have been found unenforceable will be severed and will proceed in court without reference or application of this Arbitration Clause. Any remaining parts will proceed in arbitration.

QUEBEC RESIDENTS

The arbitration provisions of this warranty shall not apply to residents of Quebec.

Lave-vaisselle

Exterior view of a stainless steel kitchen appliance (no visible text or symbols)

Cher utilisateur

Simple black-and-white icon of a tilted book with a flat line underneath (no text or symbols)

A B C D E F G H I J K L M N

Technical diagram showing a device with a blue circular component and a ruler, labeled with point A

2" (508 cm)

GUIDE DE DÉMARRAGE

IMPORTANT :

Ⓐ POWER [MARCHE/ARRÊT]

SANITIZE [ASEPTISATION]

Sanitized [Aseptisé]

Illustration of hands using a tool to clean or brush inside a circular container (no text or symbols)

METTRE LA VAISSELLE DANS LE LAVE-VAISSELLE

Illustration of a hand holding a mechanical component with a blue arrow indicating direction (no text or symbols)

CONSEILS POUR UN FONCTIONNEMENT SILENCIEUX

Line drawing of a hand using a shopping cart to lift a blue object (no text or symbols)

A

Ⓐ Bras de réglage

Line drawing of a hand holding a shopping cart with a blue tool, no text or symbols present

A

Ⓐ Bras de réglage

TABLETTE DE PANIER SUPÉRIEUR

Technical illustration of a mechanical assembly with gears and a basket (no text or symbols)

CHARGER LE PANIER SUPÉRIEUR

Technical line drawing of a mechanical assembly with insulators and housing (no text or symbols)

14 couverts

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with internal helical structures and internal gear-like components (no text or labels)

14 couverts

CHARGER LE PANIER INFÉRIEUR

Technical line drawing of a mechanical assembly with multiple blades and components (no text or symbols)

CHARGEMENT DE LA COUTELLERIE

REMARQUES :

Technical line drawing of a grid-based mechanical assembly with multiple tool tips and components (no text or labels)

PANIER À COUVERTS À TROIS SECTIONS

Diagram of a battery cell structure with labeled components A and B, showing internal components and connections.

Ⓐ Encoches

⑧ Pattes

Two simple line drawings of kitchen utensils: one with a blue diagonal line crossing the center, the other with three elongated shapes (no text or symbols)

Circular diagram with vertical grid lines and a central black lightning bolt, no text or symbols present.

CHARGEMENTS RECOMMANDÉS

Technical line drawing of a mechanical assembly with multiple cylindrical components arranged in a grid (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and cross-sections (no text or symbols)

Diagram of a mechanical assembly with multiple cylindrical components arranged in a grid pattern (no text or labels)

Top-down schematic of a multi-level industrial or processing facility with circular components and vertical supports (no text or labels)

Diagram of a multi-layered cylindrical device with internal components, enclosed in a wire cage (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a grid-like structure with circular elements, no text or symbols present

Cross-sectional diagram of a mechanical gear assembly (no text or labels)

Technical diagram of a device with labeled parts A and B, showing internal components and directional arrow.

Technical diagram of a microwave oven with labeled component A and powder dispersion

Diagram of a device with labeled parts and directional arrows indicating movement or flow

QUANTITÉ CONSEILLÉE DE DÉTERGENT

Diagram illustrating a mechanical device with labeled parts and directional arrows, including a blue component inside a circular housing.

Ⓐ Filtre de cylindre

Diagram showing a hand using a tool to measure a circular component, labeled with circled number A and directional arrows.

Ⓐ Filtre fin

Diagram showing a hand using a ruler to measure a circular component, labeled with circled area A and numbered 1.

Ⓐ Microfiltre

LIMIT ATIONS DE GARANTIE

https://www.midea.com/us/support

Exterior view of a stainless steel kitchen appliance (no visible text or symbols)

Estimado usuario

Rejilla Superior Regulable 10

Simple black-and-white illustration of a tilted book with a flat base (no text or symbols)

Peligro de vuelco

A B C D E F G H I J K L M N

Technical diagram showing a device inside a container with a ruler and labeled component A

2" (508 cm)

Sanitized [Desinfectado]

Illustration of hands using a tool to clean or inspect a circular object (no text or symbols visible)

CARGA DE VAJILLA

Diagram of a mechanical component with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand pushing a shopping cart filled with items (no text or symbols)

A

Ⓐ Brazo de ajuste

Line drawing of a hand holding a blue tool inside a shopping cart (no text or symbols)

A

Ⓐ Brazo de ajuste

ESTANTE DE LA REJILLA SUPERIOR

Technical line drawing of a mechanical component with internal layered structure (no text or symbols)

CARGA DE LA REJILLA SUPERIOR

Technical line drawing of a mechanical assembly with insulators and housing (no text or symbols)

14 cubiertos

Illustration of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with multiple helical grooves and internal channels (no text or symbols)

14 cubiertos

CARGA DE LA REJILLA INFERIOR

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

CARGA DE CUBIERTOS

NOTAS:

Technical line drawing of a grid-based mechanical assembly with multiple tool-like components (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components A and B, including internal structure and cross-sectional view.

Two hand-drawn illustrations: one with a blue diagonal line crossing a wavy line, the other with three elongated oval shapes (no text or symbols)

Circular diagram with vertical grid lines and a central black arrow, no text or symbols present.

Diagram of a grid-like structure with circular elements and connecting lines, no text or symbols present.

Top-down schematic of a mechanical or electrical component with multiple circular components and internal channels (no text or symbols)

Diagram of a grid-like structure with circular elements arranged in rows and columns, no text or symbols present.

Top-down schematic of a multi-level industrial or processing facility with cylindrical components and granular elements (no text or labels)

Diagram of a mechanical assembly with multiple cylindrical components arranged in a grid pattern (no text or labels)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Technical line drawing of a mechanical assembly with multiple cylindrical components arranged in a grid (no text or symbols)

Cross-sectional diagram of a mechanical gear assembly (no text or labels)

Technical diagram of a device with labeled parts A and B, showing internal components and directional arrow.

Ⓐ Tapa
B Pestillo de resorte azul

Technical diagram of a microwave oven with labeled component A and directional arrow indicating flow or particle movement.

Diagram of a refrigerator with labeled parts and directional arrows indicating movement or change.

CUÁNTO DETERGENTE USAR

Diagram of a mechanical component with a cross-sectional view and labeled point A (no text or symbols beyond label)

B 1 2 3 4 5 6 RINSE AID OPEN C

Ⓐ Tapa del dispensador
(B) Menos
© Más

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a blue component inside a circular chamber.

Ⓐ Filtro del cilindro

Diagram showing a hand using a ruler to measure a circular component, labeled with circled area A

Ⓐ Filtro fino

Illustration of a hand using a tool to measure a circular component, labeled with point A (no text or symbols on the diagram itself)

Ⓐ Miofiltro

https://www.midea.com/us/support

O contáctenos en:

extension* of the original limited warranty period! Simply text a picture of your proof of purchase to:

1-844-224-1614

*The warranty extension is for the three months immediately following the completion of the product's original warranty period.
