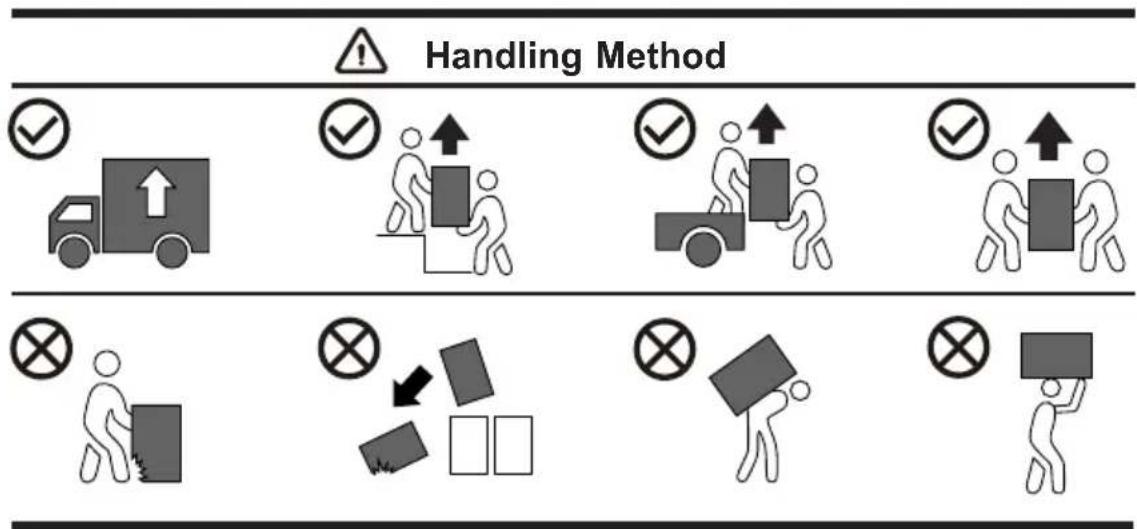

Méthode de manipulation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

AVANT LA PREMIÈRE UTILISATION

Line drawings of five different clothing items: jeans, shorts, hoodie, potted plant, and a woven basket (no text or symbols)

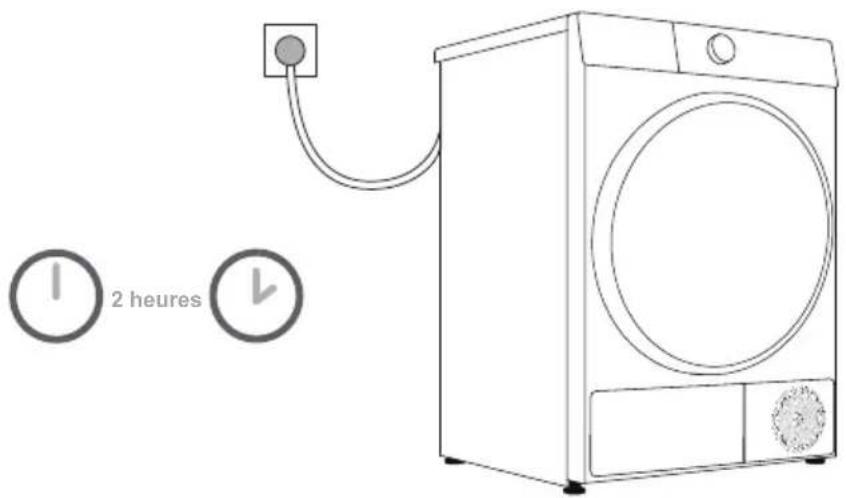

CONNEXION À L'ALIMENTATION ÉLECTRIQUE

2 heures

Diagram illustrating two steps of clothing or garment selection, showing step 1 with a bandage and step 2 with a bag inside a ring.

Diagram illustrating the process of washing machine ventilation, showing steps from fan opening to drain discharge.

Diagram illustrating the process of washing machine ventilation system with labeled components and airflow direction arrows

Abstract geometric shapes resembling partial arcs or quotation marks (no text or symbols)

Continental Edison

Front view of a white disposable washing machine with a circular vent and digital display (no visible text or symbols on the main body)

Before operating this unit, please read this manual thoroughly, and retain for future reference.

CESL7PCWE

Thank you very much for choosing our company's products.

■ Please correctly install and use this product, and do not use this product to dry items that are not suitable for drying in a clothes dryer.
■ The images in the manual are for illustration purposes only. The appearance, printing, etc. shall be subject to the actual product.
■ This product is for household use only.

The following symbols in this manual are indicated as follows:

Information, suggestions, prompts, or advice

WARNING - GENERAL HAZARD

WARNING - ELECTRIC SHOCK HAZARD

WARNING - BURN HAZARD

WARNING - FIRE HAZARD

Please read the user manual carefully.

CONTENTS

4 SAFETY PRECAUTIONS	INTRODUCTION
13 PRODUCT DESCRIPTION
14 Specifications
15 Installation and connection	PREPARATIONBEFORE FIRSTUSE
15 Packing/Packaging
16 Installation location
16 Adjustable foot

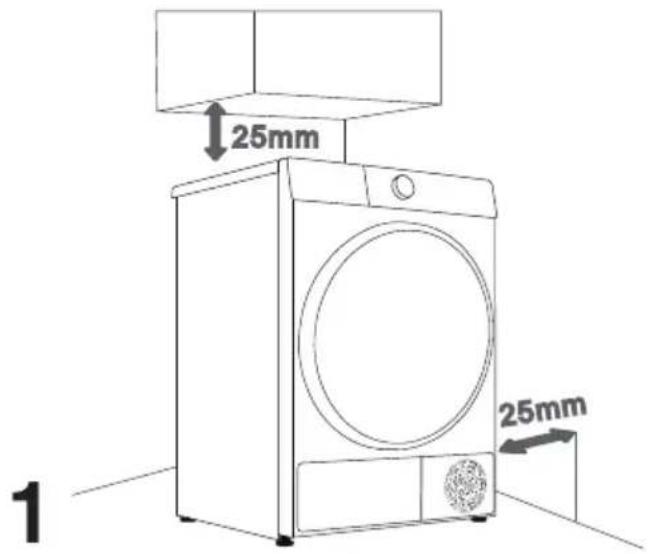

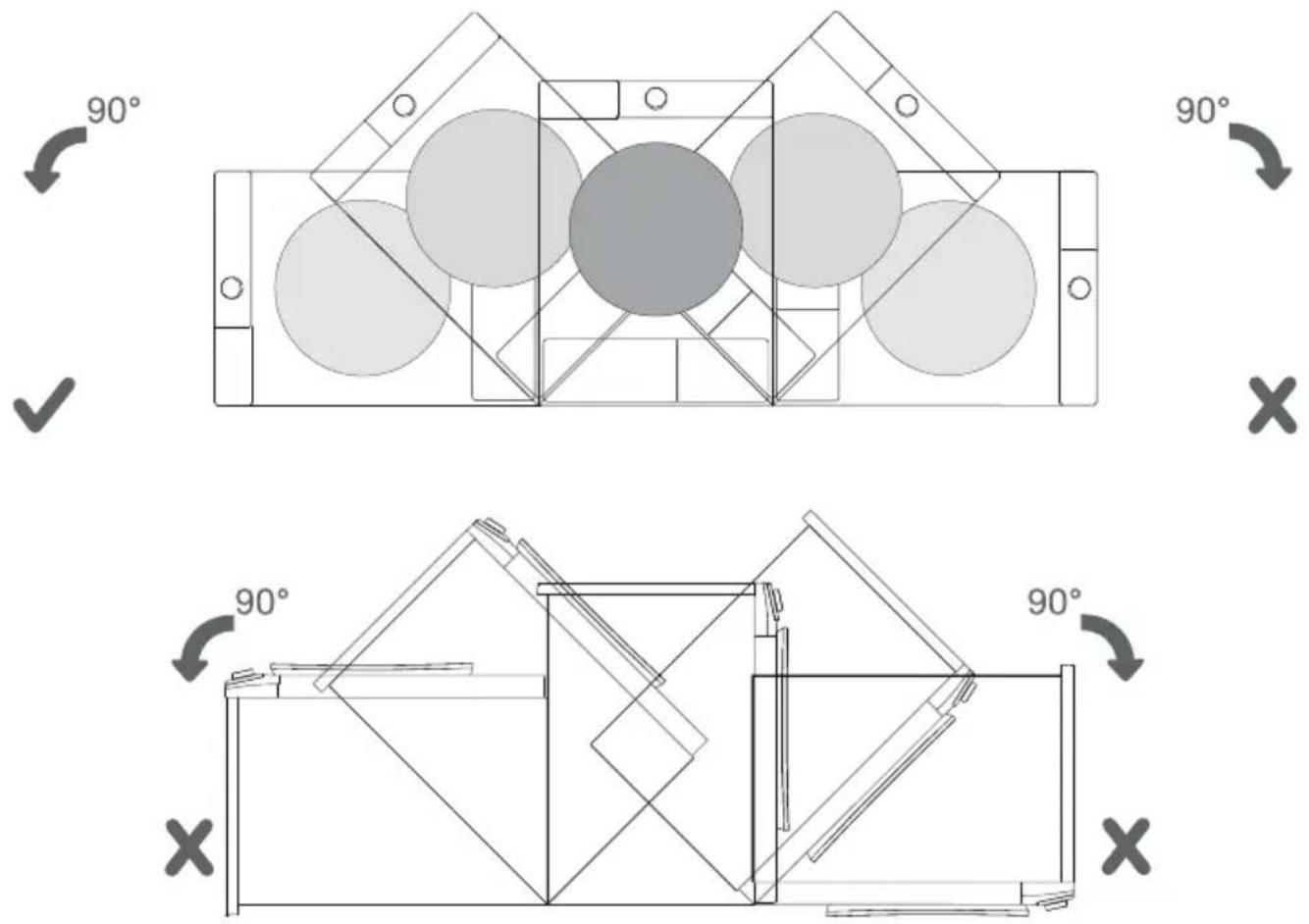

17 Installation clearance
19 Stacking installation

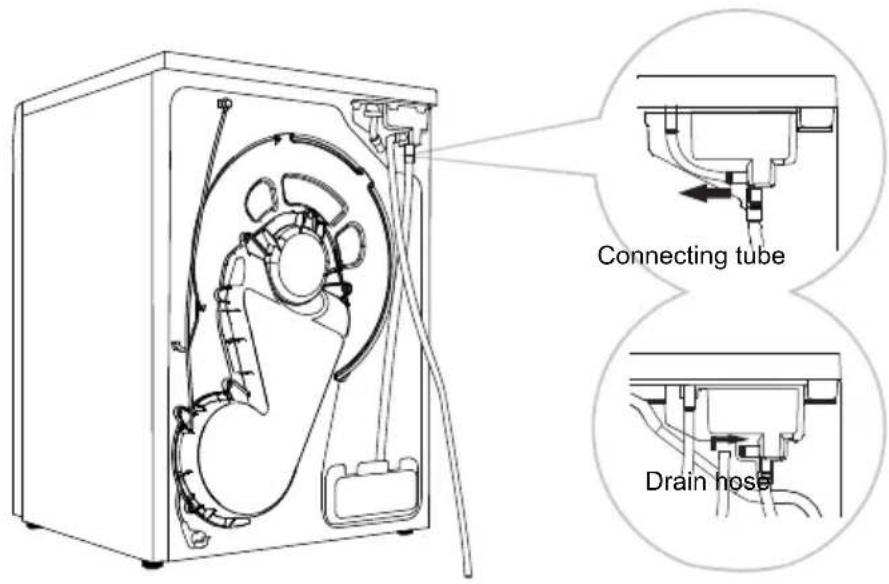

20 Connect drain hose
21 Drying rack
22 Transportation after installation
23 BEFORE THE FIRST USE	DRYINGSTEPS

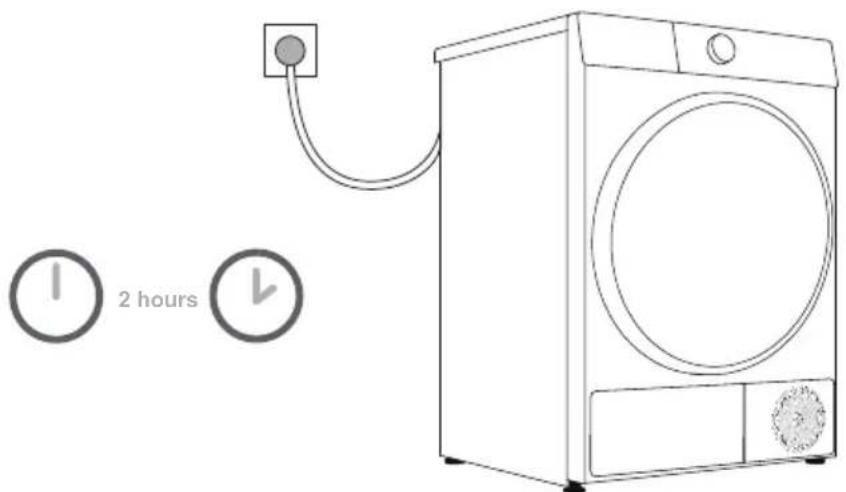

24 Connect to the power mains
26 PROGRAMS AND FUNCTIONS
27 Program table
28 Additional settings and functions
31 Function selection table

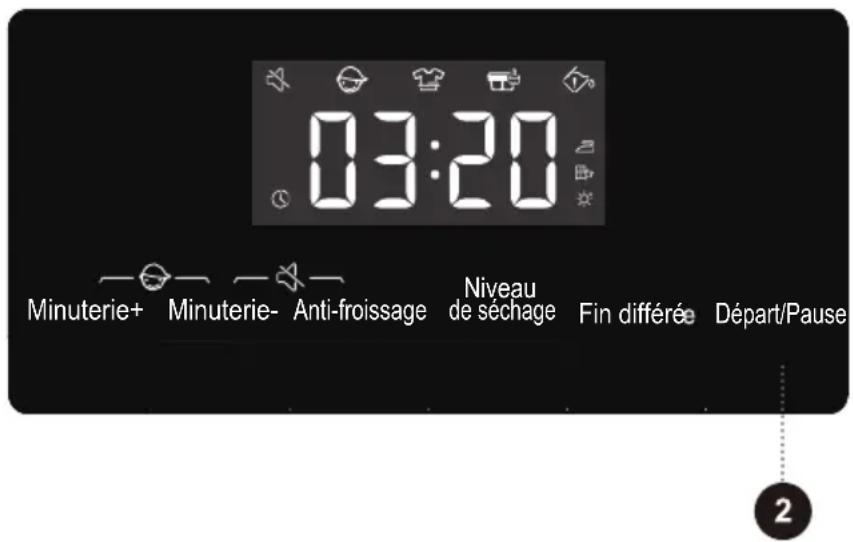

32 Start the program
32 End of the program
33 MAINTENANCE & CLEANING	CLEANING ANDMAINTENANCE

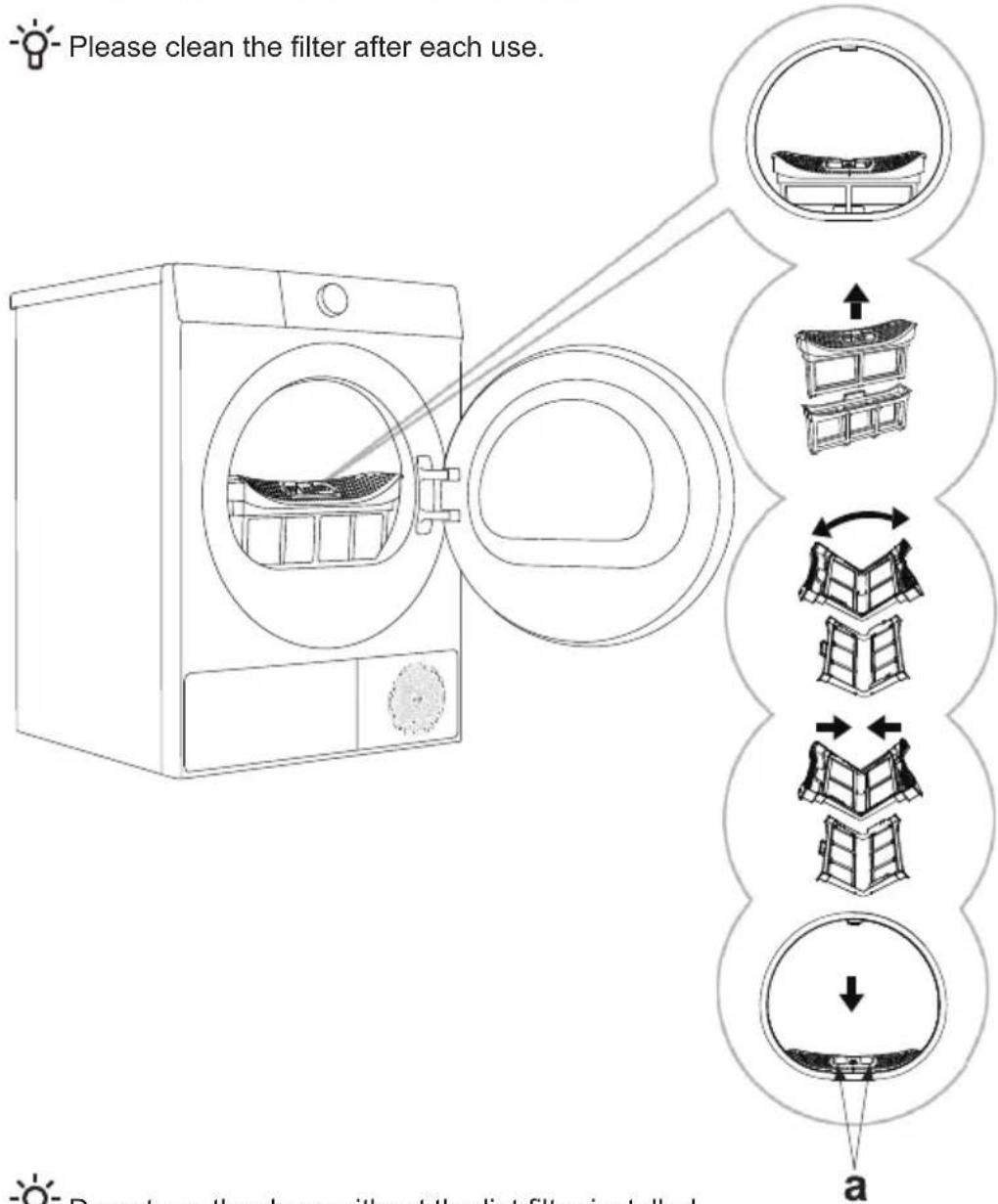

33 Cleaning the filter

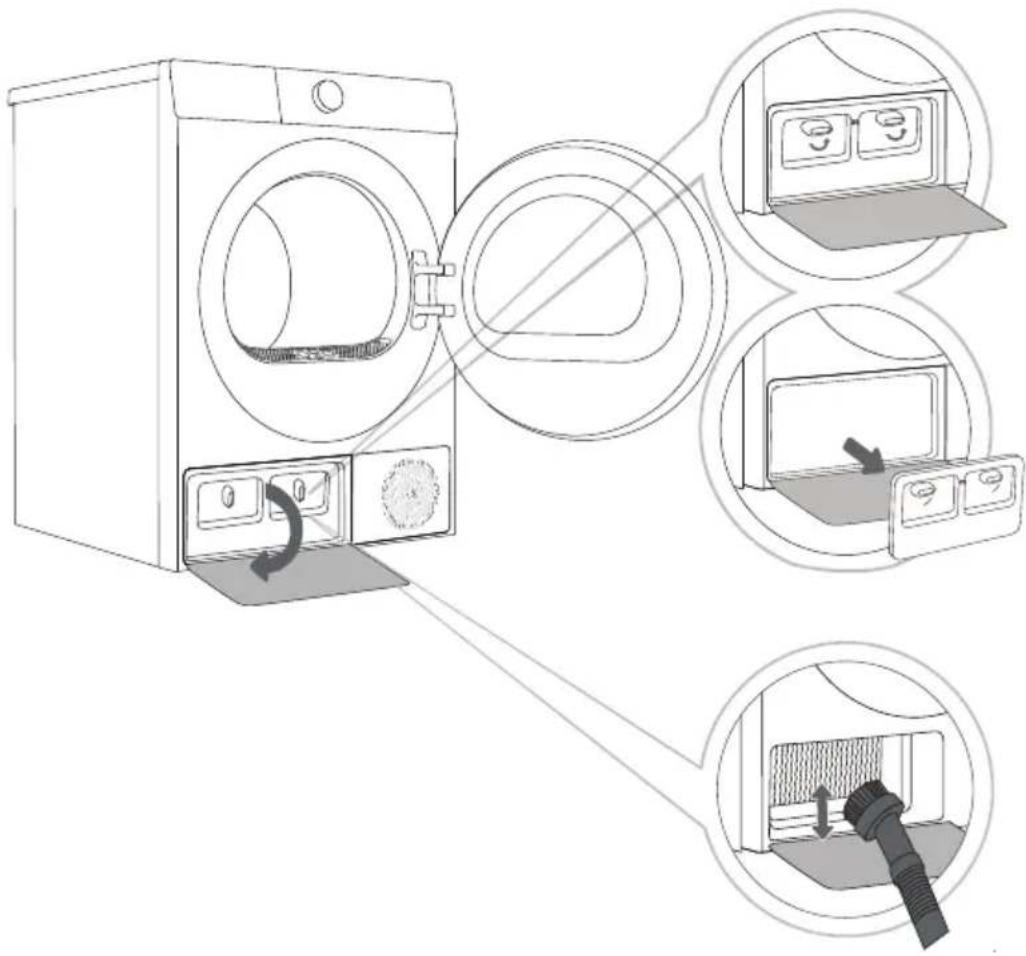

34 Clean the heat pump filter

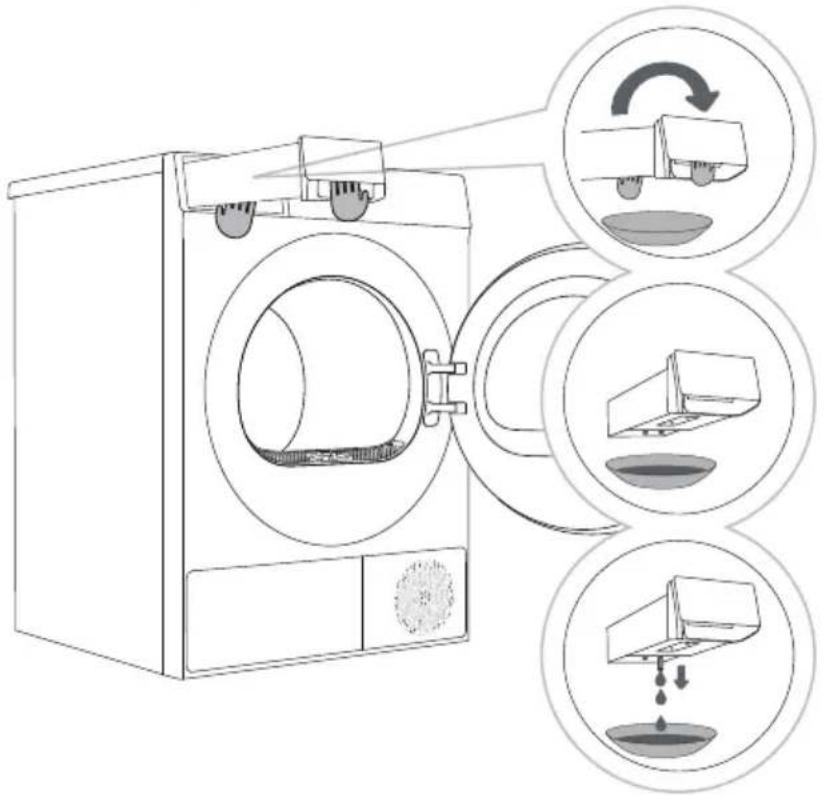

35 Empty the condensate box
35 Clean the door seal
35 Clean the enclosure
36 TROUBLESHOOTING	TROUBLE-SHOOTING
38 Fault codes and troubleshooting
39 SERVICE
39 USAGE RECOMMENDATIONS
40 WASTE DISPOSAL	MISCELLANE-OUS
41 PROGRAM TABLE

SAFETY PRECAUTIONS

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Please read the manual carefully before using this appliance.

Do not use this appliance if you have not understood or read this manual.

Failure to follow the instructions or improper operation may damage clothing or the appliance, or cause injury to you. Please place the manual near the appliance for easy access.

⚠️ To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

The lint trap has to be cleaned frequently.

The lint must not to be allowed to accumulate around the tumble dryer.

For appliances with ventilation openings in the base, a carpet must not obstruct the openings.

The maximum capacity in some cycles for dry clothes to be used is Dry (7.0kg).

The recommended maximum capacity may vary among different programs. For best drying results, refer to the Program Table.

Do not dry unwashed items in the tumble dryer.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Remove all objects from pockets such as lighters and matches.

Fill steam generators only with liquids specified by the manufacturer.

WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

Exhaust air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

That adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

ELECTRICAL SAFETY

This appliance is for household use only. If the appliance is used for commercial, for-profit, or purposes beyond the normal scope of household use, or if the user is not a consumer, the warranty period shall be the shortest warranty period required by relevant laws.

This appliance complies with relevant safety standards.

Before connecting the appliance to the power supply, please wait at least 2 hours to ensure it reaches room temperature.

This appliance must be repaired by an authorized service center, and only spare parts recognized by the authorized manufacturer shall be used.

Any repairs and maintenance related to safety or performance should be conducted by trained professionals.

Do not attempt to repair this appliance yourself. Repairs by unprofessional personnel may cause personal injury or more serious malfunctions. Please consult your local service center and always use original spare parts.

Before connecting the appliance to the power supply, ensure that the electric voltage specified on the rating plate matches the Voltage of your socket.

Do not attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or damaged parts, including damaged wires or plugs.

Do not bend the power cord excessively or place heavy objects on it.

Ensure that the mains cable is not kinked or trapped, and it does not come into contact with heat sources or sharp edges.

Do not use multiple outlets, extended power cords, or dual adapters on the appliance. Do not use an extended cord to connect the appliance to the power supply.

Do not spray cleaning solution inside or outside the appliance.

In case of flooding, please disconnect the power plug and contact the after-sales service center.

Do not connect the appliance to the electrical socket of an electric shaver or hair dryer.

Do not connect the appliance to an electrical outlet specifically designed for low-load appliances.

This appliance must be earthed via the power cord. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.

This appliance is equipped with a power cord having an equipment-grounding earthing pin and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and grounded in accordance with all local codes and ordinances.

WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

Warning; Flammable material, risk of fire.

INSTALLATION

Before using the appliance, be sure to remove the packaging

(sponge, polystyrene foam, etc.) attached to the bottom of the appliance.

Please install the appliance correctly according to the instructions and connect the water and electricity (see

"Installation and connection"). The connection of water and electricity should be carried out by fully trained technicians or professionals.

Installing a dryer on top of a washing machine at least requires two people.

Do not install this appliance in places where door opening is restricted.

Always use the pipe or hose provided with the appliance.

The appliance may not be in contact with a wall or adjacent furniture.

Please install the appliance in a room with adequate ventilation and a temperature between 10°C and 25°C. Do not install the appliance in an area where the temperature may drop to 5°C below, otherwise, the parts may be damaged when water freezes.

Place the appliance on a sturdy flat surface. If the appliance is installed on a high platform, it must be secured to prevent it from tipping over.

Keep the bottom and surrounding area of the appliance free of flammable materials such as threads, paper, rags, chemicals, etc.

This appliance must not be stored or used in any outdoor locations.

Avoid lint accumulation near the appliance. For appliance with vents at the bottom, please ensure that the vents are not blocked by carpet.

Do not block the air outlet, and do not place the appliance on a long-fiber carpet to avoid obstructing air circulation.

Do not install the appliance near heaters or any flammable items. Do not install the appliance in places where gas leakage may occur or where the air contains dust particles.

Please ensure good ventilation conditions to avoid the gas generated by this appliance from flowing back into the room, thereby causing a fire.

USAGE

After the installation is complete, please let the appliance stand for 24 hours before using it. If the appliance needs to be laid down during transportation or maintenance, please face the appliance and tilt it to the left side horizontally.

Inspect the appliance to see if it has been damaged during transportation. Never operate the appliance in a damaged condition.

The dryer uses a heat pump system to heat the air.

If the condensate tube is blocked or clogged, then tumble dryer operation is stopped.

Clean the dryer filters after each drying cycle. If you have removed the filters, replace them before the next drying cycle.

Do not use wet hands to touch the power plug or operate the appliance.

The system consists of a compressor and a heat exchanger. When the dryer is started, compressor operation (the sound of flowing liquid) or flow of refrigerant may be louder as long as the compressor operates. This is not a sign of malfunction and it will not affect useful life of the dryer. In time and with use of the dryer this noise will become quieter.

Do not drink or prepare food with the condensed water/ distilled water. It can cause health problems to people and pets.

Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

BURN HAZARD

If you open the dryer door during the drying process, the clothes may be very hot and there is a risk of burning.

FIRE HAZARD

This appliance is only for drying clothes washed with water. Do not dry clothes washed or cleaned with industrial cleaners, chemicals, flammable cleaners, or similar substances (such as gasoline, trichloroethylene, etc.); otherwise, it may cause an explosion.

Do not attempt to separate any panels or disassemble the appliance.

Do not use sharp objects like pins, knives, or fingernails to press the button.

After the program is finished, unplug the power plug. Never unplug an appliance by pulling on the power cord. Always firmly grasp the power plug and pull it directly out from the socket.

Because the appliance is heavy, you may injure yourself trying to lift it. Do not lift the appliance yourself; your hands may be cut by the its sharp edges.

Do not grasp the appliance by its protruding parts. The protruding parts on the appliance may break when lifting or pushing the appliance.

Do not dry clothes with large buttons or other heavy metal items. Make sure all pockets of clothes to be dried are empty. To prevent odors and mold, leave the door open and let the drum air dry after the drying cycle.

Do not leave metal objects in the drum for a long time.

The door glass may break due to strong impact, so be careful when using the appliance.

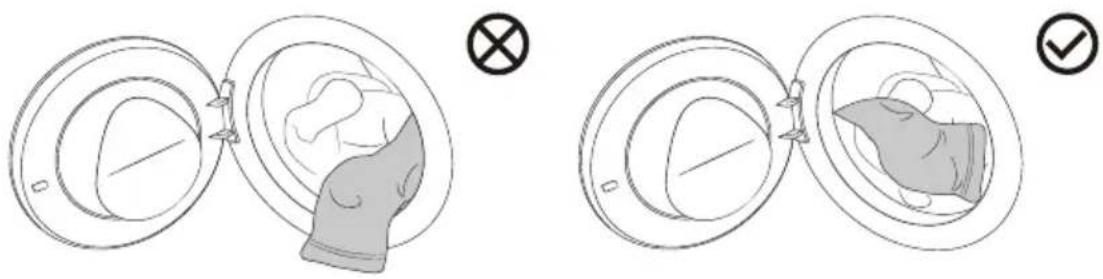

Please put the clothes completely into the drum so that the clothes do not get caught in the door.

Unplug the power cord from the electrical outlet when the appliance is not in use.

Do not put animals (such as pets) into the appliance.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent - this will reduce, but not eliminate the hazard.

Do not use any solvents or cleaning agents that may damage the appliance (please refer to the recommendations and instructions of the relevant cleaning agent manufacturer).

Do not use this appliance to dry unwashed clothing (except for certain drying care programs).

BURN HAZARD

During the drying process, the door may become hot. Be careful to avoid burns. Do not let children play near the door. Do not touch the door glass during the operation of the appliance.

The back of the appliance may become very hot during operation. Do not touch the back of the appliance until it has completely cooled down.

Turn off the power during the drying process or take the clothes out of the appliance immediately after the drying is complete. Leaving the dried clothes in the appliance may cause a fire. After the drying is complete, please take out the clothes immediately and hang or lay them flat to cool as soon as possible.

The dryer is protected with an automatic switch-off system in case of overheating. This system will switch off the dryer if the temperature is too high.

Never reach into the appliance while it is operating. Wait until the drum has completely stopped.

Do not push down on the door, when the appliance door is open. If the net filter is clogged, the overheating automatic switch-off system may be activated. Clean the filter, wait for the dryer to cool down, and try running it again. If the dryer still fails to start, call a service technician.

WARNING

In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

WARNING

The appliance contains refrigerant which although it is environmentally friendly, is flammable R290. Failure to dispose of it properly may result in a fire or poisoning dispose of the appliance properly and do not damage the pipes in the refrigerant circuit.

Always ensure that the condensate tank is drained before moving the appliance or storing it in an unheated room during the winter.

WARNING

Do not damage the refrigerant circuit.

CHILD SAFETY

Before you close the appliance door and run the program, please ensure that there is only clothing in the drum. Make sure that no children climb into the appliance and close the door from the inside.

Do not let the appliance door stay open. Children may hang on the door or climb inside the appliance, causing damage or injury.

Keep all packaging materials in a place out of the reach of children, as these may be dangerous.

Do not let children under 3 years old approach the appliance if they are not supervised at all times.

After understanding the safe use of the appliance and the dangers caused by improper use, children aged 8 years and above, as well as people with reduced physical, sensory, or mental abilities, or lack of experience and knowledge, can use this appliance, but they need to be supervised.

Children must not clean the appliance or perform any maintenance on it without supervision.

SERVICE

The user shall be responsible for the repair costs of damage caused by improper connection, improper installation and use, or repair by unauthorized personnel, as such damage is not included in the warranty.

The warranty does not include consumables, slight color deviations, increased noise due to appliance aging (which does not affect the functionality of the appliance), and cosmetic defects of parts (which do not affect the functionality and safety of the appliance).

PRODUCT DESCRIPTION

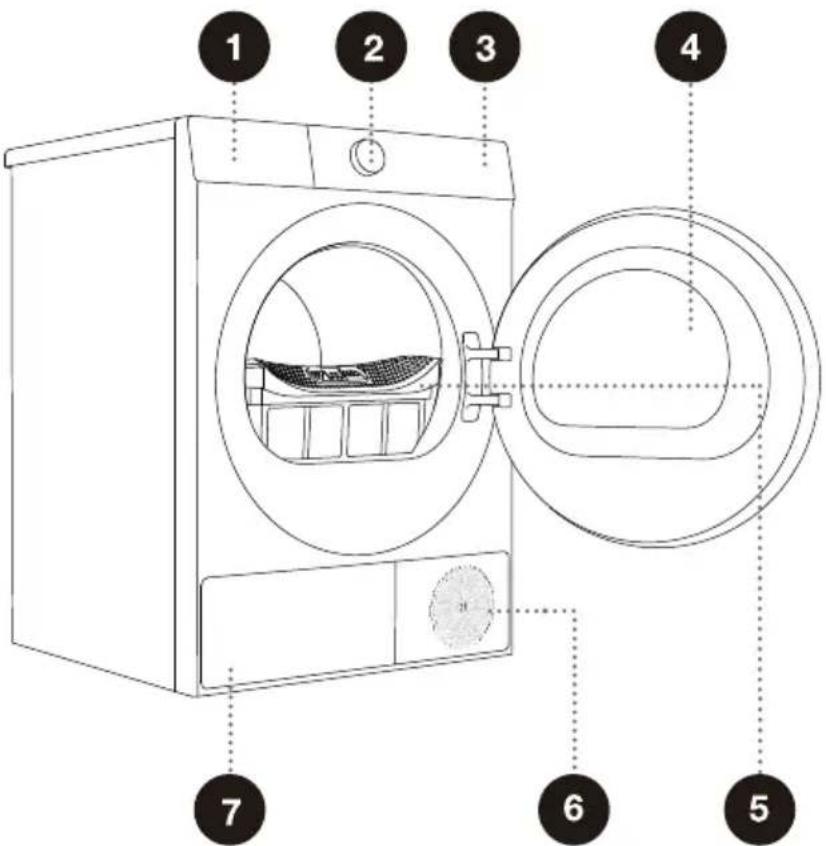

Front

1 Condensate box
2 Knob
3 Control panel
4 Door
5 Filter
6 Air vent
7 Heat exchanger door cover

1 2 3 4 5 6 7

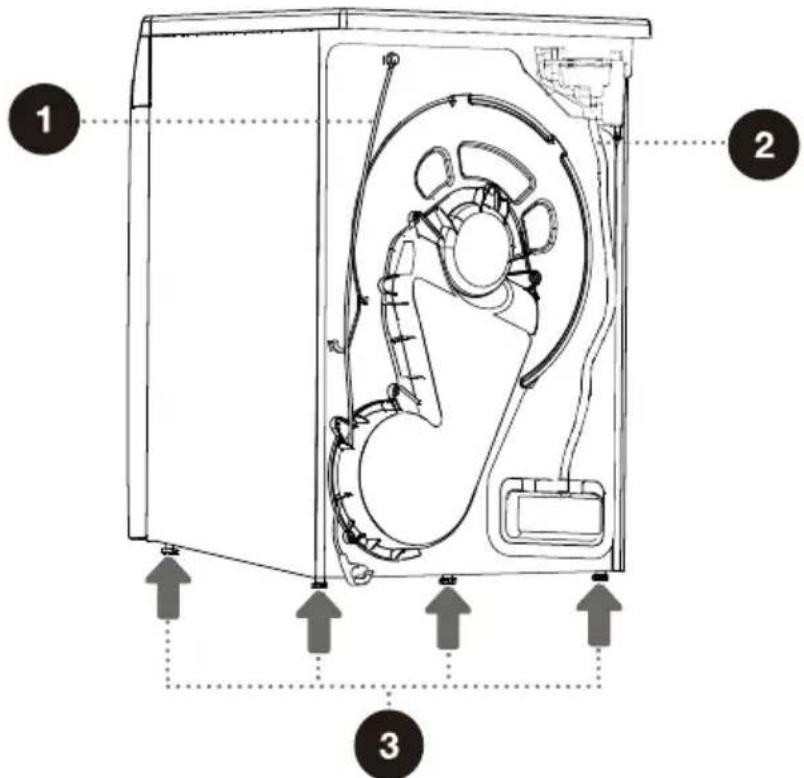

Back

1 Power cord
2 Condensate discharge hose
3 Adjustable feet

Technical diagram of a washing machine with numbered components and directional arrows indicating flow or movement.

The illustrations in this manual are for demonstration purposes only. Due to product improvements and series expansion, the product appearance, color, and functional components you receive may differ from the illustrations in this manual. Please refer to the actual product.

SPECIFICATIONS

(depending on the model)

Maximum load	7.0kg
Net weight	41kg
Rated voltage	220-240V~
Rated frequency	50Hz
Rated power	700W
Refrigerant type	R290
Refrigerant capacity	125g

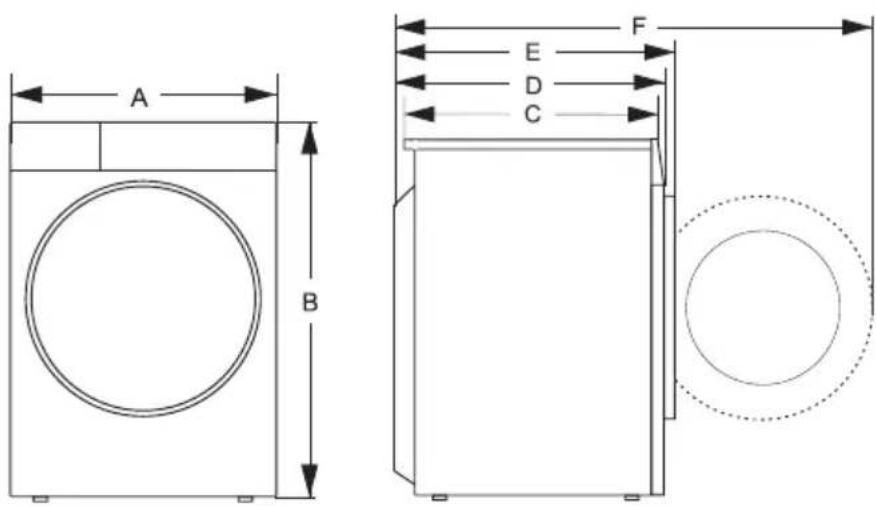

Size (mm)

Index Size (mm)
A 595
B	845
C	470
D	510
E	540
F	1030

A B E D C F

INSTALLATION AND CONNECTION

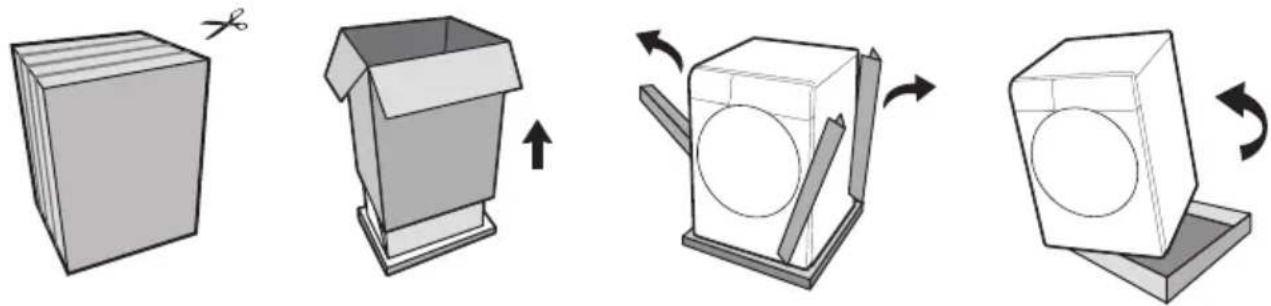

PACKING/PACKAGING

Please first remove all packaging and foam, especially the foam base. When unpacking the device, please do not use sharp objects to damage it. Keep packaging materials (plastic bags, other plastic parts, etc.) out of reach of children.

Four-step diagram showing a box being cut with scissors, moving from top to bottom, and rotating around a washing machine (no text or symbols)

The process of packing the machine is just the opposite of unpacking above.

Please check the device for any damage. If damaged, do not use it, and immediately contact after-sales service.

The accessories included with this appliance include one or more of the following:

SINNAMETER 100% 100% 100% 100% SINNAMETER

Instructions

Simple line drawing of a coiled cable or wire (no text or symbols)

Drain pipe

Different models have different configurations, and the accessories included with this device are subject to the actual configuration of the model.

For your safety and extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of unauthorized components or parts.

INSTALLATION LOCATION

Please place the appliance on a solid surface and keep it steady. The flat surface should be kept clean and dry; otherwise, the appliance may slip. Also, clean the bottom of the adjustable foot.

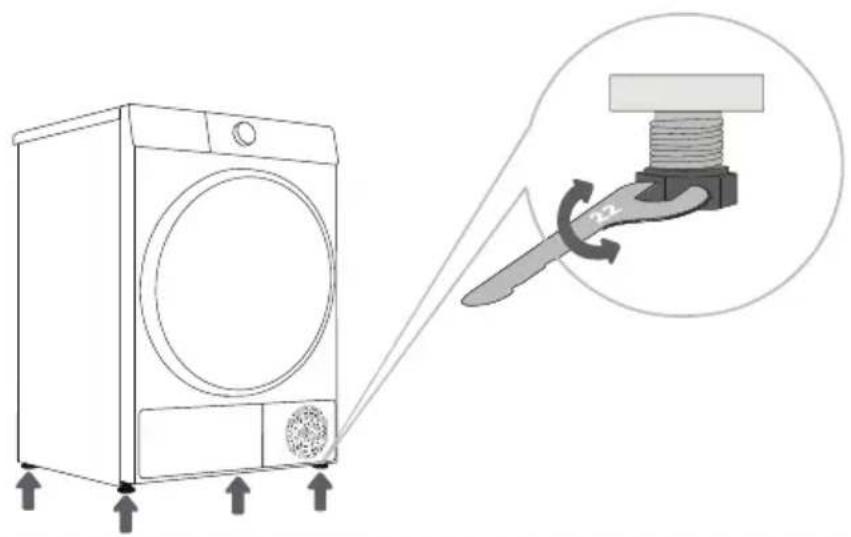

ADJUSTABLE FOOT

Use a level and a 22mm wrench for adjustment.

Diagram showing a washing machine with air vent and a magnified view of the screw being inserted into a socket, with Chinese text labels.

1 Level the appliance by turning the four adjustable feet. The adjustable feet allow 1 cm height adjustment.

2 After adjusting the height, tighten the lock nut counterclockwise with the wrench (as shown in the figure).

Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to warranty.

Sometimes, unusual or louder noise may appear during appliance operation; these are mostly the result of improper installation.

INSTALLATION CLEARANCE

25mm 25mm 1

2

50mm

The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation, we recommend observing the clearance from the walls as indicated in the figure. In case of failure to heed the required minimum clearance, the dryer may overheat.

- Vents on the back wall and the air exhaust opening on the front side of the dryer should never be obstructed.

The room in which you will install the dryer should be sufficiently ventilated, with a temperature between 10^ and 25^ . Dryer operation at a lower environment temperature may result in condensate accumulation in the dryer interior. Do not place the dryer into a place where there is danger of freezing. Frozen water in the condensate tank and pump may damage the dryer.

The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may take longer due to limited amount of available air.

Lighting in the room should be sufficient to allow reading the information on the display unit on the control panel.

Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side of the dryer door hinge. Install the dryer in such way that the door can always be freely opened.

Do not place the dryer on a carpet with long fibres as this may impede air circulation.

90° 90° 90° 90° 90°

After installation, wait for 24 hours without moving the appliance before using it for the first time. If the dryer has to be laid down on one of the sides during transport or servicing, place it with its left side, viewing from the appliance front, downwards.

CONNECT DRAIN HOSE

If the appliance is not connected to a drain hose, the water extracted from the clothes by the condenser will accumulate in the condensate box, which needs to be emptied after each program. If the installation location of the appliance is close to the drain outlet, or if the dryer is stacked on top of the washing machine, you can install the drain hose included in the package to drain the water directly into the drain outlet.

Connecting tube Drain hose

1 Unplug the connecting tube at the back of the appliance's condensate box and hang it on the back of the appliance.

2 Install the drain hose in the accessories to this position (as shown in the figure), please confirm that the installation connector is firmly inserted, and insert the other end of the drain hose into the drain outlet.

If you decide to place the condensate drain hose into the drain outlet, make sure the drain hose is installed correctly. After the drain hose is installed in place, the condensate water can be discharged directly, without the need to empty the condensate box after each use.

Please use the drain hose provided with this appliance.

Do not twist or compress the drain hose, otherwise it will affect normal drainage. The height of the drain hose must not exceed the height of the machine body; otherwise, the water cannot be drained. If the drain hose is too long, please cut off the excess portion.

Do not place the drain outlet in stagnant water; this may cause backflow.

TRANSPORTATION AFTER INSTALLATION

If you need to transport an installed appliance, first unplug the power plug, detach the drain hose, and ensure the door is closed properly.

After each drying program, a small amount of condensation may remain in the appliance. Start the appliance, select any program, and run it for about half a minute to drain the accumulated water to prevent damage to the appliance during transportation. If it is not possible to transport the appliance upright, please tilt it to the left.

Pack all packaging materials (plastic bags, other plastic parts, etc.).

The appliance is heavy; please use at least two people to move it. When transporting, do not hold protruding parts such as the door, top cover, etc., to prevent them from falling off or being damaged.

After transport, let the appliance sit for at least 2 hours before connecting it to the power supply. The device should be installed and connected by trained technicians.

Read the instructions carefully before reconnecting the appliance. Damage caused by improper connection or use is not covered by the warranty.

If the appliance was not transported according to the instructions, it should be allowed to rest for at least 24 hours before connecting it to the power supply. Failure to do so may lead to heat pump failure, and such failures are not covered by the warranty. Be careful not to damage the cooling system; please refer to "Installation and connection".

Transport and Handling Method

BEFORE THE FIRST USE

The first use

Before using this product for the first time, please ensure that the appliance is not connected to the power supply. Then, open the door and clean the drum with a soft damp cloth.

Do not use solvents or cleaning agents that may damage the appliance (please follow the

recommendations and warnings provided by the cleaning agent manufacturer).

Pay attention to clothing labels

Washing Maximum water temperature 95°C9595	Maximum water temperature 60°C6060	Maximum water temperature 40°C4040	Maximum water temperature 30°C3030	Hand wash only	Do not wash
Rinsing	Rinse in cold water Do not rinse
Dry cleaning	It can be dry cleaned, detergent is not limitedA	Dry clean with petroleum solvents R11 and R113P	Dry clean with kerosene, pure alcohol and R113F	Do not dry clean
Ironing	Maximum ironing temperature 200°C...	Maximum ironing temperature 150°C...	Maximum ironing temperature 110°C...	Do not iron
Drying Dry flat (placed on a flat surface)—	Drip dryIIILine dry☐	High heat☐Low heat☐	Do not dry☒

Preparation for drying

1. Classify clothing according to its type and thickness, and refer to the requirements on the clothing labels.
2. Empty clothing pockets; remove any metal items that could damage clothing and appliance; button up and turn clothing with buttons or embroidery inside out; Zip up your clothing; if the clothing has drawstrings, please tie them.
3. Place sensitive clothing and small, lightweight clothing into a dedicated mesh laundry bag and dry them with other clothing.
4. For clothes with pilling surfaces or long pile fabrics, please turn them over before drying.
5. It is not recommended to use a dryer to dry delicate fabrics, as they may be damaged during drying. To avoid damage, please do not put the following types of clothing into the dryer:

• Leather clothing and other leather products.
- Clothing that has undergone waxing treatment or requires special care.
- Clothing with a large amount of wool, plastic, or metal decoration.

• Clothing with sequins.
- Clothing with metal accessories that are prone to rusting.

Line drawings of five different clothing items: jeans, shorts, hoodie, potted plant, and a woven basket (no text or symbols)

CONNECT TO THE POWER MAINS

2 hours

After installation, the appliance must remain on a stable surface for at least 2 hours before connecting to the power supply.

This appliance is connected to a grounded power socket, and there should be no obstructions between the appliance and the socket. The power socket should have compliant grounding protection. Ensure that the power supply is consistent with the power requirements of the appliance. For basic information about the appliance, please refer to the nameplate.

It is recommended to use overvoltage protection devices to protect this appliance from lightning strikes.

Do not use an extension cord to connect the appliance to the power supply.
Do not connect the appliance to a power outlet designated for light-load appliances.
Please do not plug or unplug the appliance with wet hands.
The repair and maintenance of this appliance should be handled by professionally trained personnel.
Only personnel authorized by the manufacturer can replace a damaged power cord.

PUT IN THE CLOTHES TO BE DRIED

Open the machine door, confirm there is no foreign matter in the drum, and loosely place the clothes into the drum.

Close the machine door and hear a "click" sound, indicating that the machine door is closed tightly.

Do not overload the drum! Refer to the "Program Table" for the maximum load. If the drum is too

full, the clothes will be more wrinkled and may not dry effectively.

Please completely put the clothes into the drum to prevent the clothes from getting caught in the

door.

Diagram illustrating two steps of clothing or garment selection, showing step 1 with a hand holding a sleeve and step 2 with a bag inside a blanket.

While the dryer is operating, you can easily open the door to add or remove clothes. After closing

the door, press the Start/Pause button to resume operation.

Do not put clothing into a dryer without wringing or spinning it (recommended minimum drying

speed of 800 RPM).

When drying larger items (bedding, quilts, etc.), be sure to shake out the clothing before placing it

in the dryer.

PROGRAMS AND FUNCTIONS

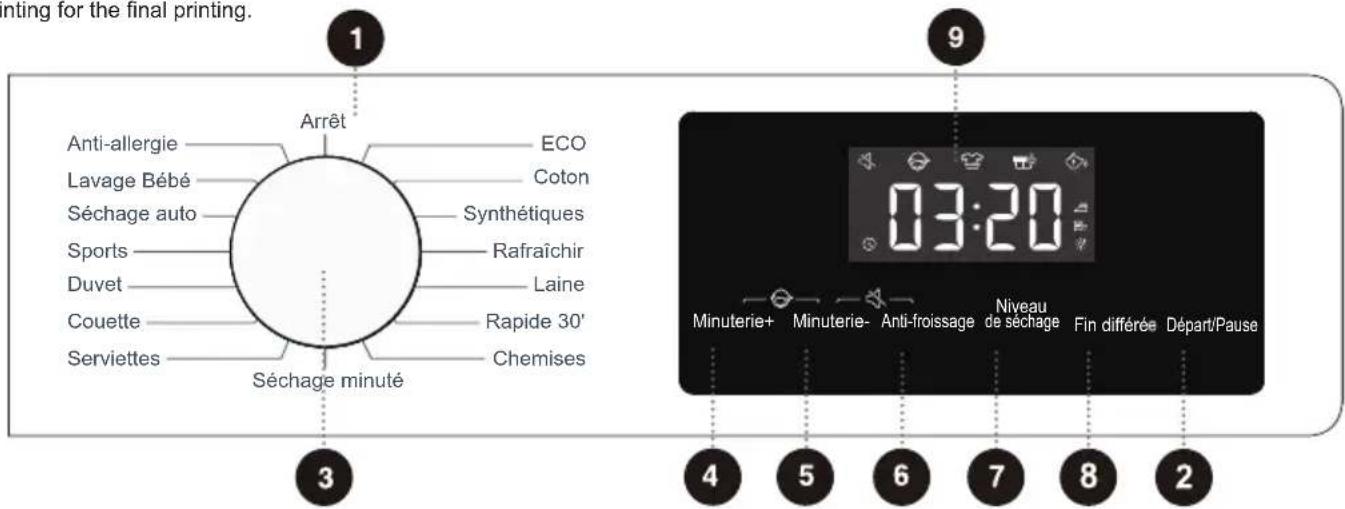

Control Panel

Please refer to the actual printing for the final printing.

1 Power Used to turn on/off the device.

4 More Time This function increases the drying time of the program.

7 Drying Level This function selects the drying effect of the program.

4+5 Child Lock

Press and hold these two buttons at the same time to turn on/off the child lock function.

2 Start/Pause Used to start/pause a program.

5 Less Time This function shortens the drying time of the program.

8 Delay End This function allows you to schedule drying clothes at your convenience.

5+6 Mute

Press and hold these two buttons simultaneously to turn on/off the mute function.

3 Cycle Selector Turn the knob to select the program.

6 Anti Crease 📁 It turns the anti-crease function on/off.

9 Display Used to display the remaining time of the program, reservation time, fault code, and other related information.

PROGRAM TABLE

Turn on the device and turn the main knob to select the appropriate program (depending on the type of clothing and desired degree of drying). During operation, the main knob will not turn automatically.

Program	Program description	Maximum load	Drying Type
			Stop when the clothes are dry	Timed drying
Eco This program is suitable for drying general cotton clothes.		7.0kg	√
Cotton This program is suitable for drying thicker, non-sensitive cotton clothing.		7.0kg	√
Synthetics This program is suitable for drying synthetic and cotton fabrics.		3.5kg	√
Quick 30' This program is suitable for quick drying of light clothing.		0.5kg	√
Shirts This program is suitable for drying shirts made of cotton, linen, polyester, synthetics or blends.		2.0kg	√
Towels This program is suitable for drying non-sensitive clothing (fleece, kitchen wiping cloths, etc.).		3.5kg	√
Bedding This program is designed with the anti-tangling function for large pieces of clothing and is suitable for drying large pieces of clothing.		2.5kg	√
Downwear This program is suitable for drying down-filled clothing (such as pillows and down jackets). Please dry large pieces of clothing separately, using the Time Dry program if necessary.		2.0kg	√
Sportswear This program is suitable for drying outdoor clothing and sportswear made of synthetics.		2.0kg	√
Auto Dry This program is suitable for drying non-sensitive synthetics and cotton clothing with uniform thickness.		3.5kg	√
Baby Care This program is suitable for drying infant and toddler clothing.		2.0kg	√
Refresh This program is a dry clothing care program that makes your clothes fresh again. When using this program, the heating function is turned off.		/		√
Wool This program is suitable for drying wool and delicate clothing. (Refer to the drying requirements on the clothing label).		1.0kg		√
Time Dry This program is suitable for thorough drying of non-sensitive clothing. The remaining moisture of clothing will not be automatically detected during the drying process. Please choose an appropriate drying time to avoid the clothing not achieving the expected drying effect or over-drying causing creases.		/		√
Allergy Care This program is suitable for high-temperature drying of clothing to remove allergens such as mites.		2.0kg		√

If your clothing has not reached the expected drying level, please use another function or select more suitable drying program.

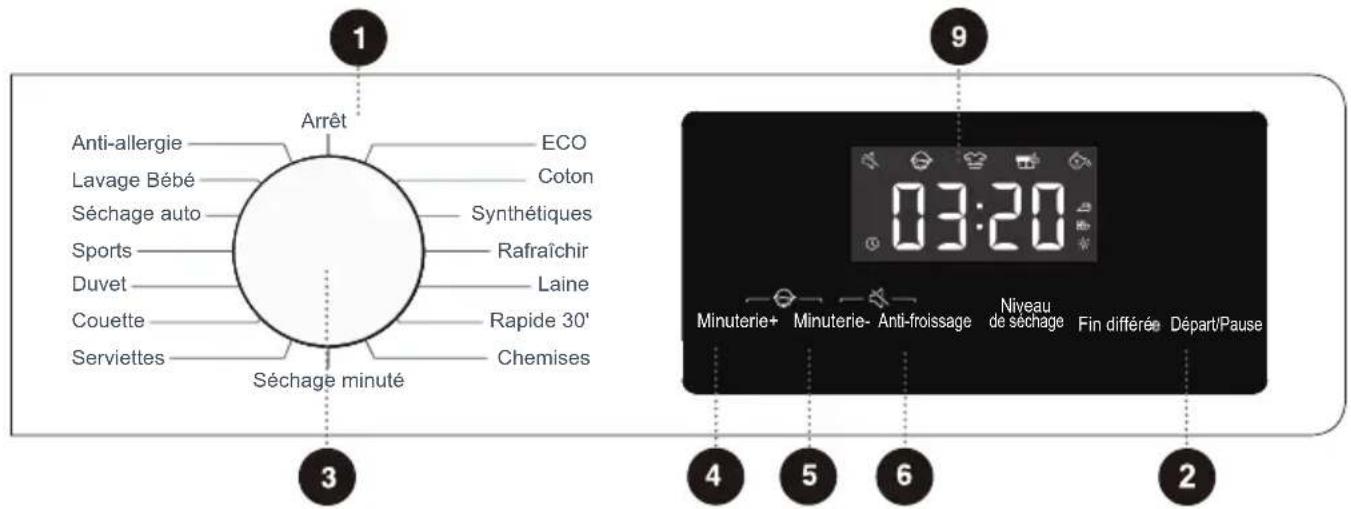

ADDITIONAL SETTINGS AND FUNCTIONS

The program comes with default settings, and some functions can be changed by user. You can adjust the settings by pressing the corresponding function button (before pressing the "Start/Pause" button). Some settings cannot be selected or changed in some programs. These settings will not light up, and an acoustic signal sounds when the corresponding button is pressed (see "FUNCTION SELECTION TABLE"). Most functions can only be set in standby mode, i.e., before a program starts. After starting the program, most functions cannot be adjusted anymore.

Used to turn the device's power on or off.

During the program running, if you need to turn off, turn the program knob to point to "off" to shut down.

2 Start/Pause

Used to start/pause a program.

The device cannot be started if the door is not closed or the door lock is not locked.

4 More Time

This function increases the drying time of the program.

It is only applicable to timed drying programs. Stop-on-dry programs cannot be selected. Different programs have different drying time levels.

Please select a suitable drying time. If the drying time is too short, the clothes may not be completely dried.

5 Less Time

This function can reduce the drying time of the program.

It is only applicable to timed drying programs. Stop-on-dry programs cannot be selected. Different programs have different drying time levels.

Please select a suitable drying time. If the drying time is too short, the clothes may not be completely dried.

6 Anti Crease

This function adds an anti-crease mode. After the program ends, the inner drum rotates intermittently to prevent creases from forming when clothes are not taken out for a long time. After selecting a program, press this key. "icon lights up and the program automatically enters the anti-crease mode after the program ends. The same operation can be used to turn off this function.

During the anti-crease mode, pressing any key, turning the knob or opening the door can end this function. If no operation is performed, the program will automatically end after a maximum of 12 hours by default.

This function is used to select the drying effect of the program.

It displays the current drying effect for the first time. Press this button to cycle through the set gears. The drying effect can be selected in the following gears:

8 Delay End

This function allows you to schedule drying clothes at your convenience.

After selecting the program and function, make a reservation. Press this button to start the reservation, and press it again to make a selection in the cycle of the set time gears. Each time you press it, the time changes by 1 hour. The longest time you can select is 24h.

The reservation time is the end time of the program, including the entire program running time, so the reservation time must be greater than the program running time.

After selecting the appointment time, press the Start/Pause button to start the appointment process.

When the reservation process is in progress, the icon "on the display will light up or flash.

When the reservation process finishes, the icon will go off.

If the reservation function has been selected before the program starts, it can be canceled by selecting another program or function button.

After the program is started, if you need to cancel the reservation function, you need to shut down and restart.

4 + 5 Child Lock

To prevent children from operating the device accidentally and protect their safety, this device is equipped with a child lock function.

Long press " More Time" and "Less Time" buttons at the same time, the Child Lock icon lights up and the Child Lock function is turned on. The same operation can be used to remove the child lock. After the Child Lock function is set, all buttons except the power knob on/off are locked.

When the program ends or the device is turned off and restarted, the Child Lock function setting remains unchanged.

5 + 6 Mute

This function shields other sounds except the alarm sound and reduces noise.

When the device is in standby, pause, or running state, long press "Less Time + Anti Crease" buttons at the same time, mute icon " lights up and the mute function is turned on. The same operation can be used to turn off the mute function, and all sounds will be turned back on.

When the program ends or the device is turned off and restarted, the Mute function setting remains unchanged.

Used to display the remaining time of the program, reservation time, fault code, and other related information.

The remaining time indicated by the program may differ from the actual running time. Due to factors such as clothing type and quantity, drying grade, and ambient temperature, the device will automatically adjust the actual drying time.

Icon description

	Anti crease icon. When the icon is lit up, it indicates that the anti crease function is enabled.
	Lint and debris cleaning icon. The flashing icon indicates that the lint and debris needs to be cleaned.
	Water box cleaning icon. The flashing icon indicates that the water box needs to be emptied.

FUNCTION SELECTION TABLE

• The function is optional.
- The Function is not optional.

START THE PROGRAM

Select the program and additional functions, and press Start /Pause button to start the program.

When the program finishes, the device emits an acoustic signal and "End" appears in the display.

Press the Power button to turn off the appliance.

In standby mode, at the end of the program, if no operation is performed for a period of time, the device will automatically shut down.

*After the program ends, turn off the device, open the door and take the clothes out of the drum.

MAINTENANCE AND CLEANING

Regular maintenance can extend the appliance's service life. Before maintenance, please be sure to disconnect the power supply.
Children are not allowed to clean or perform any maintenance work on this device without supervision.

The dryer is equipped with a filtration system made up of several filters that prevent impurities from entering the heat exchanger system.

The device must not be operated if the filter is not installed in place or the filter is damaged, as excessive accumulation of fabric fibers may cause the device to malfunction or fail.

Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They will manage the finish.

CLEANING THE FILTER

Please clean the filter after each use.

Please clean the filter after each use. Do not run the driver without the lint filter installed a

1

Take out filter.

2

Open filter.

3 Open and gently scrape off the lint, fibers and threads on the two filters (if the filter debris is difficult to clean manually, you can rinse it with warm water and dry it).
4 Reassemble the filter and clean the debris on the door seal if necessary.
5 Reinstall the filter (please install it with hole "a" facing you.).

Do not run the dryer without the lint filter installed.

Please be careful not to get your fingers caught in the filter cover.

Refer to the instructions to clean the filter properly, otherwise it will cause lint accumulation and act the drying performance of the device. Proper and timely cleaning of the filter can reduce the time and energy consumption of the device and prevent unnecessary malfunctions.

CLEAN THE HEAT PUMP FILTER

When cleaning the filter, water may spill out. It is recommended to place an absorbent cloth on the floor.

Diagram illustrating the process of washing machine ventilation, showing steps from fan opening to outlet with labeled components.

1 Press the heat exchanger door cover buckle on the lower left to open the door cover.

2 Turn the locking knob on the inner door cover to the unlocked position.

3 If after using for a period of time, there is dust on the heat exchanger, please use a vacuum cleaner, soft brush, or other tools to remove the dust. The heat exchanger can be seen after removing the heat pump filter. Lightly brush the metal pieces with the brush, and the brush can only be moved from top to bottom. Excessive force may damage or bend the metal sheet. Do not touch the heat exchanger directly with your hands to avoid injury.

4 Install the inner door cover to its original position and lock the knob, close the heat exchanger door cover.

Do not touch the internal metal parts of the heat exchanger with your bare hands to avoid scratches. Wear suitable protective gloves when cleaning the heat exchanger.

Improper cleaning of the heat exchanger metal sheets may cause permanent damage to the device. Do not press the metal sheet with hard objects (such as the plastic tube of a vacuum cleaner, etc.).

It is recommended to clean the heat exchanger at least once every 20 drying programs.

EMPTY THE CONDENSATE BOX

If the condensate box is full, the drying program will automatically pause. Please follow the steps below to empty the condensate box.

Diagram illustrating the process of washing machine ventilation system with labeled components and airflow direction arrows

1 Pull out the condensate box (using both hands, as shown in the figure).

2 Turn the condensate box upside down over a basin, sink, or any suitable container.

3 Empty condensate box.

4 Reinstall the condensate box back to its original position.

- Empty the condensate box after each drying cycle.

The water discharged from the condensate box is not for drinking. After sufficient filtering, it can be used for ironing.

Do not add chemicals or fragrances to the condensate box.

CLEAN THE DOOR SEAL

Check the door seal regularly; clean it with a damp cloth if necessary.

After use, slightly open the door for ventilation and drying.

CLEAN THE ENCLOSURE

Before cleaning the enclosure, please be sure to disconnect the device from the power supply.

Clean the device outer shell and panel with a soft damp cloth. Then wipe them dry with a soft dry cloth.

Do not use solvents, abrasive cleaners, or cleaning agents that may damage the device (please follow the recommendations and warnings provided by the cleaning agent manufacturer).

Wipe the drum door with a damp cloth, and then wipe dry with a soft dry cloth.

Do not use too much water to clean the device.

TROUBLESHOOTING

The device is equipped with various automatic safety functions, ensuring that faults can be detected promptly and effective safety countermeasures can be initiated.

These faults are usually minor and can be eliminated in a very short time.

When the device cannot operate normally, the display will show abnormal information. Please refer to the warning content and take appropriate actions.

If the fault persists after you have handled it yourself according to the recommended processing method, please contact after-sales service.

If the user performs maintenance by themselves or hires non-manufacturer after-sales personnel, all consequences will be assumed by the user.

Fault phenomenon	Recommended handling methods
The device cannot be powered on	◇ Check the power connection.◇ Check whether the Start/Pause button is pressed.◇ Check whether the door is closed correctly.◇ Check whether a fuse has blown, a circuit breaker has tripped, or a power outage has occurred.
The device cannot start	◇ Check whether the program settings are correct.◇ Check whether there are any clothing items in the drum.
Drying time is too long	◇ Check whether the program settings are correct.◇ Check whether there is too much clothing tangled into a bunch.◇ Check the filter for cleanliness.◇ Some programs have a cooling process after drying.
Poor drying effect	◇ Check whether the clothes have been washed and spinned.◇ Check whether the program settings are correct.◇ Check whether the amount of clothing is too much.◇ Check whether the clothing is sorted correctly and whether the clothing that dries easily is mixed with the clothing that dries slowly.◇ Check whether there are too many heavy garments.◇ Check whether the filter is clean.
The remaining time on the display stops or jumps	◇ The remaining time may vary depending on the type of clothing, weight, moisture, and surrounding environment; this is a normal phenomenon.
Wrinkled clothing	◇ The drying time of the clothes is too long; try shortening the drying time.◇ Leaving clothing in the dryer for too long after the program has ended.
The program running time displayed on the device is different from the actual program running time	◇ For programs that stop automatically when clothes are dry, the drying duration displayed is calculated according to standard environment, initial laundry moisture, load mass and type. The drying time is automatically adjusted for any change in conditions. The difference between the actual time and the display time is normal, which ensures the best drying effect.

Faults or problems caused by external factors (such as lightning strikes, power grid failures,

natural disasters, etc.) are not covered by the warranty.

Fault phenomenon	Recommended handling methods
The appliance is too loud	◇ Look for coins, loose buttons, nails, and other objects and remove them immediately.◇ Check the lint filter. Remove any items stuck inside the lint filter.◇ Make sure the dryer is level and standing firmly on the floor.◇ The dryer may hum due to air moving through the drum and fan. This is normal.
Clothes are shrinking	◇ Garment care instructions are not being followed. Use a low or no heat setting.
Lint is left on clothes	◇ Lint filter has not been cleaned properly.◇ Clothes have not been sorted properly.◇ Some fabrics cause more lint and should be dried separately from fabrics that lint attaches easily.◇ Tissue, paper, etc., has been left in pockets.
The appliance has an odour	◇ The smell is caused by rubber material that is attached to the appliance inside. This kind of smell is a rubber's own smell and disappears automatically after using the appliance several times.◇ When washing the clothes, use the detergent in accordance with the manufacturers recommendations. If you use the detergent excessively not according to the recommendations, undissolved detergent may accumulate on the clothes and cause an odour.◇ You can smell odours from the clothes if the clothes were left in the appliance after drying or in the washing machine after washing. Unload the clothes promptly at the end of the drying or washing cycle.◇ Ensure you can smell same odour in the washing machine. If so, clean the tub of the washing machine referring to the washing machine user manual.◇ Always take care of both lint filters clean. If any residues were left in the lint filter after drying, it may cause odours. And also dry the lint filter completely after cleaning.
The appliance is powered on and started directly after power failure, but does not work	◇ When the program is suspended, the set functions cannot be changed, If the program or function needs to be changed during operation, or the power is off during operation and the power needs to be powered on again, select the required program and function, and finally start it.

FAULT CODES AND TROUBLESHOOTING

When the device does not operate normally and the display shows the following code, it may not be a fault. Please refer to the content in the fault code and take the corresponding measures.

Some fault codes are only applicable to certain models. The actual alarm display is subject to the

actual model.

Problem / Fault	Description Solution
F50/F51 Abnormal sensor Please contact after-sales service.
F21	Abnormal display panel and the power board	Switch off the appliance, and restart it. Press the "start/pause" button againIf the abnormality is not removed, please contact after-sales service.
F22	Abnormal display the motor control board and the power board	Switch off the appliance, and restart it. Press the "start/pause" button againIf the abnormality is not removed, please contact after-sales service.

SERVICE

Before calling a repair technician

When you contact the service center, please first state your device model.

Information such as model, code/ID, model and serial number are displayed on the nameplate of the device.

In case of defects, only use spare parts approved by the authorized manufacturer.

Repairs or any warranty claims resulting from incorrect connection or use of the device are not ordered by the warranty. In this case, the maintenance costs shall be borne by the user.

USAGE RECOMMENDATIONS

The most economical way of drying is to dry the recommended amount of laundry in each batch (see PROGRAMME TABLE).

Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.

Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after drying in the dryer. Drying time will be shorter and power consumption will be lower if the garments are thoroughly wrung or spun before drying. By selecting the appropriate drying programme, you will avoid over-drying your laundry and problems with ironing or shrinkage of fabric

Regular cleaning of the filters will lead to optimum drying time and minimum power consumption.

When drying smaller amounts of laundry or individual garments, the sensor may not perceive the actual level of moisture in the laundry. In such cases, it is recommended to dry smaller items or amounts with programmes for dryer laundry or with the timed programme.

WASTE DISPOSAL

The packaging is made of environmentally friendly materials and can be recycled, reused, processed, or destroyed without causing harm to the environment. For this purpose, the packaging materials are marked with appropriate labels.

This icon on the product or its packaging indicates that this product cannot be disposed of as household waste. Please dispose of this product at a collection point for the recycling of electrical and electronic equipment.

When the device reaches the end of its life and needs to be scrapped, please remove all power cords, destroy the door locks and switches to prevent the door from locking.

Children or small animals may be trapped in it and cause danger.

Ensure this product is handled correctly and avoid inappropriate waste disposal measures for this product, as this helps prevent potential negative impacts on the environment and human health. For more information on product recycling, please contact your local municipal department, your household waste disposal service center, or the store where you purchased the product.

PROGRAM TABLE

Programme Instructions

The table indicates the power consumption and time values for drying of a test batch of laundry with various loads and after washing machine spinning.

The following requirements apply to the consumption values specified below.

Inlet air temperature room temperature

Inlet air humidity 50–60%

Drying temperature Normal

Program Spinning	Rated Capacity (kg)	(rpm)	Program consumption approximately (kWh)*	Program duration approximately (h:min)*	Final Moisture Content (%)
Eco	7	/	1.78	2:55	1.50
Synthetics extra	3.5	1000	0.81	1:20	0.50
Synthetics iron	3.5	1000	0.61	1:02	8.00
Cotton extra	7	1000	1.86	3:04	0.50
	3.5	1000	1.08	1:57	0.50
Cotton iron	7	1000	1.48	2:20	10.00
	3.5	1000	0.68	1:09	10.00
Wool	1	/	0.27	0:30	0.50

1. The values given for programs other than the eco program are indicative only.
2. Results of wool program is based on wool load with 5% initial moisture content.
3. The eco program is suitable to dry wet cotton laundry, and that this program is used to assess the compliance with the EU ecodesign legislation.
4. The eco program is the most efficient program in terms of energy consumption for drying wet cotton laundry.
5. Loading the household tumble dryer up to the maximum capacity indicated by the manufacturer for the respective programs will contribute to energy savings.
6. At full load of eco program, acoustic airborne noise emission of the drying cycle: 64dB.
7. The product information and QR code are reflected in the energy consumption labelthe product registration information can be obtained by scanning the QR code.
8. The power consumption of the off-mode is 0.5W. Time on switching automatically to off-mode : 10min.

Due to deviations in terms of type and amount of laundry, spinning, power supply oscillation, and environment temperature and humidity, the values measured at the user may differ from the one stated in the table.

We reserve the right to any changes and errors in the instructions for use.

Guarantee

The equipment you purchased is guaranteed by the manufacturer within 24 months from the date of purchase(The dated invoice as proof).

Exclusions of guarantee:

The guarantee do not cover the normal wear of the product, nor the problems or damages resulting from:

(1) superficial deteriorations due to the normal wear of the product;
(2) any incident, abuse, misuse, modification, disassembly or unauthorized repairs;
(3) any wrong maintenance operation, use not conforming to the instruction for use of the product and connection to an unproper power supply;
(4) any use of not initially provided accessories or approved by the manufacturer.

Information: The guarantee won't be applicable in case of missing rating plate or/and product serial number.

Repairs Services:

In case of malfunction during the guarantee period of the manufacturer: Any repairs request must be addressed to the professional retailer you purchase your product to. After the expiry of the manufacturer guarantee period : refer to the document « Spare parts and repairs » in the documentation related to your washing machine available on the website "www.continentaledison.fr"

Spare parts:

The necessary spare parts for your product repairs are available at least 10 years, in conformity with the European regulation related to the eco-design of washing appliances.

Guarantee

Refer to the document «Spare parts and repairs» inside the documentation related to your washing machine, available on the website "www.continentaledison.fr", it will inform you about :

• the availability for each spare part ;
• the spare parts purchasing terms ;
• some professional repairs services.

Spart parts purchase, you can find from Eurosav website: www.eurosav.eu

Continental Edison

120-126 quai de Bacalan

33000 Bordeaux

France

Abstract geometric shapes with overlapping semicircles (no text or symbols)

Continental Edison
