USER MANUAL V150E75NT BROAN

Energy Recovery Ventilator - 130 CFM

ERV

Top ports: V150E75NT

Side ports: V150E75NS

35 to 138 CFM (17 to 65L / s)@0.2 in.w.g.

35 to 129 CFM (17 to 61 L/s) @ 0.4 in. w.g.

The industry's most advanced residential fresh air system, created to offer a universal platform specifically designed and improved to make contractors life easier and more profitable while delivering constant superior air quality.

• Thanks to the Virtuo Air Technology™, the airflow calibration and auto-balancing are achieved quickly and maintained throughout the life of the product
• Select the desired CFM (from 35 to 138 CFM, 17 to 65 L/s) using the proven integrated LCD screen. The airflow is then set up automatically
• Integrated electronic airflow measurement device with real time LCD
• Integrated diagnostic tool
• Equipped with PMSM ECM motors for a very low power consumption
• Suspended installation (chains included) OR

• Wall-mount installation (universal brackets included)

• installation with 2 brackets

• installation with 4 brackets

PARTS/MOTOR/ERV CORE

US

UNIT DESCRIPTION

• SRE of 82% at 0^ (17 L/s, 36 CFM) and SRE of 77% at 0^ and 60% at -25^ (31 L/s, 66 CFM)
• Ports size: 5 in.
• Recirculation defrost
  No recirculation mode
  Corrosion resistant galvanized steel door and cabinet
  One-piece molded insulation shell, no air leakage (expanded polystyrene; UL 94 HF-1 certified)
• Virtuo constant airflow and auto-balancing device (patent pending)
• Motorized dampers (no additional backdraft dampers required)
  No drain required
• 6^ power cord
  Unit electrical characteristics:120 volts, 60 Hz, 2.4 A, 163 W

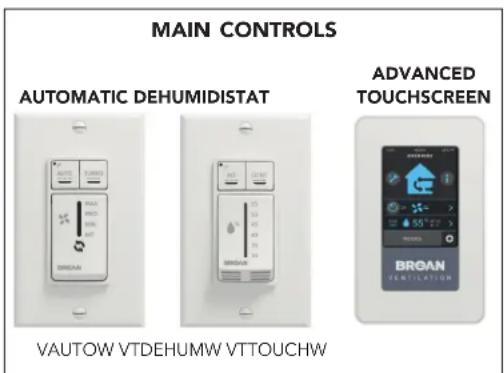

CONTROLS

AUXILIARY CONTROLS

BOOST OVERRIDE
VBATHW VBATHBTW VBATHDW

Refer to the Wall Control specification sheet for more information.

Airflow performances associated with MERV 13 optional filter are not HVI certified. However, from tests performed by the manufacturer, such performances are not affected by the use of this filter.

PRODUCT SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

CORE

• Polypropylene crossflow core with polymeric membrane and aluminum covers, impact resistant, non washable
• Dimensions: 12'' × 12'' × 9'' (30.5 cm × 30.5 cm × 23 cm)

FILTERS

• MERV 8 grade washable standard filter (included)
• Optional MERV 13 grade filter part no. V24285

OPTIONS

• Compatible with Tandem Terminations (part no. VTYIK1 and V14695) (CFM output must meet application requirements)

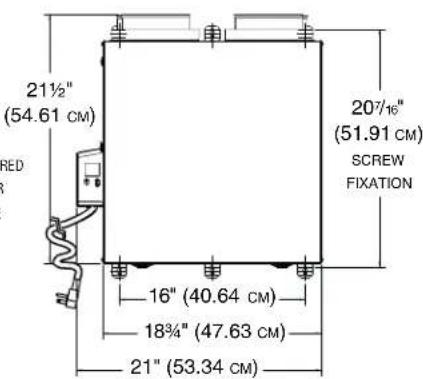

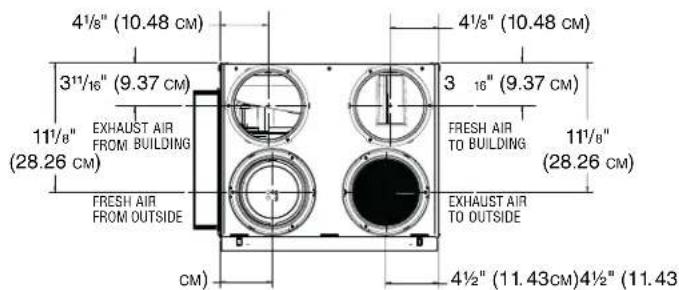

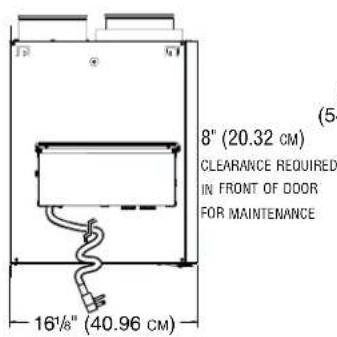

5" PORTS DIMENSIONS (TOP PORTS)

Total assembled weight: approx 37 lbs (16.8 kg) (core included)
Shipping weight: approx 44 lbs (20 kg)

VK0126A

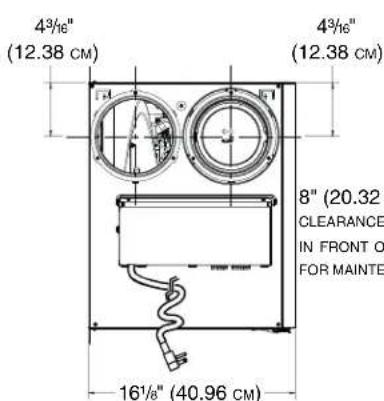

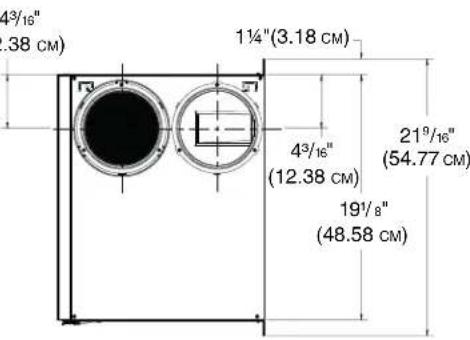

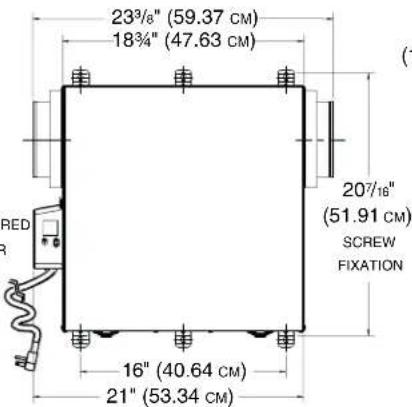

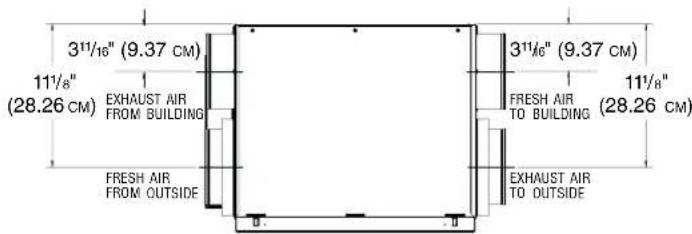

5" PORTS DIMENSIONS (SIDE PORTS)

Total assembled weight: approx 37 lbs (16.8kg) (core included)
Shipping weight: approx 44 lbs (20kg)

VK0125A

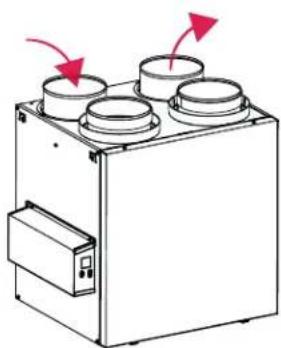

DEFROST SYSTEM

Homeshield Defrosting System

Defrost is activated at a temperature of -5^ (23^) and lower as specified within the table. The negative pressure created by air exhausted to the outdoors is minimized since the air is recirculated into the house, helping to prevent any backdraft.

DISCRETION (Factory setting)	OUTDOOR TEMPERATURE*
	-5°C TO -15°C 23°F TO 5°F		-15°C TO -27°C 5°F TO -17°F		-27°C AND LESS -17°F AND LESS
CFM	AIR EXCHANGE IN MINUTES	DEFLROST IN MINUTES	AIR EXCHANGE IN MINUTES	DEFLROST IN MINUTES	AIR EXCHANGE IN MINUTES	DEFLROST IN MINUTES
0 to 59	22	6	13	5	12	7
60 to 109	22	6	14	5	13	7
110 and more	13	6	9	5	9	7
*Outdoor temperature is read by a thermistor located inside the unit, next to fresh air from outdoor port.

NOTE: There is a 10-minute additional defrost every 5 defrost cycles.

PLUS	OUTDOOR TEMPERATURE*
	-5°C TO -15°C23°F TO 5°F		-15°C TO -27°C5°F TO -17°F		-27°C AND LESS-17°F AND LESS
CFM	AIR EXCHANGEIN MINUTES	DEFROSTIN MINUTES	AIR EXCHANGEIN MINUTES	DEFROSTIN MINUTES	AIR EXCHANGE IN MINUTES	DEFROSTIN MINUTES
0 to 59	22	7	13	7	12	8
60 to 109	22	7	14	7	13	8
110 and more	13	7	9	7	9	8
*Outdoor temperature is read by a thermistor located inside the unit, next to fresh air from outdoor port.

NOTE: There is a 10-minute additional defrost every 5 defrost cycles.

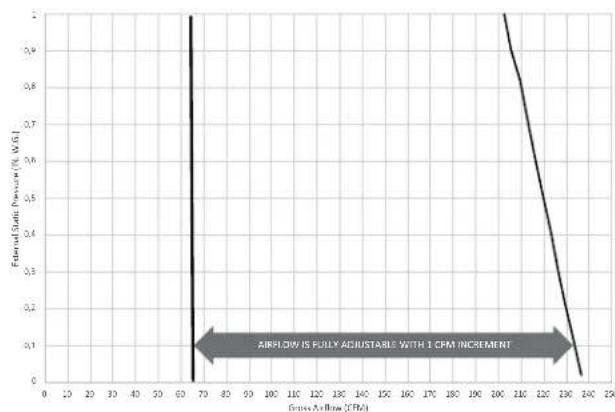

FAN CURVES WITH VIRTUO

Thanks to Virtuo Air Technology™, no need to balance the unit manually. Both PMSM motors are controlled by an artificial intelligence performing 120 readings per minute then processing this information to maintain the requested airflow. For typical installation, Virtuo will ensure a balanced ventilation at every selected speed regardless of the weather conditions, the type of connection, the variable speed furnace/AHU, the stack effect, the filter clogging and so on. This results in peace of mind for installers and users knowing that the unit will always remain balanced and that it will maintain its maximum heat/energy recovery efficiency.

Static Pressure (at)	Static Pressure (in. m.p.o.)	Net Supply Air Low (L/s)	Net Supply Air Low (C/m)	Gross Air Low Supply (L/s)	Gross Air Low Supply (C/m)	Gross Air Low EAXIS (L/s)	Gross Air Low EAXIS (C/m)
25	0.1	66	140	67	142	67	142
50	0.2	65	138	66	140	66	140
75	0.3	63	133	64	136	64	136
100	0.4	61	129	62	131	62	131
125	0.5	59	125	60	127	60	127
150	0.6	56	119	57	121	57	121
175	0.7	55	117	55	117	55	117
200	0.8	52	110	52	110	52	110
225	0.9	50	106	50	106	50	106
250	1.0	47	100	47	100	47	100
275	1.1	44	93	44	93	44	93
300	1.2	41	87	41	87	41	87

Fan curve not certified by HVI.

ENERGY PERFORMANCE

SUPPLY TEMPERATURE		NET AIRFLOW		POWER CONSUMED WATTS	SENSIBLE RECOVERY EFFICIENCY	ADJUSTED SENSIBLE RECOVERY EFFICIENCY	APPARENT SENSIBLE EFFECTIVENESS*	LATENT RECOVERY / MOISTURE TRANSFER
°C °F	L/5 CFM
HEATING
0 32	17 36	15 82%	85%	87% 0.69
0 32	31 66	29 77%	80%	82% 0.60
0 32	55 117		90 71%	77% 78%	0.54
-25	-13	31 66	64 60%	62% 83%	0.60
35	95	31	66	29	-	-	75%	0.63
35	95	54	114	90	-	-	64%	0.54

• Data not certified by HVI.

REQUIREMENTS AND STANDARDS

• CSA C22.2 No. 113 compliant (safety)
• UL 1812 compliant (safety)
  Could be installed in compliance with CSA F326

Performance tested in accordance with CSA C439 Standard
Compliant with Prop 65

Project: Remarks
Location:
Part no.:
Qty.:
Submitted by: Date:

DIMENSIONS D'UNE UNITE AVEC BOUCHES DE 5 PO (BOUCHES SUR LE DESSUS)

Poids total assemblé: approx 37 lb (16,8 kg) (noyau inclus)

DIMENSIONS D'UNE UNITE AVEC BOUCHES DE 5 PO (BOUCHES LATERALES)

Poids total assemblé: approx 37 lb (16,8 kg) (noyau inclus)
