USER MANUAL PR185FR PRIMO

Black PRIMO refrigerator with no visible text or symbols on its body

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Diagram showing a refrigerator with a door and a magnified view of its side panel, labeled with 'Y' and 'T'.

Line drawing of a refrigerator with an inset showing internal components (no text or symbols)

Line drawing of a refrigerator with a close-up inset showing its exterior panel and side arm details (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of a refrigerator with a magnified inset showing its exterior wall structure (no text or symbols)

Line drawing of a server cabinet with an arrow pointing to a circular diagram showing internal components (no text or symbols)

Line drawing of a refrigerator with a close-up inset showing its exterior panel and armrest (no text or symbols)

ENTRETIEN ET NETTOYAGE

NETTOYAGE

Symbol of a trash bin crossed with two crossed lines and a black rectangular base (no text or numbers)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Line drawing of a refrigerator with a magnified inset showing its exterior wall structure (no text or symbols)

Line drawing of a refrigerator with an arrow indicating direction and three small objects inside a circle (no text or symbols)

Line drawing of a refrigerator with an inset showing a close-up of its side panel (no text or symbols present)

Prohibition sign with a trash bin and crossed lines, indicating no waste or disposal.

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
  • In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

To ensure safety, you must read this manual thoroughly. This appliance is made for domestic use and should only be used according to the instructions described below.

• This device may be used by children from the age of 8 years and by persons with a physical sensory or mental limitations or lack of experience and knowledge if these persons are supervised have been given supervision or instruction concerning the use of the appliance in a safe manner and that they also know the hazards involved in using the device.
  • Children must not play with the appliance.
• Maintenance and cleaning of the appliance must not be done by children, unless they are older than 8 years of age and are supervised.
• Keep the appliance and cord out of the reach of children under the age of 8.
• If the electrical cord is damaged, it must replaced by the manufacturer, its after-sales service or a similarly qualified person person in order to avoid any accident.
• Caution: the appliance must not be used with an external timer or remote control.
• This device is suitable for use in the household environment and in similar environments such as :
• Kitchen corner for staff of stores, offices

and other similar professional environments.

- Farm houses.

- Hotel and motel rooms and other environments with a residential character.

- Guest rooms, or similar.

- An empty refrigerator can be very dangerous for children. Remove the refrigerator door when not in use. Or take other measures that will make the appliance harmless. Be careful not to damage the refrigeration system.

- WARNING! Never place this appliance on or near a gas fire or electric fire or in a place where it could come in contact with a heat source. There are flammable materials on the back of the appliance.

- Pay attention to the “fire hazard - flammable material” symbol located on the back of the appliance.

Warning sign depicting a flame symbol in yellow and black on a white background

Follow the instructions below to prevent food contamination:

- Opening the door for long periods of time can significantly increase the temperature in the appliance's compartments.

- Clean surfaces that may come in contact with food regularly.

- Store raw meat and fish in suitable containers in the refrigerator so that it does not come in contact with or drip on other food.

• If the appliance is left empty for a long time, you should turn it off, defrost and clean it. Let it dry and leave the door open to prevent mold from growing inside the appliance.
• This freestanding appliance should not be built-in.

Install the appliance in a dry and well-ventilated area. The appliance is intended for use in an area where the ambient temperature falls within the following class depending on the climate class found on the rating plate on the left inside of the unit.

Climate class Ambient temperature
SN Between 10°C and 32°C
N Between 16°C and 32°C
ST Between 18°C and 38°C
T Between 18°C and 43°C

SAVE THIS MANUAL FOR FUTURE REFERENCE

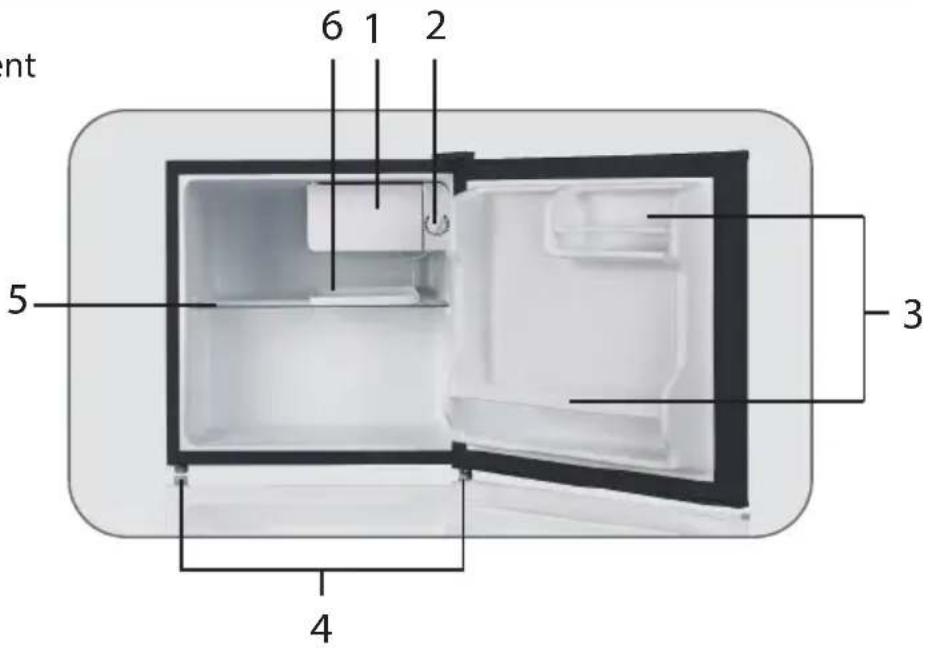

PARTS

1. Freezer compartment
2. Thermostat
3. Door racks
4. Adjustable feet
5. Shelf
6. Water collection tray

6 1 2 5 3 4

INSTALLATION

• Remove all packing material, both inside and outside.
• Clean the outside of the unit with a dry cloth. You can clean the inside with a soft damp cloth.
• Do not place the appliance in a narrow passage, direct sunlight or moisture.
• Make sure that air can circulate freely around the refrigerator. The back of the refrigerator should be at least 13 cm away from the wall.
• Place the refrigerator on a firm, level surface.
• Avoid direct sunlight and heat. Sunlight can damage the outside of the refrigerator. Heat will cause higher consumption.
• Avoid excessive humidity. Too much moisture in the air will cause frost to form too quickly in your refrigerator.
• You can set the temperature at the front of the appliance with the thermostat. The higher the setting (6), the harder the refrigerator will cool.

TEMPERATURE CONTROL

The refrigerator is controlled by a temperature controller located inside the unit. Adjust the controller to the desired position.

$$ 1 = + / - 1 0 ^ {\circ} \mathrm{C} 2 = + / - 9 ^ {\circ} \mathrm{C} 3 = + / - 7 ^ {\circ} \mathrm{C} 4 = + / - 5 ^ {\circ} \mathrm{C} 5 = + / - 3 ^ {\circ} \mathrm{C} 6 = + / - 2 ^ {\circ} \mathrm{C} $$

• Operating time and temperature are affected by where the refrigerator is used, the number of times the door is opened and the temperature of the room the refrigerator is in.
• When you start using the unit or after defrosting the unit, set the controller to the coldest setting for at least 2 hours before inserting food and then set to the medium setting.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack • Food with natural preservatives such as jams, juices, drinks, spices, etc. • Do not store food with a limited shelf life here
Middle shelf • Fruits, herbs and vegetables • Do not store bananas, onions, potatoes and garlic in the refrigerator • Dairy and eggs
Top shelf Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.

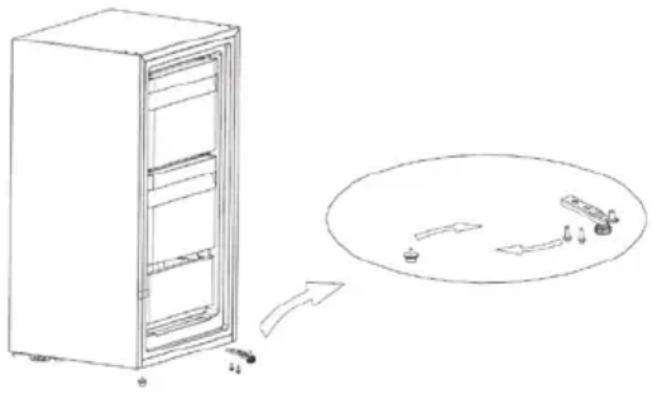

DOOR CONVERSION

Before changing the direction of rotation, check that the plug is unplugged and that the appliance is empty. It is recommended to use a Phillips screwdriver and a spanner (both not supplied).

1. Remove the hinge cover from the screws. Remove the screws and then the top hinge that holds the door in place. Lift the door and place it on a soft surface to avoid scratches.
2. On the left side, remove the three cover caps. Two are located on the refrigerator, one is located on the door.

Y1

1. Remove the bottom screws, hinge bracket and the levelling foot at the bottom left of the appliance.
2. Fix the screws, hinge bracket and the adjusting foot on the other side of the base.
3. Carefully put the door in place. Make sure the door is both horizontally and vertically aligned so that the seals are closed on all sides before fully tightening the top hinge. Return the hinge and screw tightly to the top of the appliance. Replace the cover plate.
4. Level the appliance using the adjustable foot.

Line drawing of a refrigerator with an inset showing internal components (no text or symbols)

Line drawing of a refrigerator with a close-up inset showing its exterior panel and side arm details (no text or symbols)

* Pictures may vary from your purchased model.

CLEANING AND MAINTENANCE

CLEANING

Wash the water collection tray and the shelf with a mild detergent. Then dry all parts thoroughly with a soft dry cloth. Clean the exterior with a soft damp cloth.

DEFROST

You should defrost your appliance when an ice layer begins to form. Defrosting will take several hours. You can speed up the process by removing all frozen parts from your refrigerator and leaving the door ajar for, a short period of time.

Important: close the door before the defrosting process is finished. The water collection tray should be placed directly under the freezer compartment to catch thaw water.

Note: Never use sharp or pointed objects to remove ice from the refrigerator or freezer compartment. The refrigerator contains refrigerant gas. If the icebox is accidentally punctured, the appliance will stop working and the warranty will also be void. Do not operate the appliance when the refrigerator has been perforated.

When the appliance is not used for an extended period of time, unplug the appliance. Leave the door partially open, this will prevent the formation of mold and foul odors.

Note: if the appliance has been turned off for any reason, wait 2 to 5 minutes before turning it back on.

HOLIDAY

When going on vacation for a short period of time, you can leave the appliance turned on.

When going on vacation for an extended period of time, it is best to do the following :

• Remove all food from your refrigerator.
• Unplug the refrigerator from the electrical outlet.
• Clean the refrigerator thoroughly.
• Leave the refrigerator door open to avoid mold and bad odors.

POWER FAILURE

Most power outages are recovered in 1 or 2 hours and will not change the temperature of your refrigerator. During a power failure, you should try to limit to open the door frequently.

During an extended power outage, take measures to protect the food, e.g. by putting dry ice on your food.

MOVING THE APPLIANCE

Remove the plug from the electrical outlet.

Secure all loose parts inside the refrigerator.

Fully screw in the control feet to avoid damaging the feet.

IMPORTANT RULES

• Never place hot food in the refrigerator.
• Beverages should be kept in a sealed container.
• Food kept in the refrigerator for longer periods of time should be covered or kept in glass containers.
• Never place spoiled food in the refrigerator.
• Always make sure the refrigerator is not overloaded so that food can be adequately cooled.
• Open the refrigerator door only when necessary.
• Appliance must not be used for outdoor camping e.g. tent.
• May only be used indoors.
• Appliance must not be used in public transport.

FREQUENTLY ASKED QUESTIONS

Problem Solution
The device is not working.	· The unit is not receiving power, check that the power supply is OK.· Check that the plug is plugged in.· Check that the correct voltage is used.
The refrigerator jumps up too often.	· Is the door closed properly?· Have you put hot food in the refrigerator, causing the appliance to work harder to cool?· The door has been open too often or too long.· The appliance is receiving the wrong voltage.· The appliance is too close to a heat source or direct sunlight.
The inside temperature of the refrigerator is too hot.	· Check that the refrigerator has power.· Check that the plug is plugged in.· The temperature setting is too low.· The door has been left open too long or too often.· The air supply is blocked.· Check that the appliance is getting the correct voltage.· The unit is too close to a heat source or the sun.
The freezer compartment is not cold enough.	· The refrigerator door is not closed properly.· The refrigerator door has been left open too long or too often.· Check that the appliance is getting the correct voltage.· Turn the thermostat knob to a higher number.

ENVIRONMENTAL GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]
