USER MANUAL PR179BC PRIMO

Black PRIMO refrigerator with clear glass doors and internal compartments (no visible text or symbols)

Two simple line icons: a triangular warning triangle and an open book, both without any text or symbols.

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 17
DE Deutsch 30
EN English 45

GARANTIE (NL)

Geachte klant,

Two labeled diagrams showing a checkmark and a cross symbol on a stand, likely indicating approval or rejection status.

Mechanical assembly diagram showing a bracket with mounting holes and a separate part (no text or symbols)

Simple line drawing of a mechanical component with a bracket and mounting holes (no text or symbols)

Simple line drawing of a cabinet with a lid and two circular cutouts (no text or symbols)

Diagram of a mechanical component with bolts and a downward arrow indicating motion (no text or symbols)

Simple line drawing of a device with a handle and circular components (no text or symbols)

GEBRUIK

TEMPERATUURREGELING

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Mechanical assembly diagram showing a bracket with bolts and an arrow indicating direction (no text or symbols)

Simple line drawing of a bench and a triangular base with holes (no text or symbols)

Simple line drawing of a cabinet with a cup and a circular base (no text or symbols)

Diagram of a mechanical assembly with bolts and a downward arrow indicating motion (no text or symbols)

Simple line drawing of a kitchen appliance with a lid and tray (no text or symbols)

UTILISATION

RÉGLAGE DE LA TEMPÉRATURE

Two safety signs: a checkmark and a cross, both pointing at a barrier with a minus sign.

Mechanical assembly diagram showing a bracket with bolts and an arrow indicating direction (no text or symbols)

Simple line drawing of a table with a small rectangular object above it (no text or symbols)

Simple line drawing of a cabinet with a lid and a circular opening (no text or symbols)

Diagram of a mechanical component with pins and a downward arrow indicating motion (no text or symbols)

Simple line drawing of a device with a circular knob and three circular ports (no text or symbols)

GEBRAUCH

TEMPERATURREGELUNG

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service. Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure.

When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g. electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Make sure that children do not touch the cord or appliance.
• Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
• Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected

to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don’t cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- To avoid danger, do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the PRIMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do

not try to repair the appliance yourself.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.

INSTALLATION

• Do not place near flammable materials, gases or explosives.
  • Always use the appliance on a steady, level and dry surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Keep the ventilation openings free of obstructions.
• Avoid long exposure to direct sunlight.
• Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.

• This is a heavy appliance. Be careful when moving it.

• This cooling unit is not intended for use as a built-in appliance.

• Do not place a power strip or other portable power supply behind the appliance.
  • After installation, it is advisable to wait 12 hours before connecting the appliance to allow the oil to flow back in the compressor.

USE

• Do not use or store this appliance outdoors.
• Only use the appliance for its intended purpose, i.e. storing drinks.
• Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.
• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.

The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not place warm or hot objects on top of the appliance.

• Do not clean the appliance with anything made of metal.

• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

- Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

PARTS

1. LED lighting
2. Light switch
3. Metal shelves
4. Temperature controller
5. Leveling feet

1 2 3 4 5 PRIMO

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.
• Let air circulate freely around the cabinet.

30cm 10cm 10cm

10 cm

• Make sure there is sufficient space to open the door.
  • This cooling unit is not intended for use as a built-in appliance.

• Select a place with a strong, level floor.

• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

• Avoid very moist places. Too much moisture in the air will cause frost to form

very quickly on the evaporator, and your refrigerator.

• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
• The plug is the only way to disconnect the device from the power supply, make sure it is always easily accessible. To disconnect power to the device, turn off the device and then unplug it.
• After installation, leave the fridge for 12 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 3 hours begore filling.

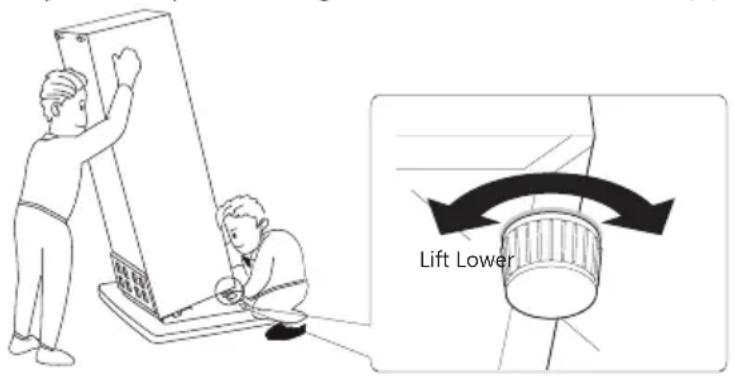

• You can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Diagram showing two labeled signs: a checkmark and a cross, likely indicating approval or rejection status.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

• SN: Subnormal: ambient temperature between 10°C and 32°C
• N: Normal: ambient temperature between 16°C and 32°C
• ST: Subtropical: ambient temperature between 16°C and 38°C
• T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty.

1. Remove the protective cap from the hinge. On the other side, remove the cover plate. Inside the door, remove the rubber cover cap at the top.
2. Remove the 3 screws from the top hinge. Remove the top hinge. You can then lift the door off the lower hinge. Place the door somewhere it is safe from becoming scratched. When you change the door-opening direction, we

recommend that you also rotate the rubber seal around the door. This ensures the door seals perfectly when you replace it.

1. Tilt the appliance, unscrew the feet and remove the 3 screws in the bottom hinge. Now remove the hinge.
2. Use the 3 screws to securely attached the hinge on the other side of the fridge. Screw the feet back into their holes.
3. Put the appliance back on its feet. You can now fit the door back on the bottom hinge. Securely attach the door to the top hinge by screwing the 3 screws into their holes. Cover the top hinge and screw holes with the cover plates. Ensure that the rubber door seal is fitted properly. Now place the rubber cover cap in the hole at the top right.
4. Make sure you leave the appliance in the upright position for 12 hours before switching it on again. This allows the coolant to settle.

Mechanical assembly diagram showing a bracket with bolts and an arrow indicating direction (no text or symbols)

Simple line drawing of a seat and a triangular base with dots (no text or symbols)

Simple line drawing of a cabinet with a lid and two circular cutouts (no text or symbols)

Diagram of a mechanical component with bolts and a downward arrow indicating direction (no text or symbols)

Simple line drawing of a device with a handle and circular base (no text or symbols)

USE

TEMPERATURE CONTROL

The fridge is controlled by a temperature controller located at the bottom on the back. Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature. Position 3 is the recommended position for normal use.

• In the 0 position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.
• The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.
• The higher up in your appliance, the warmer.
  • Leaving the door open for a long time can significantly increase the temperature inside the appliance.

LIGHTING

The lighting in the fridge is a LED light. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

The lighting inside the appliance is controlled by a light switch, which can be found

at the top of the right wall inside the appliance.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Empty the fridge. Also remove all shelves.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

VACATION

For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Empty the fridge.
• Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
• Leave the door open to avoid possible formations of condensate, mould or odours.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• This bar fridge is for cooling and chilling drinks only.
• Beverages should be stored in sealed containers.
• Don't open the door unless necessary.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

ATTENTION :

• Not for outer camping use (e.g. in a tent).
• For indoor use only.
• The appliance can not be used in public transportation.

MAINTENANCE AND CLEANING

• Do not use abrasive cleaning agents or solvents.

• Turn the appliance off. Disconnect the mains plug from the mains socket.
  • Take out the food and store in a cool location.

• Clean the appliance with a soft cloth, warm water and detergent.

• Wipe the door seal with clear water only and then wipe dry thoroughly.
  • After cleaning, put the plug in the socket and set the desired temperature.
• Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

The refrigerator defrosts fully automatically.

While the cooling is running, beads of condensation or hoarfrost form at the back of the refrigerator. This is normal. It is not necessary to wipe off the condensation or frost. The rear panel defrosts automatically. The condensation runs into the condensation channel and is conveyed to the compressor from where it evaporates.

Note: Keep the condensation channel and drainage hole clean, so that the condensation can run out.

FREQUENTLY ASKED QUESTIONS

PROBLEMS SOLUTIONS
The refrigerator does not work.	Check connection of power cord to power source.Check that the temperature controller is not in the 0 position.Plug in unit.Use proper voltage.
The refrigerator cools too frequently.	The temperature setting is too cool.Close door securely.Be sure that food is cool before inserting.Do not keep door open for too long and minimize door openings.Use proper voltage.Do not place unit close to heat sources or direct sunlight.
The internal temperature is not cold enough.	Check connection of power cord to power source.Plug in unit.Check setting and adjust as needed.Close door securely.Be sure that food is cool before inserting.Do not keep door open for too long and minimize door openings.Allow room for air to circulate around unit.Use proper voltage.Do not place unit close to heat sources or direct sunlight.
Unusual sounds.	The appliance is not level. Readjust the adjusting feet and level the unit.The unit is touching a wall or another object. Gently move the appliance.
There is water on the floor.	The condensation duct is blocked. See the chapter on cleaning.Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Were hot drinks placed in the fridge? Does the seal still close properly?
The door does not close properly.	The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

TECHNICAL INFORMATION

Voltage : 220-240V

Frequency : 50/60 Hz

Current : 0.6A

CE This appliance is confirm the European regulations. The conformity declaration can be obtained by sending a mail to [e-mail]

WEBSHOP

Accessories can be easily ordered using the link below.

WWW.PRIMO-ELEKTRO.BE

WWW.PRIMO-ELEKTRO.BE
