USER MANUAL YT-828333 Yato

DE AKKU-HECKENSCHERE

Labeled diagram of a hair shaver with numbered parts for identification

Close-up of a hand pressing down on a white electronic device with a 45° angle label (no readable text or symbols beyond measurement markers)

Two-panel image showing hands holding a device with a white plastic component, no visible text or symbols

5 - 10° IV

Diagram showing a tool interacting with a textured surface, with curved arrows indicating motion or direction (no text or symbols present)

Two abstract line shapes with checkmark marks, no text or symbols present

12 11 10 VII

1. housing
2. knives
3. shield - screen
4. front handle
5. back handle
6. electric switch lock
7. switch
8. blades cover
9. battery
10. charging station
11. battery charge indicator
12. battery latch

DE

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Keep a safe distance from the blades

Do not expose to precipitation

Before adjusting, cleaning, if the cord becomes entangled or damaged, turn the device off and remove the battery from the tool socket.

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

The hedge trimmer is used for trimming and shaping shrub crowns and trimming thin twigs. Thanks to the electric drive, the trimmer is much quieter than a petrol one, and can also be used near buildings. Thanks to the battery power supply, the hedge trimmer allow you to work in places where mains-powered products could not be used. Proper, reliable, and safe operation of the tool depends on appropriate use, that is why you should:

Read the entire instructions manual before the first use of the tool and keep it for future reference.

The supplier shall not be held liable for any damage or injury resulting from improper use of the tool, failure to observe the safety regulations and recommendations of this manual. Using the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and statutory warranty.

PRODUCT EQUIPMENT

The tool is supplied complete and does not require assembly. A blade guard, battery and charging station are supplied with the tool. Caution! Tools with part number: YT-828332 and YT-828334 are not equipped with a battery and charging station.

TECHNICAL DATA

Parameter Unit Value Value
Part no. YT-828331, YT-828332 YT-828333, YT-828334
Rated voltage [V] 18 DC 18 DC
Cutting speed [min	^-1 ] 1550 1550
Cutting length	[mm]	450	550
Max. cutting diameter	[mm]	16	16
Electrical protection class		III	III
Weight	[kg]	4.1	4.1
Noise level
- L_mA ± K (pressure)	[dB] (A)	84.4 ± 3.0	84.4 ± 3.0
- L_mA ± K (power output)	[dB] (A)	92.0 ± 3.0	92.0 ± 3.0
Vibration a_h ± K	[m/s2]	2.27 ± 1.5	2.27 ± 1.5
Battery type		Li-Ion	Li-Ion
Battery capacity*	[Ah]	2	2
Battery energy*	[Wh]	36	36
Charging station*
Input voltage [V~]	220 – 240	220 – 240
Mains frequency	[Hz]	50/60	50/60
Rated power	[W]	60	60
Output voltage	[V] 21 DC 21 DC
Output current	[A]	2.4	2.4
Charging time**	[h]	1	1

* only for models equipped with a battery and charger
** the specified charging time applies only to the battery with the capacity listed in the table

The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.

The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.

Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.

Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

Keep all warnings and instructions for future reference.

The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.

EN

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool.

Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool

EN

Hedge trimmer safety warnings

Keep all body parts away from the blade. Do not remove the cut material or hold the cut material while the blades are in motion. The blades continue to move after the switch is turned off. A moment's inattention when operating a hedge trimmer can cause serious injury.

Carry the hedge trimmer by holding the handle with the blade stopped and being careful not to use any power switch. Proper handling of the hedge trimmer will reduce the risk of unintentional triggering and resulting injury from the blades.

When transporting or storing the hedge trimmer always fit the blade guard. Proper handling of the hedge trimmer will reduce the risk of injury from the blades.

When removing blocked material or servicing the tool, make sure all power switches are turned off and the power cord is unplugged. Unexpected activation of the hedge trimmer when removing blocked material or servicing can cause serious injury. Hold the hedge trimmer only by the insulated handles, as the blade may come into contact with concealed electrical wires or its own power cord. Contact of the blades with a live wire can result in exposed metal parts of the hedge trimmer becoming energised and give the operator an electric shock.

Keep wires and power cords away from the cutting area. Power cords or cables can be hidden in hedges or bushes and can be accidentally cut by the blade.

Do not use hedge trimmers in poor weather conditions, especially if there is a risk of lightning. This avoids the risk of being struck by lightning.

PRODUCT OPERATION

Preparing the trimmer for use

Caution! Disconnect the tool from the power supply before performing any assembly and adjustment work. In the case of mains-powered trimmer, disconnect it from the socket, and for battery-powered tools – disconnect their batteries.

Visually inspect the tool. If any damage is discovered, do not commence work before removing it. Slide the guard off the blades and check for damage.

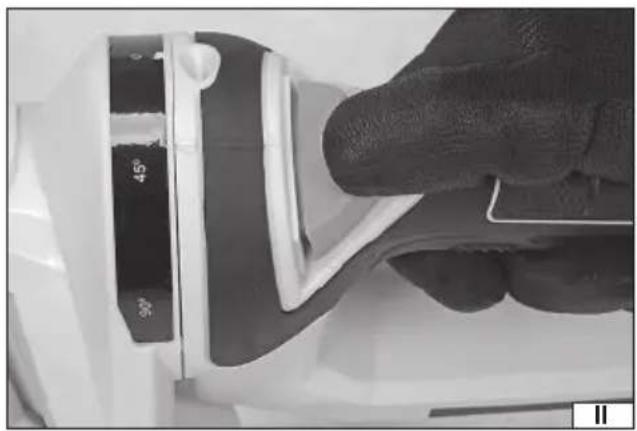

Handle angle adjustment (II)

The trimmer has an angled handle option. This is helpful when shaping, for example, the vertical part of a hedge, as it allows an ergonomic grip on the trimmer. The rear handle can be rotated by moving the latch button towards the front of the tool and holding it in this position. Then turn the handle. The handle can only be adjusted in several positions marked on the housing. Once the handle is set at the desired angle, release the latch button and ensure that the handle is locked in the set position. A correctly adjusted handle cannot be adjusted other than according to the procedure described above.

Preparing the workplace

Before commencing work, prepare the workplace. Designate a safety zone around the work area where bystanders will not have access. Ensure that there are no obstacles around the workplace which could cause the operator or the trimmer to collide during work.

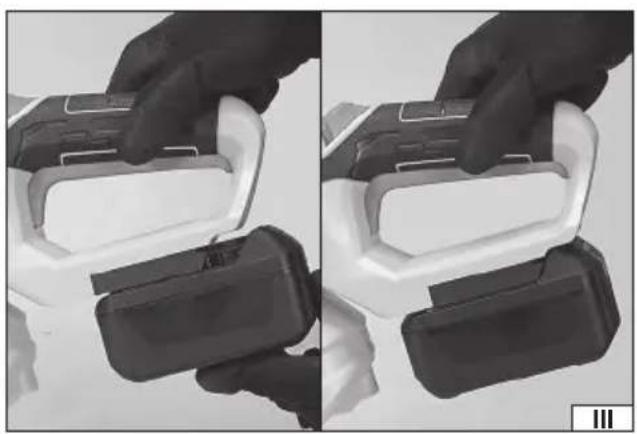

Connecting the trimmer to the power supply (III)

Slide the battery into the power socket until the battery latches engage. Make sure that the battery will not slide out on its own during operation.

Disconnect the battery by pressing the latch and then pulling the battery out of the trimmer housing.

Starting and stopping the trimmer

Ensure that the battery is connected to the trimmer and that there is no guard on the blades and that the blades do not come into contact with any part of the body or other objects.

Keep posture which guarantees balance. Grasp the front handle with one hand and press the switch lock. Grasp the rear handle with the other hand. Pressing the switch will activate the trimmer. Keep the on/off switch lock and the on/off switch depressed at all times during operation.

The trimmer stops when the pressure on the power switch is released. The trimmer will also stop when the pressure on the switch lock is released, but in this case the blades remain in motion for longer.

Once the trimmer movement has come to a complete stop, disconnect it from the power supply by disconnecting the battery. Next, proceed with maintenance.

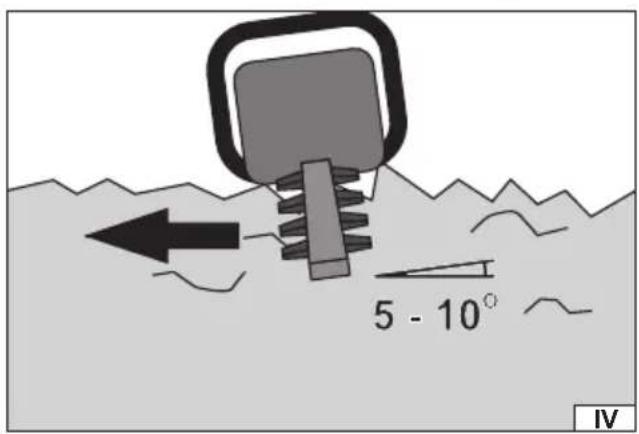

Working with the trimmer

Do not allow the device to operate at low speed or during start-up.

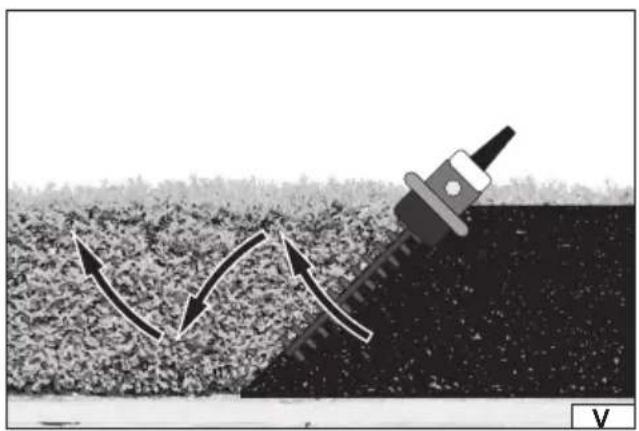

The most effective work is if the cutting is done in full wide movements. For greater efficiency, the trimmer can be tilted at an angle of 5-10^ in the cutting direction (IV).

To achieve an even single hedge height, you can use string stretched along the cutting line. Cut the part of the hedge above the line. Vertical cutting of the hedge is possible. It is advisable to cut in a curved motion from bottom to top and then from top to bottom to use both sides of the blades (V).

EN

Working tips

Maintain balance and proper posture during work. Exercise particular caution when working on a slippery, inclined, or uneven surface.

Constantly keep an eye on the blades during operation. Do not mow in places which are out of sight.

Before starting work, inspect the workplace thoroughly, remove all loose branches and residues from the previous mowing.

Special care should be taken when treating tall hedges. The other side of the hedge should also be checked before starting work.

The trimmer gear cover heats up during operation. To avoid burns, avoid contact with the gearbox cover.

Take regular breaks when working. During operation, the tool emits noise and vibration, which impact the tool's operator. Taking regular breaks and wearing personal protective equipment such as gloves, hearing protectors and eye protection allows to reduce the impact of the tool on the operator's well-being.

Start work when healthy and in good shape. In case of nausea, headache, sight problems (e.g., reduced visual range), hearing problems, or dizziness, immediately stop operating the tool.

If the trimmer jams during operation switch it off immediately using the on/off switch and disconnect the battery, wait until the shear components have cooled completely and then proceed to remove the cause of the jam.

If, due to jamming, any part of the blades or cover is damaged or deformed, replace or repair it before resuming work.

Safety instructions for battery charging

Caution! Before starting charging, make sure that the power unit body, cable and plug are not cracked or damaged. It is forbidden to use a defective or damaged charging station and power unit! Use only the supplied charging station and power unit to charge the batteries. The use of another power unit may result in fire or damage to the tool. The battery should only be charged in a closed, dry room, protected against unauthorised access, especially by children. Do not use the charging station and power unit without the constant supervision of an adult! If you need to leave the room where the product is being charged, disconnect the charger from the mains by removing the power unit's plug from the mains socket. If smoke, suspicious odours, etc. are escaping from the charger, remove the charger plug from the mains socket immediately! The tool is supplied with an uncharged battery and should therefore be charged according to the procedure described below with the included power unit and charging station before use. Li-ion (lithium-ion) batteries do not have the so-called “memory effect”, which means they can be recharged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If, due to the nature of work, it is not possible to use the battery in such a manner every time, it should be done at least every several work cycles. Never discharge any batteries by short-circuiting the battery plates, as this will cause irreparable damage! In addition, do not check the battery charge status by short-circuiting the electrodes and checking their sparking.

Storing the battery

Ensure the proper storage conditions to extend the battery's life. The battery can withstand approximately 500 charge-discharge cycles. Store the battery at a temperature ranging from 0^ to 30^ at a relative air humidity of 50% . Charge the battery to approx. 70% of its total capacity to store it for a longer period of time. In case of prolonged storage, the battery should be periodically charged once a year. Do not over-discharge the battery as this will shorten its life and may cause irreparable damage.

During storage, the battery will gradually discharge due to leakage. The self-discharge process depends on the storage temperature – the higher the temperature is, the faster the discharge process is. If the batteries are stored incorrectly, the electrolyte may leak. In case of leakage, secure the leak with a neutralising agent. In the case of electrolyte contact with eyes, rinse eyes thoroughly with water, and immediately seek medical attention. It is not allowed to use the tool with a damaged battery.

If the battery is completely worn, return it to a specialist waste disposal centre.

Transporting the batteries

Lithium-ion batteries are treated as hazardous goods according to legal regulations. The user of the tool can transport the product together with the battery and the batteries alone by land. In that case, no additional conditions have to be met. If you entrust transport to third parties (e.g. a courier company), follow the regulations regarding the transport of hazardous goods. Before shipping, please contact a properly qualified person. It is not allowed to transport damaged batteries. For the duration of transport, remove the demountable batteries from the product and secure the exposed contacts, e.g. by covering them with insulation tape. Protect the batteries in the packaging in such a way that they do not move inside the packaging during transport. National regulations for the transport of hazardous materials must also be observed.

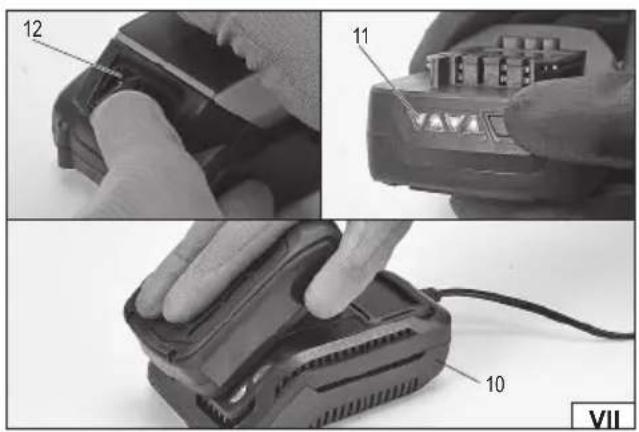

Charging the battery

Caution! Before charging, disconnect the charging station power unit from the mains by removing the plug from the mains socket. In addition, clean the battery and battery clamps of dirt and dust with a soft, dry cloth.

The battery has a built-in charge indicator. The LEDs will light up by pressing the button (VII), the more of them come on, the more charged the battery is. If the LEDs do not light up when the button is pressed, the battery is discharged.

Disconnect the battery from the tool.

Slide the battery into the charger socket (VII).

Plug the charger into a mains socket.

The red LED will light up, which indicates the charging process.

EN

When charging is complete, the red LED will turn off and the green LED will light up to indicate that the battery is fully charged.

Pull the power unit plug out of the mains socket.

Pull the battery out of the charging station by pressing the battery latch button.

Caution! If the green LED lights up when the charger is connected to the mains, the battery is fully charged. In this case, the charger will not start the charging process.

PRODUCT MAINTENANCE AND STORAGE

Caution! Before starting any activities described below, disconnect the trimmer from mains. In the case of mains-powered tools, disconnect them from the socket, and for battery-powered tools - disconnect their batteries.

After each use, inspect the condition of the tool with particular attention to the patency of ventilation openings.

Check the placement of all of the tool's components. Tighten all loose screw connections, if any. Check the condition of the blades.

Clean it with a brush and then preserve them with a spray lubricant. Excess lubricant should be wiped off. If you notice any damage or dulling of the blades, replace them at an authorised service centre.

It is forbidden to use shears with damaged blades.

Ensure that the blades are always lubricated. This will prevent the appearance of rust, which reduces the performance of the tool and can also increase the risk of injury. The clearance between the blades should be between 0.2 and 0.4 mm, measured at the point where the blades are bolted together.

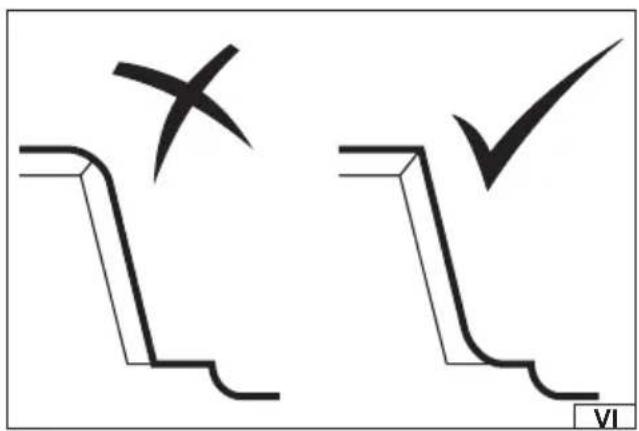

The blades are sharpened at the factory to achieve optimum performance, but become dull as a result of use. The condition of the blades should be assessed before starting any work. If rounding of the upper edge of the blades is discovered or if the roundness of the lower part of the blade disappears, the blades must be sharpened (VI). The sharpening must be done at an authorised manufacturer service centre.

Before storing the trimmer for an extended period of time, the blades should be sprayed with a preservative or spread over the blades with a brush. Excess preservative should not be removed until immediately before work. This maintenance will reduce the risk of the blades rusting.

Clean the tool's housing with a soft and dry cloth. Clean the housing from residues of wood, oil, grease, and other contaminants.

The tool should be stored in a dry, closed room, disconnected from the mains.

Store the tool in shaded and dry places with appropriate ventilation preventing steam condensation. Such place should not be accessible to unauthorised persons, especially children. During storage, the blades should always be protected with a cover.

PRODUKTBESCHREIBUNG

CARACTÉRISTIQUES DU PRODUIT

Transport van accu's

DECLARATION OF CONFORMITY

0425/YT-828331/EC/2025

We declare and guarantee with full responsibility that the following products:

Cordless hedge trimmer 18 V; 450 mm; 1550 min ^1 ; item no. YT-828331, YT-828332

Cordless hedge trimmer 18 V; 550 mm; 1550 min ^1 ; item no. YT-828333, YT-828334

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-4-2:2019 + + A1:2022 + A11:2022

EN IEC 55014-1:2021

EN IEC 55014-2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

TOYA S.A., ul. Sołtysowicka 13 - 15, 51-168 Wrocław, Poland

Wrocław, 2025.04.07

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.

DECLARATION OF CONFORMITY

0425/YT-828331/EC/2025

We declare and guarantee with full responsibility that the following products:

Cordless hedge trimmer 18 V; 450 mm; 1550 min ^-1 ; item no. YT-828331, YT-828332

Cordless hedge trimmer 18 V; 550 mm; 1550 min ^-1 ; item no. YT-828333, YT-828334

fulfil requirements of the following European Directive: 2000/14/WE

Conformity assessment procedure:

Manufacturer quality-control system

Measured sound power level on an equipment representative for this type: 92,0 dB(A)

Guaranteed sound power level for this equipment: 94 dB(A)

conformity and references of the other Community Directives applied:

2006/42/WE Machinery and safety devices

2014/30/UE Electromagnetic compatibility

2011/65/UE Restriction of the Use of Certain Hazardous Substances

Wrocław, 2025.04.07

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
