USER MANUAL 67560 Lund
CE


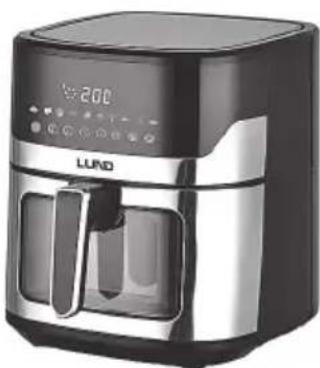

Exterior view of a modern LUND air fryer with digital display (no text or symbols on device)67562
PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR


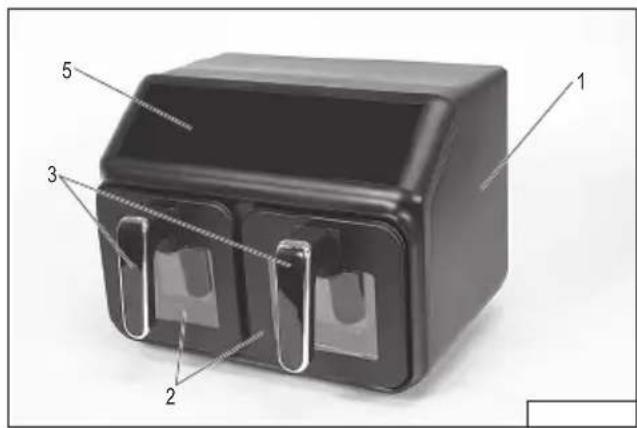

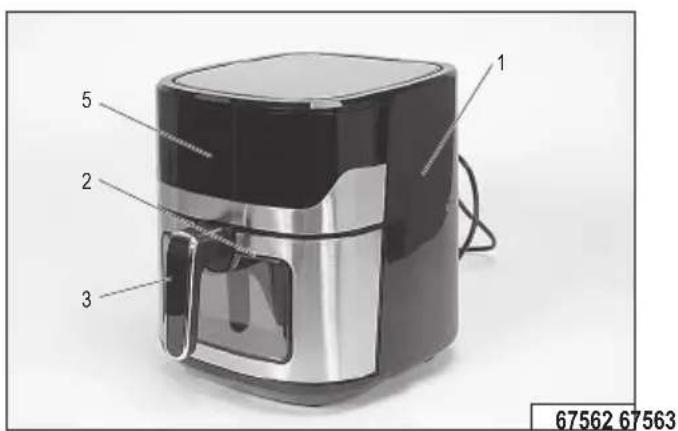

1 2 3 5 67562 67563


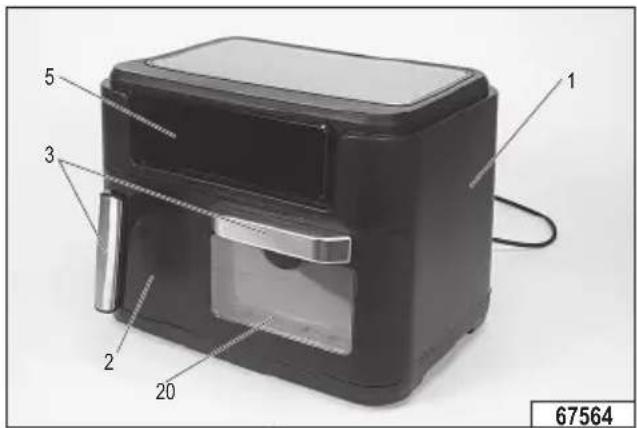

1 2 3 5 20 67564


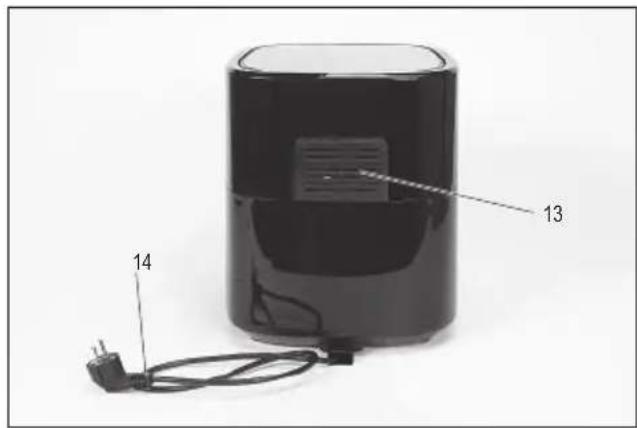

Black electric air purifier with labeled components (13 and 14), no visible text or symbols on body
Two technical diagrams showing a black square component with four circular holes and a striped rectangular component with horizontal lines (no text or symbols)


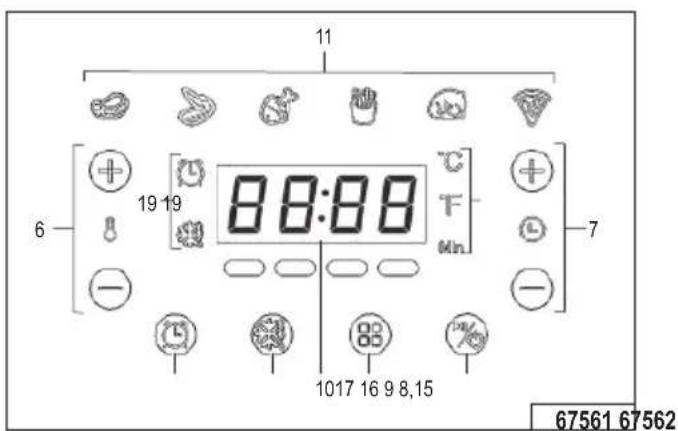

11 6 - [+] 19 19 [Hz] 88:88 °C T F Min + + - - [+] 1017 16 9 8,15 % - 67561 67562


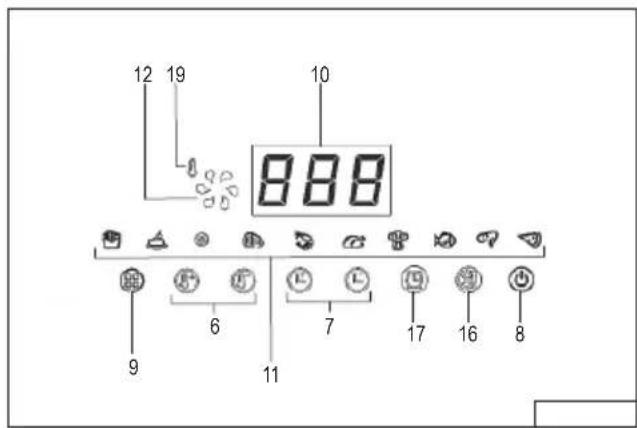

12 19 888 10 9 6 7 17 16 8


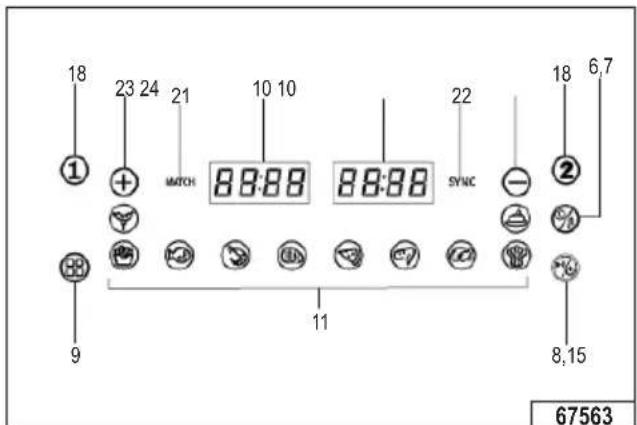

18 23 24 21 10 10 18 6,7 18 2 MATCH SYNC - + 9 11 8,15 67563
-

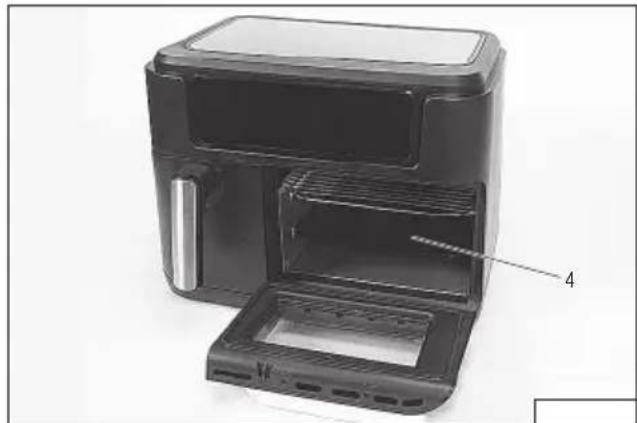

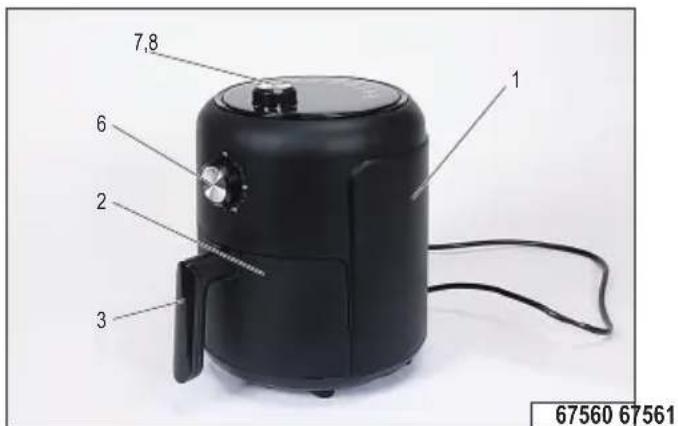

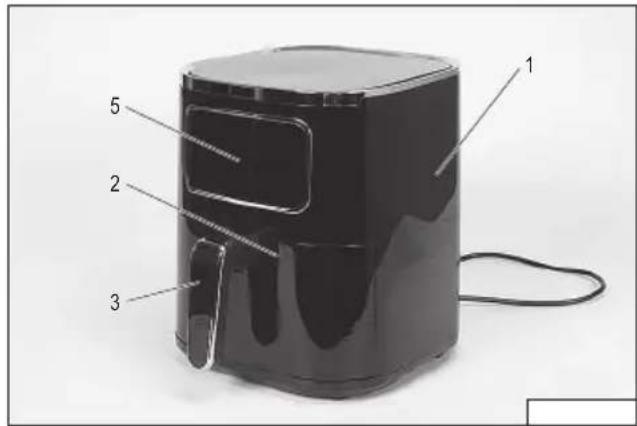

casing
-
bowl
-
handle
-

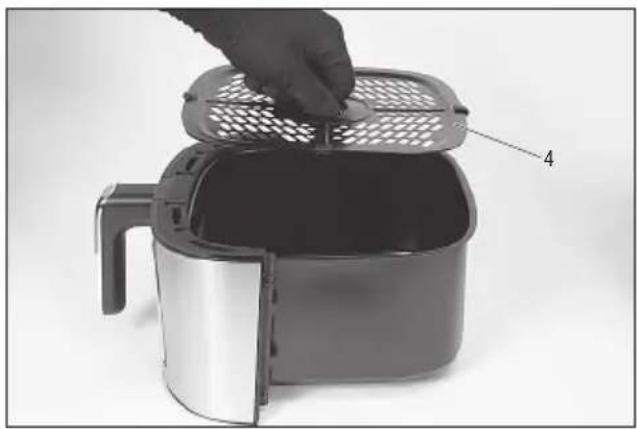

bowl / chamber insert
-
control panel
-
temperature setting
-
time setting
-
switch
-
selection a work program
-
display
-
work program indicator light
-
fan indicator light
-
vent
-
power cable with plug
-
start/stop
-
defrosting
-
alarm
-
bowl / chamber selection
-
indicator light
-
chamber with door
-
MATCH button
-
SYNC button
-
„+” button
-
" -" button
UA
Read the operating instruction
Note! Hot surface. Do not touch.
Safe contact with food
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
PRODUCT CHARACTERISTICS
A fat-free fryer is a product designed for heating, roasting and preparing food that requires heat treatment. A fryer for heat treatment uses forced flow of heated air, which allows for even heating of food. Unlike traditional fryers, it does not require deep-fat frying, which allows for much healthier food preparation. Thanks to smooth temperature regulation over a wide range, you can adjust the product's operating parameters to your needs. Correct, reliable and safe operation of the product depends on proper use, therefore:
Before using this product, please read the entire manual and keep it for future reference.
The supplier is not liable for any damage or injury resulting from use of the product for purposes other than its intended use, failure to comply with safety regulations and recommendations in this manual. Use of the product for purposes other than its intended use results in loss of the user's rights to the guarantee, as well as under the warranty.
EQUIPMENT
The product is delivered complete and does not require assembly. However, before using the product, all packaging and transport protection elements must be removed. The preparatory steps described later in the instructions are also required.
GENERAL USE RECOMMENDATIONS
The product has been designed for home use and it is forbidden to use it in commercial applications, e.g. catering establishments. The product is only used for thermal processing of food, directly placed inside the bowl or chamber. It is forbidden to use the product for any other purpose. The product is not intended for heating and cooking water or other liquids. The product is not intended for preparing food by deep-frying. Do not place food in plastic packaging in the bowl. It is forbidden to repair, disassemble or modify the product yourself. Any repairs to the product must be carried out by an authorized repair center. During operation, the product must be supervised at all times. WARNING! The product heats up to a high temperature during operation, do not touch the bowl, cover and other elements placed inside the bowl during operation, and immediately after its completion, this may cause serious burns. The product is not intended for use by children under the age of at least 8 years and people with reduced physical, mental capabilities and people with a lack of experience and knowledge of the equipment. Unless they are supervised or instructed on how to use the product in a safe manner so that the hazards involved are understood. Children should not play with the product. Children should not clean or maintain the equipment without supervision.
Recommendations for transporting and installing the product
The product may only be placed on a hard, flat, even and non-flammable surface resistant to high temperatures. The surface should support the weight of the device itself and the food placed on it. A gap of at least 10 cm should be provided around the side walls of the product, and no materials that are not resistant to high temperatures should be placed above the product. This will allow for proper ventilation of the product. Do not place it near the edge, e.g. a table, countertop. Do not place anything on the product. This disrupts air circulation and may cause damage to the product, as well as fire. Do not place the product near flammable materials, e.g. curtains or drapes. Do not place any electrical devices above the product. During operation, water vapour is released, which may cause a short circuit in the electrical installation and cause electric shock. It is forbidden to drill any holes in the product, as well as
EN
any other modification of the product not described in the instructions. Only move the product when it has cooled down, by grasping the bottom of the housing. Do not carry the product by grasping the bowl handle. Do not move the product by pulling on the power cable. The temperature at the place of installation and use of the product must be between +10 °C ÷ +38 °C and the relative humidity must be below 90% without condensation.
Recommendations for connecting the product to the power supply
Before connecting the product to the power supply, make sure that the voltage, frequency and capacity of the mains supply correspond to the values indicated on the product's rating plate. The plug must fit into the socket. It is prohibited to modify the plug or socket in any way to fit one another. The product must be connected directly to a single mains socket. The use of extension cords, multi-sockets and double sockets is prohibited. The mains circuit must be equipped with a protective conductor and a fuse of at least 16 A. Avoid contact of the power cable with sharp edges and hot objects and surfaces. When the product is in operation, the power cable must always be fully unwound and its position must be determined so that it does not constitute an obstacle during operation of the product. The positioning of the power cable must not cause a tripping hazard. The power socket should be located in such a place that it is always possible to quickly disconnect the product's power cable plug. When disconnecting the power cable plug, always pull on the housing of the plug, never on the cable. If the power cable or plug is damaged, immediately disconnect it from the mains and contact an authorized service center of the manufacturer for replacement. Do not use the product with a damaged power cable or plug. The power cable or plug cannot be repaired, in the event of damage to these elements they must be replaced with new ones free from defects.
Recommendations for product use
WARNING! The bowl and casing of the product may be hot after use. Do not touch them as this may cause serious burns. Wait for the product elements to cool down. If you need to move these elements before they cool down, hold them only by the handles intended for this purpose. Use gloves that protect against the effects of high temperatures. Make sure that the floor near the place where the product is used is not slippery. This will prevent slipping, which may cause serious injuries. The product may only be connected to the power supply during operation. After use, disconnect the product from the power supply by removing the plug from the mains socket. Do not leave the connected product unattended. Food placed in the bowl must not protrude above the maximum fill level of the bowl. Always monitor the product while preparing food. Food left unattended may burn, which may cause a fire and serious burns. The bowl should only be carried by the handle. The bowl is equipped with an insert with a perforated bottom, which is designed to hold food. Never use the bowl without the insert. Only place the bowl with hot food on a surface that can withstand high temperatures, or use protective stands. During the preparation of food, the inside of the chamber and the food itself should be touched only with tools made of materials that can withstand the temperature generated by the product. It is forbidden to use bare hands for this purpose. Do not use sharp, metal objects that can damage the non-stick coating of the bowl and insert. If the product is equipped with a chamber with a door, it should be closed while the fryer is
EN
in use. Be careful when opening the chamber door, from which hot air and hot steam can escape. If during or after the preparation of food there are food residues inside the bowl or chamber, they should be removed before preparing the next dish. Food residues can burn, causing smoke, an unpleasant smell, and also affect the taste of the prepared food. They can also cause a fire. For removal, use tools made of wood or plastic that can withstand the temperature generated by the product. Do not use sharp or metal tools. Such tools may damage the surface of the device components.
PRODUCT SERVICE
Control panel
67560
The product's control panel contains two knobs. The upper knob is used to set the time. The lower knob is used to set the temperature.
The product is equipped with an internal temperature sensor.
To start the fryer, you need to set the selected temperature and time. Once the cooking time has elapsed, a sound will be heard.
The product can be turned off at any time by turning the time setting knob to the „0” position.
67561
The product is equipped with a touch control panel with a light display.
When the product is connected to the power supply, a sound signal will be emitted and the display will show the illuminated power button (start/stop). The product is in standby mode.
Touching the switch (start/stop) will activate the product settings mode.
The display will alternately show the default temperature and time setting in minutes.
Use the „+” and „-” buttons next to the control with the clock symbol to change the time setting.
Use the „+” and „-” buttons next to the control with the thermometer symbol to change the temperature setting.
The button marked „+” increases the set value, the button marked „-” decreases the set value.
Each touch of the button will be signaled by an audible signal and a change in the setting visible on the display.
The program selection button allows you to select one of six predefined work settings. Each program is a combination of time and temperature settings, shown alternately on the display. Selection of the program is signaled by a sound signal and a flashing indicator with the symbol of the selected program on the control panel. In each program, you can change the time and temperature settings. However, the values will not be saved as new settings for the given program.
The work program can be changed in the following cycle: steak – wings – fish – fries – poultry – pizza.
The button marked with a snowflake symbol activates defrost mode, which will be confirmed by the flashing of the snowflake indicator. Touching the on/off button starts defrosting.
Note! During programming of settings, the product automatically returns to standby mode after about one minute from the last touch of the button. After setting the time and temperature, touch the power button (start/stop) within one minute. This will start the operation. This will be signaled by a countdown to the end of the operation on the display.
While the fryer is in operation, you can set a countdown to an alarm to remind you to stir the food in the bowl so that it is heated evenly. The button with the alarm symbol will activate the alarm, which will be confirmed by the flashing of the indicator light with the alarm symbol.
The product can be turned off at any time by touching the power button (start/stop) for about 3 seconds. After the device is turned off, the fan may continue to operate for some time, accelerating the cooling of the heater. Do not disconnect the product from the power supply during this time. After the heater has finished cooling, the product will automatically switch to standby mode. Then, disconnect the product's power cable plug from the mains socket.
67562
The product is equipped with a touch control panel with a light display.
When the product is connected to the power supply, a sound signal will be emitted and the display will show the illuminated power button. The product is in standby mode.
Touching the power button will activate the product settings mode.
The display will alternately show the default temperature and time setting in minutes.
Use the buttons with the thermometer symbol and „+” or „-” to change the temperature setting.
Use the buttons with the clock symbol and „+” or „-” to change the time setting.
The button containing „+” increases the set value, the button containing „-” decreases the set value.
Each touch of the button will be signaled by an audible signal and a change in the setting visible on the display.
The program selection button allows you to select one of ten predefined work settings. Each program is a combination of time
EN
and temperature settings, shown alternately on the display. Selection of the program is signaled by a sound signal and a flashing indicator with the selected program symbol on the control panel. In each program, you can change the time and temperature settings. However, the values will not be saved as new settings for a given program. Touching the switch starts the fryer with the selected program.
The work program can be changed in the following cycle: fries – cake – cookies – meat – shrimp – chicken – vegetables – fish – poultry – pizza.
The button marked with a snowflake symbol activates defrost mode, which will be confirmed by the flashing of the snowflake indicator. Pressing the power button starts defrosting.
Note! During programming of settings, the product automatically returns to standby mode after about one minute from the last touch of the button. After setting the time and temperature in less than one minute, touch the switch. This will start the operation. This will be signaled by flashing of the indicator with the fan symbol (fan operation), lighting of the thermometer indicator (heater operation) and counting down of the remaining time on the display.
While the fryer is in operation, you can set a countdown to an alarm to remind you to stir the food in the bowl so that it is heated evenly. The button with the alarm symbol will activate the alarm, which will be confirmed by the flashing of the indicator light with the alarm symbol.
The product can be turned off at any time by touching the power button for about 3 seconds. After turning it off, the fan may continue to operate for some time, accelerating the cooling of the heater. Do not disconnect the product from the power supply during this time. Once the heater has finished cooling, the product will automatically switch to standby mode. Then, disconnect the product's power cable plug from the mains socket.

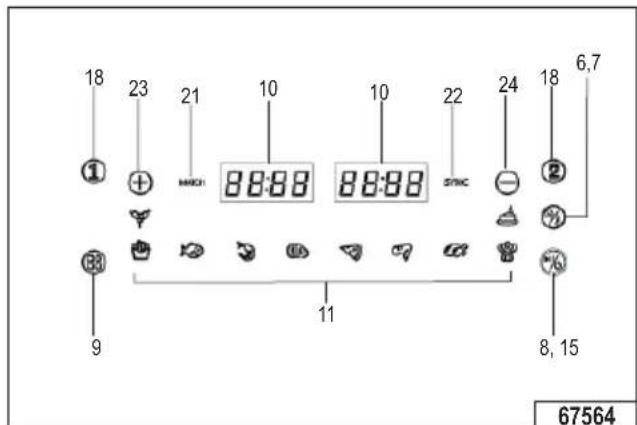

67563, 67564
The product is equipped with a touch control panel with a light display.
When the product is connected to the power supply, a sound signal will be emitted and the display will show the illuminated power button (start/stop). The product is in standby mode.
Touching the switch (start/stop) will start the product settings mode. The displays will show „- - - ”.
Touching the button with the symbol „1“ or „2“ allows you to choose between two independent chambers.
Once the desired compartment has been selected, the display will alternately show the default temperature and time setting in minutes.
The button with the clock and thermometer symbol allows you to switch between time and temperature setting modes.
Use the „+“ and „-” buttons to change the time or temperature setting.
The button marked „+” increases the set value, the button marked „-” decreases the set value.
Each touch of the button will be signaled by an audible signal and a change in the setting visible on the display.
The program selection button allows you to select one of ten predefined work settings. Each program is a combination of time and temperature settings, shown alternately on the display. Selection of the program is signaled by a sound signal and the flashing of the selected program symbol indicator on the display. In each program, you can change the time and temperature settings.
However, the values will not be saved as new settings for the given program. Touching the switch (start/stop) starts the fryer with the selected program.
The work program can be changed in the following cycle: sausages – fries – fish – shrimp – steak – pizza – wings – chicken – vegetables – cake.
Note! When programming settings, the product automatically returns to standby mode approximately one minute after the last button is pressed.
After setting the time and temperature, touch the switch (start/stop) in less than one minute. This will start the operation. This will be indicated by a countdown of the remaining time on the display.
Once you have set the settings for one chamber, touching the MATCH button copies the same settings to the other chamber. Touching the power button (start/stop) starts both chambers with the same settings.
When different time settings are selected for both chambers, touching the SYNC button synchronizes the fryer's end time. This means that the heating of the chamber with the longer time setting will start earlier, and the heating of the chamber with the shorter time setting will start with an appropriate delay. Until the heating of the chamber with the shorter time setting starts, the word "HOLD" will be visible on its display. Both chambers will end their work at the same time.
The product can be turned off at any time by touching the power button (start/stop) for about 3 seconds. After switching off, the fan may continue to operate for some time, accelerating the cooling of the heater. Do not disconnect the product from the power supply during this time. After the heater has finished cooling, the product will automatically switch to standby mode. Then, disconnect the product's power cable plug from the mains socket.
Product installation, start-up and operation
The product should be unpacked, completely removing all packaging elements and transport protection. It is recommended to keep the packaging, which may be helpful in later transport and storage of the product.
Wash the product according to the instructions in the "Product maintenance" section.
Set up the product according to the instructions in the manual.

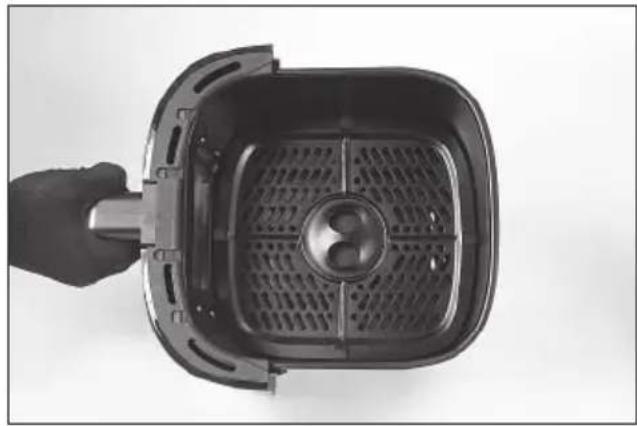

Slide the bowl with the empty insert into the product chamber or slide the insert and partition into the product chamber and close the door.
EN
Connect the product to the power supply.
Set the temperature to maximum.
Set the timer to 3 minutes to preheat the components inside the chamber.
Once the set time has elapsed, an audible signal will sound.
Using caution, grasp the bowl handle and pull it out of the product housing or open the chamber door. The bowl and insert or partition will be hot, so do not touch them.
Place the food prepared for cooking inside the bowl.
If the product has additional equipment in the form of a saucepan, pizza pan or partition, they must be placed inside the chamber.
The bowl and the installed insert are always necessary for the fryer to function properly.
Note! The level of food products inside the insert must not exceed the maximum capacity mark of the insert.
Slide the bowl with the insert and food into the product housing.
Set the time according to the food preparation recipe.
Periodically check the condition of the food being cooked by briefly pulling out the bowl or opening the chamber door. If necessary, change the time and/or temperature settings.
Caution! Be careful when pulling out the bowl or opening the chamber door. The bowl becomes very hot during food preparation.
Only hold it by the handle. It is recommended to use protective gloves.
After use, disconnect the power cord plug from the socket. Leave the product to cool down completely and then proceed with maintenance.
WARNING! During and immediately after use: the bowl and insert become very hot. Be careful. Contact with hot parts of the product can cause serious burns.
Tips for Using an Air Fryer
Using an air fryer to prepare food provides an advantage over the process of preparing food in a traditional oven or deep frying.
Cholesterol reduction. The use of forced air circulation reduces the fat content of food and reduces the cholesterol content.
Saving time and energy. Thanks to the high efficiency of the forced air method for food preparation, it is possible to reduce time and energy.
Preserving flavor. Too long a time and too high a temperature can easily deprive food of its flavor. Easy time and temperature control can solve this problem.
Adding a small amount of fat to prepared foods will make them crispy once prepared.
Mixing the ingredients halfway through the preparation time will ensure they heat evenly.
Product maintenance
NOTE! All maintenance operations must be carried out with the product powered off. To do this, remove the power cord plug from the wall outlet.
NOTE! The product may not be immersed in water or any other liquid. The product may not be washed under running water, in dishwashers or with high-pressure water. The bowl and insert, after being removed from the product and allowed to cool, may be washed under running water, by immersion and in dishwashers.
NOTE! Before washing, allow all product components to cool down completely. Do not accelerate the cooling process by immersing hot parts in water.
The product is used to prepare food, therefore proper hygiene must be maintained to ensure that food preparation is safe.
For cleaning, use a mild dishwashing detergent. Remove any remaining solution with a cloth soaked in water. After cleaning, wipe the product dry or leave to air dry.
The product should be cleaned before first use and after each use, after allowing it to cool down completely. Any food residue left on the product should be cleaned off to prevent it from burning on when used again and to prevent the product from reducing its performance.
Do not use solvents, caustic agents, alcohol, gasoline or abrasive agents for cleaning.
Clean the cover ventilation holes with a vacuum cleaner.
Product storage and transportation
Store the product in closed rooms during storage, protect it from dust, dirt and moisture. It is recommended to store the product in its original packaging. Store the product in its working position. Do not stack the products in layers. Do not place anything on the product during storage.
Transport the product in its original packaging. Protect it from excessive shock during transport. Do not place anything on the product during transport.
TECHNICAL DATA
| Parameter Unit of measurement Value | ||||||
| Catalogue number 67560 67561 67562 67563 67564 | ||||||
| Nominal voltage [V~] 220 - 240 220 - 240 220 - 240 220 - 240 | ||||||
| Nominal frequency [Hz] 50 - 60 50 - 60 50 - 60 50 - 60 | ||||||
| Rated power [W] 1000 1450 1600 2200 2400 | ||||||
| Insulation class | I | I | I | I | I | |
| Bowl insert capacity | [I] | 2,6 | 5,0 | 6,5 | 4,0 + 4,0 | 3,5 + 7,5 |
| Operating temperature | [°C] | 80 ~ 200 | 80 ~ 200 | 80 ~ 200 | 60 ~ 200 | 60 ~ 200 |
| Working time | [min] | 0 - 60 | 0 - 60 | 0 - 60 | 0 - 60 | 0 - 60 |
| Net weight | [kg] | 2,4 | 3,7 | 4,5 | 6,8 | 6,8 |
