USER MANUAL BERLIN279-E-NF-080E Frilec

OUDE APPARATEN AFVOEREN

domestic and professional appliances

DOMEST

domestic and professional appliances

FRIZEC

USERMANUAL

No Frost Fridge-Freezer combination

BERLIN279-E-NF-080 E

CONTENTS;

SAFETY INFORMATION 2

SCRAPPING OLD APPLIANCES 9

CE Conformity 10

Energy Saving 10

Before first use 10

Use the Fridge 11

Use the Freezer 12

Correct storage 13

Control panel & Operation 14

Care and Cleaning / Defrosting 16

Troubleshooting 17

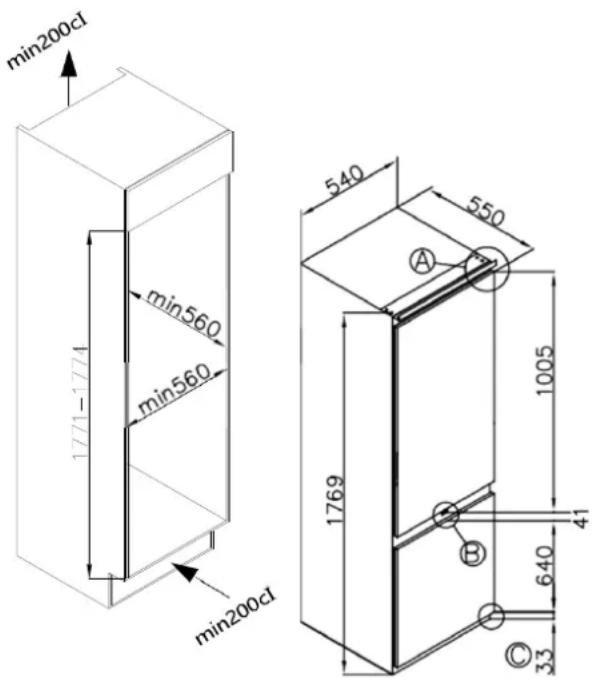

Installation preparations 18

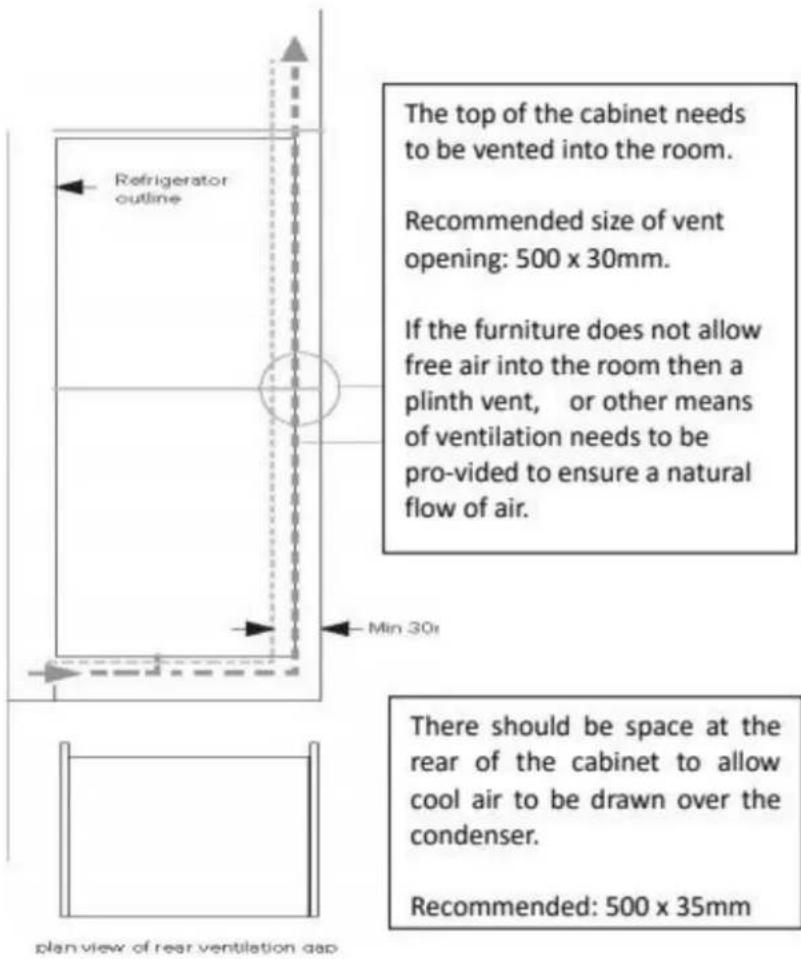

Ventilation 19

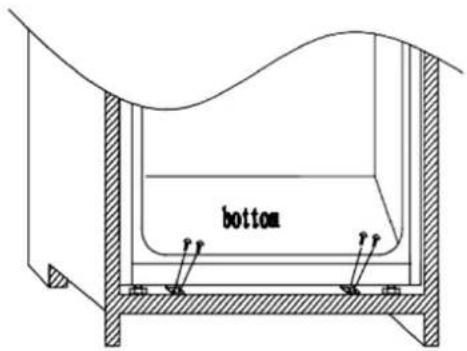

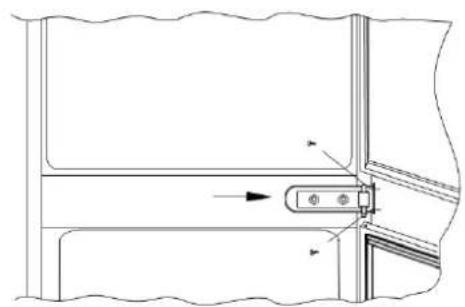

Installation into a cabinet 20

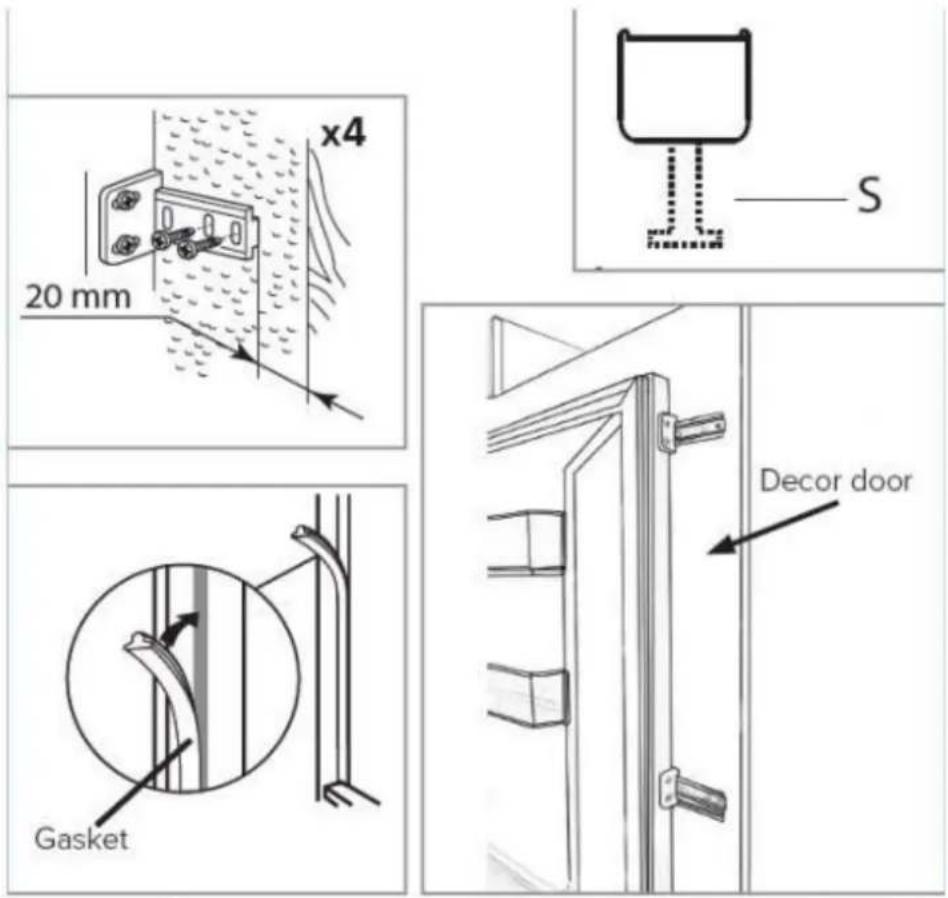

Mounting the Deco doors. 21

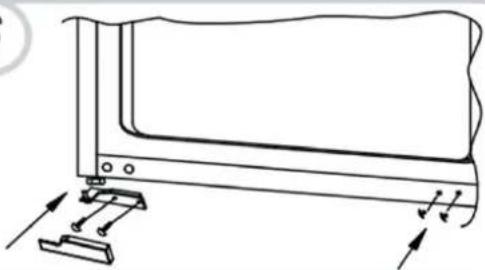

Reversing the appliance doors. 23

LED light replacement instructions 24

QR code Warranty & Service. 25

Thank you for purchasing this product.

9 before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

The kitchen area for personnel in shops, offices and other working environments

On farms, by clients of hotels, motels and other environments of a residential type

At bed and breakfasts(9&9)

For catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

This guide contains many important safety information. Please, we advise you to keep these instructions in a safe place for easy reference and for a good experience with the appliance. The refrigerator contains refrigerant gas (R600a:isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, however, it is inflammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated

WARNING!

• 5are must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.
• This appliance is not designed for stacking on any other appliance. 7o not attempt to sit or stand on top of this appliance as it is not designed for such use. You could injure yourself or damage the appliance.
• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.
• When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. 7o not move the appliance by pulling the lid or handle. 7o not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.
• 7o not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• 7o not install the appliance near heaters or inflammable materials.
• If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts less than 10 hours. If the power failure lasts longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you experience that the door of the freezer is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

• 7o not connect the appliance to the electricity supply until all packing and transit protectors and materials have been removed.

• 7o not use or connect the appliance for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally!
• Use this freezer solely for its intended use/purpose (i.e. storing and freezing of edible foodstuff6.
• 9 before performing any maintenance, cleaning or repairing operation, unplug the power cord from the power socket.
• Upon delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.
• If you establish a leak in the refrigeration system, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call our Service department to ask for repair.
• 7o not use extension cords or adapters.
• 7o not excessively pull or fold the power cord or touch the plug with wet hands.
• 7o not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• 7o not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

• 7o not use or store inflammable sprays, such as spray paint, near the refrigerator. It could cause an explosion or fire.

• 7o not place objects and/or containers filled with water on the top of the appliance.
• We do not recommend the use of extension leads and multi-way adapters.
• 7o not dispose of the appliance on a fire. Take care not to damage, the cooling circuit/pipes of the appliance during transportation and use. In case of damage do not expose the appliance to fire, it's a potential ignition source and therefore immediately ventilate the room where the appliance is situated.
• The refrigeration system positioned behind and inside the refrigerator contains refrigerant. Therefore, avoid damaging the tubes.
• 7o not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• 7o not damage the refrigerant circuit.
• 7o not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• 7o not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

• Keep the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. 7o not use pointed or sharp-edged objects such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

• 7o not scrape off frost or ice with a knife or sharp object. This can damage the refrigerant circuit and the spilled/leaked liquid can cause a fire or damage your eyes.
• 2absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and such in order to speed up the defrosting phase.
• Never use water to wash/clean the compressor (area6, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• The product is designed and built for domestic household use only.
• The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
• The product must be correctly installed, located and operated in accordance with the instructions stated in the User manual provided.
• The guarantee is applicable only to new products and is not transferable if the product is resold.
• Our company disclaims any liability for incidental or consequential damages.

• The guarantee does not in any way diminish your statutory or legal rights.

• Do not perform repairs on this refrigerator yourself. All interventions must be performed solely by qualified personnel of our Service department.

• If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction on how to use the appliance in a safe way and that they understand the hazards involved.
• Children should not play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.
• Locks: If your Fridge/Freezer is fitted with a lock, please prevent children being entrapped and keep the key out of reach and not in the vicinity of the appliance. When discarding an old Fridge/Freezer please break off any old locks or latches as a safeguard.
  Children aged from 3 to 8 years are allowed to load and unload this appliance.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long(er6 periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean the surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it will not come into contact with or drip onto other food.
• Two-star frozen-food compartments (if they are present in the appliance6 are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three -star compartments (if they are presented in the appliance6 are not suitable for the freezing of fresh food.
• If the appliance is left empty for long(er6 periods, switch it off, defrost, clean and dry it and leave the door open to prevent mold developing within the appliance.

WARNING! 7uring using, maintenance, cleaning, repair and disposal of the appliance, please pay attention to symbol located at the left side on rear of appliance (rear panel or compressor6.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please keep far away from fire sources during using, maintenance, cleaning, repair and disposal.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;

• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

CE Conformity

9y placing the C E mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functionaliting of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice to facilitate the transfer of cold.
  In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance

Before first use

You must allow the fridge to settle for at least four hours prior to switching the power on5

It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. The fridge may have an odor to it at first use. This will disappear as the appliance cools.

Please note:

The appliance will start 5^ for fridge and -18^ for freezer and work continuously until it comes down to the correct temperature. If the appliance is switched off, you should allow five minutes before switching it on again to prevent unnecessary damage to the compressor. Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This fridge cools your food by making the inside back of the cavity cold. It is normal for frost to build up on this surface; it then dissipates and drains through a small drain at the bottom, where it evaporates harmlessly. The presence of frosting at the back is not a malfunction of the fridge.

Fridge use

• Never put liquids in the refrigerator uncovered.
• Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator.
• Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
  Make sure food is clean and any extra water is wiped away before putting into the fridge.
• Wrap or cover food before putting into the fridge. This will help prevent the loss of moisture, keep food fresh and avoid unpleasant odors.
• Sort foods prior to storing. 2ny foods to be used soon should be stored at the front of the shelf to prevent deterioration caused by the door being open for prolonged periods.
• 7o not overfill the fridge. There should be sufficient space between the foods to allow the cool air to circulate.
• Thawing frozen foods in the fridge compartment will help to keep the temperature low and save energy.
• Never store raw meats on shelves above cooked meats or other produce. This will help to prevent juices from raw meat contaminating other foodstuffs.

Freezer use

The freezer compartments are designed to store only frozen food.
- Never put hot or warm foods in the freezer, allow them to cool fully before putting them into the freezer.
- Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date.
- Store food in small packages (ideally less than 1kg ). This reduces the freezing time and improves the quality of the food after thawing.
- Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry.
Label the food before freezing with information including type of food and dates of storage and expiry.
- Once food is thawed, it must not be refrozen. Only defrost as much food as is required to prevent wastage.
- 9 bottled or canned drinks should not be stored in the freezer compartments as they could explode.
- 70 not attempt to freeze more than the maximum amount.

Storage

The fridge section is for short term food storage. Although low temperatures can be maintained, extended periods of food storage is not recommended.

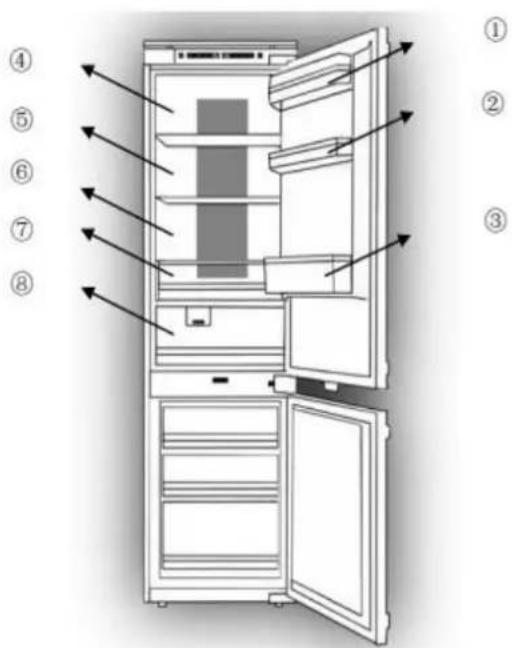

As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.

1.9utter, cheeses etc.
2. Food in jars and bottles
3.Drinks,e.g.milk
4. Cooked food
5. Yogurts, preserves etc.
6.75cl bottles or ready meals etc.
7. Fruit and vegetables
8. Fresh meat and fish/fruit and vegetables

The fridge shelves can be moved according to the storage requirements within the fridge section. To move the shelf, lift up the rear section and then pull it outwards.

To replace, slide the shelf back into the slot, and then lower the rear section.

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

Control panel & Operation

1. There are 3 function buttons in total on the control panel:
   a. The button to switch On/Off the appliance " b. The button to adjust fridge temperature " at the left side of the control panel
   (the Fridge Temperature Adjustment button)
   c. The button to adjust the freezer temperature " at the right side of the control panel (the Freezer Temperature Adjustment button).

When the refrigerator is on, the buzzer will beep at every touch of the Temperature Adjustment

button and the temperature indicator of the corresponding compartment will be on in cycles.

75 On/Off

Press 3 seconds the button " ", the appliance will be switched On/Off; When the indicator light " " is on, means the appliance is powered off; When the indicator light " off, means the appliance is powered on;

35 Setting the Fridge Compartment Temperature

Press Fridge Temperature Adjustment button " & " to adjust the fridge temperature, ranging from 2^ 4^ 6^ 8^ FAST COOL" in cycles.

Press the Fridge Temperature Adjustment button 3 seconds to control "On & Off" of the cooling function in fridge compartment. When the cooling function is "Off", the damper stops and the fridge compartment stops cooling. The fridge temperature display zone will be off.

45 Setting the Freezer Compartment Temperature

Press freezer Temperature Adjustment button " adjust the fridge temperature, ranging from -16^ -18^ -20^ -22^ FAST FREEZE" in cycles.

5. "Fast Cool" function for Fridge Compartment

Press the Fridge Temperature Adjustment button until the indicator "FAST COOL" is on, which means the fridge compartment has entered the fast cool status; The fast cool status is stopped when the indicator is off; In the fast cool status, the fridge compartment will work at the lowest temperature setting of 2^ continuously and after 24 hours the fast cool status will be canceled automatically and will return to the previous temperature setting.

6. "Fast Freeze" function for Freezer Compartment

Press the Freezer Temperature Adjustment button till the indicator "FAST FREEZE" is on, which means the freezer compartment has entered the fast freeze status; The fast freeze status is stopped when the indicator is off; In the fast freeze status, the freezer compartment will work continuously at the lowest temperature setting of -25^ and after 24 hours the fast freeze status will be canceled automatically and will return to the previous temperature setting.

7. The product has a Door Opening Alarm function.

When the door is opened for over 60 seconds, the appliance starts to emit a "beeping" alarm. The alarm stops when the door is closed.

Care and Cleaning

2lways disconnect the appliance from the power supply before any cleaning or maintenance.

The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. 7o not use abrasive products or detergents. 2fter washing, rinse and dry thoroughly.

5clean the shelves and balconies separately by hand with a mild solution of washing up liquid and water. 7o not put them in the dishwasher.

If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance. The doors should be left slightly ajar to prevent the formation of mildew and unpleasant odors.

Defrosting

The product has a no frost system which is designed to prevent the heavy build up of ice. Under normal use, there should be no need to regularly defrost the freezer system.

Please note: If you are regularly finding a heavy build up of ice, or pools of water, in the freezer section then it is likely that the door is not sealing properly. This could be due to a defective door seal or an incorrectly fitted, or overly heavy, decor door. "or more information see the troubleshooting section about ice.

Troubleshooting

If you have any problems with your appliance, you should check the troubleshooting prior to calling Customer Care.

If the appliance is not working3 check:

• That there is power to the appliance.
  The house fuses are intact and the fuse in the plug has not blown.
  The fridge has not been turned off.
• The plug socket is functioning fine. To check this, plug another electrical appliance in to see if the socket is faulty.

If the appliance is working3 but not very well3 check:

The appliance is not overloaded.
- The thermostat is set to an appropriate temperature.
The doors are closing properly.
- The cooling system at the rear of the appliance is clean and free of dust, and not touching the rear wall.
- There is enough ventilation at the side and rear walls.

If the appliance is noisy3 check:

The appliance is level and stable.
The side and rear walls are clear, and there is nothing resting on the appliance.
Note: The cooling gas in the refrigerator may make a slight bubbling or gurgling noise, even when the compressor is not running.

If the appliance is beeping3 check:

• That the doors are closed. An alarm will sound after 60 seconds of a door being open.

If ice has formed on the back wall of the fridge:

It is normal for some ice droplets to form on the back wall of the fridge. This does not constitute a fault with the appliance.
- Ensure that no items inside the fridge are in contact with the back wall.

• 5Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.

• 5Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact 5ustomer Sare so that the seal can be replaced.

This can be due to the decor door(s6 not being properly fitted. If you are at all unsure, ask your fitter to check the décor doors.

If excessive ice has formed in the freezer:

• 5Check that there is some resistance when opening the door of the appliance. If it opens at the slightest touch it may mean that the door seal needs to be replaced.
• Check the door seal for any kinks, debris or damage. If you notice any, and are unable to resolve the issue yourself, contact 5ustomer 5are so that the seal can be replaced.
  This can be due to the decor door(s6 not being properly fitted. If you are at all unsure, ask your fitter to check the decor doors.

If one or more of the LED units within the appliance is not working:

• 5contact Customer Sare to arrange a service visit.

Installation preparation

This appliance must never be installed close to heat sources3 e5g5 heating elements or cookers3 nor in damp places5

Seek the help of another individual3 or two3 when installing this appliance5 This appliance may have sharp edges5 Wear adequate PPE for the task and environment5

To ensure the appliance is level, you should use the height adjustable feet at the front of the appliance.
The cooling system at the rear of the appliance must not touch the rear wall. The greater the gap, the better.
The appliance must be installed with adequate ventilation. Ensure that there is clearance above the appliance to allow air to escape and that there is space between the rear of the appliance and the wall.

Ventilation

The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere. Incorrect ventilation can lead to premature compressor failure, excessive power consumption, total system failure and may invalidate the warranty provided with the appliance. "or products intended to be installed into a tall housing unit, the following requirements need to be met:

An air intake should be provided somewhere in the cabinet run to allow free air in. In this example, a plinth vent is shown underneath the refrigerator.

A cutout should be made in the plinth below the fridge/freezer and this finished neatly using the air vent grille.

Alternatively, a thin section of the plinth can be removed to allow air into the unit (recommended 600mm× 10mm

The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units.

A ventilation hole is required in the plinth of the unit; this allows air to be drawn over the compressor & heat exchange.

As a rule3 the more air that can get in and out3 the better and more efficient the operation of the product5

Installation into a cabinet

With the help of another individual3 or two3 move the appliance into the cabinet5 There are two metal plates at the base of the appliance5 Fit the supplied white spacers to these plates5 Attach that the lips of the cabinet base5

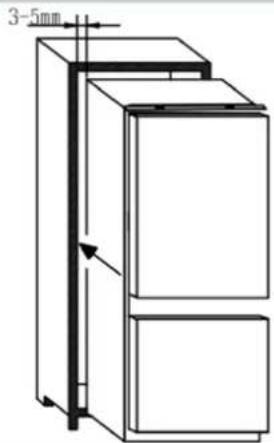

Insert the appliance into the column, placing it on the opposite side of the hinges, and make sure there's a 3-5 mm distance gap.

1

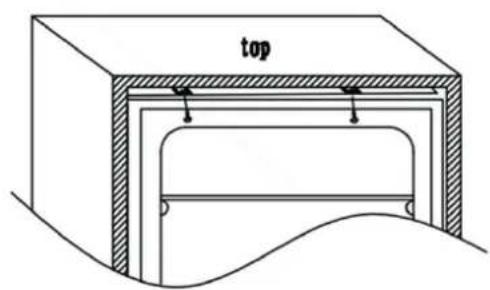

After ensuring that the appliance door and column door are aligned, secure the appliance at the top to the cabinet with screws.

2

Then secure to the bottom of cabinet with screws.

3

Fit the seal to the appliance, cut off the excessive part if necessary. Fit the bottom parts with plastic covers.

4

Use a Phillips screwdriver to loosen the connecting pin underneath the right middle hinge and adjust to screw onto the right cabinet wall.

5

Mounting the Deco doors

• Ensure that there is a gap of 3 to 4mm between the non-hinged side and the cabinet wall.
• Locate the slider in the bracket and fix the slider to the 7eco door 20

to 22mm from the edge of the deco door as shown in following image, ensuring that the slider is positioned centrally and horizontally within the bracket. Tighten securely by hand.

• Fill the gap on the non-hinged side with the gasket/seal strip provided.
  The finished look for the door sliders should be similar to those shown in following image, which shows 2 sliders in place.

Ensure the appliance doors open3 close and seal properly5

Once complete and if you are happy with the fit of the appliance into the cabinet, bend and snap the parts of the white spacers marked 'S' as shown by the dotted outline. Leave the rest of the spacer cover in place over the metal plates.

Important: 2fter completing the installation, check that the appliance is well secured within the unit and that the door(s6 close and open properly. If there is no resistance from the door seals when opening the doors, then it is likely that the appliance and/or decor doors are not fitted properly.

Reversing the appliance doors

We recommend you seek the help of another individual to support the doors whilst performing this operation5

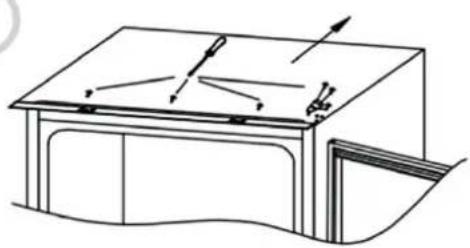

Remove the upper plate and hinge with a screw driver.

1

Remove the upper door.

2

Remove the middle hinge and its connecting pin underneath.

3

Remove the bottom door.

4

Remove the right bottom hinge and left plastic plugs and refit them onto the opposite sides.

5

Use the opposite hinge and cover and fit into the left bottom.

6

Reassemble the doors and hinges working from bottom to top, from 1-4.

7

V

Attaching the door seals correctly:

It is normal for the seal to be compressed after the door has been reversed. With the door closed, use a hair dryer to expand the seal and fill the gap between the door and the body of the appliance. Take care not to use the hair dryer too close to the appliance, which could damage the seal. 2 distance of approximately 10cm should be adequate. When completed, allow the seal and door to cool before touching them. Once done, the seal should remain in position.

LED light replacement instructions

• Have the (LED only) light source replaced by qualified personnel of our Service department.
• This product contains a LED light source of energy efficiency class G.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

https://www.frilec.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances

DOMEST

domestic and professional appliances

MANUELLE

4. On/Off (Eteindre/Allumer)

domestic and professional appliances

SE

NNN
