USER MANUAL DO9291C DOMO

Black plastic food kit with open and closed compartments, no visible text or symbols

NL Handleiding 3-in-1 Snackmaker XL

EN Instruction booklet 3-in-1 Snack maker XL

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Black plastic tray with four side compartments and horizontal grooves, labeled '6' (no text or symbols on the tray itself)

Black plastic tray with horizontal ridges, labeled '7' (no text or symbols on the tray itself)

Black plastic waffle tray with grid pattern, no visible text or symbols

Close-up of a black electrical plug with a power outlet, labeled '9' (no text or symbols on the plug itself)

Close-up of a mechanical component with red arrows pointing to a surface detail (no visible text or symbols)

DEMONTAGE

Close-up of a black electronic device's rear panel showing buttons and mounting feet (no visible text or symbols)

GEBRUIK

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a mechanical component with red arrows pointing to features (no visible text or symbols)

DEMONTAGE

Close-up of a black electronic device rear panel showing a button and screw (no visible text or symbols)

UTILISATION

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Close-up of a mechanical component with red arrows pointing to features (no visible text or symbols)

Close-up of a black mechanical component with visible mounting holes and a small labeled component (no text or symbols)

GEBRAUCH

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance. Never touch any hot parts while the appliance is switched on and being used.

• Make sure that the air can circulate freely around the appliance.
• Do not use a metal scouring pad to clean the appliance. Metal fragments can break off and come into contact with the electrical components of the appliance, causing a short circuit.
• The baking plates are not dishwasher safe! Always clean them by hand in warm water with a mild detergent.
• Do not use the appliance if it still contains water or parts are still wet from cleaning.
• If the appliance falls into water, immediately pull the mains plug from the wall socket. Do not touch or reach into the water.
• Do not use the device on a surface that can be damaged by steam or heat.
• Do not use the appliance near water or other liquids.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

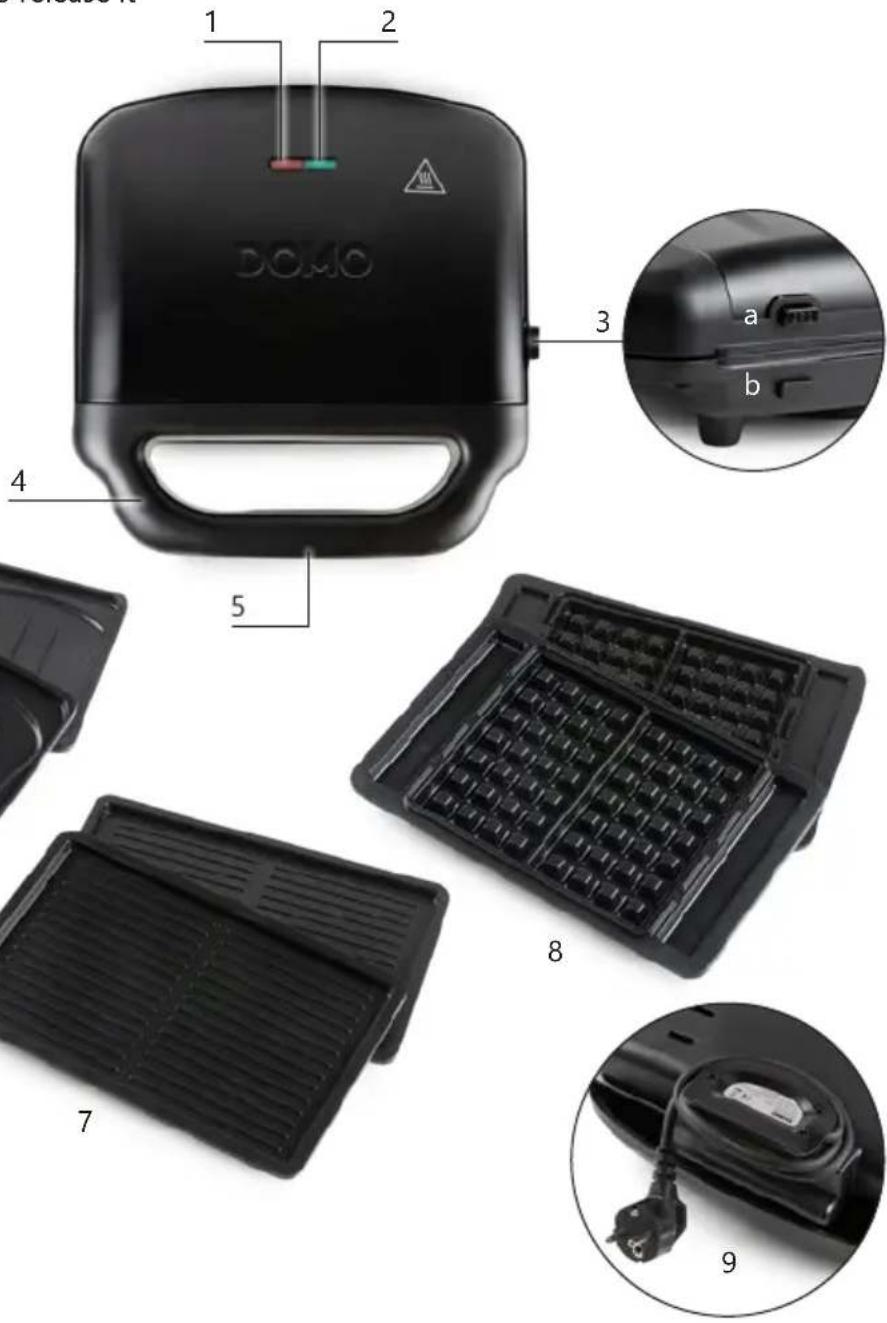

PARTS

1. 'On/off' indicator light
2. 'Ready to use' indicator light
3. Unlocking the baking plate to release it
   a. Upper plate release
   b. Lower plate release
4. Handle
5. Lock

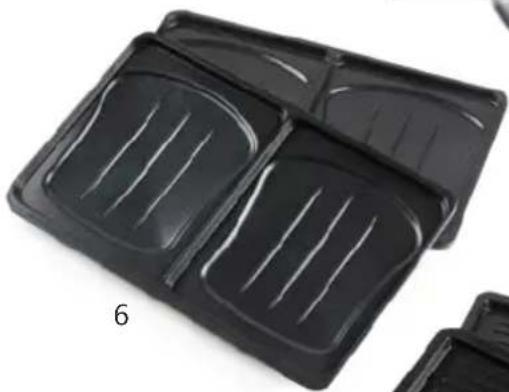

6. Baking plates for toasted sandwiches

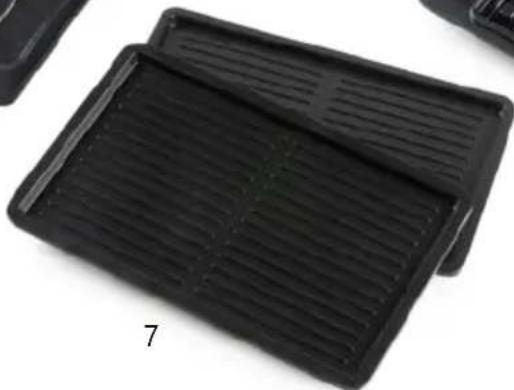

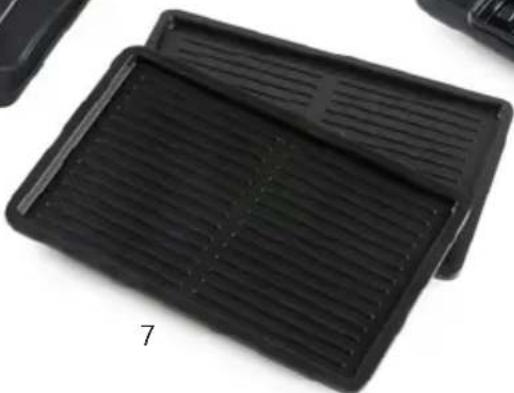

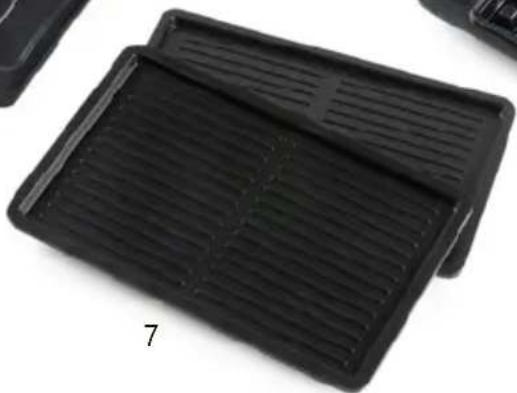

7. Baking plates for grilling

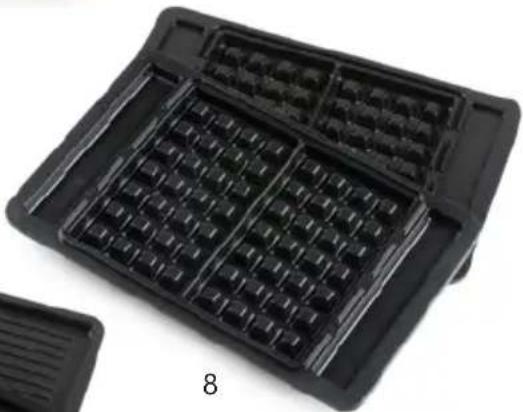

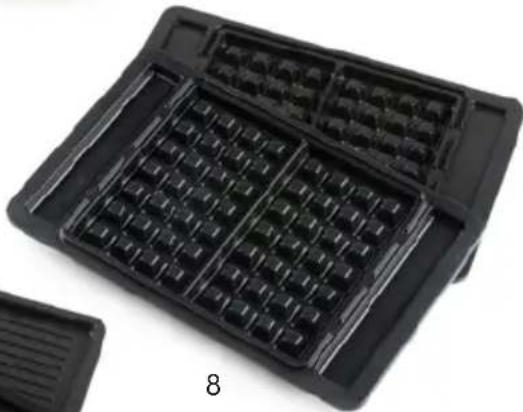

8. Baking plates for waffles
9. Cable storage

1 2 DOMO 3 a b 4 5 7 8 9

Black plastic tray with four side compartments and three horizontal grooves, labeled '6' (no text or symbols on the tray itself)

Black plastic tray with horizontal ridges and a small inset image, labeled '7' (no text or symbols on the tray itself)

Black plastic waffle tray with grid pattern, no visible text or symbols

Close-up of a black electrical plug with a cable, labeled '9' (no text or symbols on the plug itself)

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Carefully clean the appliance before first use (See "Cleaning and maintenance").
• Attention: when using the appliance for the first time, the baking plates may emit a small amount of smoke and odour. This is normal. Clean the appliance with absorbent paper or a clean, dry cloth to remove any residue.
• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.
• Make sure that there is enough ventilation around the grill.

FITTING AND REMOVING THE BAKING PLATES

Remove the mains plug from the wall socket and wait until the appliance has cooled down completely. Choose the sandwich toaster, waffle plate or grilling plate.

⚠️ Never use the appliance with only 1 baking plate. Always make sure 2 baking plates are fitted correctly.
Do not allow the baking plates to come into contact with metal cutlery or other metal objects in order to avoid causing damage to the non-stick coating. Always use a heat-resistant plastic or wooden spatula.

ASSEMBLY

1. Select the plate marked "TOP" on the back to place at the top. Insert the two lower ends of the plate into the slots provided at the top of the appliance hinge. Push the plate until it clicks into place.
2. Select the plate marked "BOTTOM" on the back to place at the bottom. Insert the two rear ends of the plate into the slots provided at the bottom of the appliance hinge. Push the plate down until it clicks into place.

DISASSEMBLY

To remove the baking plates, press the buttons on the right side of the appliance. This will release the baking plates.

Close-up of a mechanical component with red arrows pointing to features (no visible text or symbols)

Close-up of a black mechanical component with visible mounting holes and a small labeled component (no text or symbols)

USE

1. Place the appliance on a dry, flat surface and ensure there is adequate ventilation.
2. Choose from one of the 3 sets of baking plates supplied: sandwich toaster, waffle or grilling. Fit the baking plates (see chapter, "Fitting and removing the baking plates").
3. The appliance has a high-quality non-stick coating, so you do not usually need to use additional fat. However, if the batter contains little or no fat, we recommend that you grease it lightly the first time with oil or butter using a pastry brush or a piece of kitchen paper.
4. Plug the power cord into a socket. The red 'on/off' indicator light will illuminate. The appliance will start heating.
5. The green 'ready for use' indicator light will light up when the appliance is hot enough for baking. Open the appliance and place the food inside. Then close the appliance.

The 'ready to use' indicator light will go off and on regularly as the appliance continuously maintains its temperature.
The lock on the handles must not be used when grilling, but may be used for waffles and toasted sandwiches if desired. However, never attempt to lock the appliance by force.

1. When your preparation has finished baking, open the lid and remove the food from the appliance using a plastic or wooden spatula. Never use metal objects as these can damage the non-stick coating.

2. To switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down completely.

⚠️Note: Defrost frozen food before putting it in the appliance.

CLEANING AND MAINTENANCE

- Unplug the appliance before cleaning. Allow the appliance to cool down completely.

- Remove the baking plates from the appliance and wash in warm water with a mild detergent. Then dry thoroughly.

⚠ The baking plates are not dishwasher safe!

- Wipe the appliance clean with a damp cloth. Make sure that no moisture or grease gets into the ventilation holes. Then dry it well.

- When not in use, store the appliance on a flat dry surface. Close the appliance and lock it using the lock on the handles. Simply wrap the cord around the cord storage bar.

Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not heat up. • Check that the red indicator light is on and that the appliance is connected to a working power socket.
The appliance emits a burnt smell.	• When using the appliance for the first time, the baking plates may emit a little smoke and odour. This is normal. If there is a burnt smell after some use, clean the baking plates as described in the ‘Cleaning and maintenance’ section.
Food does not bake properly. • The appliance isn't heated up enough yet. Wait until the green "ready for use" indicator light turns on before baking.

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Close-up of a mechanical component with red arrows pointing to features (no visible text or symbols)

DESMONTAJE

Close-up of a black electronic device with visible ports and legs (no text or symbols)

USO

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a mechanical component with red arrows pointing to features, no visible text or symbols

Close-up of a black electronic device's rear panel showing a connector and mounting bracket (no visible text or symbols)

UTILIZZO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Black plastic tray with three side compartments and horizontal grooves, labeled '6' (no text or symbols on the tray itself)

Black plastic tray with horizontal ridges, labeled '7' (no text or symbols on the tray itself)

Black plastic tray with grid pattern, no visible text or symbols

Close-up of a black electrical plug with a cable, labeled '9' (no text or symbols on the plug itself)

PŘED PRVNÍM POUŽITÍM

Close-up of a black vehicle chassis with red arrows pointing to a metallic rod (no visible text or symbols)

Close-up of a black electronic device with visible ports and mounting bracket (no text or symbols)

POUŽITÍ

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Black plastic tray with four side compartments and a label '6' (no text or symbols on the tray itself)

Black plastic tray with horizontal ridges and a small inset image, labeled '7' in the corner (no text or symbols on the tray itself)

Black plastic tray with multiple side grates, no visible text or symbols

Close-up of a black electrical plug with a cable, labeled '9' (no text or symbols on the plug itself)

PRED PRVÝM POUŽITÍM

Close-up of a mechanical component with red arrows pointing to a surface detail (no visible text or symbols)

DEMONTÁŽ

Close-up of a black industrial vacuum cleaner's side panel with visible mounting bracket (no text or symbols)

POUŽITIE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
