USER MANUAL DO1145RC DOMO

Black and white photo of a French-style grâte with cut slices, placed on a stand (no text or symbols visible)

NL Handleiding Kaasraclette

EN Instruction booklet Cheese raclette

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

8 9 DOMO CE M 10.00 Automotive: Chassis 10.00/10.00 Circuitry: 10.00

Exploded view of a kitchen appliance assembly showing exploded view from top to bottom (no text or symbols visible)

GEBRUIK

Mechanical assembly diagram showing two parallel black components mounted on a vertical pole, with a blue double-headed arrow indicating rotation (no text or symbols)

DOMO CE 100% 100%

Illustration of a baked flatbread being heated by rotating a tray, with arrows indicating rotation direction (no text or symbols)

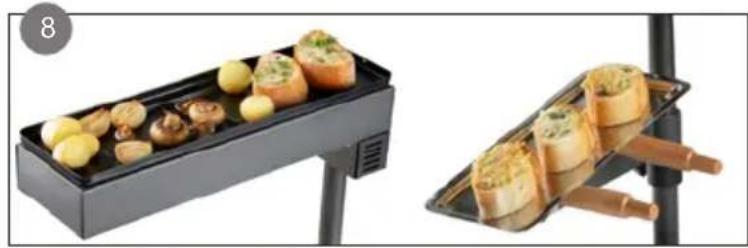

Two food items: a black rectangular grill with stuffed potatoes and a wooden steamer with rolled dough (no text or symbols visible)

REINIGING EN ONDERHOUD

Two views of a kitchen appliance: top view shows a black tray with a blue upward arrow, bottom view shows a gray rectangular dish with a fan and ventilation grille (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Exploded view of a kitchen appliance assembly showing layered components and a tray (no text or symbols visible)

UTILISATION

Mechanical assembly diagram showing two parallel black components mounted on a vertical pole, with a blue double-headed arrow indicating rotation (no text or symbols)

DOMO ® 2014-0356 ISO: 2014-0356 POT: 1.0 R/P S/N: 0.0 L/S: 0.0 © 2014-0356

Illustration of a baked bread roll being heated by a stand, with rotation arrows indicating motion (no text or symbols)

Two food items: a black rectangular grill with baked goods and a wooden steamer with rolled dough (no text or symbols visible)

NETTOYAGE ET ENTRETIEN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Labeled diagram of a portable TV stand with numbered parts for identification

8 9 Domo CE

Exploded view diagram of a kitchen appliance assembly (no text or labels visible)

GEBRAUCH

Mechanical assembly diagram showing two parallel plates with a central shaft and a vertical displacement indicator (no text or symbols)

Close-up of a black electronic device with a circular knob and a blue arrow indicating rotation (no visible text or symbols)

Illustration of a food item being heated by rotating arrows, no text or symbols present

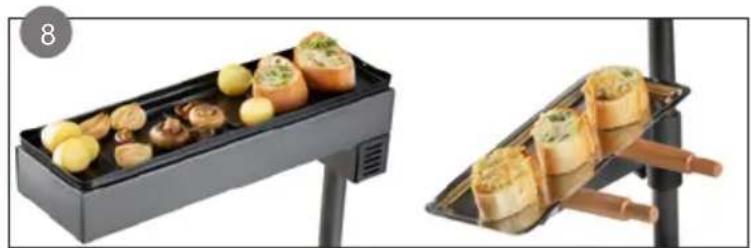

Two food items: a black rectangular grill with sliced ingredients and a side view of rolled dough (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or numbers present)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Make sure that the air can circulate freely around the appliance.
• Make sure that the appliance does not come into contact with flammable materials.
• Only use the appliance indoors and be careful with hot areas and materials such as curtains, tablecloths, etc.
• Preferably use a heat resistant mat underneath the appliance base is flat and level.
• Allow the appliance to cool off completely before cleaning or storing it.
• Never touch any hot parts while the appliance is switched on and being used.
• Make sure nothing can touch the heating element.
• Do not move the appliance when it is warm or hot.
• Clean the appliance directly after use.
• Never use any sharp objects such as knives or forks on the different parts, always use wooden spoons/spatulas.
• Do not use a metal scouring pad to clean the appliance. Metal fragments can break off and come into contact with the electrical components of the appliance, causing a short circuit.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

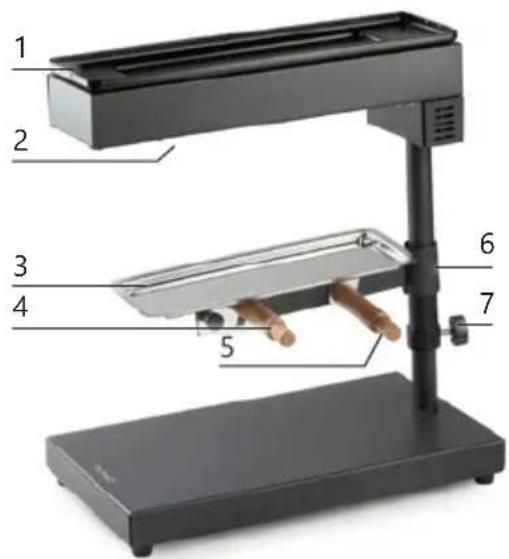

PARTS

1. Grill plate
2. Heating element
3. Cheese holder
4. Screw cheese holder
5. Handle cheese holder
6. Support arm
7. Screw height adjustment support arm
8. Thermostat knob
9. Cord connection

1 2 3 4 5 6 7

8 9 DOMO CE

BEFORE THE FIRST USE

• Make sure all packaging materials and promotional stickers.
• Wipe the appliance with a soft, dry cloth.
• When using the appliance for the first time, turn it on for 10 minutes without food. The heating element may smoke slightly and release a slight odour, but this is normal. Ventilate the room well.

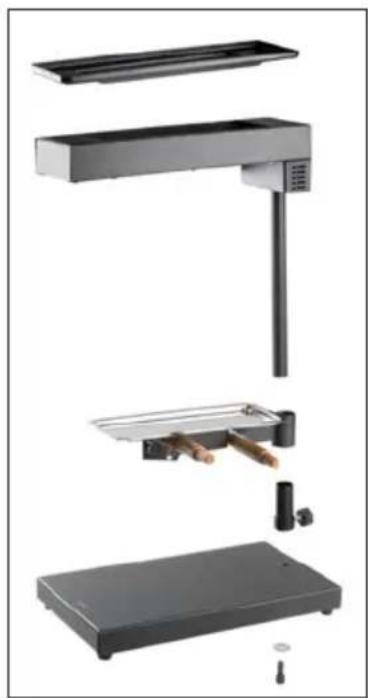

ASSEMBLY

Install all parts as shown using an Allen key (supplied).

Exploded view diagram of a smart air conditioner unit with labeled components (no text or symbols)

USE

1. Place the appliance on a stable surface.

2. Place the raclette cheese on the cheese holder. Turn the support arm holding the cheese so that it is under the heating element. If you are using cheese wedge, you can tilt the cheese holder to a 45^ angle. Loosen the screw of the cheese holder, tilt the holder into position using the handle, and secure it into place at the desired angle using the screw.

3. Adjust the height of the support arm. Loosen the support arm height adjustment screw and then slide the support arm upwards. The optimal distance between the cheese and the heating element is 2 to 4 cm. Tighten the screw again.

⚠️Make sure the distance is never less than 2 cm.

1. Turn the thermostat knob to the 'MIN' position. Plug the cord into the connector and then plug the plug end into an electrical socket.

2. Turn the thermostat knob to the desired setting. You can adjust the melting process by turning the knob or changing the height of the cheese using the screw on the support arm.

Caution: the appliance is hot.

1. Once the cheese has melted, twist the support arm outwards. You can tilt the cheese holder 45° to scrape off a layer of melted cheese.

2. After every third or fourth scrape of the raclette, a crispy crust will form around the edges of the cut side of the cheese. Cut this away with a serrated (raclette) knife and serve together with the raclette.

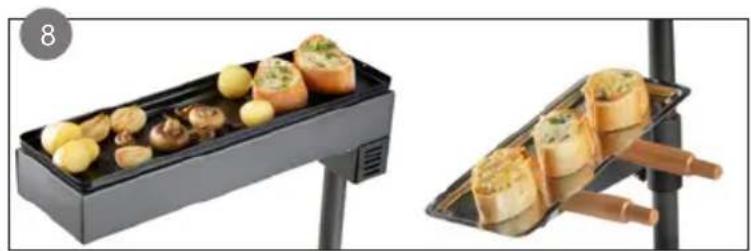

3. The grill plate can be used for grilling potatoes, vegetables, bread, etc. You can also grill other dishes on the cheese holder such as mini pizzas, bruschetta, stuffed portobellos, goat cheese, and much more.

4. After use, turn the thermostat knob to the 'MIN' position and unplug the appliance. Let the appliance cool down completely before moving or cleaning it.

Mechanical assembly diagram showing two parallel plates with metal clips, no text or symbols present

DOMO CE 100% 200% 300%

Illustration of a food item being placed on a stand with arrows indicating rotation (no text or symbols)

Two food items: a black rectangular grill with stuffed potatoes and a tray of baked goods (no text or symbols visible)

CLEANING AND MAINTENANCE

- Unplug the appliance before cleaning. Allow the appliance to cool down.

- Remove the grill plate from the appliance. Twist the support arm of the cheese holder outwards. Clean the cheese holder and grill with warm water and mild detergent, and dry well.

- Wipe the appliance housing down with a damp cloth and dry thoroughly.

Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The cheese does not melt enough. • Always use	a cheese suitable for raclette.Swiss raclette cheese is a high-fat, semi-hard cheese that melts perfectly. The crust is also fit to eat.Turn the thermostat knob higher.Reduce the distance between the cheese and the heating element, with a minimum distance of 2 cm.
The appliance does not heat up. • Check that the	appliance is connected to a working power socket.Check that the cord is properly connected in the appliance and the thermostat is not set to minimum.

SPECIFICATIONS

Model DO1145RC
Voltage 230 V~ 50-60 Hz
Power 1000 W
Energy consumption in off-mode after 0 minutes 0 W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Exploded view diagram of a kitchen appliance assembly (no text or labels visible)

USO

Mechanical assembly diagram showing two parallel black components mounted on a vertical pole, with a blue double-headed arrow indicating rotation (no text or symbols)

DOMO ® 2014-0356 ISO: 2014-0356 CE ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± +

Illustration of a baked bread roll being heated by a stand, with rotation arrows indicating motion (no text or symbols)

Two food items: a black rectangular griddle with baked goods and a wooden steamer with rolled dough (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Exploded view diagram of a kitchen appliance assembly (no text or labels visible)

UTILIZZO

Mechanical assembly diagram showing two parallel plates with a central shaft and a vertical displacement indicator (no text or symbols)

DOMO ® 2014-0356 ISO: 2014-0356 POT: 1.0 R/P Power/Power Power/Power (Cable)

Illustration of a baked bread roll being heated by a stand, with rotation arrows indicating motion (no text or symbols)

Two food items: a black rectangular griddle with baked goods and a wooden steamer with rolled dough (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Exploded view of a kitchen appliance assembly showing layered structure and internal components (no text or symbols visible)

POUŽITÍ

Mechanical assembly diagram showing two parallel plates with a central shaft and a vertical displacement indicator (no text or symbols)

DOMO CE 20 Model 450 The Model 1000

Illustration of a griddle being heated by a vertical stand, showing heat transfer arrows (no text or symbols)

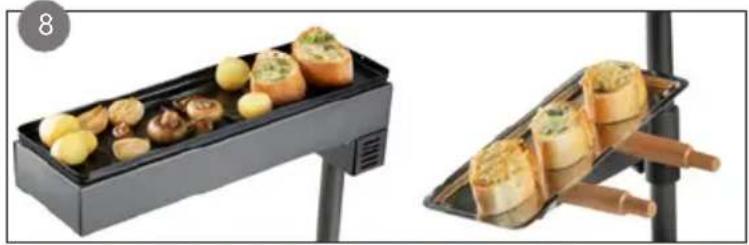

Two food preparation items: a black rectangular grill with baked goods and a wooden steamer with rolled dough (no text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

Two views of a black rectangular appliance with a blue upward arrow indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Exploded view of a kitchen appliance assembly showing layered components and a tray (no text or symbols visible)

POUŽITIE

Mechanical assembly diagram showing two parallel black components mounted on a vertical pole, with a blue double-headed arrow indicating rotation (no text or symbols)

DOMO CE 100% 95% 80% 75% 60% 50% 40% 30% 20% 10%

Illustration of a baked bread roll being heated by rotating a tray, with rotation arrows indicating motion (no text or symbols)

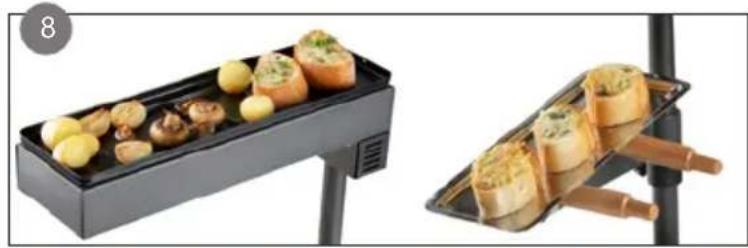

Two food items: a black rectangular griddle with baked goods and a wooden steamer with bread rolls (no text or symbols visible)

ČISTENIE A ÚDRŽBA

Two views of a black rectangular electronic device with a blue upward arrow indicating motion or change (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
