USER MANUAL S71540TSW1 AEG

Modern kitchen interior with white cabinets, a large stainless steel refrigerator, and a black stove (no visible text or symbols)

INHOUDSOPGAVE

1. VEILIGHEIDSINFORMATIE....3
2. VEILIGHEIDSVOORSCHRIFTEN....4
3. BEDIENING 6
4. HET EERSTE GEBRUIK....6
5. DAGELIJKS GEBRUIK....6
6. AANWIJZINGEN EN TIPS....7
7. ONDERHOUD EN REINIGING....9
8. PROBLEEMOPLOSSING.... 11
9. MONTAGE 12
10. TECHNISCHE INFORMATIE....17

VOOR PERFECTE RESULTATEN

Technical line drawing of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

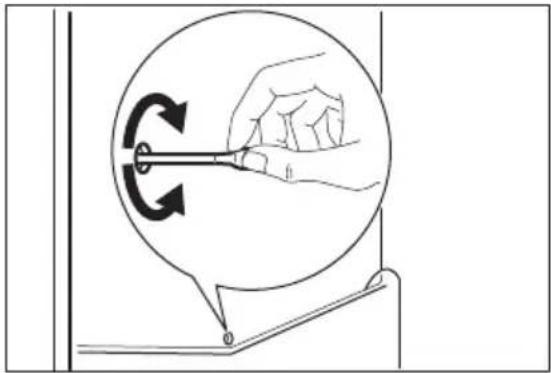

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

8. PROBLEEMOPLOSSING

WAARSCHUWING!

Illustration of a hand using a pipette to apply a tool to a component, with arrows indicating motion (no text or symbols)

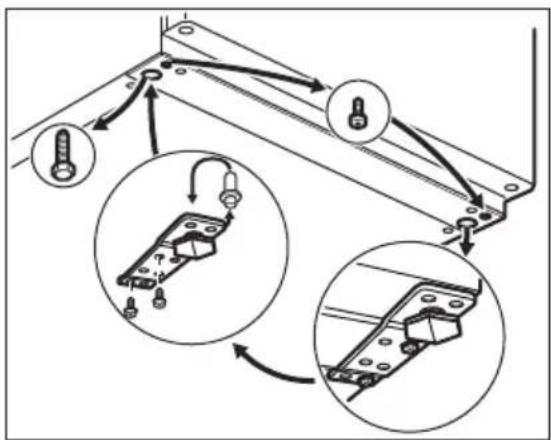

Technical line drawing of a metal bracket with bolts and a hexagonal nut (no text or symbols)

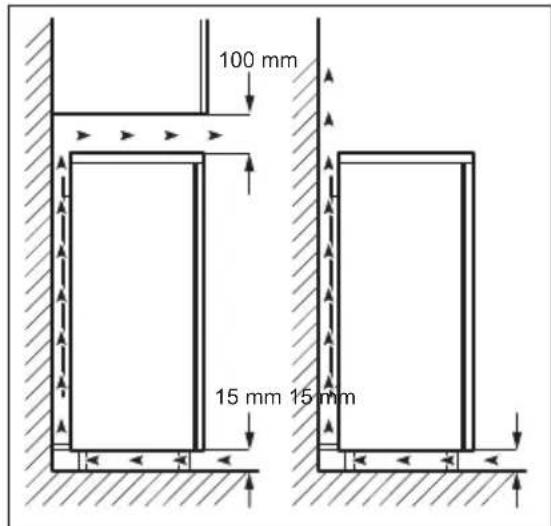

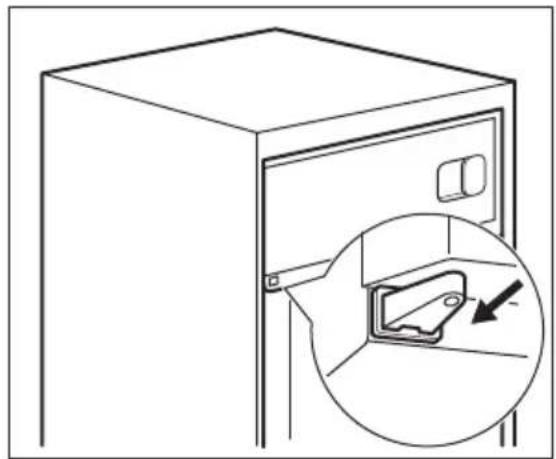

9.4 Locatie

Line drawing of a refrigerator interior showing a door, vent, and scroll (no text or symbols)

Line drawing of a mechanical device with a top platform and internal cooling panel (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and circular insets illustrating assembly steps.

Technical diagram showing mechanical assembly with three labeled steps and a magnified inset illustrating the process.

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process of rotation or force application (no text or symbols present)

Diagram of a device with a close-up inset showing mechanical components (no text or symbols)

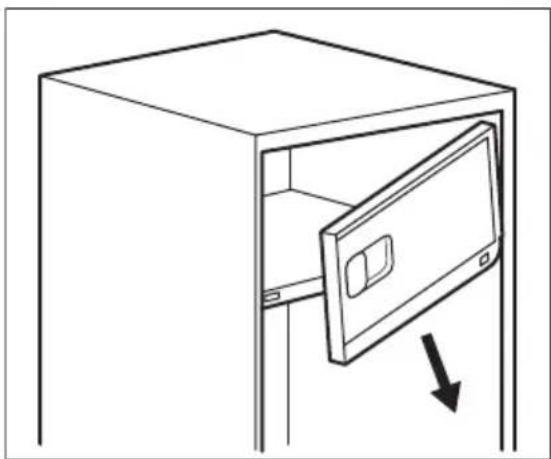

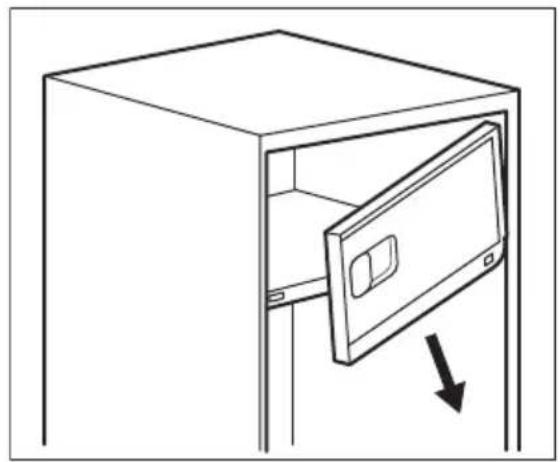

Line drawing of a cabinet with an open door and a downward arrow indicating a cut or direction (no text or symbols)

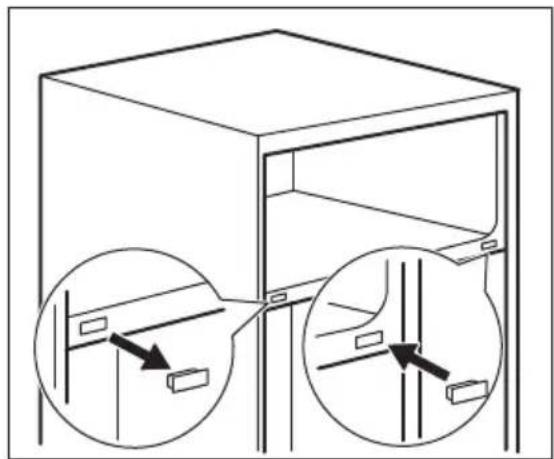

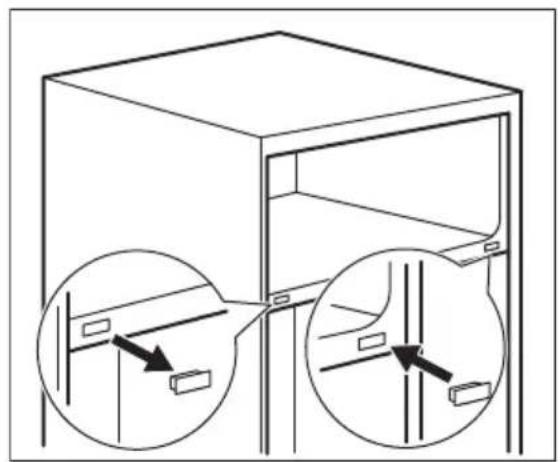

Diagram of a cabinet with two views showing internal components and directional arrows (no text or symbols)

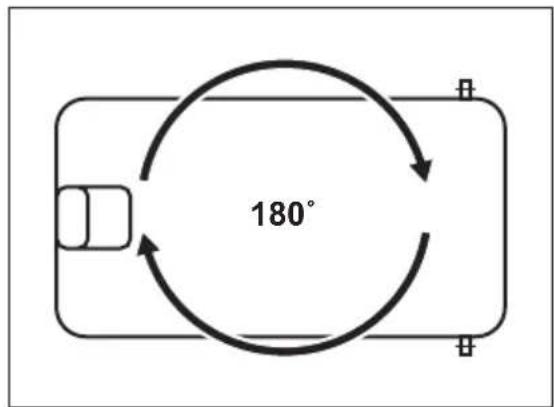

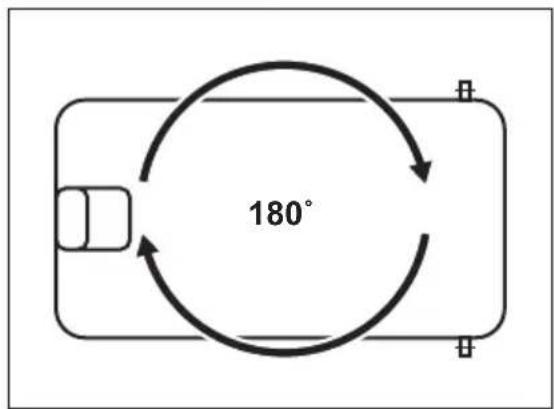

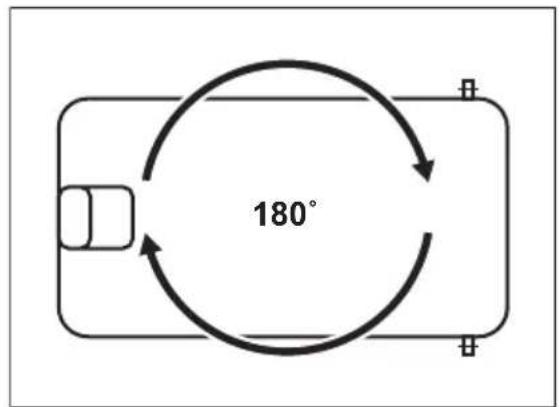

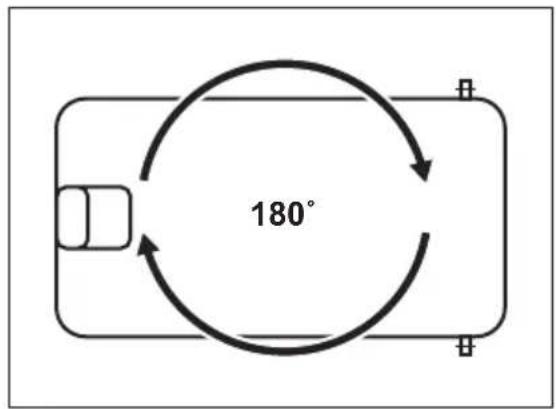

180°

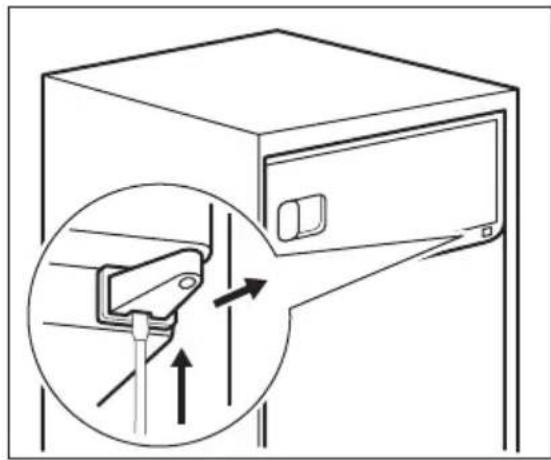

Line drawing of a server cabinet with an inset showing a close-up of the door (no text or symbols)

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

- This appliance is intended to be used in household and similar applications such as:

- Farm houses; staff kitchen areas in shops, offices and other working environments - By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the appliance is equipped with an Ice maker or a water dispenser, fill them with potable water only.
• If the appliance requires a water connection, connect it to potable water supply only.
• The inlet water pressure (minimum and maximum) must be between 1 bar (0,1 MPa) and 10 bar (1 MPa)

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Make sure the air can circulate around the appliance.
• Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
• Do not install the appliance close to radiators or cookers, oven or hobs.
• The rear of the appliance must stand against the wall.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too colds, such

as the construction appendices, garages or wine cellars.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.
- All electrical connections should be made by a qualified electrician.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not contact an electrician.
• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Service or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the

installation. Make sure that there is access to the mains plug after the installation.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• When you remove an ice lolly from the appliance, do not eat it immediately. Wait a few minutes.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

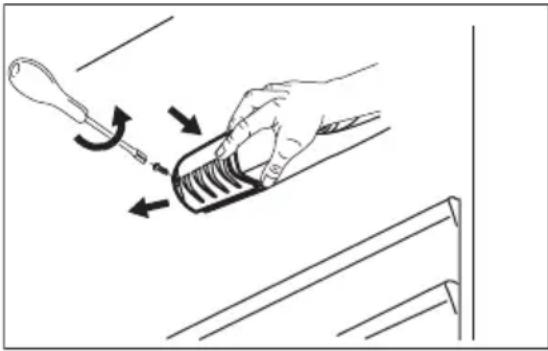

2.4 Internal light

- The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

3. OPERATION

3.1 Switching on

Insert the electrical plug into a wall socket.

Turn the temperature regulator clockwise to a medium setting.

3.2 Switching off

To turn off the appliance, turn the temperature regulator to the "O" position.

3.3 Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

• turn the Temperature regulator towards lower settings to obtain the minimum coldness.
• turn the Temperature regulator towards higher settings to obtain the maximum coldness.

4. FIRST USE

4.1 Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

5. DAILY USE

WARNING!

Refer to Safety chapters.

5.1 Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh foods it is not necessary to change the medium setting.

However, for a faster freezing operation, turn the temperature regulator toward

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the lid is opened
  • the quantity of food stored
  • the location of the appliance.

If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperature, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

CAUTION!

Do not use detergents or abrasive powders, as these will damage the finish.

higher settings to obtain the maximum coldness.

CAUTION!

In this condition, the refrigerator compartment temperature might drop below 0^ C. If this occurs reset the temperature regulator to a warmer setting.

5.2 Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

5.3 Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

5.4 Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

6. HINTS AND TIPS

6.1 Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

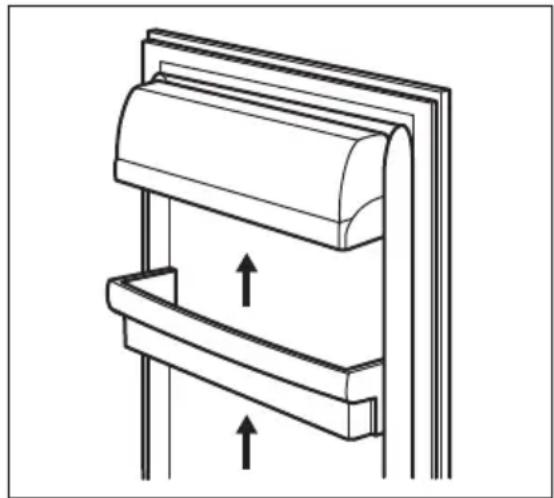

5.5 Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf in the direction of the arrows until it comes free.
2. Reposition as required.

Technical line drawing of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

6.2 Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.
• If foreseen, do not remove the cold accumulators from the freezer basket.

6.3 Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
- do cover or wrap the food, particularly if it has a strong flavour
- position food so that air can circulate freely around it

6.4 Hints for refrigeration

Useful hints:

• Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.
• Bottles: these need a cap and should be stored on the door bottle shelf.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

6.5 Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
  • prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

6.6 Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary;
- once defrosted, food deteriorates rapidly and cannot be refrozen;
- do not exceed the storage period indicated by the food manufacturer.

7. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

7.1 General warnings

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

7.2 Periodic cleaning

CAUTION!

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Take care of not to damage the cooling system. When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush.
   This operation will improve the performance of the appliance and save electricity consumption.

7.3 Defrosting the freezer

CAUTION!

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

About 12 hours prior to defrosting, set a lower temperature, in order to build up sufficient chill reserve for the interruption in operation.

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

1. Switch off the appliance, or pull out electrical plug from the wall socket.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

WARNING!

Do not touch frozen goods with wet hands. Hands can freeze to the goods.

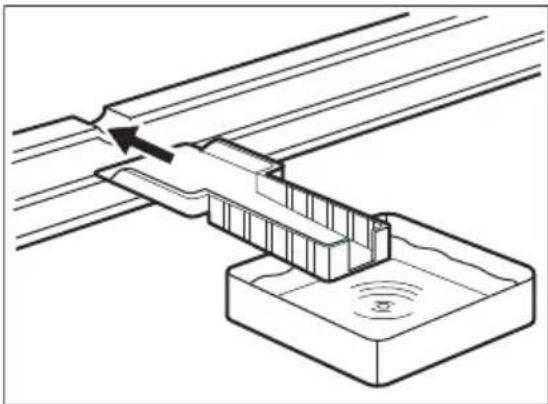

1. Leave the door open and insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water.

Technical line drawing of a mechanical assembly with no visible text or symbols

In order to speed up the defrosting process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

1. When defrosting is completed, dry the interior thoroughly and keep the scraper for future use.

2. Switch on the appliance. After three hours reload the previously removed food into the freezer compartment.

7.4 Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Illustration of a hand holding a tool inside a circular frame, with arrows indicating rotation and direction (no text or symbols)

7.5 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.

2. Remove all food.

3. Leave the door/doors open to prevent unpleasant smells.

WARNING!

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

8. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

8.1 What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.		Connect a different electrical appliance to the mains sock-et. Contact a qualified elec-trician.
The appliance is noisy. The appliance is not suppor-ted properly.		Check if the appliance stands stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
	The lamp is defective. Refer to "Replacing the lamp".
The compressor operates continually.	Temperature is set incorrect-ly.	Refer to "Operation" chap-ter.
Many food products to be frozen were put in at the same time.		Wait some hours and then check the temperature again.
The room temperature is too high.		Refer to climate class chart on the rating plate.
Food products placed in the appliance were too warm.		Allow food products to cool to room temperature before storing.
Water flows into the refrigerator.	The water outlet is clogged.	Clean the water outlet.
	Food products prevent that water flows into the water collector.	Make sure that food prod-ucts do not touch the rear plate.
Door is misaligned or inter-feres with ventilation grill.	The appliance is not level-led.	Refer to "Levelling".
The temperature in the ap-pliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower tempera-ture.
	The door is not closed cor-rectly.	Refer to "Closing the door".
	The food products' tempera-ture is too high.	Let the food products tem-perature decrease to room temperature before storage.
	Many food products are stored at the same time.	Store less food products at the same time.
	The door has been opened often.	Open the door only if neces-sary.

8.2 Replacing the lamp

Disconnect the plug from the mains socket.

1. Remove the screw from the lamp cover.
2. Remove the lamp cover (refer to the illustration).

Illustration of a hand using a screwdriver to adjust a component (no text or symbols present)

1. Replace the used lamp with a new lamp of the same power and

9. INSTALLATION

WARNING!

Refer to Safety chapters.

9.1 Positioning

This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate Ambient temperature class

SN +10°C to + 32°C

N +16°C to + 32°C

ST +16°C to + 38°C

T +16°C to + 43°C

specifically designed for household appliances (the maximum power is shown on the lamp cover).

1. Install the lamp cover.
2. Tighten the screw to the lamp cover.
3. Connect the plug to the mains socket.
4. Open the door.
   Make sure that the light comes on.

8.3 Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Service Centre

9.2 Rear spacers

In the bag with the documentation, there are two spacers which must be fitted as shown in the figure.

1. Fit the spacers into the holes. Make sure that the arrow (A) is positioned as shown in the picture.

1 2 45° A 2 45°

1. Turn counter-clockwise the spacers through 45^ until they lock into place.

9.3 Levelling

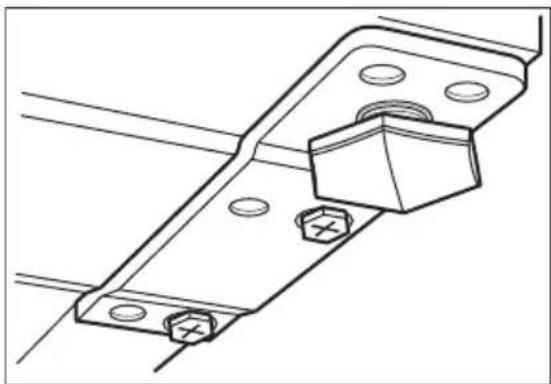

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front.

Technical line drawing of a metal bracket with bolts and a hexagonal nut (no text or symbols)

9.4 Location

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more

adjustable feet at the base of the cabinet.

100 mm 15 mm 15 mm

9.5 Door reversibility

WARNING!

Before carrying out any operations, remove the plug from the power socket.

CAUTION!

To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

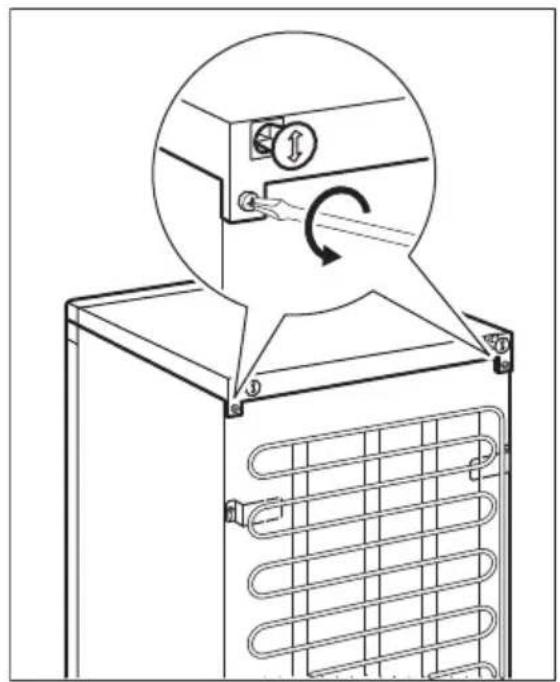

1. Unscrew both screws on the rear side.

Line drawing of a refrigerator interior showing a door, cooling rack, and ventilation slots (no text or symbols)

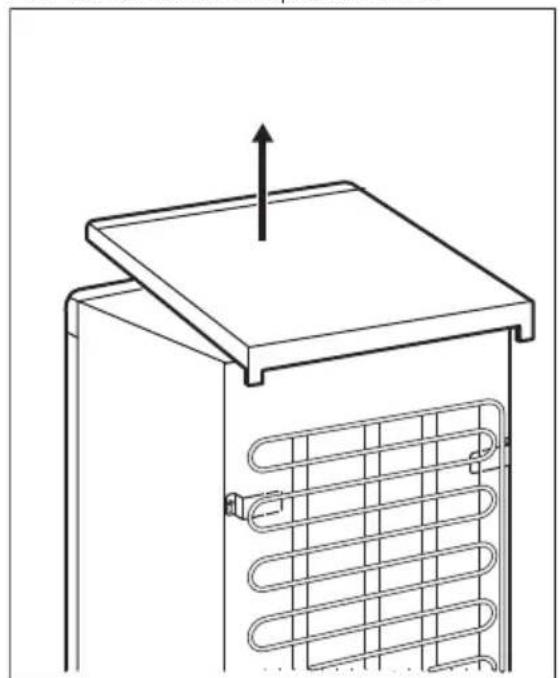

1. Push back the top and lift it.

Technical diagram showing mechanical assembly with bolted components and close-up insets of mounting brackets

1. Unscrew and install the screw on the opposite side.
2. Install the hinge on the opposite side.
3. Screw the right foot.

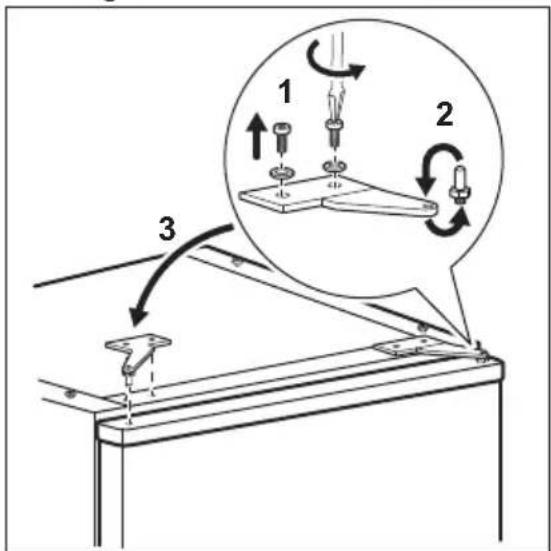

4. Unscrew the screws of the door top hinge.

Line drawing of a mechanical or electrical component with a top panel and internal cooling element (no text or symbols)

1. Unscrew the left foot.
2. Unscrew the screws of the door bottom hinge. Remove the hinge. Put over the pin in the direction of the arrow.

Technical diagram showing a mechanical assembly with three labeled components and directional arrows indicating motion or assembly steps.

1. Remove the hinge. Put over the pin in the direction of the arrow. Install the hinge on the opposite side.

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process of turning a tool (no text or symbols present)

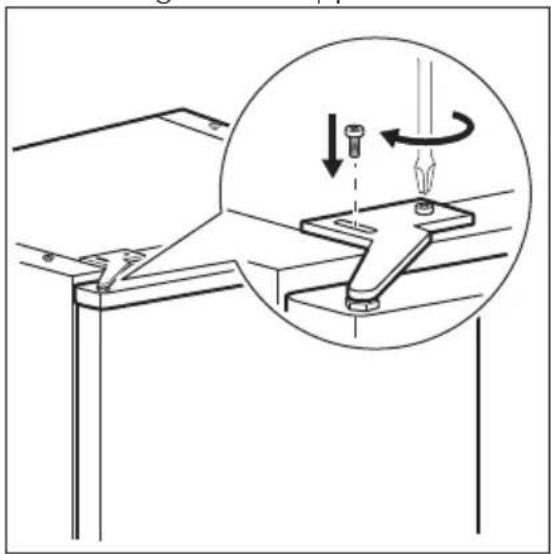

1. Tighten the hinge.

2. Put the top in position.

3. Push front the top.
4. Screw both screws on the rear side.

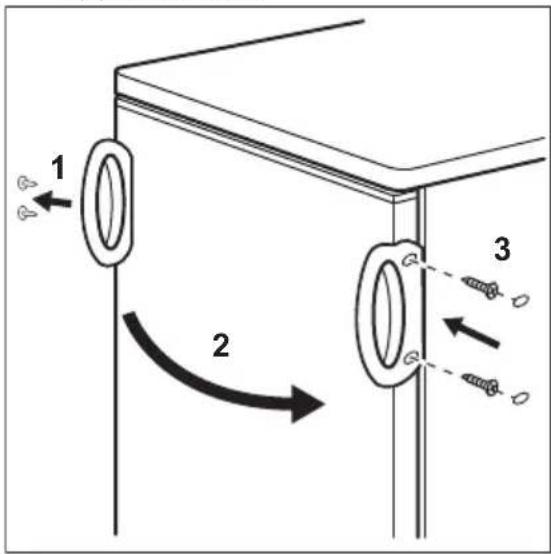

5. Remove and install the handle on the opposite side.

1 2 3

WARNING!

Reposition, level the appliance, wait for at least four hours and then connect it to the power socket.

Do a final check to make sure that:

• All screws are tightened.
  • The magnetic seal adheres to the cabinet.
  • The door opens and closes correctly.
  If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket. In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force. The After Sales Service specialist will carry out the reversibility of the doors at your cost.

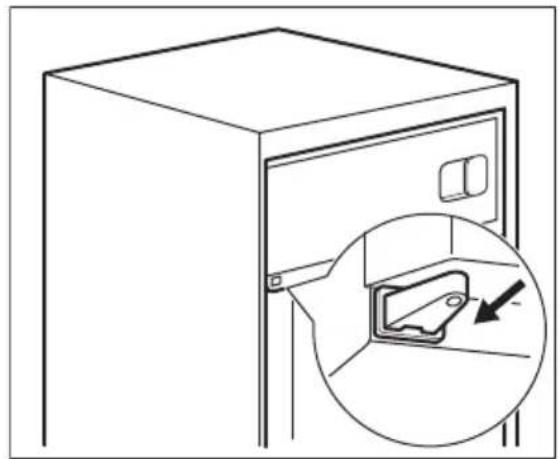

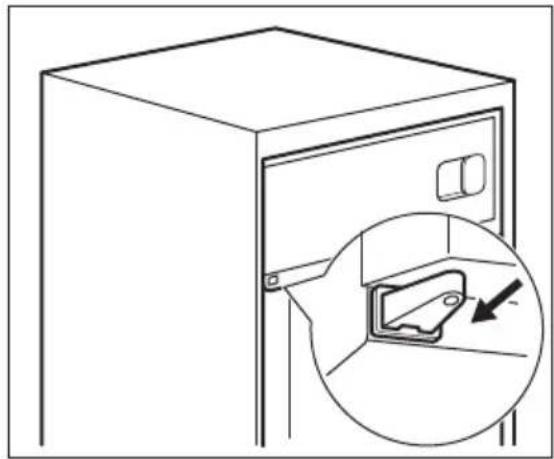

9.6 Reversibility of the freezer door

Diagram of a server unit with an inset showing a mechanical clamp or bracket mechanism (no text or symbols present)

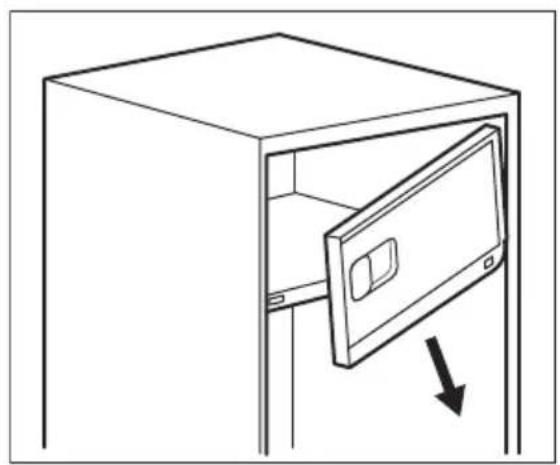

Line drawing of a cabinet with an open door and a downward arrow indicating a cut or direction (no text or symbols)

Diagram of a cabinet with two views showing internal components and directional arrows (no text or symbols)

180°

Line drawing of a refrigerator with an inset showing a close-up of the door (no text or symbols)

9.7 Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
  • The manufacturer declines all responsibility if the above safety precautions are not observed.
  • This appliance complies with the E.E.C. Directives.

10. TECHNICAL INFORMATION

10.1 Technical data

Height mm 850

Width mm 550

Depth mm 612

Rising time Hours 11

Voltage Volts 230-240

Frequency Hz 50

The technical information are situated in the rating plate on the external right side of the appliance and in the energy label.

11. ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. CONSIGNES DE SÉCURITÉ....34
2. INSTRUCTIONS DE SÉCURITÉ....35
3. FONCTIONNEMENT....37
4. PREMIÈRE UTILISATION.... 38
5. UTILISATION QUOTIDIENNE....38
6. CONSEILS....39
7. ENTRETIEN ET NETTOYAGE....41
8. EN CAS D'ANOMALIE DE FONCTIONNEMENT....42
9. INSTALLATION....44
10. CARACTÉRISTIQUES TECHNIQUES.... 48

POUR DES RÉSULTATS PARFAITS

Technical line drawing of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols present)

Technical line drawing of a metal bracket with bolts and a hexagonal nut (no text or symbols)

9.4 Emplacement

Line drawing of a refrigerator interior showing a door, vent, and scroll (no text or symbols)

Line drawing of a mechanical device with a top platform and internal cooling panel (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and magnified insets illustrating assembly steps.

Technical diagram showing a mechanical assembly with three labeled components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process (no text or symbols present)

Diagram of a server unit with a close-up inset showing mechanical components (no text or symbols)

180°

Line drawing of a cabinet with an open door and a downward arrow indicating a cut or direction (no text or symbols)

Line drawing of a server cabinet with an inset showing a close-up of the door handle (no text or symbols)

Diagram showing two views of a cabinet with labeled components and directional arrows indicating movement or assembly.

Technical line drawing of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Illustration of a hand using a screwdriver to adjust a screwdriver on a metal bracket (no text or symbols)

Technical line drawing of a metal bracket with bolts and a cube attachment (no text or symbols)

9.4 Aufstellungsort

Diagram of a refrigerator interior showing a door, ventilation grille, and scroll wheel (no text or symbols)

Line drawing of a mechanical device with a top platform and internal cooling panel (no text or symbols)

Technical diagram showing mechanical assembly with bolted joints and close-up insets of components

Technical diagram showing a mechanical assembly with three labeled components and directional arrows indicating motion or movement.

Technical diagram showing a mechanical assembly with a magnified inset illustrating the process of turning a tool (no text or symbols present)

Diagram of a server rack with an inset showing a mechanical clamp or bracket mechanism (no text or symbols present)

Line drawing of a cabinet with an open door and a downward arrow indicating a cut or direction (no text or symbols)

Diagram of a cabinet with two views showing internal components and directional arrows (no text or symbols)

180°

Line drawing of a server cabinet with an inset showing a close-up of the door (no text or symbols)
