USER MANUAL FSK52610Z AEG

Simple line drawing of a kitchen appliance with three circular buttons and a handle (no text or symbols)

INHOUDSOPGAVE

1. VEILIGHEIDSINFORMATIE....3
2. VEILIGHEIDSVOORSCHRIFTEN....4
3. PRODUCTBESCHRIJVING....6
4. BEDIENINGSPANEEL....7
5. PROGRAMMA'S....7
6. INSTELLINGEN....9
7. OPTIES....12
8. VOOR HET EERSTE GEBRUIK....13
9. DAGELIJKS GEBRUIK....14
10. AANWIJZINGEN EN TIPS.... 16
11. ONDERHOUD EN REINIGING....17
12. PROBLEEMOPLOSSING....19
13. PRODUCTINFORMATIEBLAD....23
14. EXTRA TECHNISCHE INFORMATIE....24

VOOR PERFECTE RESULTATEN

www.aeg.com/webselfservice

Safety warning symbols and diagram showing warning triangle, lightning bolt, and pipe valve with corresponding icons

WAARSCHUWING!

3. PRODUCTBESCHRIJVING

Technical diagram of a washing machine with numbered components and internal structure annotations

Technical line drawing of a mechanical assembly with layered components and a curved component (no text or symbols)

Line drawing of a hand cleaning a wall with a bucket and pipe (no text or symbols)

Diagram of a mechanical component with internal gears and a curved housing (no text or symbols)

Diagram of a hand pressing down on a circular mechanical component with an upward arrow (no text or symbols)

Illustration of a hand using a circular tool to move a curved mechanical component (no text or symbols visible)

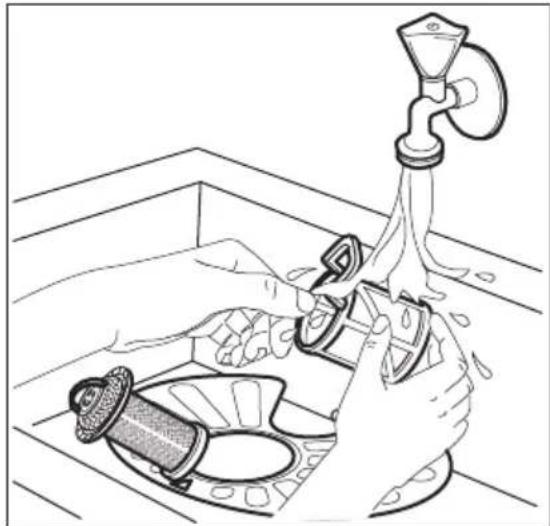

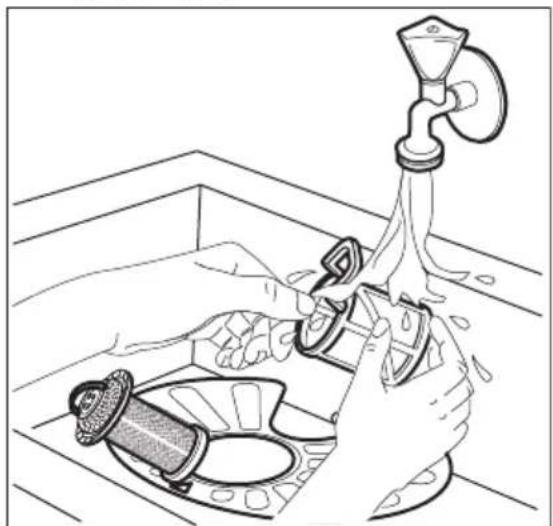

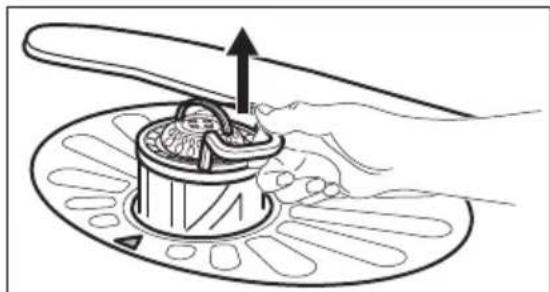

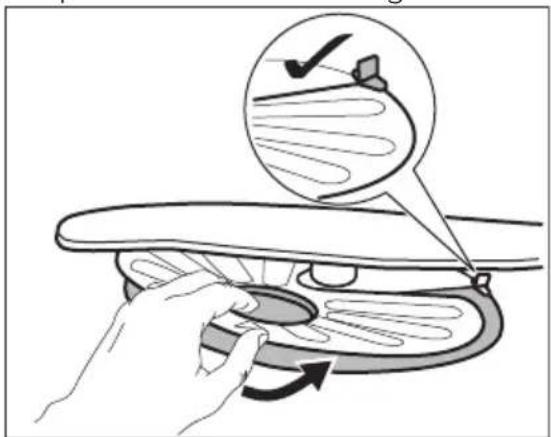

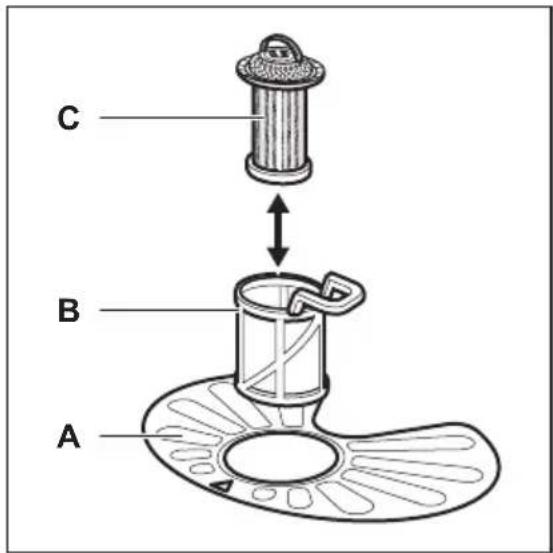

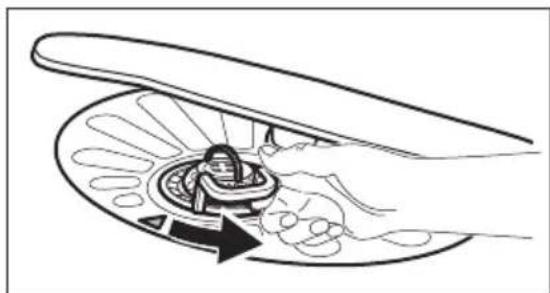

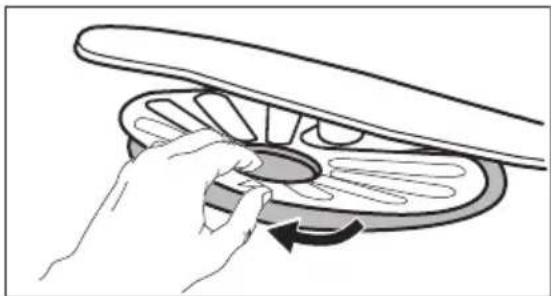

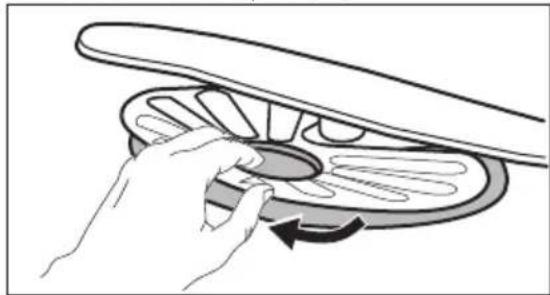

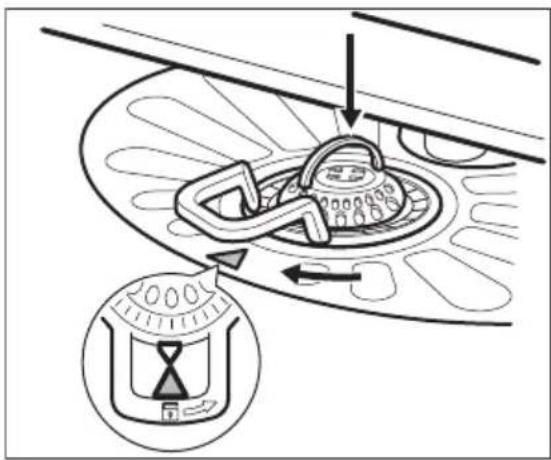

1. Was de filters.

Line drawing of hands washing a kitchen sink with a faucet and cleaning device (no text or symbols)

Illustration of a hand using a tool to interact with a device, showing motion arrows and a magnified view of internal flow (no text or symbols)

Diagram illustrating a mechanical or electrical component with directional arrows and a magnified view of the component.

LET OP!

12. PROBLEEMOPLOSSING

1. SAFETY INFORMATION......25
2. SAFETY INSTRUCTIONS....27
3. PRODUCT DESCRIPTION....29
4. CONTROL PANEL 30
5. PROGRAMMES....30
6. SETTINGS....32
7. OPTIONS....34
8. BEFORE FIRST USE 35
9. DAILY USE....37
10. HINTS AND TIPS 38
11. CARE AND CLEANING.... 40
12. TROUBLESHOOTING....41
13. PRODUCT INFORMATION SHEET 45
14. ADDITIONAL TECHNICAL INFORMATION......45

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler - features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
  • Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
  • Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is intended to be used in household and similar applications such as:

-farm houses; staff kitchen areas in shops, offices and other working environments;
-by clients in hotels, motels, bed & breakfast and other residential type environments.

- Do not change the specification of this appliance.

- The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (MPa)

- Follow the maximum number of 13 place settings.

• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• Put the cutlery in the cutlery basket with the sharp ends pointing down or put them in the cutlery drawer in a horizontal position with the sharp edges down.
• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not use the appliance before installing it in the built-in structure due to safety manner.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not install or use the appliance where the temperature is less than 0 °C.
  • Install the appliance in a safe and suitable place that meets installation requirements.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
- Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse (UK and Ireland only).

2.3 Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.

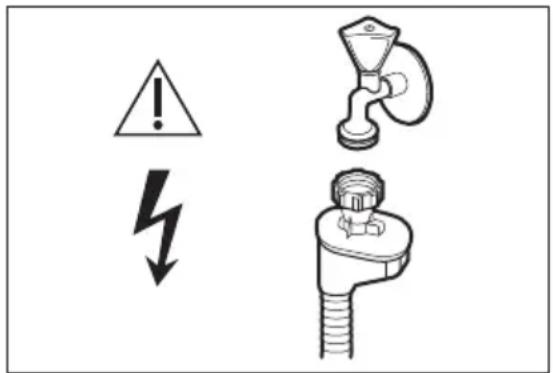

• The water inlet hose has a safety valve and a sheath with an inner mains cable.

Safety warning symbols including warning triangle, lightning bolt, and pipe fittings with Chinese labels

WARNING!

Dangerous voltage.

- If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the

mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

2.4 Use

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Dishwasher detergents are dangerous. Follow the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes.
• Do not sit or stand on the open door of the appliance.
• The appliance can release hot steam if you open the door while a programme operates.

2.5 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

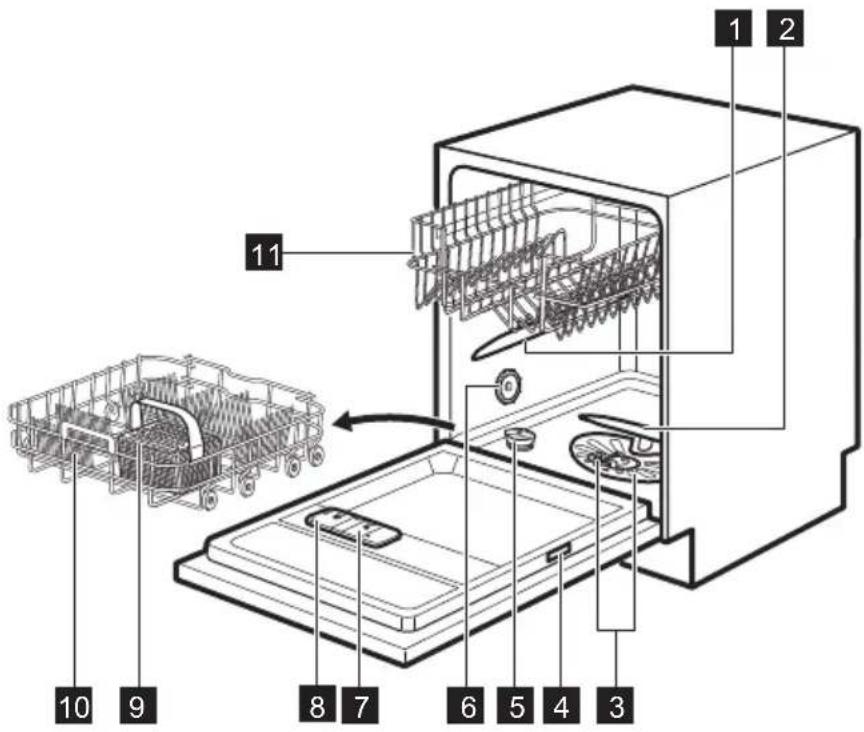

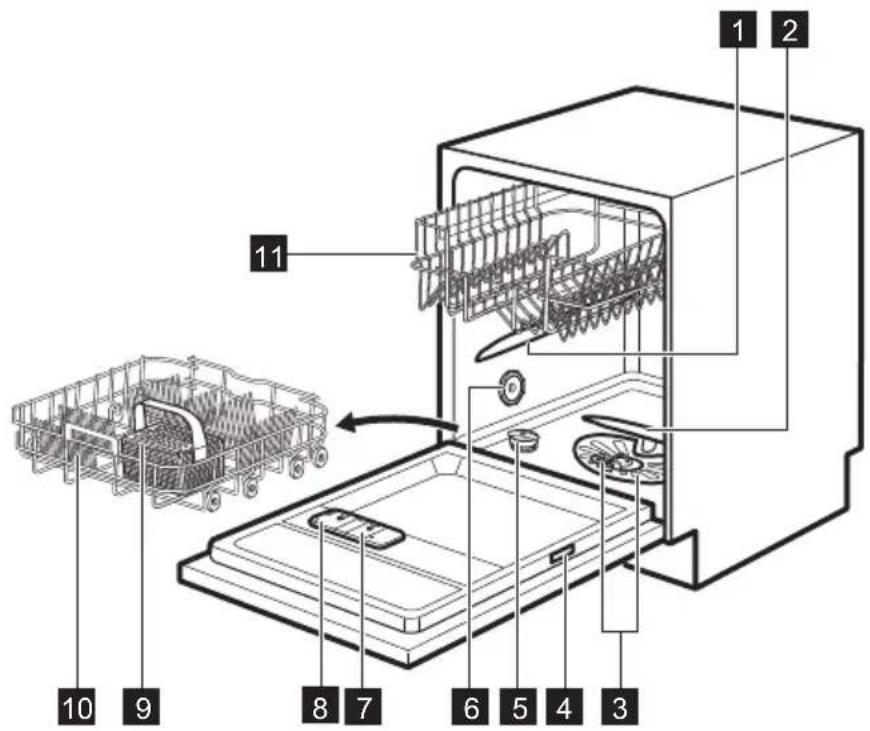

3. PRODUCT DESCRIPTION

Technical diagram of a washing machine with numbered components and internal structure annotations

1 Upper spray arm
2 Lower spray arm
3 Filters
4 Rating plate
5 Salt container
6 Air vent

7 Rinse aid dispenser
8 Detergent dispenser
9 Cutlery basket
10 Lower basket
11 Upper basket

3.1 Beam-on-Floor

The Beam-on-Floor is a light that is displayed on the floor below the appliance door.

• When the programme starts, a red light comes on and stays on for the duration of the programme.
• When the programme is completed, a green light comes on.
• When the appliance has a malfunction, the red light flashes.

The Beam-on-Floor is off when the appliance is deactivated.

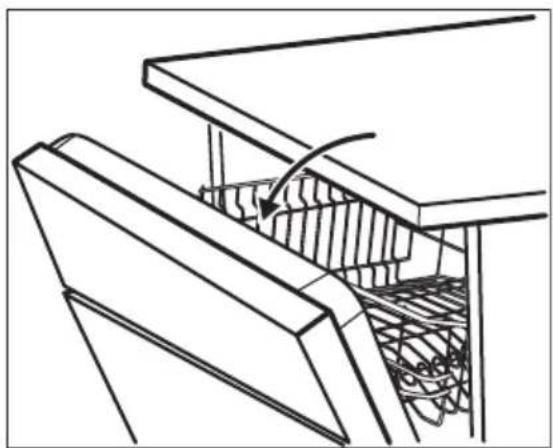

When AirDry is activated during the drying phase, the projection on the floor may not be completely visible. To see if the cycle has ended, check the control panel.

4. CONTROL PANEL

1 Auto Off

1 On/off button
2 Display
3 Delay button
4 Programme button (up)
5 Programme button (down)

6 TimeSaver button
7 XtraDry button
8 RESET button
9 Indicators

4.1 Indicators

Indicator Description
	Rinse aid indicator. It is always off while the programme operates.
	Salt indicator. It is always off while the programme operates.

5. PROGRAMMES

The numbering of the programmes in the table (P1, P2, etc.) reflects their sequence on the control panel.

The order of the programmes in the table may not reflect their sequence on the control panel.

1) This programme offers the most efficient use of water and energy consumption for crockery and cutlery with normal soil. This is the standard programme for test institutes.
2) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and the quantity of water, the energy consumption and the programme duration.
3) With this programme, you can wash a load with fresh soil. It gives good washing results in a short time.

Programme Degree of soilType of load		Programme phases Options
P1ECO 1)	Normal soilCrockery and cutlery	PrewashWash 50 °CRinsesDry	TimeSaverXtraDry
P2AUTO SENSE 2)	AllCrockery, cutlery, pots and pans	PrewashWash from 45 °C to 70 °CRinsesDry	XtraDry
P3 • Heavy soil		PrewashWash 70 °CRinsesDry	TimeSaverXtraDry
P430MIN 3)	Fresh soilCrockery and cutlery	Wash 60 °C or 65 °CRinses	XtraDry
P5 • Normal or light	soilDelicate crockery and glass-ware	Wash 45 °CRinsesDry	XtraDry

5.1 Consumption values

Programme 1)	Water (l)	Energy (kWh)	Duration (min)
P1 9.9 0.920 237ECO
P2 6 - 12 0.6 - 1.5 44 - 160AUTO SENSE
P3 14 - 15 1.5 - 1.7 155 - 171
P4 10 0.8 3030MIN
P5 13 - 14 1.0 - 1.1 75 - 85Y

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

5.2 Information for test institutes

To receive the necessary information for conducting performance tests (e.g. according to EN60436), send an email to:

[e-mail]

In your request please include the product number code (PNC) found on the rating plate.

For any other questions regarding your dishwasher please refer to the service book provided with your appliance.

6. SETTINGS

6.1 Programme selection mode and user mode

When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according to the water hardness.
• Activation or deactivation of the acoustic signal for the end of a programme.
• Activation or deactivation of the rinse aid empty notification.
• Activation or deactivation of AirDry.

As the appliance stores the saved settings, there is no need to configure it before every cycle.

How to set the programme selection mode

The appliance is in programme selection mode when the display shows the programme number P1.

After activation, the appliance is in programme selection mode by default. If not, set the programme selection mode the following way:

Press and hold RESET until the appliance is in programme selection mode.

How to enter user mode

Make sure the appliance is in programme selection mode.

Water hardness

German degrees (°dH)	French degrees (°fH)	mmol / I Clarke de-grees	Water softener lev-el
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

To enter user mode, press and hold simultaneously and until the indicators , and flash and the display is blank.

6.2 The water softener

The water softener removes minerals from the water supply, which would have a negative effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Softening hard water increases the consumption of water and energy as well as the programme duration. The higher the level of water softener, the higher the consumption and the longer the duration.

German degrees (°dH)	French degrees (°fH)	mmol / l Clarke de-grees	Water softener lev-el
19 - 22 33 - 39	3.3 - 3.9 23 - 27		5 1)
15 - 18 26 - 32	2.6 - 3.2 18 - 22 4
11 - 14 19 - 25	1.9 - 2.5 13 - 17 3
4 - 10 7 - 18	0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5			1 2)

1) Factory setting.
2) Do not use salt at this level.

Regardless of the type of detergent used, set the proper water hardness level to keep the salt refill indicator active.

Multi-tabs containing salt are not effective enough to soften hard water.

How to set the water softener level

Make sure the appliance is in user mode.

1. Press

• The indicators are off.
• The indicator ⏻ still flashes.
- The display shows the current setting: e.g. 5=4 Level 5.

1. Press repeatedly to change the setting.

2. Press the on/off button to confirm the setting.

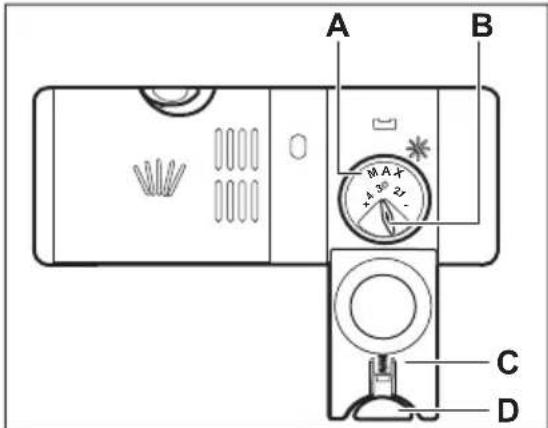

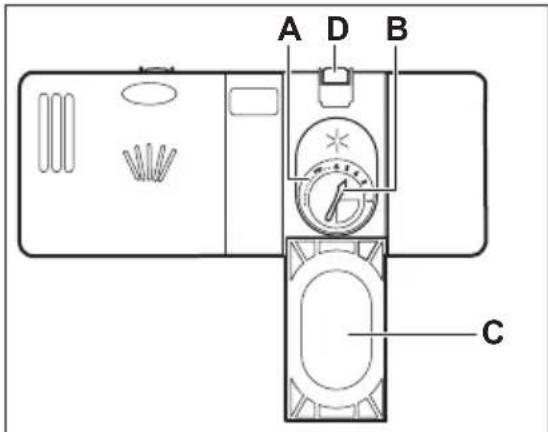

6.3 The rinse aid empty notification

The rinse aid helps to dry the dishes without streaks and stains.

The rinse aid is automatically released during the hot rinse phase.

When rinse aid chamber is empty, the rinse aid indicator is turned on notifying to refill rinse aid. If the drying results are satisfactory while using multi-tablets only, it is possible to deactivate the

notification for refilling rinse aid. However, for best drying performance, always use rinse aid.

If standard detergent or multi-tablets without rinse aid are used, activate the notification to keep the rinse aid refill indicator active.

How to deactivate the rinse aid empty notification

Make sure the appliance is in user mode.

1. Press ∧.

• The indicators, and are off.
• The indicator ∧ still flashes.
• The display shows the current setting:
Id = the rinse aid empty notification is activated (factory setting).

1. Press ∧ to change the setting.

Od = the rinse aid empty notification is deactivated.

1. Press on/off to confirm the setting.

6.4 Acoustic signals

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals.

There is also an acoustic signal that sounds when the programme is completed. By default this acoustic

signal is deactivated but it is possible to activate it.

How to activate the acoustic signal for the end of programme

Make sure the appliance is in user mode.

1. Press .V

• The indicators 🙏, and are off.

• The indicator still flashes.

• The display shows the current setting:

- = Acoustic signal off. - 1b = Acoustic signal on.

1. Press ∨ to change the setting.

2. Press on/off to confirm the setting.

6.5 AirDry

AirDry improves the drying results with less energy consumption.

Technical line drawing of a mechanical assembly with internal components and a curved arrow indicating motion (no text or symbols)

7. OPTIONS

i

Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running.

i

During the drying phase, the door opens automatically and remains ajar.

!

CAUTION!

Do not try to close the appliance door within 2 minutes after automatic opening. This can cause damage to the appliance.

AirDry is automatically activated with all programmes excluding (if applicable).

To improve the drying performance refer to the XtraDry option or activate AirDry.

!

CAUTION!

If children have access to the appliance, it is advised to deactivate AirDry as opening the door may pose a danger.

How to deactivate AirDry

Make sure the appliance is in user mode.

1. Press .

• The indicators, and are off.

• The indicator 📋 still flashes.

- The display shows the current setting: AirDry activated.

1. Press to change the setting: = AirDry deactivated.

1. Press on/off to confirm the setting.

i

Not all options are compatible with each other. If you select non compatible options, the appliance automatically deactivates one or more of them. Only the indicators of the still active options are on.

If an option is not applicable to a programme, the related indicator is off or it flashes quickly for a few seconds and then goes out.

Activating options can affect the water and energy consumption as well as the programme duration.

7.1 XtraDry

Activate this option to boost the drying performance. With XtraDry on, the duration of some programmes, water consumption and the last rinse temperature can be affected.

XtraDry is a permanent option for all programmes other than ECO need not to be selected at every cycle.

In the other programmes the setting of XtraDry is permanent and it is automatically used in next cycles. This configuration can be changed at any time.

Every time is ECO activated, XtraDry is off and needs to be chosen manually.

8. BEFORE FIRST USE

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not put dishes in the baskets.

After starting the programme, the appliance recharges the resin in the water softener for up to 5 minutes. The washing phase starts only after this procedure is complete. The procedure is repeated periodically.

Activating XtraDry deactivates TimeSaver and vice versa.

How to activate XtraDry

Press +++

The related indicator is on.

The display shows the updated programme duration.

7.2 TimeSaver

This option increases the pressure and the temperature of the water. The washing and the drying phases are shorter.

The total programme duration decreases by approximately 50%.

The washing results are the same as with the normal programme duration. The drying results can decrease.

How to activate TimeSaver

Press: The related indicator is on. The display shows the updated programme duration.

8.1 The salt container

CAUTION!

Use rough salt designed for dishwashers only. Fine salt increases the risk of corrosion.

The salt is used to recharge the resin in the water softener and to assure good washing results in daily use.

How to fill the salt container

1. Turn the cap of the salt container counterclockwise and remove it.

2. Put 1 litre of water in the salt container (only for the first time).

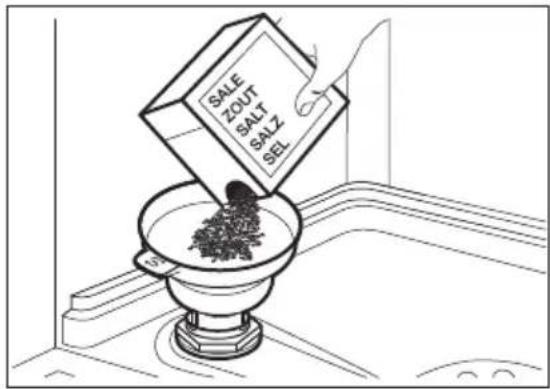

3. Fill the salt container with 1 kg of salt (until it is full).

SALE ZOUT SALT SALZ SEL

1. Carefully shake the funnel by its handle to get the last granules inside.

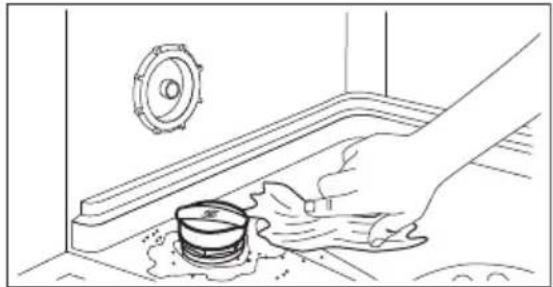

2. Remove the salt around the opening of the salt container.

Line drawing of a hand cleaning a floor drain with a pipe and bucket (no text or symbols)

1. Turn the cap of the salt container clockwise to close the salt container.

CAUTION!

Water and salt can come out of the salt container when you fill it. After you fill the salt container, immediately start a programme to prevent corrosion.

8.2 How to fill the rinse aid dispenser

A D B C

A B MAX 4 30 21 - C D

CAUTION!

Only use rinse aid specifically designed for dishwashers.

1. Press the release button (D) to open the lid (C).
2. Pour the rinse aid in the dispenser (A) until the liquid reaches the fill level 'max'.
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.
4. Close the lid. Make sure that the release button locks into position.

You can turn the selector of the released quantity (B) between position 1 (lowest quantity) and position 4 or 6 (highest quantity).

9. DAILY USE

1. Open the water tap.
2. Press the on/off button to activate the appliance.

Make sure that the appliance is in programme selection mode.

• If the salt indicator is on, fill the salt container.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

• Load the baskets.

• Add the detergent.
• Set and start the correct programme for the type of load and the degree of soil.

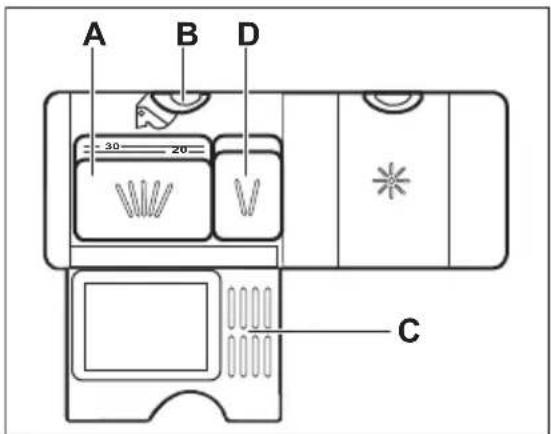

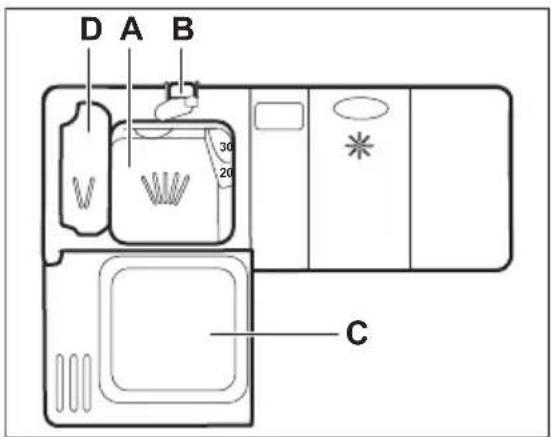

9.1 Using the detergent

D A B 30 20 C

A B D 30 20 C

1. Press the release button (B) to open the lid (C).
2. Put the detergent, in powder or tablets, in the compartment (A).
3. If the programme has a prewash phase, put a small quantity of detergent in the compartment (D).
4. Close the lid. Make sure that the release button locks into position.

9.2 Setting and starting a programme

The Auto Off function

This function decreases energy consumption by deactivating automatically the appliance when it is not operating.

The function comes into operation:

• 5 minutes after the completion of the programme.
  • After 5 minutes if the programme has not started.

Starting a programme

1. Keep the appliance door ajar.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.
3. Press repeatedly or until the display shows the number of the chosen programme. The display shows the programme number for approximately 3 seconds and then shows the programme duration.
4. Set the applicable options.
5. Close the appliance door to start the programme.

Starting a programme with delay start

1. Set a programme.
2. Press again and again until the display shows the delay time you want to set (from 1 to 24 hours).

The delay indicator comes on.

1. Close the appliance door to start the countdown.

While a countdown is running it is possible to increase the delay time but not to change the selection of the programme and options.

When the countdown is completed, the programme starts.

Opening the door while the appliance operates

Opening the door while a programme is running stops the appliance. It may affect the energy consumption and the programme duration. After closing the door, the appliance continues from the point of interruption.

If the door is opened for more than 30 seconds during the drying phase, the running programme ends. It does not happen if the door is opened by AirDry function.

Do not try to close the appliance door within 2 minutes after AirDry automatically opens it, as this may cause damage to the appliance. If, afterwards, the door is closed for another 3 minutes, the running programme ends.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

10. HINTS AND TIPS

10.1 General

Follow the hints below to ensure optimal cleaning and drying results in daily use and to help you protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, select a programme with a prewash phase.
  • Always use the whole space of the baskets.
• Make sure that items in the baskets do not touch or cover each other. Only then can the water completely reach and wash the dishes.

Press and hold RESET until the appliance is in programme selection mode.

Cancelling the programme

Press and hold RESET until the appliance is in programme selection mode.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of the programme

When the programme is completed the display shows 0:00.

All buttons are inactive except for the on/off button.

1. Press the on/off button or wait for the Auto Off function to automatically deactivate the appliance.
   If you open the door before the activation of Auto Off, the appliance is automatically deactivated.

2. Close the water tap.

3. You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "All in 1"). Follow the instructions on the packaging.

4. Select a programme according to the type of load and the degree of soil.
   ECO offers the most efficient use of water and energy consumption.

10.2 Using salt, rinse aid and detergent

- Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results.
• At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

10.3 What to do if you want to stop using multi-tablets

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.
2. Make sure that the salt and rinse aid containers are full.
3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.
4. When the programme is completed, adjust the water softener according to the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid empty notification.

10.4 Loading the baskets

• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
• Make sure that glasses do not touch other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.
• Make sure that the spray arm can move freely before you start a programme.

10.5 Before starting a programme

Before you start the selected programme, make sure that:

• The filters are clean and correctly installed.
  • The cap of the salt container is tight.
  • The spray arms are not clogged.
• There is enough salt and rinse aid (unless you use multi-tablets).
• The arrangement of the items in the baskets is correct.
• The programme is suitable to the type of load and the degree of soil.
• The correct quantity of detergent is used.

10.6 Unloading the baskets

1. Let the tableware cool down before you remove it from the appliance. Hot items can be easily damaged.
2. First remove items from the lower basket, then from the upper basket.

After the programme is completed, water can still remain on the inside surfaces of the appliance.

11. CARE AND CLEANING

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

11.1 Cleaning the filters

The filter system is made of 3 parts.

C B A

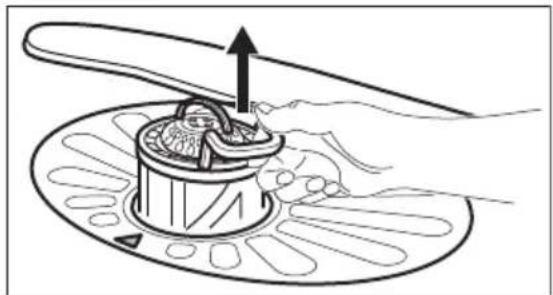

1. Turn the filter (B) counterclockwise and remove it.

Diagram of a hand holding a mechanical component with a curved blade and internal gear (no text or symbols)

Diagram of a hand pressing down on a circular mechanical component with an upward arrow (no text or symbols)

1. Remove the filter (C) out of filter (B).

2. Remove the flat filter (A).

Illustration of a hand holding a circular component with a curved arrow indicating rotation (no text or symbols)

1. Wash the filters.

Line drawing of hands washing a kitchen sink with a faucet and cleaning machine (no text or symbols)

1. Make sure that there are no residues of food or soil in or around the edge of the sump.

2. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

Illustration of a hand pressing down on a curved surface with a magnified inset showing a checkmark (no text or symbols)

1. Reassemble the filters (B) and (C).

2. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks.

Diagram illustrating a mechanical or electrical component with directional arrows and a magnified view of its internal structure.

CAUTION!

An incorrect position of the filters can cause bad washing results and damage to the appliance.

11.2 Cleaning the spray arms

Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

12. TROUBLESHOOTING

If the appliance does not start or it stops during operation, first check if you can solve the problem by yourself with the help of the information in the table or contact an Authorised Service Centre.

WARNING!

Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel.

11.3 External cleaning

• Clean the appliance with a moist soft cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive cleaning pads or solvents.

11.4 Internal cleaning

• Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.
• If you regularly use short duration programmes, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend to run long duration programmes at least 2 times per month.
  • To maintain the performance of your appliance at its best, we recommend to use monthly a specific cleaning product for dishwashers. Follow carefully the instructions on the packaging of the product.

With some problems, the display shows an alarm code.

The majority of problems that can occur can be solved without the need to contact an Authorised Service Centre.

Problem and alarm code Possible cause and solution

You cannot activate the appliance.

• Make sure that the mains plug is connected to the mains socket.
• Make sure that there is no damaged fuse in the fuse box.

Problem and alarm code Possible cause and solution
The program does not start.	Make sure that the appliance door is closed.If the delay start is set, cancel the setting or wait for the end of the countdown.The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.The display shows ,10 ,11 .	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter in the inlet hose is not clogged.Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water.The display shows ,20	Make sure that the sink spigot is not clogged.Make sure that the filter in the outlet hose is not clogged.Make sure that the interior filter system is not clogged.Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.The display shows ,30	Close the water tap and contact an Authorised Service Centre.
The appliance stops and starts more times during operation.	It is normal. It provides optimal cleaning results and energy savings.
The program lasts too long.	Select the TimeSaver option to shorten the program time.If the delayed start option is set, cancel the delay setting or wait for the end of the countdown.
The remaining time in the display increases and skips nearly to the end of program time.	This is not a defect. The appliance is working correctly.
Small leak from the appli-ance door.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).The appliance door is not centred on the tub. Adjust the rear foot (if applicable).
The appliance door is difficult to close.	The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds from inside the appliance.	The tableware is not properly arranged in the baskets.Refer to basket loading leaflet.Make sure that the spray arms can rotate freely.

Problem and alarm code Possible cause and solution

The appliance trips the circuit-beaker.

- The amperage is insufficient to supply simultaneously all the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use.

- Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes.

the problem occurs again, contact an Authorised Service Centre.

For alarm codes not described in the table, contact an Authorised Service Centre.

Once you have checked the appliance, deactivate and activate the appliance. If

12.1 The washing and drying results are not satisfactory

Problem Possible cause and solution
Poor washing results.	Refer to "Daily use", "Hints and tips" and basket loading leaflet.Use more intensive washing programmes.Clean spray arm jets and filter. Refer to "Care and Cleaning".
Poor drying results. • Tableware has been left for too long inside a closed appliance.There is no rinse aid or the dosage of rinse aid is not enough. Set the rinse aid dispenser to a higher level.Plastic items may need to be towel dried.For the best drying performance activate the option XtraDry and set AirDry.We recommend to always use rinse aid, even in combination with multi-tablets.
There are whitish streaks or bluish layers on glasses and dishes.	The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level.The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.The quality of the rinse aid can be the cause.
The dishes are wet. • For the best drying performance activate the option XtraDry and set AirDry .• The programme does not have a drying phase or has a drying phase with low temperature.• The rinse aid dispenser is empty.• The quality of the rinse aid can be the cause.• The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.
The interior of the appliance is wet.	• This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls.
Unusual foam during washing.	• Use the detergent for dishwashers only.• There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre.
Traces of rust on cutlery. • There is too much salt in the water used for washing.Refer to "The water softener".• Silver and stainless steel cutlery were placed together.Avoid to put silver and stainless steel items close together.
There are residues of deter-gent in the dispenser at the end of the programme.	• The detergent tablet got stuck in the dispenser and therefore was not completely washed away by water.• Water cannot wash away the detergent from the dis-penser. Make sure that the spray arm is not blocked or clogged.• Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening.
Odours inside the appliance. • Refer to "Internal cleaning".
Limescale deposits on the tableware, on the tub and on the inside of the door.	• The level of salt is low, check the refill indicator.• The cap of the salt container is loose.• Your tap water is hard. Refer to "The water softener".• Even using multi-functional tabs use salt and set re-generation of the water softener. Refer to "The water softener".• If lime scale deposits still remain, clean the appliance with appliance cleaners which are particularly suitable for this purpose.• Try different detergent.• Contact the detergent manufacturer.
Dull, discoloured or chipped tableware.	• Make sure that only dishwasher-safe items are washed in the appliance.• Load and unload the basket carefully. Refer to basket loading leaflet.• Place delicate items in the upper basket.

Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes.

1. PRODUCT INFORMATION SHEET

Trade Mark AEG
Model FSK52610Z 911536351
Rated capacity (standard place settings) 13
Energy efficiency class A++
Energy consumption in kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. The actual energy consumption will depend on how the appliance is used.	262
Energy consumption of standard cleaning cycle (kWh) 0.920
Power consumption in off mode (W) 0.50
Power consumption in left-on mode (W) 5.0
Water consumption in litres per year, based on 280 standard cleaning cycles. The actual water consumption will depend on how the appliance is used	2775
Drying efficiency class on a scale from G (least efficient) to A (most efficient)	A
The 'standard programme' is the standard cleaning cycle to which the information in the label and the fiche relates. This programme is suitable to clean normally soiled tableware and is the most efficient programme in terms of combined energy and water consumption. It is indicated as "Eco" programme.	ECO
Programme time of standard cleaning cycle (min) 237
Duration of the left-on mode (min) 5
Sound power level (db(A) re 1pW) 44
Built in appliance Y/N Yes

1. ADDITIONAL TECHNICAL INFORMATION

Dimensions Width / height / depth (mm) 596 / 818 - 898 / 550
Electrical connection 1)	Voltage (V) 220 - 240
	Frequency (Hz) 50
Water supply pressure Min. / max. bar (MPa)		0.5 (0.05) / 8 (0.8)
Water supply	Cold water or hot water2)	max 60 °C

1) Refer to the rating plate for other values.
2) If the hot water comes from alternative source of energy (e.g. solar panels), use the hot water supply to decrease energy consumption.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. INFORMATIONS DE SÉCURITÉ....48
2. CONSIGNES DE SÉCURITÉ....49
3. DESCRIPTION DE L'APPAREIL....51
4. BANDEAU DE COMMANDE....52
5. PROGRAMMES....52
6. RÉGLAGES....54
7. OPTIONS....57
8. AVANT LA PREMIÈRE UTILISATION.... 58
9. UTILISATION QUOTIDIENNE....60
10. CONSEILS....61
11. ENTRETIEN ET NETTOYAGE....63
12. EN CAS D'ANOMALIE DE FONCTIONNEMENT....65
13. FICHE PRODUIT....69
14. CARACTERISTIQUES TECHNIQUES SUPPLÉMENTAIRES....69

POUR DES RÉSULTATS PARFAITS

Safety warning symbols and diagram showing warning, lightning bolt, and pipe clamp icons

AVERTISSEMENT!

Tension dangereuse.

Technical line drawing of a mechanical assembly with layered components and a curved arrow indicating motion (no text or symbols)

Line drawing of a hand cleaning a wall with a pipe and drain (no text or symbols)

Diagram of a hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

1. Retirez le filtre (C) du filtre (B).

2. Retirez le filtre plat (A).

Illustration of a hand holding a circular mechanical component with a curved arrow indicating rotation (no text or symbols)

1. Lavez les filtres.

Line drawing of hands washing a sink with a faucet and cleaning device (no text or symbols)

Illustration of a hand pressing down on a curved mechanical component with a magnified inset showing a checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical component with directional arrows and an hourlight icon, likely for timing or control.

ATTENTION!
