USER MANUAL Lumo2 BabyGO

MANUEL D'INSTRUCTIONS

Lumo2 - Kinderzitje

GEBRUIKSAANWIJZING

IMPORTANT : KEEP FOR FUTURE REFERENCE. READ CAREFULLY.

IMPORTANT : À CONSERVER POUR RÉFÉRENCE FUTURE. LIRE ATTENTIVEMENT.

BELANGRIJK: BEWAAR VOOR TOEKOMSTIGE REFERENTIE. LEES AANDACHTIG.

BabyGo Baby Products GmbH

Am Bahndamm 1-3

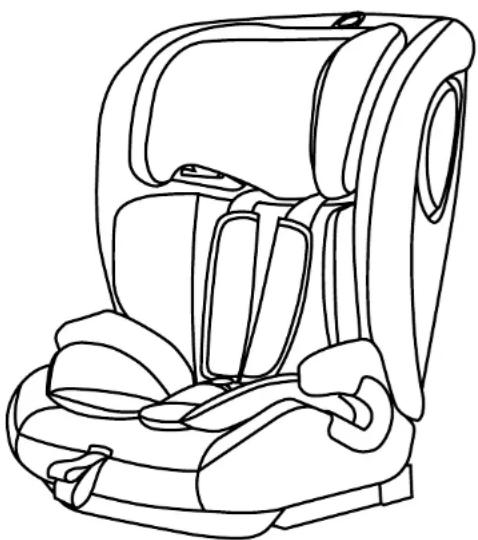

Line drawing of a car seat with various compartments and straps (no text or symbols)

LUMO 2

Seite 04 - 17

DEUTSCH

Page 18 - 31

ENGLISH

Page 32 - 45

FRANCE

Pagina 46 - 59

NEDERLANDS

babyGO

babyGO

Line drawing of a car comfort seat with four seats and buttons (no text or symbols)

Line drawing of a chair with a red arrow pointing to the side panel (no text or symbols)

Diagram of a car seat assembly with red arrows indicating specific components (no text or labels present)

Diagram of car seat components with labeled parts A through I, showing interior and exterior views

Illustration of two hands holding a small object with blue arrows indicating motion or force (no text or symbols)

1.2 CLICK

1.3

1.4 ✓ ×

2.6 ✓ × ×

LUMO 2

2.7 H

2.8

2.9 G

2.10

2.11

Top-down diagram of a car seat with blue arrows indicating directional movement (no text or symbols)

3.3 J

3.4 E A1

Illustration of a hand performing a medical or ergonomic procedure on a patient's abdomen (no text or symbols visible)

3.6 F

LUMO 2

Top-down view of a car seat with white backrest and seatbelt, no text or symbols present

76 -105 cm

Illustration of a hand pressing down on a car seat with a green pushpin, showing motion direction (no text or symbols)

Line drawing of a car seatbelt with a highlighted seat area (no text or symbols)

4.3

Illustration of a child wearing a seatbelt in a car seat, with a green checkmark indicating a safety or verification (no text or symbols on the diagram itself)

LUMO 2

5.3 ✓ ✓ ✓

Illustration of a child wearing a seatbelt and holding a green safety belt (no text or symbols)

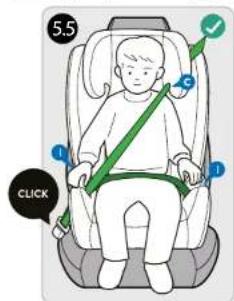

5.5 CLICK

babyGO

Line drawing of a car comfort seat assembly (no text or symbols)

EN INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the child seat.

Please read and follow all instructions before using the child seat.

WARNING! Read the Instruction carefully before use and keep them for future reference.

LUMO 2

WARNING

READ CAREFULLY AND READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

• Please read this instruction manual carefully.
• The correct installation of the child seat is crucial for your child's safety.
• For future use of the seat, it is important to keep this manual in a safe place.
• Never leave your child unattended in the car.
• Do not use a child safety seat on a vehicle seat that is equipped with a front airbag. This can be dangerous. This does not apply to so-called side airbags.

babyGO

WARNING

• Please read this instruction manual carefully before using this product. Improper use can compromise safety.
• Use the seat only on a forward-facing seat equipped with a 3-point belt according to ECE R16 or an equivalent standard.
• It is recommended to install the seat in the rear seat to enhance safety.
• The seat meets European safety standards and is suitable for children from 76-150 cm when using the 3-point belt.
• Replace the seat after an accident, as hidden damage can compromise safety.
• The safety guarantee applies only to use by the original purchaser. Avoid buying used seats, as their history is unknown.
  • Always use the provided harness pads to ensure safety.
• Secure luggage and other items in the vehicle to minimize injury risks in accidents.
• A usage end after 5 years is recommended to exclude age-related safety impairments.
• Avoid lubricating moving parts of the seat, as this can impair functionality.
• Use only original covers, as they contribute to the seat's safety.
• The seat must be secured even when not in use to prevent injuries during sudden stops.
• Avoid damage by not pinching the seat in doors, under luggage, or adjustable seats.
• Modifications to the product are prohibited and can impair safety.
• Protect the seat from strong sunlight to avoid heat-related damage.
• Do not remove the logo to prevent damage to the cover.
• Use the seat consistently, even for short trips.
• Check the compatibility of the seat with your vehicle before purchase.
• Plan breaks during long trips to allow your child to rest.
  • As a driver, set a good example by always wearing your seatbelt.

LUMO 2

• Instruct children not to use the buckle as a toy.
• Never leave your child unattended in the car seat.
• Ensure all vehicle occupants are buckled up and seatbacks are locked.
• Secure all heavy or sharp objects in the vehicle.
• Protect sensitive vehicle seat covers by using an additional mat under the child seat.
• Follow additional instructions specific to protecting the child, such as securely fastening the harness system and avoiding leaving the child on elevated surfaces or in the sun.

babyGO

CERTIFICATION

Please first read the car manual and check if the car seat is equipped with a 3-point safety belt.

WARNING! Only suitable when the approved vehicles are equipped with 3-point safety belts approved according to UN/ECE Regulation No. 16 or other equivalent standards.

ECRS facing GROUP		INSTALLATION METHOD	TYPE
Forward facing 76-105	cm 3-point safety belt	Universal
Forward facing 100-150	cm 3-point safety belt	I-Size booster seat

LUMO 2

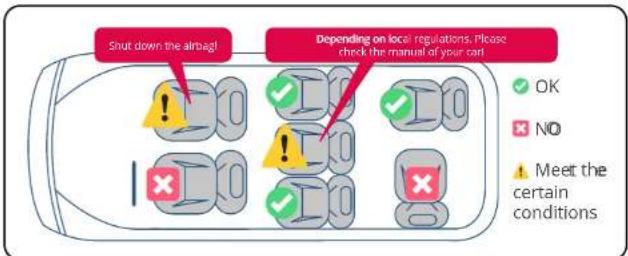

Here is the positions of installation for your reference

Forward facing
Rear facing
Two points seat belts
√ Three points seats belts
× Front passenger seat
The rear vehicle seats

WARNING! If your child is secured in the vehicle seat with only a 2 point belts, he or she could sustain serious injuries possibly resulting in death. Never use in connection with a 2 point belts.

• Do not fasten the child seat on the front passenger seat with validated airbag as it will casue death or serious injury if airbag exploded. Please always secure the child seat on the rear seats.
• Do not fasten the child seat on the rear facing or lateral vehicle seats. Please refer to the following graphic when you install your child seat

Shut down the airbag! Depending on local regulations. Please check the manual of your cart OK NO Meet the certain conditions

DO NOT place rear-facing child seat on front seat with airbag. IMPORTANT-DO NOT use forward facing before the child's age exceeds 15 months. DEATH OR SERIOUS INJURY can occur.

babyGO

MAINTENANCE

Washing Instructions

Clean the straps and plastic parts with a neutral detergent and warm water. Be careful not to let any soap get into the buckle or other metal parts. Do not use chemical products or bleach on any part of the seat. The reducer cushion, as well as the cover, can be washed, but remove the internal foam parts beforehand. The internal foam parts should not be washed under any circumstances.

The cover is removable and can be washed at 30^ C. Let it air dry. For dry cleaning, all solvents except trichloroethylene can be used. Wash in a cold cycle in the machine. Do not tumble dry. Do not bleach. Do not iron.

Note: To ensure safety, the straps and shoulder pads must not be removed and washed. If these parts are dirty, clean them by hand with warm water or a neutral detergent, and let them air dry. Alternatively, have these components replaced by customer service.

WARRANTY

The warranty applies exclusively to the original purchaser and is not transferable. It only covers products that have not been modified or altered by the user.

In the event of a defect, the product must be returned to the retailer. If the retailer is unable to resolve the issue, the product must be sent to the manufacturer along with a detailed description of the defect and a valid proof of purchase. There is no entitlement to exchange or refund. Any repairs carried out do not alter or extend the existing warranty. The manufacturer is not liable for any damages beyond those specified for the product.

No warranty is given if:

• The product is not supplied complete with the validated purchase receipt to the manufacturer.
- Defects are caused by misuse or maintenance which differ from that indicated in the instruction manual.
• Repairs are carried out by third parties.
- Defects are caused by neglect.
• Damage or removal of any serial number is found.
• If there is normal wear and tear which may be expected from everyday use.
• The stated warranty terms and conditions have not been satisfied.

LUMO 2

WASHING INSTRUCTIONS

Line drawing of a chair seat with a red arrow pointing to the side (no text or symbols)

Diagram of a car seat with red arrows indicating finger placement, showing no text or symbols

1. Adjust the headrest to the highest position.
2. Open the button for side of the child seat. Remove the child seat cover carefully from the seat body.

babyGO

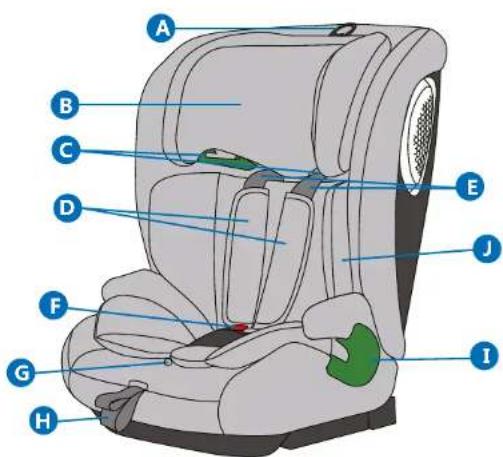

PARTS OVERVIEW

Diagram of a car comfort seat with labeled parts from A to H, highlighting seat B and seat I as highlighted.

A. Headrest height adjuster
B. Headrest
C. Shoulder belt guide (100-150 cm)
D. Shoulder belt pad
E. Harness straps
F. Harness buckle
G. Harness adjustment button

H. Harness adjustment strap

1. Lap belt guide

J. Small baby insert cushion

Small baby insert cushion is suitable

for child of 76-87cm height.

FUNCTIONS

Illustration of two hands holding a small object with blue arrows indicating motion or force (no text or symbols)

1.2 CLICK

1.3 ↓ ↑

1.4 ✓ ×

1. How to use the harness buckle. Insert the two clips on the belts into the buckle until you hear a click

LUMO 2

babyGO

2.1 G

2.2

2.3

2.4

2.5 A

2.6 ✓ × ×

LUMO 2

Illustration showing a child in a car seat with safety instructions and hand gestures, including correct and incorrect actions.

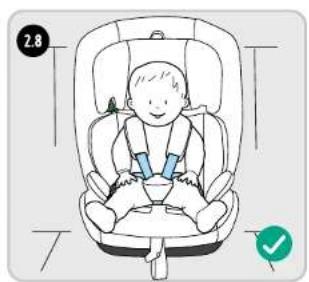

2.8

2.9 G

2.10

Diagram showing a baby being assisted by an adult car, with a blue arrow indicating the direction and a green checkmark.

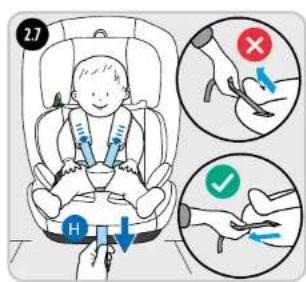

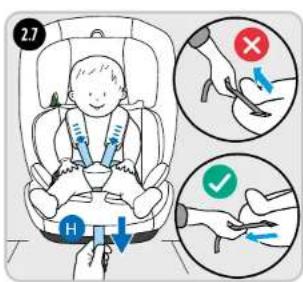

1. Adjust the length of the harness. The straps should be level with the child's shoulders.

babyGO

3.1 G

Top-down diagram of a car seat with blue arrows indicating directional movement (no text or symbols)

3.3 J

3.4 E

Illustration of a hand performing a medical or physical procedure on a patient's abdomen, with no visible text or symbols.

3.6 F

LUMO 2

Top-down view of a car seat with white backrest and seatbelt, no text or symbols present

1. Hide the 5-point harness and buckle. Remove small baby insert cushion (J). Hide the harness straps(E) in the backrest, and the buckle(F) in the base of the seat preparing it for 100-150 cm in height.

babyGO

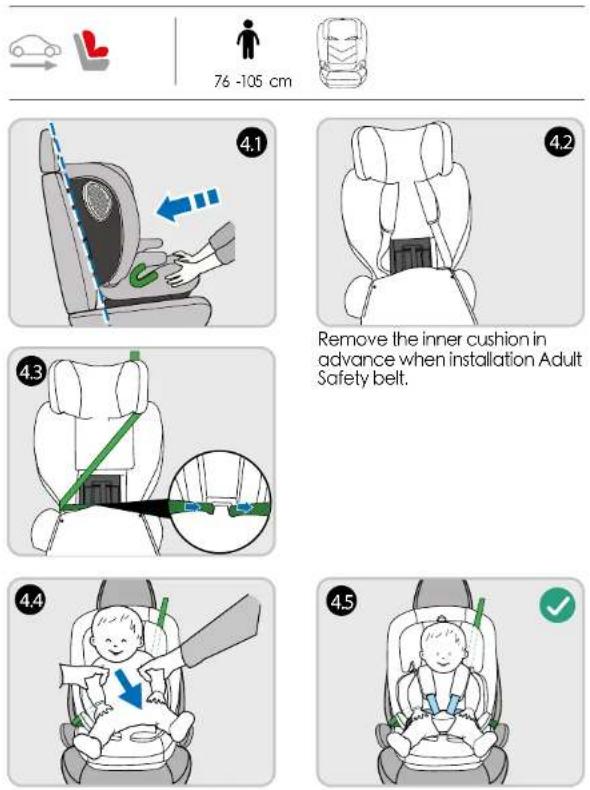

INSTALLATION

Forward facing installation (Adult safety-belt + Harness)

LUMO 2

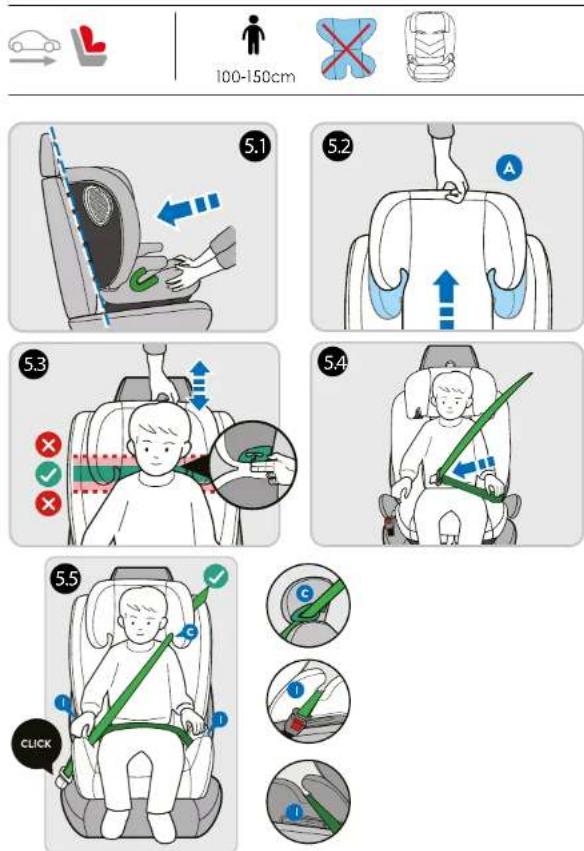

Forward facing installation (3-point safety belt)

babyGO

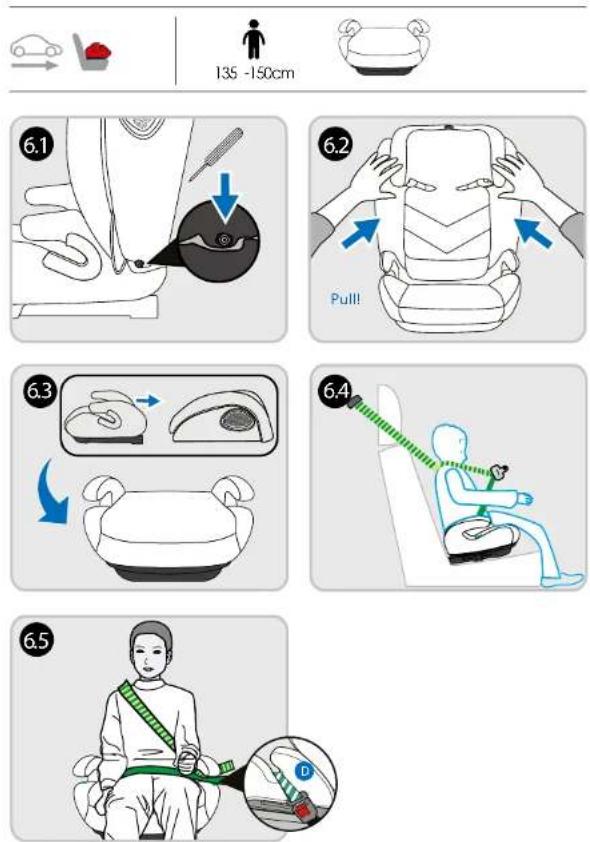

Forward facing installation (3 point safety belt)

135 -150cm 6.1 6.2 Pull! 6.3 6.4 6.5

LUMO 2

babyGO

Line drawing of a car comfort seat with multiple seats and straps (no text or symbols)

FR MODE D'EMPLOI

Chers parents

Line drawing of a chair with a red arrow pointing to the side panel (no text or symbols)

Diagram of a car seat with red arrows indicating movement or positioning, showing no text or symbols

Diagram of a car comfort seat with labeled parts from A to H, highlighting the seat and seat area.

Illustration of two hands holding a small object with blue arrows indicating direction (no text or symbols)

1.2 CLICK

1.3

1.4 ✓ ×

2.6 ✓ × ×

LUMO 2

Illustration showing a child in a car seat with safety instructions and hand gestures, including correct and incorrect actions.

2.8

2.9 G

2.10

Diagram showing a baby being assisted in a car seat with a blue arrow and checkmark indicating approval.

Top-down diagram of a car seat with blue arrows indicating movement or force (no text or symbols)

3.3 J

3.4 E A1

Illustration of a hand performing a medical or ergonomic procedure on a patient's abdomen (no text or symbols visible)

3.6 F

LUMO 2

Top-down view of a car seat with white backrest and seatbelt, no text or symbols present

Line drawing of a car comfort seat with seats and straps (no text or symbols)

Line drawing of a chair seat with a red arrow pointing to the side (no text or symbols)

Illustration of a car seat with red arrows indicating seat direction and a magnified inset showing the side view (no text or symbols)

Diagram of a car comfort seat with labeled parts from A to H, highlighting seat B and seat I.

Illustration of two hands holding a small object with blue arrows indicating motion or force (no text or symbols)

1.2 CLICK

1.3 ↓ ↑

1.4 ✓ ×

2.5 A ✓ ✗

2.6 ✓ × ×

LUMO 2

2.7 H

2.8

2.9 G

Illustration of a baby in a car seat with medical device buttons and a red button, no text or symbols present.

2.11

Top-down diagram of a car seat with blue arrows indicating movement or force (no text or symbols)

3.3 J

3.4 E A1

Illustration of a hand performing a medical or ergonomic procedure on a patient's abdomen (no text or symbols visible)

3.6 F

LUMO 2

Top-down view of a car seat with white backrest and seatbelt, no text or symbols present

Abstract logo design with a stylized lowercase 'b' inside a cloud-like frame, featuring a red dot at the center (no text or symbols)

babyGO
