USER MANUAL Cadet 252AA899.020 American Standard
American Standard is devoted to making life, in the heart of your home, better every day...
...so, thank you for inviting us in! With the very best in kitchen and bathroom products, we are here to help make your life happier, healthier and simpler. Our commitment to quality, innovation and performance has made us part of your everyday routine for nearly 150 years, and we look forward to being a part of your life for many years to come.
Learn more at www.AmericanStandard.com
REGISTER WARRANTY
Try the easy-scan QR code to quickly enter your information or find your product's detailed warranty here:
AmericanStandard-us.com/support/warranty
Registering allows you to keep your product information safe, and us the ability to contact you in the event of a product recall or any news about your purchase.
And if ever you have a question or need help...?
Call us at 1-855-815-0004
760423-100 Rev.1 (12/23)
OWNERS MANUAL
Aspirations™ Two Piece with
Chair Height Skirted Toilet with Seat
INSTALLATION INSTRUCTIONS
Thank you for selecting American Standard - the benchmark of fine quality for over 150 years. To ensure this product is installed properly, please read these instructions carefully before you begin. Certain installations may require professional help.
INSTALLATION PREPARATION
- Please unpack carefully and identify all parts needed for installation by using the Box Contents page as a reference. Inspect the product and report any damages or missing parts immediately to customer care by calling 855-815-0004. Follow the prompts for consumer/bathing. Local building codes vary by location. Observe all local plumbing and building codes.
NOTE: Take extra care in handling the front surfaces of the toilet. Use only non-abrasive cloths avoid scratching.
- Wear protective equipment during installation to avoid injury.
- Please keep these instructions for after care and customer service details.
Image shown may vary from product purchased.
760423-100 Rev.1 (12/23)

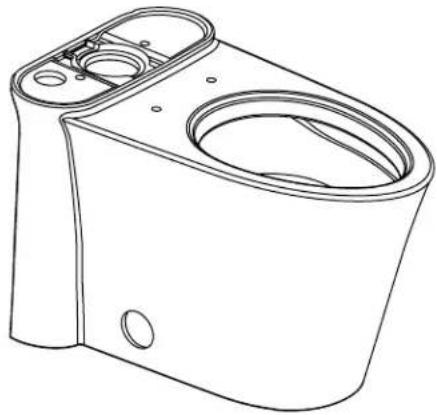

INSIDE THE BOX
Tank To Bowl Gasket
Metallic (Brass) Tank Nuts (2)
Attachment Handle
T-Bolts with Retainer (2)
Bolt Caps (2) with Adhesive Backing
Bowl-to-Floor Knobs (2)
Slow Close Toilet Seat
For seat installation, see instructions included with seat.
SOLD SEPARATELY
Water Supply Line
Wax Ring
Wax Ring and Seat included with select models. See particular product specifications for full details.
BEFORE INSTALLING YOUR TOILET
please see your product spec page to verify the dimensions and water supply connections. Visit our website where you can search by Model number for the product spec page at: http://www.AmericanStandard-us.com
Image shown may vary from product purchased.
760423-100 Rev.1 (12/23)
IF REMOVIDING AN EXISTING TOILET
1 2u3 off water supply
tank; sponge remaining water from bowl before removing toilet
Clean flangeFlush
o remove
CAUTION
If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gasses.
INSTALLATION INSTRUCTIONS
BACK-TO-BACK INSTALLATION
Depending upon your plumbing and venting conditions, the flow from this toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.
Recommended fitting type for back-to-back installations.
760423-100 Rev.1 (12/23)

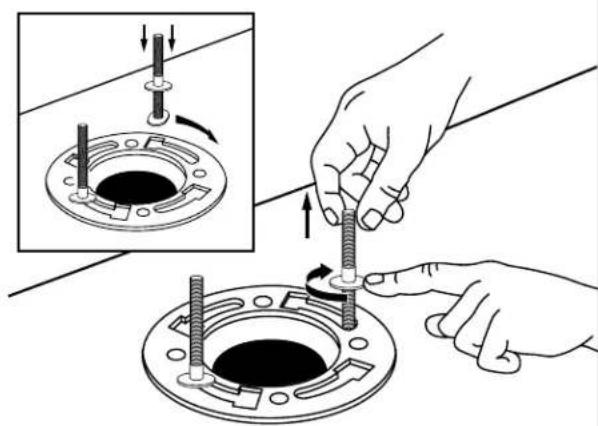

1

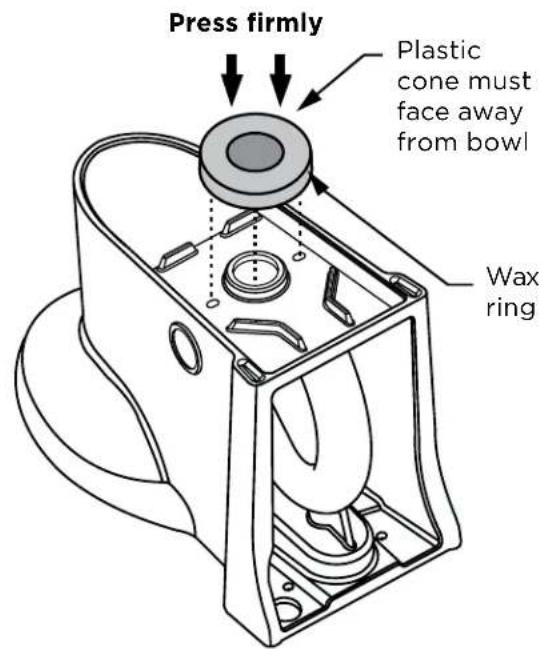

SECURE FLANGE ATTACH WAX R
2
3

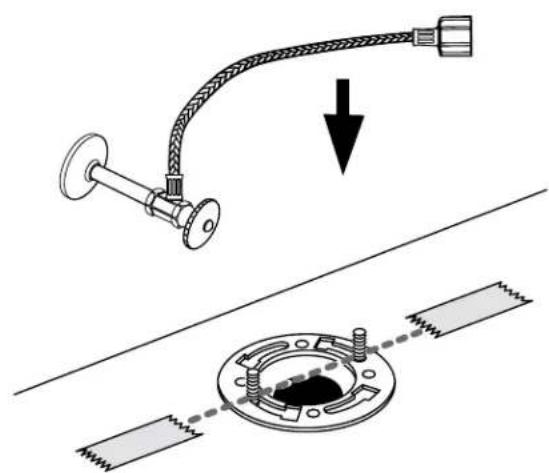

TIP: Place 2 pieces of masking tape on floor (as shown) to help with alignment in step 4.

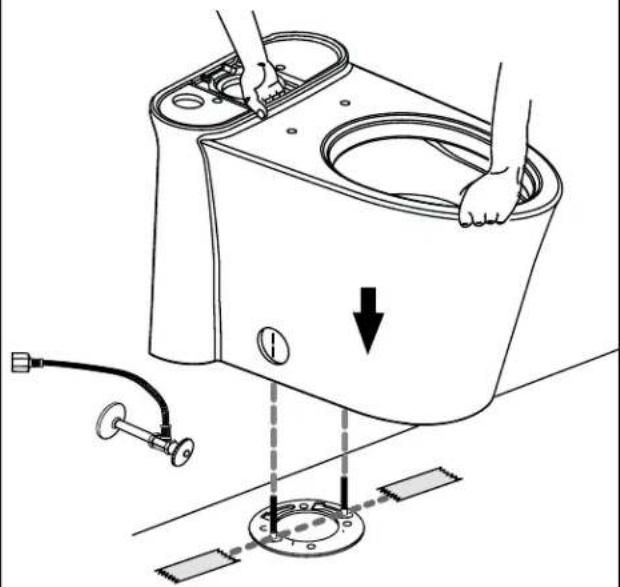

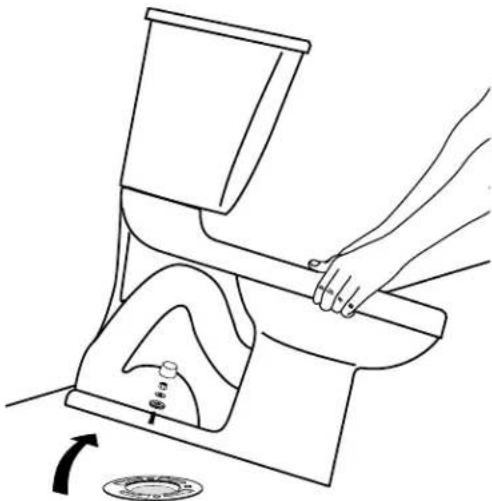

4

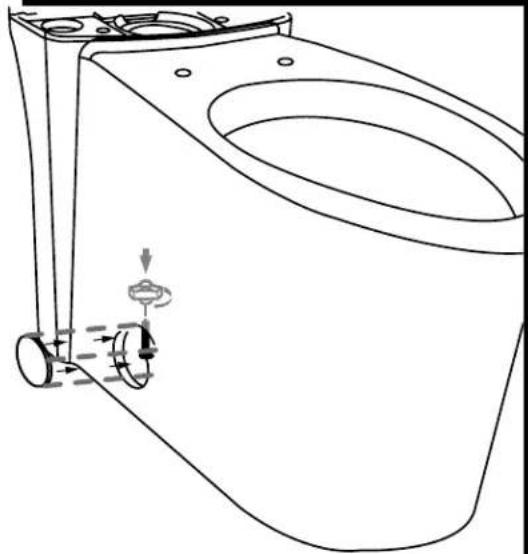

ATTACH BOWL TO FLOOR KNOBS
Apply weight evenly. Do not move after placement. Water tight seal may break.
760423-100 Rev.1 (12/23)
5
Hand tighten only. Do not over-tighten.
6

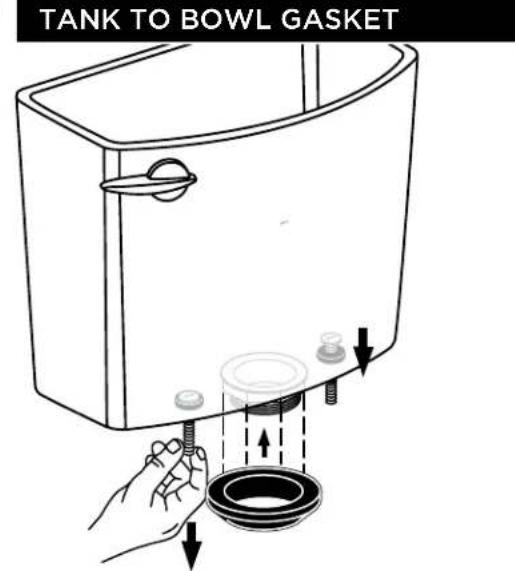

Place the tank gasket over the tank nut ensuring there are not gaps between the gasket and the chinaware.

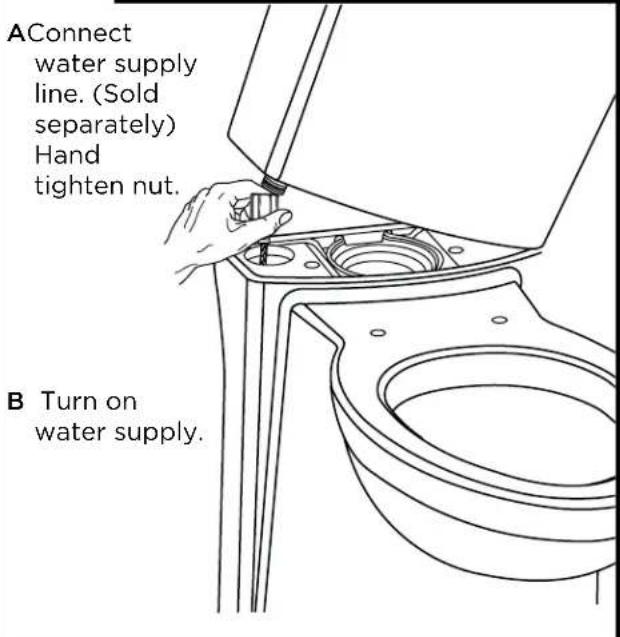

7
CONNECT WATER SUPPLY CONN

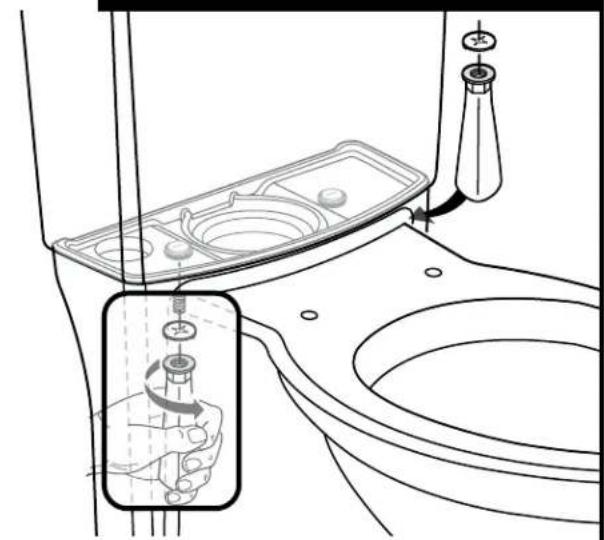

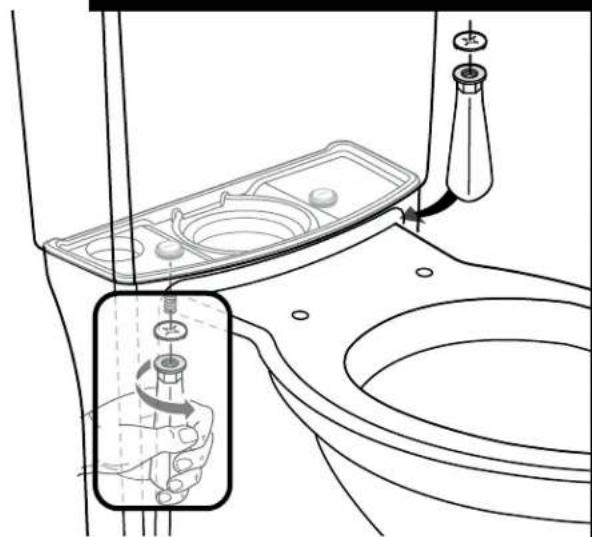

8
TO BOWL
Tighten handles alternately until tank contacts bowl. HAND TIGHTEN ONLY!
760423-100 Rev.1 (12/23)
WARNING: Over-tightening of water supply line nuts could result in breakage and potential flooding.
If the connection leaks after hand tightening, replace the supply line. If the connection continues to leak with the new supply line, replace the fill valve. Do not use plumber's putty, pipe dope or any other sealant on the water supply connection. Use of plumber's putty, pipe dope, or any other type of sealant will void the warranty.
WARNING: Do not use plumber's putty, pipe dope, or any other sealant on the water supply connection to this tank. If the connection leaks after hand tightening, replace the supply line. If the connection continues to leak with the new supply line, replace the fill valve.
Warranty is void if any type of sealant is used on the water supply connection.
9
Before continuing, determine the type of water supply connecation you have from the chart below and use the appropriate assembly parts required to properly reconnect the water supply. DO NOT use plumber's putty to seal these fittings.
METAL / COPPER FLARED TUBING
These parts must be used as illustrated to insure water-tight connection. Use of existing coupling nut may result in water leakage. Water supply tube or pipe must extend at least 1/2'' inside threaded shank of valve (does not apply to flanged tubing).
METAL FLANDED TUBING
Use existing coupling nut and washer.
METAL SPIRAL TUBING
Use existing spiral cone washer. Fluidmaster cone washer may not seal completely on spiral type supply line.
VINYL/BRAIDED CONNECTOR
Captive cone washers already included. No additional washers needed
CAUTION:DO NOT USE CONE WASHER WITH PLASTIC SUPPLY LINE.

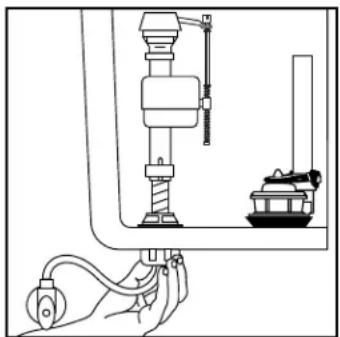

With correct washers in place (see Step 9), tighten COUPLING NUT 1/4 turn beyond hand tight.
DO NOT OVERLIGHTEN.
CAUTION: Overtightening of LOCK NUT or COUPLING NUT could result in breakage and potential flooding.
10
Turn on water supply.

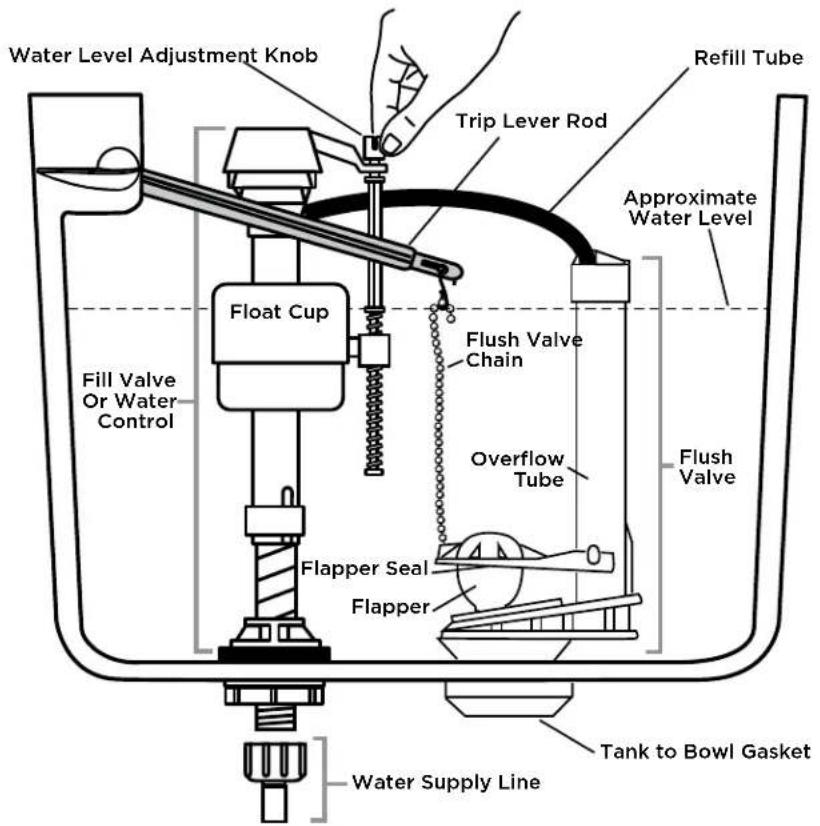

If equipped, adjust water level to level indicated on tank by turning water level adjustment knob to move float cup up or down.
760423-100 Rev.1 (12/23)
TROUBLESHOOTING GUIDE
| PROBLEM POSSIBLE | CAUSE CORRECTIVE ACTION | |
| Does not flush | a. Water supply valve closedb. Supply line blockedc. Flush valve chain too loose or disconnectedd. Sand or debris lodged in water control | a. Open valve and allow water to fill tankb. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble c. Readjust chain length as requiredd. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/ fluidmaster-guide.pdf |
| Poor or sluggish flush | a. Bowl water level too lowb. Supply valve partly closedc. Partially clogged trapway and/or drain pipe and/ or ventd. Supply pressure too low | a. Check that refill tube is connected to water control and inserted into overflow tube without being kinked or damagedb. Open supply valve fully. Be sure that proper supply tube size is usedc. Remove obstruction. Consult a plumber if necessaryd. Normal supply pressure must be at least 20 psi |
| Toilet leaks | a. Poor supply line connection.b. Poor bowl to tank/floor connection. | a. Review Step 8 of installation procedure.b. Review Step 1 through 6 of installation procedure. |
| Toilet does not shut off | a. Flapper seal leaking or deformedb. Sand or debris lodged in water controlc. Flush valve chain too tight, holding flapper open | a. Clean debris from seal surface. Replace flapper seal as needed. See web for more info.b. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/ fluidmasterguide.pdfc. Adjust settings according to adjustable screw setup in Step 9. |
CARE AND CLEANING
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.
760423-100 Rev.1 (12/23)
OWNERS MANUAL
Top Mount Toilet Seat
INSTALLATION INSTRUCTIONS
Thank you for selecting American Standard - the benchmark of fine quality for over 150 years. To ensure this product is installed properly, please read these instructions carefully before you begin. Certain installations may require professional help.
INSTALLATION PREPARATION
- Please unpack carefully and identify all parts needed for installation by using the Box Contents page as a reference. Inspect the product and report any damages or missing parts immediately to customer care by calling 855-815-0004. Follow the prompts for consumer/bathing. Local building codes vary by location. Observe all local plumbing and building codes.
NOTE: Take extra care in handling the seat surfaces. Use only non-abrasive cloths to avoid scratching.
- Wear protective equipment during installation to avoid injury.
- Please keep these instructions for after care and customer service details.
Image shown may vary from product purchased.

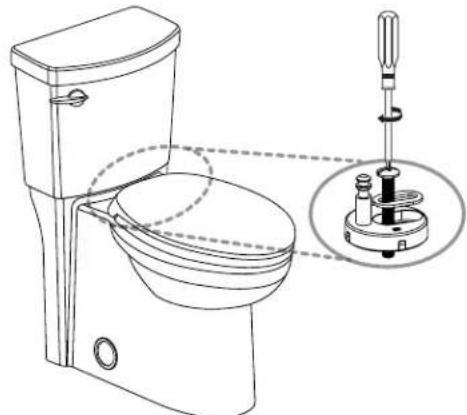

TOP MOUNT
STEP5 1a - 10a
760423-100 Rev.1 (12/23)

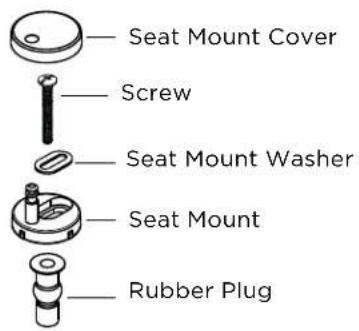

TOP MOUNT
1a
2a

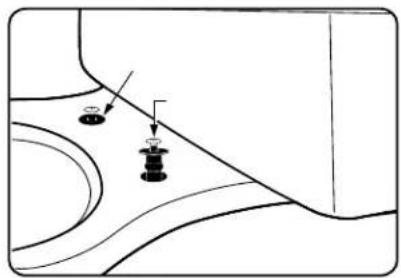

For ease of installation of black rubber plugs, insert steel bolt (capture a few threads), and wet the lower area with some water (soapy water works best).
3a
4a

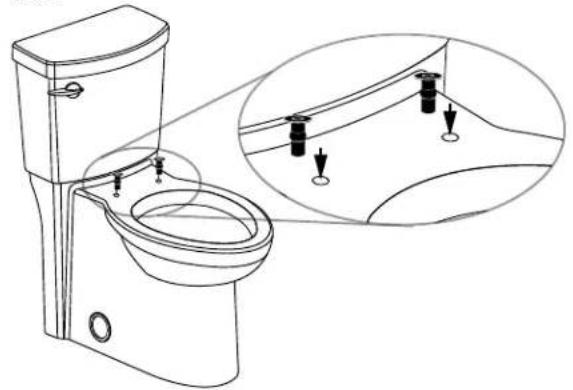

NOTE: FLANGE MUST REMAIN ABOVE THE SURFACE. DO NOT ALLOW PLUG TO FALL THROUGH!
5a

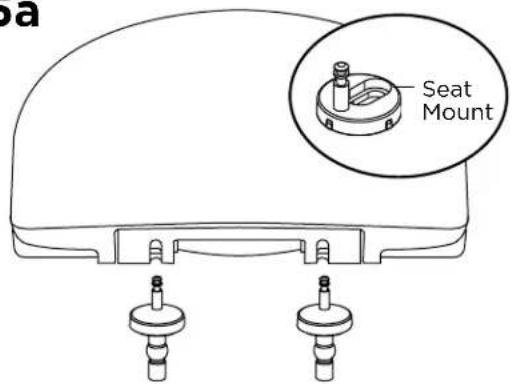

Snap Seat Mount into holes on the bottom of the seat.
6a

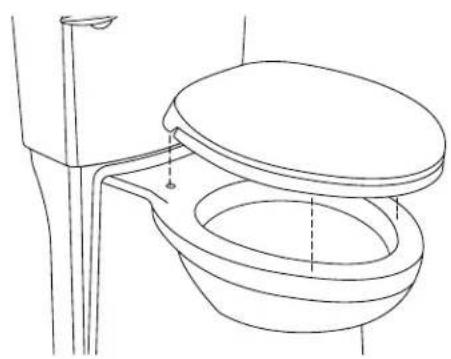

Place seat with Seat Mount onto bowl. Align seat with front of bowl.
TOP MOUNT
7a
Put screws and seat mount washers into seat mount and securely tighten using a screwdriver.
8a

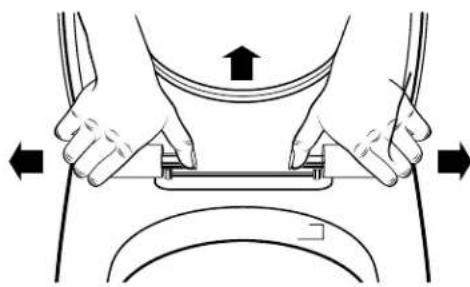

Open the seat and cover. Push both inside buttons to release seat and cover. Pull the seat and cover upwards to take it off the seat mounts.
9a

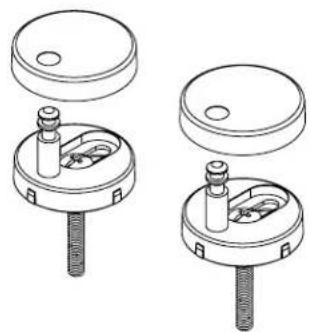

Place seat mount cover over seat mounts.

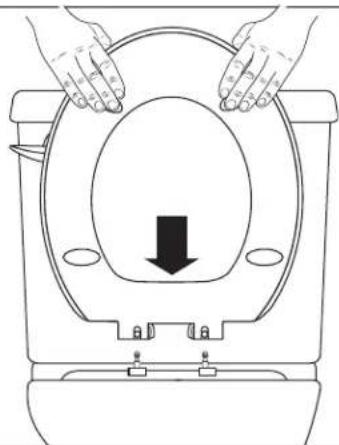

Place seat back on bowl and click seat onto seat mounts.
10a
CARE AND CLEANING
When cleaning your toilet seat wash it with a mild, soapy water: rinse the seat thoroughly with clear water and dry with a soft cloth.
Avoid detergents, disinfectants, or cleaning products in aerosol cans. Never use abrasive scouring powders on your seat. Some bathroom chemicals and cosmetics may damage the seat's finish. After installation, check the tightness of the bolts from time to time to ensure a tight fit.
REPLACEMENT KIT
PART NUMBER DESCRIPTION
760234-100.XXXOA SEAT MOUNTING KIT:
INCLUDES BOTH TOP & BOTTOM MOUNTING HARDWARE
760423-100 Rev.1 (12/23)
TELL US WHAT YOU THINK!
Please leave us a product review or story at AmericanStandard.com/reviews
Find installation videos at
youtube.com/americanstandard
Register your warranty and sign up for an idea-filled newsletter at AmericanStandard-us.com/support/warranty
PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION IMPORTANT:
Registration of the toilet must be completed for this warranty to become effective. Your registration will make it easier to contact you in the event of a product recall.*
INSTRUCTIONS: Register your toilet at www.AmericanStandard.com. Please save your proof of purchase (sale receipt). If you need assistance or do not have access to our website, please contact American Standard Customer Care at: (800) 442-1902. An American Standard representative will assist in completing the warranty registration.
*In California, your warranty rights remain intact even if you do not complete the registration process.
SHARE YOUR NEW PRODUCT!
Tag us @american_STANDARD on Instagram and show us how your new product looks.
WANT MORE INFO?
For questions or help call us at 855-815-0004, or visit AmericanStandard.com
UNITED STATES
American Standard Brands 865 Centennial Ave.
Piscataway, New Jersey 08854
Attention: Director of Customer Care
For residents of the United States warranty information may also be obtained by calling the following toll free number: (855) 815-0004 www.AmericanStandard.com
CANADA
LIXIL Canada, Inc. 5900 Avebury Rd.
Mississauga, Ontario Canada L5R 3M3
Toll Free: (800) 387-0369 www.AmericanStandard.c
MEXICO
American Standard B&K Mexico S.de R.L.de C.V.
Via Moreno #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 800-839-1200
www.AmericanStandard.com.mx
760423-100 Rev.1 (12/23)
PART OF LIXIL
American Standard
www.AmericanStandard.ca/support/warranty

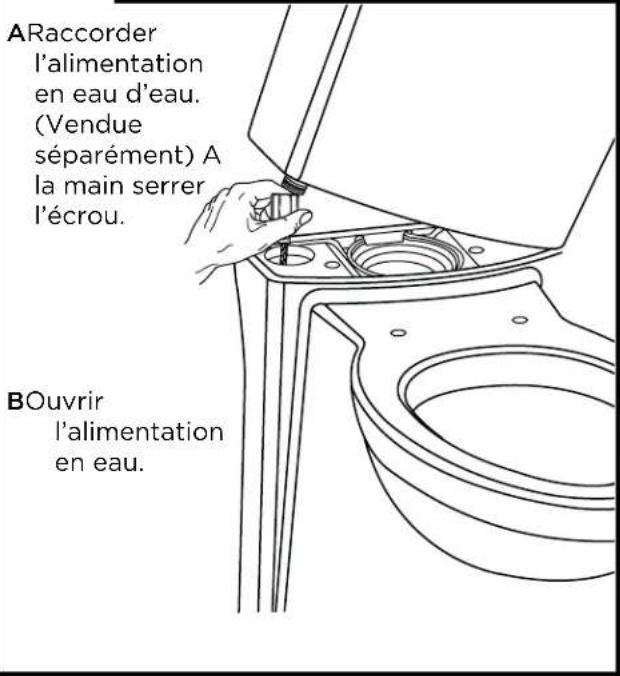

7
