USER MANUAL XT001000 Campbell Hausfeld

CH CAMPBELL HAUSFELD.

3/8 inch Impact Wrench

Operating Instructions

Exterior view of a Campbell Hausfeld electric drill (no visible text or symbols beyond brand label)

Model: XT001000

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.

Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

For parts, product & service information visit www.campbellhausfeld.com

Model #: ____

Serial #: ____

Purchase Date: ____

Campbell Hausfeld

100 Production Drive

Harrison, Ohio 45030

REGISTER YOUR PRODUCT ONLINE NOW! www.campbellhausfeld.com/reg READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS • DO NOT DISCARD

BEFORE YOU BEGIN

Description

This is the right tool for the job when you need a smaller impact wrench that doesn't compromise on power. The balanced twin-hammer mechanism reduces vibration making this wrench more comfortable to use. And the small size gives you the support you need in tight spaces to get the job done.

Campbell Hausfeld® makes it easier for you to finish your projects like a pro. The company's history of creating quality products began in 1836, when it manufactured horse-drawn wagons and agricultural equipment. Today, Campbell Hausfeld offers a complete line of air compressors, air tools and accessories, inflators, nailers and staplers, spray guns, pressure washers, and more. Finish your projects faster and easier with Campbell Hausfeld – The Air Power Expert.

UNPACKING

After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Check for loose, missing or damaged parts. Check to be sure all supplied accessories are enclosed with the unit. In case of questions, damaged or missing parts, please visit www.campbellhausfeld.com for customer assistance.

if damaged during shipping, handling or use. Damage may result in bursting and

cause injury or property damage.

Other Parts (Not Provided)

You will need the following items and/or accessories to properly set-up and optimally use your GSD impact wrench:

• 1/4 inch Plug NPT (M)

o For less stress on your air hose and you, try a flex plug.

• 3/8 inch (ID) Air Hose

• 1/4 inch Coupler NPT (F)

o Eliminate coupler confusion with a universal coupler style.

o Quick-connect couplers quickly, easily join hoses to tools.

o If you don't use a flex plug, consider a swivel coupler to prevent hose kinks and reduce stress on your air hose.

- 8 Gallon air compressor or larger

- Impact drive sockets

- PTFE tape for all fitting connections

- Adjustable wrench for tightening fitting connections

See www.campbellhausfeld.com for additional information on accessories to support your air tools and pneumatic system.

BEST PRACTICES

◆ For best output, maintain pressure at the tool of 90 PSI.
◆ The longer your air hose the greater the pressure drop from compressor to tool. If you are using a hose longer than 50 feet, consider upgrading to a 1/2 inch ID air hose to ensure proper tool pressure.
◆ Failure to lubricate and maintain your air tools properly will dramatically shorten their life. Use oil every time you use your air tool to lubricate, clean and inhibit rust in one step. Campbell Hausfeld sells air tool oil under part number ST1270.

SPECIFICATIONS

	XT001000
Maximum PSI 90
CFM under load 100% duty 3.4 CFM @ 90 PSI
CFM no load 100% duty 5.6 CFM @ 90 PSI
SCFM under load 100% duty 24.8 SCFM @ 90 PSI
SCFM no load 100% duty 40.1 SCFM @ 90 PSI
Air Compressor Recommendation 8 gallon
Max Torque 160 Ft. Lbs.
Working Torque 0 - 130 Ft. Lbs.
Rated RPM (free speed) 12,000
Impact Speed (IPM) 1,300
Variable Speed Yes
Reverse	1
Forward	3
Impact Mechanism Type	Twin Hammer
Bolt Capacity	1/2 inch
Air Inlet	1/4 inch NPT (F)
Minimum Hose Size	3/8 inch
Anvil	3/8 inch
Housing Material	Composite
Tool Weight	2.8 Lbs.
Tool Length	6-1/2 inches
Tool Height 6-5/8 inches
Tool Width	2-1/2 inches

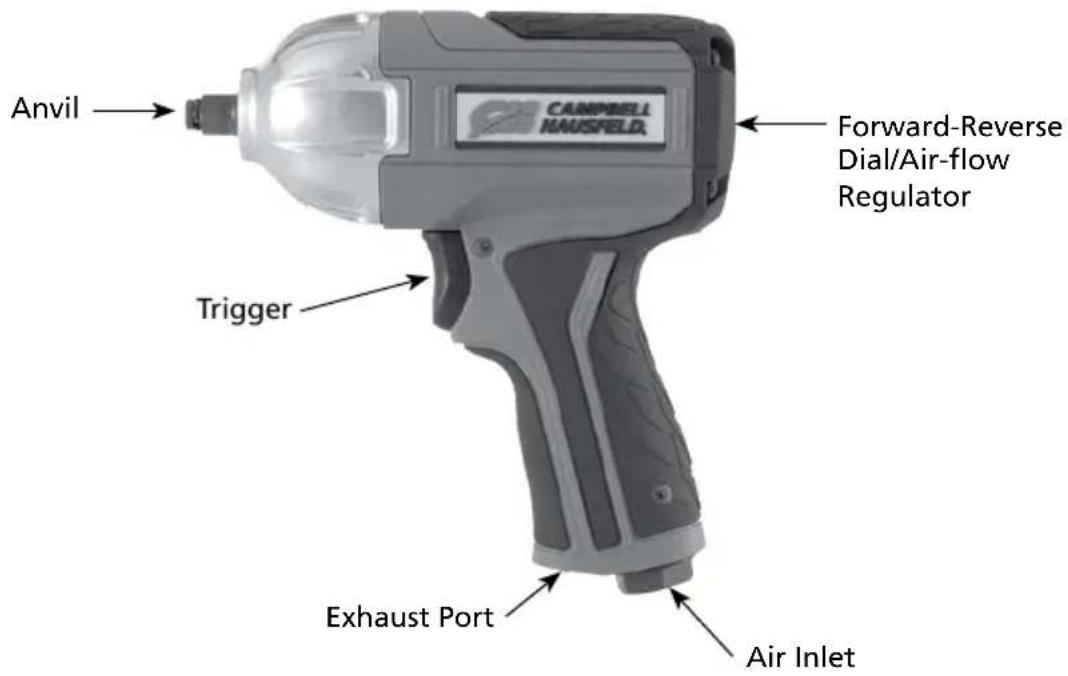

GETTING TO KNOW YOUR UNIT

Anvil Forward-Reverse Dial/Air-flow Regulator Trigger Exhaust Port Air Inlet

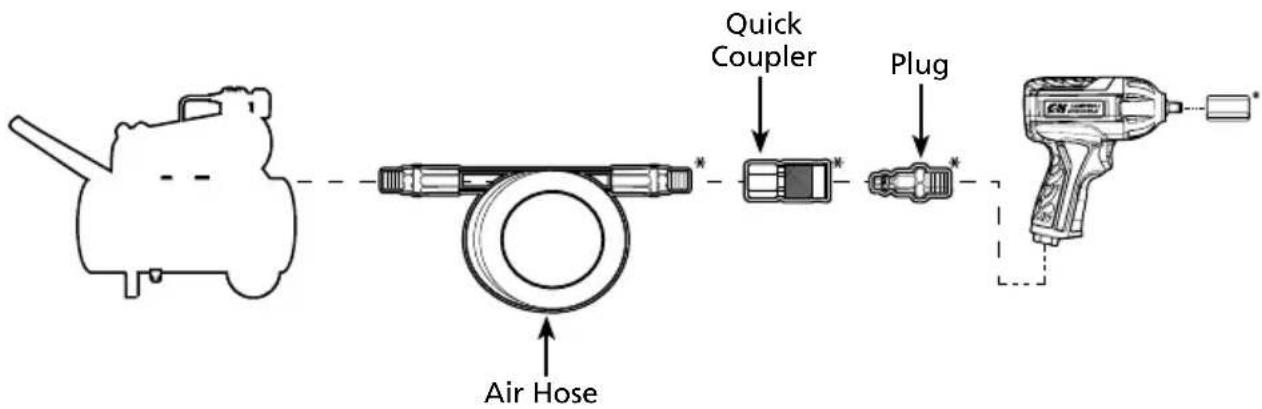

SET UP INSTRUCTIONS

Quick Coupler Plug Air Hose

* Items shown in Set Up Instructions are not included with this tool.

BEST PRACTICES

The air compressor used with your impact wrench must be able to maintain a minimum of 90 PSI when the tool is being used. An inadequate air supply can cause a loss of power and inconsistent tool output/performance.
◆ A pressure regulator—used at the tool—is helpful to control the operating pressure of the tool and maintain 90 PSI.
Use an oiler to provide oil circulation through the tool and a filter to remove liquid and solid impurities which can rust or "gum up" internal parts of the tool.
◆ To disconnect a coupler/plug from a system set-up: push the coupler and plug together before pulling the coupler sleeve back and separating the coupler and plug.
Use only sockets specifically rated as "impact" drive sockets. Non-impact drive sockets—if used with air tools—can shatter causing serious personal injury.

LUBRICATION

To protect your tool, lubricate the motor every time--before and after--you use this tool. You cannot oil the motor too often or put too much oil in the air inlet.

1. Disconnect the impact wrench from air supply.
2. Turn the tool upside down.
3. While pulling the trigger, pour approximately a teaspoon of air tool oil in the air inlet. Campbell Hausfeld makes air tool oil under model number ST1270.
4. Turn the forward and reverse knob in both directions to ensure that oil gets in all passages.
5. Connect the tool to the air supply and cover the exhaust port with a towel. Run the impact wrench in both the forward and reverse directions for about 10 seconds. Oil will spray from the exhaust port when the tool is triggered.
6. Continue to run until no oil is discharged.
7. Wipe all residual oil from tool before use.

OPERATING INSTRUCTIONS

AIR-FLOW/SPEED ADJUSTMENT

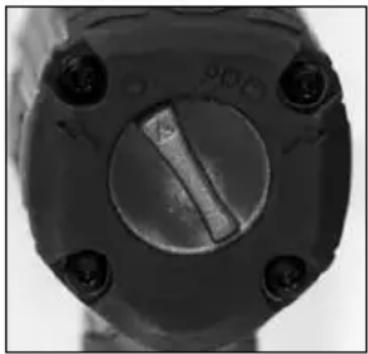

The air-flow regulator controls how much air enters the motor which defines the motor speed/power. This impact wrench has 4 power/speed settings—3 forward and 1 reverse. Use the knob on the rear of the tool to select the desired setting before operating the tool.

To change power/speed setting, turn the knob to align with the dot size (largest dot = maximum power). Do not change power settings while the tool is running as this causes unnecessary stress or

Close-up of a mechanical knob or dial with four bolts and a central knob (no visible text or symbols)

To remove nuts or bolts, set the air-flow regulator to reverse by turning the knob to the left (counter clockwise), aligning with the single large dot. Attach the appropriate sized IMPACT socket. Place socket over bolt and pull trigger until bolt has been removed.

To install a nut or bolt, set the air-flow regulator to the appropriate forward setting. Attach the IMPACT socket and place over the nut or bolt. Pull the trigger and hold impact wrench over screw until nut or bolt has been seated. Use a torque wrench to attain the proper torque manually. Do not over tighten.

BEST PRACTICES

◆ To prevent cross-threading, start your nuts/bolts by hand--try to get a few rotations--before continuing the job with your pneumatic tool.
The impact wrench should never be used to set torque. Use a torque wrench to attain the proper torque manually. Do not over tighten.

STORAGE

Lubricate your impact wrench before storing. Follow the air motor lubrication instructions with an exception to step #5. Only run the impact wrench for 2-3 seconds (instead of 10 seconds) because more oil needs to remain in the impact wrench when storing. Store your tool in a cool dry place.

TECHNICAL SERVICE

For information regarding the operation or repair of this product, please visit www.campbellhausfeld.com.

SAFETY INSTRUCTIONS

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the symbols found on page 8. The Safety Symbols throughout this manual are to alert you to important safety hazards and precautions.

The DANGER, WARNING, CAUTION, and NOTICE notifications and instructions in this manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that caution is a factor which cannot be built into this product, but must be supplied by the operator.

With any piece of equipment, new or used, the most important part of its operation is SAFETY!

Campbell Hausfeld encourages you to familiarize yourself with your new equipment and stresses safe operation.

The next few pages of this manual are a summary of the main safety aspects associated with this unit. Be sure to read and understand completely before operating the machine.

The symbols used throughout the operation and maintenance sections of this manual call attention to safety procedures.

Important Safety Information

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

This manual contains important safety, operational and maintenance information. If you have any questions, please visit www.campbellhausfeld.com for customer assistance.

SAFETY INSTRUCTIONS (CONTINUED)

California Proposition 65

This warning expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Illinois Lead Poisoning Prevention Act

be harmful if eaten or chewed. Complies with Federal Standards.

General Safety

This product is a part of a high pressure system and the following safety precautions must be followed at all times along with any other existing safety rules.

1. Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of the equipment.
2. Only persons well acquainted with these rules of safe operation should be allowed to use the air tool.

imum operating pressure of the air tool (90 PSI). The air tool could explode and result in personal injury.

1. Do not exceed any pressure rating of any component in the system.
2. Disconnect the air tool from air supply before changing tools or attachments, servicing and during non-operation.

ear protection must be worn during operation.

1. Do not wear loose fitting clothing, scarves, or neck ties. Loose clothing may become caught in moving parts and result in serious personal injury.
2. Do not wear jewelry when operating any tool. Jewelry may become caught in moving parts and result in serious personal injury.
3. Do not depress trigger when connecting the air supply hose.
4. Always use attachments designed for use with air powered tools. Do not use damaged or worn attachments.

Tool sockets. Use impact quality sockets only. Hand tool sockets are "glass-hard" and cause serious personal injury if used with air tools.

1. Never trigger the tool when not applied to a work object. Attachments must be securely attached. Loose attachments can cause serious injury.
2. Protect air lines from damage or puncture.

3. Never point an air tool at oneself or any other person. Serious injury could occur.

4. Check air hoses for weak or worn condition before each use. Make sure all connections are secure.

Never carry a tool by the hose or pull the hose to WARNING move the tool or a compressor. Keep hoses away from heat, oil and sharp edges. Replace any hose that is damaged, weak or worn.

Release all pressure from the system before attempting to install, service, relocate or perform any maintenance.

1. Keep all nuts, bolts and screws tight and ensure equipment is in safe working condition.
2. Do not put hands near or under moving parts.

Do not misuse this product. Excessive exposure to vibration, work in awkward positions, and repetitive work motions can cause injury to hands and arms. Stop using any tool if discomfort, numbness, tingling, or pain occur, and consult a physician.

This impact research

requires lubrication BEFORE the initial use and BEFORE and AFTER each additional use.

DISWENTHINO

act wrench from the air supply before lubricating.

After warning

been lubricated, oil will discharge through the exhaust port during the first

few seconds of operation. Thus, THE EXHAUST PORT MUST BE COVERED WITH A TOWEL before applying air pressure. FAILURE TO COVER THE EXHAUST PORT CAN RESULT IN SERIOUS INJURY.

Whereping

be careful not to overtighten. Bolts may fail or cause a hazardous condition. Be

sure to set the regulator to the minimum setting then use a torque wrench to set torque.

SAFETY INSTRUCTIONS (CONTINUED)

Safety Glossary

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.

imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

potentially hazardous situation which, if not avoided, COULD result in death or

serious injury.

potentially hazardous situation which, if not avoided, MAY result in minor or

moderate injury.

portant information, that if not followed, may cause damage to equipment.

IMPORTANT or NOTE: Information that requires special attention.

Safety Symbols

The following Safety Symbols appear throughout this manual to alert you to important safety hazards and precautions.

Wear Eye and Mask Protection

Read Manual First

Risk of Explosion

Wear Eye and Hearing Protection

Risk of Pressure

SAVE THESE INSTRUCTIONS DO NOT DISCARD

NOTES:

SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION

Tool runs slowly or will not operate	1. Grit or gum in tool 1. Flush the tool with CampbellHausfeld air tool oil, gum solvent, or an equal mixture of SAE 10 motor oil and kerosene. Lubricate the tool after cleaning with CampbellHausfeld (or comparable) air tool oil.
	2. No oil in tool 2. Lubricate the tool according to the lubrication instructions in this manual.
	3. Low air pressure 3. a. Adjust the regulator on the tool to a higher setting.b. Adjust the compressor regulator to 90 PSI while the tool is running free.
	4. Air hose leaks 4. Tighten and seal hose fittings, if leaks are found.
	5. Pressure drops 5. a. Be sure the hose is the proper size. Long hoses or tools using large volumes of air may require a hose with an I.D. of 1/2 inch or larger depending on the total length of the hose.b. Do not use a multiple number of hoses connected together with quick connect fittings. This causes additional pressure drops and reduces the tool power. Directly connect the hoses together.
Moisture blowing out of tool	1. Water in tank 1. Drain tank. (See air compressor manual). Oil tool and run until no water is evident. Oil tool again and run 1-2 seconds.
	2. Water in the air lines/hoses 2. a. Install a water separator/filter.NOTE: Separators only work properly when the air passing through the separator is cool. Locate the separator/filter as far as possible from the compressor.b. Install an air dryer.

IMPACT MECHANISM TROUBLESHOOTING GUIDE

SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION

Impacts slowly or will not impact	1. Lack of lubrication 1. Lubricate the air motor. (See Lubrication section of this manual).
	2. Tool regulator set in wrong position	2. a. Adjust the regulator on the tool to the appropriate setting.b. Regulator should be turned so the indicator points to the appropriate dot on the tool.
	3. In-line regulator or compressor regulator set too low	3. Adjust regulators in the air system.
Impacts rapidly but will not remove bolts	Worn impact mechanism Replace tool.

Does not impact Broken impact mechanism Replace tool.

CH CAMPBELL HAUSFELD.

Reminder: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

LIMITED WARRANTY

1. DURATION: From the date of purchase by the original purchaser as follows: Two (2) Years.

2. WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld, a Marmon/Berkshire Hathaway Company, 100 Production Drive, Harrison, Ohio, 45030. Visit www.campbellhausfeld.com.

3. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld product.

4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: This Campbell Hausfeld air tool.

5. WHAT IS COVERED UNDER THIS WARRANTY: Substantial defects in material and workmanship which occur within the duration of the warranty period with the exceptions below.

6. WHAT IS NOT COVERED UNDER THIS WARRANTY:

A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If this product is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Some States do not allow limitation on how long and implied warranty lasts, so the above limitations may not apply to you.
B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
C. Any failure that results from an accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions provided in the owner's manual(s) supplied with product. Accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions shall also include the removal or alteration of any safety devices. If such safety devices are removed or altered, this warranty is void.
D. Normal adjustments which are explained in the owner's manual(s) provided with the product.

1. RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor's option, products or components which are defective, have malfunctioned and/or failed to conform within the duration of the specific warranty period.

2. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A. Provide dated proof of purchase and maintenance records.
B. Visit www.campbellhausfeld.com to obtain your warranty service options. Freight costs must be borne by the purchaser.
C. Use reasonable care in the operation and maintenance of the products as described in the owner's manual(s).

1. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

This Limited Warranty applies in the United States, Canada and Mexico only and gives you specific legal rights. You may also have other rights which vary from state to state or country to country.
