USER MANUAL BC22BFP Big Chill

Pure technical line drawing of a double door frame with mounting brackets and central rail (no text or symbols)

Front view of a rectangular electronic device with a handle and mounting base (no text or symbols)

Simple line drawing of two vertical bars with square ends, symmetrically placed on a plain background (no text or symbols)

Simple line drawing of a rectangular appliance with a horizontal bar and 'BIG CHILL' label at the bottom (no other text or symbols)

Model BC22BF is a physically modiyed Blomberg G91629NWU. Model BC22BF is electronically identical to Blomberg G91629NWU.

Congratulations on the purchase of your new Refrigerator! This refrigerator has been manufactured in modern facilities with the utmost care and meticulous quality controls. Please read this entire user manual before using your product, to ensure you understand all of its features and benefits and know how to operate it properly. This manual should be kept in an easily accessible location and passed on to any future owners.

This guide will help you use the product quickly and safely.

Please read the user guide carefully before installing and operating the product.

• Always observe the applicable safety instructions.
• Please read any other documents provided with the product.
• Keep in mind that this user guide may apply to several product models. Please note the various symbols used throughout this manual and what they represent.

Important information and useful tips.

Risk of life and property.

Risk of electric shock.

The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation.

Fill this out and keep for future reference

Model
Serial No
Date of Purchase
Original Purchaser
Dealer
City
State
Zip Code
Country

1 Your Refrigerator 4

2 Important Instructions Regarding Safety and Environment 6

2.1 Intended use 6
2.2 General Safety 6
2.3 Hydrocarbon (HC) Warning .....8
2.4 For Products with a Water Dispenser/Ice Machine ....8
2.5 Intended Use 8
2.6 Children's Safety .....9
2.7 Compliance with the WEEE Directive and Disposing the Waste Product: .....9
2.8 Compliance with the RoHS Directive: .....9
2.9 Packaging Information .....9

3 Environmental instructions 10

3.1 Compliance with the WEEE Directive and Disposing of the Waste Product: .....10
3.2 Compliance with RoHS Directive .....10
3.3 Package information.....10

4 Installation 11

4.1 Cladded Version ..... 11
4.2 Non-Cladded Version .....15
4.3 Before Installation....19
4.4 Appropriate installation location .....19

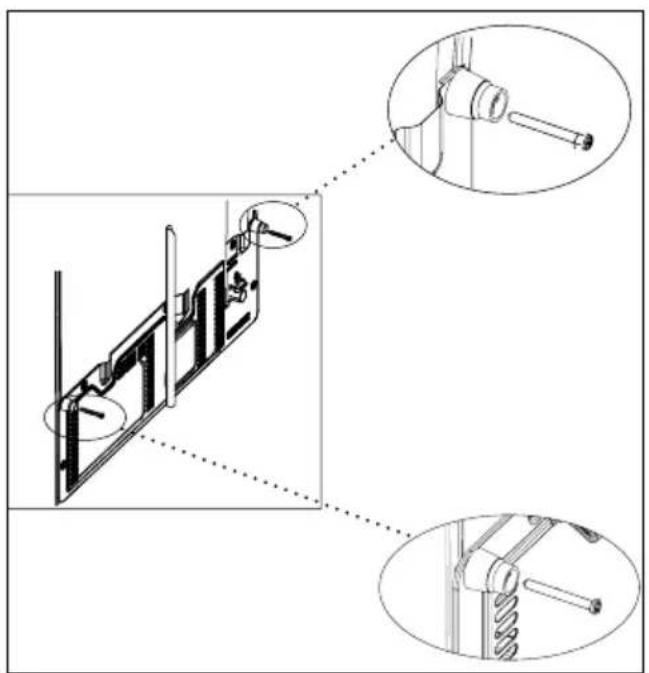

4.5 Inset installations.....20
4.6 Electrical connection .....20

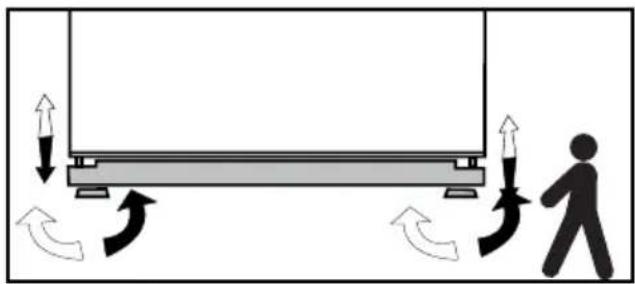

4.7 Adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.8 Illumination lamp .....21

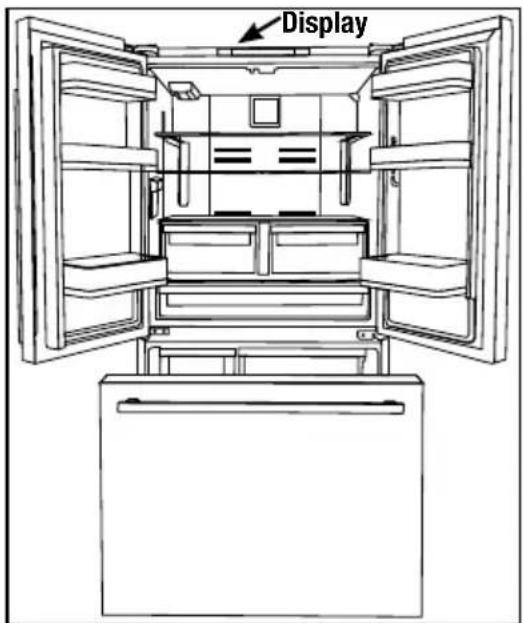

4.9 Door/Drawer Open Warning.....21
4.10 Water connection .....21

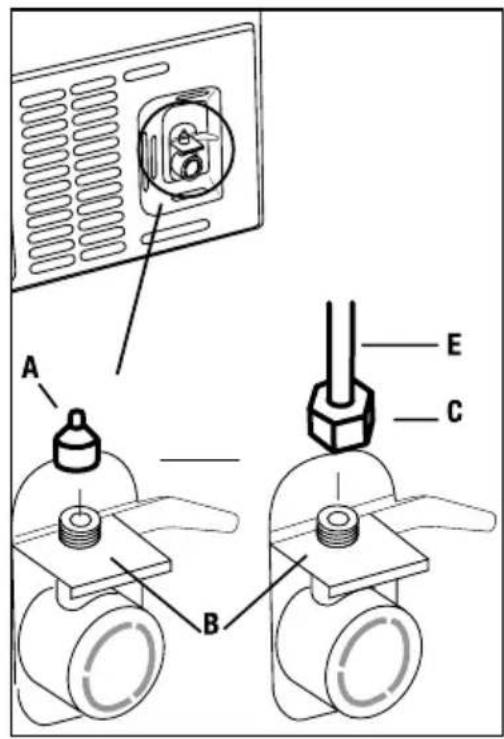

4.11 Connecting the water hose to the refrigerator .....21
4.12 Connecting the water line to the water supply....21

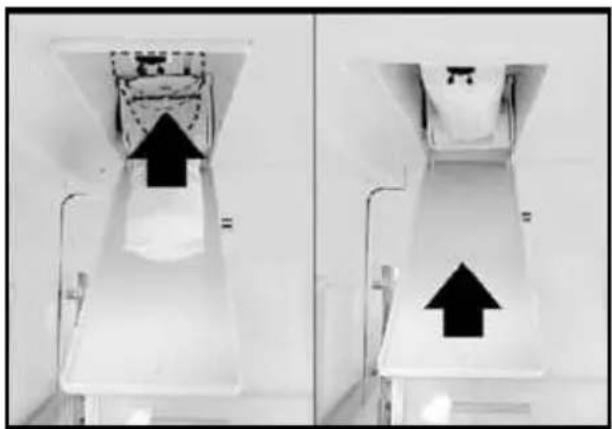

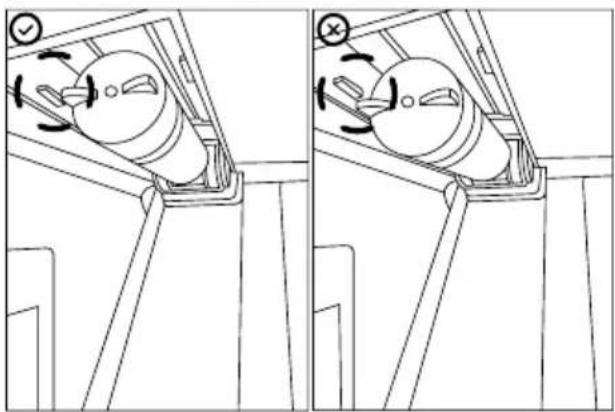

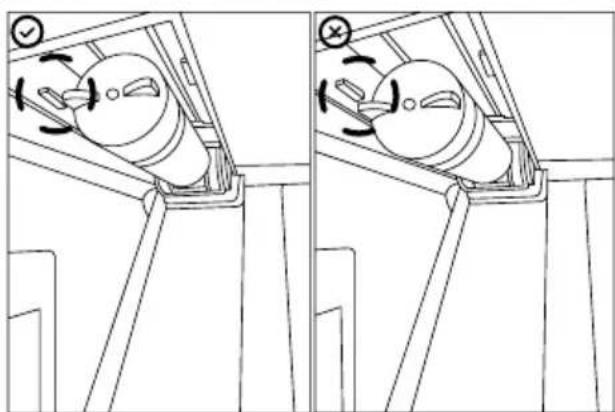

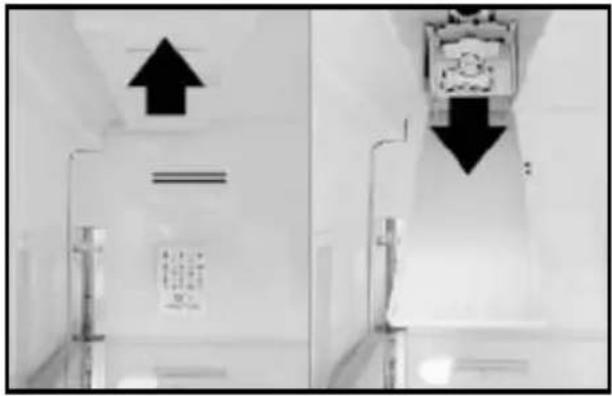

4.13 Installing the Internal Water Filter .....22
4.14 Before using the water dispenser .....23

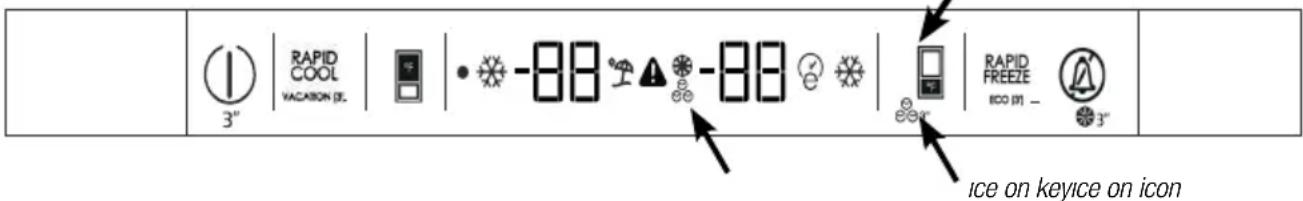

4.14.1 Using the Ice Maker.....23
4.15 Transportation of the product .....23

5 Preparation 24

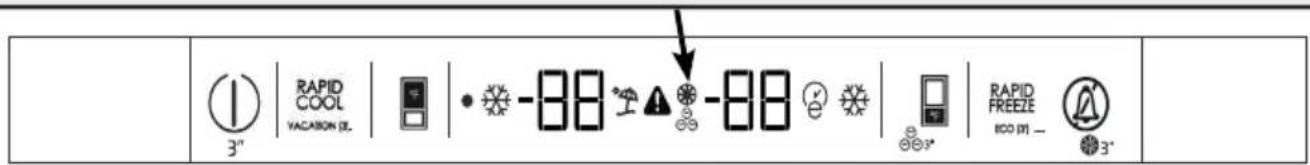

6 Display and operating the product 25

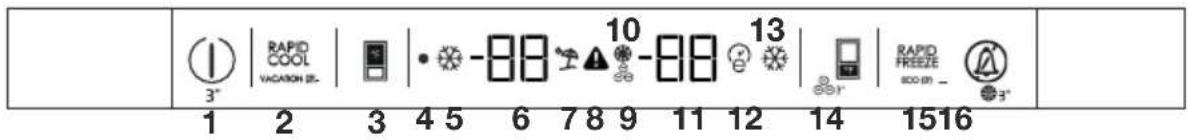

6.1 Indicator panel....25
6.2 Sabbath Mode .....26

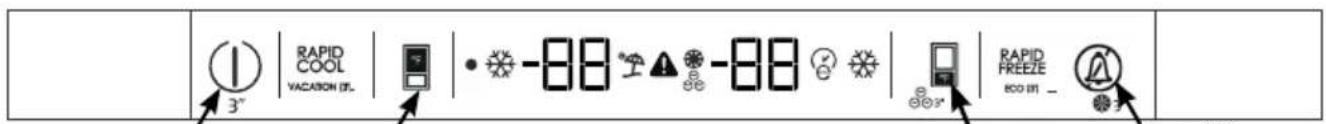

6.3 Showroom Mode .....26

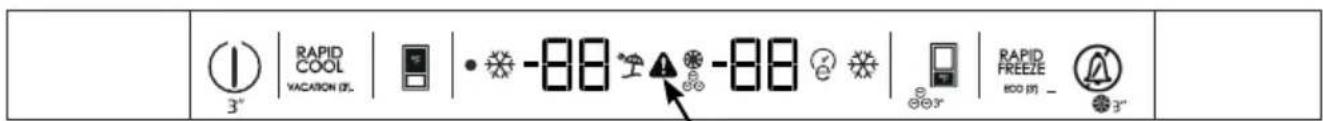

6.4 High Temp Error .....26
6.5 Freezing fresh food .....28
6.6 Recommendations for preserving frozen food28
6.7 Placing the food.....28
6.8 Deep-freeze information.....28

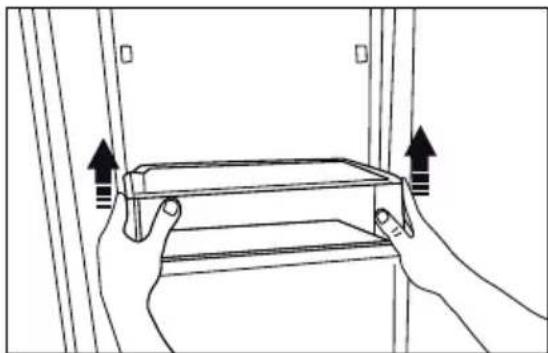

6.9 Removing door shelves .....29
6.10 Moving the FlexiLift Door Shelf .....29
6.11 Glass shelves....29
6.12 Crisper bins .....29

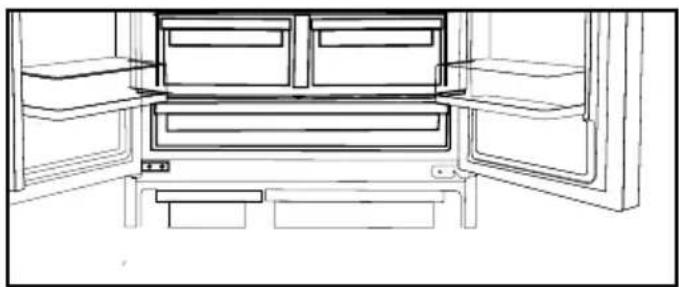

6.13 Deli Drawer .....29
6.14 Humidity controlled crisper .....30

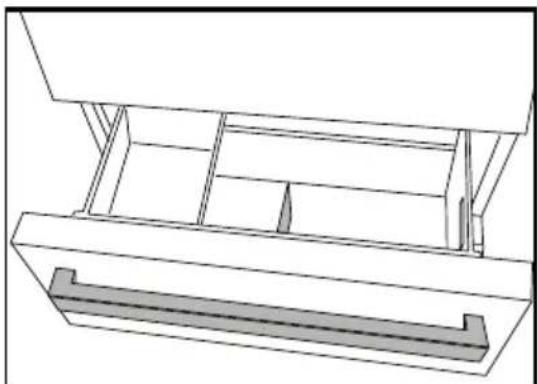

6.15 Ice container .....30
6.16 Butter & Cheese section .....30

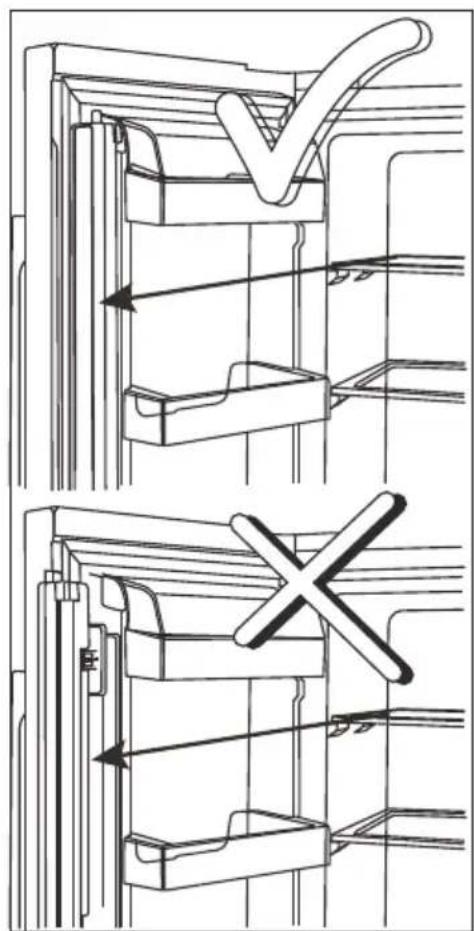

6.17 Door flappers....30
6.18 lonGuard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.19 Odor filter....31
6.20 Changing the temperature scale (Fahrenheit Celsius) .....31

7. Maintenance and cleaning 32

7.1 Avoiding bad odors .....32
7.2 Protecting the plastic surfaces .....32

8. Troubleshooting 33

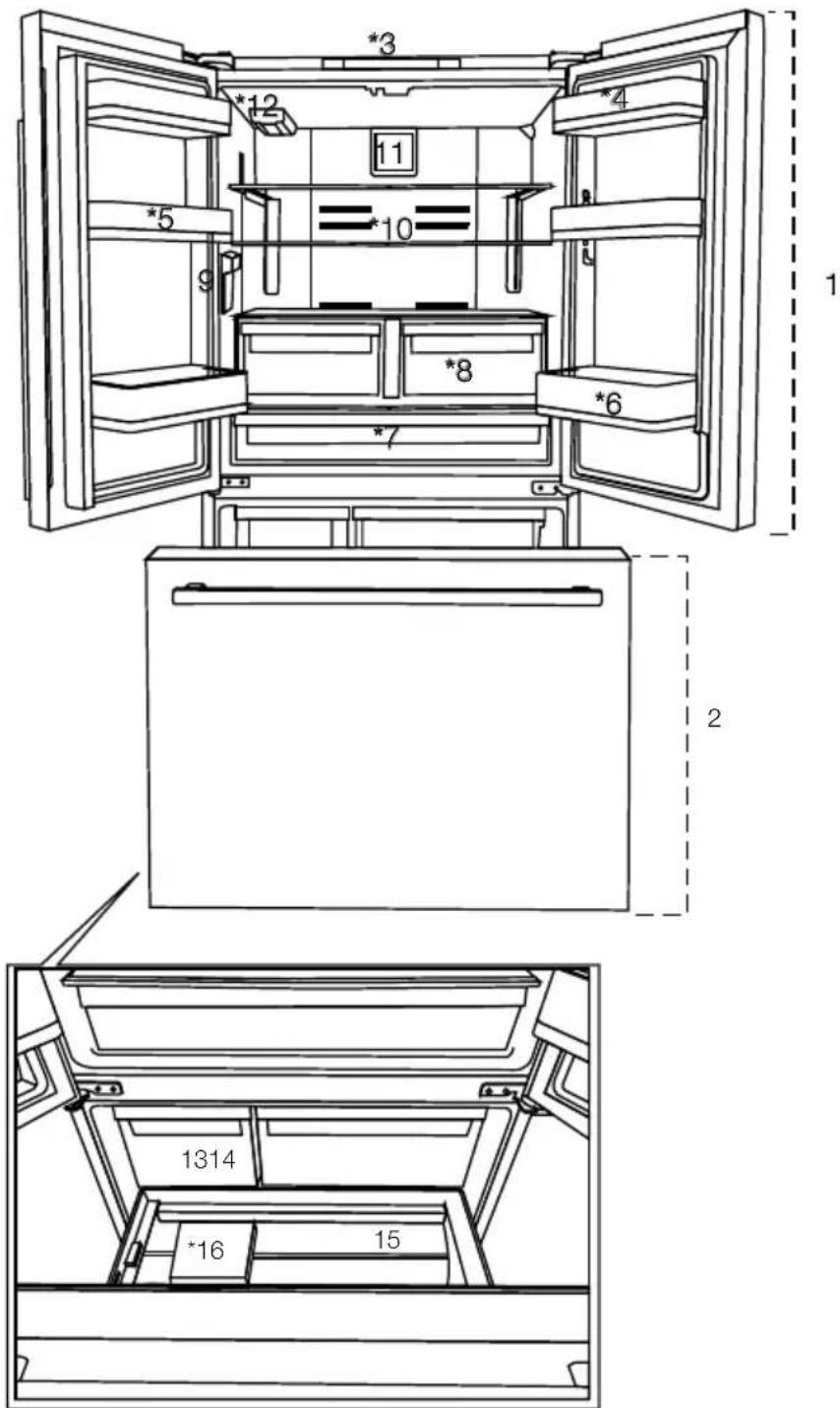

1 Your Refrigerator

Technical diagram of a refrigerator with numbered compartments and internal compartments, including top and side views with dimension annotations.

1- Fridge compartment
2- Bottom Freezer
3- Display/indicator panel

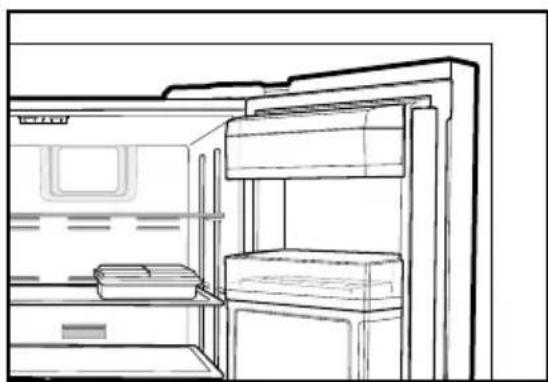

4- Butter & cheese section
5- FlexiLift Door Shelves
6- Bottle shelf
7- Deli Drawer
8- Crispers

9- Water dispenser
10- Adjustable glass shelf
11- Fan Cover
12- Water filter
13- Ice container
14- Frozen Food Storage Bin
15- Freezer Drawer
16- Separator

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are only valid for other models.

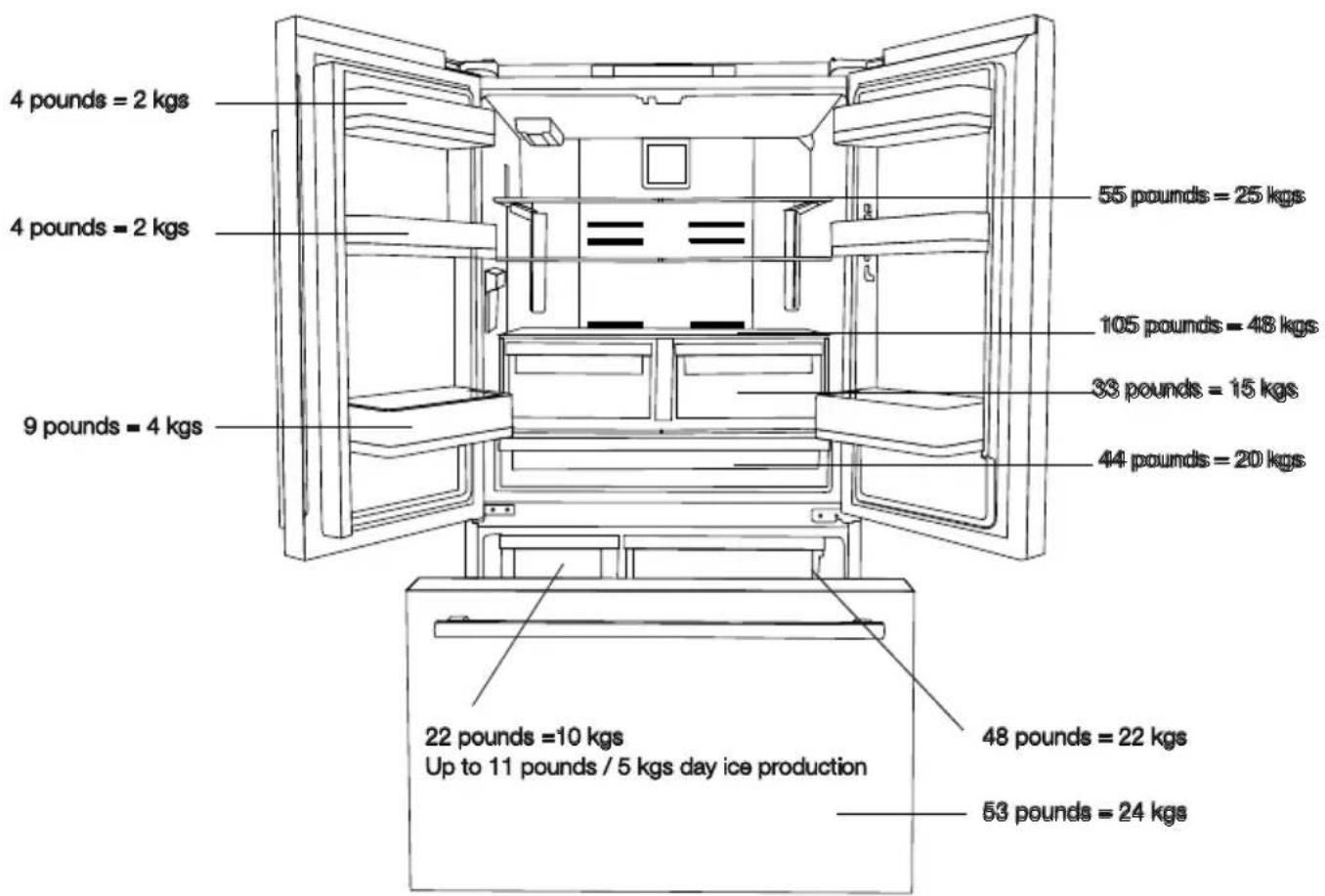

Refrigerator Shelf Weight Limitations

Fridge compartment Cantilever shelves, those that only have rear supports, are tested for max 25 kgs (55 pounds) per each part.

Crispers will hold up to 15 kgs (33 pounds) per each one. Deli Drawer will hold up to 20 kgs (44 pounds).

Ice container bin holds up to 10 kgs (22 pounds). Freezer bin will hold up to 24 kgs (53 pounds) and drawer holds up to 30 kgs (66 pounds).

4 pounds = 2 kgs 4 pounds = 2 kgs 9 pounds = 4 kgs 55 pounds = 25 kgs 105 pounds = 48 kgs 33 pounds = 15 kgs 44 pounds = 20 kgs 22 pounds =10 kgs Up to 11 pounds / 5 kgs day ice production 48 pounds = 22 kgs 53 pounds = 24 kgs

2 Important Instructions Regarding Safety and Environment

This chapter contains safety information that will help you avoid the risk personal injury or property damage. Failure to follow these instructions shall render any product warranty void.

2.1 Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

2.2 General Safety

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Failure to follow the instructions and uncontrolled use of the product lead to dangerous results!
• Unplug the product if you encounter a failure during use.
• If the product malfunctions, it must not be operated until repaired by the authorised service provider. Risk of electric shock!

- Plug the product into a grounded socket protected by a fuse that corresponds to the value on its nameplate. Have a qualified electrician ground the product. Our company cannot be held responsible for damages resulting from the failure to use the product with a grounded socket pursuant to local regulations.

• Unplug the product when not in use.
- Never wash the product by spreading or pouring water onto it! Risk of electric shock!
• Never touch the plug with wet hands!
- Never unplug the product by pulling the cable. Always pull the plug by holding the socket.

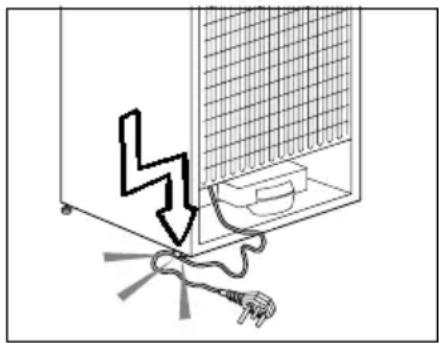

Diagram showing a device with a lightning bolt and cable, no text or symbols present

- Do not plug the refrigerator if the wall socket is loose.

Important instructions for safety and environment

- Never connect your refrigerator to energy saving devices. Such systems are harmful to your product.

- Unplug the product during installation, care, cleaning and repairing procedures.

- Always have the Authorised Service Provider install the product and establish its electrical connections. The manufacturer cannot be held responsible for damages caused by procedures performed by unauthorised persons.

- Do not eat cone ice cream or ice cubes immediately after you take them out of the freezer compartment! This may cause frostbite in your mouth!

- Do not touch frozen food with wet hands! They may stick to your hand!

- Do not put bottled or canned liquid beverages in the freezer compartment. They may burst!

- Never use steam or steam cleaners to clean or defrost the refrigerator. Steam gets into contact with the live parts in your refrigerator, causing short circuit or electric shock!

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.

- Never use the parts in your refrigerator such as the door and drawer as a means of support or step. This may cause the product to tip over or damage the parts of it.

• Do not damage the parts where the refrigerant is circulating with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.
• Do not cover or block the ventilation holes in your refrigerator with any object.
• Place the beverage with higher proofs tightly closed and vertically.
• Do not use gaseous sprays near the product since there is the risk or fire or explosion!
• Flammable items or products that contain flammable gases (e.g. spray) as well as explosive materials should never be kept in the appliance.
• Do not place vessels filled with liquid onto the product. Splashing water on an electrical part may cause electric chock or the risk of fire.
• Do not store items that need precise temperature adjustment (such as vaccines, heat-sensitive medication, science materials etc.) in the refrigerator.
• If you are not going to use the product for a long time, unplug it and remove the food in it.
• If there is a blue light on the refrigerator, do not look at this light with optical tools.
• Exposing the product to rain, snow, sun or wind is dangerous in terms of electrical safety.
• In products with mechanical control (thermostat), wait for 5 minutes to plug in the product again after unplugging.
• Do not overload the refrigerator. Objects in the refrigerator may fall down when the door is opened, causing injury or damage. Similar problems may arise if any object is placed onto the product.

Important instructions for safety and environment

• If the product has a door handle, do not pull the handle when re-locating the product. The handle might be loose.
• Be careful not to jam your hand or any other body part in the moving parts of the refrigerator.
• Do not put your hand or any other foreign materials into the ice machine while it is operating.

2.3 Hydrocarbon (HC) Warning

- If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention not to damage the cooling system or the piping during use and transportation. If damaged, keep the product away from potential fire sources that may cause it to catch fire and ventilate the room where the product is placed.

i	If the product is damaged and if you see gas leak, please keep away from the gas. It may cause frostbite when it gets into contact with the skin. (including R134)
i	Ignore this warning if the cooling system of your product contains R134a.
i	Type of gas used in the product is stated on the type plate which is on the left wall inside the refrigerator.
!	WARNING: Never throw the product into fire for disposal.

2.4 For Products with a Water Dispenser/Ice Machine

• Use only drinking water. Do not fill the water tank with fruit juice, milk, fizzy beverages, alcoholic beverages or any other liquids incompatible for use in the water fountain. This may cause risk to your health and safety.
• Do not allow the children to play with the water dispenser or Ice Maker to prevent accidents and injuries.
• Do not insert your fingers or other objects inside the hole of the water dispenser, ice channel or inside the container of the Ice Maker. This may cause injuries or material damages.
• Pressure for cold water inlet shall be maximum 90 psi (620 kPa). If your water pressure exceeds 80 psi (550 kPa), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is a risk of water impact in your installation, always use a water impact protection equipment in that installation. Please consult professional plumbers if you are not sure if there is water impact in your installation.
• Do not make installation on the hot water inlet.
• Take the necessary measures against the freezing risk of the hoses. The water temperature operating range must be 0.6^ C ( 33^ F) minimum and 38^ C ( 100^ F) maximum.

WARNING:

Never connect the product to a cold water mains with a pressure of 550 kPa (80 psi) or above.

Important instructions for safety and environment

2.5 Intended Use

• This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
  • It must be used only for storing food.
• The manufacturer will not take any responsibility for damages resulting from improper use or transport.
• Original spare parts will be available for 10 years after the purchase date of the product.

2.6 Children's Safety

• If there is a lock on the door of the product, the key should be kept out of the reach of children.
• Do not let children play with the product.

CAUTION:

To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator.

WARNING:

Before disposing your old refrigerator or freezer:

• Children may get locked inside.
- Remove the doors.
- Leave the shelves to prevent children from getting inside the product easily.

2.7 Compliance with the WEEE Directive and Disposing the Waste Product:

This product conforms to the EU WEE Directive (2012/19 EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured from high quality

parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste or other waste at the end of its service life. Take it to a collection centre for recycling electrical and electronic equipment. Please consult local authorities to learn about the locations of such collection centres.

2.8 Compliance with the RoHS Directive:

The unit you have purchased conforms to the EU RoHS Directive (2011/65/EU). It does not contain harmful or prohibited materials specified in the Directive.

2.9 Packaging Information

Packaging materials of the product have been manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose the packaging materials with normal domestic waste or other types of waste. Take these materials to a recycling point designated by local authorities.

DANGER:

Risk of Fire or Explosion:

• This product uses flammable refrigerant.
• Do not use mechanical devices to defrost the refrigerator.
  • Do not use chemicals for cleaning.
• Do not pierce the refrigerant pipe.
• If the refrigerant pipe is pierced, it must be repaired only by licensed service personnel.
• Please consult the repair/user manual before cleaning the product. All safety instructions must be followed.
• Dispose the product according to federal or local regulations.

3 Environmental instructions

3.1 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

3.2 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

3.3 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

4 Installation

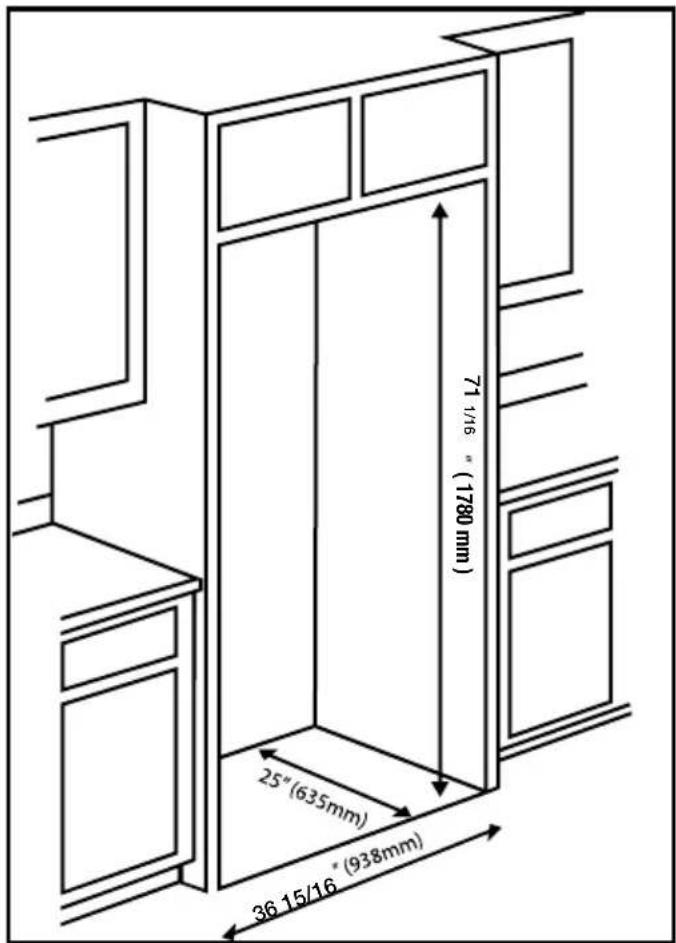

4.1 Cladded Version

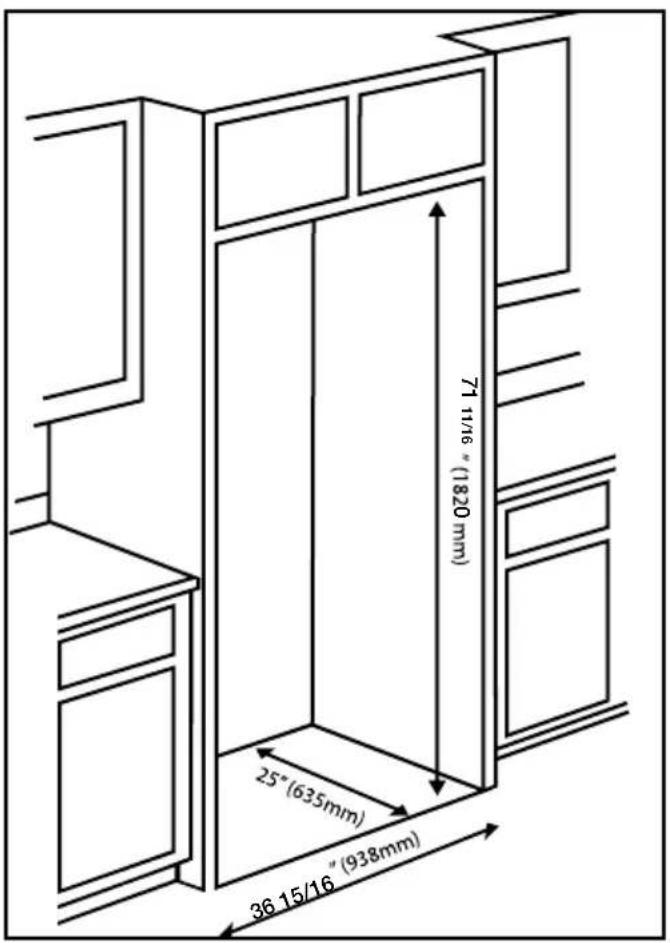

21 1/16" (1780 mm) 25" (635mm) 36 15/16" (938mm)

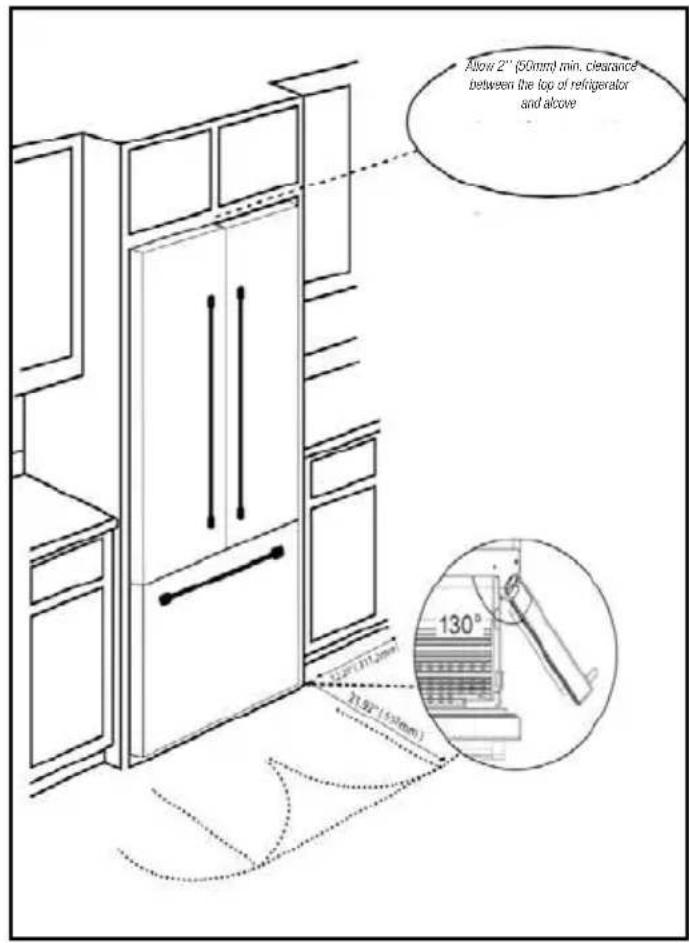

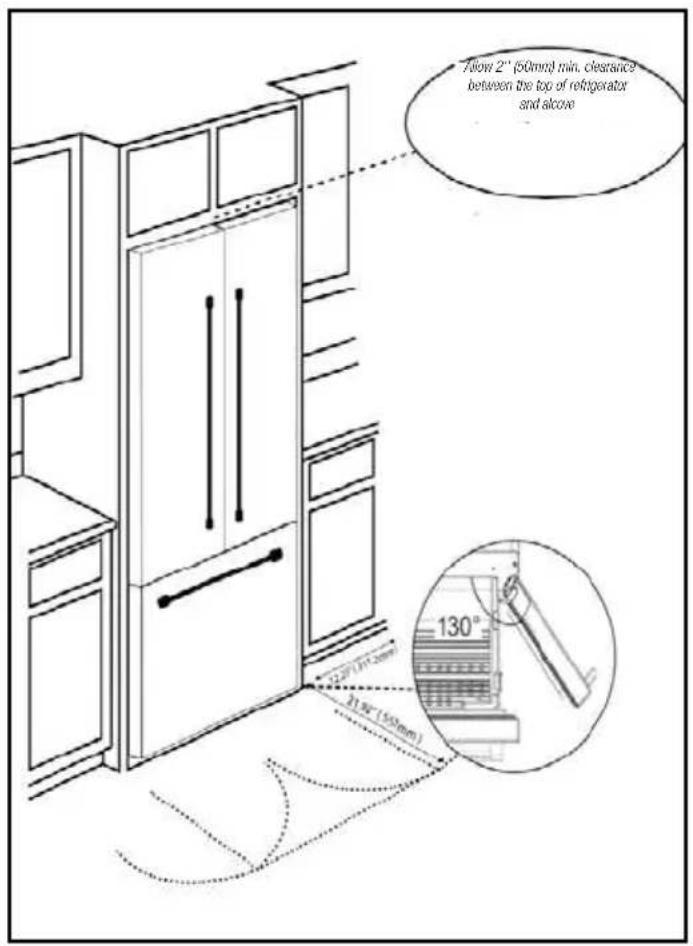

Allow 2" (50mm) min. clearance between the top of refrigerator and alcove 32.4" (111.2mm) 21.9" (130mm) 130°

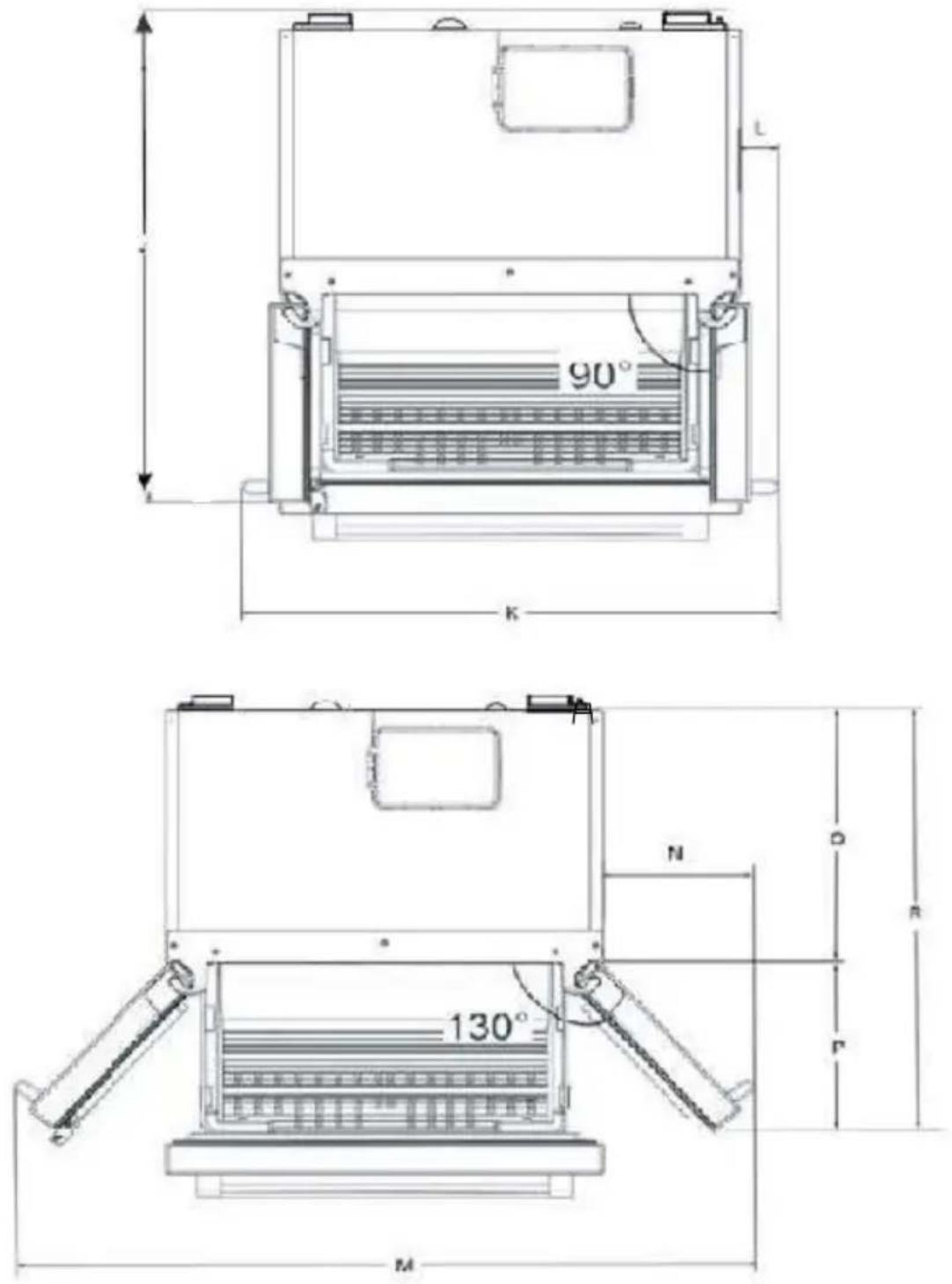

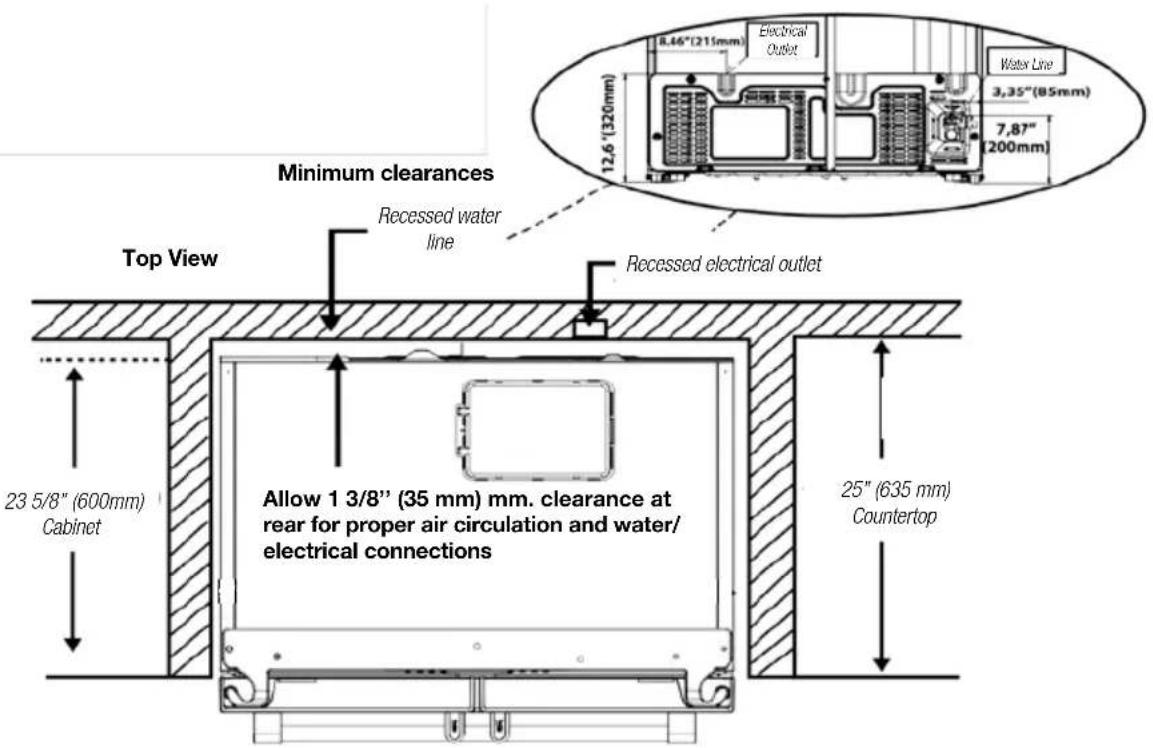

Minimum clearances Recessed water line Top View Allow 1 3/8" (35 mm) mm. clearance at rear for proper air circulation and water/electrical connections 23 5/8" (600mm) Cabinet 25" (635 mm) Countertop Electrical Outlet Water Line 12,6" (320mm) 3,35" (85mm) 7,87" (200mm)

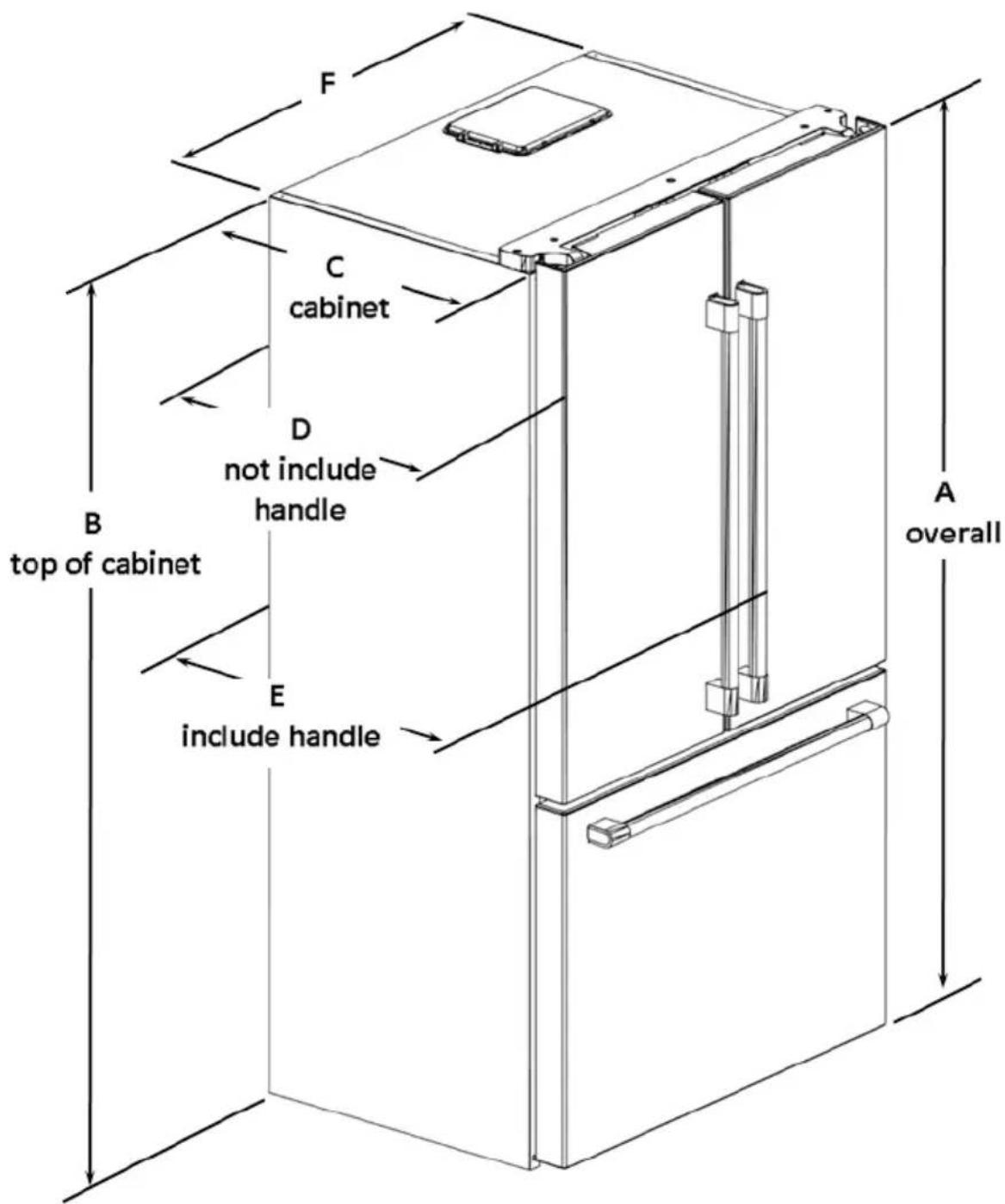

F C cabinet D not include handle B top of cabinet E include handle A overall

Height-Overall “A” Height-TopOfCabinet “B”	Depth-CabinetOnly “C” “O”	Depth-Without Handles “D”
70 1/16” (1780 mm) 68 5/8”(1743 mm) 23 5/8” (600 mm) 26 7/8” (683 mm)

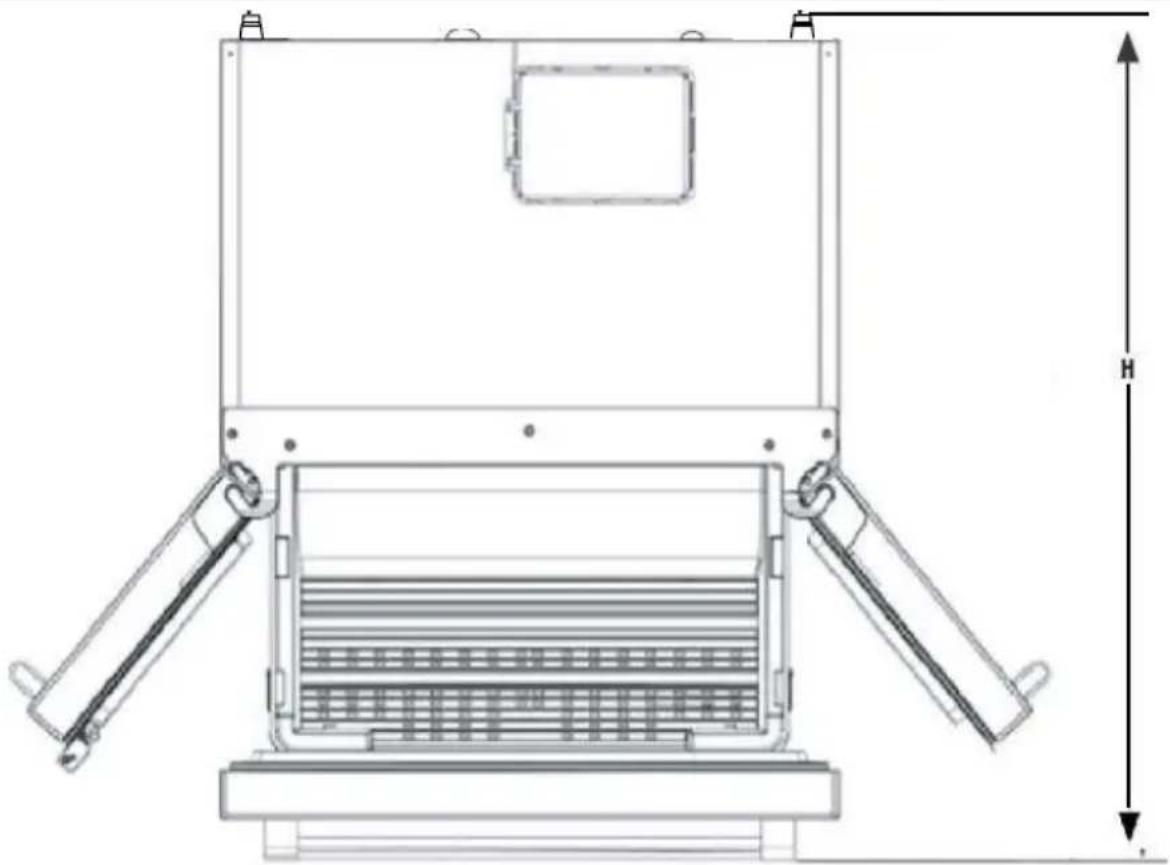

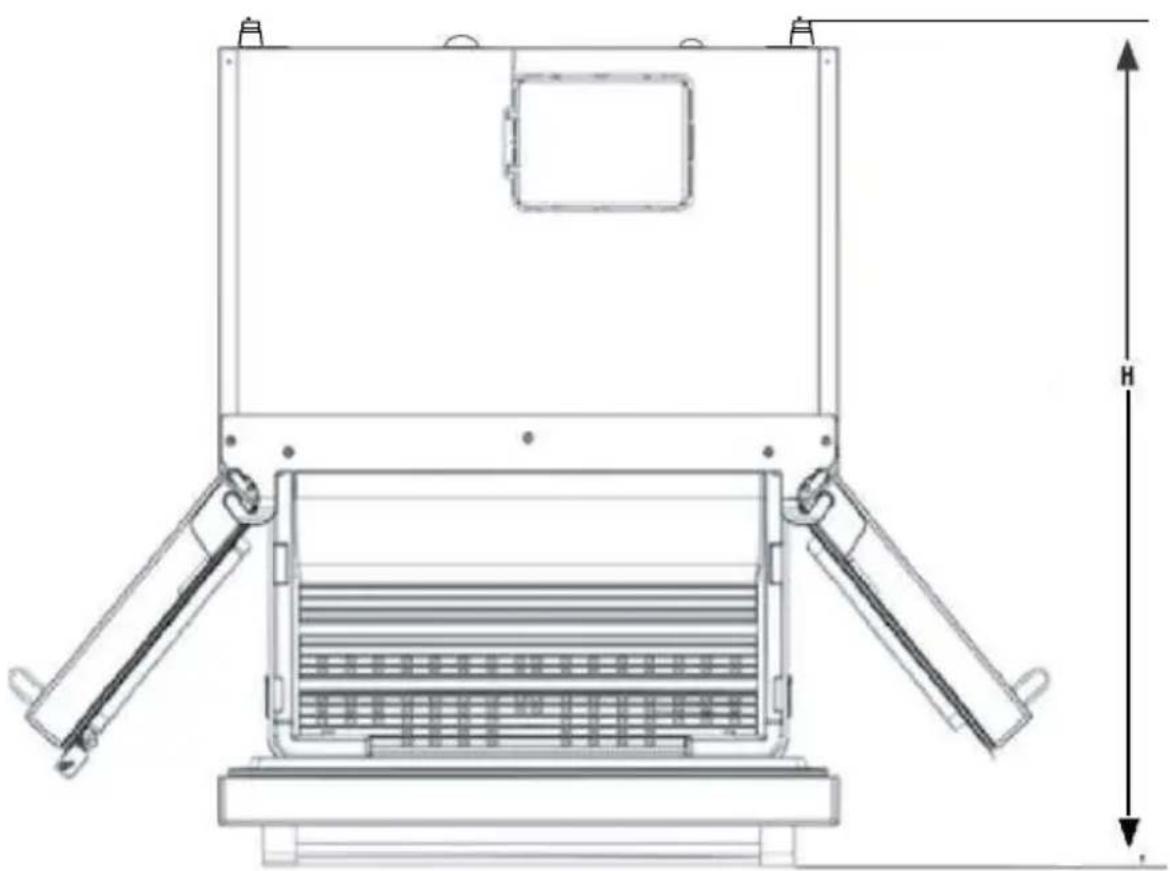

Depth-With Handles “E”	Width-Cabinet “F” TotalDepth-DrawerOpen “H”
29 1 /16” (738 mm) 35	3/4”(908 mm) 46 11/16” (1186 mm)

Installation

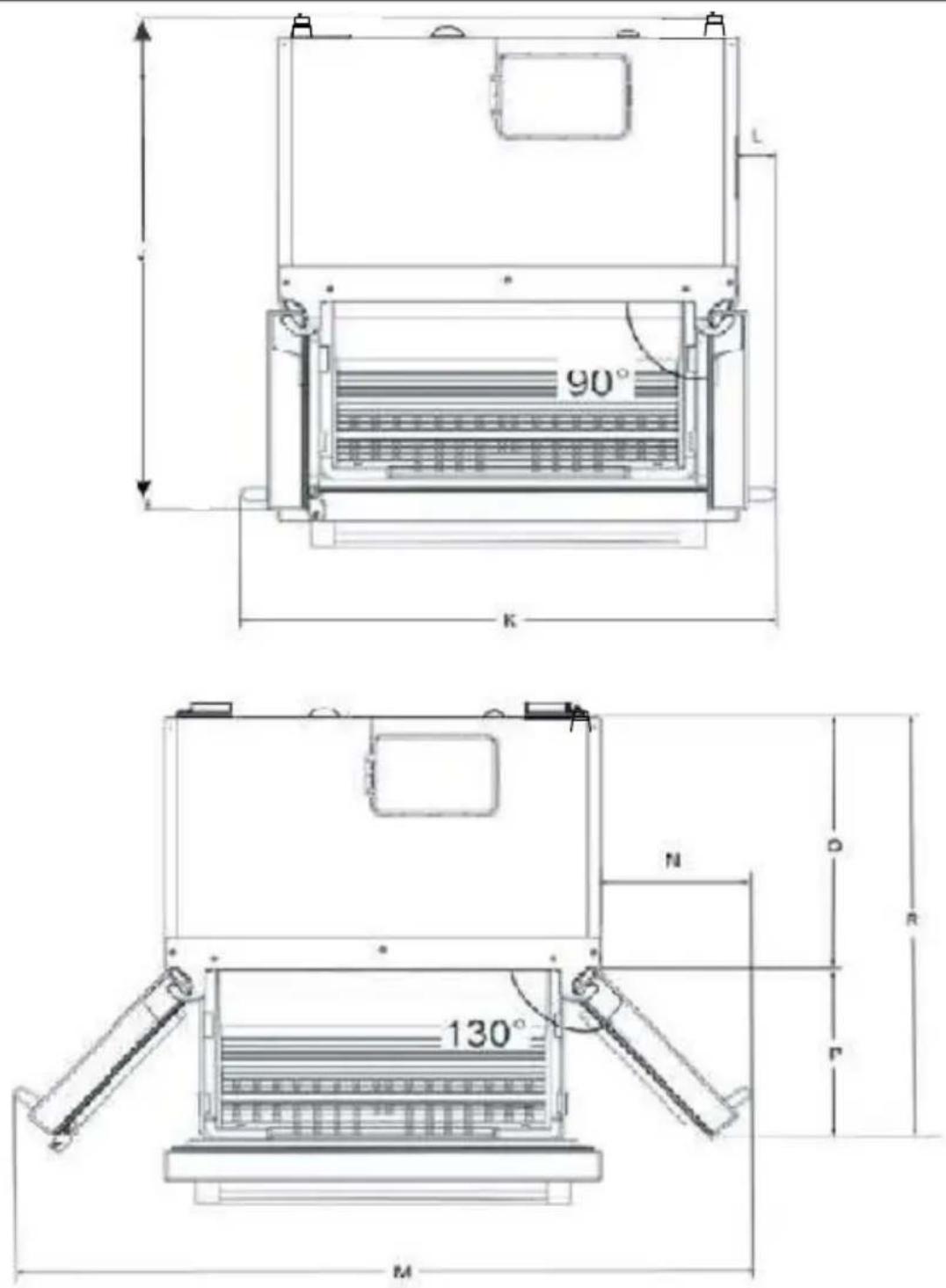

Technical line drawing of a mechanical device with vertical dimension H and internal grid structure (no text or symbols)

TotalDepth-DrawerOpen “H”

46 11/16” ( 1186 mm )

Minimum Air Clearance From the Top: 2" inches

Minimum Air Clearance From the Sides: 5/8" inches

Minimum Air Clearance From the Back: 1 3/8" inches

Width-Doors Open90°WithHandles “K”	Width-Doors Open90°-FromCabinetToHandle“L”
41 11/16” ( 1059.2 mm ) 3”	( 75.6 mm )
Width- Doors Open130°-FromHandleToHandle “M”	Depth-Doors Open 130”“P”	Depth Doors Open 130° “R”
60 1/4” ( 1530.2 mm ) 15 3	3/8” ( 391 mm ) 39” ( 991mm )

4.2 Non-Cladded Version

71 11/16" (1820 mm) 25" (635mm) 36 15/16" (938mm)

Allow 2" (50mm) min. clearance between the top of refrigerator and alcove 12.5" (1ft.20mm) 31.5" (50mm) 130°

Minimum clearances Recessed water line Top View Allow 1 3/8" (35 mm) mm. clearance at rear for proper air circulation and water/ electrical connections 23 5/8" (600mm) Cabinet 25" (635 mm) Countertop Electrical Outlet Water Like 3,35" (85mm) 7,87" (200mm) 12,6" (320mm)

F C cabinet D not include handle B top of cabinet E include handle A overall

Height-Overall “A” Height-TopOfCabinet “B”		Depth-CabinetOnly “C” “O”	Depth-Without Handles “D”
69 3/4” (1771 mm) 68 5/8”(1743 mm) 23 5/8” (600 mm) 6 13/16” (680.5 mm)
	Depth-With Handles “E”	Width-Cabinet “F” TotalDepth-DrawerOpen “H”
	29” (737 mm) 35 3/4”(908 mm) 46 11/16” (1186 mm)

Technical line drawing of a mechanical device with internal grid structure and support brackets (no text or symbols)

TotalDepth-DrawerOpen "H"

46 11/16" (1186 mm)

Minimum Air Clearance From the Top: 2" inches

Minimum Air Clearance From the Sides: 5/8" inches

Minimum Air Clearance From the Back: 1 3/8" inches

Width-Doors Open90°WithHandles “K”	Width-Doors Open90°-FromCabinetToHandle“L”
41 11/16” ( 1059.2 mm ) 3”	( 75.6 mm )
Width- Doors Open130°-FromHandleToHandle “M”	Depth-Doors Open 130”“P”	Depth Doors Open 130° “R”
60 1/4” ( 1530.2 mm ) 15 3/8” ( 391 mm ) 39” ( 991mm )

Installation

4.3 Before Installation

- Before installing, be sure the opening measurements are sufficient to receive the product and that the appropriate electrical and plumbing connections are present.

Water line pressure values	psi	kPa	bar
Max Operating pressure:	90	620	5.2
Max pressurefor limiting valve devicerequirement:	80	550	5.5

Electrical requirements
Voltage	120V AC
Frequency	60 Hz
Current	15 A

• Refer to the nearest Authorized Service Agent for installation of the product. To make the product ready for use, make sure that the electricity installation is appropriate before calling the Authorized Service Agent. If not, call a qualified electrician to have any necessary arrangements carried out.
• Your product comes with an internal water filter. Part number of the filter is 4874960100 and you can use this part number when ordering replacement filters.

	Preparation of the location and electrical installation at the place of installation is under customer's responsibility.
	Plumbing: The refrigerator should only be connected to the cold water line.
	Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
	WARNING: Installation and electrical connections of the product must be carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks to your safety.

4.4 Appropriate installation location

• Install the product at least 12" (30 cm) away from heat sources such as cooktops, ovens, space heaters, radiators and stoves at least 2" (5 cm) away from electrical ovens. Product must not be subjected to direct sun light and kept in humid places after installation.
• Do not place the product on the materials such as rugs or carpets.
• Place the product on an even floor surface to prevent wobbling.
• Do not install the product in places where the temperature falls below 50F°/10°C.

If two refrigerators are to be installed side by side, there should be at least 1 1/2" (4 cm) distance between them.

• Make sure that sufficient room is provided around the appliance to ensure free air circulation.
• For proper functionality, there should be a gap of at least 1 3/8" (35 mm) between the refrigerator and the rear wall. To ensure this, attach the gray, circular buffers, to be installed on the rear back metal cover of the refrigerator. These are shipped inside the crisper drawer in the Fresh Food compartment.

Installation

4.5 Inset installations

• If the product will be installed within surrounding cabinetry or in an alcove, be sure there is adequate airflow around the product for proper functionality. This refrigerator requires at least 2" from the top of the unit to the ceiling or enclosure, 5/8" on each side and 1 3/8" in the back.
• For proper air flow when installed in an inset or alcove, be sure the parts shown below are installed on the unit.

circulation part

unscrew before the installation

Install the vertical metal bracket and screw.

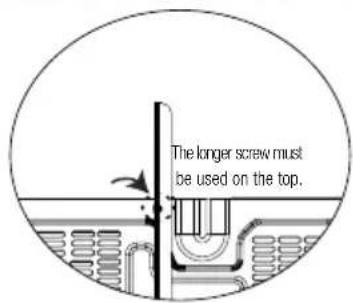

The longer screw must be used on the top.

Technical diagram showing mechanical assembly with three views (top, front, side) and close-ups of a tool or component (no text or symbols present)

4.6 Electrical connection

• 120VAC, 60Hz, Dedicated 15Amp Circuit.
• GFCI outlets will provide added protection, but any failure of the GFCI could cause food spoilage, which is not covered by the manufacturer's warranty.
• Electrical connection must comply with national regulations.
• Power cable plug must be within easy reach after installation.
• Do not make connections via extension cables or multi-plugs.

WARNING: Damaged power cable must be replaced by the Authorized Service Agents.

WARNING: If the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent! There is the risk of electric shock!

4.7 Adjusting the feet

After moving the refrigerator into place, we recommend lowering the feet to secure the product in place. You can also adjust the feet if the product is not balanced. Twist the feet in the desired direction according to the illustration below. Adjusting the feet can also be used to align the doors.

Diagram showing a person walking toward a large screen with directional arrows indicating motion (no text or symbols)

WARNING: First unplug the product. Product must not be plugged in when adjusting the feet. There is the risk of electric shock!

4.8 Illumination lamp

Do not attempt to repair yourself but call the Authorized Service Agent if the LED illumination lamps do not go on.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

4.9 Door/Drawer Open Warning

An audio warning signal will be given when the door of your product is left open for 1 minute. This warning will be muted when the door is closed or if any of the display buttons are pressed.

Display

4.10 Water connection

First you must connect the water hose to the refrigerator.

WARNING: Refrigerator and the pump, if any, must be unplugged during connection.

4.11 Connecting the water hose to the refrigerator

1. Remove the valve channel cover (A) from the water inlet valve.

2. Connect the water line (C) to the inlet valve (B) and tighten by hand to secure it. It is not necessary to use pliers, but if there is a leak, you may tighten slightly with a pair of pliers.

Technical diagram showing installation of a ventilation duct with labeled components A, B, C, and E

4.12 Connecting the water line to the water supply

Connect the water line to a water supply valve. If a valve is not present or you are not sure, consult a qualified plumber.

Installation

3" RAPID COOL VACATION (E) • -88 ° -88 ° Rapid FREEZE ECO (D) — 3"

4.13 Installing the Internal Water Filter

Simple line drawing of a cylindrical object with a side protrusion and a small top component (no text or symbols)

Installing the internal water filter consists of two steps:

Physically installing the filter Making adjustments to the display.

1. Press and hold the Freezer Temp Set key for 3 seconds, or until the ice on icon disappears in the display.

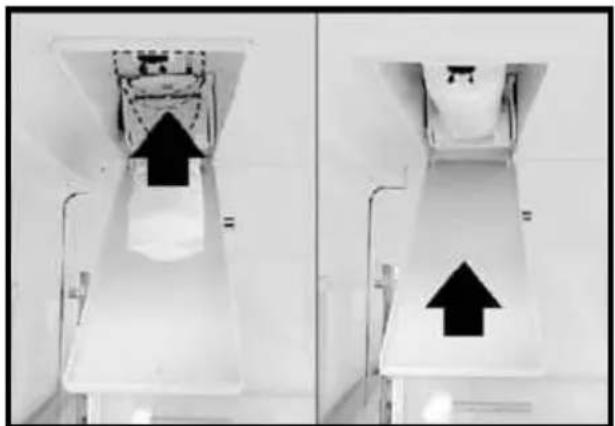

2. Slide the filter cover forward to open the filter compartment.
3. Tilt the bypass plug down and pull straight out to remove it.
4. Insert the filter into the housing and push it up to a horizontal position.
5. Close the filter cover and push it back into place.
6. Press and hold the Freezer Temp Set key again for 3 seconds.
   You have successfully installed your filter.

The Filter End of Life warning ⚙3" will appear in approximate 130 days, requiring you to replace the filter with the same steps as listed above. After replacing the filter, press and hold the "Alarm Off" key Alarm for 3 seconds, or until the Filter End of Life Warning goes out in the display.

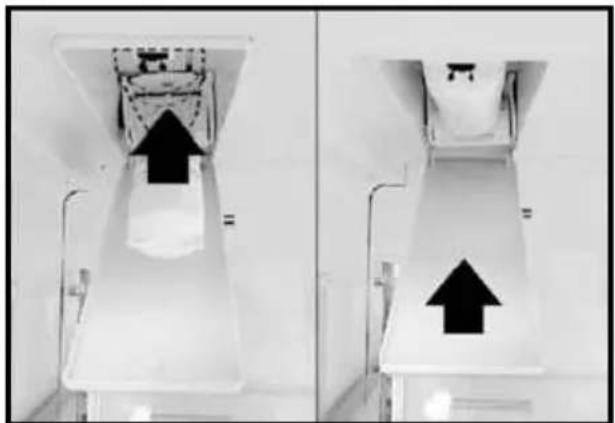

Two black arrows pointing upward and downward on a white wall, with no visible text or symbols.

Two identical grayscale images showing a device with black arrows pointing upward, no text or symbols present.

Technical line drawing showing two views of a mechanical component with rotational arrows indicating motion (no text or symbols)

3D rendered mechanical component with cylindrical body and flanged side (no text or symbols)

BYPASS PLUG

Installation

4.14 Before using the water dispenser

The water system connections should be made by an Authorized Service Agent, with the necessary tools.

• The water system is designed to operate only with water. Do not attempt to connect to beverages such as soft drinks or juices.
• There will be air in the water line that must be bled out of the system before the initial use. To remove the air in the line, place a container beneath the water dispenser nozzle and depress the dispenser paddle for 1-2 minutes until only water comes out.

- The first 10 glasses of water should not be consumed. It will take approximately 12 hours before the water being dispensed cools down to refrigerated temperatures.

- Wait 1 second after releasing the dispenser paddle before removing your container, as this will reduce the potential for dripping into the dispenser tray.

Line drawing of a hand pouring liquid into a glass cup (no text or symbols)

- Empty and clean the ice bin. Ice cubes can also stick together if they are left in the bin for too long.

4.15 Transportation of the product

1. Unplug the product before transporting it.
2. Remove water connections.
3. Secure the shelves, accessories, crisper and etc. in the refrigerator by adhesive tape before repackaging it.

[20AH]	Packaging must be tied with thick tapes or strong strips and the rules of transportation printed on the package must be followed.
	WARNING: Packaging materials are dangerous for the children. Keep packaging materials in a safe place away from reach of the children.

4.14.1 Using the Ice Maker

Freezer Temp Set

3" | RAPID COOL VACATION (E) • -88 °C -88 °C Rapid FREEZE ECO (01) - 3" ice on keyice on icon

The ice maker is not turned on from the factory.

- To turn the ice maker on, press and hold the Freezer Temp Set key for 3 seconds, or until ice on icon (💡) appears in the display. It will take approximately 1-2 days for the ice bin to fill with ice. If a power outage occurs while the refrigerator is running, the ice cubes may partially melt and then stick together when the re-freeze. If the power outage is prolonged, the ice cubes may turn into water, causing leakage. If such a problem occurs.

5 Preparation

Before starting to use the product, check that all preparations are made in accordance with the instructions in sections "Important instructions for safety and environment" and "Installation".

• Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning (Page 25)” section. Ensure that interior is dry before operating.
• Plug the refrigerator into the grounded wall outlet. When the door is opened the interior illumination will turn on.
• Run the refrigerator without putting any food for 6 hours and do not open its door unless absolutely required.
• Do not allow the food to touch the temperature sensor in fresh food compartment.

i	You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
i	Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

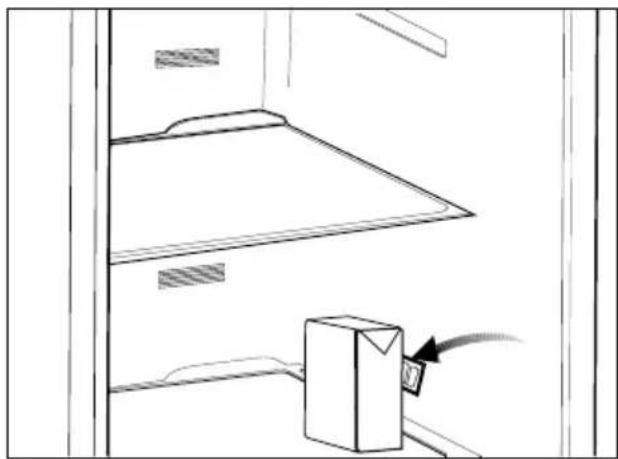

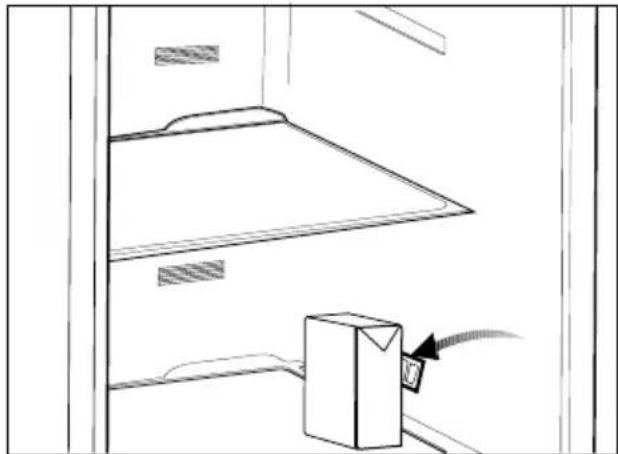

Line drawing of a cabinet shelf with a box and cable inserted, no text or symbols present

6 Display and operating the product

6.1 Indicator panel

Touch-control indicator panel allows you to set the temperature and control the other functions of the refrigerator. Just press the relevant buttons for function settings.

RAPID COOL VACATION 25- 10 -88 -88 13 RAPID FREEZE ECO IN - 3" 1 2 3 4 5 6 7 8 9 11 12 14 1516

Note: Keys 2, 14, 15, and 16 have two functions. The second function has a "b" after the number below.

1-Power key

Press and hold this key for 3 seconds to turn the refrigerator on and off.

2-Rapid Cool Key

Press this key to turn on the Rapid Cool option, which drops the temperature in the Fresh Food compartment to its lowest setting (33 F°) for two hours. It will return to the previously set temperature after this time.

2b. Vacation Mode

If you hold the Rapid Cool key for three seconds, you will turn on the Vacation Mode. In Vacation mode the Fresh Food compartment will stay at 50 F° while the Freezer maintains its set temperature. You will know that Vacation Mode is on by the dashes in the Fresh Food temperature display (6) and the illumination of the "beach umbrella" (7). Press and hold the Rapid Cool key for 3 seconds to turn this option off.

3- Fresh Food Temperature set key

Press this key to change the temperature in the Fresh Food section from between 33 F° and 40 F°. The set temperature will be displayed in the Fresh Food temperature display (6).

4- Power "off" indicator light

A red dot will be illuminated when the refrigerator is plugged in, but NOT turned on. Once the refrigerator is turned on, the red light will go out.

5-Rapid Cool Indicator

A "snowflake" icon to the left of the Fresh Food temperature display lets you know the Rapid Cool option is on.

6-Fresh Food Temperature display

The set temperature in the Fresh Food compartment will be displayed here.

7-Vacation Mode indicator

The "beach umbrella" icon will be illuminated when Vacation Mode is turned on. You will also see dashes in the Fresh Food temperature display.

8- High Temp Warning

The red exclamation point will be illuminated if the temperature in Freezer is too high after the initial 72 hours of operation. (See page 19 for more details)

9-Ice Maker On icon

When this icon goes on, the ice maker function is active. When the icon go off, the ice maker function is deactivated.

10-Filter Change icon

The filter reset icon will illuminate when it is time to replace the water filter. (For instructions on how to do that, see page 12.)

11-Freezer Compartment temperature display

The set temperature of the Freezer compartment will be shown in this display.

12-Eco-Extra icon

The Eco-Extra icon will be illuminated when Eco-Extra is turned on. (See 15b for more information on this option.)

13-Rapid Freeze Indicator

A snowflake icon to the right of the Freezer Compartment temperature display will be illuminated when the Rapid Freeze option is turned on. (See 15 for information on that option.)

14-Freezer Temperature set key

Press this key to adjust the temperature in the Freezer compartment, between -8 F° and 5 F°.

14.b. Ice Maker on/off key

When this button is pressed for 3 seconds, the ice maker function is activated and the LED for the Ice Maker On Icon turns on. When this button is again pressed for 3 seconds, the ice maker function is deactivated; the ice cubes prepared beforehand can be used even if the function is deactivated.

15-Rapid Freeze key

Press and hold the Rapid Freeze key to turn on the Rapid Freeze option, which will drop the temperature in the Freezer to its lowest setting (-8 F°) for 24 hours. After this time it will return to the previously set temperature.

15b. Eco-Extra key

Press and hold the Rapid Freeze key for 3 seconds to turn on the Eco-Extra option. In this mode

the refrigerator will operate in its most efficient way. It will only stay in this mode while the doors remain closed.

16. Alarm Off key

If the doors remain open for more than 1 minute, or if an error is detected, an alarm will sound. If this key is pressed, the alarm will be silenced.

16b. Filter Change Timer Reset

If the filter change light comes on (10), press and hold the Alarm Off key for 3 seconds to reset the timer. The filter reset light will come on

*optional: Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

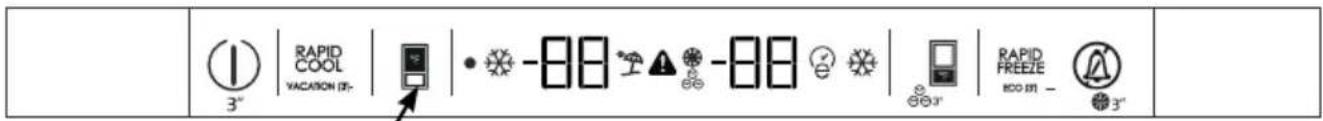

6.2 Sabbath Mode

3" RAPID COOL VACATION (F): • -88 -88 Rapid FREEZE ECO 101 - 3"

Fresh Food Temp Set key

Press the Fresh Food Temp Set Function key for 3 seconds to activate or deactivate the Sabbath Mode. When Sabbath Mode is activated, the display, alarm, door opening or light buttons will not function. "SA" will appear in the display. The cooling algorithm is set according to the sabbath fashion. If the user does not deactivate the Sabbath mode, the refrigerator will automatically cancel it in 72 hours.

6.3 Showroom Mode

RAPID COOL VACATION (IF.) 3° • -88 ° -88 ° RAPID FREEZE ECO 101 -

Power Fresh Food Temp Set key
Freezer Temp Set
Alarm Off

Showroom Mode is an option primarily used in dealer's showrooms. It allows the product to be turned on without the operation of the fans and cooling system. To activate this mode, Press and hold "Power" & "Alarm Off" until PS 0 appears. Change the 0 to an 8 by pressing the "Freezer Temperature Set" key. Then press "Fresh Food Temperature Set" key to activate. To deactivate, press and hold the "Power" & "Alarm Off" again.

6.4 High Temp Error

3° RAPID COOL VACATION (E) -88 -88 Rapid FREEZE HCO (E) - 3"

High Temp Error Icon

The High Temp Error icon is displayed when the Freezer temperature is too warm after the initial 72 hours of operation. If the Freezer temperature reaches 28F^ (-2.2^) or higher, and doesn't drop below 16F^ (-9^) within 12 hours, the High Temp Error icon will be illuminated, an alarm will sound and the set temperature and highest temperature reached in the Freezer will alternate in the display. If you press the "Alarm Off" key, the alarm will be silenced, but the icon and flashing temperature will continue until the Freezer gets below 16F^ (-9^) . If the Freezer does not cool below 16F^ (-9^) in the next 3.5 hours, the audible alarm will return. The audible alarm can be silenced again with the "Alarm Off" key. If the error continues to return, the doors should be checked for proper closure and sealing. A common cause of this error is a power failure in the circuit to which the refrigerator is connected. If the icon continues to return, an authorized service agent should be called to inspect the unit.

Operating Temperatures

Freezer Compartment Setting	Fridge Compartment Setting	Explanations
5F°/-15°C 39	F° /4°C This is the normally recommended setting.
-4F°/-20°C 37	F° / 3°C	These settings are recommended when the ambient temperature exceeds 86 F° /30°C.
Rapid Freeze 39	F° / 4°C	Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
5 F° /-15°C or colder	Rapid Cool	Use this function when you place large quantities into the fridge compartment or when you need to cool your food quickly. It is recommended that you activate Rapid Cool function 4-8 hours before placing the food in the compartment.

Operating the product

6.5 Freezing fresh food

• Wrap the food or place them in a covered container before putting them in the refrigerator.
• Hot food and beverages must cool down to room temperature before putting them in the refrigerator.
• The food that you want to freeze must be fresh and in good quality.
• Pack the food in an airtight manner to prevent them from drying even if they are going to be stored for a short time.
• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, oils and acids and they must also be airtight. All packaging must be completely sealed.
• Frozen food must be used immediately after they are thawed and they should never be re-frozen.
• Do not freeze excessively large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.

6.6 Recommendations for preserving frozen food

To ensure the quality achieved by the frozen food manufacturer and food retailer is maintained, follow the steps listed below:

1. Put packets in the freezer as quickly as possible after purchase.
2. Make sure that contents of the package are labelled and dated.
3. Check whether the "Use By" and "Best Before" dates on the packaging are exceeded or not.

6.7 Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or beverage (such as milk, fruit juice, beer and etc.)
Crisper Vegetables and fruits
Deli drawer	Delicatessen products (cheese, butter, salami and etc.)

6.8 Deep-freeze information

You can keep the freshness of food for many months (at 5 F° / -15°C or lower temperatures in the deep freeze).

i	Divided the food into portions according to your family’s daily or meal based consumption needs.
i	Pack the food in an airtight manner to prevent them from drying even if they are going to be stored for a short time.

• Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen

Operating the product

6.9 Removing door shelves

You can remove the door shelves to clean them. First, empty the food inside them.

Push the desired shelf up to remove it.

Do not remove the door shelf when there is food in it.

Line drawing of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

6.10 Moving the FlexiLift Door Shelf

\*optional

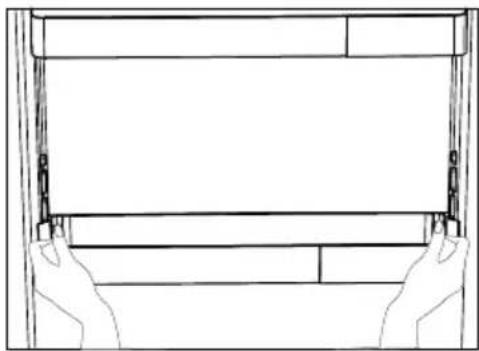

Moving the FlexiLift door shelf can be fixed in 3 different positions.

In order to move the shelf, push the buttons on the side evenly. Shelf will be movable.

Move the shelf up or down.

When the shelf is in the position that you want, release the buttons. Rack will be fixed again in the position where you have released the buttons.

Line drawing of two hands holding a blank rectangular object, no text or symbols present

Technical line drawing of a mechanical assembly with two horizontal components and mounting brackets (no text or symbols)

6.11 Glass shelves

You can remove the glass shelves to clean them. Be careful when removing the shelves since they are heavy.

6.12 Crisper bins

(in some models)

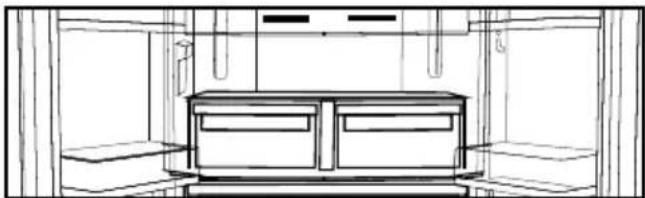

Crisper bins allow you to prepare the food for freezing. You can also use these compartments to store your food at a temperature a few degrees below the fridge compartment.

Line drawing of a cabinet interior with shelves and doors (no text or symbols)

You can increase the inner volume of your refrigerator by removing any of the chiller compartments:

1. Pull the compartment towards yourself until it stops.
2. Lift the compartment about 7/16" (1cm) up and pull towards yourself to remove it from its seating.

6.13 Deli Drawer

The Deli Drawer is designed with cool air circulation intensified around it. This allows items stored in the drawer to stay fresher longer. If required, remove door shelves prior to Deli Drawer removal

Line drawing of a refrigerator interior with doors open and shelves stacked (no text or symbols)

Operating the product

6.14 Humidity controlled crisper

Humidity levels of the vegetables and fruit are kept under control with the feature of humidity-controlled crisper and the food is ensured to stay fresh longer.

We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a horizontal manner as much as possible inside the crisper, not on their roots in a vertical position.

While the vegetables are being placed, individual weights of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed on top.

Never leave vegetables inside the crisper in their bags. This will cause them to decompose prematurely. If you wish to keep vegetables separate, use perforated paper bags or similar materials to do so. Certain fruits such as pears, apricots, peaches or apples generate high levels of ethylene gas. Do not place them with other fruits and vegetables which do not, as this will cause them to decompose faster.

6.15 Ice container

The ice container is used to collect ice produced by the ice maker. Do not put water in it to make ice as it may break. The ice container is not used for storing foods.

The ice machine may drop ice when the ice container is opened.

Technical line drawing of a mechanical assembly with two stacked components (no text or symbols)

6.16 Butter & Cheese section

Store food such as butter, cheese and margarine in this section.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

6.17 Door flappers

Movable door flapper is intended to prevent the cold air inside the refrigerator from escaping outside. Sealing is provided when the gaskets on the door presses on the surface of the door flapper while the fridge compartment doors are closed.

Technical line drawing of mechanical components with directional arrows indicating movement (no text or symbols)

Operating the product

6.18 IonGuard

Air is ionized by means of the ionizer system in the fridge compartment air duct. Thanks to this system, air-borne bacteria and odorizing molecules are removed from the air.

6.19 Odor filter

Odor filter in the air duct of the fridge compartment prevents build-up of unpleasant odors in the refrigerator.

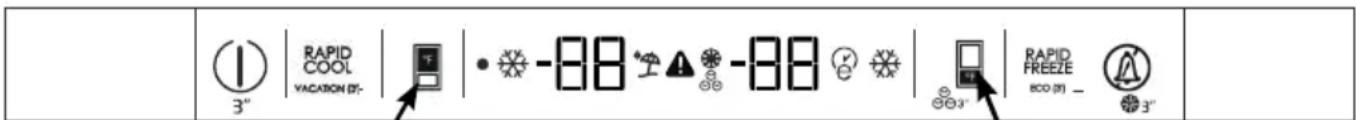

6.20 Changing the temperature scale (Fahrenheit Celsius)

3" | RAPID COOL VACATION (DT-) | • -88 °C -88 °C | RAPID FREEZE 8CO (8) - 3"

Fresh Food Temp Set key
Freezer Temp Set

After the product is energized, press and hold the Fresh Food Temp Set and Freezer Temp Set buttons together for 3 secs.

The temperature scale change is completed. Reverse these steps to switch back to the original scale.

7. Maintenance and cleaning

The life of the product is extended and common problems are reduced, if it is cleaned regularly.

WARNING: Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of baking soda in 1 pint of water. Soak a cloth with the solution and wring it thoroughly. Wipe the interior of the refrigerator with this cloth and dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.
• Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
• Use a mild solution of soap and water and a micro-fiber cloth on painted doors.
• Copper and Brass Trim (select models): Our copper and brass trim is protected by a clear coat to prevent tarnishing. Clean with warm soapy water and a micro-fiber cloth and dry thoroughly. DO NOT USE copper or brass polishes, such as Brasso or Brite Boy, as they will remove the clear coat protection.

7.1 Avoiding bad odors

Materials that may cause odor are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odor. Pay attention to following to avoid this problem:

• Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odor. Therefore, clean the refrigerator with baking soda dissolved in water every 15 days. Never use detergents or soap.
• Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odors.
• Never keep the food that is past its expiration date or has spoiled in the refrigerator.

7.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

8. Troubleshooting

Check this list before contacting a servicer. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully seated. >>> Plug it in outlet completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Be sure the unit is turned on. A single red light in the display means the product is plugged in but not turned on. Press and hold the Power button for three seconds to turn the unit on.
• Condensation on the side wall of the fresh food compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).
• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact a servicer.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or fresh food compartment door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The fresh food compartment or freezer door gasket may be dirty, worn out, broken or not properly settled. >>> Clean or replace the gasket. Damaged / torn door gasket will cause the product to run for longer periods to preserve the current temperature.

Troubleshooting

The freezer temperature is very low, but the fresh food compartment temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The fresh food compartment temperature is very low, but the freezer temperature is adequate.

- The fresh food compartment temperature is set to a very low degree. >>> Set the fresh food compartment temperature to a higher degree and check again.

The food items kept in fresh food compartment drawers are frozen.

- The fresh food compartment temperature is set to a very low degree. >>> Set the fresh food compartment temperature to a higher degree and check again.

The temperature in the fresh food compartment or the freezer is too high.

• The fresh food compartment temperature is set to a very high degree. >>> Temperature setting of the fresh food compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of fresh food compartment or freezer compartments.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
  • The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or firm. >>> If the product is shaking when moved slowly, adjust the feet to balance the product. Also make sure the ground is sufficiently firm to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
  • The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain containers and packaging materials may cause odor. >>> Use containers and packaging materials free of odor.

Troubleshooting

- The foods were placed in unsealed containers. >>> Keep the foods in sealed containers. Micro-organisms may spread out of unsealed food items and cause bad odor. Remove any expired or spoiled foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>>Adjust the stands to balance the product.
• The ground is not level or firm. >>> Make sure the ground is level and sufficiently firm to bear the product.

The vegetable bin is jammed.

- The food items may be obstructing with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Do not try to repair the product.

WARNING:

• This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.
• For more information go to www.P65Warnings.ca.gov
• Note : Nickel is a component in all stainless steel and some other metal components.

Big Chill, Inc. warrants your Big Chill appliance (“product”) purchased in the U.S. and Canada and installed in residential properties for normal residential use.

What Is Covered

Subject to the specific conditions and limitations below, this warranty covers parts and/or labor necessary to repair or replace any part of the product that contains defects in materials and workmanship.

One-Year Warranty

For one (1) year from the date of installation, this warranty covers all parts and labor necessary to repair or replace any part on the product except for the Cosmetic Warranty below.

Cosmetic Warranty

Big Chill offers a seven-day cosmetic warranty from the date of delivery on all deliveries. The Owner must report cosmetic imperfections within this seven-day period, supported by pictures and note “subject to inspection” at the time of delivery.

Limitations of Coverage

• The replacement of a part under this warranty does not extend the warranty period.
• Warranty service outside normal business hours and in areas beyond 50 miles one way from an authorized service provider. The owner will be responsible for any and all costs associated with additional mileage, non-standard service or overtime, and special equipment required to remove the product so service may be performed.

This warranty is null and void:

• If the product is removed from where it was originally installed.
• If the original factory installed serial number is altered or removed from the product.

What Is Not Covered

This warranty does not cover, and specifically excludes:

• Product installed or used in any commercial or other non-residential property such as, but not limited to, day care faciliti fire stations, hotels, nursing homes, rentals, vacation properties etc.
• Installation related issues including improper installation inconsistent with the product specifications/installation instructions.
• Damage or repairs caused by alterations or modifications, abus misuse, neglect, or improper installation, mounting, handling, operation, maintenance, or storage.
  • Normal adjustments after installation and setup.
• Normal wear, care, and maintenance of the product as described in the use and care manual.
• Service calls to educate the customer on the proper use and care of the product.

• Consumable parts such as water filters.

• Damage or repairs caused by unauthorized service or repairs, including unauthorized adjustments or calibrations performed on the product.
  • Accidental or intentional damage.

• Damage or repairs as a result of natural disasters, fires, floods, earthquakes, winds, lightning, corrosive atmosphere, loss of electrical power to the product for any reason, or other conditions beyond Big Chill's control.
• Damage or repairs caused by alteration for outdoor use.
• Damage or repairs caused by the use of harsh chemicals or cleaning products improperly applied.
• Liability or responsibility for damage to surrounding property including cabinetry, floors, ceilings, etc.
• Consequential or incidental damage, including but not limited to food or medicine loss, restaurant meals, etc.

The terms of this warranty provide for repair of the product only. If the product cannot be repaired, Big Chill, at its sole discretion, will determine whether to exchange the product.

Please see the Arbitration Clause and Related Provisions, which affect your legal rights. The Arbitration Clause is available at www.bigchill.com.

This warranty is in lieu of all other express warranties. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so this provision may not apply.

If you are a California or Quebec resident, please refer to the section below.

THE OWNER AND BIG CHILL AGREE THAT THE REMEDIES SET OUT HEREIN ARE THE OWNER'S EXCLUSIVE REMEDIES FOR BREACH OF ALL WARRANTIES, EXPRESS OR IMPLIED.

WHETHER ANY CLAIM IS BASED ON NEGLIGENCE OR OTHER TORT, BREACH OF WARRANTY OR BREACH OF CONTRACT, OR ANY OTHER TORT THEORY, BIG CHILL SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, INCLUDING BUT NOT LIMITED TO EXTRA UTILITY EXPENSES, SHIPPING COSTS RELATED TO REPAIR OR REPLACEMENT OF ANY PRODUCT OR DAMAGES TO PROPERTY, RESULTING FROM BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY.

For service or a warranty claim, please call 877-842-3269.

Technical diagram of an open refrigerator with numbered compartments and internal compartments, including top and side views with dimension annotations.

4 pounds = 2 kgs 4 pounds = 2 kgs 9 pounds = 4 kgs 55 pounds = 25 kgs 105 pounds = 48 kgs 33 pounds = 15 kgs 44 pounds = 20 kgs 22 pounds =10 kgs Up to 11 pounds / 5 kgs day ice production 48 pounds = 22 kgs 53 pounds = 24 kgs

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with vertical dimension H and horizontal reference lines (no text or symbols)

71 11/16" (1820mm) 25" (635mm) 36 15/16" (938mm)

Technical line drawing of a mechanical device with vertical dimension H and internal grid structure (no text or symbols)

Technical diagram showing mechanical assembly with three views of a bracket and a tool (no text or labels)

4.6 Conexión eléctrica

Diagram showing a person walking toward a large rectangular structure with curved arrows indicating motion, no text or symbols present.

Simple line drawing of a cylindrical object with a side port and top handle (no text or symbols)

Interior view of a bathroom with directional arrows and wall-mounted appliances (no text or symbols visible)

Two identical grayscale images showing a device with an upward arrow, no text or symbols present.

Technical line drawing showing two views of a mechanical component with directional arrows indicating motion (no text or symbols)

3D technical illustration of a mechanical component with no visible text or symbols

TOMA DE DERIVACIÓN

Instalación

Hand pouring liquid into a glass cup (no text or symbols visible)

Simple line drawing of a kitchen interior with a bowl, mouse, and a hanging bag (no text or symbols)

Line drawing of a cabinet shelf with a box and cable inserted, no text or symbols present

3" | RAPID COOL VACATION [3-] | • -88 ⚠️ -88 ⏻ 3" | RAPID FREEZE ECO [3] _ 3"

Line drawing of two hands holding a rectangular object with arrows indicating upward motion (no text or symbols)

Technical line drawing of two mechanical components with hands holding rectangular parts (no text or symbols)

Line drawing of a cabinet interior with overhead fixtures and structural beams (no text or symbols)

Line drawing of a refrigerator interior with doors open and seats closed (no text or symbols)

Uso del aparato

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and bottom) showing internal components and directional arrows, no text or symbols present.

6.18 ActiveFresh Luz Azul

Technical diagram of an open refrigerator with numbered compartments and internal compartments, including top and side views with dimension annotations.

4 pounds = 2 kgs 4 pounds = 2 kgs 9 pounds = 4 kgs 55 pounds = 25 kgs 105 pounds = 48 kgs 33 pounds = 15 kgs 44 pounds = 20 kgs 22 pounds =10 kgs Up to 11 pounds / 5 kgs day ice production 48 pounds = 22 kgs 53 pounds = 24 kgs

Diagram showing a device with a lightning bolt and wiring, no text or symbols present

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with vertical dimension H and internal grid structure (no text or symbols)

Technical line drawing of a mechanical device with internal grid structure and support arms (no text or symbols)

Technical diagram showing mechanical assembly with three views: top view, side view, and close-up of a tool (no text or symbols present)

Diagram showing a person walking with curved arrows indicating motion, next to a rectangular platform (no text or symbols)

Technical diagram showing installation of a device with labeled components A, B, C, and E

Illustration of a cylindrical mechanical device with a side port and top connector (no text or symbols)

Interior view of a medical or laboratory facility with directional arrows and equipment (no visible text or symbols)

Two identical views of a medical or laboratory device with black arrows pointing to internal components (no text or symbols visible)

Technical line drawing showing two views of a mechanical component with directional arrows indicating motion (no text or symbols)

3D rendering of a mechanical component with a cylindrical body and flanged base (no text or symbols visible)

PRISE DE DÉRIVATION

Installation

Hand pouring liquid into a glass cup (no text or symbols visible)

Diagram of a kitchen interior with a mouse and a bag, showing no text or symbols

Line drawing of a cabinet shelf with a box and cable inserted (no text or symbols)

3" | RAPID COOL VACATION [3-] | • -88 ⚠️ -88 ⏻ 3" | RAPID FREEZE ECO [3] _ 3"

Illustration of two hands holding a rectangular object with arrows indicating upward motion (no text or symbols)

Line drawing of two identical views of a cabinet or shelf with handles, no text or symbols present

Line drawing of a modestly furnished cabinet or cabinet with no visible text, numbers, or symbols

Line drawing of a cabinet interior with doors open and seats placed (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

6.16 Section amuse-gueule

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Technical diagram showing mechanical assembly steps with checkmark and cross symbols indicating inspection or failure states
