USER MANUAL K-7659 KOHLER

Angle and Straight Stops

K-7659, K-7660 K-7662, K-7663

K-7664 K-7666

Technical line drawing of two mechanical components: a cylindrical pipe fitting and a flanged bracket (no text or symbols)

K-7668 K-7679

Technical line drawing of two mechanical components (no text or symbols)

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Tools and Materials

Before You Begin

□ Observe all local plumbing codes and building codes.
☐ The supply shown in the following illustrations is typical. Variations in detail can be expected from model to model.
☐ Kohler Co. reserves the right to make revisions in the design of supplies without notice, as specified within the Price Book.

1. Install The Supply Stop

NOTE: Use a strap wrench when tightening to avoid marring the finish of the stop. Alternately, the inlet end of a stop body has two flat sides to accommodate a wrench for tightening, but protect the flats from scratching, such as by taping the jaws of the wrench.

• Wrap thread sealant tape around the water pipe thread. Thread the inlet end of the stop body onto the water pipe. Tighten with a clean strap wrench.

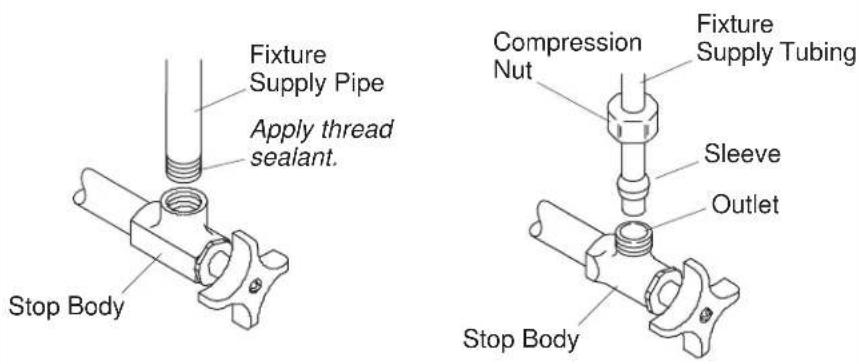

  ☐ For threaded outlet models: Wrap thread sealant tape around the fixture supply pipe threads. Thread the pipe into the outlet end of the stop body. Tighten with a clean strap wrench.
  ☐ For compression outlet models: Remove the nut and sleeve from the stop body. Slide the nut and sleeve over the fixture supply tubing. Slip the tubing into the outlet end of the stop body. Slide the sleeve down until it seats against the inside surface of the outlet. Slide the nut down and tighten with a wrench.
  ☐ Make certain that all pipes and fittings between the water supply and the fixture are properly aligned and securely tightened.
  ☐ For supply stops with a four-arm handle: Turn the handle on the stop body clockwise to close.
  ☐ For supply stops with a volume-control key: Insert the volume control key (provided) into the corresponding end of the stop body. Turn the key clockwise to close.
  □ Turn on the water supply.

Install The Supply Stop (cont.)

☐ Check for leaks before the supply stop and repair as needed.
□ Open the supply stop. Check for leaks after the supply stop and tighten as needed.
