USER MANUAL PPHP1299WU Pyle

Questions or Comments

We are here to help!

Phone:[phone]

PyleUSA.com/ContactUs

WARNING: Cancer and Reproductive Ham - www.P65warnings.ca.gov

PYLE

PyleUSA.com

Two black speaker covers with ventilation grilles, one labeled 'PULERO' and the other 'DYLE', shown side by side (no additional text or symbols visible)

PPHP109WMUEU-PPHP1299WU.5EU

PPHP109WMUUK-PPH1299WU.5UK

Wireless & Portable BT PA Speaker

Dual High-Powered Loudspeaker PA Systems,

2-Way Full Range Audio Projection

USER MANUAL

Control Panel Layout

PPHP109WMU PPHP1299WIJ.5

Electrical control panel diagram with labeled components and wiring connections

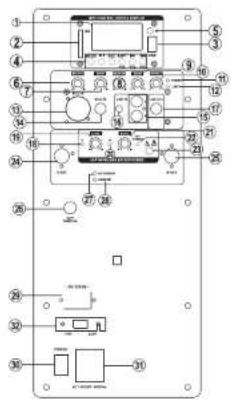

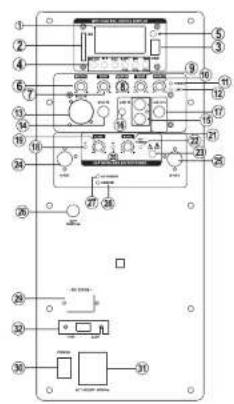

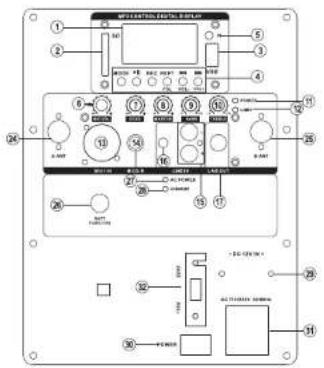

1. LCD screen
2. SD card input
3. USB input
4. MP3 control

MODE: Mode Selection

▶II: Play/Pause
REC: Record
REPT: Repeat
: Previous
▶: Next
5. IR: remote control receiver
6. Microphone Input Volume Control
7. ECHO Control
8. Master volume
9. Bass Audio Control
10. Treble Audio Control
11. DC power
12. Limit Led
13. 3-Pin XLR Type Microphone Input
14. 6.35 microphone line input
15. RCA line input (R + L)

Technical diagram of an electronic device with numbered components and labeled ports

16.3.5 Line input Connector
17.6.35 Line Output Connector
18. UHF Wireless microphone A channel indicator
19. A channel volume control
20. UHF Wireless microphone B channel indicator
21.8 channel volume control
22. Wireless mic power indicator
23. Wireless mic power switch
24. Wireless mic antenna A
25. Wireless mic antenna B
26. Battery fuse
27. AC Power Indicator
28. Charging indicator
29. DC power interface
30. Main Power switch
31. I EC power socket
32. 110V/220V Switch

Wireless BT Streaming

• Instantly Stream Music from Your BT Devices
• Works with All Your Favorite BT Devices
• (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Wireless BT Version: 5.0
• Wireless BT Range: 100'+ Feet
• Wireless BT Network Name: 'Pyle'

Wireless BT Connection

1. Press 'MODE' to enable Wireless BT and connection to your device.
   2.Once 'BT' appears on the LCD screen it will read 'connected' or 'unconnected, indicating if your device has been paired successfully.
2. To pair with your device, the PA speaker will appear as 'Pyle' in the available Wireless BT Network Devices list.
3. The LCD screen will read 'connected' and a BT connection has been established.

Feedback Prevention:

Acoustic feedback occurs when sound from the PA loudspeaker finds it sway back into the performer's microphone when the system is in use. This unwanted audio signal can cause interference, noise, distortion or plainly cause a non-desired and non-expected sound. Pyle PA speakers are designed with more relatively flat response rates to aid in minimizing any type of unwanted feedback.

Factors involved with the elimination of feedback include proper system placement: placing the system well in front of any performer and/or microphone. Audio signal setting end configuration, along with EQ controls, can help fine-tune the overall sound output which can be specific to environment and type of audio generated by the loudspeakers.

The shape of the performance area (including performance area, elevation, volume, etc.), the type of instrument being played, and vocals can all have their relative own relative frequencies and unique sound prints which can be uniquely affected and picked up by any microphone.

PPHP109WMU:

700 Watt, 1 0" Subwoofer Wireless & Portable BT PA Speaker

Features:

• Dual High-Powered Loudspeaker PA Systems
• Rugged, Durable & Reliable Sound
• Wireless BT Music Streaming Ability
• Speaker System: 1 O" Woofer, 1.0" Tweeter
• Compression Driver with Titanium Diaphragm
• 2-Way Full Range Audio Projection
• Built-in Analogue Audio Amplifier
• XLR Microphone Input
• ¼" Jack Microphone Input
• RCA line input (R+L), Aux (3.5mm) line input
• 1/4" Jack Line Out
• Two UHF Wireless
• Connect and Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• Mic Volume, Echo Volume, Master Volume, Bass, Treble Adjustable
• Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible
• Heavy-Duty Engineered ABS Housing

What's in the Box:

• PA Speaker
  • (2) Wireless Hand held Microphone
• Power Cable
• Remote Control

MP3 Audio Recording Ability:

• It's Easy: One Button Record Activation
• Record Audio as Streamed through the Speaker System
• Ability to Record Vocals via Microphone
• Can Also Record Audio via Line & Aux Inputs
• Records to USB Flash & SD Memory Card
• Easy Transfer to PC & Mac

Technical Specs:

• Power Output: 700 Watt MAX
• Amplifier Class: AB
• Impedance: 4 Ohm
  T.H.D.: <1%
• Magnet: 30 oz.
• Sensitivity: 92dB (+/-2dB)
• Mic Input Level: <1 SmV
  • Line Input/Output Level: >250mV
  • Frequency Response: 65-1 SkHz
• Digital Audio File Compatibility: MP3, WMA
  • Maximum SD/USB Flash Memory Support: 32GB
• Power Supply: AC 110/220V, 50/60Hz
• Product Dimensions (L x W x H): 31.5 x 25 x 49 cm/12.4" x 9.8" x 19.3" inches

Black rectangular object with textured surface and small circular cutouts, no visible text or symbols

PPHP1299WU.5:

1000 Watt, 12" Subwoofer Wireless & Portable BT PA Speaker

Features:

• Dual High-Powered Loudspeaker PA Systems
• Rugged, Durable & Reliable Sound
• Wireless BT Music Streaming Ability
• Speaker System: 12" Woofer, 1.34" Tweeter
• Compression Driver with Titanium Diaphragm
• 2-Way Full Range Audio Projection
  ■ Built-in Analogue Audio Amplifier
• XLR Microphone Input
• ¼" Jack Microphone Input
• RCA line input (R+L), Aux (3.5mm) line input
• ¼" Jack Line Out
• Two UHF Wireless
• Connect and Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• Mic Volume, Echo Volume, Master Volume, Bass, Treble Adjustable
• Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible
• Heavy-Duty Engineered ABS Housing

What's in the Box:

• PA Speaker
  • (2) Wireless Hand held Microphone
  Power Cable
• Remote Control

MP3 Audio Recording Ability:

• It's Easy: One Button Record Activation
• Record Audio as Streamed through the Speaker System
• Ability to Record Vocals via Microphone
• Can Also Record Audio via Line & Aux Inputs
• Records to USB Flash & SD Memory Card
• Easy Transfer to PC & Mac

Technical Specs:

• Power Output: 1000 Watt MAX
• Amplifier Class: AB
• Impedance: 4 Ohm
  T.H.D.: <1%
• Magnet: 40 oz.
• Sensitivity: 92dB (+/-2dB)
• Mic Input Level: <1 SmV
• Line Input/Output Level: >250mV
• Frequency Response: 50-1 SkHz
• Digital Audio File Compatibility: MP3, WMA
• Maximum SD/USB Flash Memory Support: 32GB
  ■ Power Supply: AC 110/220V, 50/60Hz
• Product Dimensions (L x W x H): 37 x 31 x 58 cm/14.7" x 12.2" x 22.8" inches
