USER MANUAL XL-3600 BROTHER

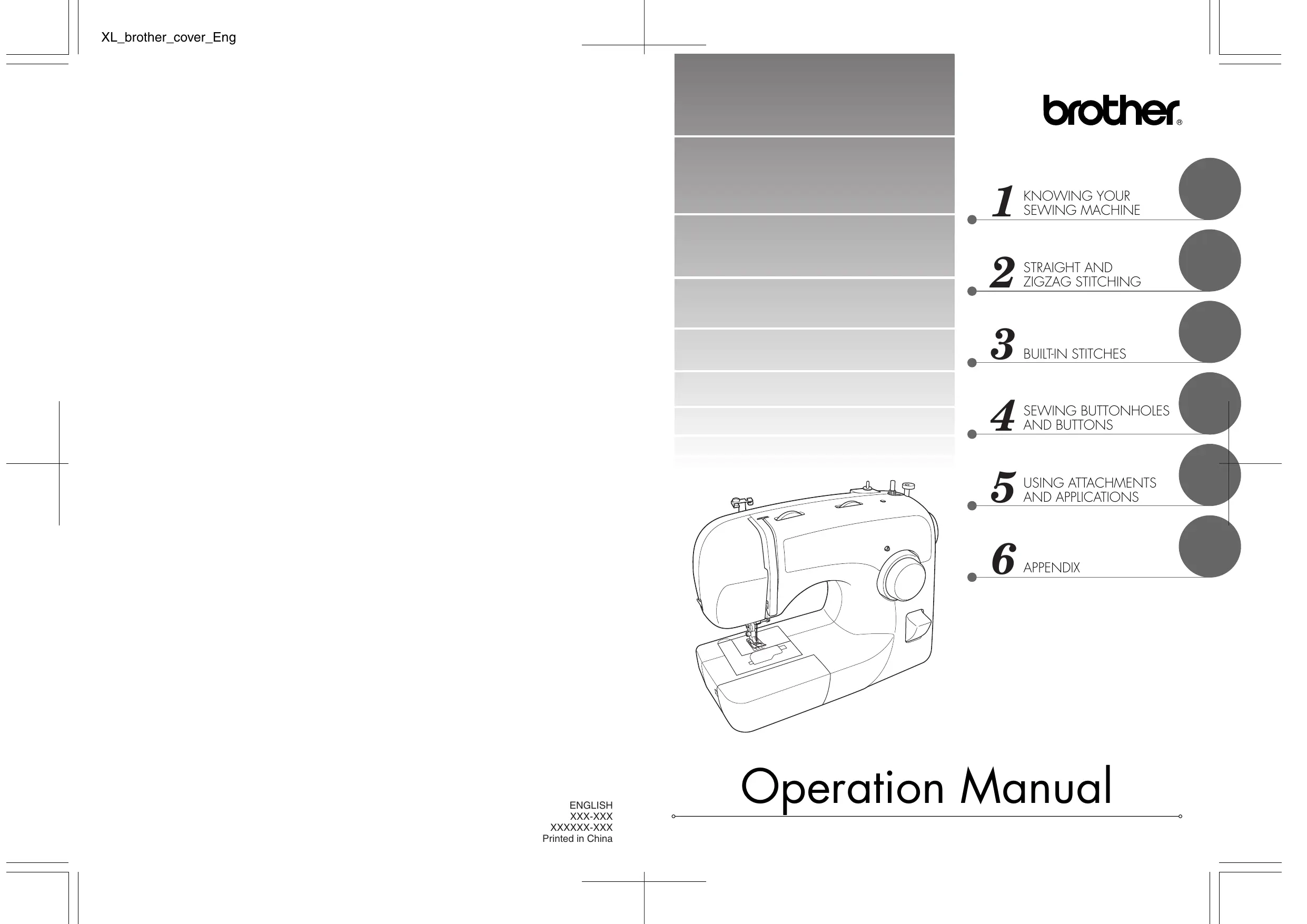

XL_brother_cover_Eng brother. KNOWING YOUR SEWING MACHINE STRAIGHT AND ZIGZAG STITCHING 3 BUILHIN STITCHES SEWING BUTTONHOIES AND BUTTONS 5 USING ATTACHMENTS AND APPLICATIONS 6 APPENDIX ENGLISH XXX-XXX XXXXXX-XXX Printed in China

When using this machine, basic safety precautions should always be taken, including the following: Read all instructions before using. DAN G E R — To reduce the risk of electric shock: The machine should never be left unattended while plugged in. Always unplug the machine from the electrical outlet immediately after using and before cleaning.

2. Always unplug the machine before you change the light bulb.

Replace the bulb with same type rated 15 watts. WAR N | N G — To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow this machine to be used as a toy. Close attention is necessary when the machine is

used by or near children.

2. Use this machine only for its intended use as described in this manual. Use only accessories

recommended by the manufacturer as contained in this manual.

3. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has

been dropped or damaged, or dropped into water. Return the machine to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the machine with any air openings blocked. Keep ventilation openings of the

machine and foot control free from the accumulation of lint, dust, and loose cloth. Never drop or insert any object into any opening. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being

8. To disconnect, turn the machine switch to the symbol “O” position which represents off, then

remove plug from outlet.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10. Keep fingers away from all moving parts. Special care is required around the machine needle.

11. Always use the proper needle plate. The wrong plate can cause the needle to break.

12. Do not use bent needles.

13. Do not pull or push fabric while stitching. It may deflect the needle, causing it to break.

14. Switch the machine to the symbol “©” position to turn it off when making any adjustments in the

needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, and the like.

15. Always unplug the machine from the electrical outlet when removing covers, lubricating, or

when making any other user servicing adjustments mentioned in the instruction manual.

16. This sewing machine is not intended for use by young children or infirm persons without

supervision. (For Australia and New Zealand only)

17. Young children should be supervised to ensure that they do not play with this machine.

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY Ifthis machine is fitted with a three-pin non-rewireable BS plug then please read the following. IMPORTANT If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug. NOTE: The plug severed from the main leads must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carryingthe € mark, rating as marked on plug. Always replace the fuse cover. Never use plugs with the fuse cover omitted.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED

WITH THE LETTER ‘E’, BY THE EARTH SYMBOL + OR COLOURED GREEN OR GREEN AND YELLOW. The wires in this main lead are coloured in accordance with the following code: Blue Neutral Brown Live As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N' or coloured black or blue. The wire which is coloured brown must be connected to the terminal which is marked with the letter L'or coloured red or brown.

Keep the carton and packing materials. You may have to take or send the machine to be repaired. If you do not pack it properly, or do not use the right packing material, the machine could be damaged. Please follow the diagram below to unpack and repack the machine. IMPORTANT © This packing material is designed to prevent damage. Save this packing material if you need to take or send this machine to be repaired. PLEASE READ THESE INSTRUCTIONS BEFORE YOU USE THE MACHINE. To use the machine safely

1. Make sure you watch the needle carefully while you are sewing. Do not touch the handwheel,

thread take-up lever, needle, or other moving parts.

2. Turn off the main power and unplug the cord in the following circumstances:

+ When you have stopped using the machine + When you are replacing or removing the needle or any other part +_lfthere is a power failure while you are using the machine +_lf you are checking or cleaning the machine + Leaving the machine unattended

3. Do not store anything on the foot controller.

4. Plug the machine directly into the wall. Do not use extension cords.

To give your machine a longer life

1. Do not store this machine in direct sunlight or in high humidity conditions. Do not use or store

the machine near a heater, iron, halogen lamp or other hot objects.

2. Use only mild soaps or detergents to clean the case. Benzene, thinner, and scouring powders

can damage the case and machine, and should never be used.

3. Do not drop or hit the machine.

4. Always consult this manual before you replace or fit presser feet, the needle, or any other parts to

make sure you fit them correctly. To repair or adjust the machine Ifthe machine breaks down or needs adjustment, first follow the troubleshooting table in the Appendix to inspect and adjust the machine yourself. If the problem is still there, consult your local authorized dealer. For additional product information and updates, visit our web site at www.brother.com. The contents of this manual and specifications of this product are subject to change without notice.

THE MAIN PARTS ….. ACCESSORIES Optional Accessories USING YOUR SEWING MACHINE . Connecting Plugs . Main Power and Sewing Light Switch Foot Controller … Checking the Needle Replacing the Needle Changing the Presser Foot . Flat Bed Attachment Using a Free-arm Style THE CONTROLS . Pattern Selection Dial Patterns and Stitch Names . Stitch Length Dial Stretch Stitching Stitch Width Dial Reverse Sewing Lever

THREADING THE MACHINE

Winding the Bobbin … Lower Threading Lower Threading (for models equipped with a quick-set bobbin) Upper Threading Using the Needle Threader (for models equipped with a needle threader) Drawing up the Lower Thread .… Sewing with a Twin Needle Thread Tension … FABRIC, THREAD, AND NEEDLE COMBINATIONS .

2. STRAIGHT AND ZIGZAG STITCHING ….

Please Read Before Sewing . Straight Stitching . Zigzag Stitching

3. BUILT-IN STITCHES …

1” KNOWING YOUR SEWING MACHINE

@ Bobbin winder (Page 16) This winds the thread onto the bobbin for use as the lower thread. @ Spool pin (Page 16, 21) This holds the spool of thread. @ Thread guide (Page 16, 21) This is used when winding the thread onto the bobbin and then threading the machine. @ Thread take-up lever (Page 21) © Hole for extra spool pin (Page 25) This holds a second spool of thread for sewing with the twin needle. © Stitch width dial (Page 15) This controls the stitch width. @ Upper tension-control dial (Page 25) This controls the tension of the upper thread. Thread cutter (Page 28) Pass the threads through the thread cutter to cut them. Needle threader (Page 22) (This is only available on certain models.) @ Quick-set bobbin (Page 19) (This is only available on certain models.) @ Flat bed attachment with accessory compartment (Page 10) @ Presser foot (Page 9) @ Reverse sewing lever (Page 15) You can push this to stitch in the reverse direction. @ Pattern selection dial (Page 11) You can turn this in either direction to choose the stitch you want. @ Stitch length dial (Page 14) This controls the stitch length. ® Buttonhole fine-adjustment screw (Page 36) @ Handwheel Used to manually raise and lower the needle. @ Main power and sewing light switch (Page 8) You can turn the main power and sewing light switch on and off. @ Foot controller jack / socket (Page 7) Plug in the foot controller plug and connect the machine to the power supply. @ Presser foot lever (Page 21) Used to raise and lower the presser foot. @ Buttonhole lever (1-Step automatic buttonhole) (Page 34) Lower the buttonhole lever when sewing buttonholes. @ Foot controller (Page 8) You can use this to control the sewing speed, and to start and stop sewing. Parts Code for Zigzag Presser Foot: XC4901-051 Foot Controller: Model KD-1902 Parts Code: XC7359-022 (110/120V Area) XC7438-222 (220/240V Area) XC7456-222 (U.K.) XC7455-022 (Australia, New Zealand)

AACHINE ACCESSORIES The following accessories are stored in the flat bed attachment. We have designed these accessories to help you easily perform most sewing tasks.

EE S Part Code Part Code No. Part N No. Part N ° ATENAME USA | Others ° ATENAME USA | Others 1 Zipper foot (1 pe.) X59370-021 5 _[Buttonhole Foot (1 pc.) XD1792-031 SFB 6 [Button Sewing Foot (1 pe.) X59375-121 2 |Bobbin (3 pes. SA156 obbin ( pes) *_ [XA5539-151 7__|Extra Spool Pin (1 pc.) 130920-021 Needle Pack (Regular Single 5 5 5. 3 |Ncedle HAX130 6 po) 129583-021 8 |Screwdriver (1 pe.) X55467-021 4 [Twin Needle (1 pe.) X57521-021 9__[Daming Plate (1pc.) XC6063-021 Note © The included accessories vary depending on the machine model. Optional Accessories T 2. 3. Part Code No. Part Name USA | othes FO34N: 1 [Walking Foot SA107 |XC2165-002 FO05N: 2 |Quilting Foot SA129 | VC 1048.002 FOOIN:

3. [1/4-inch Quilting Foot SA125 |KC1044-002

USING YOUR SEWING MACHINE

© Use only regular household electricity for the power source. Using other power sources may result in fire, electric shock, or damage to the machine. © Turn off the main power and remove the plug in the following circumstances: + When you are away from the machine + After using the machine + When the power fails during use + When the machine does not operate correctly due to a bad connection or a disconnection + During electrical storms TION © Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or electric shock may result. © Do not touch the plug with wet hands. Electric shock may result. © When unplugging the machine, always turn off the main power first. Always grasp the plug to remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock. © Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the cord and cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized dealer for repairs before continuing use. © Unplug the power cord if the machine is not to be used for a long period of time, otherwise a fire may result. Connecting Plugs 7 Note © When leaving the machine unattended, the Connect the foot controller plug to the main switch of the machine should be machine. switched off or the plug must be removed from the wall outlet. Connect the power supply plug to a wall © When servicing the machine, or when outlet. removing covers or changing bulbs, the machine must be unplugged. (For U.S.A. only) © This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. Ifit still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

KNOWING YOUR SEWING MACHINE

Main Power and Sewing Light Switch This switch turns the main power and sewing light on or off. @ Turn on (toward the ‘1 mark) © Turn off (toward the ‘O' mark) Foot Controller When you press the foot controller down lightly, the machine will run at a low speed. When you press harder, the machine’s speed will increase. When you take your foot off the foot controller, the machine will stop. You should make sure that nothing is placed on the foot controller when the machine is not in use. @ Foot controller © Do not allow pieces of cloth and dust to build up on the foot controller. Doing so could cause a fire or an electric shock. Note {For U.S.A. only) © Foot Controller: Model KD-1902 This foot controller can be used on the following machine models: XL-3500, XL-3500i XL-2600, XL-2600i XL-3510, XL-3510i XL-2610, XL-2610i XL-3520, XL-3520i XL-2620, XL-2620i Checking the Needle The sewing needle must always be straight and sharp for smooth sewing. OO = 0 ———— X —> M Checking the Needle Correctly Put the flat side of the needle on a flat surface. Check the needle from the top and the sides. Dispose of any bent needlles safely. LE —— +0 @ Parallel space © Level surface (bobbin cover, glass, etc.) Replacing the Needle À CAUTION © Turn the main power switch off before you change the needle. If you leave the main power on and step on the foot controller, the machine will start and you may be injured. © Only use sewing machine needles for home use. Other needles may bend or break and cause injury. © Never sew with a bent needle. A bent needle will easily break and cause injury. (1) Remove the power supply plug from the outlet. Raise the need to its highest position by turning the handwheel toward you (counterclockwise) so that the mark on the handwheel points directly up. Lower the presser foot lever.

© Presser foot lever

Hold the needle with your left hand, and then use a coin or screwdriver to turn the needle clamp screw counterclockwise to remove the needle. @ Use a coin or screwdriver © Needie clamp screw + Do not use excessive force when loosening or tightening the needle clamp screw, otherwise certain parts of the sewing machine may be damaged. With the flat side of the needle toward the back of the machine, insert the needle until it touches the needlle stopper. Next, tighten the needle clamp using a coin or screwdriver. @ Use a coin or screwdriver @ Needle Stopper @ Needie Put the twin needle in the same way. © Make sure you insert the needle until it touches the stopper, and securely tighten the needle clamp screw with a coin or screwdriver. If the needle is not fully inserted, or if the needle clamp screw is loose, the needle may break or the machine may be damaged. Changing the Presser Foot ION © Always turn off the power before you change the presser foot. If you leave the power on and step on the controller, the machine will start and you may be injured. © Always use the correct presser foot for the stitch pattern you have chosen. If you use the wrong presser foot, the needle may strike the presser foot and bend or break, and may cause injury. © Only use presser feet that have been designed to be used with this machine. Using any other presser foot may cause accident or injury. You will have to change the presser foot depending on what you want to sew and how. M Snap-on Type Raise the needle to its highest position by turning the handwheel toward you (counterclockwise), and then raise the presser foot lever. Press the black button at the back of the presser foot holder to release the presser foot. @ Black button © Presser foot holder © Presser Foot

KNOWING YOUR SEWING MACHINE

Put a different presser foot on the needle plate 50 that the bar on the presser foot is in line Flat Bed Attachment with the slot on the shank. The accessories are stored in a compartment inside Lower the presser foot lever and fix the the flat bed attachment. presser foot onto the shank. If the presser foot is in the correct place, the bar should snap in. Slide the flat bed attachment to the left to open it. © Shank 4 @ Flat bed attachment © Storage compartment 7 Note © Put the accessories inside a bag, and then store the bag inside the compartment. lfthe accessories are not in a bag, they may fall out and be lost or damaged. Using a Free-arm Style Free-arm sewing is convenient for sewing tubular and hard-to-reach areas. To change your machine to the free-arm style, lift out the flat bed attachment. Slide the flat bed attachment to the left to release it. @ Flat bed attachment @ If the presser foot is not installed with the correct orientation, the needle may strike the presser foot, which may bend or break the needle and cause injury.

THE CONTROLS Pattern Selection Dial To choose a stitch, simply turn the pattern selection dial in either direction. The next section shows recommended stitch lengths and widths. À CAUTION © When you use the pattern selection dial to choose a pattern, turn the handwheel toward you (counterclockwise) to set the needle in the highest position. If the needle is in the down position when you turn the pattern selection dial, the needlle, presser foot or fabric may be damaged. @ Pattern selection dial © Chosen pattern number M 35 Stitches (only available on certain models) APE

KNOWING YOU WING MACHINE Patterns and Stitch Names Pattern Recommended | Recommended Stitch Name Width Length jsrucon 35 Stitches | 25 Stitches (mm (inch)) (mm (inch) | Manua Page

• The stitch can also be sewn when the stitch length dial is set to €.

Pattern Recommended | Recommended Stitch Name Width Length 35 Stitches | 25 Stitches (mm (inch)) (mm (inch)) Instruction Manual Page Fixed

KNOWING YOUR SEWING MACHINE

Pattern | Recommended | Recommended | tuction 3 _ COMB STITCH r Pen 6 @ fixed 31 Ê _ COMB STITCH r Pen 6 @ fixed 31 Ë _ DECORATIVE STITCH « Ban o @ fixed 33 ë _ FAGOTING STITCH ü 185 64) fixed 31 ES L DECORATIVE STITCH 86 @ fixed 31 54 : DECORATIVE HEMSTITCH | 8 316) fred 33 3 _ DECORATIVE STITCH « Ban o @ fixed 3 Stitch Length Dial Depending on the selected stitch, you may need to @ If the stitches are bunched together, adjust the stitch length for best results. lengthen the stitch length and continue The numbers marked on the stitch length dial represent sewing. Do not continue sewing without the stitch length in millimeters (mm) (1/25 inch). lengthening the stitch length, otherwise THE HIGHER THE NUMBER, THE LONGER THE STITCH. With the “0” setting, material is not fed. This is used when sewing a button. The “F” range is for making a satin stitch (close zigzag stitch), which is used for making buttonholes and decorative stitches. The position needed for making the satin stitch varies according to the material and thread being used. To determine the exact dial position, first test the stitch and length settings on a scrap piece of fabric to observe the feeding of the material. the needle may break and cause injury. @ Stitch length dial @ Shorter © Longer

Stretch Stitching Raise the needle to its highest position by turning the handwheel toward you (counterclockwise) so that the mark on the handwheel points directly up. M 35 Stitches Selecting a Stretch Stitch Setting the stitch length dial to “| changes the selected pattern to a stretch stitch. M 25 Stitches Selecting a Stretch Stitch Setting the stitch length dial to “| selected pattern to a stretch stitch. changes the Stitch Width Dial Raise the needle to its highest position by turning thi handwheel toward you (counterclockwise) so that the mark on the handwheel points directly up.

The numbers marked on the dial represent the stitch width. THE HIGHER THE NUMBER, THE WIDER THE STITCH. j£ Note © When the Straight or Triple Stretch Stitch i selected, the needle position can be changed from left to right by adjusting the stitch width dial.

© Stitch width dial Reverse Sewing Lever You can use reverse sewing for back tacking and reinforcing seams. To sew in reverse, push the reverse sewing lever in as far as possible and hold it in that position while you lightly push the foot controller. To sew forward, release the reverse sewing lever. The machine will then sew forward.

Winding the Bobbin À CAUTION © Only use bobbins (part code: SA156, SFB (XA5539-151)) that have been designed for this sewing machine. Using other bobbins may cause damage to the machine. © We designed the bobbin that comes with this machine. If you use bobbins from other models, the machine will not work properly. Only use the bobbin that comes with this machine or bobbins of the same type (part code: SA156, SFB (XA5539-151)). Actual size

(7/6 inch) 7 This model Other models @Pre-tension disk @Bobbin winder shaft Put the spool of thread on the spool pin and Pass the end of the thread through the hole on pass the thread around the pre-tension disk. the bobbin from the inside of the bobbin. À CAUTION @ If the spool of thread is not in the right place, the thread may tangle on the spool pin.

Put the bobbin onto the bobbin winder shaft © Press the foot controller to start. and slide the bobbin winder shaft to the right. Turn the bobbin clockwise, by hand, until the spring on the shaft slides into the groove of the bobbin. À When the bobbin seems full and begins spinning slowly, take your foot off the foot © Spring on the shaît controller. © Groove of the bobbin Cut the thread, slide the bobbin winder shaft to the left and remove the bobbin.

• Note © Make sure that the thread between the MC spool and the bobbin is pulled tight. É Note © The necdle bar does not move when you While holding the end of the thread, gently slide the bobbin winder shaft to the right. © immediately after winding the bobbin, it is normal to hear the sound of the clutch engaging when beginning to sew or turning the handwheel. © Make sure you follow the instructions carefully. If you do not cut the excess thread completely before winding the bobbin, when the thread runs low it may tangle around the bobbin and cause the needle to break. © Not winding the bobbin properly may cause the thread tension to loosen, and may break the needle. press the foot controller to wind the thread around the bobbin a few times. Then stop the machine. @ Wound evenly © Wound poorly

KNOWIN MACHINE Lower Threading + For more details on using the quick-set bobbin, see page 19. LAGAUT ON © Not winding the bobbin properly may cause the thread tension to loosen, and may break the needle. @ Wound evenly © Wound poorly © The bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the enclosed bobbin or bobbins of the same type (part code: SA156, SFB (XA5539-151)). Actual size

(7/16 inch) 7 This model Other models TION Raise the needle to its highest position by turning the handwheel toward you (counterclockwise) and raise the presser foot lever. Slide the button and open the cover. @ Cover © Slide button Put the bobbin in so the thread comes out in the direction shown by the arrow. + Only use bobbins that were designed to be used with this machine. À CAUTION © Make sure you set the bobbin so the thread unrolls in the right direction. If the thread unrolls in the wrong direction, it may cause the thread tension to be incorrect or break the needle. © Make sure you turn the power off while threading the machine. If you accidentally step on the foot controller and the machine starts to sew, you could be injured. + Make sure that the thread is correctly inserted through the tension-adjusting spring of the bobbin case. If it is not inserted, re- insert the thread. @ Tension-adjusting spring

Hold the end of the thread, push the bobbin down with your finger, pass the thread through the slit, and then pull out a short length of thread, as shown. Reattach the bobbin cover. Put the left tab in place (see arrow ©), and then press lightly on the right side (see arrow @) until the cover clicks into place. + Replace the cover so that the end of the thread comes out from the left side of the cover (as shown by the line in the illustration). Lower Threading (for models equipped with a quick-set bobbin) This feature is only available on certain models. ION © Winding the bobbin improperly may cause the thread tension to loosen, breaking the needle and resulting in injury. O X

@ Wound evenly © Wound poorly © The bobbin was designed specifically for this sewing machine. If bobbins from other models are used, the machine will not operate correctly. Use only the enclosed bobbin or bobbins of the same type (part code: SA156, SFB (XA5539-151)). Actual size

(7/16 inch) This model Other models CAUTION © Be sure to turn off the power. If you accidentally step on the foot controller and the machine begins to operate, injury could result.

© Make sure you set the bobbin so the thread MACHINE Us) Follow steps @ and @ from “Lower Threading”. Put the bobbin in, feed the end of the thread through the sit, and then pull the thread to cut it. + Only use bobbins that were designed to be used with this machine. unrolls in the right direction. If the thread unrolls in the wrong direction, it may cause the thread tension to be incorrect or break the needle. © Cutter + Make sure that the thread is correctly inserted through the tension-adjusting spring of the bobbin case. If it is not inserted, re- insert the thread. @ Tension-adjusting spring Reattach the bobbin cover. Put the left tab in place (see arrow @), and then press lightly on the right side (see arrow ©) until the cover clicks into place. + You can begin sewing immediately without drawing up the bobbin thread. If you want to draw up the bobbin thread before you start to sew, follow the procedure in “Drawing up the Lower Thread” (page 24).

Upper Threading @ Spool pin @ Thread guide (back) @ Thread guide (front) @ Thread take-up lever © Mark on the handwheel À CAUTION © Make sure you thread the machine properly. Otherwise, the thread could tangle and break the needle. IMPORTANT: Raise the presser foot using the presser foot lever. @ Presser foot lever Raise the needle to its highest position by turning the handwheel toward you (counterclockwise) so that the mark on the handwheel points directly up. e Ifthe needle is not correctly raised, the sewing machine can not be threaded. Be sure to turn the handwheel so that the mark on the wheel points up before threading the sewing machine. Pull up the spool pin and put a spool of thread on this pin. À CAUTION @ If the spool of thread is in the wrong place, or is set incorrectly, the thread may tangle on the spool pin and cause the needle to break. Feed the upper thread as previously shown. Pass the thread through both thread guides: the back one first, and then the front one. Make sure you guide the thread through the thread take-up lever from right to left. @ Thread take-up lever

KNOWING YOU WING MACHINE Put the thread behind the guide above the need _ _. A behind Using the Needle Threader (for models + The thread can easily be passed behin ui with a needle threader) the needle bar thread guide by holding equipped ) the thread in your left hand, then This feature is only available on certain models. feeding the thread with your right hand. Turn the power off and lower the presser foot lever. Raise the needle to its highest position by turning the handwheel toward you (counterclockwise) so that the mark on the handwheel points directly up. @ Needle bar thread guide @ Needle holder IMPORTANT: © Needle threader lever Thread the needle from front to back leaving a thread tail of about 5 cm (2 inch). + If your sewing machine is equipped with a ° Note needle threader, use the needle threader to © When you use the needle threader, make thread the needle (see next section). sure the needle holder is in the highest position, otherwise the hook may be damaged. While lowering the needle threader lever, hook the thread onto the guide. Note © lfthe thread take-up lever is lowered, the upper thread can not be wrapped around the thread take-up lever. Make sure you raise the presser foot lever and the thread take-up lever before you feed the upper thread. © {f you incorrectly feed the thread you may cause sewing problems. @ Needle holder @ Needle threader lever @ Guide

Pull down the needlle threader lever as much as possible, and then turn the lever toward the back of the machine (away from you). Make sure that the hook passes through the eye of the needle and grabs the thread. @ Hook © Thread + Hold the thread in front of the needle to make sure that the hook grabs it. While lightly holding the thread, turn the needle threader lever toward the front of the machine (toward you). The hook will pull the thread through the needle. Raise the needle threader lever and pull out about 5 cm (2 inch) of thread through the needle toward the back of the sewing machine. © The needle threader can only be used with home sewing machine needles size 75/11-100/16. Check the table on page 26 for the appropriate needle and thread combinations. If you are using transparent nylon mono-filament thread, you can only use needles in the range of 90/14-100/16. © You can not use the needle threader if you are using decorative threads or special needles, such as the twin needle and wing needle. When using these needles or threads you Will need to thread the needle by hand. Make sure the main power switch is off when threading.

KNOWING YOUR SEWING MACHINE

Drawing up the Lower Thread While lightly holding the end of the upper thread, slowly turn the handwheel toward you (counterclockwise) by hand to lower and then raise the needle. Pull on the upper thread to draw up the lower thread. Pull out about 10 cm (4 inch) of both threads and put them toward the back of the machine under the presser foot. @ Upper thread © Lower thread

M Quick-set Bobbin Threading This is only available on certain models. You can begin sewing immediately without drawing up the bobbin thread. When sewing gathers or darts, you can draw up the lower thread by hand so that some thread will be left over. Before you draw up the lower thread, put the bobbin back in. Pass the thread along the slit in the direction of the arrow, and leave it there without cutting it. + The bobbin cover should still be removed. Draw up the lower thread as described in the previous steps @ to ©. la) Replace the bobbin cover. Sewing with a Twin Needle We have designed your machine so you can sew with this needle and two top threads. You can use the same color or two different colors of thread for making decorative stitches. A GUTON © Use only twin needles that have been made for this machine (part code: X57521-021). Other needles could break and damage the machine. © When using the twin needle, make sure the stitch width is not set above 3 since this may cause the needle to hit the needle plate and break. © Make sure that the needle does not strike the presser foot. © Do not sew with bent needles. The needle could break and injure you. © When using the twin needle, make sure you use the zigzag presser foot only.

M Attaching the Twin Needle Attach the twin needle in the same way as a single needlle (see page 8). The flat side of the needle should face toward the back and the rounded side should face toward you. M Attaching the Extra Spool Pin Put the extra spool pin in the hole on the top of the machine. Put the second spool of thread onto the extra spool pin. M Twin Needle Threading You should thread each needlle separately. Thread the left needle. Follow the same instructions for threading a single needlle (see page 21). Thread the right needle. Thread the right needle in the same way that you threaded the left needle using the thread from the spool on the extra spool pin, but do not pass the thread through the guide above the needle before you pass it through the eye of the right needle. @ Left needle thread passes through the needle bar thread guide @ Right needle thread passes in front of the needle bar thread guide @ Needle bar thread guide 3 Note Models Equipped with a Needle Threader © You can not use the needle threader to thread the twin needle. Instead, thread the twin needle by hand, from front to back. Using the needle threader may damage the machine. Thread Tension The tension of the thread will affect the quality of your stitches. You may need to adjust it when you change fabric or thread. > Memo © We recommend that you do a test sample on scrap of a fabric before you start to sew. EH Correct Tension Correct tension is important as too much or too little tension will weaken your seams or cause puckers on your fabric. @ Surface of fabric © Back of fabric © Upper thread © Lower thread M Upper Tension is too Tight Loops will appear on the surface of the fabric. @ Surface of fabric © Back of fabric @ Upper thread © Lower thread © Loops appear on surface of fabric Solution Reduce the tension by turning the upper tension control dial to a lower number. M Upper Tension is too Loose Loops appear on the back of the fabric. 9 @ Suriace of fabric D: Back of fabric

@ Upper thread o) © Lower thread © Loops appear on back of fabric Solution Increase the tension by turning the upper tension control dial to a higher number. CI S Note © lfthe upper thread is not threaded correctly or the bobbin is not installed correctly, it may not be possible to set the correct thread tension. If the correct thread tension cannot be achieved, rethread the upper thread and insert the bobbin correctly.

KNOWING YOUR SEWING MACHINE

FABRIC, THREAD, AND NEEDLE COMBINATIONS

Thread Fabric Type Type Broadcloth Cotton Medium Thread synthetic 60-80 weight Vie mercerized 75/11-90/14 fabrics Flannel, Silk or silk 50-80 Gabardine finished 507 Lawn, Batiste Cotton Lightweight Thread synthetic 60-80 < Dies" | Georgette mercerized 65/9-75/11 Challis, Satin Silk 50-80 Denim Cotton 30-50 Heavyweight Thread synthetic fabrics Géo mercerized 50 90/14-100/16 Tweed Silk Jersey Ball point needle ee : Thread for knits 50-60 (golden colored) fabrics Tricot 75/11-90/14 Thread synthetic For top stitching mercerized 30 90/14-100/16 Silk > Memo © For clear nylon thread, always use needle 90/14 - 100/16. © You can also use the same thread for the bobbin thread and upper threading. © Make sure you follow the needle, thread, and fabric combinations listed in the table. Using the wrong combination, such as heavyweight fabric like denim with a small needle (65/9-75/11), may bend or break the needle. The wrong combination may also cause the seam to be uneven, the fabric to pucker, or the machine to skip stitches.

Please Read Before Sewing © To avoid being injured, watch the needle carefully while you are using the machine. Keep your hands away from moving parts. © Do not stretch or pull the fabric during sewing, otherwise the needle may be damaged and you may be injured. © Do not use bent or broken needles, otherwise you may be injured. © Take care that the needle does not hit basting pins or other objects during sewing. The needle may break and you may be injured. © Always use the correct presser foot. If you use the wrong presser foot, the needle may hit the presser foot and bend or break and you may be injured. © When you turn the handwheel by hand, always turn it toward you (counterclockwise). Turning it the other way may cause the thread to tangle and damage the needle or fabric, and you may be injured. Put the fabric under the presser foot and Straight Stitching position the needle 1 cm (3/8 inch) from the edge of the fabric. Stitch ET Stitch Name |Pattern| Length Width 5] Lower the presser foot. [mm (inch)] |[mm (inch)] To back tack, push down the reverse sewing 3 ' à. 14 lever as far as possible, and then press the foot StraighOStCh | | (164-3716) controller to start reverse sewing. Release the 50° foot controller to stop sewing. @ Fixed | (3/16-0) Triple Stretch | % 2.5 (3/32) Stitch 1 lerxd

Release the reverse sewing lever and start sewing in the forward direction by pressing the foot controller. XTurn the stitch width dial to adjust the needle position. Setting the dial to 5 selects the left needle position; setting the dial to O selects the right needle position. M Starting Sewing Turn the pattern selection dial to choose the Stitch number you want. You also need to set the pattern selection dial to the Straight Stitch . or Triple Stretch Stitch. + You can use reverse sewing for locking the end of seams and to strengthen a stitch. Raise the needle to its highest position and lift the presser foot lever. À CAUTION © Make sure the needle does not hit a pin or any other object during sewing. The thread could tangle or the needle could break, and you may be injured. Pull the upper thread though the toes of the presser foot.

AG STITCHING M Changing Sewing Direction Stop the machine at the point where you want to change direction with the needlle still in the fabric. Raise the presser foot and turn the fabric to its new direction using the needle as a pivot. Lower the presser foot and start sewing in the new direction. M Finishing Sewing You can use stitching to lock the threads at the end of the seam or to strengthen a stitch. M1] Stitch to the end of the seam and stop. Push the reverse sewing lever and stitch backwards for 1 cm (3/8 inch) from the end of the fabric. Æ Removing the Material from the Machine Stop the machine. Raise the needle to its highest position and make sure that the thread take-up lever is also in its highest position. Lift the presser foot, raise the needle to its highest position, and then pull the fabric out gently to the left hand side. + Raise the needle to its highest position and make sure that the thread take-up lever is also in its highest position. Cut both threads with the thread cutter on the left hand side of the machine @ Thread cutter

To prepare the machine for the next seam, pull about 10 em (4 inch) of thread through the toes of the presser foot toward the back of the machine. M Top Stitching and Stretch Materials You can use a straight stitch for top stitching and sewing lightweight fabrics. You can use a triple stretch stitch for sewing stretch fabrics. Zigzag Stitching Stitch | Stitch Stitch Name |Pattern| Length | Width {mm (inch)] | [mm (inch)] n : F-4 0-5 Zigaag Stitch | £ | (643710 | (0316) M Zigzag Stitch Turn the pattern selection dial to the Zigzag Stitch, and then start sewing. We recommend that you sew using the Straight Stitch at the beginning and end of zigzag stitches. (This acts as a reinforcement stitch.) Œ Satin Stitch Setting the Zigzag Stitch length in the “F” range produces a satin stitch (close zigzag stitch). The Satin Stitch can be used for making buttonholes and decorative stitches. Set the pattern selection dial to the Zigzag Stitch, set the stitch length in the “F” range, and set the stitch width dial between 0 and 5.

3 BUILT-IN STITCHES Blind Hem Stitching Stitch Stitch Stitch Name [Pattern] Length | Width Emm (inch)] | Imm (inch)] Blind Hem à F2 3-5 Stitch 3 astro | «83h06 Stretch Blind | 2 F-1.5 3-5 HemSttehol à |(1/64-1/16) | (1/8-3/16) Stretch Blind |? F-1.5 3-5 Hem Stitchol © |(1/64-1/16) | (1/8-3/16) You can use the Blind Hem Stitch to finish the edge of a project, like the hem of a pair of trousers, without the stitch showing. Use the Blind Hem Stitch when sewing on non-stretch fabrics, and the Stretch Blind Hem Stitch for stretch fabrics. Both threads should be the same color as the fabric. Fold back the hem, as shown in Fig. A. Then fold the edge of the fabric as in Fig. B. Leave a 6 mm (15/64 inch) overlap at the edge. Set the pattern selection dial to the Blind Hem Stitch or Stretch Blind Hem Stitch, and then set the stitch length. O Sew on the fold as in Fig. C. When the fabric is unfolded you will have a Blind Hem Stitch as shown in Fig. D. o 9 © PS s £ + C) © (o] D =

@ Right side of fabric © Wrong side of fabric @ 10 mm (3/8 inch) @ 5 mm (3/16 inch) Note © The Stretch Blind Hem Stitch is useful for stretch fabrics. Shell Tuck Stitching Stitch Stitch Stitch Name |Pattern| Length Width [mm (inch)] | [mm (inch)] Shell Tuck F-3 3-5 Stitch Û (/64-1/8) | (1/8-3/16) The Shell Tuck Stitch can be used to sew a picot (lace-like) edge on lightweight fabric. Set the pattern selection dial to the Shell Tuck Stitch. Adjust the thread tension so that it is tighter than normal. Place the fabric under the presser foot so that it will be sewn along the bias, with the straight stitches sewn on the seamline and the zigzag stitches sewn slightly over the folded edge.

(a) Sew at a slow speed. IN STITCHE: Elastic Stitching Stitch Stitch Name |Pattern| Length Width [mm (inch)] | [mm (inch)] Elastic Stitch F-2.5 3-5 (1/64-3/32) | (1/8-3/16) You can use the Elastic Stitch for mending, sewing elastic or joining fabric. Each is explained below. Set the pattern selection dial to the Elastic Stitch. M Mending © Set the stitch length dial between “F” and 2.5. Place the reinforcement fabric under the area you want to mend. Following the line of the tear, sew using the Elastic Stitch as shown.

M Sewing Elastic (1) Place the elastic on the fabric. As you sew, stretch the elastic in front of and behind the presser foot. M Joining Fabric You can use the Elastic Stitch to join two pieces of fabric together and it is very effective when sewing knitted fabrics. If you are using nylon thread, the stitch will not be visible. Put the edge of the two pieces of fabric together and center them under the presser foot. Sew them together using the Elastic Stitch. Make sure you keep the two fabric edges close together.

Set the pattern selection dial to the Smocking Double Action Stitching Stitch, Fagoting Stitch, or Decorative Stitch. Stitch along the edge, pulling both threads Stitch Stitch slightly when beginning to sew. Stitch Name |Pattern| Length Width Use thicker than normal threads for sewing. [mm (inch)] | [mm (inch)] After sewing, remove the basting and the Double Action| :° F-3 3-5 paper. Finish by tying knots on the reverse Stitch S | (64178) | (1/8-3/16) side at the beginning and the end of the seams. nee F3 3-5 EERESREn c/ea-ve | (18-3716) : z F3 3-5 RampartStEh| | (1/64-1/8) | (1/8-3/16) These stitches are used for joining two pieces of fabric, such as when making patchwork. Set the pattern selection dial to the Double Action Stitch, Bridging Stitch, or Rampart Stitch. Led @ First needle drop Overedge Stitching Stitch Stitch Stitch Name |Patten| Length Width LU 1 Emm (inch)] | mm (inch)] Elastic Shell | ©, F3 3-5 TuckStith| © | (1/64-17/8 | (1/8-3/16) Fixed Stretch 16 ( 3/32) 3-5 Gt (1/8-3/16) Stitch Fixed -

Heirloom Stitchin Fixed SHCnnO Elastic LU a) 3-5 (Overlock (1/8-3/16) Stitch Stitch Stitch Fixed Stitch Name |Pattern| Length Width 2.5 (3/32) mm (inch)] | [mm (inch)] , Fixed Se 3 | œrixed | 35 ae a 0 ocKIng A Fixe = mic . Stitch Ë | Scan | 8136 gps : # Fixed Fagoting 35 Arrowhead. 2 | 2.5 (3/32) 35 Stitch ë (1/8-13/64) RTS E Fan | W/8 36) : 3 2.5 (3/32) Decorative $ red | US 5 Stitcl 2.5(3/32) | (1/8- a € Fixed 3-5 CombStith\ % | Ga) | «83716 These stitches are used to join two pieces of fabric while leaving a space between their edges. . Ê Fixed 3-5 CombStith\ À | 25632 | «83716 Fold over the edges of the two pieces of fabric for the hem and baste the edges to a thin piece of paper leaving a small space between them.

JILT-IN STITCHE: You can use these stitches to join together seams and finish them in one operation. The Overlock Stitches are also useful for sewing stretch materials while the Arrowhead Stitch is ideal for sewing the edge of a blanket. Set the pattern selection dial to an overedge stitch. Put the fabric under the presser foot so that the seamline (or arrowhead point) is approximately 3 mm (1/8 inch) to the left of the center of the presser foot. This stitch works best with a seam allowance of approximately 5 mm (3/16 inch) as this allows the right (zigzag) side of the stitch to overlock the cut edge of the fabric. I£the seam allowance is wider than the stitch pattern, trim away any excess fabric after stitching. A finished Elastic Overlock Stitch is shown in the illustration below.

Use the Feather Stitch as a decorative top stitch when embroïdering or when hemming blankets, tablecloths, or draperies. Set the pattern selection dial to the Feather Stitch. Place the fabric right side up and sew 1 cm (3/8 inch) from the edge of the fabric. Trim close to the stitching. The stitch will prevent the fabric from unravelling. Triple Zigzag Stretch Stitching Stitch Stitch Stitch Name |Pattern| Length Width Emm (inch)] | [mm (inch)] &) Fixed TripleZigzag) | 2-5 (3/32) 3-5 Stretch Stitcl È Fixed | (1/8-3/16)

This stitch can be used wherever a zigzag stitch would be used to sew heavyweight stretch fabrics. The Triple Zigzag Stretch Stitch can also be used as a decorative top stitch. Set the pattern selection dial to the Triple Zigzag Stretch Stitch.

Fixed a | Leaf Stitch 2500, 35 Fixed | (1/8-3/

Making a Buttonhole (1-Step Automatic Buttonhole) Stitch Stitch Pattern | Length Width [mm (inch)] | [mm (inch)] Buttonhole F-1.5 3-5 (/64-1/16) | (1/8-3/16) Foot > Memo © We recommend that you practice making a buttonhole on a scrap piece of fabric before you try it on an actual garment. © When making buttonholes on soft fabrics, place a stabilizer material on the underside of the fabric. Making a buttonhole is a simple process that provides reliable results. M Making a Buttonhole Using tailor’s chalk, mark the posi length of the buttonhole on the fabric.

@ Marks on fabric Attach the buttonhole foot and set the pattern selection dial to “F”. You need to sew the front bar tack first. Lower the presser foot to align the marks on the foot with the mark on the fabric.

(a) Open the button plate and insert the button. @ Starting mark on the fabric © Marks on the foot © Button plate Lower the buttonhole lever and push it back slightly. While gently holding the upper thread, start the machine. The bar tacks of the buttonhole are sewn in the order shown. Stop the machine when buttonhole stitching is finished.

Æ Making a Buttonhole on Stretch Fabrics When sewing buttonholes on stretch fabric, the buttonhole stitching is sewn over a gimp thread. Using tailor’s chalk, mark the position of the buttonhole on the fabric, and then attach the buttonhole foot and set the pattern selection dial to “F”.

@ Marks on fabric Hook the gimp thread onto the back end of the buttonhole foot, bring the two gimp thread ends to the front of the foot, insert them into the grooves, and then temporarily tie them there. Set the stitch width to match the diameter of the gimp thread. (a) Lower the presser foot and start sewing. Once sewing is completed, gently pull the gimp thread to remove any slack, and then trim off the excess. Adjusting Buttonholes Ifthe stitching on the two sides of the buttonhole is not the same, you can make the following adjustments. Set the stitch length dial between "F' and 1.5 and sew the buttonhole on a scrap piece of fabric to observe how the material is fed. If the right side of the buttonhole is too open or tight, adjust the feeding of the material with the stitch length dial.

@ Right side © Shorter @ Longer After obtaining a satisfactory feed on the right side, stitch the buttonhole and observe the feeding.

If the left side is too open or tight compared with the right side, adjust the buttonhole fine- adjustment screw as described below. Ifthe left side is too open, turn the buttonhole fine-adjustment screw with a large screwdriver in the — direction. Ifthe left side is too tight, turn the buttonhole fine-adjustment screw with a large screwdriver in the + direction. + This adjustment ensures both sides of the buttonhole are the same. @ Stitch length dial © Buttonhole fine-adjustment screw @ Left side @ Buttonhole appearance Sewing Buttons Stitch Stitch Pattern| Length | Width | Foot | Other Em (inch)] | Em (inch)] Stitch Name Measure the distance between the buttonholes and mark the fabric. Then set the pattern selection dial to the Zigzag Stitch, and set the width you want. la) Turn off the machine. © Change the foot to the button sewing foot.

(a) Place the darning plate on the needlle plate. (5) Turn on the machine. Put a button between the foot and the fabric and make sure that the needle enters the holes without hitting the button. If it hits, see step ©. Remove the material from the machine. Cut the upper and lower threads and tie both threads at the back of the material. © Make sure the needle does not hit the button during sewing. The needle may break and you may be injured.

5 USING ATTACHMENTS AND APPLICATIONS

Zipper Insertion Stitch Stitch Pattern | Length | Width | Foot Stitch

ame Erm (inch)] | Imm (inch)] 2 23 25 | Zipper ! laréve| (ENS) |'Foot You can use the zipper foot to sew different types of zippers, and can easily position it to the right or left side of the needle. When sewing the right side of the zipper, attach the shank to the left pin of the zipper foot. When sewing the left side of the zipper, attach the shank to the right pin of the zipper foot. @ Zipper foot @ Right pin for sewing the left side of the zipper © Left pin for sewing the right side of the zipper Turn off the machine and raise the presser foot. Set the pattern selection dial to the Straight Stitch. Set the stitch length between 2 (1/16 inch) and 3 (1/8 inch). Set the stitch width at 2.5 (3/32 inch) to move the needle into the correct position. To attach the zipper foot, lower the presser foot lever either on the left or right pin of the zipper foot. Fold the edge of the material 2 cm (3/4 inch) and place the zipper under the folded section. Lower the needle into the notch located either on the left or right side of the zipper foot. © Turn the handwheel by hand to make sure the needle does not hit the zipper foot before you start sewing. Choosing a different stitch will cause the needle to hit the presser foot and break, and you may be injured. Sew from the bottom of the zipper toward the top on both sides. The needle should be positioned on the zipper side of the foot for best results. To sew the opposite side of the zipper, first turn the machine off and raise the presser foot lever. Release the zipper foot by pressing the button located at the back of the foot, then fit the foot on the other side of the zipper. Continue sewing using the pin on that side of the zipper foot. ION © Make sure the needle does not hit the zipper during sewing. If the needle hits the zipper, the needle may break and you may be injured.

Gathering Stitch Stitch Name Pattern Length [mm (inch)] Darning Straight Stitch 4 (3/16) Stitch Stitch Sen | Pattern | Length | Foot | Other Emm (inch)] : 2 Zigzag San | | Any [Présser) Parning sn i Foot ate Set the pattern selection dial to Straight Stitch. Loosen the tension of the upper thread so that the lower thread lies on the underside of the material. Sew a single row (or many rows) of straight stitches. O Pull the lower threads to gather the material.

Turn off the machine. Place the darning plate on the needlle plate, then turn on the machine. Set the pattern selection dial to the Straight Stitch. Put the section you want to darn under the presser foot together with fabric for reinforcement. (a) Lower the presser foot. Begin sewing by alternating between gently drawing the work away from you and pulling it toward you. Repeat this motion until the darn section is filled with parallel lines of stitching.

Appliqués Monogramming and Embroidering Stitch Length | Stitch Width {mm (inch)] | mm (inch)] Stitch Name | Pattern Stitch | Stitch Length | Width 9 Stitch Zigzag Stitch | À F2 Any Pattern Foot | Other (/64-1/16) Emm | [mm (inch)] | (inch)] You can create an applique by cutting a different piece of fabric into a shape and using it as a Stitch $ Any | Any [None decoration. Darning Plate M Preparing for Monogramming and Embroidering Us) Baste the cut design to the fabric. Turn off the machine. Place the darning plate on the needlle plate, then turn on the machine. Carefully sew around the edge of the design with a zigzag stitch. la) Set the pattern selection dial to Zigzag Stitch. Cut away any fabric that is left outside the ut av Draw the lettering (for monogramming) or stitching. design (for embroidering) on the surface of the fabric. Stretch the fabric between embroidery hoops as firmly as possible, with the underside of the fabric on the bottom of the inside hoop. Put the work under the needle and lower the presser bar with the foot removed. Pull the lower thread up through the starting (a) Remove the basting, if necessary. position by turning the handwheel and make a few holding stitches. > Memo © Make reinforcing straight stitches at the beginning and the end of the zigzag stitching. © Be careful that the needle does not hit a pin during sewing. The needle could break, and you may be injured.

USING ATTACHA AND APPLICATION

Grip the hoop with your thumbs and M Embroidering forefingers while pressing the fabric with your middle and third fingers and supporting the Stitch the outline of the design by moving the outside of the hoop with your little fingers. embroidery hoop. Fill in the design alternating from the outline of the design to the inside and from the inside to the edge of the outline until the design is © Keep fingers away from moving parts, completely filled in. Keep the stitching close especially needles. together. M Monogramming Sew by moving the hoop slowly along the lettering at a constant speed. Secure with a few straight stitches at the end of the last letter. > Memo © You can make long stitches by moving the embroïdery hoop rapidly and short stitches by moving it slowly. Secure with a few straight stitches at the end of the design. À CAUTION «AD ice © Keep fingers away from moving parts, especially needles. © Keep fingers away from moving parts, especially needles.

OPTION CCESSORIES Using the Walking Foot Attach the forked section of the connecting lever to the needle clamp, and fit the walking foot to the presser bar. Stitch Stitch Name |Pattern| Length Width [mm (inch)] | [mm (inch)] 1-4 2-3 SrnSEn an6-376) | (1716178) ” ” 1-4 0-5 gags anc310 | 0316 This foot is very useful for sewing materials such as vinyl cloth, synthetic leather, thin leather, etc. These materials are difficult to feed when sewing. The walking foot prevents these materials from crumpling, slipping or sticking between the presser foot and the material. Note © Only use the walking foot with straight or zigzag stitches. Do not use other patterns. Reverse stitches can not be sewn with the ® Forked par! of operation lever Iking foot. Presser bar holder es @ Needle clamp Lower the presser foot lever and then tighten © Turn off the machine. the presser foot screw. (2) Raise the needlle and the presser foot. TT

Loosen the presser foot screw to remove the À y presser foot holder.

© Presser foot screw @ Use a coin or screwdriver © Presser foot holder @ Presser foot screw

PPLICATIONS À CAUTION © Use a coin or screwdriver to tighten the screw securely. If the screw is loose, the needle may hit the presser foot and you may be injured. © Before you start sewing, make sure you turn the handwheel toward you (counterclockwise) to check that the needle does not hit the presser foot. © Be careful not to touch the needle, otherwise you may be injured. 3£ Note © When sewing with the walking foot, sew at medium to low speeds. Using the Quilting Foot Stitch | Stitch Pattern | Length | Width | Other {mm (inch)] | Imm (inch)] Stitch Name Straight Stitch The Quilting Foot is useful for darning and free-motion machine quilting. © Turn off the machine.

2) Raïse the needle and the presser foot.

Loosen the presser foot screw to remove the presser foot holder. @ Use a coin or screwdriver @ Presser foot holder @ Presser foot screw

Attach the quilting foot, making sure that part @ shown in the illustration is above the needle clamp screw. Then lower the presser foot lever and tighten the presser foot screw. + Make sure that the needle clamp screw is firmly tightened. © Presser foot screw © Needle clamp screw © Be careful not to touch the needle, otherwise you may be injured. © Use a coin or screwdriver to tighten the presser foot holder screw securely. If the screw is loose, the needle may hit the presser foot and you may be injured. © Before you start sewing, make sure you turn the handwheel toward you (counterclockwise) to check that the needle does not hit the presser foot. Put the darning plate on the needle plate. Turn on the machine. Set the pattern selection dial to the Straight Stitch. + Before starting to sew, draw the quilting design on the fabric.

Use both hands to keep the fabric firmly stretched and move the fabric to sew over the drawn design. @ Quilting design The length of the stitch depends on how quickly you move the fabric and on the machine’s sewing speed. Sew while moving the fabric slowly. Using the 1/4-inch Quilting Foot Stitch Stitch Stitch Name | Pattern | Length | Width Imm (inch)] | [mm (inch)] 2-2.5 2.5 (center) Straight Stitch a/16-3/32) | (3/32) You can use the 1/4-inch Quilting Foot to sew seams when piecing together a quilt. @ Seam allowance 6.5 mm (1/4 inch) M1] Turn off the machine. Set the pattern selection dial to the Straight Stitch. Set the stitch length between 2 (1/16 inch) and 2.5 (3/32 inch). Set the stitch width at 2.5 (3/32 inch) (center). Attach the 1/4-inch Quilting Foot. Turn on the machine. Position the presser foot over the fabric and sew as shown in the illustration below. M Achieving an Accurate Seam Allowance op y

© Beginning of stitching @ Align this mark with the edge of the fabric. @ End of stitching © Align this mark with the edge of the fabric. M Stitching the Top of a Quilt @ Top of fabric @ Seam 3.2 mm (1/8 inch)

APPENDIX 6” APPENDIX MAINTENANCE Changing the Light Bulb À CAUTION © Turn off the main power switch and unplug the machine before you change the light bulb. If the main power switch is on when you change the light bulb, you may get an electric shock. If the machine is on and you step on the foot controller, you may be injured. © To avoid burns, let the light bulb cool down before you change it. Remove the power supply plug from the outlet. Loosen the screw on the back of the sewing head. Then remove the light cover from the machine. @ Bulb © Loosen © Tighten

4] Put the light cover back on and fasten the screw. Cleaning À CAUTION © Make sure you unplug the machine before you clean it, otherwise you risk getting an electric shock or being injured. (1) Switch the machine off and unplug it. (2) Raise the needle and the presser foot. Loosen the presser foot screw and the needle clamp screw to remove the presser foot holder and the needle. Grasp both sides of the needle plate cover, and then slide it toward you to remove the needle plate cover. @ Needle plate cover

Using a coin, remove the two screws. Lift up the needle plate as shown in the illustration, and then slide the needle plate to the left to remove it. @ Use a coin or screwdriver Grasp the bobbin case, and then lift it out to the left. Use the cleaning brush or a vacuum cleaner to remove any dust from the race and its surrounding area. @ Cleaning brush © Race + Do not apply oil to the bobbin case. Insert the bobbin case so that the projection on the bobbin case aligns with the spring. © Projection © Spring Install the needle plate, sliding it to the right to secure it, and then tighten the screws. Make sure that the tab on the left side of the needle plate is aligned with the notch in the bobbin case. @ Tab © Notch © Screws Install the needle plate cover. Insert the tabs on the needle plate cover into the notches in the needle plate, and then slide the cover back into position. © Never use a bobbin case that is scratched; otherwise the upper thread may become tangled, the needle may break, or sewing performance may suffer. For a new bobbin case (part code: XC8993-021), contact your nearest authorized service center. © Make sure that you fit the bobbin case properly, otherwise the needle may break.

APPENDIX — Troubleshooting If the machine stops working properly, check the following possible problems. If the problem is still there, contact your retailer or the nearest authorized service center. Symptom Possible cause How to put it right Reference properly. The machine is not plugged in. Plug the machine in. page 7 . The main power switch is turned off. | Turn on the main power switch. page 8 The sewin, machine does The bobbin-winder shaft is pushed | Move the bobbin-winder shaft to the age 17 not work. to the right. left. pag net used the foot control- | Use the foot controller properly. page 8 The needle is not fitted properly. Fit the needle properly. page 8 The needle clamp serew is loose. | nage aagreariver to fimiy | page 9 The needlle is bent or blunt. Replace the needle. page 8 You have not used the right combi- | Choose a thread and needle that are age 26 nation of fabric, thread and needle. | appropriate for the type of fabric. pass The presser foot you are using is not | Attach the presser foot that is correct appropriate for the type of stitch that | for the type of stitch that you want to _- you want to sew. sew. The upper thread tension is too tight. | Loosen the upper thread tension. page 25 The needle You are pulling the fabric too much. | Lightly guide the fabric. _ breaks. You have not fitted the spool properly. | Fit the spool properly. page 21, 25 The area around the hole in the nee. | Replace the needle plate. : dle plate is scratched. ontact your retailer or the nearesl : authorized service center. The area around the hole in the Replace the presser foot foot is scratched. Contact your retailer or the nearest - presser 100! authorized service center. Replace the bobbin case. The bobbin case is scratched. Contact your retailer or the nearest _- authorized service center. : Incorrect bobbins will not work You have not used a bobbin that has : been designed for this machine. properly. Only use a bobbin thathas | page 16 een designed for this machine. You have not threaded the upper thread properly. (For example, you have not fitted the spool properly, or | Correct the upper threading. page 21 the thread has come out of the guide above the needle.) There are knots or tangles in the R knots or tanel thread, ‘emove any knots or tangles. - The needle is not appropriate for the | Choose a needle that is appropriate 26 The upper thread you are using. for the type of stitch. page thread breaks. The upper-thread tension is too tight. | Loosen the upper thread tension. page 25 Remove the tangled thread. If the The thread is tangled. thread is tangled in the bobbin case, | page 44 clean the bobbin case. The needlle is bent or blunt. Replace the needle. page 8 You have not inserted the needle Insert the needlle properly. page 9

Possible cause Reference Symptom The area around the hole in the nee- de plate is scratched. How to put it right Replace the needle plate. Contact your retailer or the nearest authorized service center. The area around the hole in the presser foot is scratched. Replace the presser foot. Contact your retailer or the nearest authorized service center. The upper thread breaks. ; : Replace the bobbin case. The bobbin case is scratched, or has | Contact your retailer or the nearest _ u authorized service center. . incorrect bobbins will not work nd ie enr nane P | properly. Only use a bobbin that has | page 16 been designed for this machine. a une the bobbiR LWindthe bobbin proper. page 16 The bobbin ÿ scratched or does not | replace the bobbin. L The lower H : Remove the tangled thread and thread isfangled The thread is tangled. Clean the bobbie case. page 44 _ incorrect bobbins will not work Den sad to ta manche + | properiy. Only use a bobbin that has | _ page 16 been designed for this machine. Bobbin is set incorrectly. Reset the bobbin thread correctly. page 18-20 ANUS the upper | Correct the upper threading. page 21 RATS the bobbin | Wind the bobbin thread property. page 16 You have not threaded the right rne Choose a thread and needle that are aan noce | appropriate for he type of abri. page 26 The thread ten | You have not attached the presser | Attach the presser foot holder prop-

• | foot holder properly. erly. : The thread tension is incorrect. Adjust the tension of the upper page 25 thread. . incorrect bobbins will not work die nana PS | properly. Only use a bobbin that has | page 16 been designed for this machine. Bobbin is set incorrectly. Reset the bobbin thread correctly. page 18-20 You have not threaded the upper : d in | Thread the upper thread and wind , lead property or fitted the bobbin | hé bebbin tlead property. page 18-22 eu have not fitted the spool prop- | it the spool properly. page 21, 25 You have not used the right ici Fes ï Choose a thread and needle that are The fabric is combination of fabric, thread and | appropriate for the type of fabric. page 26 The needle is bent or blunt. Replace the needle. page 8 If you are sewing thin fabric, the Sew with stabiliser material under stitch is too thick. the fabric. _ The thread tension is incorrect. Adjust the tension of the upper page 25 thread.

APPENDIX — Possible cause Reference Symptom How to put it right on 20e Re UP | Correct the upper threading. page 21 You have not used the right combi- | Choose a thread and needle that are age 26 nation of fabric, thread and needle. | appropriate for the type of fabric. pas Stitches are The needle is bent or blunt. Replace the needle. age 8 skipped P pag Res not inserted the needle | insert the needle properly. page 8 Dust has accumulated under the Remove the needle plate cover and age 44 needle plate or in the bobbin case. _ | clean the plate and the bobbin case. | P28 Dust has built up in the feed dogs of | Cican the bobbin case. page 44 on 20e Re UP | Correct the upper threading. page 21 There is a high- = pitched noise | | Replace the bobbin case. while sewing. The bobbin case is scratched. Contact your retailer or the nearest _ authorized service center. . incorrect bobbins will not work Den sad to ta manche | properly. Only use a bobbin that has | | page 16 been designed for this machine. Turn the handwheel toward you The needle jou have DDR (counterclockwise) to raise te nee- | page 22 threader can not . dle holder to the highest position. be used. ; ne not inserted the needle | insert the needle properly. page 9 55 | Attach the presser foot that is correct To ea nent 8 | for the 1ype of stitch that You want to - sew. DANSE The thread tension is incorrect. fdjust the tension of the upper page 25 Remove the tangled thread. If the The thread is tangled. thread is tangled in the bobbin case, | page 44 clean the bobbin case. The stitch is too fine. Lengthen the stitch length. _- eg Pret 5 fied on the | Remove the daming plate. - The fabric does | You have not used the right combi- | Choose a thread and needle that are age 26 not feed. nation of fabric, thread and needle. | appropriate for the type of fabric. pag Remove the tangled thread. If the The thread is tangled. thread is tangled in the bobbin case, | page 44 clean the bobbin case. The sewing light bulb does not | The sewing light bulb is damaged. | Replace the sewing light bulb. page 44 come on.

Cleaning Connecting plugs Daming Daming plate Decorative stitching Double action stitching . Drawing up the lower thread .

Elastic stitching Embroidering

Fabric, thread, and needle combinations . Feather stitching … Flat bed attachment Foot controller. Free-arm style …

36, 38, 39, Light bulb changing 44 Light switch 8 Lower threading quick-set bobbin

Main parts Main power Maintenance . Monogramming Needle checking … combinations will replacing Needle threader

Overedge stitching …

Pattern selection dial Patterns Presser foot changing

| XL_brother_cover_Eng KNOWING YOUR SEWING MACHINE STRAIGHT AND ZIGZAG STITCHING 3 BUILHIN STITCHES SEWING BUTTONHOIES AND BUTTONS 5 USING ATTACHMENTS AND APPLICATIONS 6 APPENDIX ENGLISH 885-S28/S29 XD1931-021 Printed in China 7 + IE Operation Manual
