USER INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting Started 10

Warnings and Safety Instructions 10

Product content 12

Device specification 12

Controls and inputs 13

Bluetooth mode 14

Pairing function 14

Hands-free calling mode 14

Protection of the environment 15

Additional information 15

Declaration of compliance 15

Warranty 15

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Warnings and Safety Instructions

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the device has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this device from the mains if necessary.
18. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.
19. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.
20. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and they understand the risks involved. Children must not play with the device or the power cord (risk of strangulation). Children must not clean or maintain the device without supervision.
21. This device must only be supplied with very low safety voltage as indicated on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. When in operation, the device must be at a minimum distance of 20 cm from the human body.
24. This device is for household use only; do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark, commonly used in safety or hazard prevention contexts.

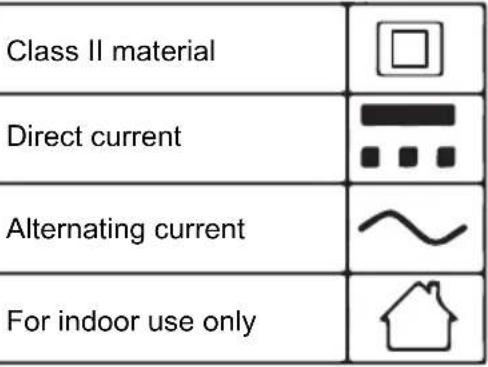

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

In the document that come with the device, an exclamation mark in a triangle indicates important operating and maintenance (repair) instructions.

7.5-15 W

Simple line drawing of a battery with a diagonal line crossing through it (no text or symbols)

The power delivered by the charger must be between min 7.5 Watts required by the radio equipment, and max 15 Watts to achieve the maximum charging speed.

Product content

• Illuminated speaker
• USB-C charging cable
  • 3.5mm AUX cable
• Instruction manual

Device specification

• Bluetooth: V5.3
• Operating distance: 10 ~m
• SNR:≥90dB
• Battery: 7.4 V 1500 mAh
• Playback time at normal volume: approx. 4 hours
• Aux-in 3.5 mm
  • USB reader and micro-SD card (32 GB max)
• Loud-speaker: 52mm× 2
• Speaker power: 4Ω/7W x2

Frequency response: 20 Hz - 20 kHz

• Dimensions of the device: 80 mm x 80 mm x 248.7 mm
• Weight of the device: approx. 718 g (without accessories)
- Charging: DC 5V/1.5A
• Charging time: approx. 4 hours

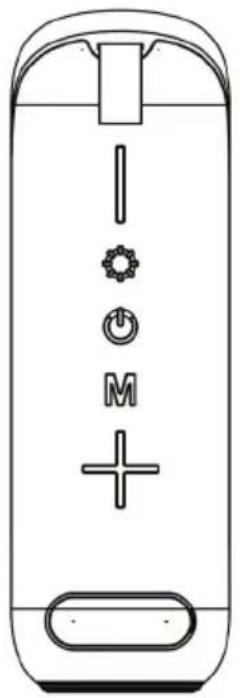

Diagram of a mobile phone front panel with labeled buttons and icons including battery, switch, power, and plus sign

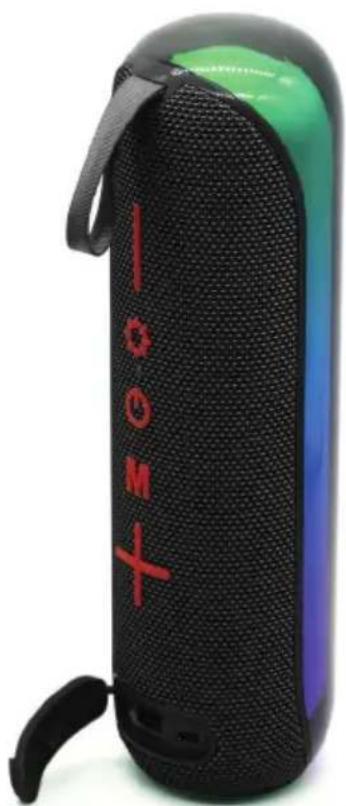

Controls and inputs

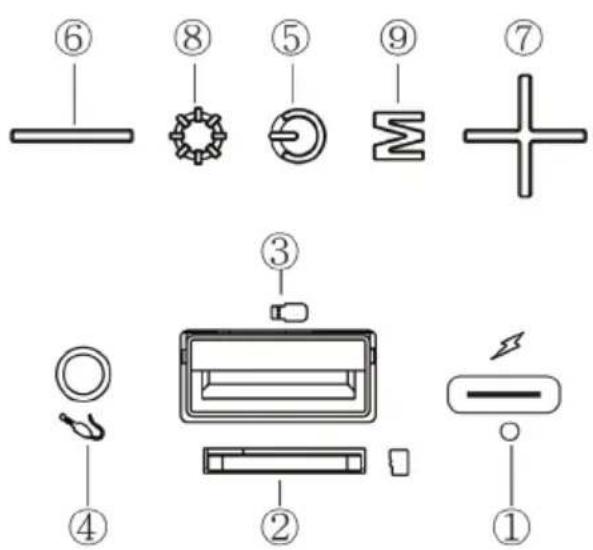

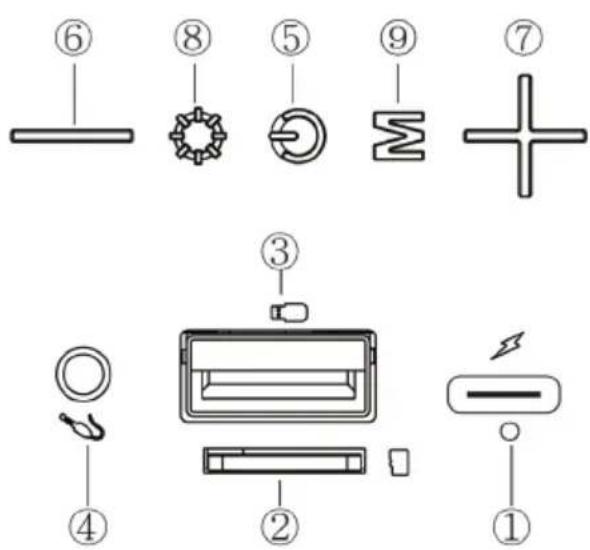

Diagram showing exploded view of electronic components with numbered parts, including battery, switch, and motor.

1. 5V power port: Use a standard USB-C charging cable to charge the device.
   The red LED indicator lights up while charging, then turns off when charging is complete.

2. Micro-SD port: It can read and play the MP3 audio format when a micro-SD card is inserted into the port.

3. USB port: It can read and play the MP3 audio format when USB media is inserted into the port.

4. AUX line-in port: Use the 3.5mm AUX input and cable to connect the speaker.
5. Power switch: Press and hold for more than 2 seconds to turn the device on and off.
6. “-”: When music is playing, press briefly to go to previous track, and press and hold to decrease the volume.
7. “+”: When music is playing, press briefly to go to next track, and press and hold to increase the volume.
8. LED switch: Press and hold for more than 2 seconds to turn the lighting on and off. Press briefly to scroll through the lighting modes.
9. "M": Press briefly to switch between Bluetooth, USB, Aux and micro-SD modes. Press and hold for more than 2 seconds to set pairing mode.

When the music is playing, (USB media/micro-SD card/Bluetooth/line in), briefly press the power button to play or pause the music.

Bluetooth mode

In the list of your device, select and pair with PARTYBTTUBE. The blue LED indicator above the power button will stop flashing and stay solid. Enter "0000" if prompted for a PIN code.

Pairing function

To activate the pairing mode, two speakers must be in pairing mode and disconnected from any device. Press and hold the Mode button on one of the speakers to enter the pairing mode. A short signal sounds. Once paired together, you can connect them to your device.

In pairing mode, disconnect the Bluetooth device, and press and hold the M button to exit pairing mode.

When pairing is finished, a short beep will sound indicating that the pairing of the two speakers has ended and the speakers will return to normal (individual) Bluetooth pairing mode.

Hands-free calling mode

When you receive a call, briefly press the power button to take the call in hands-free mode. Press again to end the call. Quickly press the power button twice to redial the last number.

PLEASE NOTE:

- If the speaker stops working, it can be restarted by briefly pressing the reset button located in the line-in port. Use a long thin tool to press and hold this reset button for 8 seconds.

- For the USB/micro-SD card, use the FAT32 format, with a maximum capacity of 32 GB.

Note: the maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• When the device does not make a sound for 30 minutes, it will automatically go into standby mode to save energy. It can then be switched back on using the power selector
• If an incoming call is received while the PARTYBTTUBE system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and start again once the call is finished. Depending on the mobile phone, playback may sometimes stay paused after the end of the call.
• The word Bluetooth® as well as the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of compliance

- Bigben Interactive hereby declares that the PARTYBTTUBE radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.bigben.fr/support

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396-466, rue de la Voyette - CRT2

59273 Fretin, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

OTHERS, from Monday to Friday - 9.00 am - 6.00 pm
