Invigoration K-32326 - Steam cleaner KOHLER - Free user manual and instructions

Brand	Kohler
Model	Invigoration K-32326
Product Type	Steam cleaner (steam generator)
Dimensions (L x W x H)	Approximately 35 x 30 x 50 cm
Weight	Approximately 10 kg
Power supply	208-240 V, 50/60 Hz, dedicated circuit breaker
Power	Approximately 1500-2000 W
Water tank capacity	Approximately 2 L
Main functions	Steam production for cleaning, generator test via test stick
Maintenance and cleaning	Regular descaling, check connections, use test kit
Safety	Dedicated circuit breaker, emergency stop, safety relay
Replacement parts	Available at kohler.com/serviceparts
Repairability	Test kit included, stick diagnosis, cord/control replacement possible
General information	Manufacturer's warranty, technical support by phone (1-800-4KOHLER)

Frequently Asked Questions - Invigoration K-32326 KOHLER

How to test the steam generator of my Kohler Invigoration K-32326?

Use the provided test kit. Disconnect the control cord from the generator, insert the test stick into the inlet port. If you hear a relay click, the generator is working properly. Otherwise, contact customer service.

What to do if the steam generator does not produce steam?

First check the power supply (208-240 V) and water supply. Make sure the circuit breaker is ON. Then perform the generator test with the test stick. If the relay does not click, an internal failure is likely.

How to test the control cord?

Disconnect the control cord from the digital control. Connect the coupler (from the test kit) to the cord, then insert the test stick into the coupler. If the relay clicks, the cord is good. Otherwise, it is damaged and must be replaced.

How to test the digital control?

Turn off power, disconnect the control cord from the generator, connect the test cord and coupler. Restore power, insert the stick into the coupler. If the relay clicks, reconnect the digital control and test it. If no click, the control must be replaced.

Where can I find replacement parts for my Kohler steam cleaner?

Replacement parts are available on the official website kohler.com/serviceparts. You can also contact customer service at 1-800-4KOHLER.

What is the required power supply voltage?

The device requires a voltage between 208 V and 240 V on a dedicated circuit breaker. Check the specifications in the installation guide.

How to clean and maintain the steam generator?

Follow the manual instructions: descale regularly, check electrical and water connections, and use the test kit periodically to verify proper operation.

What to do if the relay does not click during the test?

If the relay does not click within 2 minutes after power-up, there is an internal failure of the steam generator, cord, or control. Contact Kohler customer service for assistance.

Can I use an extension cord?

It is not recommended to use an extension cord. Plug the device directly into a dedicated outlet with the appropriate voltage and circuit breaker.

How to contact Kohler customer service?

Call 1-800-4KOHLER (1-800-456-4537) Monday through Friday from 8 a.m. to 5 p.m. CST. Translation services are available.

USER MANUAL Invigoration K-32326 KOHLER

Service Kit Instructions

Steam Generator Test Kit

Record your model number:

Need help? Contact our Customer Care Center.

- USA/Canada: 1-800-4KOHLER (1-800-456-4537) Mexico: 001-800-456-4537 Hours of Operation: Monday-Friday 8:00 AM -5:00 PM (CT) Languages Spoken: English, Spanish, and translation services are available.

• Service parts: kohler.com/serviceparts
- Care and cleaning: kohler.com/clean
• Patents: kohlercompany.com/patents

Purpose

Use this service kit to test the functionality of the steam generator, control cord, and digital control.

This kit consists of a test stick, a test cord, and a two-way coupler.

1. Check Power and Water Supply

☐ Check that the voltage to the steam generator unit is between 208 V and 240 V.
☐ Verify that the electrical wire and dedicated electrical breaker at the main electrical panel are the correct sizes. Check the specifications in the installation guide.
☐ Verify that the breaker to the steam generator is switched "ON" at the electrical panel.
☐ Reset the power by turning OFF the breaker at the electrical panel.
□ Turn the power back ON.
☐ Check all control cord connections.
☐ Verify that the water to the steam generator is turned ON.

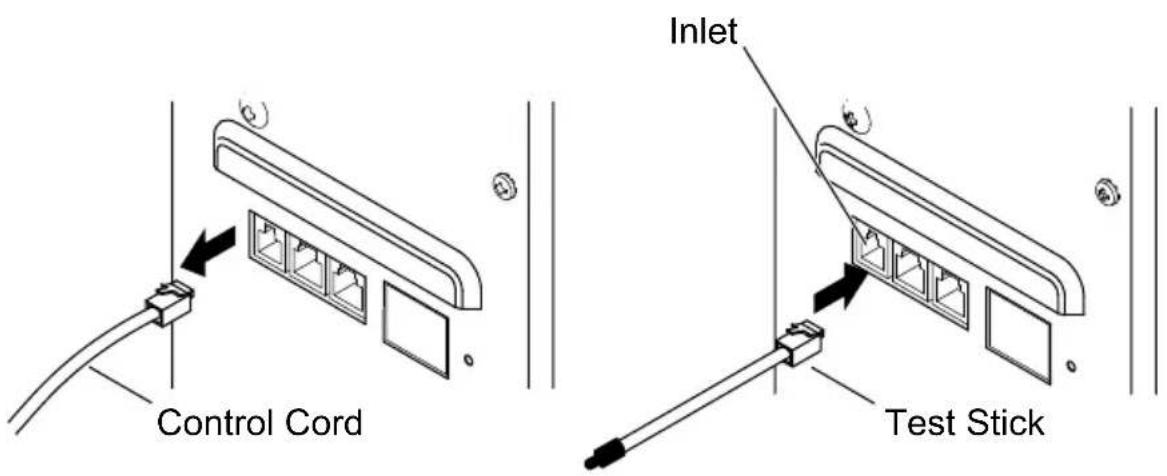

2. Test the Generator

☐ Disconnect the control cord from the steam generator.
☐ Insert the test stick into the control cord inlet on the steam generator.
☐ If you do not hear the relay click ON within 2 minutes: There is an internal failure in the steam generator. Contact Customer Service.
☐ If you hear the relay click ON: The steam generator is functioning properly.
□ Remove the test stick and reconnect the control cord to the steam generator.
□ Run the steam generator for 5 minutes to verify that the unit produces steam.

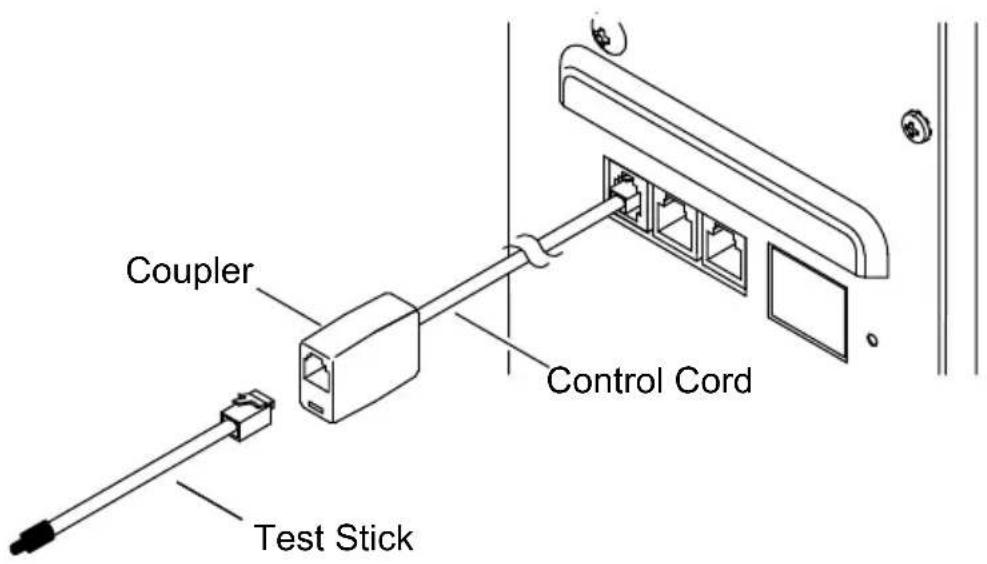

3. Test the Control Cord

☐ Disconnect the control cord from the digital control. Leave the other end of the control cord connected to the steam generator.
□ Connect the coupler to the control cord.
☐ Insert the test stick into the coupler.
☐ If you do not hear the relay click ON within 2 minutes: The control cord is damaged and must be replaced.
☐ If you hear the relay click ON within 2 minutes: The steam generator and control cord are functioning properly.

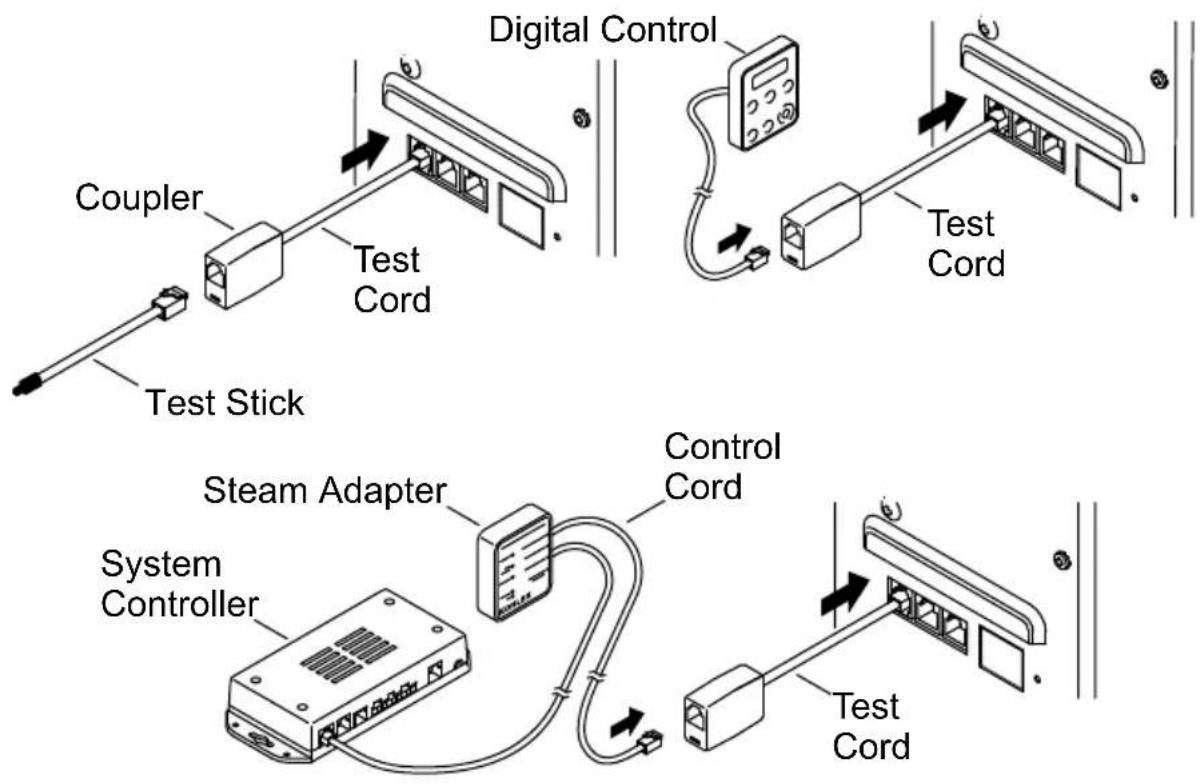

4. Test the Digital Control

Check the Test Cord and Coupler (Test Kit)

☐ Turn OFF the electrical power to the steam generator.
☐ Disconnect the control cord from the steam generator.
☐ Insert the test cord into the control cord inlet on the steam generator.
□ Connect the coupler to the test cord.
☐ Turn ON the electrical power to the steam generator.
☐ Insert the test stick into the coupler.
☐ If you do not hear the relay click ON within 2 minutes: The test kit must be replaced.
☐ If you hear the relay click ON: The steam generator, test cord, and coupler are functioning properly.

Check the Digital Control

☐ Disconnect the test stick from the coupler.
□ Connect the control cord to the coupler.
☐ Connect the digital control to the control cord (for steam adapter installations, connect the steam adapter and system controller).
□ Activate the digital control (or steam adapter).
☐ If you do not hear the relay click ON: The digital control (or steam adapter) must be replaced.
☐ If you hear the relay click ON: The steam generator and digital control (or steam adapter) are functioning properly.

Contact Your Service Representative

If all the components mentioned in this kit have been tested and are functioning properly, but the unit will still not operate, contact your Kohler Co. Authorized Service Representative for assistance. Please complete the information on the next page before contacting your Service Representative.

Homeowner:
Daytime Phone:
E-mail:
Address:
City: State: Zip Code:

Plumber/Installer:
Daytime Phone:
E-mail:
Address:
City: State: Zip Code:

From the list below, circle the ONE steam generator and control that you are experiencing problems with:

Steam Generator:
K-32324 K-32327 K-3	2332 K-32334
K-32325 K-32328 K-3	2333 K-32335
K-32326 K-32329

Control:
K-5548 K-5549 K-5557	K-5558

Serial Number:

Date Code:

Is this a new installation? (Circle one.) Yes / No

The unit functioned properly from approximately: __/__/__ to __/__/__
