USER MANUAL Fast-Response K-1713 KOHLER

Isometric line drawing of a mechanical device with no visible text or symbols

Mproduct numbers are for Mexico (i.e. K-12345M)

Hacksaw or Tube Cutter Drill w/ 1-1/4" & 2-1/2" Hole Bit

Plus:

• Drain/spill pan
• 1/2" copper tubing
• Assorted copper fittings; 3/8", 1/2" and 3/4" copper NPT unions
  • Wire Cutters or Wire Strippers
  • Conventional woodworking tools and materials
  • 45 and 90 degree elbows
  • Support Blocks (heat resistant)

Sealant Tape

Solder

Propane Torch

BeforeYouBegin

IMPORTANT!Whenusingthisunit,basicprecautionsshouldalwaysbefollowed.

DANGER: Risk of electrocution. Disconnect the electricity to the working area at the main breaker panel before performing these installation steps.
WARNING: Riskofpersonalinjury. If you become uncomfortable while taking a steam bath, you should power off the unit. Cool off with the shower, open the door, or exit the unit.
WARNING:Riskofallergicreaction.Before adding any oils, aromatic therapies, or skin care products to the aromatherapy well, make sure they will not cause an allergic reaction to the user.
WARNING: Riskofpersonalinjury. This steam bath may not be suitable for use if you are pregnant, have a heart condition, have high blood pressure, have circulatory problems, are under the influence of alcohol, are taking drugs or are under the care of a physician. A steam bath can put undue stress on the body, as does any hot bath, shower, or sauna.
WARNING: Riskofpersonalinjury. DONOT consume alcoholic beverages or take medications/drugs prior to or when using the steam bath. Alcohol and drugs affect mental judgement and inhibit bodily functions such as heartbeat and respiration, resulting in potentially dangerous effects.
WARNING: Riskofinjurytochildren. Do not allow children to use this unit unless they are closely supervised at all times. The steam generator is not designed to be used by children.
WARNING:Riskofpersonalinjury.Do not plumb a trap in the steam line or plumb the pressure relief valve into the steam line. Plumbing the pressure relief valve into the steam line can be hazardous if the steam outlet is capped.
WARNING: Riskofpersonalinjuryorpropertydamage. Avoid coming in contact with the water tank and/or steam discharge line while the generator is operating or shortly after shutdown. Wear eye protection and protective clothing when servicing the steam generator. The steam generator operates at high temperatures.

NOTICE: Use this unit only for its intended use as specified in this manual. DO NOT use attachments not recommended by Kohler Co.

NOTICE: Do not apply excessive heat to the generator connections when you solder connections. Do not apply flux or acids directly to the generator, as damage to the seals, plastic components, and trim finish may result. Do not apply petroleum-based lubricants to the generator components, as damage may result.

BeforeYouBegin(cont.)

☐ Inspect the product for any damage. Contact the KOHLER Customer Care Center using the information on the back of this guide.
□ Follow all local plumbing and electrical codes. All electrical work should be done by a qualified electrician.
☐ Disconnect all power before making any electrical connections.
- Connect the steam generator to water supply lines that meet all applicable plumbing codes.
☐ For custom installations, locate the steam head 6" (15.2 cm) from the floor and 4-1/2" (11.4 cm) from the inside of the threshold.
☐ Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the Price Book.

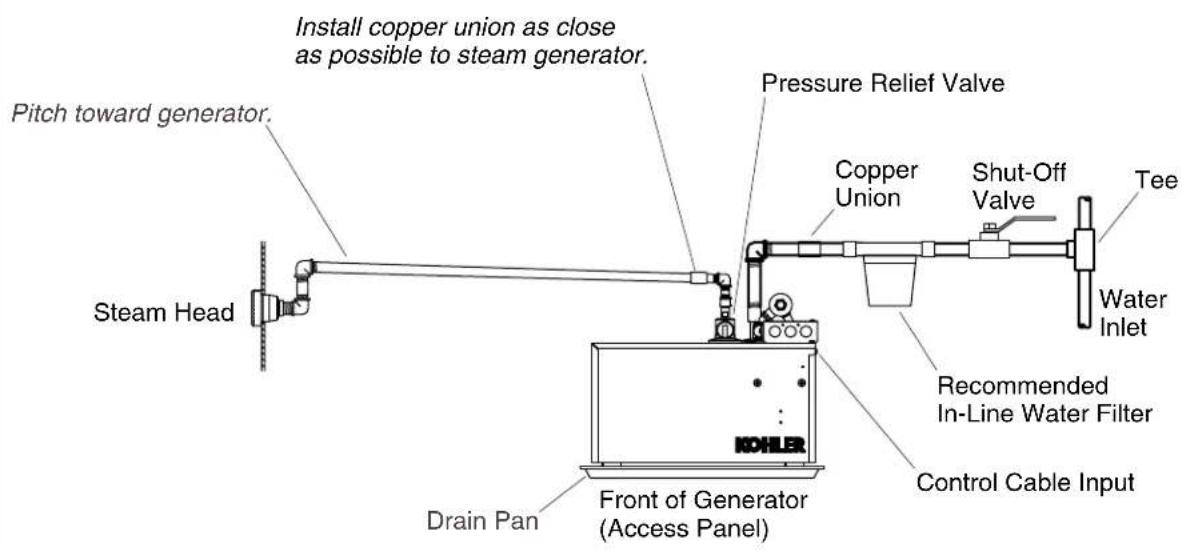

Install copper union as close as possible to steam generator. Pitch toward generator. Pressure Relief Valve Copper Union Shut-Off Valve Tee Water Inlet Recommended In-Line Water Filter Control Cable Input Steam Head Drain Pan Front of Generator (Access Panel) KOHLER

1. DeterminetheLayout

WARNING: Risk of property damage. Allow a minimum of 12" (30.5 cm) of air space around the steam generator at all times. This provides an area for the heat generated by the unit to dissipate.

WARNING: Riskofpersonalinjury.Do not install the Steam Control User Interface outside the steam enclosure. The User Interface must be installed within the enclosure to allow the sensors to regulate the temperature and control the flow of steam. Refer to the Installation Guide for the Steam Control Kit.

NOTICE: When installing the control kit, allow room in the control cable for a drip loop. The drip loop will discourage moisture from following the control cable to the steam generator.

NOTICE: The steam generator will perform best when installed as close as possible to the steam head. The unit should be installed within 25' (7.62 m) of the steam head.

NOTICE: For optimum performance install the steam generator below the level of the steam head.

NOTE: When possible, use 45 degree elbows. Performance will be increased when 45 degree elbows are used.

☐ Determine the location of the steam generator. Allow for a 12" (30.5 cm) air gap on all sides of the generator. Allow for a drain pan.

☐ Choose a drain pan appropriate for your installation. The drain pan is not supplied.

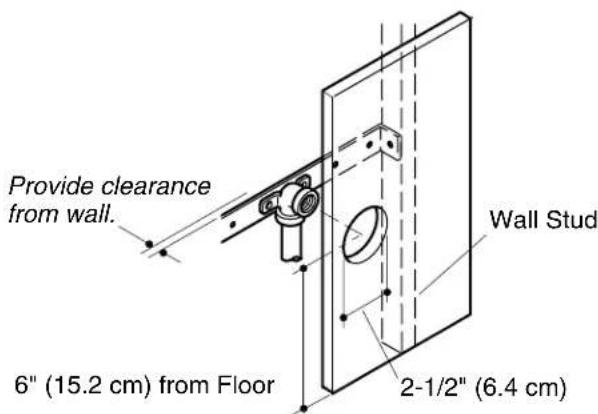

Provide clearance from wall. 6" (15.2 cm) from Floor 2-1/2" (6.4 cm) Wall Stud

2. DeterminetheLocationoftheSteamHardware

WARNING: Riskofpersonalinjury. Do not install the Steam Control User Interface outside the steam enclosure. The User Interface must be installed within the enclosure to allow the sensors to regulate the temperature and control the flow of steam. Refer to the Installation Guide for the Steam Control Kit.

WARNING: Risk of scalding. Do not block the steam head or locate it near a seat or bench, as the steam head is hot during operation and may scald the user if touched.

SteamHeadandControlApplications

NOTE: All dimensions should be taken from the inside of the shower.

IMPORTANT! Do not install the Steam Control User Interface outside the steam enclosure. Review the Installation Guide for the Steam Control Kit. Do not install the control directly above or in-line with the steam head.

□ Refer to the Steam Control Kit Installation Instructions for more information.
☐ It is recommended to locate the steam heads and the steam control on the same wall as the plumbing controls.
☐ Locate the steam heads 6" (15.2 cm) above the shower floor and 4 1/2" (11.4 cm) from the threshold.
- Locate the steam control 60" (152.4 cm) above the floor of the shower, but not directly in-line with the steam heads. Refer to the Steam Control Kit Installation Instructions for more dimensional and installation information.
□ Make sure there is adequate clearance between the steam lines and any surrounding surfaces.

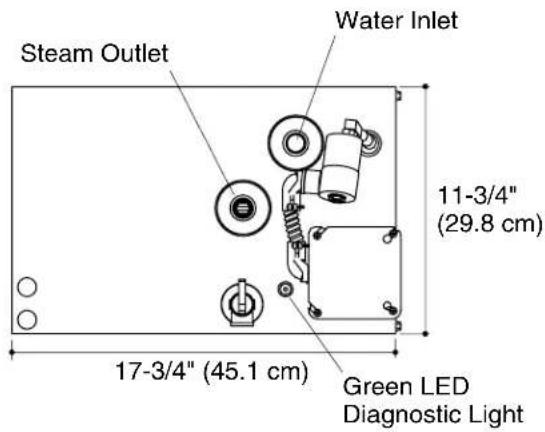

Steam Outlet Water Inlet 11-3/4" (29.8 cm) 17-3/4" (45.1 cm) Green LED Diagnostic Light

Minimum required access panel is 24" (61 cm) L x 15" (38.1 cm) H.

Allow for a minimum of 12" (30.5 cm) of space around all sides of the steam generator.

Allow for the Drain/Spill Pan.

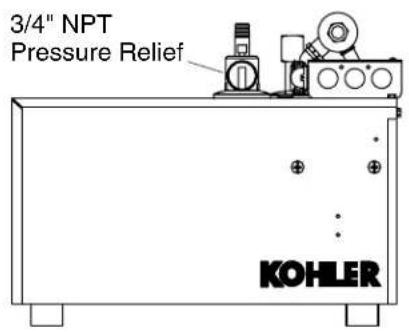

3/4" NPT Pressure Relief KOHLER

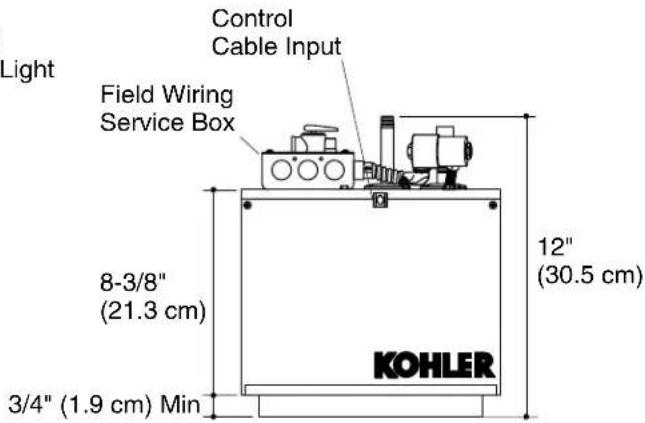

Control Cable Input Field Wiring Service Box 8-3/8" (21.3 cm) 3/4" (1.9 cm) Min 12" (30.5 cm) KOHLER

3. DeterminetheLocationoftheSteamGenerator

IMPORTANT! The minimum required access panel is 24" (61 cm) L x 15" (38.1 cm) H. Allow for a minimum 12"(30.5 cm) space around all sides of the steam generator.

☐ Ensure clearance between the steam line and any surrounding surfaces.
□ Allow for access to the steam generator after installation.
☐ Allow for a 12"(30.5 cm) air gap on all sides of the generator.
□ Allow for a drain or spill pan.
☐ For optimum performance, install the steam generator below the level of the steam head and as close as possible to the steam head. The steam generator should be installed within 25 ft (7.62 m) of the steam head in a dry, well-ventilated area

1. Install the Electrical Supply

ModelK-1696-NAK-1713-NA
RequiredElectricalService
Generator Dedicated Circuit 13 kW, 240 V, 80 A, 50/60 Hz 15 kW, 240 V, 90 A, 50/60 Hz
ProductInformation
Weight 32 lbs (14.5 kg) 32 lbs (14.5 kg)
Size	18" (45.7 cm) L x 12" (30.5 cm) x 13" (33 cm)
Electrical Rating 240 V, 59 A, 50/60 Hz	240 V, 68 A, 50/60 Hz
Water Supply	3/8" copper line	3/8" copper line
Water Supply Shut-Off Valve	3/8" NPT female	3/8" NPT female
Steam Line	1/2"copper line (1/2"NPT thread)	1/2"copper line (1/2"NPT thread)
InstalltheElectrical Supply(cont.)
Pressure Relief Valve (supplied)	3/4" NPT female thread	3/4" NPT female thread
SizingTheSteamRoom447 cu ft (13 cu m) 500	cu ft (14 cu m)
DANGER: Risk of electrocution. Disconnect the electricity to the working area at the main breaker panel before performing these installation steps.Follow all local electrical codes. All electrical work should be done by a qualified electrician.Review the illustration showing specific Steam Generator Installation Requirements for your Steam Generator.Install the appropriate electrical supply.

Maintain a 12" (30.5 cm) minimum space around the units.

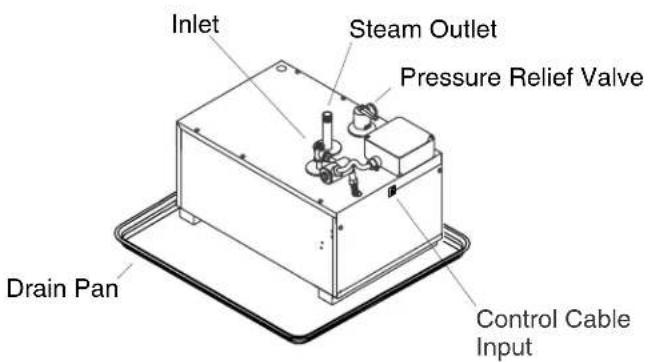

Inlet Steam Outlet Pressure Relief Valve Drain Pan Control Cable Input

5. InstalltheSteamGenerator

WARNING: Risk of property damage. Allow a minimum of 12" (30.5 cm) of air space around the steam generator at all times. This provides an area for the heat generated by the unit to dissipate.

NOTICE: For optimum performance, install the steam generator as close as possible to the steam head. The steam generator must be installed within 25' (7.62 m) of the steam head.

□ Install the desired drain pan at the steam generator location.
□ Position the steam generators on the support blocks.

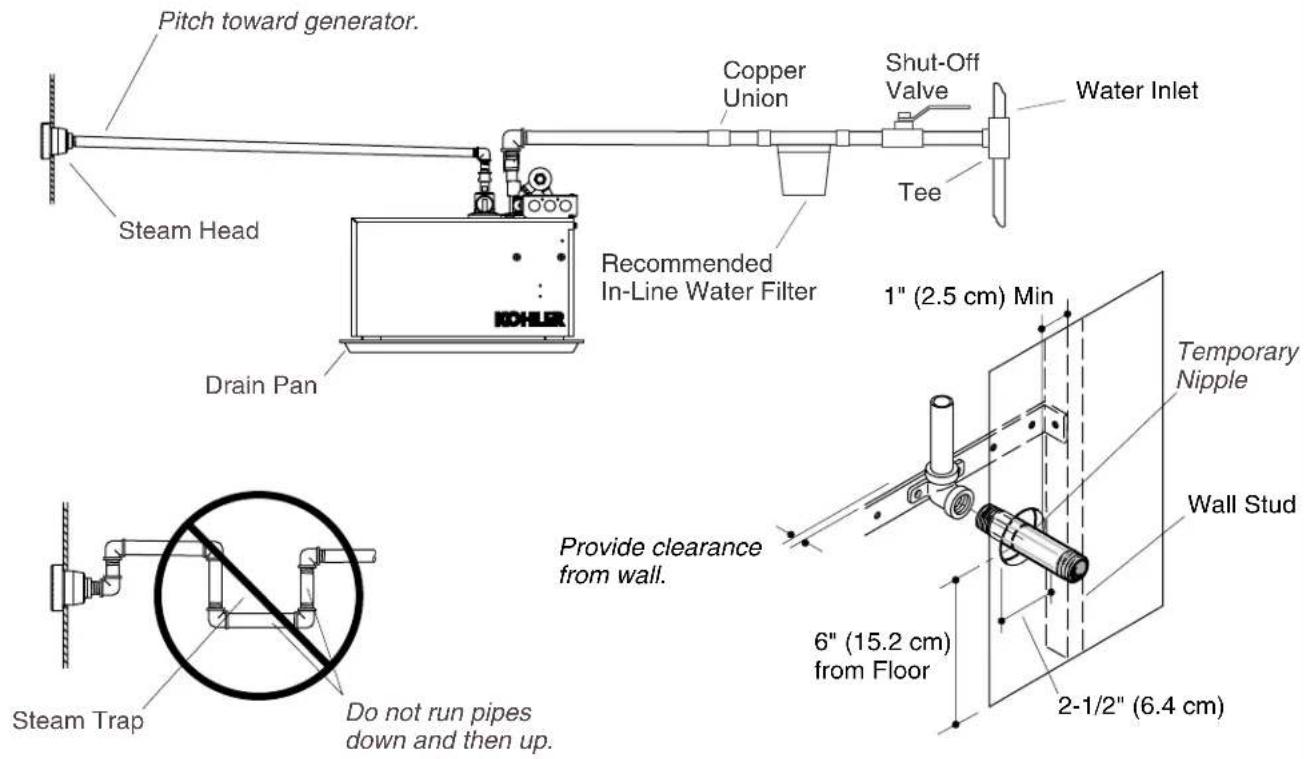

Pitch toward generator. Copper Union Shut-Off Valve Water Inlet Steam Head Tee Recommended In-Line Water Filter 1" (2.5 cm) Min Drain Pan Steam Trap Do not run pipes down and then up. Provide clearance from wall. 6" (15.2 cm) from Floor Temporary Nipple Wall Stud 2-1/2" (6.4 cm)

6. InstalltheWaterSupplyandSteamLine

WARNING: Risk of scalding. Do not plumb a trap, shut-off valve, or pressure relief valve into the steam line. Plumbing the pressure relief valve into the steam line can be hazardous, if the steam outlet is capped.

InstalltheWaterSupplyLinetotheGenerator

NOTE: For all NPT threaded connections, use pipe tape or pipe sealant. Do not overtighten the fittings.

• Connect to an existing cold water line, and run a 3/8" cold water line to a shut-off valve before the in-line water filter.
  Before final connection to the steam generator, flush out the water supply line into a large pail. This removes any debris, silt, sand, or other material that may be in the line.
  ☐ Install 3/8" copper tubing with a union fitting between the in-line water filter and the water inlet to the steam generator.
  □ Connect the water supply line to the steam generator.
  ☐ Fill the steam generator with water and check for leaks.

NOTICE: Steam generators are equipped with an automatic shut-off. The water will stop after the unit is full. If the water flows out of the steam outlet shut off the water and consult the "Troubleshooting Guide" or contact the Customer Care Center using the number located on the back of this document.

☐ If the water supply line exceeds 10' (3 m) or is exposed to cold areas, insulate the piping with appropriate insulation.

InstalltheSteamLine

InstalltheWaterSupplyandSteamLine(cont.)

WARNING: Riskofscalding. Do not locate the steam head near a seat or bench or scalding may occur upon contact with the steam head.

NOTICE: Never run the steam line down, then up. Running the steam line down and then up will create a steam trap, blocking the flow of steam. The steam line should run up to the steam head from the steam generator, at a pitch of 3/8'' (1 cm) to 1/2'' (1.3 cm) per 12'' (30.5 cm) of pipe.

NOTICE: Provide clearance between the back wall and the elbow leading into the steam housing. The elbow must not contact any wall material.

NOTICE: Provide clearance between the steam line and surrounding surfaces.

NOTICE: Do not apply excessive heat to the generator connections when you solder connections. Do not apply flux or acids directly to the steam generator, as damage to the seals, plastic components, and trim finish may result. Do not apply petroleum-based lubricants to the steam generator components, as damage may result.

NOTE: For all the threaded connections, use thread sealant tape or pipe sealant. Do not overtighten the fittings.

NOTE: Use 1/2" copper tube for the steam line.

NOTE: Always install a union fitting as close to the steam generator as possible.

□ Add blocking behind the desired steam head location.
☐ Install and secure a 1/2"NPT elbow to the blocking directly behind the desired steam head location.
☐ Cut a hole through the wall material to accept a temporary 1/2" copper tube nipple.
☐ Add a temporary 1/2" copper tube nipple.

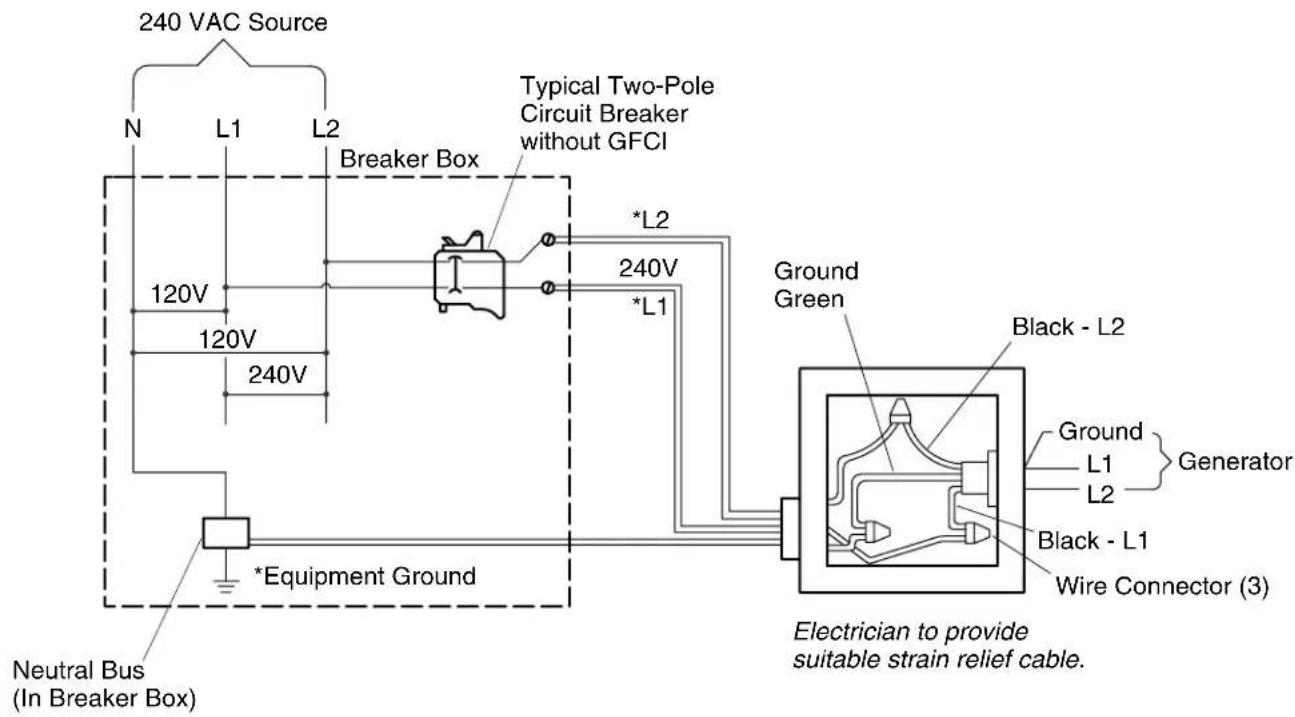

240 VAC Source N L1 L2 Breaker Box Typical Two-Pole Circuit Breaker without GFCI 120V 120V 240V *L2 240V *L1 Ground Green Black - L2 Ground L1 Generator L2 Black - L1 Wire Connector (3) *Equipment Ground Neutral Bus (In Breaker Box) Electrician to provide suitable strain relief cable.

7. ConnecttheElectricalSupply

DANGER: Riskofelectrocution. Disconnect all power before performing these installation steps. NOTICE: All electrical work should be done by a qualified electrician.

NOTICE: All electrical wiring must be done in accordance with local codes.

NOTICE: Each steam generator requires a dedicated circuit.

ConnectthePower

☐ Turn off all electricity to the working area at the main circuit breaker panel.
- Connect 240 VAC electrical line to the wires labeled "L1", "L2", and the green (ground) wire coming out of the steam generator field service box located on top of the steam generator.
□ Confirm the ground connection has been made in the field service box.
□ Close the field service box.
□ Turn on the main power.
☐ The function light should display a green light. If the function light is not green, consult the "Troubleshooting Guide" or contact the Customer Care Center using the number located on the back of this document.

8. Complethethel Installation

☐ Install the steam housing and steam head following the instructions packed with the Steam Control Kit.
□ Install the steam control following the instructions packed with the Steam Control Kit.

Completethel Installation(cont.)

☐ To operate the steam control, follow the operation instructions provided with the Steam Control Kit.

Warranty

KOHLERSteamGenerator THREE-YEARLIMITEDWARRANTY

Kohler steam generator units manufactured after September 15, 2001, are warranted to the original consumer purchaser to be free of manufacturing defects in material and workmanship during normal residential usage for three (3) years from the date of installation. This warranty only applies to KOHLER steam generator units installed in the United States of America, Canada or Mexico ("North America").

If a defect is found in normal residential usage, Kohler Co. will, at its election, repair or replace the unit, or make appropriate adjustment. Damage caused by accident, misuse or abuse is not covered by this warranty. Proof of purchase (original sales receipt) must be provided to Kohler Co. with all warranty claims. Kohler Co. is not responsible for labor charges, removal charges, installation, or other consequential costs. In no event shall the liability of Kohler Co. exceed the purchase price of the unit.

If this unit is used commercially or installed outside of North America, Kohler Co. warrants the unit to be free from defects in material and workmanship for one (1) year from the date of installation with all other terms of this warranty applying except duration.

To obtain warranty service contact Kohler Co., either through your Dealer, Plumbing Contractor, Home Center or E-tailer or by writing Kohler Co., Attn: Customer Care Center, 444 Highland Drive, Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and 001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from within Canada, or www.mx.kohler.com in Mexico.

KOHLERCO.AND/ORSELLERAREPROVIDINGTHESEWARRANTIESINLIEUOFALLOTHER WARRANTIES,EXPRESSEDORIMPLIED,INCLUDINGBUTNOTLIMITEDTOTHEIMPLIED WARRANTIESOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE.KOHLERCO. AND/ORSELLERDISCLAIMANYLIABILITYFORSPECIAL,INCIDENTALORCONSEQUENTIAL DAMAGES.Somestates/provincesdonotallowlimitationsonhowlonganimpliedwarrantylasts,orthe exclusionorlimitationofspecial,incidentalorconsequentialdamages,sotheselimitationsandexclusions maynotapplytoyou.Thiswarrantygivesyouspecificlegalrights.Youmayalsohaveotherrights,which varyfromstate/providencetostate/providence.

ThisisKohlerCo.'sexclusivewrittenwarranty.

TroubleshootingGuide

CAUTION: Troubleshooting steps involving internal wires or electrical components should be performed by a qualified electrician.

NOTE: This troubleshooting only applies to the steam generator. For issues involving the steam control, consult the troubleshooting guide provided with the Steam Control Kit documentation.

The troubleshooting guide is for general aid only. For service and installation issues and concerns, contact the Customer Care Center using the information on the back of this guide.

TroubleshootingGuide(cont.)
SymptomsProbableCausesRecommendedAction
1.The green LED light is not on.	A. No electrical power at generator.	A1. Reset the power at the breaker.
		A2.Have a qualified electrician verify that 240 V of power is present at the generator.
	B.Circuit breaker is in the "Off" position.	B.Turn on the power at the breaker.
	C.Circuit breaker is not the correct size.	C.Verify the circuit breaker is sized appropriately. If it is the wrong size, replace it.
	D.Electrical connection in the field service box on the generator is loose.	D.Turn off all electrical power to the generator. Have a qualified electrician open the field service box and check all connections. Have a qualified electrician repair any poor connections.
2.There is a continuous flow of water from the steam head. Water flow during the power clean cycle is normal.	A.Components internal to the generator are not functioning properly.	A1.Shut off the water supply and drain the water from the generator. Close the drain valve.
		A2.Partially open the supply shut-off valve a small amount.
		A3.Allow the water to gradually fill the tank inside the generator (may take several minutes). If the water continues to flow from the steam head, A1.
		A4.Fully open the water supply shut-off valve.
		A5.Onmodelswithpowerclean optiononly,if water continues to flow from the steam head, run the power clean cycle.
		A6.If water continues to flow from the steam head, contact the Customer Care Center using the information on the back of this guide.
	B.The water supply is incorrectly connected to the generator.	B.Review the installation guide and if necessary reconnect the water supply to the proper location.
