Product Fiche concerning the Commission Delegated Regulation (EU) No 665/2013

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

Safety instructions 16

Structure of the product 17

Safety direction 18

How to use....19

Attachments....22

Maintenance....23

Customer service....27

Disposal of old electrical appliances 28

Safety instructions

• Read these safety instructions carefully before using your appliance and keep them safe for future reference.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Pay attention to the rotative brush, there is a risk of jamming.
• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

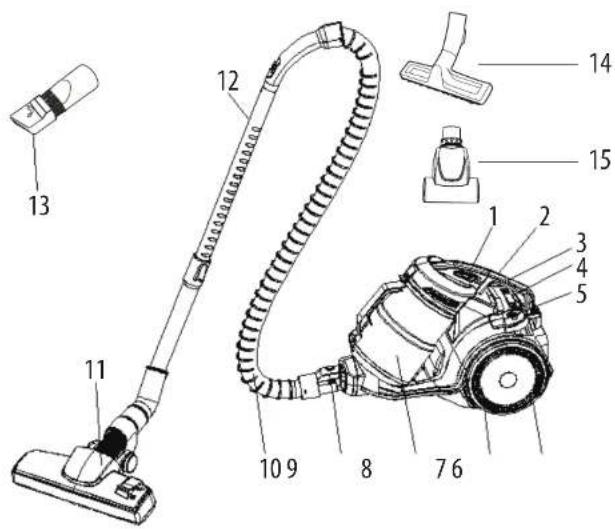

Structure of the product

Technical diagram of a vacuum cleaner with numbered parts for identification

1. Release button
2. handle
3. Cord rewind button
4. Speed rotate button
5. Power button
6. Rubber for big wheel

7. Big wheel

8. Dust cup

9. Hose connector
10. Hose
11. Brush tool
12. Extending metal tube
13. Two in one brush
14. Parquet nozzle
15. Turbo brush

Safety direction

1. For the first operation, it is advisable to read the manual carefully before hand and keep it properly for future use.
2. Before the first operation, make sure the dust cup is properly installed.
3. Make sure the power supply is 220-240V 50Hz
4. Do not vacuum water and inflammable material
5. Do not vacuum burning material and ashes
6. Do not use the machine without a motor protection filter filled
7. Disconnect power before changing attachments, removing dust container and maintaining appliance.
8. Please change the dust cup/HEPA immediately when it is damaged.
9. Do not store or use the machine close to high temperature places
10. Do not let children use the machine in case of any danger
11. If abnormal noise, smell, smoke or any other failure or breakage was found during the operation, you should turn off the switch and unplug it. Then contact with your service center for repair. Do not repair it by yourself.
12. If the supply cord is damaged, it must be replaced by the manufactures or its service agent or a similarly qualified person in order to avoid a hazard.
13. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

How to use

ASSEMBLY BEFORE USE

Fig.1

Fig.2

Fig.3

1. Fig.1 shows the connection of the hose and the vacuum cleaner: Put the hose connector in front of the vacuum cleaner. Then insert it into the inlet hole. If you want to disassemble it, you can press the release button and then pull it out.
2. Fig.2 shows the connection of the hose and the extending metal tube: Hold the flexural connector of the hose and put it into the bigger hole of the tube.
3. Fig.3 shows the connection of the tube and the brush tool: Put the metal tube into the hole of the brush and rotate it to fasten them.

Line drawing of a vacuum cleaner (no text or symbols)

Fig.4

1. Fig.4 shows how to check the winding of the power cord. You can pull the power cord out of the machine and stop it when you see the yellow mark. Make sure the red mark is not out. When your sweep is over, first turn off the power, pull the plug out of the socket, and then push the winding device button until the cord is completely in the machine.

2. Fig.5 shows the power button Put the plug into the socket, push the power button to control the work of the machine.

Fig.5 CLEANING OF THE DUST CUP

The steps of the dust cup cleaning:

Fig.6

1. As in Fig.6, hold the dust cup and handle and push the release button.

Fig.7

1. As in Fig.7, take the dust cup out of the machine.

Fig.8

1. As in Fig.8, put the dust cup onto the rubbish bin, push the release button to open the bottom of the dust cup, and the dirt and dust will fall into the bin by themselves.

Fig.9

1. As in Fig.9, shut up the dust cup for a circular use after your cleaning.

Attachments

HOW TO USE THE ATTACHMENTS:

Fig.10

1. .1As you can use the two in one brush in the corner and the aperture.

Fig.11

1. .1As opening the other side with bristles of the two in one brush as the mark of an arrow to clean the sofa, the curtain and the dust on the ornaments.

Fig.12

1. .12s trefig on the pedal of the brush tool to let the bristles out, and you can clean the floor.

Fig.13

1. .18s trefag on the pedal of the brush tool again to put the bristles in, and you can clean the carpet.

Maintenance

HOW TO MAINTAIN

1. The filter should be cleaned twice a year, and when there is obvious dirt on the filter, it is time.
2. You must fix the filter properly before running the vacuum cleaner.
3. The filter can't be cleaned in the washing machine or baked by the blower.
4. It will reduce the suction power and damage the motor if you use the wet filter.
5. Steps for maintenance:

Fig.14

1). .A4,ipfegs the outlet lock to open the outlet board.

Fig.15

2). .AS,ingetgout the outlet filter.

Fig.16

Line drawing of a portable kettle with lid open, showing internal structure and casing (no text or symbols)

Fig.17

Fig.18

3). .As, irofate the HEPA cover to separate it from the dust cup cover

5). .As in fig 18, take the filter out and tap it to remove the dust. If necessary, you can rinse it under water tap.

6). Wash the HEPA cover, the HEPA assembly, the outlet sponge and the dust chamber in the water without detergent and dry them before use. Don't use any tools to brush the HEPA filter paper, otherwise the HEPA filter will be damaged and filter effect will be affected.
7). Fix the HEPA assembly on the chamber cover and make sure three salient cubes should be stuck in the grooves of the dust chamber.
8). Rotate the HEPA assembly in the direction of the mark on the chamber cover.
9). Assemble the chamber cover assembly and the dust chamber according to the mark outside.
10). Put the dust chamber assembly into the machine. And in this process, first you should make the chamber in the right position and then press the handle of the dust chamber, if there is a cluck it means the operation is successful.

The product has been designed to meet Commission

Regulationwith regard to ecodesign requirements for electric power consumption off mode & standby mode of electrical and electronic household equipment. The technical information of each mode:

Mode	Power consumption(Watts)	The period(Miunutes)
Off	0	0
Standby N/A		N/A

Product Sheet concerning the Commission Delegated Regulation (EU) No 665/2013

Registered trademark SABA
Model number RED TORNAD
Rated frequency and voltage 220 - 240 V~50 -60 Hz
Energy capacity rating A
Annual energy consumption	27.4
Annual energy consumption based on 50 areas to be treated.The annual energy consumption depends on the use of the appliance.
Application performance rating on carpeted surface	A
Application performance rating on a hard surface	A
Dust emission rating A
Power rating 700W
Sound pressure	79db

This instruction book is also available on our website: www.conforama.fr

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances: http://sav-client.conforama.fr or call :09 69 32 05 05 from Monday to Saturday, 8:30 to 19:00 price of a local call.

If you need access to the list of spare parts and technical, documentation for your product, please go to https://sav-pieces.conforama.fr. There you will be able to buy spare parts for repairing your product or having it repaired.

Disposal of old electrical appliances

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.
