USER MANUAL GP2LS22R SABA

Red SABA toaster with white and black design (no visible text or symbols)

CONFORAMA France

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

GB

TABLE OF CONTENT

IMPORTANT SAFEGUARD 14

PRODUCT INTRODUCTION 16

CONTROL PANEL 17

FOR THE FIRST USE ....17

OPERATION 18

CAUTION 20

CLEANING AND MAINTENANCE 21

TECHNICAL SPECIFICATION 21

ENVIRONMENT FRIENDLY DISPOSAL 22

IMPORTANT SAFEGUARD

When using electrical appliance, basic safety precautions should always be followed including the following:

1. Read this manual thoroughly before using and save it for future reference.
2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the toaster.
3. Do not touch hot surface. Use handles or knobs only.
4. To protect against electrical shock, do not immerse cord, plug, or any part of the toaster in water or other liquid.
5. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
6. Children shall not play with the appliance.
7. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
8. Keep the appliance and its cord out of reach of children less than 8 years.
9. Unplug unit from outlet when not in use and before cleaning. Allow to cooling before putting on or taking off parts.
10. Allow the unit to cool completely before cleaning or storing.
11. Do not operate any appliance with a damaged cord or plug, or in abnormal state. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. Do not let the cord hang over edge of table or counter, or touch hot surface.
2. Do not place on or near a hot gas or electric burner, or in a heated oven.
3. Do not use the appliance for other than its intended use.
4. Oversize food, metal foil packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.
5. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
6. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
7. Use the appliance on a level and stable work surface.
8. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
9. Don't attempt to dislodge food when toaster is in operation.
10. Be sure to take the bread out carefully after toasting so as to avoid injuries.
11. Don't use the appliance outdoors.
12. This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

– Farm houses;

• By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• Regarding the instructions for cleaning surfaces in contact with food and how to remove breadcrumbs, thanks to refer to the section "CLEANING AND MAINTENANCE".

GB

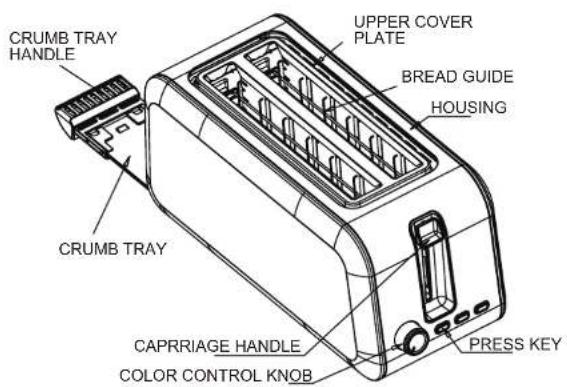

PRODUCT INTRODUCTION

CRUMB TRAY HANDLE UPPER COVER PLATE BREAD GUIDE HOUSING CRUMB TRAY CAPRRIAGE HANDLE COLOR CONTROL KNOB PRESS KEY

CONTROL PANEL

FOR THE FIRST USE

As there is manufacturing residue or oil remained in the toaster or heat element, it usually will emit the odor for the first use. It is normal and will not occur after several times use, for the first use it is suggested to operating according to the below steps, except without bread. Then let the toaster cool down and begin toasting the first slice.

16

17

OPERATION

1. Put bread slice into the bread slot, it can be inserted four slices at most every time.
   Note: Make sure the crumb tray is completely positioned in place before using.
2. Plug the power cord into the outlet.
3. Turn the color control knob to your desired color. The lowest is set white and the highest is dark. The middle position can toast the bread to golden color.

Note:

(1) Toasting color for one slice is darker than that for double bread at the same level.
(2) If toasted continuously, toasting color for the latter bread is darker than that for the anterior bread at the same level.
4. Press carriage handle down vertically until it is positioned in place and the indicator of "Cancel" button will be illuminated, and toast will begin at once. Once the bread has been toasted to the preset color, the carriage handle will automatically spring up. You can uplift the carriage handle a little to remove the bread readily.

Note: Only the power supply is switching on, the carriage handle can rest on the bottom of slot.

1. During the toasted process, you may observe the toasting color. If it is satisfying, you press the "Cancel" button to cancel the operation at any time.

2. Once the bread has been toasted to the preset color, the carriage handle will automatically spring up, also you can uplift the carriage handle a little to remove the bread readily.

3. If the bread has been taken out from refrigerator, press "Defrost" button and the lamp beside it will be illuminated, in this mode it will be toasted to your desired color.
4. If you want to reheat the cold toasted bread, press the "Reheat" button and the lamp beside it will be illuminated. In this mode toasting time is fixed, so long as time is running over, the carriage handle will automatically spring up and end up the reheating process.

CAUTION

1. If toaster starts to smoke, press "Cancel" to stop toasting immediately.
2. Remove all protective wrapping prior to placing in toaster.
3. Avoid toasting the food with extremely runny ingredients such as butter.
4. Never attempt to remove bread jammed in the slots without unplugging the toaster from the electrical outlet first, be sure not to damage the internal mechanism or heating elements when removing bread.
5. The bread slot is only applicable for toasting regular bread slice. Like the irregular bread or round bread, you cannot toast it in the Bread slot.
6. In order to achieve uniform color we recommend that you should wait minimum 30s between each toasting so that color control can reset automatically.

CLEANING AND MAINTENANCE

1. Disconnect from AC outlet before cleaning.
2. Wipe the outside with soft dry cloth after toaster cools down, never use metal polish.
3. Pull out crumb tray on bottom of toaster and empty it. If toaster is used frequently, accumulated bread crumbs should remove at least once a week. It do not need use the washing machine to wash the handle and tray. Make sure the crumb tray is completely closed before using the toaster again.
4. When not use or storage, the power cord may be wound under the bottom of toaster.

TECHNICAL SPECIFICATION

VOLTAGE/FREQUENCY: 220-240V\~50-60Hz

POWER: 1250-1450W

This instruction book is also available on our website: www.conforama.fr

ENVIRONMENT FRIENDLY DISPOSAL

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery

and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE.

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE - further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.
