USER MANUAL GP23 GRAYWOOD SABA

Exterior view of a modern SABA toaster with two shades and control buttons (no text or symbols on the device itself)

Labeled diagram of a toaster with numbered parts for identification

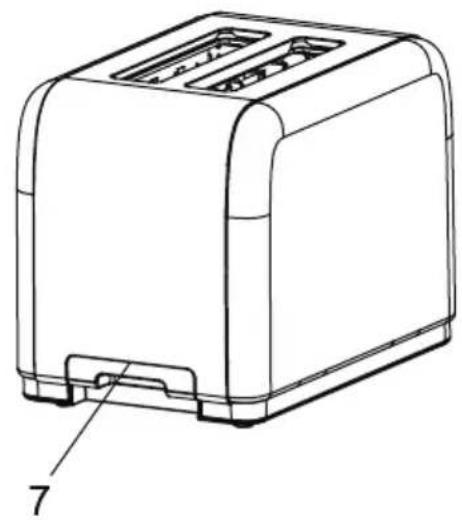

Line drawing of a toaster with label pointing to front panel (no text or symbols on the device itself)

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

GB

Safety instruction 13

Technical specifications.... 15

Features of toaster.... 16

Operating toaster 16

Cleaning and maintenance 17

Disposal of old electrical appliances 18

Safety instruction

Read these safety instructions carefully before using your appliance and keep them safe for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
  • Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Appliances are not intended to be operated by means of an external timer or separate remote-control system.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
  • The outer surface may become hot while the appliance is on.
  • The temperature of adjacent surfaces may be high when the appliance

is on.

• Regarding the instructions for cleaning the surfaces in contact with food and removing breadcrumbs, thanks to refer to the section "Cleaning and maintenance".
  • To protect against electrical hazard do not immerse any part of the appliance or cord in water or any other liquid.
• Close supervision is necessary when the appliance is near children.
  • Do not leave the appliance unattended when in use.
  • Always use the appliance on a dry, level surface.
  • Do not use this appliance outdoors.
  • Always unplug from the plug socket when not in use and before cleaning.
• Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to the customer service department for repair, because special purpose tools are required.
• In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident.
• Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the customer service department.
• Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Allow the unit to cool before wrapping the cord around base for storage.
• Care must be taken, not to touch any hot surfaces, do not store or cover the appliance until it has fully cooled down.

• Do not place this appliance on or near a hot gas or electric burner, in or where it could touch a heated oven, or a microwave oven.

• Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this appliance.

• When using this appliance, allow adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use. CAUTION is required on surfaces where heat may cause a problem - an insulated heat pad is recommended.
• Do not use the toaster without the crumb tray in place. The crumb tray should be cleaned regularly. Do not allow crumbs to build up in the tray.
• Do not use this appliance with any foodstuff product containing sugar content or with products containing jam or preserves.

GB

Warning!

Never attempt to extract jammed toast, muffins, bagels or any other item with a knife or any other object, as contact with live elements may cause electrocution. Allow the appliance to cool down, unplug and carefully remove the bread.

Technical specifications

220-240V\~50-60Hz 860-1050W

Features of toaster

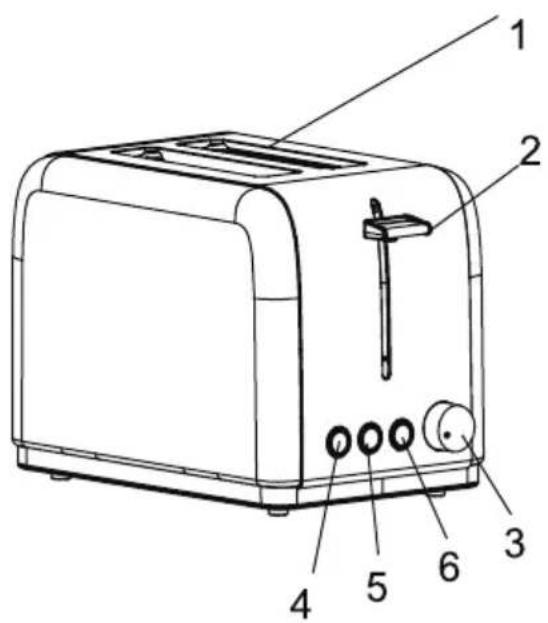

Labeled diagram of a toaster with numbered parts for identification

Line drawing of a toaster with label pointing to the front panel (no text or symbols on the device itself)

GB

1. Variable width toasting slots
2. Carriage control lever
3. Electronic variable browning control
4. Cancel button
5. Defrost button
6. Reheat button
7. Pull out crumb tray

Operating toaster

1. Insert the plug into a suitable mains supply socket and turn the power on.
2. Place up to two slices of bread, muffins, or bagels into bread slots.
3. Select the desired browning setting, from No.1 to No.6 on the browning control knob. (No.1-lightest, No.6-darkest).
4. When using the toaster for the first time we suggest you toast on number 3. Varying types of bread and personal preference may require

a different browning setting.

1. Press the carriage control lever down until it clicks into place. Toasting cycle will automatically commence. Please note: if the toaster is not plugged in, the carriage control lever will not click into place.
2. The toaster turns off when the desired toaster colour is achieved and automatically raises the toast. The toasting process can be stopped at any time by pressing the cancel button.

TOASTING FROZEN BREAD: To toast frozen bread, place the bread into the bread slots and select the desired browning setting. Press the carriage control lever down until it clicks into place then press the frozen button.

GB

REHEATING TOAST: The toaster allows you to reheat toast without additional toasting. To reheat, place toast into bread slots, lower the carriage control lever until it clicks into place and press the reheat button.

In the unlikely event that the bread or crumpet becomes jammed, switch the toaster off at the power outlet, remove the plug from the supply socket and carefully ease the bread out of the toaster, ensuring that you do not damage the element.

Cleaning and maintenance

How to Remove Bread Crumbs

1. Always turn the power off, remove the plug and allow the toaster to cool before cleaning.

2. To remove any crumbs from the toaster, slide out the crumb tray from under the toaster, empty and replace in the toaster before using it again.

3. Wipe the outside of the toaster with a slightly dampened cloth and polish with a soft dry cloth.

4. Do not immerse the unit in water.
5. To clean the interior, turn the toaster upside down over the sink and shake crumbs free.

The crumb tray should be cleaned regularly. Do not allow breadcrumbs to accumulate in the bottom of the toaster.

This instruction book is also available on our website: www.conforama.fr

GB

Disposal of old electrical appliances

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE S.A..

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE S.A. – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

CONFORAMA France SA
