USER MANUAL BSF19 THE SABA

White glass water heater with engraved temperature and volume markings (no text or symbols on the device itself)

CONFORAMA France

Labeled diagram of a kettle with numbered parts for identification

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

GB

Safety Instructions 16

Important Safety Instructions....17

Specifications 20

Know your kettle 21

Before initial use 22

Operation. 22

Boil-dry protection 23

Care and cleaning 23

Disposal of old electrical appliances 24

Safety Instructions

Read these safety instructions carefully before using your appliance and keep them safe for future reference.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the kettle has been over-filled, boiling water may be ejected.
• WARNING: Do not remove the lid while the water is boiling.

• The kettle is only to be used with the stand provided.
- ATTENTION: Ensure that the kettle is switched off before removing it from the base.
• The appliance must not be immersed in water.
- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Surfaces are likely to become hot during use.

• WARNING: avoid spillages on the connector.
• WARNING: Beware the risk of injury if used incorrectly.
• The heating element surface is subjected to residual heat after use. Do not touch these surfaces to avoid burning yourself.

Important Safety Instructions

1. Read all instructions before using.
2. Before connecting the kettle to the power supply, check that the voltage indicated on the appliance (underside the kettle & base) corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the kettle.

3. The attached base cannot be used for other than intended use.

4. Do not operate the appliance without load to avoid damaging the heat elements.

5. Unplug from the outlet when not in use.
6. Do not let the cord hang over edge of table counter or touch hot surface.
7. Do not place on or near a hot gas or electric burner or in a heated oven.
8. Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.
9. Ensure that kettle is used on a firm and flat surface where the children can't touch, this can prevent from overturning the kettle to damage the person or kettle.
10. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.
11. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
12. Be careful when opening the lid for refilling when the kettle is hot.
13. Close supervision is necessary when an y appliance is used by or near children.
14. Do not touch the hot surface. Use the handle or the button.
15. Extreme caution must be used when moving an appliance containing hot water.

16. The appliance is not a toy. Do not let the children play it.

17. The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.

18. While boiling water, avoid to contacting steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
19. Unplug from outlet when not in use and before cleaning; Allow it to cool before putting on or taking off parts and before cleaning the appliance.
20. Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.
21. Do not use the appliance for other than intended use.
22. Do not move the unit while the kettle is switched on.
23. The kettle can only use with the stand provided.
24. If the kettle is overfilled, boiling water may be ejected.

25. Do not use the kettle outdoors.

26. Save these instructions.

27. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
28. Regarding the instructions for details on how to clean the surfaces in contact with food, thanks to refer to the section "Care and cleaning".

Specifications

GB

Voltage: 220-240V\~ 50-60Hz

Power: 1850-2200W

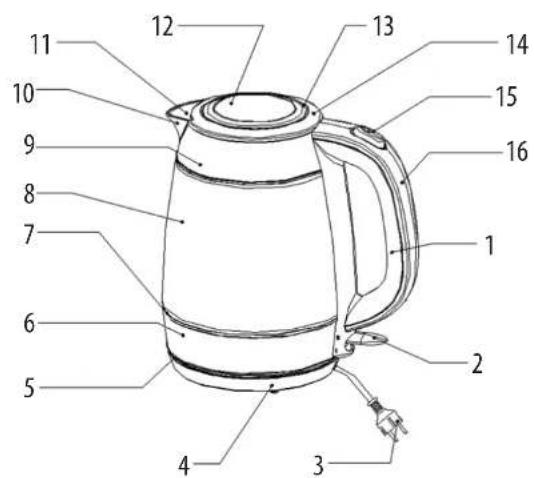

Know your kettle

Labeled diagram of a kettle with numbered parts for identification

1. Handle 9. Spout cover decoration
2. Switch 10. Spout
3. Power cord 11. Filter
4. Base 12. Lid decoration
5. Body bottom cover 13. Lid
6. Body bottom decorating 14. Spout Cover
7. Lamp cover 15. Lid button
8. Carafe 16. Handle cover

GB

Before initial use

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

Operation

1. To fill water into the kettle, remove it from the power base and open the lid by press down the lid button, fill with the desired amount of water to the kettle. Always fill the kettle between the minimum (0.5L) and maximum (1.7L) marks. Too little water will result in the kettle switching off before the water has boiled.

NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before connecting the power cord to the outlet.

1. Close the lid. Position the kettle on the power base in place. Make sure the kettle contact with the power base completely.

NOTE: Ensure the lid is firmly closed. The kettle will spout if the lid is left open.

NOTE: Do not pull the lid when you are pressing the lid button.

1. Lift the kettle from the power base and then pour the water. NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, don't open the lid while the water in the kettle is hot.

2. The kettle may be stored on the power base when not in use.

NOTE: Ensure power supply is turned off when kettle is not in use.

Boil-dry protection

Should you accidentally allow the kettle to operate without water, the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

Care and cleaning

Always disconnect the appliance from the power outlet and leave it to cool down completely before cleaning.

Never immerse the kettle or cord in any liquid, or allow moisture to contact with these parts.

Removal of mineral deposits

Mineral deposits in tap water may cause the kettle interior to discolor. To remove this build-up, use non-toxic Liquid Descaler.

Alternatively:

1. Fill the kettle with 3 cups of white vinegar and the remainder of water and be allowed to stand overnight. Do not boil.
2. Empty the solution from the kettle. Any stains remaining inside the spout can be removed by rubbing with a damp cloth, fill the kettle with clean water, bring to boil and then discard the water. Repeat and the kettle will then be ready to use.

Cleaning external housing

Wipe the external housing with a wild and damp cloth or cleaner.

CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

Cleaning the filter

Remember to clean the filter with a wild and damp cloth at intervals.

Storage

When not in use or storage, the power cord may be wound around the cord storage under the base of kettle.

This instruction book is also available on our website: www.conforama.fr

Disposal of old electrical appliances

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.
