USER MANUAL KVWC730SJP KITCHENAID

30" (76.2 CM) AND 36" (91.4 CM)

WALL-MOUNT CANOPY RANGE HOOD

Installation Instructions and Use and Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230

or visit our website at www.kitchenaid.com/owners

In Canada, for assistance, installation and service, call: 1-800-807-6777

or visit our website at www.kitchenaid.ca/owners

HOTTE D'EXTRACTION À MONTAGE MURAL DE 30 PO (76,2 CM) ET 36 PO (91,4 CM)

Isometric line drawing of a three-tiered industrial chimney or ventilation unit (no text or symbols)

MODELS: KVWC730SBE00

KVWC736SBE00

KVWC736SJP00

KVWC730SJP00

KVWC730SSS00

KVWC736SSS00

TABLE OF CONTENTS

RANGE HOOD SAFETY 3

INSTALLATION REQUIREMENTS....5

Tools and Parts....5

Location Requirements....5

Venting Requirements....6

Electrical Requirements 7

INSTALLATION INSTRUCTIONS ....8

Prepare Location....8

Install Range Hood....9

Connect Vent System 9

Make Electrical Connection....10

Install Vent Covers....11

Complete Installation 11

RANGE HOOD USE....11

Controls and Features....11

RANGE HOOD CARE ....12

Cleaning 12

WIRING DIAGRAM 14

ASSISTANCE OR SERVICE ....15

In the U.S.A. 15

In Canada 15

Accessories....15

TABLE DES MATIÈRES

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE .....17

EXIGENCES D'INSTALLATION ....19

INSTRUCTIONS D'INSTALLATION ....22

ASSISTANCE OU SERVICE ....30

Aux É.-U....30

Au Canada....30

Accessoires....30

TABLA DE CONTENIDO

Whirpool Corporation, U.S.A., Benton Harbor, MI 49022

COLOMBIA

Whirlpool Colombia S.A.S.

Nit: 830010181-9

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In accordance With All Applicable Codes and Standards, Including Fire-Rated Construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
- Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans used to exhaust contaminants must always be vented to the outdoors.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside -Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING :

■ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
■ NEVER PICK UP A FLAMING PAN - You may be burned.
■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:
- You know you have a Class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
– The fire department is being called.
- You can fight the fire with your back to an exit.

Based on "Kitchen Fire Safety Tips" published by NFPA.

■ Never Leave Surface Units Unattended at Higher Heat Settings - Cooking oils and animal fats are flammable, boilover may cause smoking, and greasy spillovers may ignite.

WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

This appliance is not intended for use by people (including children) whose physical, sensory or mental capacities are different or impaired or who lack the necessary experience or knowledge/expertise to do so, unless such persons are supervised or are trained to operate the appliance by a person who accepts responsibility for their safety.
WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).
■ This device is not intended for use by persons (including children) whose physical, sensory or mental abilities are different or reduced, or who lack experience or knowledge unless such persons receive supervision or training for the operation of the device by a person responsible for their safety.
■ Children should be supervised to ensure they do not use the devices as a toy.
■ Do not flame food under the kitchen hood.
■ There must be adequate ventilation in theroom, when the range hood is used at the same time as appliances that consume gas or other fuels. (DOES NOT APPLY FOR RANGEHOODS THAT ARE ONLY RECYCLING MODE).
■ There is a risk of fire, if the cleaning is not carried out in accordance with the instructions.
■ The discharge air must not be sent through a duct that is used to evacuate fumes from appliances that consume gas or other fuels. (DOES NOT APPLY FOR RANGEHOODS THAT ARE ONLY RECYCLING MODE).
■ Regulations concerning the discharge of air have to be fulfilled.
In the event that your power cord is damaged in part or in full, do not try to repair it by contacting the service center marked on your warranty or by a specialist technician for replacement.

WARNING: Incorrect placement of screws or fasteners or mounting devices according to these instructions may result in electrical hazards.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed (not supplied)

Level
■ Drill with 1¼" (3.0 cm), 3/8" (9.5 mm), and 5/16" (7.9 mm) drill bits
■ Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
■ Pliers
■ Caulking gun and weatherproof caulking compound
■ Vent clamps
■ Jigsaw or keyhole saw
■ Flat-blade screwdriver
■ Metal snips
■ Phillips screwdriver

Parts Needed (not supplied)

■ Home power supply cable
■ 1/2" (13 mm) UL listed or CSA approved strain relief
■ Three UL Listed wire connectors

For Vented Installations, You Will Also Need:

■ One wall or roof cap

■ Metal vent system

For Non-Vented (Recirculating) Installations, You Will Also Need:

■ Recirculation Kit. See "Assistance or Service" section to order.

■ 6" (15.2 cm) diameter round metal vent duct—length required is determined by ceiling height.

Parts Supplied

Remove parts from packages. Check that all parts are included.

■ Hood canopy assembly with ventilator and LED and halogen lights installed
■ Vent transition with back draft dampers installed
■ Metal grease filter(s)—depending on model and size
■ Vent cover support bracket
■ Mounting template
■ Two-piece vent cover
■ Four 4.2 x 8 screws
■ Six 5 x 45 mm mounting screws
■ Two D6.4 x 18 mm washers
■ Two 8 x 40 mm wall anchors
■ Four10 x 60 mm wall anchors
■ Four 5.4 x 75 mm screws (for 10 x 60 mm wall anchors)
■ Two 3.5 x 9.5 mm sheet metal screws
■ T10® TORX®† adapter

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

This range hood is recommended for use with cooktops with a maximum total rating of 65,000 BTUs or less.

Grounded electrical outlet is required. See the "Electrical Requirements" section.

The canopy hood is factory-set for venting through the roof or wall. For non-vented (recirculating) installation see "For nonvented (recirculating) installation only" in the "Connect Vent System" section.

Recirculation Kit. See "Assistance or Service" section to order All openings in ceiling and wall where canopy hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

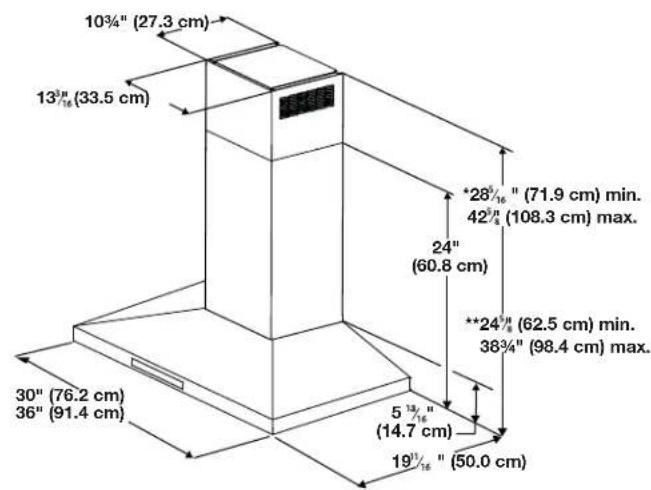

Product Dimensions

10¾" (27.3 cm) 13¾" (33.5 cm) *28¾" (71.9 cm) min. 42¾" (108.3 cm) max. 24" (60.8 cm) **24¾" (62.5 cm) min. 38¾" (98.4 cm) max. 30" (76.2 cm) 36" (91.4 cm) 5¾" (14.7 cm) 19¾" (50.0 cm)

*For non-vented (recirculating) installations **For vented installations

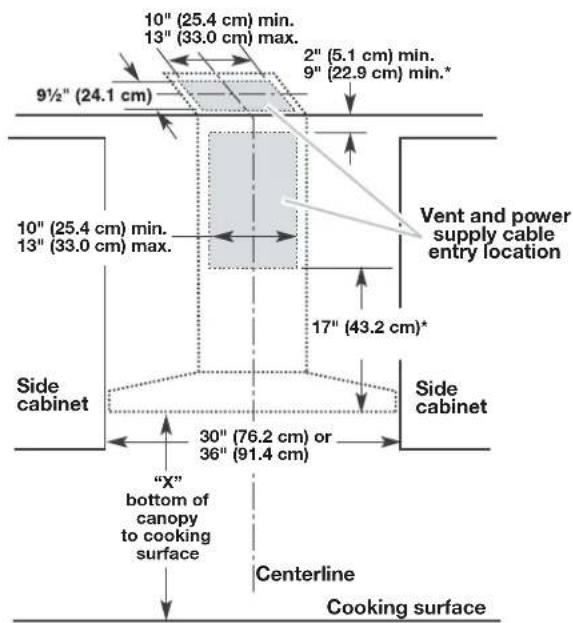

Cabinet Dimensions

10" (25.4 cm) min. 13" (33.0 cm) max. 9½" (24.1 cm) 2" (5.1 cm) min. 9" (22.9 cm) min.* 10" (25.4 cm) min. 13" (33.0 cm) max. Vent and power supply cable entry location 17" (43.2 cm)* Side cabinet Side cabinet 30" (76.2 cm) or 36" (91.4 cm) "X" bottom of canopy to cooking surface Centerline Cooking surface

*For non-vented (recirculating) installations

IMPORTANT:

Minimum distance "X": 24" (61.0 cm) from electric cooking surface.

Minimum distance "X": 27" (68.6 cm) from gas cooking surfaces.

Suggested maximum distance "X": 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the following chart.

	Vented Installations
	Min. ceiling height	Max. ceiling height
Electric cooking surface	7' 1" (2.16 m)	9' 2" (2.79 m)
Gas cooking surface	7' 4" (2.23 m)	9' 2" (2.79 m)

Non-vented (recirculating) Installations

	Min. ceiling height	Max. ceiling height
Electric cooking surface	7' 1" (2.16 m)	9' 6" (2.9 m)
Gas cooking surface	7' 4" (2.23 m)	9' 6" (2.9 m)

NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "X" between the bottom of the range hood and the cooking surface. For higher ceilings, a Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the chimney shipped with the range hood. To order, see the "Assistance or Service" section.

Venting Requirements

(Vented Models Only)

■ Vent system must terminate to the outdoors except for non-vented (recirculating) installations.
■ Do not terminate the vent system in an attic or other enclosed area.
■ Do not use 4" (10.2 cm) laundry-type wall caps.
■ Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance

For the Most Efficient and Quiet Operation:

■ Use no more than three 90° elbows.
■ Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than one elbow is used.
■ Do not install two elbows together.
■ Use clamps to seal all joints in the vent system.
■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
■ Use caulking to seal exterior wall or roof opening around the cap.
■ The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal b eak should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies f om locale to locale. Consult your HVAC professional for specific requirements in your area.

To order, see the "Assistance or Service" section.

Venting Methods

This canopy range hood is factory set for venting through the roof or through the wall.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood round exhaust opening is 6" (15.2 cm).

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

Rear Discharge

A 90° elbow may be installed immediately above the hood.

For Non-Vented (Recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version using a Recirculation Kit (which includes charcoal filters and a deflector). o order, see the "Assistance or Service" section.

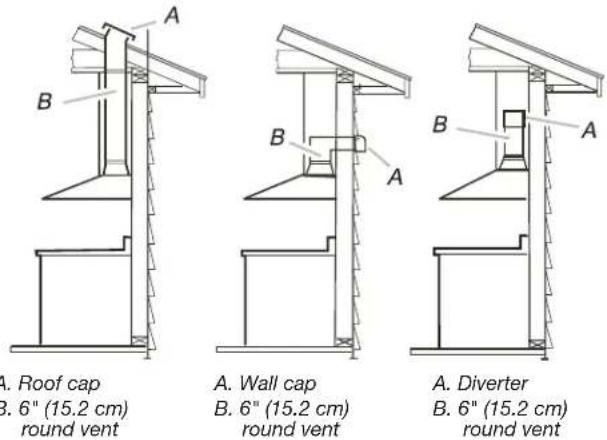

Roof Venting Wall Venting Non-Vented
(Recirculating)

A. Roof cap
B. 6" (15.2 cm) round vent
A. Wall cap
B. 6" (15.2 cm) round vent
A. Diverter
B. 6" (15.2 cm) round vent

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm)		Round
45° elbow	2.5 ft (0.8 m)
90° elbow	5.0 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System

90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1 - 90° elbow	= 5.0 ft (1.5 m)
1 - wall cap	= 0.0 ft (0.0 m)
8 ft (2.4 m) straight	= 8.0 ft (2.4 m)
Length of system	= 13.0 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 V, 60 Hz, AC only, 15 A, fused electrical circuit is required.
■ If the house has aluminum wiring, follow the procedure below:

Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filte on the rear wall of the range hood.
■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

It is recommended that the vent system be installed before hood is installed.
■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
■ Check your ceiling height and the hood height maximum before you select your hood.
1. Disconnect power.
2. Determine which venting method to use: roof, wall, or non-vented.
3. Select a flat surface for assembling the range hood. Plac covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using two or more people, lift range hood onto covered surface.

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the wall where the canopy hood will be installed.
2. Select a mounting height between a minimum of 24" (61.0 cm) for an electric cooking surface, a minimum of 27" (68.6 cm) for a gas cooking surface, and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a reference line on the wall.

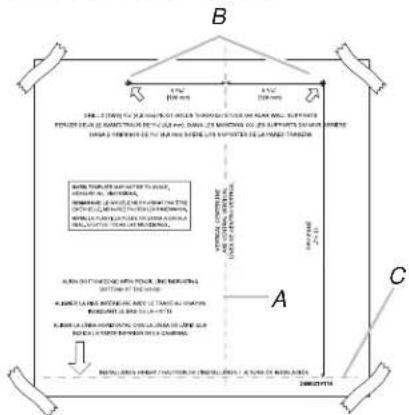

3. Tape template in place, aligning the template centerline and bottom of template with hood bottom line and with the centerline marked on the wall.

B 1.5m² 2.0m² 3.0m² 4.0m² 5.0m² 6.0m² 7.0m² 8.0m² 9.0m² 10.0m² 11.0m² 12.0m² 13.0m² 14.0m² 15.0m² 16.0m² 17.0m² 18.0m² 19.0m² 20.0m² 21.0m² 22.0m² 23.0m² 24.0m² 25.0m² 26.0m² 27.0m² 28.0m² 29.0m² 30.0m² 31.0m² 32.0m² 33.0m² 34.0m² 35.0m² 36.0m² 37.0m² 38.0m² 39.0m² 40.0m² 41.0m² 42.0m² 43.0m² 44.0m² 45.0m² 46.0m² 47.0m² 48.0m² 49.0m² 50.0m² 51.0m² 52.0m² 53.0m² 54.0m² 55.0m² 56.0m² 57.0m² 58.0m² 59.0m² 60.0m² 61.0m² 62.0m² 63.0m² 64.0m² 65.0m² 66.0m² 67.0m² 68.0m² 69.0m² 70.0m² 71.0m² 72.0m² 73.0m² 74.0m² 75.0m² 76.0m² 77.0m² 78.0m² 79.0m² 80.0m² 81.0m² 82.0m² 83.0m² 84.0m² 85.0m² 86.0m² 87.0m² 88.0m² 89.0m² 90.0m² 91.0m² 92.0m² 93.0m² 94.0m² 95.0m² 96.0m² 97.0m² 98.0m² 99.0m² 100.0m²

A. Centerline
B. Fastener locations
C. Mounting height reference (hood bottom line)

1. Mark centers of the fastener locations through the template to the wall.

IMPORTANT: All canopy mounting screws must be installed into wood where possible. If there is no wood to screw into, additional wall framing supports may be required, or use the four 10 x 60 mm wall anchors and 5.4 x 75 mm screws.

Remove the template.

1. For wood, drill 3/16" (4.8 mm) pilot holes at all locations where screws are being installed into wood.
   For wall anchors, drill 7/16" (10 mm) holes at all locations where wall anchors are being used.
2. For wood, install two 5 x 45 mm mounting screws. Leave a 1/4" (6.4 mm) gap between the wall and the back of the screw head to slide range hood into place. For wall anchors, install the 10 x 60 mm wall anchors and install the 5.4 x 75 mm screws into the wall anchors. Tighten until the wall anchors are secure. Back the screws out 1/4" (6.4 mm).

Vent Cover Bracket Installation

1. Attach vent cover bracket to wall flush to the ceiling using two 5 x 45 mm screws. Use the optional wall anchors if needed.

A B C

A. Ceiling
B. Wall
C. Centerline

Complete Preparation

1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the hood. See the "Venting Requirements" section.
2. Determine the required height for the home power supply cable and drill a 1¼" (3.2 cm) hole at this location.
3. Run the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2" (13 mm) conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.
   NOTE: Do not reconnect power until installation is complete.
4. Use caulk to seal all openings.

Install Range Hood

1. Remove the grease filter. For instructions on how to remove it, refer to the "Metal Grease Filter" section under "Hood Care."
2. Remove the tape inside the transition and install it on the top of the hood using two (2) 3.5 x 9.5 mm screws.

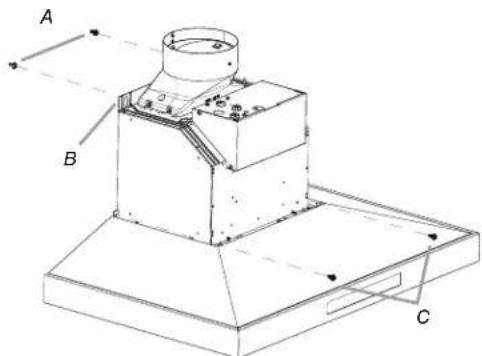

A B

A. Transition
B. 3.5 x 9.5 mm screws

1. With the help of two or more people, hang the extractor hood on the two (2) mounting screws using the mounting slots on the back of the hood.

A B C

A. Mounting Screws
B. Mounting Slots
C. Lower mounting screws and washers

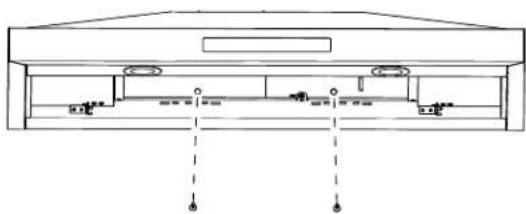

1. Level the hood and place two (2) 5 x 45 mm screws and two (2) washers on the internal lower part of the hood.

NOTE: If installing on concrete, mark the hole locations, take down the hood, drill, insert wall plugs, reinstall the hood, and finally install the screws and washers mentioned above.

Technical line drawing of a cabinet or enclosure structure with no visible text or symbols

1. Tighten the upper mounting screws.

Connect Vent System

For Vented Installations Only:

1. Fit vent system over the exhaust outlet.
2. Seal connection with clamps.
3. Check that back draft dampers work properly.

For Non-Vented (Recirculating) Installation Only:

1. Assemble the air deflector with the duct cover bracket using four 4.2 x 8 mm screws.

Technical diagram showing a mechanical assembly with labeled components A, B, and C, including a circular feature on a base.

A. Assembly screws
B. Air deflector
C. Duct cover bracket

1. Measure from the bottom of the air deflector to the bottom of the hood outlet.

A B D C E

A. Air deflector
B. Vent clamp
C. X = length to cut vent duct

D. Vent duct

E. Exhaust outlet

1. Cut the duct to the measured size "X."
2. Slide the duct onto the bottom of the air deflector.
3. Place the assembled air deflector and duct over the exhaust outlet from the hood.
4. Reassemble the air deflector to the duct cover bracket with the four assembly screws.
5. Seal connections with vent clamps.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

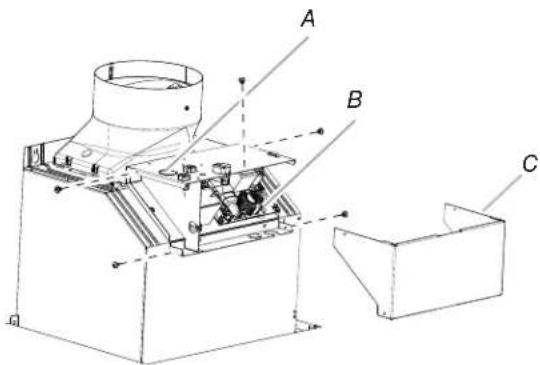

2. Remove terminal box cover.
3. Remove the knockout in the terminal box cover and install a UL listed or CSA approved 1/2" (13 mm) strain relief.

A B C

A. Knockout

B. Terminal box

C. Terminal box cover

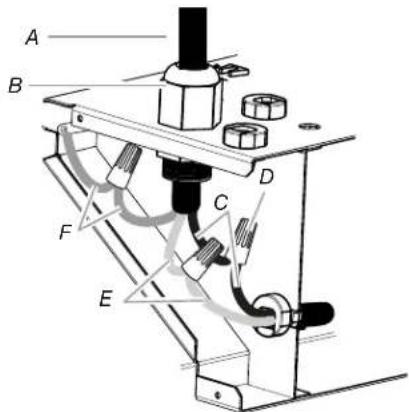

1. Run home power supply cable through strain relief into terminal box.

A B C D E F

A. Home power supply cable

B. UL Listed or CSA approved strain relief

C. Black wires

D. UL Listed wire connectors

E. White wires

F. Green (or bare) and yellowgreen ground wires

1. Use UL Listed wire connectors and connect black wires (C) together.
2. Use UL Listed wire connectors and connect white wires (E) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect green (or bare) ground wire from home power supply to yellow-green ground wire (F) in terminal box using UL Listed wire connectors.
2. Tighten strain relief screw.
3. Check that all light bulbs are secure in their sockets.
4. Install terminal box cover.
5. Reconnect power.

Optional Power Cord Kit Installations

For optional power cord kit installations, follow the instructions supplied with the power cord kit. See the "Assistance or Service" section for information on ordering.

NOTE: Use only with range hood cord connection kits that have been investigated and found acceptable for use with this model range hood.

Install Vent Covers

When using both upper and lower vent covers, push lower cover down onto hood and lift upper cover to ceiling and install with two 4.2 x 8 mm screws.

NOTE: For vented installations the upper vent cover may be reversed to hide slots.

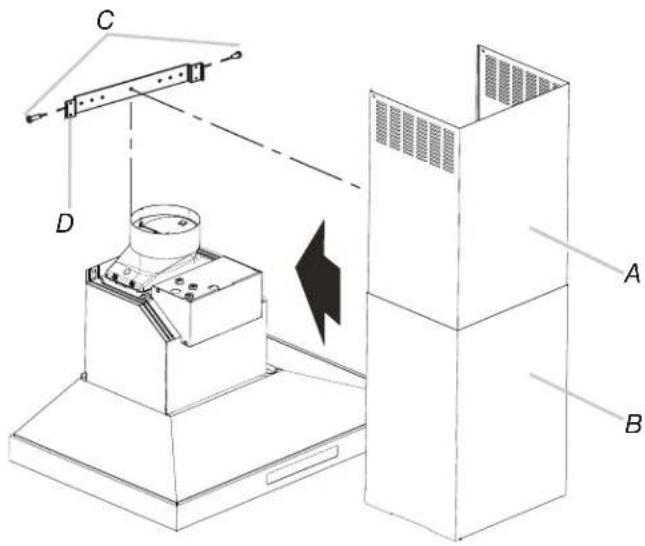

Technical diagram of a mechanical device with labeled components A, B, C, and D, showing a rotating component and structural assembly.

A. Upper vent cover
B. Lower vent cover
C. 4.2 x 8 mm screws
D. Bracket

Secure the bottom of the duct with two 4.2 x 8 mm screws.

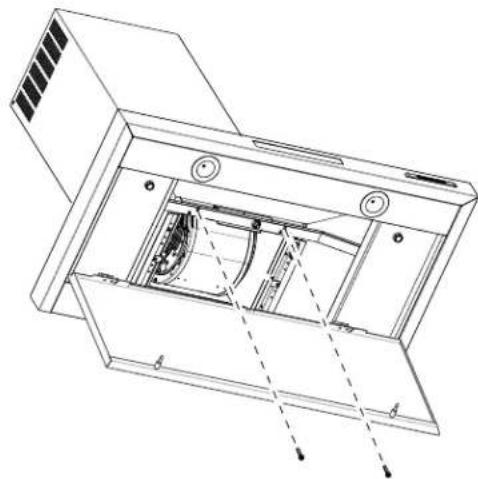

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Complete Installation

1. For non-vented (recirculating) installations only, install charcoal filters over grille on blower housing. See the "Rang Hood Care" section.
2. Install metal filters. See the "Range Hood Care" section.
3. Check the operation of the range hood blower and light. See the "Range Hood Use" section.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The range hood controls are located on the front side of the canopy.

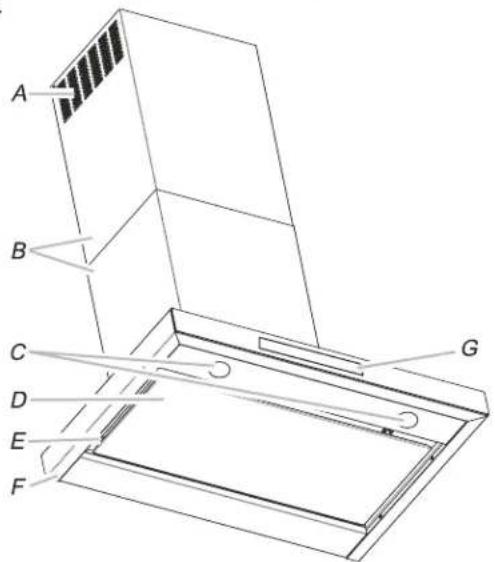

A B C D E F G

A. Louver holes (non-vented [recirculating] installations only)
B. Duct covers
C. LED lights (2)
D. Perimetric cover
E. Metal grease filters (located behind the perimetric cover)
F. Canopy
G. Control panel

Control Panel

Controls and Features

NOTES:

■ To activate the controls, press and release the desired button.
■ The control feature touch will be lit when a control feature is turned on.

Sleep Mode

The range hood automatically enters Sleep Mode when not in use. After 10 minutes of no range hood activity, all of the control button lights will turn off. To deactivate Sleep Mode, press any button.

Auto Sense

Auto Sense allows the range hood fan to turn on automatically when it senses heat higher than its allowable temperature limit. When Auto Sense is on, the fan speed will increase or decrease based on the temperature Auto Sense is measuring.

Auto Sense can be manually increased by pressing a higher fan speed. The fan will run at the selected speed for 10 minutes before returning to the speed selected for Auto Sense.

If Auto Sense is on, the Auto button light will turn off and go into Sleep Mode when the vent hood is not in use. If the vent hood is turned on by the consumer or by Auto Sense, the Auto button light will turn on.

To Set Auto Sense:

Press AUTO.

To Select Auto Sense Cooktop Type:

NOTE: The range hood is factory-set for the gas cooktop mode.

1. Press and hold AUTO for 5 seconds to switch between the gas cooktop and electric cooktop modes.
2. The Auto button light will flash five times when the range hood is changed to the electric cooktop mode. Auto Sense is now set to work with electric cooktops and ranges.
3. The Auto button light will flash three times when the range hood is changed to the gas cooktop mode. Auto Sense is now set to work with gas cooktops and ranges.
4. Changing the cooktop type will change the temperature limit for Auto Sense to turn on. When the range hood senses a high enough temperature, the fan will start automatically. When the temperature drops below the set temperature limit, the fan will stop automatically. The Auto button light will turn off after the range hood enters Sleep Mode, but Auto Sense is still active.

The speed is set by the following table

	Cooktop Type
	GAS (STD) ELECTRIC
	°F	°F
1st	95	90
2nd	105	95
3rd	125	105
4th	140	120

To Deactivate Auto Sense:

1. If the Auto button is lit, press AUTO once to deactivate Auto Sense. The Auto button light will turn off.
2. If Auto Sense is in Sleep Mode, press AUTO once to deactivate Sleep Mode and turn the Auto button light on. Press AUTO again to deactivate Auto Sense and turn off the Auto button light.
3. Auto Sense will automatically turn off after 2 hours of no activation of the Auto Sense system. To reset Auto Sense, press AUTO.

Manual Vent Functions

Fan Speeds
Low	Press LOW to turn the fan on at Low speed.
Med	Press MED to turn the fan on at Medium speed.
Hi	Press HI to turn the fan on at High speed.
Boost	Press BOOST to turn the fan on at the highest speed. Boost will automatically turn off after 10 minutes and the fan will switch to High speed.

Timer

The range hood can be set to automatically turn off after 15 minutes.

1. Press and hold the desired fan speed button for 2 seconds. The fan will run on the chosen speed for 15 minutes, and the fan speed button light will flash continuously. After 15 minutes, the fan will turn off automatically.
2. Press the desired fan speed button again while the fan timer is running to cancel the fan timer.

NOTE: Changing the fan speed or turning Auto Sense on will also cancel the 15-minute timer.

Light

The range hood has both task and ambient lighting.

To operate the lights:

Short press

1st press: The lights turn on at low intensity.

2nd press: They change to high intensity.

3rd press: They turn off.

Long press (hold)

When the lights are off, press and hold the button to start a continuous brightness dimming cycle: the intensity gradually increases to the maximum level and, without releasing it, decreases progressively until it turns off. Release the button at the desired brightness level to set that level.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Exterior Surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads

Always wipe dry to avoid water marks.

Cleaning Method:

■ Liquid detergent soap and water or all-purpose cleanser.
■ Wipe with a damp soft cloth or nonabrasive sponge, and then rinse with clean water and wipe dry.

Metal Grease Filter

1. Open the stainless steel panel. Grasp panel at the front corners, and then pull down to disengage the two magnets. The panel is attached at the rear and will rotate down.

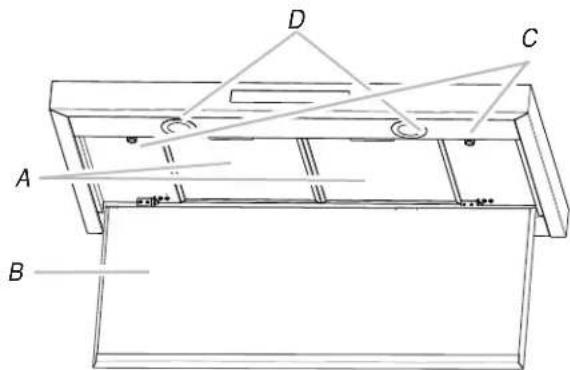

A B C D

A. Metal filters
B. Stainless steel panel

C. Magnets (2)

D. Spring catches (2)

1. Remove each filter by pulling the spring release handle and then pulling down the filter.

Pure diagram of a mechanical or electrical component with downward arrow and labeled point A (no text or symbols beyond label)

A. Spring release handle

1. Wash metal filters as needed in dishwasher or hot detergent solution.
2. Reinstall the filter by making sure the spring release handles are toward the front. Insert aluminum filter into upper track.
3. Push in spring release handle.
4. Push up on metal filter, and then release handle to latch into place.
5. Repeat steps 1 to 5 for the other filter.
6. Close the stainless steel panel. Engage the two pins in the spring catches to secure.

Non-Vented (recirculating)

NOTE: When used in recirculation mode, To Reduce the Risk of Fire and Shock use only:

Recirculating kit Model W10344022

Charcoal Filter kit Model W10272068

To order, see the "Assistance or Service" section.

Replacing a LED Lamp

The LED lights are replaceable by a service technician only. See the "Warranty" section for service contact information.

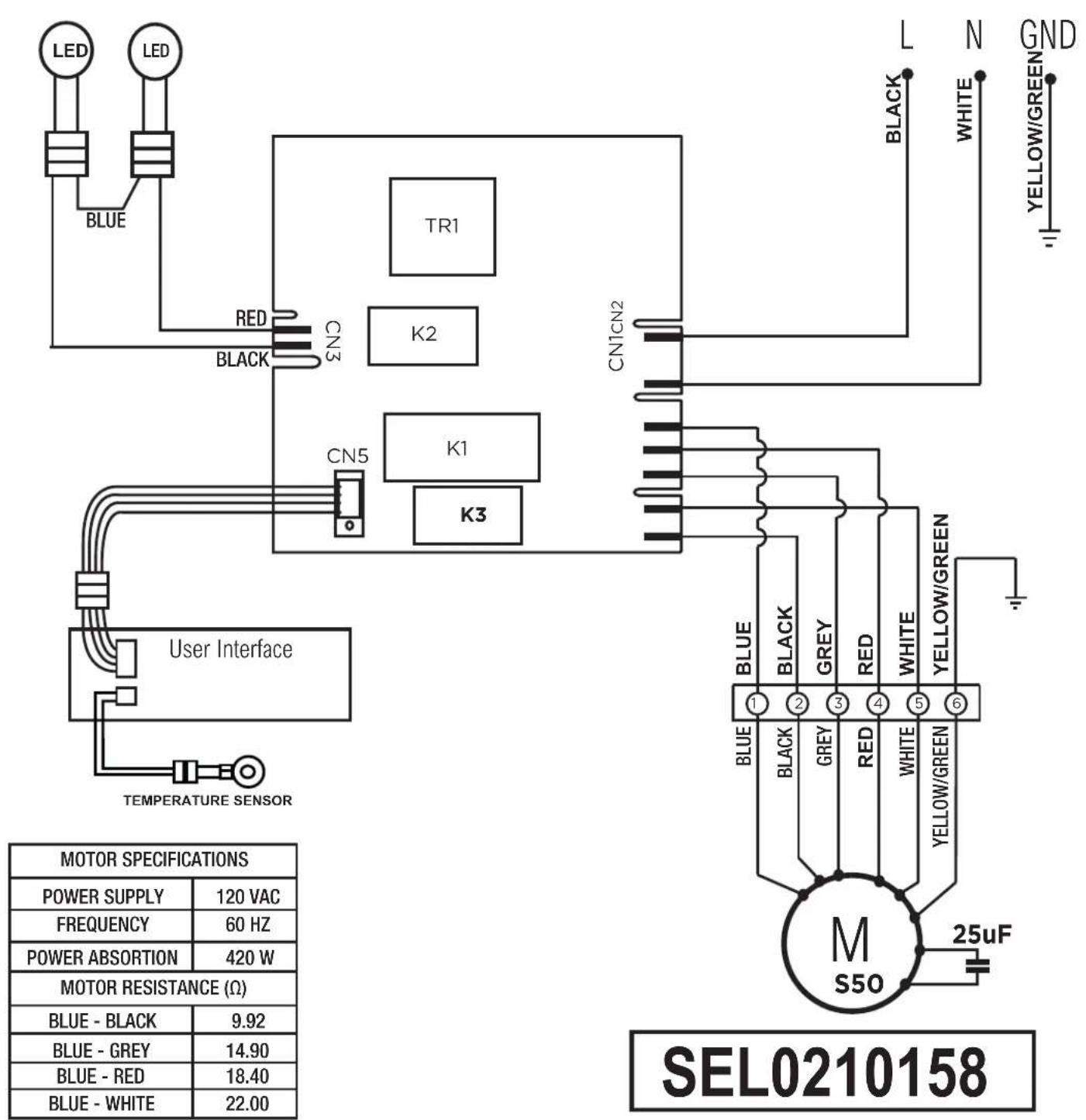

WIRING DIAGRAM

LED BLUE TR1 N GND L WHITE BLACK WHITE YELLOW/GREEN TR1 K2 BLACK KN3 K1 CN1CN2 K3 CN5 User Interface TEMPERATURE SENSOR BLUE BLACK GREY RED WHITE YELLOW/GREEN M S50 25uF MOTOR SPECIFICATIONS POWER SUPPLY 120 VAC FREQUENCY 60 HZ POWER ABSORTION 420 W MOTOR RESISTANCE (Ω) BLUE - BLACK 9.92 BLUE - GREY 14.90 BLUE - RED 18.40 BLUE - WHITE 22.00 SEL0210158

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page in this manual.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call the KitchenAid Customer eXperience Center toll free:

1-800-422-1230 or visit our website at

www.kitchenaid.com/owners

Our Consultants Provide Assistance With:

■ Scheduling of service. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■ Features and specifications on our full line of appliances.
■ Referrals to local dealers.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For Further Assistance

If you need further assistance, you can write to KitchenAid with any questions or concerns at:

KitchenAidPCustomerPService

POPBoxP#8

St.PJoseph,PMIP49085

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777 or visit our website at

www.kitchenaid.ca/owners

Our Consultants Provide Assistance With:

■ Scheduling of service. KitchenAid appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.
■ Features and specifications on our full line of appliances.
■ Referrals to local dealers.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.

For Further Assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Customer eXperience Centre

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number W10272068

Recirculation Kit

(for non-vented installations only)

Order Part Number W10344022

Chimney Extension Kit - Stainless Steel

Order Part Number EXTKIT12HS

Chimney Extension Kit - Black Ore

Order Part Number EXTKIT12HBE

Chimney Extension Kit - Juniper

Order Part Number EXTKIT12HJP

6" (15.2 cm) Makeup Air Kit

(consult local building codes)

Order Part Number W10446915

Power Cord Kit

Order Part Number W10613691

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

Technical diagram of a structural support system with labeled components A and B

Technical diagram of a mechanical device with labeled components A and B

National Fire Protection Association

1 Batterymarch Park Quincy, MA 02169-7471

CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575

A. Transition
B. 3.5 x 9.5 mm vis

Technical line drawing of a cabinet or enclosure structure with no visible text or symbols

Technical diagram showing a mechanical assembly with labeled components A, B, and C, including a circular feature and directional arrow.

Technical diagram of a mechanical device with labeled components A, B, C, and D, showing a rotating component and assembly.

Technical line drawing of a mechanical device with internal components and mounting points (no text or symbols)

Achever l'installation

A B C D E F G

Pure diagram of a mechanical or electrical component with downward arrow and labeled point A (no text or symbols beyond label)

ASSISTANCE OU SERVICE

Customer eXperience Centre

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Technical diagram of a staircase structure with labeled components A and B

Technical diagram of a mechanical assembly with labeled components A and B

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

B A C A B C SINGLE STRESS TO THE NEW FLOWER. TAKKALO STRESS TO THE NEW FLOWER SHALL SUPPIER. PETERED FOR THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE AND BE CONDED TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITHTHE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY ASIS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER. SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS TO THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THE AMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS ISPERCE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THENEW FLOWER, SHALL SUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS AT THE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMOUNTED STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMPOINTING STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMPOINTING STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMPOINTING STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMPOINTING STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE WITH THEAMPOINTING STRESS ATTHE NEW FLOWER, SHALLSUPPLY AS IS PERE

Technical line drawing of a cabinet or enclosure with internal components and mounting holes (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components A, B, and C, including a circular feature and directional arrow.

Technical diagram of a mechanical device with labeled components A, B, C, and D, showing internal structure and directional arrow.

Technical line drawing of a mechanical device with internal components and alignment indicators (no text or symbols)

A B C D E F G

Pure diagram of a mechanical or electrical component with downward arrow and labeled point A (no text or symbols beyond label)

A. Spring release handle

www.kitchenaid.com/owners

KitchenAid Customer Service

PO Box #8

St. Joseph, MI 49085

www.kitchenaid.ca/owners

Customer eXperience Centre

Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

®/TM ©2025 KitchenAid.

All rights reserved. Used under license in Canada.
