USER MANUAL AM1-HE15-03QM Mi-T-M

Mi-T-M® CORPORATION

PORTABLE ELECTRIC

AIR COMPRESSOR

OPERATOR'S MANUAL

C LISTED US Intertek 3181069

RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT PART OF THE AIR COMPRESSOR AND MUST REMAIN WITH THIS UNIT!

TABLE OF CONTENTS

INTRODUCTION ....3

IMPORTANT! 3

IMPORTANT SAFETY INSTRUCTIONS....4

ELECTRIC AIR COMPRESSOR FEATURES....8

AIR COMPRESSOR FEATURES....9

PREPARATION INSTRUCTIONS....11

INITIAL SET-UP:....11

LOCATION: 11

ELECTRICAL: 11

OPERATING INSTRUCTIONS ....12

PRE-START CHECKLIST: 12

START-UP: 12

SHUTDOWN: 12

MAINTENANCE INSTRUCTIONS:....13

TROUBLESHOOTING....14

STATEMENT OF WARRANTY 17

⚠ WARNING

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INTRODUCTION

Congratulations on the purchase of your new Air Compressor! You can be assured your Air Compressor was constructed with the highest level of precision and accuracy. Each component has been rigorously tested by technicians to ensure the quality, endurance and performance of this air compressor.

This operator's manual was compiled for your benefit. By reading and following the simple safety, installation and operation, maintenance and troubleshooting steps described in this manual, you will receive years of trouble-free operation from your new Air Compressor. The contents of this manual are based on the latest product information available at the time of publication. The manufacturer reserves the right to make changes in price, color, materials equipment, specifications or models at any time without notice.

IMPORTANT!

A "DANGER, WARNING or CAUTION" safety warning will be surrounded by a "SAFETY ALERT BOX". This box is used to designate and emphasize Safety Warnings that must be followed when operating this air compressor. Accompanying the safety warnings are "Signal Words" which designate the degree or level of hazard seriousness. The "Signal Words" used in this manual are as follows:

DANGER: Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided MAY result in minor or moderate injury or damage to the air compressor.

The symbols "Safety Alert Symbols". These symbols are used to call attention to items or procedures that could be dangerous to you or other persons using this equipment.

ALWAYS PROVIDE A COPY OF THIS MANUAL TO ANYONE USING THIS EQUIPMENT. READ ALL INSTRUCTIONS IN THIS MANUAL AND ANY INSTRUCTIONS SUPPLIED BY MANUFACTURERS OF SUPPORTING EQUIPMENT BEFORE OPERATING THIS AIR COMPRESSOR AND ESPECIALLY POINT OUT THE "SAFETY WARNINGS" TO PREVENT THE POSSIBILITY OF PERSONAL INJURY TO THE OPERATOR.

Once the unit has been removed from the box, immediately write in the serial number of your unit in the space provided below.

SERIAL NUMBER

Inspect for signs of obvious or concealed freight damage. If damage does exist, file a claim with the transportation company immediately. Be sure that all damaged parts are replaced and the mechanical and electrical problems are corrected prior to operation of the unit. If you require service, contact your Mi-T-M Dealer.

Please have the following information available for all service calls:

1. Model Number
2. Serial Number
3. Date and Place of Purchase

HAZARD

RISK OF ELECTRIC SHOCK OR ELECTROCUTION

Black-and-white illustration of a hand with a lightning bolt striking a broken electrical plug (no text or symbols)

POTENTIAL CONSEQUENCE PREVENTION

Serious injury or death could occur if the air compressor is not properly grounded. Your air compressor is powered by electricity and may cause electric shock or electrocution if not used properly.

Electrical shock may occur from electrical cord.

Make sure the air compressor is plugged into a properly grounded outlet which provides correct voltage and adequate fuse protection. Disconnect when not in use.

Check power cord for signs of crushing, cutting or heat damage. Replace faulty cord before use.

Keep all connections dry and off the ground. Do not allow electrical cords to lay in water or in such a position where water could come in contact with them. Do not touch plug with wet hands.

Electrical shock may occur if air compressor is not operated properly.

Do not pull on the electrical cord to disconnect from the outlet.

Serious injury or death may occur if electrical repairs are attempted by unqualified persons.

Never operate air compressor in wet conditions or outdoors when it is raining.

Never operate air compressor with safety guards removed or damaged.

Any electrical wiring or repairs performed on this air compressor should be done by Authorized Service Personnel in accordance with National and Local electrical codes.

Before opening any electrical enclosure, always shut off the air compressor, relieve pressure and unplug the air compressor from the power source. Allow air compressor to cool down. Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time! Service in a clean, dry, flat area.

HAZARD	POTENTIAL CONSEQUENCE PREVENTION
RISK OF EXPLOSION OR FIRE	Serious injury or death may occur from normal electrical sparks in the motor and pressure switch.	Always operate air compressor in a well ventilated area free of flammable vapors, combustible dust, gases or other combustible materials.DO NOT SMOKE if spraying flammable material. Locate the air compressor at least 20 feet away from the spray area. (An additional hose may be required.)
	Serious injury may occur if any air compressor ventilation openings are restricted, causing the air compressor to overheat and start a fire.	Never place objects against or on top of the air compressor. Oper- ate the air compressor at least 12 inches away from any wall or ob- struction that would restrict proper ventilation.
RISK OF BURSTING	Serious injury or death may occur from an air tank explosion if air tanks are not properly maintained.Exceeding the pressure rating of air tools, spray guns, air operated accessories, tires and other inflat-ables can cause them to explode or fly apart, and could result in serious injury.	Drain the air tank daily or after each use to prevent moisture buildup in the air tank.If the air tank develops a leak, replace the air tank immediately. Never repair, weld or make modifi-cations to the air tank or its attach-ments. Use only genuine repair parts for your air compressor.Never make adjustments to the factory set pressures.Never exceed manufacturers max- imum allowable pressure rating of attachments.Because of extreme heat, do not use plastic pipe or lead tin soldered joints for a discharge line.Never use air compressor to inflate small, low pressure objects such as toys.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR

HAZARD	POTENTIAL CONSEQUENCE PREVENTION
RISK TO BREATHING	Serious injury or death could occur from inhaling compressed air. The air stream may contain carbon monoxide, toxic vapors or solid particles.Sprayed materials such as paint, paint solvents, paint remover, insecticides, weed killers, etc. contain harmful vapors and poisons.	Never inhale air from the air compressor either directly or from a breathing device connected to the air compressor.Operate air compressor only in a well ventilated area. Follow all safety instructions provided with the materials you are spraying. Use of a respirator may be required when working with some materials.
RISK OF BURNS	Serious injury could occur from touching exposed metal parts. These areas can remain hot for some time after the air compressor is shutdown.	Never allow any part of your body or other materials to make contact with any exposed metal parts on the air compressor.
RISK OF FLYING OBJECTS Soft tissue damage can occur from the compressed air stream.	Serious injury can occur from loose debris being propelled at a high speed from the compressed air stream.	Always wear safety glasses to shield the eyes from flying debris.Never point the air stream at any part of your body, anyone else or animals.Never leave pressurized air in the air compressor. Shut off air compressor and relieve pressure when storing or attempting maintenance.Always maintain a safe distance from people and animals while operating the air compressor.Do not attempt to move the air compressor by pulling on the hose.

IMPORTANT SAFETY INSTRUCTIONS
READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR

HAZARD	POTENTIAL CONSEQUENCE	PREVENTION
RISK FROM MOVING PARTS	Risk of bodily injury from moving parts. This air compressor cycles automatically when the pressure switch is in the "On/Auto" position.	Before performing maintenance, always turn off air compressor.Bleed pressure from the air hose and the tank, and unplug electrical cord from outlet. All repairs to the air compressor should be made by an Authorized Service person. Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time.Do not operate without protective covers/guards. Always unplug the air compressor before removing any guard. Replace damaged covers/guards before using the air compressor.
RISK FROM NEGLIGENCE	Risk of injury from negligent use.	Never allow children or adolescents to operate this air compressor!Stay alert-watch what you are doing. Do not operate the air compressor when fatigued or under the influence of alcohol or drugs.Know how to stop the air compressor. Be thoroughly familiar with controls.
RISK OF AIR COMPRESSOR DAMAGE	Risk of major repair.	Do not operate air compressor without an air filter.Do not operate air compressor in a corrosive environment.Always operate the air compressor in a stable, secure position to prevent air compressor from falling.Follow all maintenance instructions listed in this manual.

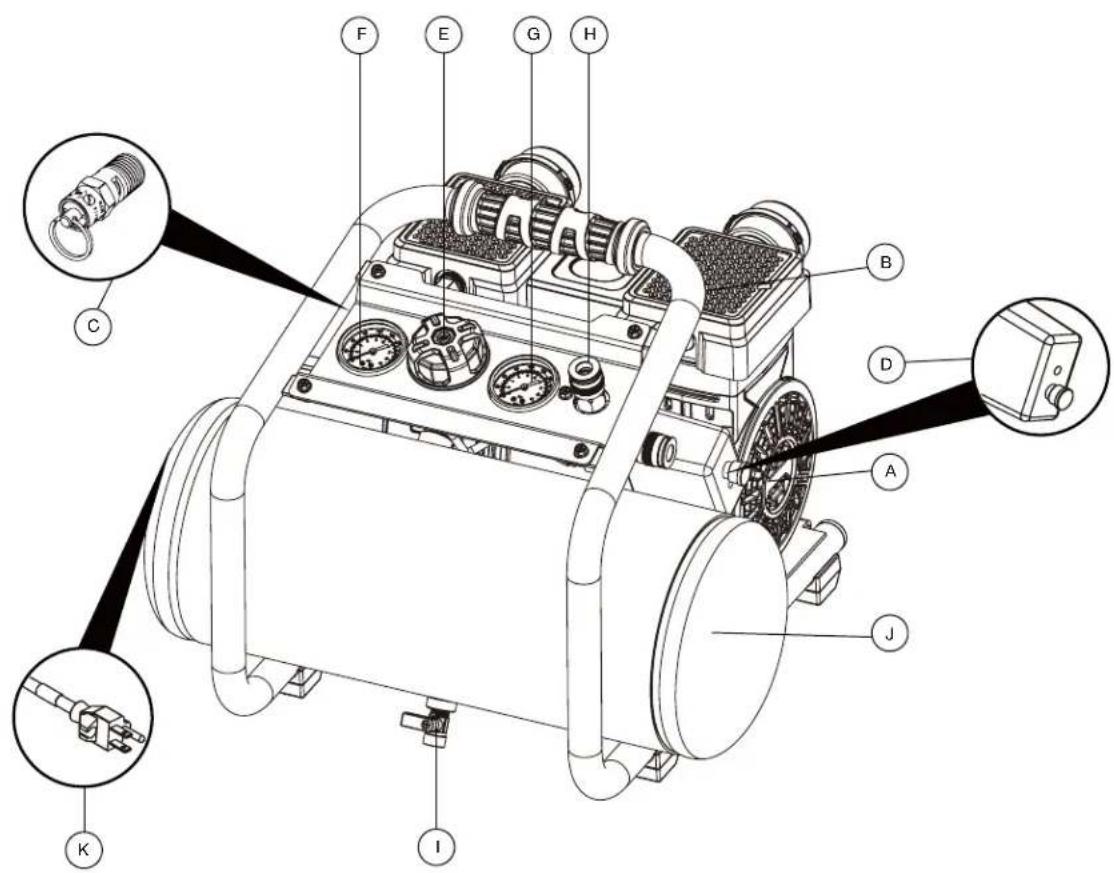

ELECTRIC AIR COMPRESSOR FEATURES

Technical diagram of a mechanical device with labeled components and close-ups of internal parts

AM1-HE15-03QM FEATURES 120319

A. Electrical motor
B. Air compressor pump
C. Safety valve
D. Pressure switch
E. Air pressure regulator
F. Tank pressure gauge
G. Outlet pressure gauge
H. Quick coupler
I. Drain valve
J. Air tank
K. Power cord

AIR COMPRESSOR FEATURES

Electric Motor: Device which provides the rotational force necessary to operate the compressor pump.

Air Compressor Pump: To compress air, the pistons move up and down in the cylinders. On the downstroke, air is drawn in through the air intake valves while the exhaust valves remain closed. On the upstroke, air is compressed, the intake valves close and compressed air is forced out through the exhaust valves, into the discharge line, through the check valve and/or the pilot valve and into the air tank.

Safety Relief Valve: This valve is designed to prevent system failures by relieving pressure from the system when the compressed air reaches a predetermined level. The valve is preset by the manufacturer and must not be modified in any way. To verify the valve is working properly, pull on the ring. Air pressure should escape. When the ring is released, it will reset.

Pressure Switch: This switch is used to start or stop the air compressor. Moving the switch to the "Auto" (On) position will provide automatic power to the pressure switch which will allow the motor to start when the air tank pressure is below the factory set "cut-in" pressure. When in the Start/Stop Option, the pressure switch stops the motor when the air tank pressure reaches the factory set "cut-out" pressure. For safety purposes, this switch also has a pressure release valve located on the side of the switch designed to automatically release compressed air from the air compressor pump head and its discharge line when the air compressor reaches "cut-out" pressure or is shut off. This allows the motor to restart freely. Moving the switch to the "Off" position will remove power from the pressure switch and stop the air compressor.

Pressure Regulator: The air pressure coming from the air tank is controlled by the regulator knob. Turn the pressure regulation knob clockwise to increase discharge pressure, and counterclockwise to decrease discharge pressure

Air Tank Pressure Gauge: The air tank pressure gauge indicates the reserve air pressure in the air tank.

Outlet Pressure Gauge: The outlet pressure gauge indicates the air pressure available at the outlet side of the regulator. This pressure is controlled by the regulator and is always less or equal to the air tank pressure.

Drain Valve: The drain valve is used to remove moisture from the air tank after the compressor is shut off.

Power Cord: This product is for use on a nominal 120 V circuit and has a grounding plug. Only connect the product to an outlet having the same configuration as the plug. Do not use an adaptor with this product. Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the product is properly grounded.

WARNING

THE FOLLOWING PAGES CONTAIN OPERATING AND MAINTENANCE INSTRUCTIONS.

DO NOT ATTEMPT TO OPERATE THIS AIR COMPRESSOR UNTIL YOU HAVE READ AND UNDERSTOOD ALL SAFETY PRECAUTIONS AND INSTRUCTIONS LISTED IN THIS MANUAL.

INCORRECT OPERATION OF THIS UNIT CAN CAUSE SERIOUS INJURY!!

DO NOT ALTER OR MODIFY THIS EQUIPMENT IN ANY MANNER!

PREPARATION INSTRUCTIONS

INITIAL SET-UP:

1. Remove the air compressor from the carton.
2. Read safety warnings before setting-up air compressor.

LOCATION:

Place air compressor at least 12 inches away from obstacles that may prevent proper ventilation. Do not place air compressor in an area:

-where there is evidence of oil or gas leaks.
-where flammable gas vapors or materials may be present.
-where air temperatures fall below 32^ F or exceed 104^ F.
-where extremely dirty air or water could be drawn into the air compressor.

ELECTRICAL:

1. USE OF AN EXTENSION CORD IS NOT RECOMMENDED because it could cause the compressor motor to overheat. It's recommended to use additional air hose instead of an extension cord.
2. If use of an extension cord is unavoidable, if should be plugged into a GFCI found in circuit boxes or protected receptacles. When using an extension cord, observe the following:

Ampere Rating Range	Voltage Length of cord in ft
	120V	25 ft	50 ft	100 ft	150 ft	200 ft	250 ft
	240V	50 ft	100 ft	200 ft	300 ft	400 ft	500 ft
8 - 10		18	14	12	10	8	8
10 -12		16	14	10	8	8	6
12 - 14		16	12	10	8	6	6
14 - 16		16	12	10	8	6	6
16 - 18		14	12	8	8	6	4
18 - 20		14	12	8	6	6	4

1. Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the compressor.
2. Examine power cord before using. Do not use the compressor if the cord is damaged. Do not use a damaged extension cord.
3. Keep cords away from heat and sharp edges. Do not pull on a cord to disconnect a plug -- grasp the plug.
4. Always shut off the compressor pressure switch before unplugging the compressor.

WARNING RISK OF EXPLOSION OR FIRE CAUSING SERIOUS INJURY OR DEATH!

Do not allow sparks from the motor or pressure switch to come in contact with flammable vapors, combustible dust, gases or other combustible materials.

When using the air compressor for spray painting, place the air compressor as far away from the work area as possible, using extra air hoses instead of extension cords.

DANGER RISK OF ELECTROCUTION!

Improper connection of the equipment-grounding conductor can result in a risk of shock or electrocution. Check with a qualified electrician or service personnel if you are in doubt as to whether the outlet is properly grounded. This product is factory equipped with a specific electric cord and plug based on the units voltage and amperage rating. This is for connection to a proper electric circuit. Only connect the product to an outlet having the same configuration as the plug. Do not use an adapter with this product. If the product must be reconnected for use on a different type of electric circuit, the reconnection shall be made by qualified service personnel. If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.

WARNING RISK OF ELECTRICAL SHOCK!

This product must be grounded. If there should be a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment grounding conductor and a grounding type plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

OPERATING INSTRUCTIONS

PRE-START CHECKLIST:

WARNING RISK OF BODILY INJURY!

Never attempt to open the air tank drain valve when more than 10 PSI is in the air tank!

1. Remove any moisture in the air compressor air tank. NEVER attempt to open the Air Tank Drain Valve when more than 10 PSI of air pressure is in the air tank! Remove excessive pressure with an air tool, then open the air tank drain valve in the bottom of the air tank. Close tightly when drained.
2. Make sure the pressure switch is in the "OFF" position.
3. Make sure the safety relief valve is working correctly.
4. Make sure all guards and covers are in place and securely mounted.

START-UP:

1. Read safety warnings before performing operation.
2. Ensure the pressure switch lever is in the "OFF" position.
3. Plug the power cord into a grounded outlet.
4. Move the lever on the pressure switch box to the "ON" position. This will allow the air compressor to start building up pressure in the air tank. You will hear an air leak for the first 10 seconds until the easy start valve closes. This will stop when correct pressure is achieved. When pressure drops with usage, the air compressor will start automatically.
5. Set pressure by adjusting the pressure regulator knob counterclockwise for less pressure and clockwise for more pressure.
6. If you notice any unusual noise or vibration, stop the air compressor and refer to "Troubleshooting".

WARNING Risk of injury!

Never assume the air compressor can not cause injury only because it is not working. It could start at any time.

SHUTDOWN:

1. To stop the air compressor, move the lever on the pressure switch box to the "OFF" position. Never stop the air compressor by unplugging it from the power source. This could result in risk of electrocution or damage to unit.
2. Drain air from the air tank by releasing air with an attached air tool or by pulling on the Safety Relief Valve.
3. Once the Air Tank Pressure Gauge registers under 10 pounds, open the Air Tank Drain Valve under the air tank to drain any moisture.
4. Allow the air compressor to cool down.
5. Wipe the air compressor clean and store in a safe, non-freezing area with the cord coiled up and protected from accidental damage.

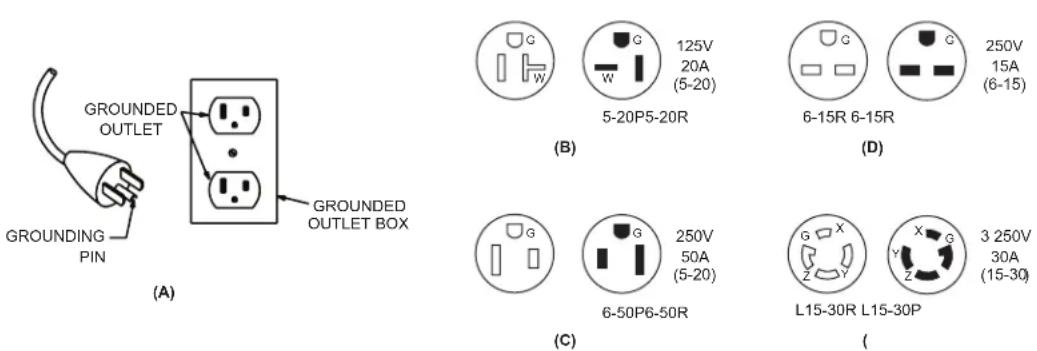

EXAMPLES OF POSSIBLE CORD PLUGS AND CORRESPONDING RECEPTACLE

MAINTENANCE INSTRUCTIONS:

Read the instruction manual before performing maintenance. The following procedures must be performed when stopping the air compressor for maintenance or service.

1. Turn off air compressor
2. Disconnect power cord from the power source.
3. Open all drains.
4. Wait for the air compressor to cool before starting service.

MAINTENANCE CHART

Procedure Daily Weekly Monthly 200 Hours
Drain Condensation In Air Tank X
Inspect Guards/Covers X
Check For Unusual Noise/Vibration X
Check For Air Leaks X
Clean Exterior Of Compressor X
Inspect/Clean Air Filter X
Check Safety Relief Valve	X
Replace Air Filter				X

BREAK-IN PERIOD

Before first use, run the air compressor at zero (0) tank pressure with the drain valve fully open for 30 minutes.

WARNING

RISK OF BODILY INJURY!

Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time!

TROUBLESHOOTING

SYMPTOM PROBABLE CAUSE REMEDY
Air compressor will not start or restart.	Power cord not plugged in. Plug power cord into grounded outlet.
	Pressure switch lever turned "OFF". Pull the pressure switch lever up to "ON" position.
	The motor thermal overload tripped on air compressor.	Turn unit off, wait 5 minutes, then press motor thermal overload until click is heard.
	Circuit breaker tripped or fuse blown at power source.	Reset circuit breaker or replace fuse if necessary using only "Fusetron®" type T fuses.
		Check for low voltage conditions.
		Disconnect any other electrical appliances for circuit or operate air compressor on it's own branch circuit.
	Extension cord too long or improper wire gauge.	Use additional air hose instead of extension cord, or use proper wire gauge and cord length.
	Air tank pressure has achieved the "Stop" pressure setting of the pressure switch.	Motor will start automatically when air tank pressure drops down to the "Start" pressure setting of the pressure switch.
	Pressure release valve on pressure switch has not unloaded pump head pressure.	Bleed the line by pushing the pressure switch to the "Off" position.
	Check valve stuck. Remove, clean or replace.
	Defective motor, motor capacitor or pressure switch.	Replace.
Air compressor will not start, but motor hums then stops.	Incorrect voltage or, incorrect sized circuit breaker, fuse or motor. Defective motor.	Contact qualified electrician.
	Too many appliances being operated on same circuit.	Disconnect any other electrical appliances from circuit or operate air compressor on its own branch circuit.
	Extension cord too long or improper wire gauge.	Use additional air hose instead of extension cord, or use proper cord length or wire gauge.
	Loose electrical connection. Contact qualified electrician.
	Defective check valve or pressure switch.	Replace.
The motor thermal overload continues to trip or fails to reset.	Improper ventilation causing the pump or motor to overheat.	Move unit to a well ventilated area.
	Defective head gasket or faulty (reed) valve.	Repair or replace gaskets and valves. Torque head bolts to 17ft./lbs.
	Faulty motor thermal overload. Replace thermal overload. Contact motor repair center if still having problems.

TROUBLESHOOTING

SYMPTOM PROBABLE CAUSE REMEDY
Motor runs continuously. Pressure switch does not shut off motor when air compressor reaches "Stop" pressure and safety relief valve activates.		Push the pressure switch lever to the "OFF" position. If the motor does not shut off, unplug the air compressor. If the electrical contacts are welded together, replace the pressure switch.
Air compressor starts but does not build up pressure	Air bleed off line is loose. Tighten connection.
Noisy operation. Carbon deposits on pistons or valves. Remove cylinder head and inspect.
Pressure loss in system. Air tank drain valve is open. Completely close air tank drain valve.
Insufficient pressure at air tool or accessory.	Pressure regulator not turned to high enough pressure or defective.	Adjust pressure regulator to proper setting or replace.
	Air leaks or restrictions.	Check for leaks and repair.
	Restricted air intake filter.	Clean or replace air intake filter.
	Hose or hose connections are too small or long.	Replace with larger hose or connectors.
	Air compressor is not large enough for air requirement.	Check the accessory air requirement. If it is higher than the CFM or pressure supply of the air compressor, you need a larger air compressor.
	Restricted check valve.	Clean or replace.
Air compressor not making enough air.	Restricted air intake filter.	Clean or replace.
	Defective (reed) valve.	Drain air tank and measure pump up time. Compare to specifications. If lower, remove pump head and inspect valve plate, clean or replace.
Air leaks from easy start valve.	Defective or incorrectly sized easy start valve.	If air tank pressure gauge registers over 40 PSI, easy start valve is defective. Replace.
		If air tank pressure gauge registers under 40 PSI, your altitude may require an easy start valve with a lower PSI rating.
Air continues to leak at pressure switch bleed off while motor is running.	Defective pressure switch.	Replace.
	Air bleed off line is loose. Tighten connection.

TROUBLESHOOTING

SYMPTOM PROBABLE CAUSE REMEDY
Air continues to leak at pressure switch bleed off while motor is stopped.	Defective check valve. Remove, clean or replace.
Air blowing from air intake filter.	Defective inlet (reed) valve. Replace.
Air leaks at pump. Defective gaskets. Replace gaskets and torque head bolts as stated in parts list.
Air leaks from safety relief valve.	Possible defective safety relief valve. Operate safety relief valve manually by pulling on ring. If it still leaks, it should be replaced.
	Excessive air tank pressure. Defective pressure switch. Reset or replace.
Moisture in discharge air. Condensation in air tank caused by high level of atmospheric humidity.		Drain air tank after every use. Drain air tank more often in humid weather and use an air line filter.

STATEMENT OF WARRANTY

The manufacturer warrants all parts, (except those referred to below), of your new air compressor to be free from defects in materials and workmanship during the following periods:

For One (1) years from the date of original purchase:

Compressor Pump Plumbing

Tank Assembly

For Six (6) months from date of original purchase:

Pressure Switch Regulator

Check Valve Copper Line

For Ninety (90) days from the date of original purchase:

Pressure Gauges Safety Relief Valves

Drain Valves

Defective parts not subject to normal wear and tear will be repaired or replaced at our option during the warranty period. In any event, reimbursement is limited to the purchase price paid.

EXCLUSIONS

1. Engine is covered under separate warranty by its respective manufacturer and is subject to the terms set forth therein.
2. Normal wear parts:
   Isolators
   Air Filter
3. This warranty does not cover parts damaged due to normal wear, abnormal conditions, misapplication, misuse, accidents, operation at other than recommended speeds, pressures or temperature, improper storage or freight damage. Parts damaged or worn by operation in dusty environments are not warranted. Failure to follow recommended operating and maintenance procedures also voids warranty.
4. Labor charges, loss or damage resulting from improper operation, maintenance (other than routine air tank draining and oil changes, if applicable) or repairs made by persons other than a Mi-T-M Deere Dealer.
5. The use of other than Genuine Repair Parts will void warranty. Parts returned, prepaid to our factory or to an Authorized Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty. Under no circumstances shall the manufacturer bear any responsibility for loss of use of the unit, loss of time or rental, inconvenience, commercial loss or consequential damages. There are no warranties which extend beyond the description of the face hereof.

TABLE DES MATIERES

TABLE DES MATIERES ....18

INTRODUCTION 19

IMPORTANT! 19

IMPORTANTES CONSIGNES DE SECURITE ....20

COMPOSANTS DU COMPRESSEUR D'AIR....24

EXPLICATION DES COMPOSANTS DU COMPRESSEUR D'AIR....25

INSTRUCTIONS DE PREPARATION......27

INSTALLATION INITIALE: 27

EMPLACEMENT: 27

ELECTRIQUE: 27

INSTRUCTIONS DE FONCTIONNEMENT....28

POINTS DE CONTROLE AVANT DEMARRAGE: 28

DEMARRAGE: 28

ARRET: 28

INSTRUCTIONS D'ENTRETIEN 29

PÉRIODE DE RODAGE....29

TABLEAU D'ENTRETIEN....29

DEPANNAGE 30

WARNING

Black-and-white icon of a hand with a lightning bolt and plug, symbolizing electrical hazard (no text or symbols)

CONSEQUENCE POTENTIELLE PREVENTION

Technical diagram of a mechanical device with labeled components and close-ups of connectors and parts

AM1-HE15-03QM FEATURES 120319

Black-and-white illustration of a hand with a lightning bolt and plug, symbolizing electrical hazard (no text or symbols)

Technical diagram of an industrial vacuum cleaner with labeled components and close-up insets for mechanical assembly details.

Defective parts not subject to normal wear and tear will be repaired or replaced at our option during the warranty period. In any event, reimbursement is limited to the purchase price paid.

EXCLUSIONES
