Shiatsu Pulse Max FMS-353HJ - Massage device HOMEDICS - Free user manual and instructions

Product Type	Foot Massager with Heat
Brand	Homedics
Model	Shiatsu Pulse Max FMS-353HJ
Power Supply	120 V~, 60 Hz (polarized plug)
Massage Functions	Shiatsu kneading, therapeutic vibration (2 intensities)
Programs	3 programs: kneading only, kneading + light vibration, kneading + intense vibration
Heating	2 heat levels (low and high) with indicator light (red/purple)
Automatic Shut-off Timer	15 minutes
Adjustments	Height-adjustable front feet (rotating)
Cleaning	Soft, slightly damp cloth; do not immerse
Warranty Period	1 year limited
Approximate Dimensions	38 x 30 x 18 cm
Approximate Weight	2.5 kg
Maintenance	Unplug and let cool before cleaning; do not use abrasive cleaners
Replacement Parts	No user-serviceable parts; contact Homedics
Safety	Automatic shut-off, polarized plug, do not use on wounds or sensitive skin
Certifications	FCC Part 15, CAN ICES-003(B)/NMB-003(B)
Customer Service (United States)	1-800-466-3342, [e-mail]
Customer Service (Canada)	1-888-225-7378, [e-mail]

Frequently Asked Questions - Shiatsu Pulse Max FMS-353HJ HOMEDICS

How to turn on the device?

Press the power button. The LED indicator lights up and massage starts in Program 1. Press again to turn off.

How to use the heat function?

Press the heat button once for low heat (red LED), a second time for high heat (purple LED), a third time to turn off. Wait a few minutes for the heat to build up.

What are the massage programs?

Program 1: shiatsu kneading; Program 2: kneading + light vibration; Program 3: kneading + intense vibration. Press the Program button to switch.

How to clean the device?

Unplug it and let it cool. Clean with a soft, slightly damp cloth. Never use abrasive or flammable cleaners, and do not immerse the device in water.

Can I use this device if I am diabetic?

No, the manual advises against use by diabetic individuals. Consult your doctor before use if you have any health condition.

How long can I use the device?

The device automatically shuts off after 15 minutes. Do not use for more than 15 consecutive minutes to avoid overheating.

Can I use the device on other parts of the body?

No, this device is designed for feet only. Using it elsewhere may cause injury.

What to do if the device stops working?

Check the outlet and cord. If the problem persists, do not attempt to repair yourself. Contact Homedics customer service at 1-800-466-3342 (U.S.) or 1-888-225-7378 (Canada).

Does the warranty cover damage from misuse?

No, the one-year limited warranty does not cover damage resulting from misuse, unauthorized modification, or incorrect installation.

How to adjust the massage angle?

Turn the lower front feet clockwise to raise them, and counterclockwise to lower them, to create the ideal angle.

USER MANUAL Shiatsu Pulse Max FMS-353HJ HOMEDICS

activate your product warranty

scan the QR code and register your product within 7 days to activate your warranty

QR code image containing encoded data, no visible human-readable text

Registering also gives you access to tips, exciting offers and more!

shiatsu pulse max foot massager with heat INSTRUCTION MANUAL AND WARRANTY INFORMATION

FMS-353HJ | L-04922, Rev. 1

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

- ALWAYS unplug this appliance from the electrical outlet immediately after using and before cleaning.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
• DO NOT operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
• This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls, or who has sensory deficiencies.
• Use this appliance only for its intended use as described in this manual. DO NOT use attachments not recommended by Homedics; specifically, any attachments not provided with the unit.
• NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a Homedics service center for examination and repair.
• DO NOT carry this appliance by supply cord or use cord as a handle.
• Keep the cord away from heated surfaces.
• NEVER operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
• NEVER drop or insert any object into any opening.
  • DO NOT use outdoors.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.

• To disconnect, turn all controls to the off position, then remove plug from outlet.

• Use heated surfaces carefully. May cause serious burns. DO NOT use over insensitive skin areas or in the presence of poor circulation. The unattended use of heat by children or incapacitated persons may be dangerous.

• DO NOT use massager in close proximity to loose clothing or jewelry.
• Keep long hair away from massager while in use.
• DO NOT stand on or in appliance. Use only while seated.
• All servicing of this massager must be performed by authorized Homedics service personnel only.

SAVE THESE INSTRUCTIONS

CAUTION – PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

- Consult your doctor prior to using this product, if:

• You are pregnant
• You have a pacemaker

• You have any concerns regarding your health

• NOT recommended for use by diabetics.

• NEVER leave the appliance unattended, especially if children are present.
• NEVER cover the unit when it is in operation.
• DO NOT use this product for more than 15 minutes at a time.
• Extensive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER use this product directly on swollen or inflamed areas or skin eruptions or where sores are present.
• DO NOT use this product as a substitute for medical attention.
• DO NOT use this product before bed. The massager has a stimulating effect and can delay sleep.
• NEVER use this product while in bed.
• This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls.
• This unit should NOT be used by children or invalids without adult supervision.
• This appliance is intended for household use only.
• This product is not for use in automobiles.

INSTRUCTIONS FOR USE

To reduce the risk of electric shock, this appliance is equipped with a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

POWER BUTTON

To turn on the massage functions, first press the power button. The LED indicator will illuminate, and the massage will begin in Program 1. To turn off the massage functions, press the button again.

HEAT BUTTON

There are two levels of soothing heat. Press the heat button once and the LED indicator will glow red to confirm that low heat is activated. The rotating shiatsu massage nodes will also glow red. Press the button a second time to select the high heat setting. The button will glow purple to confirm your selection. Please allow several minutes for the massage to heat up. To turn off the heat, press the button a third time.

PROGRAM BUTTON

When powered on, the massage will begin in Program 1. Press the program button to toggle between the three programs.

Program 1- Kneading shiatsu massage

Program 2- Kneading shiatsu massage combined with mild therapeutic vibration Program 3- Kneading shiatsu massage combined with high intensity therapeutic vibration

ADJUSTABLE TILT

The height of the front bottom feet can be adjusted to create the perfect angle for your massage. Twist the feet clockwise to raise and counterclockwise to lower.

NOTE: for your safety, this foot massager is equipped with a 15-minute auto-shutoff feature.

MAINTENANCE

TO STORE

Place massager in its box or in a cool, dry place. Avoid contact with sharp edges or pointed objects. To avoid breakage, DO NOT wrap the power cord around the unit. DO NOT hang the unit by the cord.

TO CLEAN

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, slightly damp cloth. NEVER allow water or any other liquids to come into contact with the unit.

• DO NOT immerse in any liquid to clean.
• NEVER use abrasive cleaners, brushes, or strong chemicals that may or may not be flammable and/or damaging to the product to clean.
• DO NOT attempt to repair the massager. There are no user-serviceable parts. For service, contact Consumer Relations at the telephone number listed in the Warranty section.

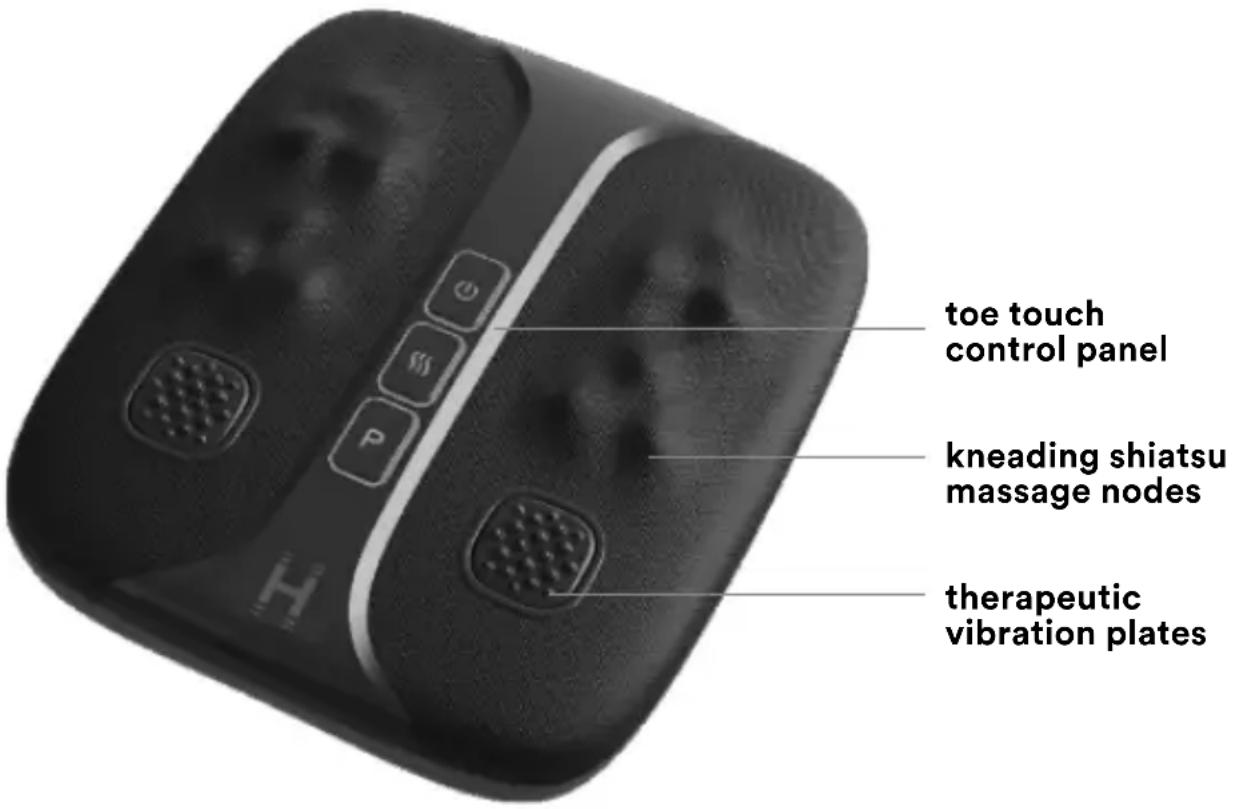

LOCATION OF PARTS AND CONTROLS

toe touch control panel kneading shiatsu massage nodes therapeutic vibration plates

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: shiatsu pulse max foot massager with heat

Model Number: FMS-353HJ

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. This device contains license-exempt transmitter/receiver that complies with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N. Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-003(B)/NMB-003(B)

Homedics

1-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 1 year from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.

FOR SERVICE IN THE USA

[e-mail]

8:30AM-7:00PM EST MONDAY-FRIDAY

1-800-466-3342

FOR SERVICE IN CANADA

[e-mail]

8:30AM-5:00PM EST MONDAY-FRIDAY

1-888-225-7378

©2024 Homedics, LLC. All rights reserved.

Homedics is a registered trademark of Homedics, LLC.

Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390

IB-FMS353HJ | Made in China
