USER MANUAL ARMH-500 HOMEDICS

READ AND SAVE THESE INSTRUCTIONS

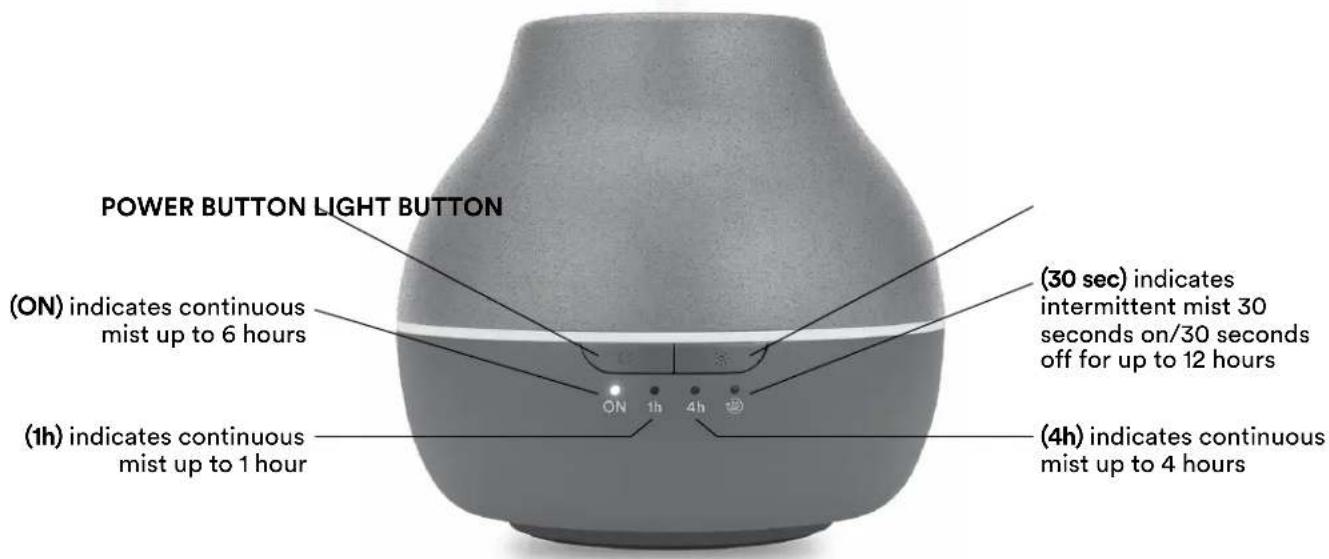

POWER BUTTON LIGHT BUTTON (ON) indicates continuous mist up to 6 hours (1h) indicates continuous mist up to 1 hour (30 sec) indicates intermittent mist 30 seconds on/30 seconds off for up to 12 hours ON 1h 4h 1h (4h) indicates continuous mist up to 4 hours

FEATURES AND SPECIFICATIONS

Ultrasonic Technology

This diffuser uses ultrasonic, high-frequency technology to convert the water and essential oil into a fine mist that is dispersed evenly into the air, delivering natural aroma to your space.

Color-Changing Light

The gentle glow creates a peaceful environment. Choose your desired color to best match your mood.

Strong Mist

This diffuser uses strong mist to quickly fill room with your favorite scent.

Runtime

Up to 6 hours of continuous runtime or 12 hours of intermittent runtime.

Soothing Humidity

Alleviates dry air.

Auto-Shutoff Protection

When the reservoir is empty, the unit will shut off automatically.

Reservoir Capacity

250 ml

Adapter Voltage

100 - 240V 50/60Hz

HOW TO USE

1. Remove the outer cover from the base. Next, remove the inner cover.

2. Pour water into the reservoir until it reaches the max fill line, then add 5-7 drops of Homedics fragrance oil or essential oil to the water. Depending on your personal preference, you may add more or less of Homedics fragrance oil or essential oil.

3. Put the inner and outer covers back on.

4. Plug the adapter into the diffuser, then plug the adapter into an outlet. Use caution when plugging the unit in to avoid spilling water and essential oil.

5. Choose your aroma mist and lighting options.

AROMA MIST: Your diffuser has 4 mist settings: ON, 1h, 4h, and intermittent. Press once for "ON" continuous mist, which will run for up to 6 hours. Press again for "1h", which will run for 1 hour with continuous mist. Press a third time for "4h", which will run for 4 hours with continuous mist. Press a fourth time for (30 sec) intermittent mist, which will run up to 12 hours with intermittent mist, 30 seconds on/30 seconds off. Press longer at any time to turn diffuser/lighting completely off. When your diffuser runs out of water, it will automatically shut off.

COLOR-CHANGING LIGHT: Press once to turn on the color-changing light rotation (red, pink, purple, blue, white, green, and orange). Press a second time go through each color individually. Press again to repeat full lighting options. Press longer to turn off lighting completely.

CLEANING AND CARE

1. Before cleaning the unit, turn the power off and make sure the adapter is unplugged from the diffuser and outlet.
2. Remove the outer cover from the base. Next, remove the inner cover.
3. Carefully pour any remaining water and essential oil out of the reservoir, from the drain side, opposite the air outlet. Be sure not to empty the reservoir near the air outlet in order to avoid malfunction.

To Clean the Surface

Clean the surface of your diffuser with a damp, soft cloth as often as needed.

To Clean the Reservoir and Ultrasonic Membrane

We recommend wiping the reservoir with a damp, soft cloth at least once every 2 weeks.

NOTE: Depending on your usage and the amount of essential oil you use, you may want to clean the reservoir and ultrasonic membrane more frequently for best performance.

For the most thorough clean, pour a 50/50 mixture of vinegar and water into the reservoir. Soak for 5 minutes. Clean the reservoir walls, base, and ultrasonic membrane with a cotton swab. Rinse with water to remove the vinegar smell.

Never touch the ultrasonic membrane with your fingers; the natural oils in the skin can damage the membrane.

NEVER submerge the base in water or any other liquid.

Clean the membrane once every 2-3 weeks, depending on your usage.

Clean and dry the unit before extended periods of inactivity.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ AND SAVE THESE INSTRUCTIONS

• Always place diffuser on a firm, flat surface. A waterproof mat or pad is recommended to use under the diffuser.
• NEVER place diffuser on a rug or carpet, or on a finished floor that may be damaged by exposure to water or moisture.
• Always unplug the unit from the electrical outlet immediately after using and before cleaning.

- DO NOT reach for a unit that has fallen into water. Unplug it immediately.

- DO NOT place or drop into water or other liquids.

• DO NOT use water above 86° Fahrenheit.

- Use this unit only for its intended purpose as described in this document and the quick start guide.

- DO NOT use attachments not recommended by Homedics; specifically, any attachments not provided with this unit.

- NEVER drop or insert any object into any opening.

- DO NOT place the diffuser near heat sources, such as a stove.

• Always keep the cord away from high temperature and fire.

• To disconnect, turn unit off, then remove the plug from the outlet.
  • DO NOT use outdoors. For indoor use only.
• NEVER cover the unit while it is operating.
• DO NOT use any other AC adapter than what is provided with the product. Use of any other adapter may damage the product and may increase risk of harm to user or property. Only AC adapter bearing the part # PP-ARMADP14 should be used.
• If the cord sustains damage, you must stop using this product immediately and contact Homedics Consumer Relations (see Warranty section for contact information).
• Perform regular maintenance on the ultrasonic membrane.
• NEVER use detergent to clean the ultrasonic membrane.
• DO NOT attempt to adjust or repair the unit. Servicing must be performed by professional or qualified personnel.
• Stop using this unit if there is an unusual noise or smell.
• Unplug this unit when not in use for a long period of time.
• DO NOT touch the water or any parts of the unit that are covered by water while the unit is on or plugged in.
• DO NOT wash, adjust, or move this unit without first unplugging it from the electrical outlet.
• Keep this unit out of reach of children.
• DO NOT overfill.

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: LARGE CAPACITY ULTRASONIC AROMA DIFFUSER

Model Number: ARMH-500/ARMH-501

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This product has been tested and compiles with the requirements for Federal Communication Commission, Part 18. Although this product is tested and compiles with FCC, it may interfere with other devices. If this product is found to interfere with another device, separate the other device and this product. Conduct only the user maintenance found in this instruction manual. Other maintenance and servicing may cause harmful interference and can void the required FCC compliance.

CAN ICES-001(B)/NMB-001(B)

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
No mist Power supply is not connected Plug the adapter in and press the power		button

1-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 1 year from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. Homedics SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.

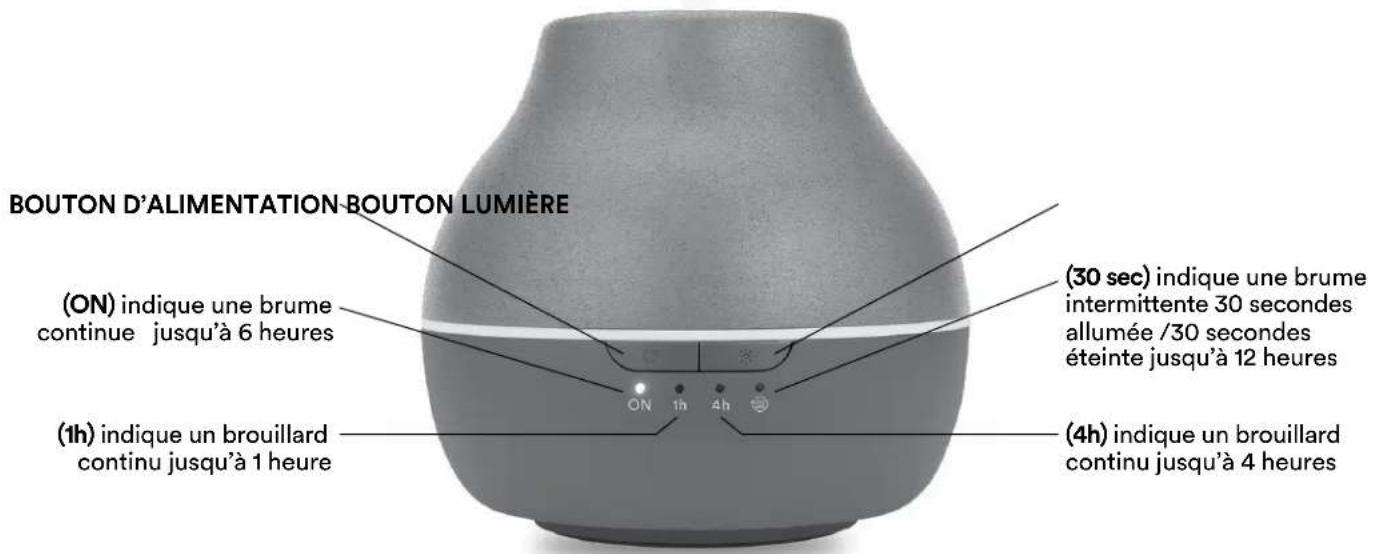

LIRE ET CONSERVER CES INSTRUCTIONS

② MAX S.8

③

Adresse : 3000 N Pontiac Trail, Commerce Township, MI 48390

② MAX 0.8

③
