Product type	Chimney hood
Brand	ETNA
Model	AO960ZT
Width (mm)	600
Depth (mm)	500
Body height (mm)	125
Connection diameter (mm)	125
Power supply	220-240 V, 50/60 Hz
Appliance class	II
Number of speeds	3
Integrated lighting	Yes (replacement by certified technician)
Extraction type	External or recirculation (optional charcoal filter)
Grease filters	Metal, dishwasher safe
Grease filter cleaning frequency	Monthly
Odor filter (optional)	Activated charcoal, replace annually (model HF3001) or internal filter quarterly
Minimum distance above electric hob	550 mm
Minimum distance above gas hob	650 mm
Material	Stainless steel
Supplied accessories	Connection flange, screws, mounting template
Optional accessories	Recirculation set HR0001, filter HF3001, internal filter HF2028
Installation	Wall-mounted or under cabinet

Frequently Asked Questions - AO960ZT ETNA

How to clean the grease filters of my Etna AO960ZT hood?

The grease filters must be cleaned at least once a month. You can wash them by hand with water and dish soap, or in the dishwasher at low temperature and a short cycle. Place the filters with the openings facing downwards to allow water to drain. Let them dry completely before reinstalling.

How often should I replace the charcoal filter (odor filter)?

If you use your hood in recirculation mode with the HR0001 recirculation set, the odor/fine dust filter (model HF3001) must be replaced once a year. Alternatively, if you use an internal charcoal filter (for wall-mounted installation), replace it every three months.

Can I use my hood without external extraction?

Yes, you can use the hood in recirculation mode. This requires installation of an odor filter (activated charcoal) that filters the air and returns it to the kitchen. You must order the HR0001 recirculation set separately.

What is the minimum distance between the hood and the hob?

The minimum distance between the lowest point of the hood and the hob is 550 mm for electric, ceramic or induction hobs, and 650 mm for gas hobs. Respecting these distances is essential for safety and proper operation.

What to do if the hood lighting does not turn on?

If the lighting does not work, the lighting system is likely defective. Do not attempt to replace it yourself. Call a certified technician to replace it.

My hood is noisy, what should I check?

Abnormal noise can come from an extraction duct that is too long or has too many bends. Try to modify the duct to reduce pressure losses. If internal odor filters are installed, they may also increase noise; preferably use the HR0001 recirculation set.

How to install the hood in recirculation mode?

For recirculation installation, you must use the HR0001 recirculation set (sold separately). Place the filter box in the upper cabinet. Insert the odor filter respecting the air flow direction (arrow). For wall-mounted installation without a cabinet, you can use an internal charcoal filter attached to the grease filter frame.

How to replace the grease filters of the hood?

Turn off the appliance and lighting. Push the filter backwards through the notch, tilt the front downwards and remove it. To replace, open the closing mechanism, push the rear cams into the openings, tilt upwards then release the mechanism so that the front cams engage. Make sure the filters are completely dry before reinstalling.

Can I wash the grease filters in the dishwasher?

Yes, the grease filters can be cleaned in the dishwasher at low temperature and a short cycle. Place them with the openings downwards so water drains. Note that washing products may tarnish the aluminum, which is normal. Let them dry completely before reinstalling.

What accessories are available for my Etna AO960ZT hood?

The matching accessories include: the HR0001 recirculation set (with odor/fine dust filter), the HF3001 replacement filter (annual replacement), and the HF2028 filter mat (for wall-mounted installation, quarterly replacement). Scan the QR code in the manual to order.

USER MANUAL AO960ZT ETNA

Technical diagram of a pipe joint with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Three-panel image showing a white rectangular panel, a dark gray rectangular panel with a cutout of scissors, and a separate black-and-white panel (no text or symbols)

Inbouwmaten

AO860____

AO960____

Diagram showing a container being inserted into a tray, with a downward arrow indicating process (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a rotating component (no text or symbols present)

Diagram of a mechanical assembly with a spring and coiled spring, showing a piston and roller (no text or symbols)

Let op!

Diagram of a mechanical assembly with curved components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

1. Application de recirculation.

Illustration of a hand pressing down on a device with a circular arrow indicating rotation (no text or symbols)

Blank white rectangular frame with gray border and two small feet at bottom (no text or symbols)

Simple illustration of scissors cutting a gray rectangular block with two horizontal lines on the left (no text or symbols)

Simple geometric shape with two horizontal white lines on a gray background, no text or symbols present.

Simple 3D diagram of a rectangular box with labeled points A, D, and C, showing internal structure and no text or symbols.

Sous un placard de cuisine

Diagram showing a container being inserted into a tray, with a downward arrow indicating process (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a tool interacting with a bracket (no text or symbols present)

Diagram of a mechanical assembly with a cylindrical component and a top panel, showing an arrow indicating direction (no text or symbols present)

Attention!

Technical diagram of a pipe joint with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Illustration of a hand pressing down on a device component with a magnified inset showing a scroll (no text or symbols)

Blank white rectangular frame with gray border (no text or symbols)

Simple illustration of scissors cutting a gray rectangular block with two horizontal lines on both sides (no text or symbols)

Simple gray rectangular object with two horizontal white lines on top and bottom, no text or symbols present.

Einbaumaße

AO860____

AO960____

Erforderlicher Freiraum

Simple 3D diagram of a rectangular box with labeled points A, D, and C, showing internal structure (no text or symbols beyond labels)

Diagram showing a container being inserted into a tray, with a downward arrow indicating process (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a rotating component (no text or symbols present)

Diagram of a mechanical assembly with a spring and housing, showing a directional arrow (no text or symbols present)

Achtung!

	Introduction	4
	Description	4
	Extraction systems 5

Use

Controls

6

Maintenance

	Cleaning	7
	Grease filters 8
	Odour/fine dust filter 9
	Lighting	10

Faults

What should I do if... 11

Faults table 11

Installation

	General	12
	Electrical connection 12
	Preparation	13
	Built-in dimensions 14
	Mounting	14

Matching accessories

	Matching accessories 16
Appendice	Disposal of appliance and packaging 17

Introduction

Congratulations on your choice of this appliance. This product was designed with simple operation and optimum comfort in mind.

This manual describes the best way to use this appliance. In addition to information on operation, you will also find background information that may be useful during the use and maintenance of the appliance.

Please read the separate safety instructions carefully before using the appliance.

Read this manual before using the appliance and keep it in a safe place for future use.

Description

A Switch off
B Fan position 1
C Fan position 2
D Fan position 3
E Lighting

Extraction systems

Technical diagram of a mechanical assembly with curved pipe connection and directional arrows (no text or labels)

This appliance can be connected in two ways.

1. Exhaust to the outside.

The cooking air drawn in is discharged to the outside via a drain hose. Make sure to install a shut-off valve in the drain to prevent cold air from entering through the drain hose. This appliance can be freely hung on the wall in this way, or mounted under a cabinet.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

1. Recirculation application.

In this application, cooking air is not exhausted to the outside. Contaminated cooking air is filtered and blown back into the kitchen. This requires an additional odour/fine dust filter, which should be replaced regularly for optimal operation.

Attention! The odour/fine dust filter must be ordered separately.

Controls

Switching fan on and off

1. Press the speed button B, C or D The extractor hood switches on in the corresponding position.

2. Press the off button A. The fan will switch off.

Switching lighting on and off

1. Press the lighting button E. ▶The lighting switches on.
2. Press the lighting button E again. ▶The lighting switches off.

Cleaning

Note! Before each servicing, first disconnect the cooker hood by removing the plug from the wall socket or by switching off the main switch of the residence.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Do not use abrasive products. Do not use alcohol!

Attention! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wipe with clean water to rinse. Do not use aggressive cleaning agents such as soda. The cooker hood paintwork will stay looking nice if you wax it occasionally.

Stainless steel canopy hoods

Do not use any sort of scourer. Treat with a stainless steel care product and polish with the structure of the stainless steel.

Metal grease filters

These must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity), using non aggressive detergents, preferably by hand or in the dishwasher, which must be set to a low temperature and a short cycle. The openings must be placed downwards to let the water run out of the filters. The cleaning agents will make the aluminium filter turn dull, this is normal.

Grease filters

Regular filter cleaning ensures optimal performance and prevents release of cooking odours when the appliance is not in use.

Clean the grease filters at least once a month. During cleaning, the aluminium parts of the filters may become dull as a result of the cleaning agents used, particularly when placed in the dishwasher. This is normal.

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Removing the filter cassette

1. Switch off the appliance and the lighting.
2. Using the recess, press the filter backwards and tip it downwards at the front.
3. Remove the filter from the hood.

Cleaning

• The filters can be easily cleaned by hand. Clean the filters in water and washing-up liquid and rinse them. Afterwards, let the filters drain and dry thoroughly before replacing them.
• You can also clean the filters in the dishwasher if necessary. Afterwards, let the filters drain and dry thoroughly before replacing them.
• The underside of the extractor hood can be cleaned with a mild cleaning agent and a moist cloth.

Reinstalling filter cassette

Make sure the filters are thoroughly dry before replacing them. The filter has to be installed with the locking mechanism at the front.

1. Open the locking mechanism. This pulls the projections at the front of the filter inwards. When installing the filters hold the locking mechanism in this position.
2. Push the projections at the back of the filter into the openings provided for this purpose at the rear of the extractor hood.
3. Hinge the filter upwards.
4. Release the locking mechanism. The projections at the front of the filter move outwards into the openings provided for this purpose at the front of the extractor hood.

Odour/fine dust filter

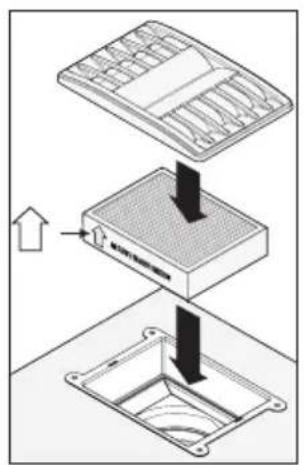

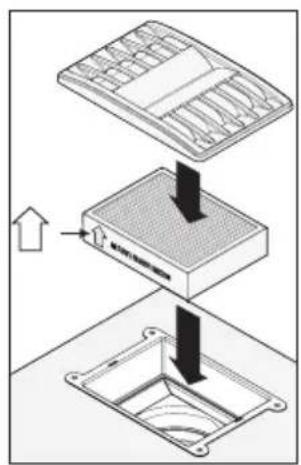

Inserting and replacing the filter in the filter box

• When the appliance is used as a recirculation extractor, you use the separate filter box HR0001, which is installed in the upper cabinet.
• With the filter box, your extractor hood delivers optimum performance. The filter used cleans cooking vapours of odours and fine dust.

• You only need to change the filter once a year.

• Remove the cover grid by pulling it gently.

• Remove the old filter from the box.
• Insert the new filter into the box. When doing so, pay attention to the arrow on the side. This is the direction of the air flow.
• Place the cover grid back on the filter holder.

Alternative: Inserting and replacing an internal carbon filter

• If the appliance is not mounted under an overhead cupboard but freely suspended on a wall and cannot drain to the outside, you will alternatively need to install an internal filter to neutralise cooking odours.
• Cut the filter material to fit the filter and attach it to the grease filter frame using the two brackets provided as shown in the drawing.

Blank white rectangular frame with gray border and two small feet at bottom (no text or symbols)

Simple illustration of scissors cutting a gray rectangular block with two horizontal lines on either side (no text or symbols)

Simple geometric shape with two horizontal white lines inside a gray rectangle (no text or symbols)

• Note that this application causes a sharp increase in noise and significantly reduces the performance of the appliance.
• The internal filter should be replaced every 3 months as it becomes saturated sooner.

Important:

• Filter saturation depends on the intensity of use, cooking methods and the regularity with which the grease filters are cleaned.
• The applied odour filters are for single use and should be disposed of via the residual waste.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

What should I do if...

If the appliance does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first. Phone the service department if the advice given below does not work.

Attention!

Disconnect the appliance from the mains before starting the repair, preferably by removing the plug from the socket or setting the main switch to zero.

Faults table

Symptom Possible cause Solution
Lighting is not functioning. Light system defective. The light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.
Extractor hood makes a noise.	Discharge too long or too many bends in the duct.	Change the discharge ducting (see installation guide).
	Internal odour/fine dust filters inserted.	For recirculation, preferably use the starter set HR0001.
No extraction. Flap or controle defective. Phone the service department.

General

This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations. This appliance meets the European requirements.

Important that you know:

• The minimum distance between the supporting surface for the cooking vessels on the gashob and the lowest part of the range hood must be not less than 65 cm. For use with an electric, ceramic or induction hob, this distance must be at least 55 cm.
• If the cooker hood is to be fitted to an existing duct no other appliances, such as a geyser or heater, may be connected to that same duct.
• Consider local regulations with respect to the ventilation of gas appliances.
• The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
• Before you start drilling check that there are no installation cables present.
• The connecting pipe for the cooker hood has a diameter of 125 mm. It is best also to use a flue pipe of the same diameter.
• The installation material supplied with this range hood is designed for fixing to reinforced concrete or masonry walls. For some types of walls you may need special plugs and screws.
• Use if supplied, the mounting template for marking the mounting holes.

Electrical connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary.

Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows:

$$ B R O W N = \text { phase } L $$

$$ B L U E = \text { phase N } $$

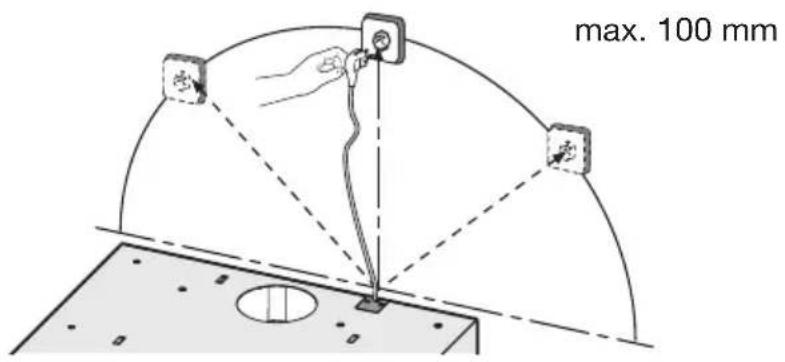

This canopy hood has been provided with a power plug. When installing the hood, make sure that this plug remains accessible. We recommend installing the wall socket out of view, behind the chimney cover.

Attention:

If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable.

Preparation

Attach the supplied flange (A) to the hood and fit the exhaust duct to the flange.

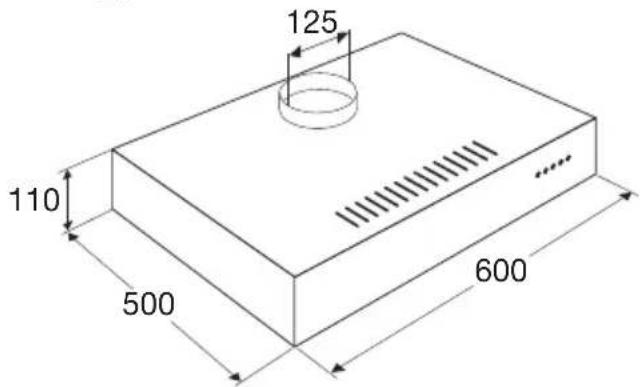

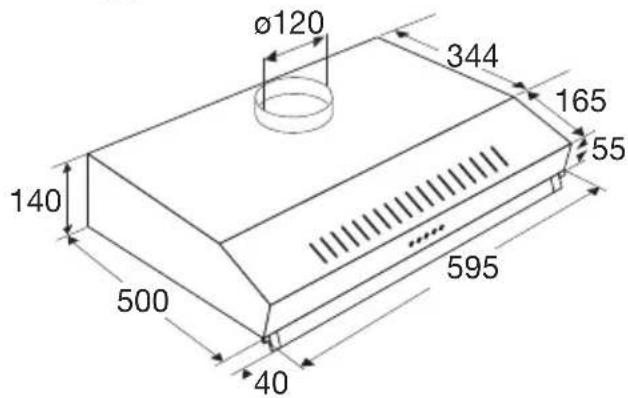

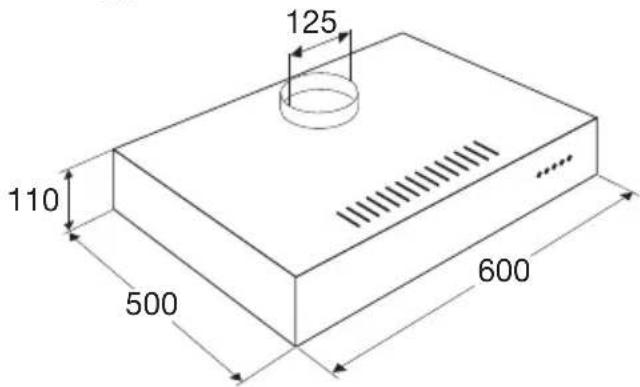

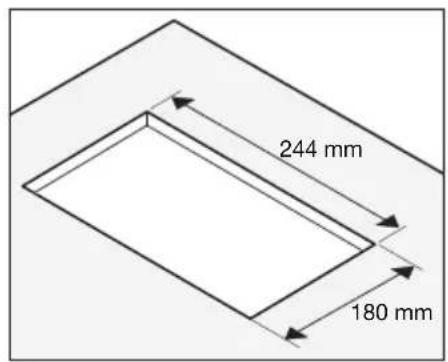

Built-in dimensions

AO860____

AO960 ---

Clearance required

The distance between the underside of the extractor hood and the hob should be at least 550 mm. For gas hobs, this distance should be a minimum of 650 mm.

Mounting

Simple 3D diagram of a rectangular box with labeled points A, D, and C, showing internal structure (no text or symbols beyond labels)

Below a kitchen cupboard

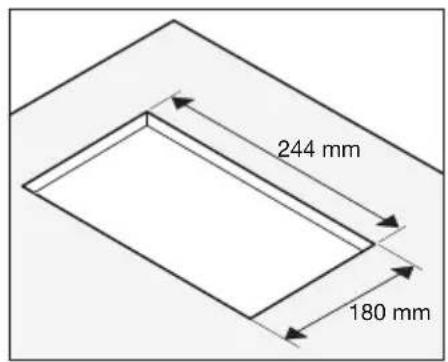

1. Use the template supplied to mark the positions of the 4 fixing holes (A), the opening for the power cable (C) and the opening for the exhaust (D) on the underside of the kitchen cupboard.
2. Drill the holes.
3. Pull the power lead upwards through the hole provided and push the flue ring through the opening.

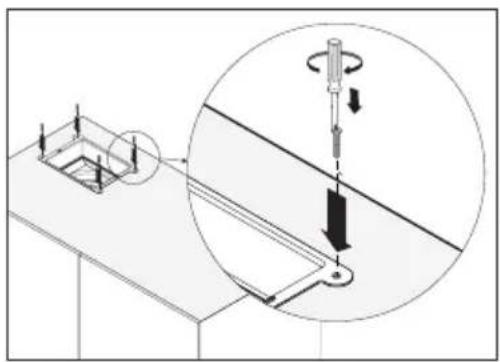

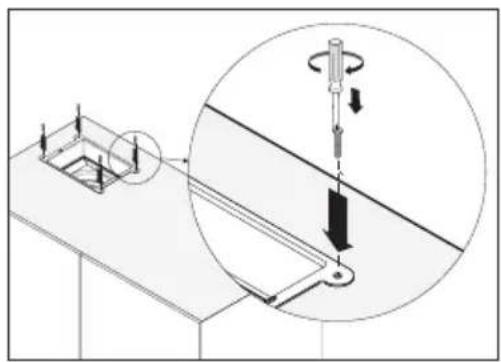

4. Fasten the hood to the bottom of the kitchen cupboard using the screws supplied with the kitchen cupboard.
5. Connect the exhaust duct to the exhaust ring.
6. Put the plug into the socket.

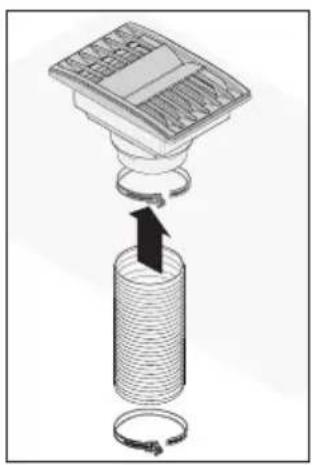

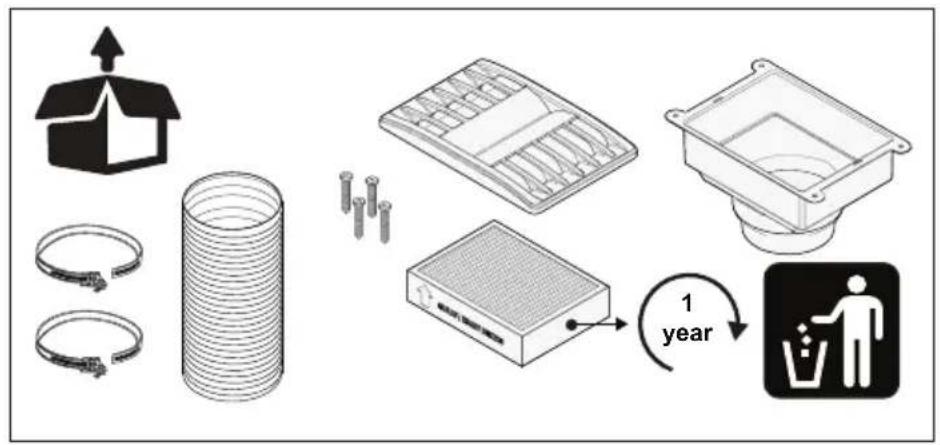

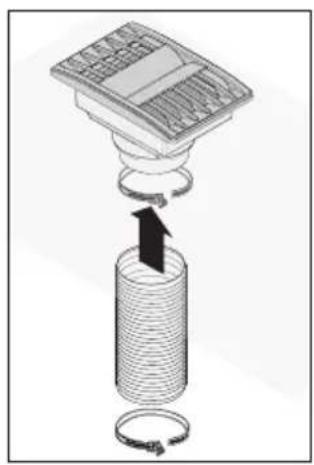

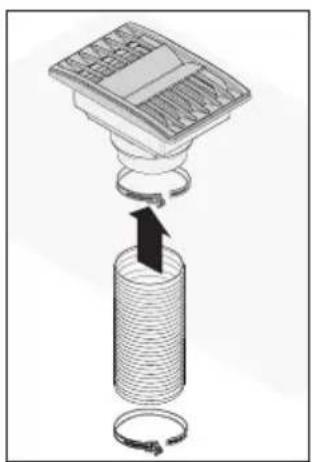

Mounting the HR0001 starter set for recirculation

Diagram showing a container being inserted into a tray, with a downward arrow indicating process (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a rotating component (no text or symbols present)

Diagram of a mechanical assembly with a spring and housing, showing a directional arrow (no text or symbols present)

Attention!

DO NOT flip the switch for recirculation on the motor; the discharge remains upwards.

Against the wall

1. Remove the filters from the extractor hood.
2. Hold the hood against the wall.
3. Working through the hood, draw the mounting holes (A) and the hole to secure the hood (B).
4. Drill the holes and push the wall plugs supplied into the holes.
5. Insert the screws into the 2 mounting holes (A).
   NB: screw the screws in until 1 cm is left protruding from the wall.
6. Hang the hood on the 2 mounting screws.
7. Tighten the mounting screws.
8. Tighten the locking screw.
9. Connect the flue pipe to the flue ring.
10. Put the plug into the socket.

For recirculation

To blow out the airflow through the front grille: place the cover plate at the top and flip the internal switch on the motor to recirculation mode.

Matching accessories

• HR0001 starter set with connection material for recirculation including filter for odour/fine dust.
• HF3001 Odour/fine dust filter for use in the starter set (annually replaced).

Alternative (only for wall-mounted installation)

• HF2028 filter mat (replacement every 3 months).

Scan the QR code to order the above accessories for your appliance.

Disposal of the appliance and packaging

Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this.

The appliance packaging is recyclable. The following may have been used:

• cardboard;
  • polyethylene film (PE).

Dispose of these materials in a responsible manner and in accordance with government regulations.

Warning! Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material safely or dispose of it in an environmentally-friendly way.

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately. This means that the appliance may not be included with normal domestic refuse at the end of its service life. The appliance must be taken to a special municipal centre for separated waste collection or to a dealer providing this service.

A separate collection of household appliances helps to prevent any potential negative impact on the environment and on human health caused by improper disposal. It ensures that the materials of which the appliance is composed can be recovered to obtain significant savings in energy and raw materials.

CE

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

Op onze website kunt u de meest recente versie van de gebruiksaanwijzing vinden. Vous pouvez trouver la version la plus récente de le mode d'emploi sur notre site Web. You can find the most recent version of the instructions for use on our website. Die neueste Version der Bedienungsanleitung finden Sie auf unserer Website.

www.etna.nl

www.etna.be

964740
