SJÖSS 606.097.40 - Lighting IKEA - Free user manual and instructions

Product type	USB-C wall charger
Brand	IKEA
Model	SJÖSS 606.097.40 / E2501-EU
Category	Lighting (charger)
Input power	100-240 V~, 50/60 Hz, max 0.5 A
Output power	5.0 V/3.0 A (15 W), 9.0 V/2.22 A (20 W), 12.0 V/1.67 A (20 W), 15.0 V/1.33 A (20 W)
Maximum power	20 W
Fast charging standards	Power Delivery 3.0, Quick Charge 3.0
Safety features	Short-circuit, overheating and overcharge protection
Customization	Colored stickers included
Cable	USB-C (sold separately)
Operating temperature	5 °C to 35 °C
Average active efficiency	84,0 %
Low load efficiency (10%)	79,9 %
No-load power consumption	0,02 W
Cleaning	Unplug and wipe with a damp cloth
Usage	Indoor, household, adults only
Recycling	Comply with local regulations, bring to IKEA store
Manufacturer address	Box 702, SE-343 81 Älmhult, SWEDEN

Frequently Asked Questions - SJÖSS 606.097.40 IKEA

How do I charge my device with the SJÖSS?

Plug the charger into a wall outlet, then connect a USB-C cable (not included) to the charger and your device. Charging starts automatically.

What is the maximum charging power?

The SJÖSS delivers up to 20 W (depending on PD/QC profiles). The charging speed depends on your device.

Is it compatible with an iPhone or Samsung?

Yes, thanks to Power Delivery 3.0 and Quick Charge 3.0, it charges most recent smartphones.

Can I use a USB-A cable?

No, the charger only has a USB-C port. You must use a USB-C to USB-C cable (or USB-C to Lightning for iPhone).

Does the charger heat up normally?

Yes, slight heating is normal during charging. It gradually cools down once charging is complete. If it becomes very hot, unplug it and check that it is not obstructed.

How to clean the SJÖSS?

Unplug it first, then wipe it with a damp cloth. Do not use abrasive products and do not immerse it in water.

What to do if the charger stops working?

Check the cable and the outlet. If the problem persists and the charger is damaged, discard and replace it. Do not attempt to repair it yourself.

Are the stickers easy to apply?

Yes, just stick them on the charger to personalize it. They do not affect safety or performance.

Can I use this charger outdoors?

No, it is designed for indoor use only. Do not expose it to moisture or water.

How to recycle the SJÖSS at end of life?

Do not discard it with household waste. Take it to a recycling center or bring it to an IKEA store for recycling.

USER MANUAL SJÖSS 606.097.40 IKEA

Design and Quality IKEA of Sweden

5.0V = 3.0A 15.0W

9.0V = 2.22A 20.0W

12.0V = 1.67A 20.0W

15.0V = 1.33A 20.0W

PD

3.0

QC

3.0

English 6

Deutsch 10

Français 17

Nederlands 22

Dansk 27

Íslenska 32

Norsk 37

Suomi 42

Svenska 46

Español 51

Portugues 56

Ελληνικά 61

Türkçe 67

عربي 71

Italiano 75

English

Read instructions carefully and keep for future reference.

Product description

SJOSS 20W is designed to charge or power phones, tablets and other small IT devices.

Product features

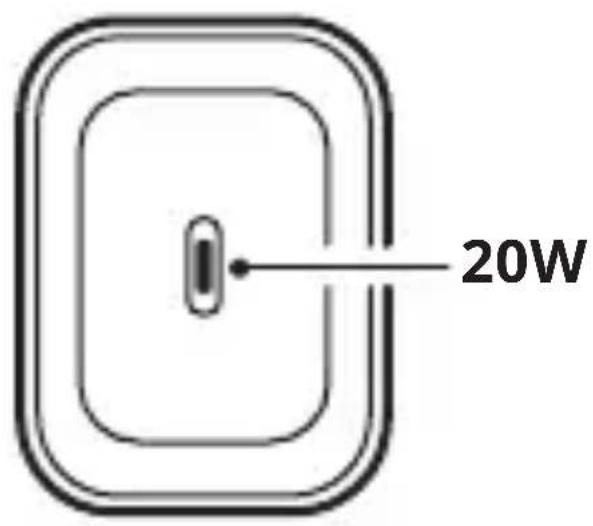

• The USB-C outlet can provide up to 3.0A/20.0W.
• The USB-C charger is compatible with Power Delivery (PD 3.0) and Quick Charge (QC 3.0).
• The USB-C charger supports fast charging. The charging speed is determined by the connected device.
  • Built-in safety features protect the USB-C charger from short-circuiting, overheating and overloading.
• The USB-C charger can be personalised with colourful

stickers included in the package.

Instructions for use

Connect the USB-C charger to the wall socket. Insert the USB-C cable end into the USB-C charger and the other end to the device you want to charge or power.

NOTE! USB-C cable is sold separately.

WARNING

• Discard the product if damaged.
• For indoor and household use only.
• Never submerge in water or other liquids.
• Improper use may cause damage to the product or endanger people or property.
• Never use a damaged or faulty USB cable, since this can damage or harm the product or your device.

• Always connect the product to an easy accessible socket.
- For adult use only. This is not a toy and is not intended for use by children.

Care instructions

To clean the product, unplug from power source and wipe with a dry cloth.

Unplug the product from the power source when not in use.

Good to know

• USB cable length and quality influences charging speed and performance.
• Devices may get warm during charging and will gradually cool down again after they are fully charged.
- Operating temperature: 5^ C to 35^ C (41° F to 95° F).

Manufacturer:

IKEA of Sweden AB

(commercial registration

number: 556074-7551)

Address: Box 702, SE-343 81

Älmhult, SWEDEN

Technical data

Model: SJÖSS

Type: E2501-EU

Input: 100-240 Vac, 50/60Hz,

Max. 0.5A

Output:

5.0V = 3.0A 15.0W

9.0V = 2.22A 20.0W

12.0V = 1.67A 20.0W

15.0V 1.33A 20.0W

Average active

efficiency: 84.0%

Efficiency at

low load (10 %): 79.9%

No load power

consumption: 0.02W

Simple line drawing of a house with chimney (no text or symbols)

Use only indoors.

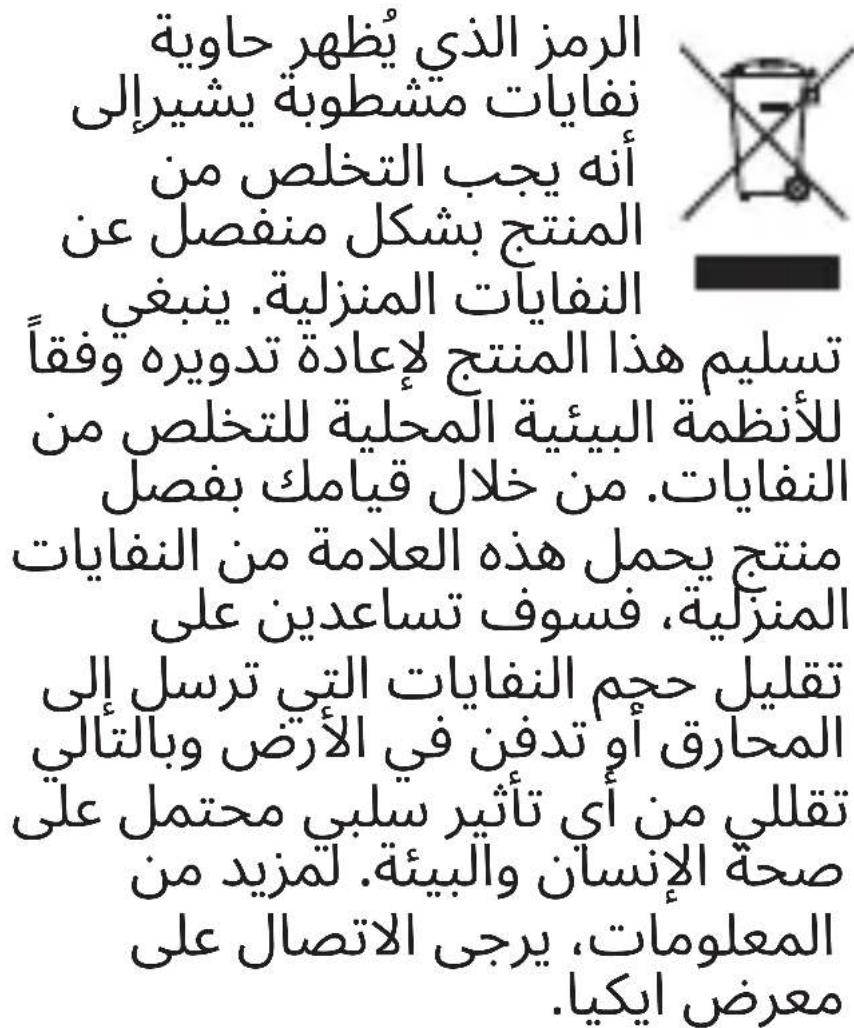

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Deutsch

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin with no text or numbers present

Fabricant: IKEA of Sweden AB

Simple black outline of a house on white background (no text or symbols)

Pour usage

intérieur

uniquement.

Symbol of a trash bin with no text or numbers present

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin with crossed-out lines and a solid black rectangle below (no text or numbers)

Simple black outline of a house on white background (no text or symbols)

Aðeins til notkunar innandyra.

Symbol of a trash bin with no text or numbers present

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, with a solid black rectangle below (no text or labels)

Symbolen med den

överkorsade

Simple black outline of a house on white background (no text or symbols)

Simple line drawing of a house with chimney (no text or symbols)

Simple black outline of a house with chimney (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a house with chimney (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Simple black outline of a house on white background (no text or symbols)
