SAFETY WARNINGS AND REGULATIONS

WARNINGS

- After having removed the packaging make sure that the product supplied is integral and complete in all its parts. If this is not the case, please contact the Dealer who sold the appliance.

- The appliance must be used as intended by Sime who is not responsible for any damage caused to persons, animals or things, improper installation, adjustment, maintenance and improper use of the appliance.

- In the event of water leaks, disconnect the appliance from the mains power supply, close the water mains and promptly inform professionally qualified personnel.

- Periodically check that the operating pressure of the water heating system when cold is 1-1.2 bar. If this is not the case, increase the pressure or contact professionally qualified personnel.

- If the appliance is not used for a long period of time, at least one of the following operations must be carried out:

- set the main system switch to "OFF"; - close the gas and water valves for the water heating system.

- In order to ensure optimal appliance operations Sime recommends that maintenance and checks are carried out ONCE A YEAR.

- If the power cable is damaged, replace it with a cable ordered as a spare part with the same characteristics (type X). Assembly must be by carried out by a qualified professional.

WARNINGS

- It is recommended that all operators read this manual carefully in order to use the appliance in a safe and rational manner.

- This manual is an integral part of the appliance. It must therefore be kept for future reference and must always accompany the appliance in the event the appliance is transferred or sold to another Owner or User or is installed on another system.

- Installation and maintenance of this appliance must be carried out by a qualified company or by a professionally qualified technician in accordance with the instructions contained in the manual. Once the work is complete, the company or technician will issue a declaration of conformity with national and local technical standards and legislation in force in the country where the appliance will be used.

- Any repairs on the appliance must be carried out solely by professionally qualified personnel, using original spare parts only. Failure to comply with these instructions can jeopardise the appliance's safety and void the warranty with immediate effect.

- Fonderie SIME S.p.A. reserves the right to make improvements to its products at any time without prior notice, without compromising their essential characteristics. The graphic illustrations and/or images in this document may show optional accessories that vary according to the country in which the appliance is used.

RESTRICTIONS

IT IS FORBIDDEN

• To allow children under the age of 8 to use the appliance. The appliance can be used by children no younger than 8 years old, by people with physical or cognitive disabilities, and by people lacking experience or the necessary knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and that they understand the risks associated with it.
• To allow children to play with the appliance.
• To allow unsupervised children to perform user maintenance and cleaning.

• To use electrical devices or appliances such as switches, electrical appliances etc if you can smell fuel. If this should happen:

• open the doors and windows to air the room;

• close the gas isolation device;
  -promptly call for professional assistance.

• To touch the appliance with bare feet or with any wet part of the body.

• To carry out any technical intervention or cleaning operation before having disconnected the appliance from the mains power by setting the main switch to "OFF", and closing the gas supply.
• To modify the safety or adjustment devices without authorization and instructions from the manufacturer.

IT IS FORBIDDEN

• To block the condensate drain (if present).
• To pull, detach or twist the electrical cables coming out of the appliance even if the appliance is disconnected from the mains power supply.
• To expose the boiler to atmospheric agents. These boilers can also be installed in partially covered areas, as per EN 15502, with a maximum ambient temperature of 60^ and a minimum ambient temperature of -5^ . It is recommended that the boiler is installed below weathered roofs, on the balcony or in a protected niche, to protect it from exposure to weathering agents (rain, hail and snow). The boiler is equipped as standard with an antifreeze function.
• To block or reduce the size of the ventilation openings of the room where the appliance is installed, if present.
• Remove the mains power and gas supply from the appliance if the external temperature could fall below ZERO (risk of freezing).
• To leave containers with flammable substances in the room where the appliance is installed.
• To dispose of the packaging material irresponsibly as it could be dangerous. Packaging must be disposed of as specified by the legislation in force in the country where the appliance will be used.

Dear Customer,

Thank you for purchasing a Sime Brava One 40 BF boiler, a new-generation low-temperature modulating device possessing technical and performance characteristics capable of satisfying your space heating and instant domestic hot water requirements with the utmost safety and with limited running costs.

RANGE

MODEL CODE
Brava One 40 BF 8112106

COMPLIANCE

Our company declares that Brava One 40 BF boilers comply with the following directives:

• Gas Appliances EU Regulation 2016/426
• Boiler Efficiency Directive 92/42/EEC
• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU

SYMBOLS

WARNING

To indicate actions which, if not carried out correctly, can result in injury of a general nature or may damage or cause the appliance to malfunction; these actions therefore require particular caution and adequate preparation.

ELECTRICAL HAZARD

To indicate actions which, if not carried out correctly, could lead to injury of an electrical nature; these actions therefore require particular caution and adequate preparation.

IT IS FORBIDDEN

To indicate actions which MUST NOT BE carried out.

CAUTION

To indicate particularly important and useful information.

TABLE OF CONTENTS

1 DESCRIPTION OF THE APPLIANCE 5

1.1	Characteristics	5
1.2	Check and safety devices	5
1.3	Identification	5
1.4	Structure	6
1.5	Technical features	7
1.6	Main water circuit	8
1.7	Sensors	8
1.8	Expansion vessel	8
1.9	Circulation pump	9
1.10	Control panel	9
1.11	Wiring diagram	10

2 INSTALLATION 11

2.1	Receiving the product	11
2.2	Dimensions and weight	11
2.3	Handling	11
2.4	Installation room	11
2.5	New installation or installation of a replacement appliance	12

2.6 Cleaning the system 12
2.7 Water system treatment 12
2.8 Boiler installation 12
2.9 Plumbing connections....13 2.9.1 Plumbing accessories (optional)....13

2.10 Gas supply 13

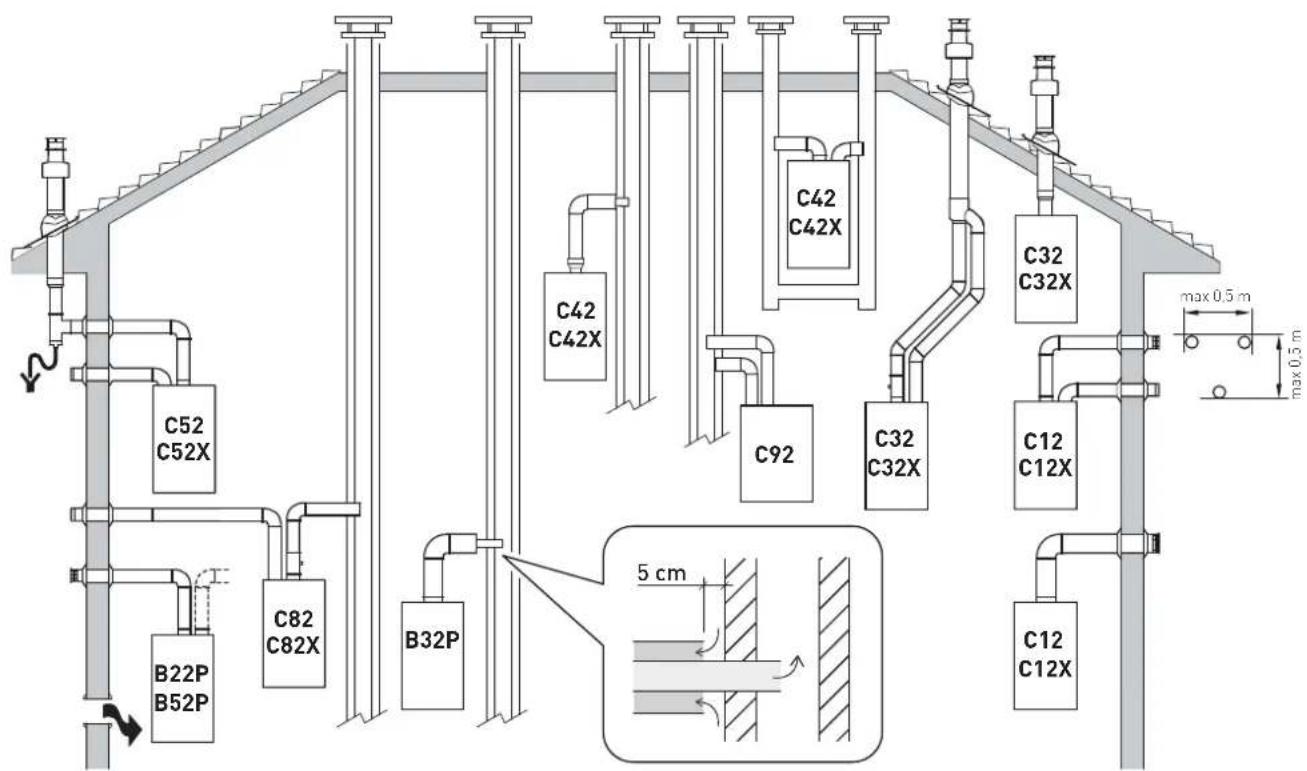

2.11 Smoke outlet and combustion air inlet .... 14 2.11.1 Coaxial duct (∅ 60/100mm and ∅ 80/125mm) .... 15 2.11.2 Separate ducts (∅ 80mm) .... 15

2.12 Electrical connections.... 17 2.12.1 External temperature sensor.... 18 2.12.2 Chrono-thermostat or Air Thermostat.... 18 2.12.3 EXAMPLE of use of the command/control device on some types of heating systems.... 18

2.13 Refilling or emptying.... 19 2.13.1 REFILL operations.... 19 2.13.2 EMPTYING operations.... 20

3 COMMISSIONING

21

3.1 Preliminary operations 21
3.2 Before commissioning 21
3.3 Parameter setting and display....21
3.4 List of parameters....22
3.5 Display of operating data and counters....24
3.6 Checks and adjustments .... 24 3.6.1 Chimney sweeper function.... 24 3.6.2 Adjusting gas pressure at the nozzles.... 26
3.7 Gas conversion....26 3.7.1 Preliminary operations....26
3.8 Automatic calibration procedure 28

4 MAINTENANCE

30

4.1 Adjustments....30
4.2 External cleaning....30 4.2.1 Cleaning the cladding....30
4.3 Cleaning the inside of the appliance .... 30 4.3.1 Cleaning the heat exchanger .... 30 4.3.2 Cleaning the burner .... 31 4.3.3 Checking the ignition/detection electrode .... 31 4.3.4 Final operations .... 31
4.4 Checks .... 31 4.4.1 Checking the smoke duct.... 31 4.4.2 Checking the expansion vessel pressure.... 31

4.5 Unscheduled maintenance....32

4.6 Malfunction codes and possible solutions ..... 32 4.6.1 Maintenance request ..... 33

1 DESCRIPTION OF THE APPLIANCE

1.1 Characteristics

Brava One 40 BF are last generation low temperature wall mounted boilers which Sime has produced for heating and domestic hot water production. The main design choices made by Sime for the Brava One 40 BF boilers are:

• the atmospheric burner combined with a copper heat exchanger for heating and a rapid heat exchanger for DHW
• the sealed combustion chamber which can be classified "Type C" or "Type B" in relation to the room where the boiler is installed, depending on the smoke outlet configuration adopted during installation
• the command and control microprocessor electronic board not only allows a better management of the heating system and the system for domestic hot water production but it can also be connected to air thermostats or a remote control (with an Open Therm protocol), an auxiliary sensor for the connection of any possible solar kits or to an external sensor. If this is the case, the boiler temperature varies on the basis of the external temperature according to the selected optimal climatic curve allowing for significant energy and economic savings.

Other special features of the Brava One 40 BF boilers are:

• the anti-freeze function which activates automatically if the temperature of the water inside the boiler falls below the threshold of the value set at parameter "tS 1.0" and, if there is an external sensor, if the external temperature falls below the threshold of the value set at parameter "tS 1.1".
• the anti-blocking function of the pump and diverter valve, this activates automatically every 24 hours if no request for heat has been made
• the chimney sweep function lasts 15 minutes and makes the job of the qualified technician easier when measuring the parameters and combustion efficiency and when checking gas pressure at the nozzles
• screen display of the operating and self-diagnostic parameters with error code display when the fault occurs. This makes repair interventions easier and allows appliance operation to be restored correctly.

1.2 Check and safety devices

The Brava One 40 BF boilers are equipped with the following check and safety devices:

• thermal safety sensor 100°C
• 3 bar relief valve
• heating water pressure switch
• delivery sensor
• DHW sensor.

IT IS FORBIDDEN

to commission the appliance with safety devices which do not work or which have been tampered with.

WARNING

Safety device may only be replaced by professional qualified personnel using Sime original spare parts.

1.3 Identification

The Brava One 40 BF boilers can be identified by means of:

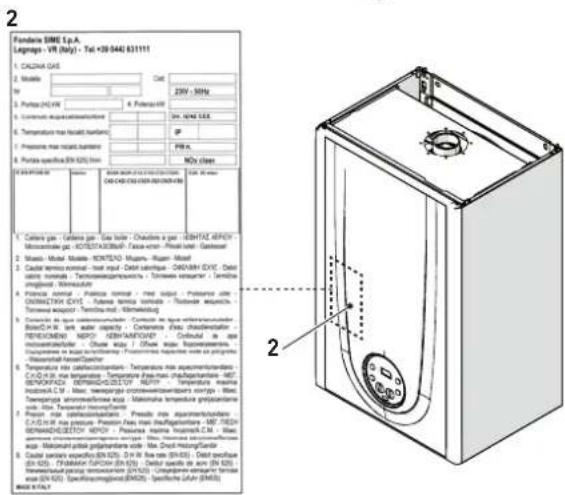

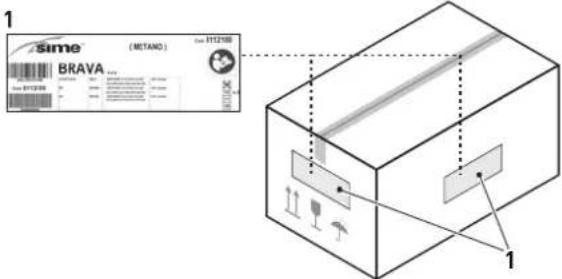

1 Packaging label: this is located on the outside of the packaging and provides a code, the serial number of the boiler and the bar code

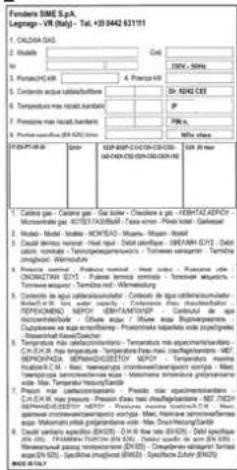

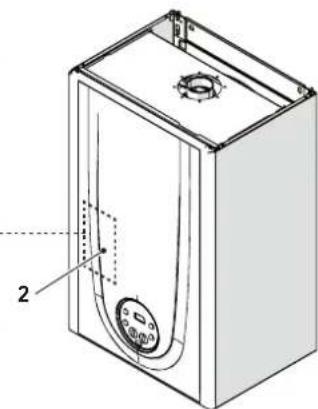

2 Technical Data Plate: this is located inside the front panel of the boiler and provides the technical specification, appliance performance and any other information required by law.

Sime (METAND) BRAVA 1 1

Fondrix SIME S.p.A. Legnays - VR (Mdy) - Tel: [phone]. CALINA GAS 2. Modèle 3. Modèle 4. Potencia/III 5. Continuous automatic/continuous 6. Temperature max fluid level/temperature 7. Pressure max liquid level/temperature 8. Portra specificity (EN 625) from: 9. Mio's class 1. Cellara gas - Teflonza gas - Gas boiler - Chelada e gas - HBT/AT, KEPOT - Minimeral gas - KCST/AST/AS/AT/ Tanas vessel - Peral oiler - Gastraneal 2. Motor - Motor Model - KENTANO - Mupans - Ragem - Model 3. Cadal termso normal - heat input - Debit latemato - DIN/MN GVC - Debit candle notes - Turismozazopontrovnicta - Turismozazopontar - Tensita ingmodul - Minimality 4. Potencia nominal - Potencia nominal - min output - Protezione unit - CUB/TH/AT, KEPOT, Turismo termo nominal - Turismozazopontrovnicta - Turismozazopontar - Tensita motor - Minimality 5. Potencia gas pump capacity control - Confluent in line water/water capacity - Confluent in line water/water capacity - Bore/C/H/N, tap water capacity - Confluent in line water/water capacity - PEREMICENO NEPO ADEMYAMOPEP - Confluent in line water/water capacity - Dose volt - O'oule pump capacity - Desapowerable air pump capacity control - Desapowerable air pump capacity control - Resinatorial fuel efficiency control - Temperature min pulsedicantilek - Temperature min pulsedicantilek - C-X/D-H max temperature - Temperature min pulsedicantilek - MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/Me - Esterification system - Temperature min pulsedicantilek - Minimeral pump capacity control - Minimeral pump capacity control - Resinatorial fuel efficiency control - Resinatorial fuel efficiency control - Resinatorial fuel efficiency control - Resinatorial fuel efficiency control C-X/D-H max pressure - Position Fines max pulsedicantilek - MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/MEG/ - Esterification system - Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control / Max. Control 2

Fig. 1

CAUTION

Tampering with, removing or failing to display the identification plate or carrying out any other operation which does not allow safe identification of the product or which may hinder installation and maintenance operations.

1.4 Structure

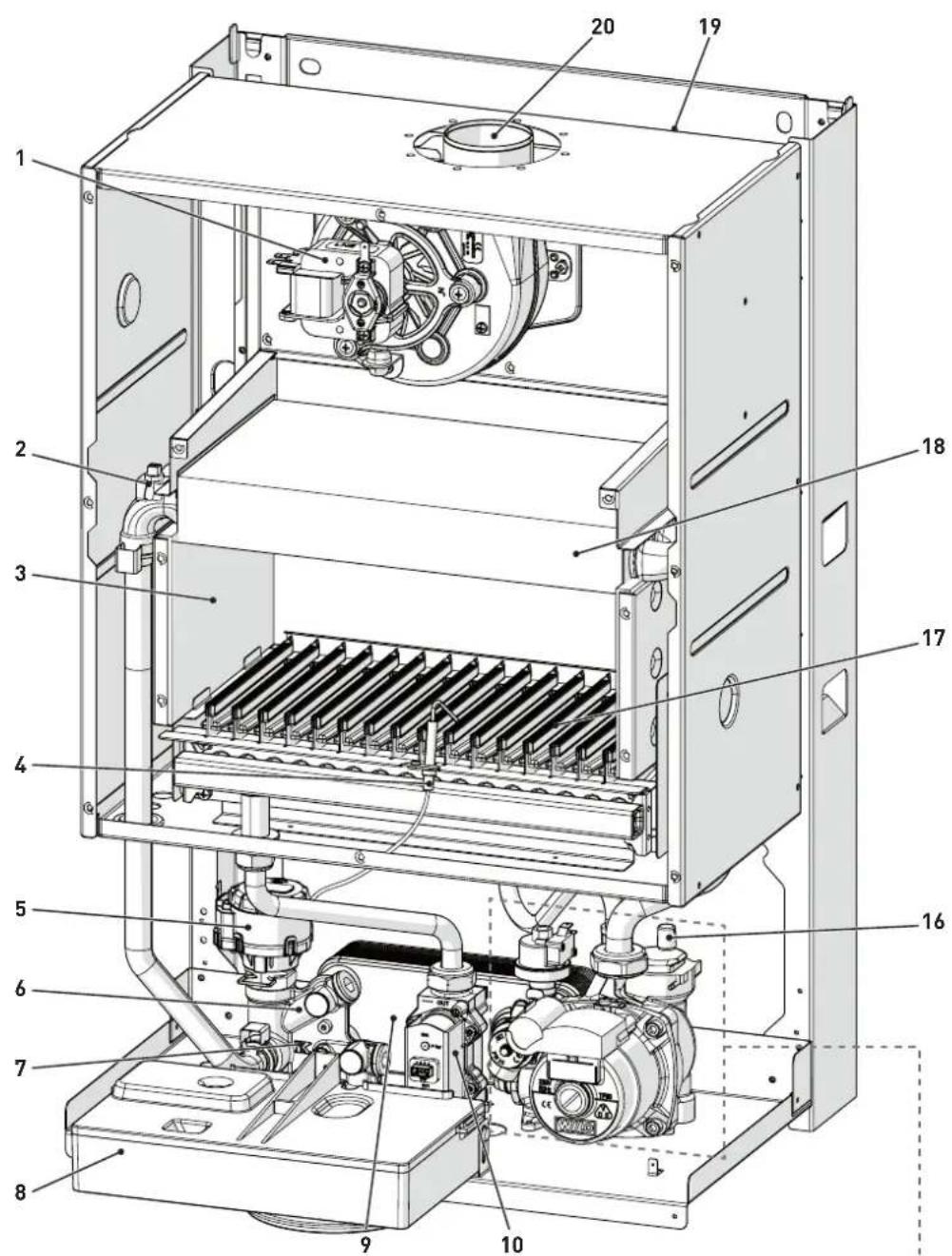

Technical diagram of an internal combustion chamber with numbered components for identification

1 Fan
2 Dual sensor (thermal safety/delivery)
3 Combustion chamber
4 Ignition/detection electrode
5 Diverter valve
6 System filling unit
7 Domestic hot water sensor
8 Control panel
9 Secondary heat exchanger
10 Gas valve
11 Domestic water filter and flow regulator
12 System relief valve
13 Boiler drain
14 System pump
15 Water pressure switch
16 Automatic bleed valve
17 Burner
18 Primary heat exchanger
19 Expansion vessel
20 Smoke outlet

Technical diagram of a mechanical device with numbered components labeled 11 to 16

Fig. 2

1.5 Technical features

DESCRIPTION		Brava One 40 BF
CERTIFICATIONS
Country of intended installation		IT - ES - PT - GR - SI - UK - UZ
Fuel G20 - G30/G31
PIN number 1312CP5935
Category II2H3+
Type		B22P - B32P - B52PC12 - C12X - C32 - C32X - C42 - C42X - C52 - C52XC62 - C62X - C82 - C82X - C92
Class NOx		3 [< 150 mg/kWh]
DHW rated useful heat output kW 37,3
HEATING PERFORMANCE
HEAT INPUT
Nominal	kW 40,0
Minimum	kW 13,5
HEAT OUTPUT
Nominal (80-60°C)	kW 37,2
Minimum (80-60°C)	kW 11,3
EFFICIENCY
Max useful efficiency (80-60°C)	%	93,0
Min useful efficiency (80-60°C)	%	83,6
Useful efficiency at 30% of load (50-30°C)	%	91,7
Thermal efficiency (EEC 92/42)		★★★
Losses after shutdown at 50°C	W	88
DOMESTIC HOT WATER PERFORMANCE
Nominal heat input	kW 40,0
Minimum heat input	kW 13,5
D.H.W. flow rate ΔT 30°C	l/min 17,8
Continuous D.H.W. flow rate (ΔT 25°C / ΔT 35°C)	l/min	21,3 / 15,2
Minimum D.H.W. flow rate	l/min	2,2
Max / Min Pressure	bar	7 / 0,4
	kPa	700 / 40
ELECTRICAL SPECIFICATIONS
Power supply voltage	V	230
Frequency	Hz	50
Absorbed electrical power	W	136
Electrical protection degree	IP	X5D
COMBUSTION DATA
Smoke temperature at Max/Min flow (80-60°C)	°C	147/91
Smoke flow Max/Min	g/s	23/26
CO2at Max/Min (G20) flow rate with separate chimneys	%	7,4/2,1
CO2at Max/Min (G31) flow rate with separate chimneys	%	8,1/2,6
NOZZLES - GAS
Number of nozzles	No.	16
Nozzle diameter (G20)	mm 1,40
Nozzle diameter (G30/G31)	mm 0,81
Gas consumption at Max/Min flow rate (G20)	m3/h	4,25/1,40
Gas consumption at Max/Min flow rate (G30)	kg/h	3,15/1,06
Gas consumption at Max/Min flow rate (G31)	kg/h	3,10/1,04
Gas supply pressure (G20/G30/G31)	mbar	20 / 28-30 / 37
	kPa	2 / 2,8-3 / 3,7
TEMPERATURE - PRESSURE
Max operating temperature	°C	85
Heating adjustment range	°C	20 ÷ 80
Domestic hot water adjustment range	°C	10 - 60
Max operating pressure	bar	3
	kPa	300
Water content in boiler	L 4,90

Lower Heat Output (Hi)
G20 Hi. 9.45 kW/m³ (15°C, 1013 mbar) - G30 Hi. 12.68 kW/kg (15°C, 1013 mbar) - G31 Hi. 12.87 kW/kg (15°C, 1013 mbar)

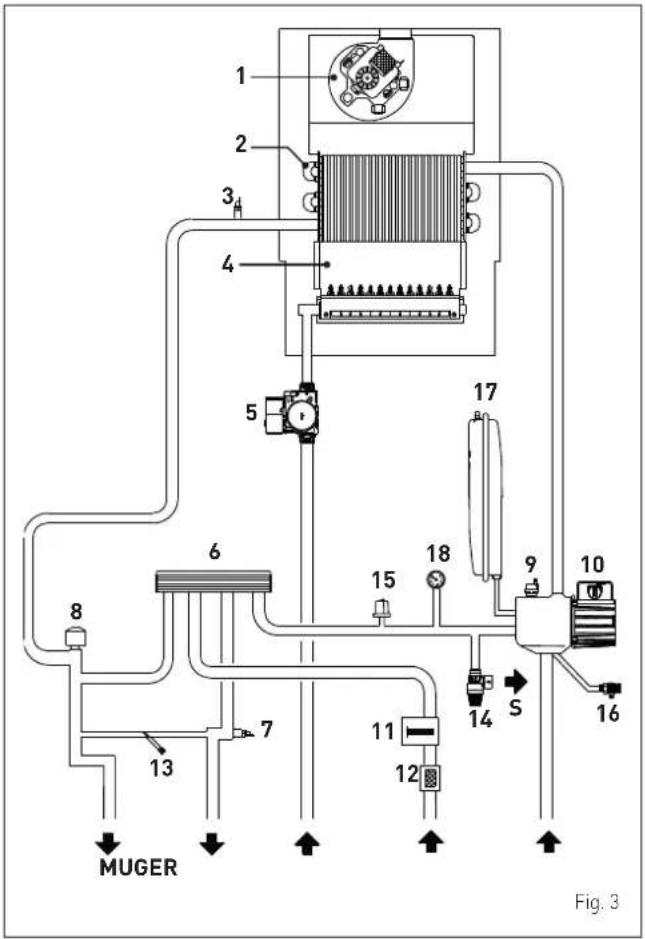

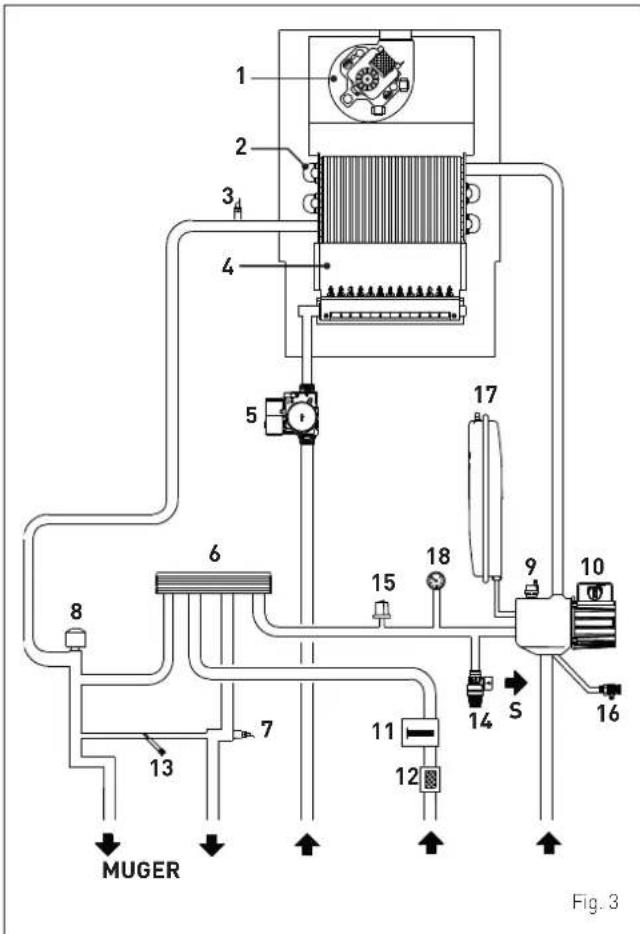

1.6 Main water circuit

1 2 3 4 5 6 7 8 MUGER 11 12 13 14 15 16 17 9 S 10 11 18

KEY:

M System delivery
R System return
U Domestic hot water outlet
E Domesti hot water inlet
S Safety valve outlet
G Gas supply

1 Fan
2 Heat exchanger (mono-thermal)
3 Dual sensor (thermal safety/delivery)
4 Combustion chamber
5 Gas valve
6 Domestic hot water heat exchanger
7 Domestic hot water sensor
8 Diverter valve
9 Automatic bleed valve
10 Pump
11 Domestic hot water flow meter
12 Domestic hot water filter
13 System filling
14 System relief valve
15 Water pressure switch
16 Boiler drain
17 System expansion vessel
18 Water pressure gauge

1.7 Sensors

The sensors installed have the following characteristics:

• Dual sensor (thermal safety/output) NTC R25°C; 10kΩ B25°-85°C; 3435
• domestic hot water sensor NTC R25°C; 10kΩ B25°-85°C: 3435
• External temperature sensor NTC R25°C; 10kΩ B25°-85°C: 3435

Correspondence of Temperature Detected/Resistance

Examples of reading:

TR = 75^ R = 1925

TR = 80^ R = 1669.

TR	0°C 1°C 2°C		3°C 4°C 5°C 6°C 7°C 8°C 9°C
0°C	27279	26135	25044	24004	23014	22069	21168	20309	19489	18706
10°C	17959	17245	16563	15912	15289	14694	14126	13582	13062	12565
20°C	12090	11634	11199	10781	10382	9999	9633	9281	8945	8622
30°C	8313	8016	7731	7458	7196	6944	6702	6470	6247	6033
40°C	5828	5630	5440	5258	5082	4913	4751	4595	4444	4300
50°C	4161	4026	3897	3773	3653	3538	3426	3319	3216	3116
60°C	3021	2928	2839	2753	2669	2589	2512	2437	2365	2296
70°C	2229	2164	2101	2040	1982	1925	1870	1817	1766	1717
80°C	1669	1622	1577	1534	1491	1451	1411	1373	1336	1300
90°C	1266	1232	1199	1168	1137	1108	1079	1051	1024	998
100°C	973

1.8 Expansion vessel

The expansion vessel installed on the boilers has the following characteristics:

Description U/M		Brava One 40 BF
Total capacity l 9,0
Prefilling pressure	kPa 100
	bar	1,0
Useful capacity	l 5,0
Maximum system content (*)	l	124

(*) Conditions of:

Average operating temperature 70°C (with high temperature system 80/60°C)

Start temperature at system filling 10°C.

CAUTION

• For systems with water content exceeding the maximum system content (as indicated in the table) an additional expansion vessel must be prearranged.
• The difference in height between the relief valve and the highest point of the system cannot exceed 6 metres. If the difference is greater than 6 metres, increase the prefilling pressure of the expansion vessel and the system when cold by 0.1 bar for each meter increase.

1.9 Circulation pump

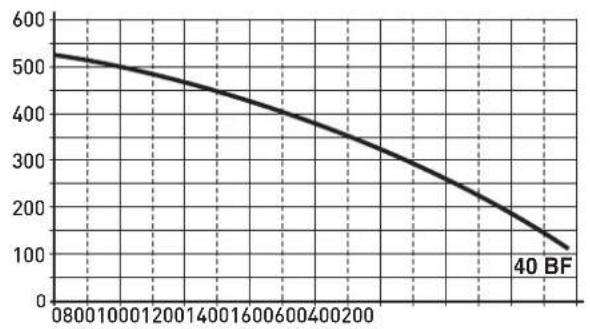

The flow-head performance curve available for the heating system is shown in the graph below.

RESIDUAL HEAD (mbar)

FLOW (l/h)
Fig. 4

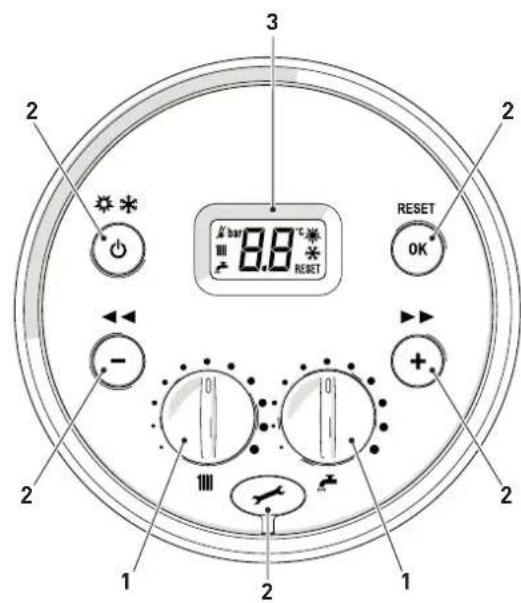

1.10 Control panel

3 2 2 8.8 °C RESET OK - + 1 2 1 2

Fig. 5

1 KNOBS

The heating knob allows the user to set the heating temperature to between 20 and 80°C during normal operation.

The domestic hot water knob allows the user to set the domestic hot water temperature to between 10 and 60°C during normal operation.

2 FUNCTIONAL BUTTONS

If pressed once or more than once for at least 1 second during normal operation, this button allows the user to change the boiler operating mode in a cyclical sequence (Stand-by - Summer - Winter).

This allows the user to scroll through the parameters or decrease the values.

This allows the user to scroll through the parameters or increase the values.

This allows the user to confirm the selected parameter or to modify the value or to "unblock" the appliance when the alarm for a "block" malfunction is present.

Programming connector cover plug.

NOTE: pressing any one of these buttons for more than 30 seconds generates a fault on the display without preventing boiler operation. The warning disappears when normal conditions are restored.

3 DISPLAY

"SUMMER". This symbol appears when the boiler is operating in Summer mode or if only the domestic hot water mode is enabled via the remote control. If the symbols ⚙ and ⚗ are flashing, this indicates that the chimney sweep function is active.

"WINTER". This symbol appears when the boiler is operating in Winter mode or if both the domestic hot water and heating modes are enabled via the remote control. With the remote control, if no operating modes have been enabled both symbols and will be off.

"RESET REQUIRED". This message only appears if there is a malfunction which must be or may be restored manually.

"DOMESTIC HOT WATER". This symbol is present during a request for DHW or when the chimney sweep function is operating; it flashes during the domestic hot water set point selection.

"HEATING". This symbol is present during heating operation or when the chimney sweep function is operating; it flashes during the heating set point selection.

"BLOCK" DUE TO NO FLAME.

"FLAME PRESENCE".

"ALARM". This indicates that a fault has occurred. The number specifies the cause which generated the alarm (see paragraph "Malfunction codes and possible solutions".

"MAINTENANCE REQUEST". If active, it shows it is time to perform maintenance on the boiler.

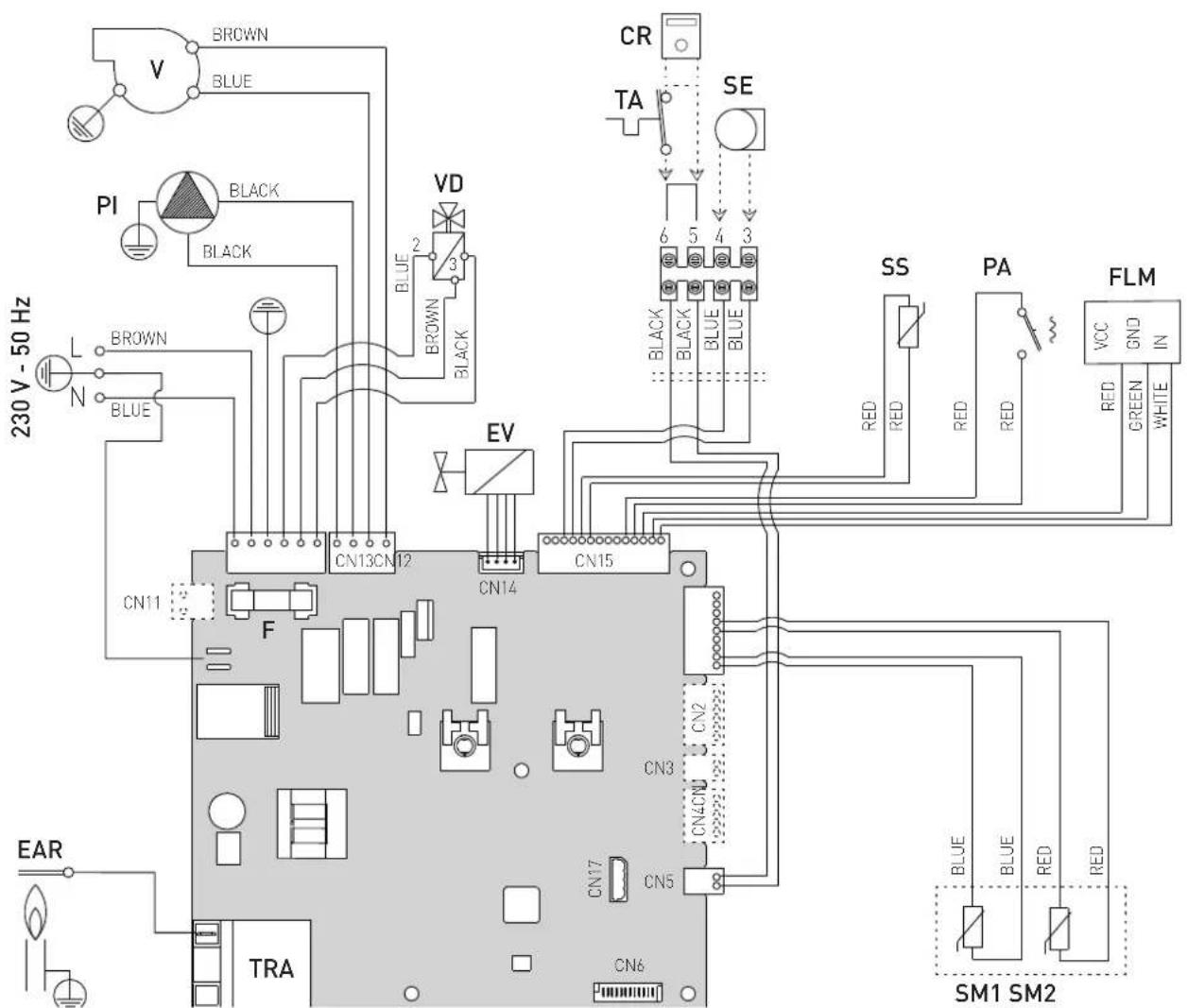

1.11 Wiring diagram

230 V - 50 Hz BROWN BLUE PI BLACK BLANK V VD 2 3 BROWN BLACK CR TA SE 6 5 4 3 BLACK BLACK BLUE BLUE SS PA FLM RED RED RED RED RED GREEN WHITE CN13CN12 CN14 CN15 CN11 F CN3 CN2 CN4 CN5 CN6 CN17 EAR TRA SM1 SM2

L Line

N Neutral

F Fuse (3.15AT - 250V)

TRA Ignition transformer

PI System pump

v Fan

EAR Ignition / Detection electrode

EV Gas solenoid valve

SS Domestic hot water sensor

SM1-2 Dual sensor (thermal safety/delivery)

FLM Flow meter

VD Diverter valve

PA Water pressure switch

TA Air thermostat

SE External sensor

CR Remote control (instead of air thermostat)

To connect the "Air Thermostat" or, alternatively the "Remote Control", remove the bridge between terminals 5-6.

Fig. 6

CAUTION

Users must:

• Use an omnipolar cut-off switch, disconnect switch in compliance with EN Standards which ensures complete cut-off in overvoltage category III conditions (i.e. where there is at least 3 mm between the open contacts).
• Respect the connections L (Live) - N (Neutral).
• Ensure that the special power cable is only replaced with a cable ordered as a spare part and connected by professionally qualified personnel.

CAUTION

Users must:

- Connect the earth wire to an effective earthing system. The manufacturer is not responsible for any damage caused by failure to earth the appliance or failure to observe the information provided in the wiring diagrams.

IT IS FORBIDDEN

To use water pipes for earthing the appliance.

2 INSTALLATION

CAUTION

The appliance must only be installed by the Sime Technical Service or by qualified professionals who MUST wear suitable protective safety equipment.

2.1 Receiving the product

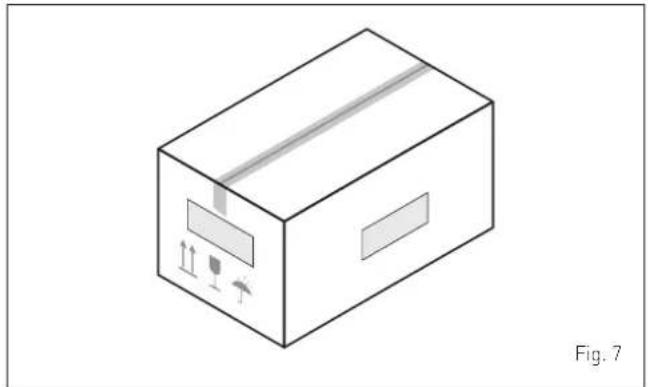

Brava One 40 BF appliances are delivered in a single unit protected by cardboard packaging.

Isometric illustration of a cardboard box with internal compartments and directional arrows (no text or symbols)

The plastic bag found inside the packaging contains the following:

• Installation, use and maintenance manual
• Paper template for boiler installation
• Certificate of warranty
• Hydrostatic test certificate
• System booklet
• Bag with expansion plugs

IT IS FORBIDDEN

To leave packaging material around or near children since it could be dangerous. Dispose of it as prescribed by legislation in force.

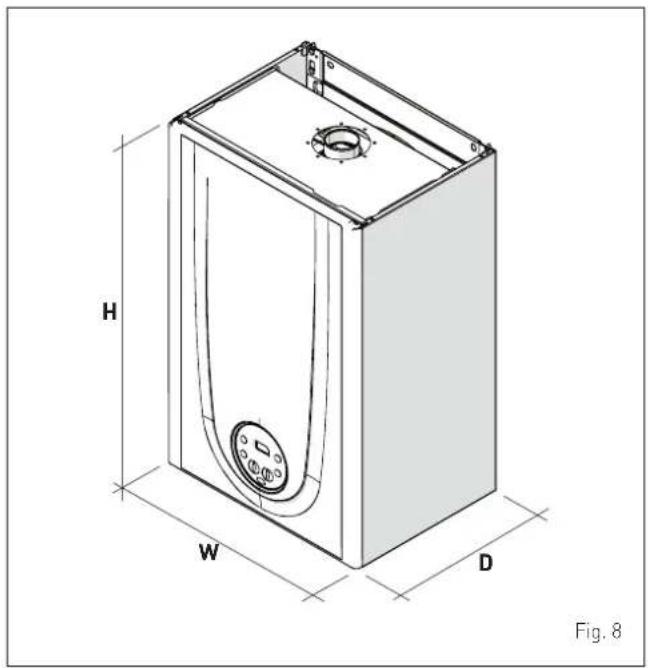

2.2 Dimensions and weight

Technical line drawing of a rectangular device with labeled dimensions H, W, D and a central circular component (no text or symbols beyond labels)

Description	Brava One 40 BF
W (mm) 450
D (mm) 340
H (mm) 700
Weight (kg) 36

2.3 Handling

Once the packaging has been removed, the appliance is to be handled manually, tilting it slightly, lifting it and applying pressure in the points indicated in the figure.

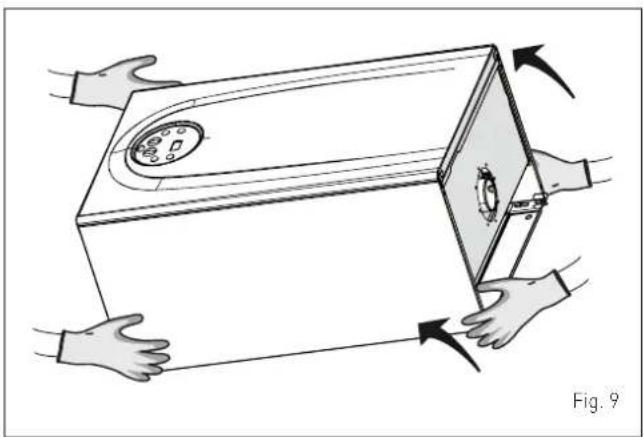

Illustration of hands holding a rectangular device with a circular component and a lid, showing motion arrows (no text or symbols)

IT IS FORBIDDEN

To grip the appliance casing. Hold the "solid" parts of the appliance such as the base and structural frame.

WARNING

Use suitable tools and accident protection when removing the packaging and when handling the appliance. Observe the maximum weight that can be lifted per person.

2.4 Installation room

The room where the appliance is to be installed must comply with the Technical Regulations and Legislation in force. It must be equipped with suitably sized ventilation openings when the installation is a "TYPE B" installation.

The minimum temperature of the installation room must NOT be lower than -5 °C.

CAUTION

• Before assembling the appliance, the installerMUST make sure that the wall supports the weight.
• Remember to consider the space needed in order to access the safety/adjustment devices and to carry out maintenance interventions (see Fig. 10).

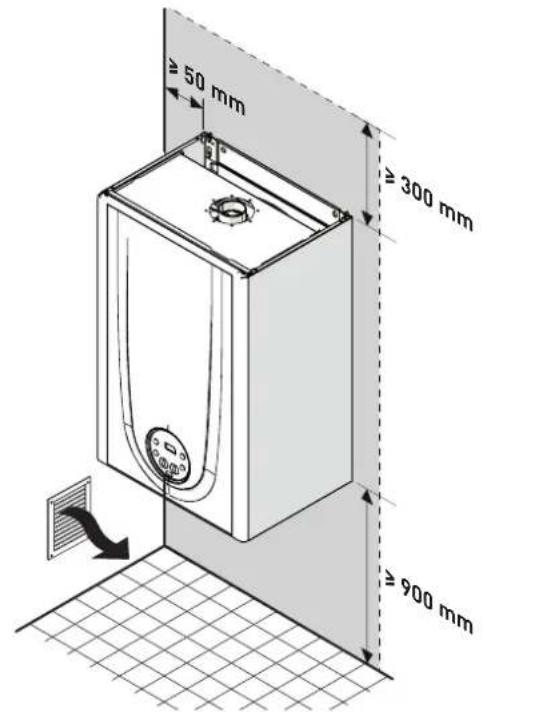

APPROXIMATE MINIMUM DISTANCES

≥ 50 mm ≥ 300 mm ≥ 900 mm

Fig. 10

2.5 New installation or installation of a replacement appliance

When Brava One 40 BF boilers are installed on old systems or systems requiring updating, it is recommended the installer checks that:

• the connecting flue pipe is suitable for the combustion temperature of the appliance, calculated and manufactured in compliance with Standards, that it is as straight as possible, air tight, isolated, with no obstructions or restriction and that it has appropriate condensate collection and evacuation systems
• the electrical system has been manufactured in compliance with specific Standards and by professionally qualified personnel
• the fuel delivery line and the tank (LPG) comply fully with specific Standards
• the expansion vessel ensures total absorption of the fluid dilation in the system
• the pump flow-head performance is sufficient for the system characteristics
• the system is clean, free of any sludge, deposits, de aerated and air tight. For system cleaning, please refer to the relevant paragraph.

CAUTION

The manufacturer declines all liability for any damage caused by an incorrect implementation of the smoke outlet or for an excessive use of additives.

2.6 Cleaning the system

Before installing the appliance on a newly constructed system or replacing a heat generator on an existing system, it is important that the system is thoroughly cleaned to remove sludge, slag, dirt, residue etc.

Before removing an old heat generator from an existing system, it is recommended that the user:

• puts a descaling additive into the water system
• allows the system to work with the generator active for a few days
• drains the dirty water from the system and flushes the system with clean water once or more than once.

If the old generator has already been removed or is not available, replace it with a pump to circulate water in the system and then proceed as described above.

Once cleaning operations have been carried out and before installing the new appliance, it is recommended that a fluid is added to the water system to protect it from corrosion and deposits.

CAUTION

• For further information on the type of additive and usage, please contact the appliance manufacturer.
• Please remember that you MUST install a Y filter (not supplied with the appliance) on the heating system return (R).

2.7 Water system treatment

When filling and restoring the system it is good practice to use water with:

- aspect: clear if possible

- pH: 6÷8

- hardness: < 25°f.

If the water characteristics are different from those indicated, it is recommended that a safety filter is used on the water delivery pipe to retain impurities, and a chemical treatment system to protect against possible deposits and corrosion which could affect boiler operation.

If the systems are only low temperature systems, it is recommended that a product is used to prevent the development of bacteria.

In any case, please refer to and comply with the legislation and specific technical standards in force in the country where the appliance will be used.

2.8 Boiler installation

Brava One 40 BF boilers leave the factory with a paper template for installation onto a solid wall.

For installation:

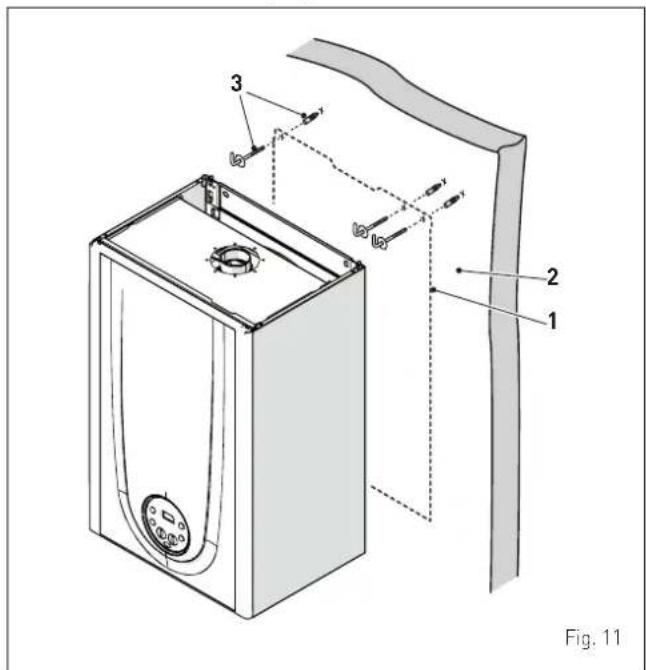

• position the paper template (1) on the wall (2) where the boiler is to be mounted
• make the holes and insert the expansion plugs (3)
• hook the boiler onto the plugs.

Fig. 11

CAUTION

The height of the boiler is to be such that disassembly and maintenance interventions are facilitated.

2.9 Plumbing connections

The plumbing connections have the following characteristics and dimensions.

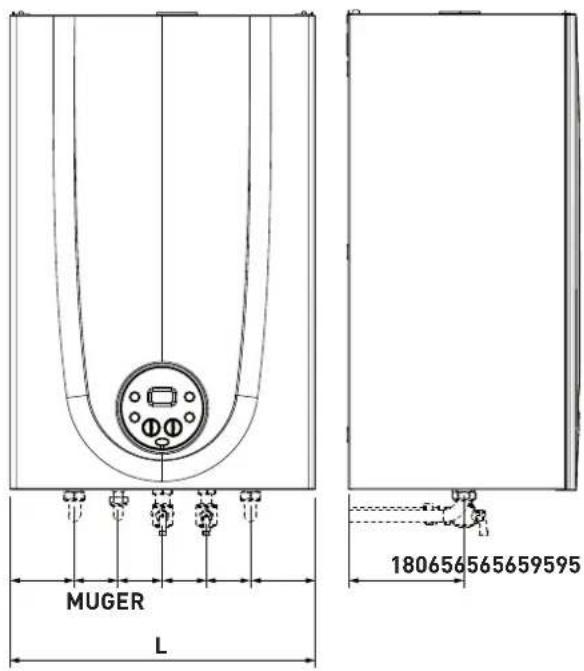

MUGER L 180656565659595

Fig. 12

Description	Brava One 40 BF
M - System delivery ∅ 3/4" G
R - System return ∅ 3/4" G
U - Domestic hot water output ∅ 1/2" G
E - Domestic hot water inlet ∅ 1/2" G
G - Gas supply ∅ 3/4" G
W (mm) 450

2.9.1 Plumbing accessories (optional)

To facilitate plumbing and gas connections to the systems, the accessories as shown in the table below are available and are to be ordered separately from the boiler.

DESCRIPTION	CODE
Installation plate	8075438
Curve kit	8075418
Curve and valve kit with connections from DIN to SIME	8075443
Cocks kit	8091806
Valve kit with connections from DIN to SIME	8075442
Wall mount replacement kit for other makers	8093900
Polyphosphate dosing kit	8101700
Dosing recharge kit	8101710

NOTE: kit instructions are supplied with the accessory itself or are to be found on the packaging.

2.10 Gas supply

Brava One 40 BF boilers leave the factory specifically prearranged for G20 but can be converted to function with G30/G31 using the "specific nozzle kit" (optional) provided by Sime on request separately from the boiler.

If changing the type of gas to be used, carry out the entire "GAS CONVERSION" phase of the appliance.

The boiler must be connected to the gas mains in full compliance with the installation standards in force in the country where the appliance will be used.

Before connecting the boiler to the gas mains, the user must ensure that:

• the type of gas is correct for the appliance
• the pipes are clean
• the gas supply pipe is the same dimension as or greater than that of the boiler fitting (G3/4") and with a load loss less than or equal to that contemplated between the gas mains and the boiler.

WARNING

Once installation has been completed, check that the joints are air tight as indicated in the installation Standards.

CAUTION

It is recommended that the gas line has a suitable filter.

2.11 Smoke outlet and combustion air inlet

Brava One 40 BF boilers must be equipped with appropriate smoke flue ducts and combustion air inlet ducts. These ducts are considered an integral part of the boiler and are provided by Sime as an accessory kit, to be ordered separately from the appliance on the basis of the type permitted and the system requirements.

Permitted outlets

C52 C52X C82 C82X B22P B52P B32P C42 C42X C92 C42 C32 C32X C12 C12X C12 C12X max 0.5 m max 0.5 m 5 cm

B22P-B52-B52P

Combustion air inlet into the atmosphere and smoke outlet to open air.

NOTE: opening for combustion air (6 cm² x kW).

B32P

Combustion air inlet into the atmosphere and smoke outlet into single flue.

NOTE: opening for combustion air (15 cm² x kW).

C12-C12X

Concentric wall smoke outlet The pipes can start from the boiler but the outlets must be concentric or close together (no more than 50 cm) to be subject to similar wind conditions.

C32-C32X

Concentric roof outlet Outlet as C12X.

C42-C42X

Outlet and inlet in shared or separate flue pipes but subjected to similar wind conditions.

C52-C52X

Separate wall or roof inlet and outlet in different pressure areas.

NOTE: the inlet and outlet must never be positioned on opposing walls.

C82-C82X

Outlet in single or shared flue or with inlet on wall.

C92

Separate outlet and inlet in shared flue pipe.

P: smoke outlet system designed to operate with positive pressure.

X: appliances and corresponding smoke outlet which meet German air-tightness requirements.

Fig. 13

WARNINGS

• The smoke flue and the connection to the flue pipe must be in compliance with the national and local standards and legislation in force in the country where the appliance will be used.
• The use of rigid ducts which are resistant to temperature, condensate, mechanical stress and are air-tight is compulsory.
• Outlet ducts which are not isolated are a risk of danger.

2.11.1 Coaxial duct ( 60/100mm and 80/125mm)

Coaxial accessories

Description	Code
	∅ 60/100 mm	∅ 80/125 mm
Coaxial duct kit 8084813 8084830
Extension W. 1000 mm 8096103 8096130
Extension W. 500 mm 8096102 -
Vertical extension W. 200 mm with smoke analysis take-off point	8086908 -
Adapter for ∅ 80/125 mm - 8093120
Additional 90° curve 8095801 8095820
Additional 45° curve 8095900 8095920
Tile with joint 8091300 8091300
Roof outlet terminal W. 1284 mm 8091200	8091200
Vertical condensation recovery W. 200 mm	8092803 8092803

Load loss - Equivalent lengths

Model	Leq (linear metres)
	60/100 mm	80/125 mm
90° curve 1 1
45° curve 0,5 0,8

Minimum-Maximum Lengths

Model	Duct Length ∅ 60/100 Duct Length ∅ 80/125
	W Horizontal (m)		H Vertical (m)		W Horizontal (m)		H Vertical (m)
	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
Brava One 40 BF	-	3	1,3 (*)	5	3	6	4	7

CAUTION

(*) Vertical condensate recovery MUST be introduced for vertical ducts (Type C32) or vertical sections of the duct (Type C42) longer than 1.3m.

Diaphragms for coaxial ducts

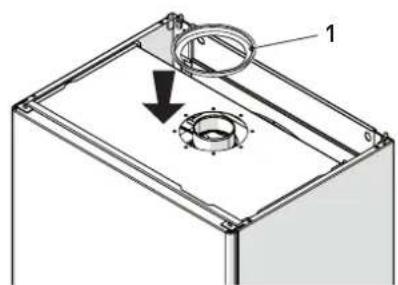

Boilers leave the factory equipped with a diaphragm (1) with the following characteristics:

- Brava One 40 BF: diaphragm ∅ 87.5 mm

Technical diagram of a mechanical assembly with labeled component 1 and directional arrow (no text or symbols beyond labels)

Fig. 14

When the outlets are Type C12 or C42 the diaphragm is to be removed or kept following the indications below:

Model	Diaphragm	for duct L
Brava One 40 BF	YES(leave mounted)	< 1 m
Brava One 40 BF	NO(remove it)	> 1 m

When the outlet is Type C32 (vertically straight without any curves), the presence of the diaphragm modifies the maximum length of the duct as shown below:

Model	Diaphragm	Max L (m)
Brava One 40 BF	YES	2,5
Brava One 40 BF	NO	5

2.11.2 Separate ducts ( 80mm)

Constructing outlets for separate ducts indicates the use of the "air-flue split pipe system". This is to be ordered separately from the boiler and when connected to the other accessories, from those listed in the table below, completes the smoke-outlet/combustion air inlet assembly.

The total maximum length obtained from the length of the outlet and inlet pipes is determined by the load loss of the individual accessories and must not be greater than 15 mm H2O.

Separate accessories

Description	Code
	Diameter ∅ 80 (mm)
Air-flue split pipe system (with take-off point) + Diaphragm	8093020
90° curve M-F (6 pieces)	8077410
90° curve M-F (with take-off point)	8077407
90° curve M-F (insulated)	8077408
Extension W. 1000 mm (6 pieces)	8077309
Extension W. 1000 mm (insulated)	8077306
Extension W. 500 mm (6 pieces)	8077308
Extension W. 135 mm (with take-off point)	8077304
Wall outlet terminal	8089501
Internal and external ring nut kit	8091500
Inlet terminal	8089500
45° curve M-F (6 pieces)	8077411
Condensate recovery W. 135 mm	8092800
Manifold	8091400
Tile with joint	8091300
Roof outlet terminal W. 1390 mm	8091201
Condensate recovery Tee	8093300
Inlet/outlet fitting ∅ 80/125 mm	8091401

Split pipe system

The split pipe system is supplied with the combustion air inlet diaphragm which is to be mounted, after the sections have been eliminated according to the total load loss which is calculated by summing the load losses of the inlet ducts to those of the outlet ducts.

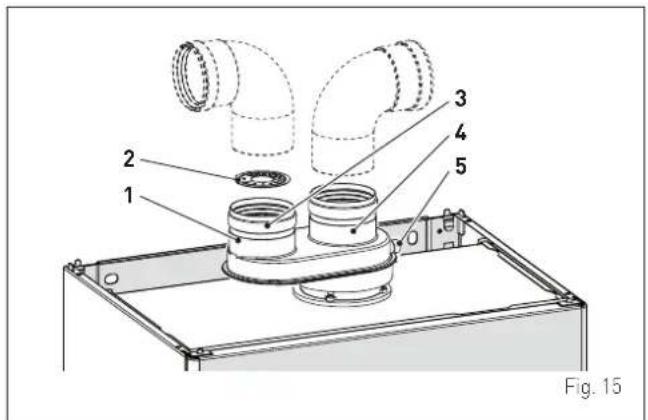

2 1 3 4 5 Fig. 15

KEY:

1 Split pipe system with take-off point
2 Inlet diaphragm
3 Air inlet
4 Smoke outlet
5 Take-off point for smoke analysis

Load loss accessory ∅ 80 mm

Description Code		Load loss (mm H_2O )
		Brava One 40 BF
		Inlet Outlet
90° curve MF 8077410 0,70 1,50
45° curve MF 8077411 0,60 1,00
Horizontal extension W. 1000 mm	8077309 0,40 0,65
Vertical extension W. 1000 mm 8	077309 0,30 0,30
Wall terminal 8089501 0,25 2,00
Condensate recovery Tee 8093300 - 2,20
Roof outlet terminal (*) 8091200 4,00 0,40

(*) The losses of the roof outlet terminal at inlet include the manifold code 8091400.

NOTE: for the boiler to operate correctly it is necessary that a minimum distance of 0.50 m of the duct is respected with a 90° inlet curve.

Example: calculation of the load loss of a Brava One 40 BF boiler.

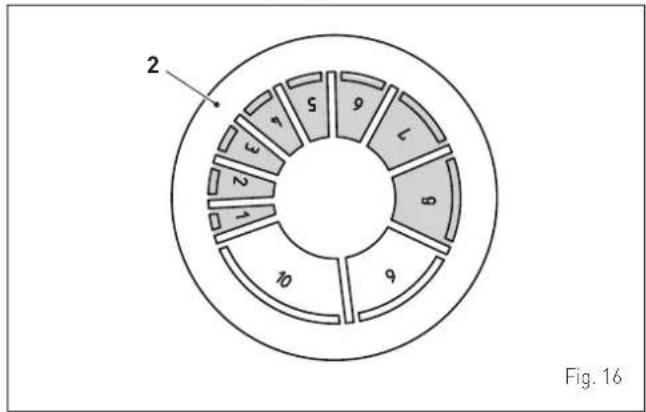

Accessories ∅ 80 mm	Code Quantity		Load loss (mm H2O)
			Inlet Outlet Total
Extension W. 1000 mm (horizontal)	8077309	4	4 x 0,40	-	1,60
Extension W. 1000 mm (horizontal)	8077309	4	-	4 x 0,65	2,60
90° curve	8077410	2	2 x 0,70	-	1,40
90° curve	8077410	2	-	2 x 1,50	3,00
Wall terminal	8089501	2	0,25	2,00	2,25
TOTAL					10,85

(installation permitted since the total of the load loss of the accessories used is less than 15 mmH₂O).

With this total load loss, sections 1 to 8 (inclusive) must be removed from the inlet diaphragm [2].

No. of sections to be removed	Total load loss (mm H2O)
	Brava One 40 BF
1 ÷ 2	0 ÷ 2,0
1 ÷ 4	2,0 ÷ 4,0
1 ÷ 5	4,0 ÷ 6,0
1 ÷ 6	6,0 ÷ 8,0
1 ÷ 7	8,0 ÷ 9,0
1 ÷ 8	9,0 ÷ 11,0
1 ÷ 10	11,0 ÷ 13,0
Entire diaphragm	13,0 ÷ 15,0 (*)

(*) Maximum load loss permitted.

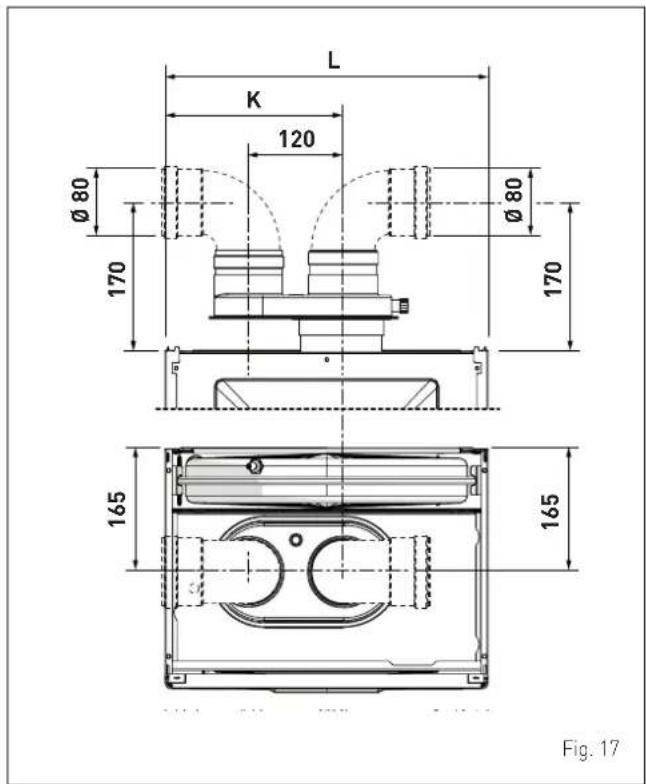

L K 120 Ø80 Ø80 170 170 165 165 Fig. 17

Description	Brava One 40 BF
K (mm)	245
W (mm)	450

2.12 Electrical connections

The power cable must be connected to a 230V (±10%) \~ 50 Hz network, observing L-N polarity and the earth connection. The network must have an omnipolar switch with category III overvoltage, in compliance with the installation rules.

If this cable needs to be replaced, an original spare must be requested from Sime.

Therefore only the connections of the original components as shown in the table are needed. These are to be ordered separately from the boiler.

DESCRIPTION CODE
External sensor kit (β=3435, NTC 10KOhm at 25°C) 8094101
Power cable (dedicated) 6323875
Remote control HOME (open therm) 8092280
Remote control HOME PLUS (open therm) 8092281

CAUTION

The maintenance interventions described must ONLY be carried out the professionally qualified personnel.

WARNING

Before carrying out any interventions described:

• set the main system switch to "OFF"
• close the gas valve
• make sure that no hot parts inside the appliance are touched.

OFF

Fig. 18

To facilitate introduction of the connection wires of the optional components into the boiler:

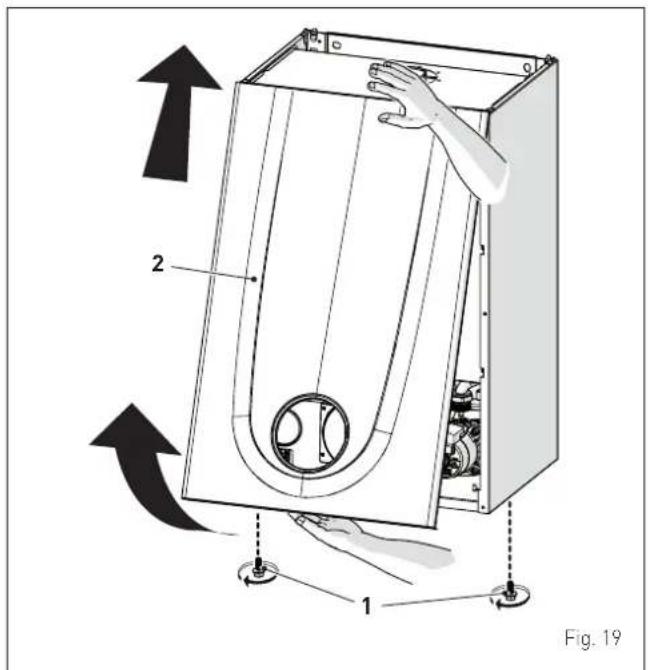

- remove the screws (1), pull the front panel (2) forwards and release it from the top by lifting it

2 1 Fig. 19

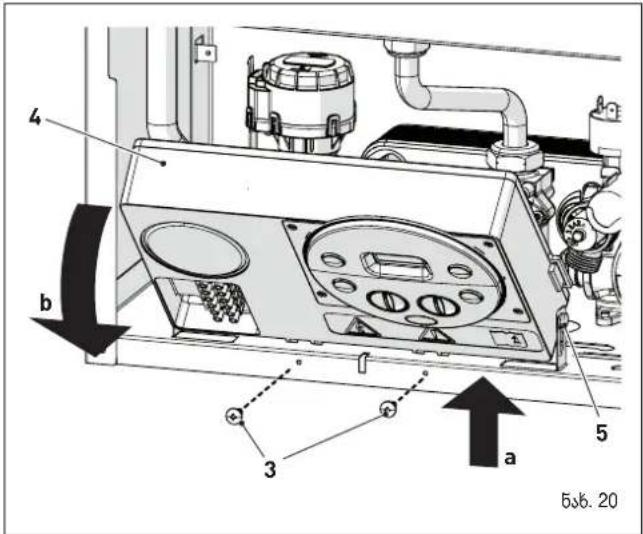

• remove the screws (3) securing the control panel (4)
• move the panel (4) upwards (a) but keeping it in the side guides (5) to the end of travel
• bring it forwards and down (b) until it is horizontal

Fig. 20 a b 3 4 5

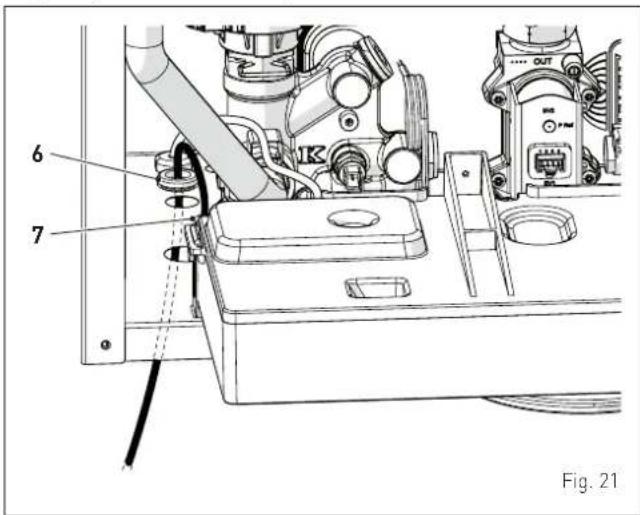

- insert the connection wires into the cable gland (6) and the opening (7) on the control panel

6 7 Fig. 21

• bring the control panel (4) to the original position and secure it with the screws (3) which were removed previously

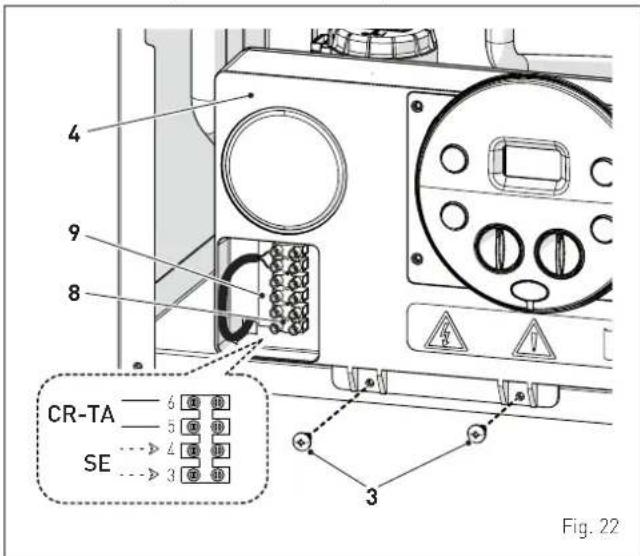

• connect the component wires to the terminal board (8) following the indications provided on the data plate (9).

4 9 8 CR-TA 6 10 10 5 10 10 → 2 10 10 SE → 3 10 10 3 Fig. 22

CAUTION

It is compulsory:

• to use an omnipolar cut-off switch, disconnect switch, in compliance with EN standards (contact opening of at least 3 mm)
• if the power cable is to be replaced, that ONLY a special cable is used with a factory produced re-wired connector, ordered as a spare part and connected by a professionally qualified person
• to connect the earth wire to an effective earthing system (*)
• that before any intervention on the boiler, the mains power is disconnected by setting the main system switch to "OFF".

(*) The manufacturer is not responsible for any damage caused by failure to earth the appliance or failure to observe the information provided in the wiring diagrams.

IT IS FORBIDDEN

To use water pipes for earthing the appliance.

2.12.1 External temperature sensor

The boiler is prearranged for connection to an external air temperature sensor and can operate with a sliding temperature. This means that the delivery temperature sent to the boiler can vary on the basis of the external temperature depending on the climatic curve selected from those shown in the diagram (Fig. 23).

When fitting the sensor on the outside of the building, follow the instructions provided on the packaging of the product itself.

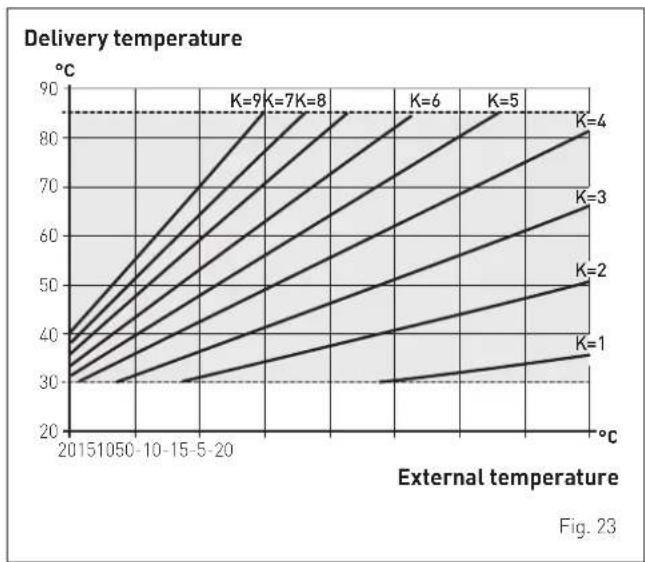

Climatic curve

CAUTION

If there is an external sensor, turn the heating knob until the required curve K has been selected within the range K=0.0 - K=9.0 in order to select the optimal climatic curve for the system and therefore the delivery temperature based on the external temperature.

2.12.2 Chrono-thermostat or Air Thermostat

The electrical connection of the chrono-thermostat or air thermostat has already been described. When fitting the component in the room where the readings are to be taken, follow the instructions provided on the packaging of the product itself.

2.12.3 EXAMPLE of use of the command/control device on some types of heating systems

KEY

M System delivery

R System return

CR Remote control

SE External temperature sensor

TA Air thermostat for boiler activation

TZ1÷TZ3 Air thermostat for the zone

VZ1-VZ3 Zone valves

RL1-RL3 Zone relays

P1-P3 Zone pump

TSB Low temperature safety thermostat

ONE DIRECT ZONE system, external sensor and air thermostat.

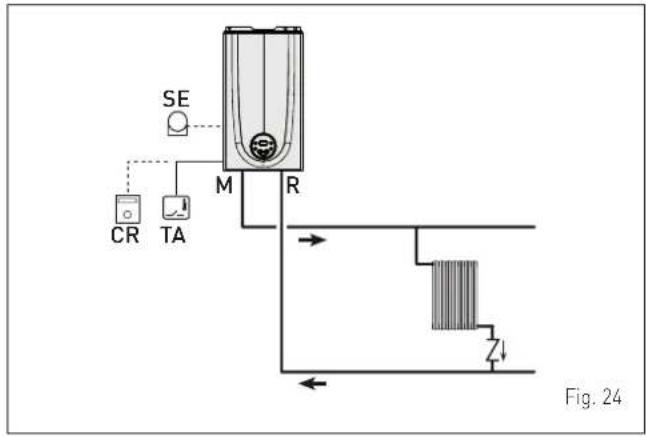

SE M R CR TA Fig. 24

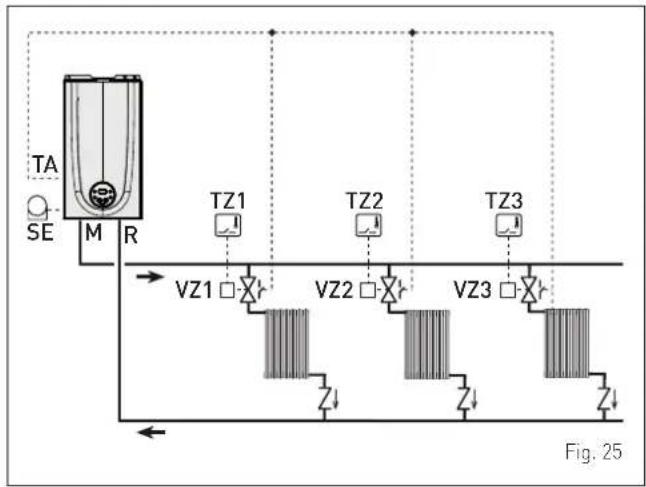

MULTI ZONE system - with zone valve, air thermostat and external sensor.

CAUTION

Set the parameter "tS 1.7 = DELAY SYSTEM PUMP ACTIVATION to allow the opening of zone valve VZ."

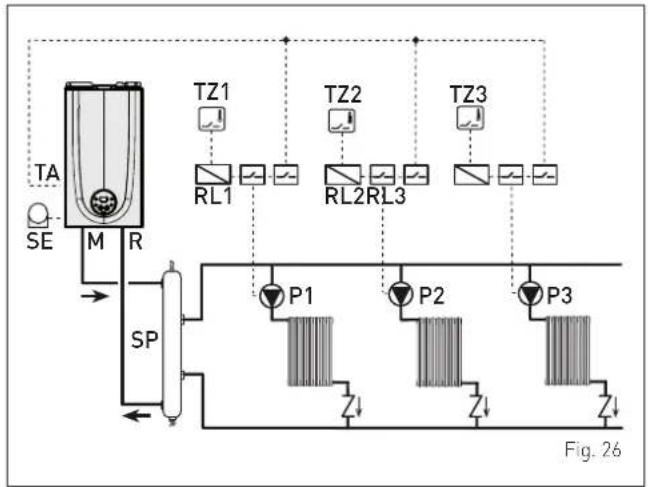

MULTI ZONE system - with pump, air thermostat and external sensor.

CAUTION

Set the parameter "tS 1.7 = DELAY SYSTEM PUMP ACTIVATION to allow the opening of zone valve VZ.

2.13 Refilling or emptying

Before carrying out the operation described below, make sure that the main system switch is set to "OFF".

OFF

Fig. 27

2.13.1 REFILL operations

Remove the front panel:

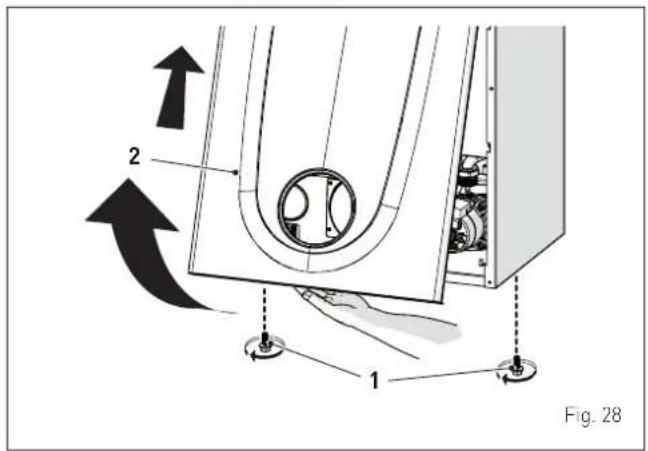

- remove the two screws (1), pull the front panel (2) forwards and release it from the top by lifting it.

2 1 Fig. 28

Domestic hot water circuit:

• open the isolation valves of the domestic hot water circuit (if present)
• open one or more than one hot water valve to fill and bleed the domestic hot water circuit
• once bleeding has been completed, close the hot water valves.

Heating circuit:

• open the isolation and air bleeding valves in the highest points of the system
• loosen the automatic bleed valve (3)
• open the isolation valves of the heating circuit (if present)
• open the filling valve (4) and fill the heating system until a pressure of 1-1.2 bar is shown on the pressure gauge (5)
• close the filling valve (4)
• check that there is no air in the system by bleeding all the radiators and the circuit on the high points of the system
• remove the front plug (6) of the pump and use a screwdriver to check that the impeller is not blocked
• replace the plug (6)

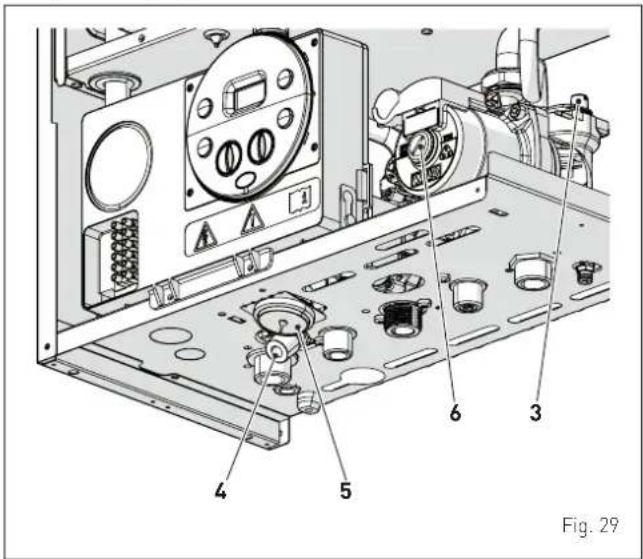

Fig. 29

NOTE: to completely remove all air from the system, it is recommended that this operation is repeated a number of times.

• check the pressure on the pressure gauge (5) and if necessary top up until the correct pressure reading appears
• close the automatic bleed valve (3).

Refit the front panel of the boiler hooking it on at the top, pushing it forwards and securing it with the screw [1] which was removed previously.

2.13.2 EMPTYING operations

Domestic hot water circuit:

• close the domestic hot water circuit isolation valve (prearranged in installation)
• open one or more than one hot water valve to fill and bleed the domestic hot water circuit.

Boiler:

• loosen the automatic bleed valve [3]
• close the heating circuit isolation valves (prearranged in installation)
• check that the filling valve (4) is shut-off

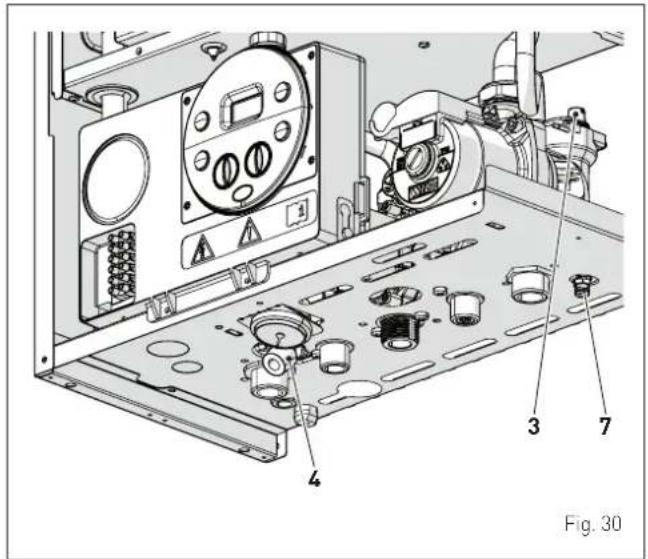

• connect a rubber hose to the boiler drain valve (7) and open it
• when it has fully emptied, close the drain valve (7)
• close the automatic bleed valve (3).

Fig. 30

3 COMMISSIONING

3.1 Preliminary operations

WARNING

- Should it be necessary to access the areas in the bottom part of the appliance, make sure that the system components and pipes are not hot (risk of burning).

- Before replenishing the heating system, put on protective gloves.

Before commissioning the appliance, check that:

• the type of gas is correct for the appliance
• the gas isolation valves for the heating system and the water system are open
• the system pressure as shown on the pressure gauge when the system is cold, is between 1 and 1.2 bar
• the pump impeller rotates freely.

3.2 Before commissioning

After having carried out the preliminary operations, perform the following to start the boiler:

- set the main system switch to "ON"

Fig. 31

- the type of gas for which the boiler has been calibrated, "nG" (methane) or "LG" (LPG,) will appear followed by the power. After this the correct representation of the symbols will be checked and finally "-"will appear on the display

Two black hexagonal shapes inside a rounded rectangle (no text or symbols)

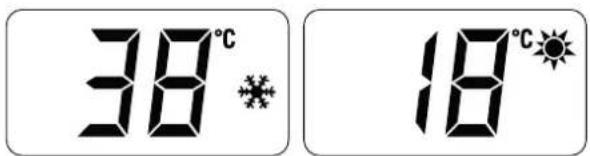

- press the button once for at least 1 second to select "SUMMER mode". The value of the delivery sensor detected at that moment will appear on the display

18°C

- open one or more than one hot water tap. The boiler will work at maximum power until the taps are closed.

- if there is a fault, the message "AL" will appear on the display followed by the fault code (eg. "06" - no flame detected).

AL 06 RESET

CAUTION

If the boiler has blocked, restore the start conditions by pressing and holding the button OK (RESET) for more than 3 seconds. This operation can be carried out no more than 6 times.

• close the taps opened previously and check that the appliance shuts down
• press the button ⏻ once to select "WINTER mode" ⚙. The value of the heating water temperature detected at that moment will appear on the display

38°C *

• adjust the air thermostat and check that the boiler starts and operates correctly
• to check that the pressure in the network and the nozzles are correct, the procedure described in section must be carried out "Chimney sweeper function".

3.3 Parameter setting and display

To go into the parameter menu:

- from the selected mode (eg. WINTER)

38°C *

- press the buttons - and OK (approximately 5 seconds) at the same time until "tS" (installer) appears on the 2 digits of the display which alternate with "0.1" (parameter number) and a "2" (set value)

5 0.1 2

- press the button+ to scroll up the list of parameters and then - to scroll down the list

NOTE: holding the buttons + or - increases the speed of the scrolling movement.

- once the required parameter has been reached, press the button OK for approximately 3 seconds to confirm and access the set value which will then flash and can then be modified

• to modify the value in the permitted range, press the buttons+ to increase it or - to decrease it
• once the required value has been reached, press the button OK to confirm.

When all the parameter modifications have been made, exit the parameter menu by pressing and holding down the buttons—and OK at the same time for approximately 5 seconds until the initial screen is displayed.

3.4 List of parameters

Type No. Description Range U/M Step Default
CONFIGURATION
tS 0.1	Index showing boiler power in kW 2 = 40 - - 2
tS 0.2	Hydraulic configuration		0 = rapid1 = storage tank with thermostat or heating only2 = hot water tank with sensor3 = bithermic4=instant with solar power input	-1	0
tS 0.3	Gas Type Configuration		0 = G201 = G31	-1	0 or 1
tS 0.4	Combustion configuration		0 = sealed chamber with combustion control1 = open chamber with smoke thermostat2 = low NOx	-1	0
tS	0.7	Ignition power	0..40	-	1	0
tS	0.8	External sensor value correction	-5..+5	°C	1	0
DOMESTIC HOT WATER - HEATING
tS	1.0	Boiler Antifreeze Threshold	0..+10	°C	1	3
tS 1.1		External Sensor Antifreeze Threshold-- = Disabled	-9..+5	°C	1	-2
tS	1.2	Heating Curve Incline	0..80	-	1	20
tS	1.3	Minimum Heating Temperature Adjustment	20.. Par tS 1.4	°C	1	20
tS	1.4	Maximum Heating Temperature Adjustment	Par tS 1.3..80	°C	1	80
tS	1.5	Maximum power heating	0..100	%	1	100
tS 1.6	Heating	Post-Circulation Time	0..99	seconds x 10	1	3
tS 1.7	Heating	Pump Activation Delay	0..60	seconds x 10	1	0
tS	1.8	Re-ignition Delay	0..60	Min	1	3
tS 1.9	Domestic Hot Water Modulation with Flow meter		0 = Disabled1 = Enabled	-1	1
tS	2.0	Maximum power domestic hot water	0..100	%	1	100
tS 2.1		Minimum power heating/domestic hot water (premixed)	0..100	%	1	0
tS 2.2	Domestic hot water preheating enabling		0 = OFF1 = ON	-1	0
tS	2.5	Internal parameter (no change)	-	-	-	0
tStS 2.9	2.6	Zone Valve / Pump Relaunch DelayAnti-legionella Function [Only hot water tank]--- = Disabled	0..9950 .. 80 - 1 --	Min	1	1
tS	3.0	Maximum domestic hot water temperature	35 .. 67	°C	1	60
tS 3.5	Digital /	analogue Pressure switch	0 = water pressure switch1 = water pressure transducer2 = water pressure transducer (only pressure displayed)	- 10
tS 4.0	Modulating Pump Speed		--- = No modulationAU = Automatic 30 .. 100	%	10	AU
tS	4.1	ΔT Modulating pump delivery/Return	10 .. 40	%	1	20
tS 4.7	System	pump forcing (only in winter mode)	0 = Disabled1 = Enabled	- 10
RESET
tS	4.8	INST Parameter set to default	0 .. 1	-	-	0

In the event of a fault/malfunction the message "AL" will appear on the display alternating with the alarm number eg. "AL 04" (Domestic Hot Water Sensor Fault).

Before repairing the fault:

- disconnect the appliance from the mains power by setting the main switch to "OFF"

OFF

Fig. 32

Repair the fault and start-up the boiler again.

NOTE: after having repaired the fault, when the alarm number appears on the display together with the message RESET (see figure), press the button OK (RESET) for approximately 3 seconds to start the appliance up again.

06 RESET

- as a precautionary measure, close the gas isolation valve.

3.5 Display of operating data and counters

Once the boiler is operating a qualified technician can view the operating data "In" and the counters "CO" as follows:

- from the operating screen in the mode enabled at that moment (WINTER or SUMMER)

38°C 18°C

- go into "INFO" by pressing the buttons+ and - at the same time for more than 3 seconds until "In" appears alternating with "0.0" (information number) and "25" (eg. value)

In 0.0 25

From this point, the technician has 2 options:

• scroll through the list of "info" and "counters" by pressing the button +. This way, scrolling will be in sequence
• display the "activated alarms" (no more than 10) by pressing the button - . Once in this section, proceed with button + or - .

When all the values have been displayed, exit the menu by pressing and holding down the buttons—and OK at the same time for approximately 5 seconds until the initial screen is displayed.

38°C *

TABLE OF INFORMATION DISPLAYED

Type No.	Description Range U/M Step
In 0.0	SW version
In 0.1	External sensor - 9 .. 99 °C 1
In 0.2		Delivery sensor 1 temperature	- 9 .. 99 °C 1
In 0.3		Delivery sensor 2 temperature	- 9 .. 99 °C 1
In 0.4		Domestic hot water sensor temperature	- 9 .. 99 °C 1
In	0.5	AUX auxiliary sensor	- 9 .. 99	°C	1
In 0.6		Actual heating SET temperature	Par. 13 ... Par. 14	°C 1
In	0.7	Power level	0 .. 99	%	1
In	0.8	Flow meter rate	0 .. 99	l/min	0.1
In 0.9		Water pressure transducer reading (if resent)	0...99 bar	0.1

TABLE OF COUNTER DISPLAYED

Type	No.	Description	Range	U/M	Step
CO	0.0	total no. of boiler operating hours	0..99	h x 1000	0.1; from 0.0 to 9.9; 1; from 10 to 99
CO	0.1	total no. of burner operating hours	0..99	h x 1000	0.1; from 0.0 to 9.9; 1; from 10 to 99
CO	0.2	total no. of burner ignitions	0..99	h x 1000	0.1; from 0.0 to 9.9; 1; from 10 to 99
CO	0.3	total no. faults	0..99	x 1	1
CO	0.4	total no. of times installer parameters "tS" accessed	0..99	x 1	1
CO	0.5	total no. of times OEM parameters accessed	0..99	x 1	1
CO	0.6	time unitl next maintenance intervention	1..199 months		1
CO	0.7	total no. of calibrations	1..199	x 1	1

TABLE OF ACTIVATED ALARMS/FAULTS

Type No.	Description
AL 00	Last activated alarm/fault
AL 01	Last but one activated alarm/fault
AL 02	Third from last activated alarm/fault
AL 03	Prev ous activated alarm/fault
AL 04	Prev ous activated alarm/fault
AL 05	Prev ous activated alarm/fault
AL 06	Prev ous activated alarm/fault
AL 07	Prev ous activated alarm/fault
AL 08	Prev ous activated alarm/fault
AL 09	Prev ous activated alarm/fault

3.6 Checks and adjustments

3.6.1 Chimney sweeper function

The chimney sweeper function is used by the qualified maintenance technician to check the gas pressure at the nozzles, detect the combustion parameters and to measure the combustion efficiency required by legislation in force.

This function lasts 15 minutes and is activated by proceeding as follows:

- if the panel (2) has not already been removed, remove the two screws (1), pull the front panel (2) forwards and release it from the top by lifting it

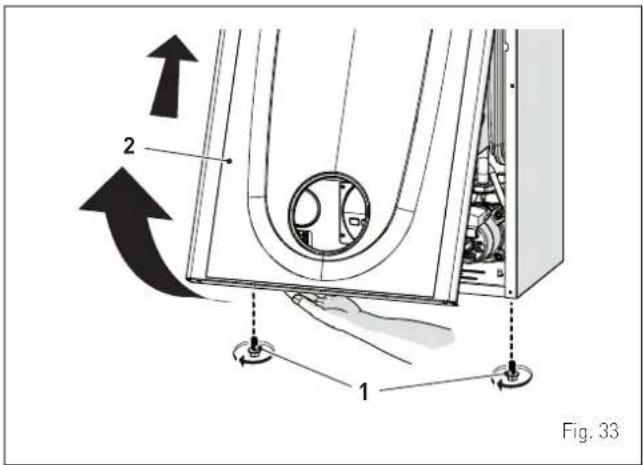

2 1 Fig. 33

• remove the screws (3) securing the control panel (4)
• move the panel (4) upwards (a) but keeping it in the side guides (5) to the end of travel
• bring it forwards and down (b) until it is horizontal

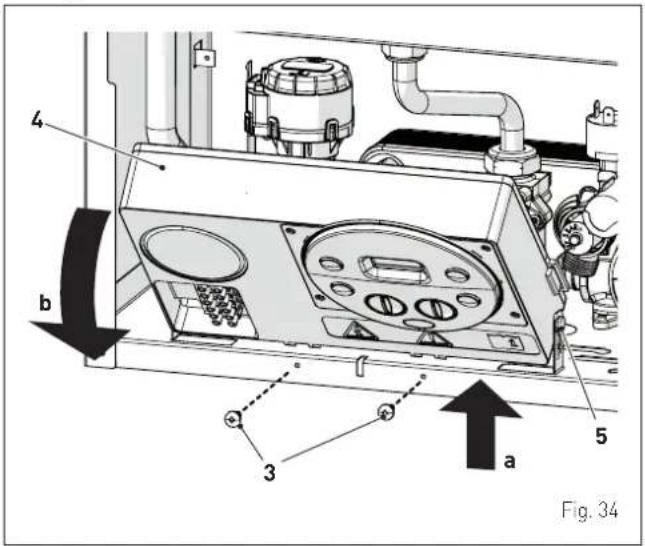

4 b 3 a 5 Fig. 34

• close the gas valve

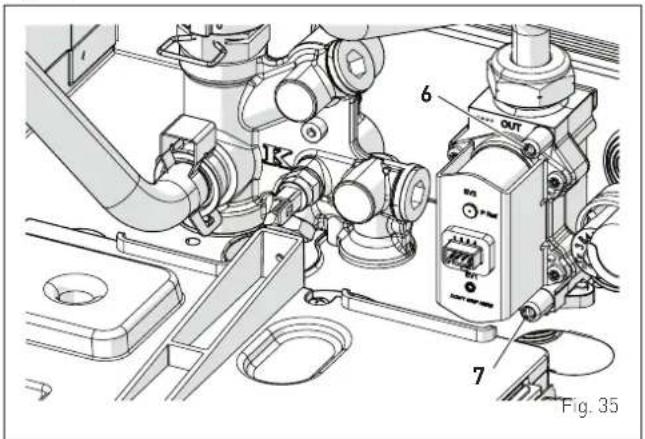

• loosen the "nozzle pressure" point (6) and the screw of the "supply pressure" point (7) and connect each one to a pressure gauge

6 OUT 7 Fig. 35

• open the gas valve
• power the boiler by setting the main switch to "ON"

ON Fig. 36

• press the button ⏻ until "SUMMER" mode ⚙ has been selected
• press the buttons OK and +at the same time for approximately 10 seconds until the message flashes on the display alternating with the temperature of the delivery sensor and the flashing symbols OK and +

• open one or more than one hot water tap
• press the button + to make the boiler operate at maximum power "Hi" and check that the gas pressure values on the pressure gauges correspond to those indicated in the table below.
• press the button — to make the boiler operate at minimum power "Lo" and check that the gas pressure values on the pressure gauges correspond to those indicated in the table below. The message "Lo" will appear on the display together with the flashing symbols (sun) and (snow)

• press the button + once again to make the boiler operate at maximum power. If the gas pressure values are correct it is possible to determine the combustion data and take a reading of the combustion efficiency as provided for by legislation in force
• press the button ⏻ to exit the "Chimney sweep Procedure". The boiler water delivery temperature will appear on the display

• close the taps opened previously and check that the appliance shuts down
• disconnect the pressure gauges, carefully close the pressure points (6) and (7), put the control panel back to the original position and refit the front panel (2).

Gas supply pressure

Type of gas G20 G30 G31
Pressure (mbar) 20 28-30 37

Installation with SPLIT PIPE SYSTEM smoke outlet

Model	Heat Output	Pressure at nozzles (mbar)
		G20 G30	G31
Brava One 40 BF	Max 10,4	-10,8	26,8	27,2 34,8 - 35,2
	min 0,5	0,8	1,2 - 1,5	2,0 - 2,3

Installation with CONCENTRIC smoke outlet

Model	Heat Output	Pressure at nozzles (mbar)
		G20 G30	G31
Brava One 40 BF	Max 11,2	-11,6	26,8	27,2 34,8 - 35,2
	min 0,8	1,1	2,4 - 2,7	2,9 - 3,2

If the gas pressure values are different from the values indicated in the table, adjust the gas nozzle pressure as described in the section below.

3.6.2 Adjusting gas pressure at the nozzles

CAUTION

Considering that:

• the front panel (2) has already been removed and the point (6) is connected to the pressure gauge
• the main system switch must be set to "ON"
• the gas supply must be open
• there must be no current requests for heat ("Summer" mode with hot water valve closed or "Winter" with air thermostats open)
• the adjustments described below must be carried out in sequence.

Adjusting maximum gas pressure:

• turn the domestic hot water knob as far as it will go
• press and hold down the buttons OK and ⏻ at the same time for approximately 6 seconds until the message "MA" appears on the display alternating with "nu"

118

nu

- open one or more than one hot water tap

- the boiler will start up and the message "P01" will appear on the display (Adjusting maximum gas pressure)

P

01

• press the buttons + or - until the pressure value indicated in the table appears on the pressure gauge
• once the value indicated in the table has been reached, press the button ⏻ for approximately 2 seconds to confirm the value which will then flash once.

Adjusting minimum gas pressure:

- press the button OK twice, the message "P00" will appear on the display

p

00

• press the buttons + or - until the pressure value indicated in the table appears on the pressure gauge
• once the value indicated in the table has been reached, press the button ⏻ for approximately 2 seconds to confirm the value which will then flash once.
• press and hold down the buttonsOK and ⏻ at the same time for approximately 6 seconds until the water delivery temperature appears on the display and the boiler shuts down/starts up.

68°C *

- close the valves which were opened previously.

3.7 Gas conversion

Brava One 40 BF models can be converted from operation with G20 (methane) to operation with G30/G31 (LPG) by installing the "Nozzle kit for G30/G31 (LPG) - code 5144725 to be ordered separately from the boiler.

CAUTION

The maintenance interventions described must ONLY be carried out the professionally qualified personnel.

WARNING

Before carrying out any interventions described:

• set the main system switch to "OFF"
• close the gas valve
• make sure that no hot parts inside the appliance are touched.

OFF

Fig. 37

3.7.1 Preliminary operations

To carry out the conversion:

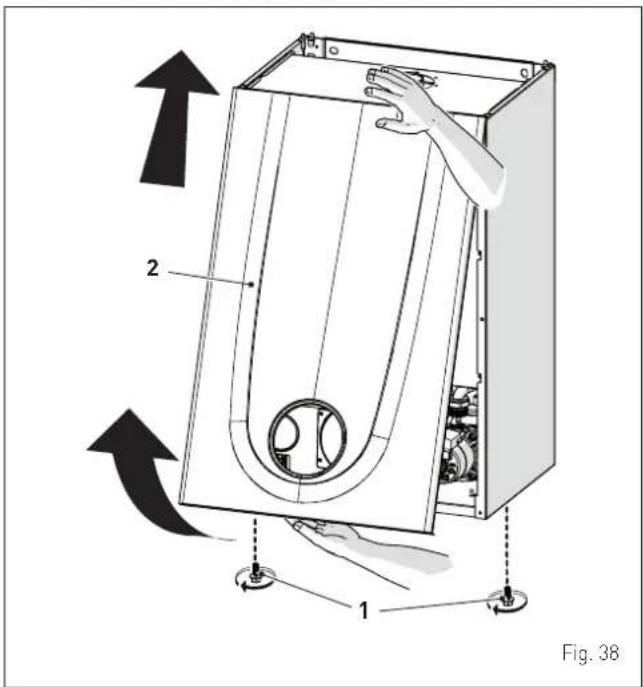

- remove the screws (1), pull the front panel (2) forwards and release it from the top by lifting it

2 1 Fig. 38

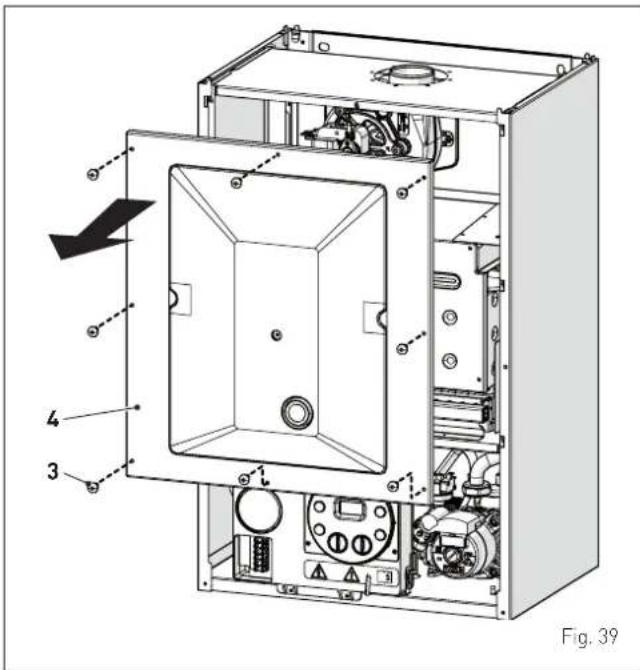

- remove the four screws (3) and remove the front panel (4) from the sealed chamber

Technical diagram of an open industrial machine with numbered components and directional arrows indicating motion or flow.

• remove the four screws (3) and remove the front panel (4) from the combustion chamber (6) working carefully so as not to damage the gasket or the panel insulation

5 6 Fig. 40

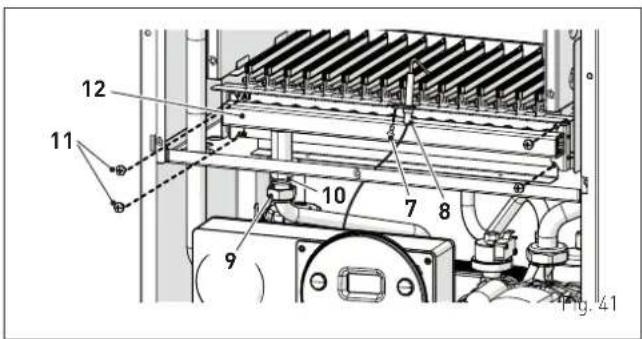

• remove the screw (7) and extract the electrode (8)
• remove the swivel joint (9) and the counter-nut (10)
• remove the screws (11)
• remove the gas manifold (12), replace the nozzles fitted in the factory with the nozzles supplied with the accessory kit and position the gaskets

12 11 10 7 8 9 Fig. 41

• refit the gas manifold (12) securing it with the screws (11)

• tighten the counter-nut (10) and the swivel joint (9) and position the gasket

• refit the electrode (8) putting its end IN THE MIDDLE of the burner element (*)
• check that the gasket and the insulation of the front panel (6) of the combustion chamber and the gasket (13) of the front panel (4) of the sealed chamber are all integral. If they are not, replace them
• refit the panels (6) and (4) securing them with fastening screws

CAUTION (\*)

The position of the electrode is essential for the correct detection of current ionization.

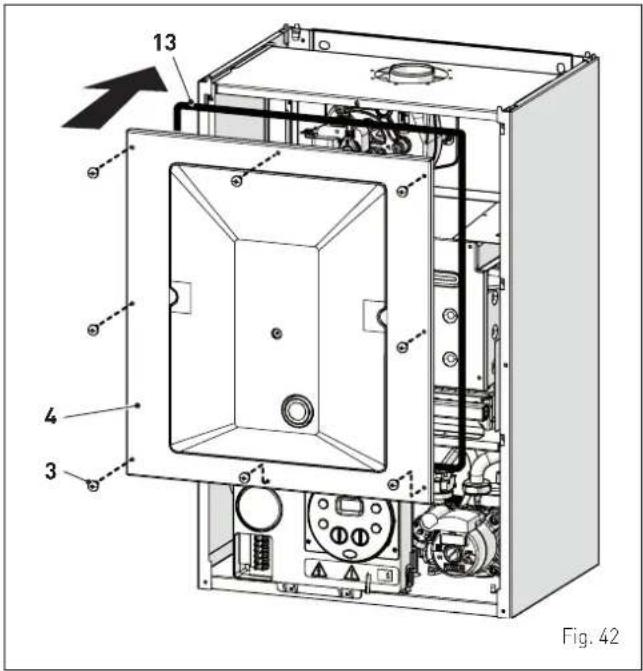

13 4 3 Fig. 42

• apply the label indicating the new gas configuration on the technical plate (14) on the inside of the front panel
• carry out the "Automatic calibration procedure" and then refit the front panel (2) securing it with the two screws (1).

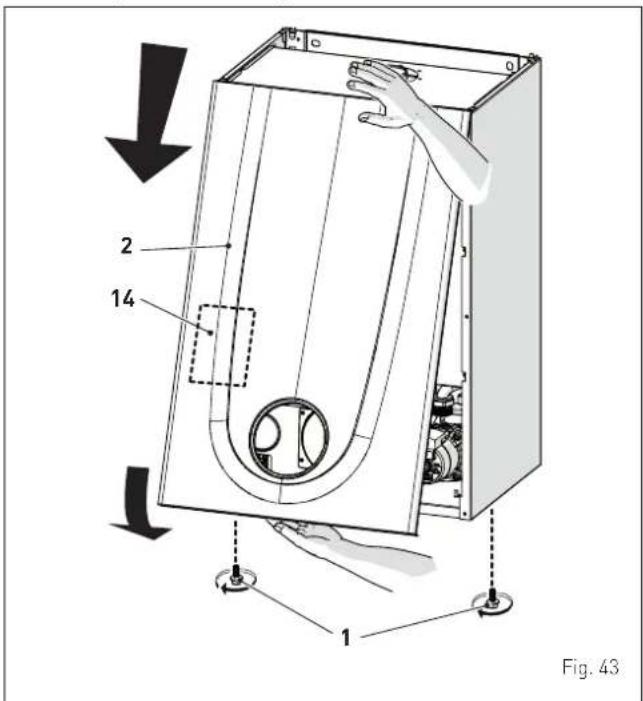

2 14 1 Fig. 43

3.8 Automatic calibration procedure

This procedure MUST ALWAYS be performed when the appliance is first turned on, when the gas is changed and after replacing:

• the nozzles for gas conversion
• the gas valve following a fault
• the electronic board following a fault
• electrode
• fan
• burner

and is necessary so that the new components can be identified and can communicate with those already fitted on the boiler.

CAUTION

Considering that:

• the front panel has been removed, the control panel has been brought forward and down and that the points (6) and (7) of the gas valve have been connected to the pressure gauges
• the main system switch must be set to "ON"
• the gas supply must be open
• there must be no current requests for heat ("Summer" mode with hot water valve closed or "Winter" with air thermostats open)
• the adjustments described below must be carried out in sequence.

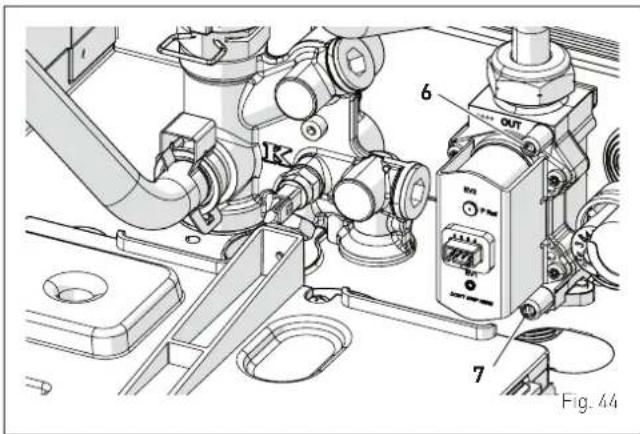

6 OUT 7 Fig. 44

Procedure valid for GAS CONVERSION

- go into the parameter section by pressing the buttons— and OK (approximately 5 seconds) at the same time until "tS" (installer) appears on the 2 digits of the display which alternate with "0.1" (parameter number) and a "2" (set value)

NOTE: holding the buttons + or - increases the speed of the scrolling movement. Pressing the button - allows the user to scroll through the previous parameters.
- keep the button + pressed and scroll through the parameters until reaching parameter "0.3"

- press the button OK to confirm (approximately 3 seconds) and access the default value which is flashing

0

• press the button+ and select "1" (LPG)
• press the button OK for at least 3 seconds to confirm the modification. the value will stop flashing.

Procedure which MUST be carried out after:

• the nozzles for gas conversion
• changing the gas valve following a fault
• changing the the electronic board following a fault
• electrode
• fan

• burner

• go into the parameter section (if not already there) by pressing the buttons - and OK (approximately 5 seconds) at the same time until "tS" (installer) appears on the 2 digits of the display which alternate with "0.1" (parameter number) and a "2" (set value)

• keep the button + pressed and scroll through the parameters until reaching parameter "tS 4.9"

- press the button OK to confirm (approximately 3 seconds) and access the default value which is flashing

0

- press the button+ or - to set the valueat "49"

49

• press the button OK to confirm the modification The value will stop flashing
• keep the button + pressed and scroll through the parameters until reaching parameter "tS 7.0"

- press the button OK to confirm (approximately 3 seconds) and access the default value which is flashing

- press the button+or - to set the value "5"

- press the button OK to confirm the modification The value will stop flashing

15

7.0

5

- exit the parameter section by pressing and holding down the buttons - and OK at the same time (approximately 5 seconds) until the delivery temperature is displayed.

68°C

IMPORTANT

To complete this task the user MUST carry out the following procedure.

Adjusting maximum gas pressure:

• press the button ⏻ until "SUMMER" mode ⚙has been selected
• turn the domestic hot water knob as far as it will go.
• press and hold down the buttons OK and ⏻ at the same time for approximately 6 seconds until the message "Au" appears on the display alternating with "to"

A_u

to

- open one or more than one hot water tap

- the boiler will start up and the message "P01" will appear on the display (Adjusting maximum gas pressure)

P

01

• press the buttons+ or - until the pressure value indicated in the table appears on the pressure gauge
• once the value indicated in the table has been reached, press the button ⏻ for approximately 2 seconds to confirm the value which will then flash once.

Adjusting minimum gas pressure:

- press the button OK twice, the message "P00" will appear on the display

P

00

• press the buttons + or - until the pressure value indicated in the table appears on the pressure gauge
• once the value indicated in the table has been reached, press the button ⏻ for approximately 2 seconds to confirm the value which will then flash once
• press and hold down the buttonsOK and ⏻ at the same time for approximately 6 seconds until the water delivery temperature appears on the display and the boiler shuts down

68°C

• close the valves which were opened previously
• disconnect the pressure gauges, carefully close the pressure points (6) and (7), put the control panel back to the original position and refit the front panel (2).

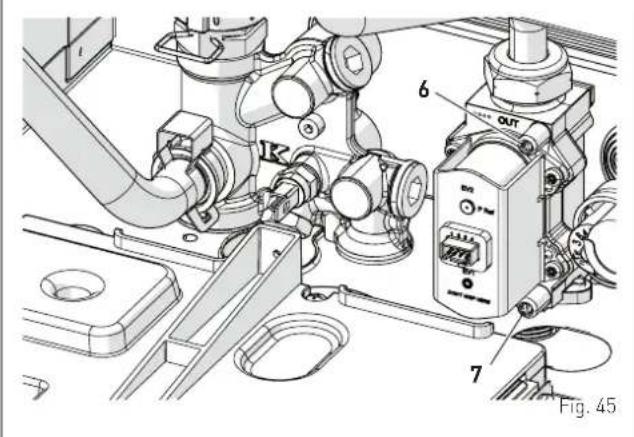

6 OUT 7 Fig. 45

Gas supply pressure

Type of gas G20 G30 G31
Pressure (mbar) 20 28-30 37

Installation with SPLIT PIPE SYSTEM smoke outlet

Model	Heat Output	Pressure at nozzles (mbar)
		G20 G30	G31
Brava One 40 BF	Max 10,4	-10,8	26,8	27,2 34,8 - 35,2
	min 0,5	0,8	1,2 - 1,5	2,0 - 2,3

Installation with CONCENTRIC smoke outlet

Model	Heat Output	Pressure at nozzles (mbar)
		G20 G30	G31
Brava One 40 BF	Max 11,2	-11,6	26,8	27,2 34,8 - 35,2
	min 0,8	1,1	2,4 - 2,7	2,9 - 3,2

4 MAINTENANCE

4.1 Adjustments

For the appliance to operate correctly and efficiently it is recommended that the User calls upon the services of a Professionally Qualified Technician to carry out ANNUAL maintenance.

CAUTION

• The maintenance interventions described must ONLY be carried out the professionally qualified personnel who MUST wear suitable protective safety equipment.
• Make sure that the system components and pipes are not hot (risk of burning).

WARNING

Before carrying out any interventions described:

• set the main system switch to "OFF"
• close the gas valve
• make sure that no hot parts inside the appliance are touched.

OFF

Fig. 46

4.2 External cleaning

4.2.1 Cleaning the cladding

When cleaning the cladding, use a cloth dampened with soap and water or alcohol for stubborn marks.

IT IS FORBIDDEN

to use abrasive products.

4.3 Cleaning the inside of the appliance

4.3.1 Cleaning the heat exchanger

To clean the heat exchanger:

- remove the screws (1), pull the front panel (2) forwards and release it from the top by lifting it

2 1 Fig. 47

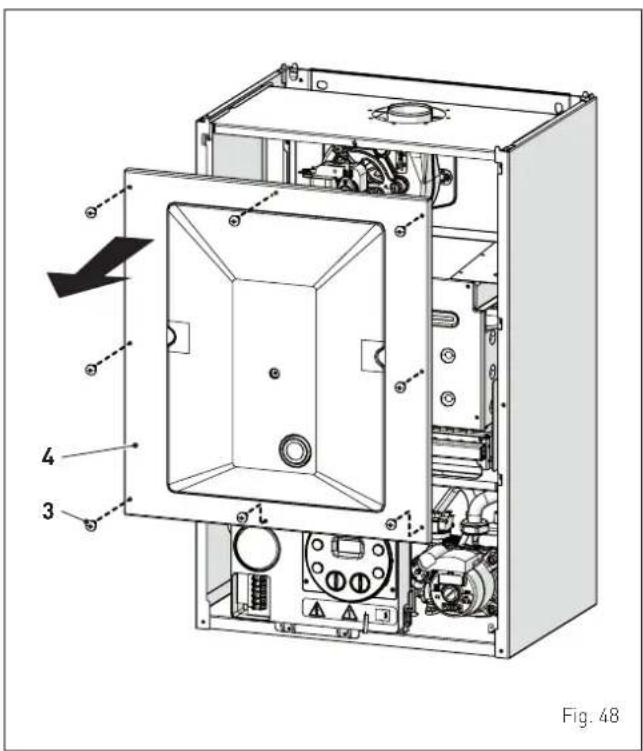

- remove the four screws (3) and remove the front panel (4) from the sealed chamber

Fig. 48

- remove the four screws (3) and remove the front panel (4) from the combustion chamber (6) working carefully so as not to damage the gasket or the panel insulation

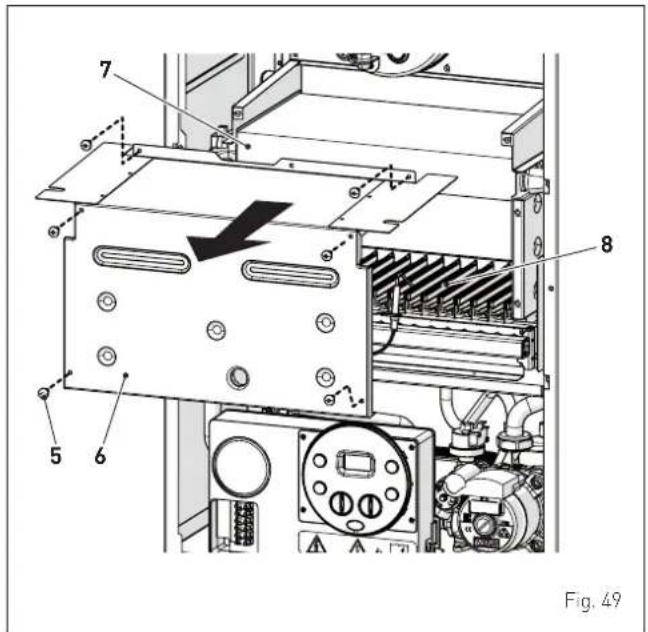

7 8 5 6 Fig. 49

- if there is any dirt on the heat exchanger (7) fins, protect the burner elements (8) covering them with a sheet of newspaper or a cloth and brush the heat exchanger (7) clean.

4.3.2 Cleaning the burner

The burner does not require any particular maintenance simply dust it with a soft brush.

4.3.3 Checking the ignition/detection electrode

Check the state of the ignition/detection electrode and replace if necessary. Check the measurements as per the drawing whether the ignition/detection electrode is replaced or not.

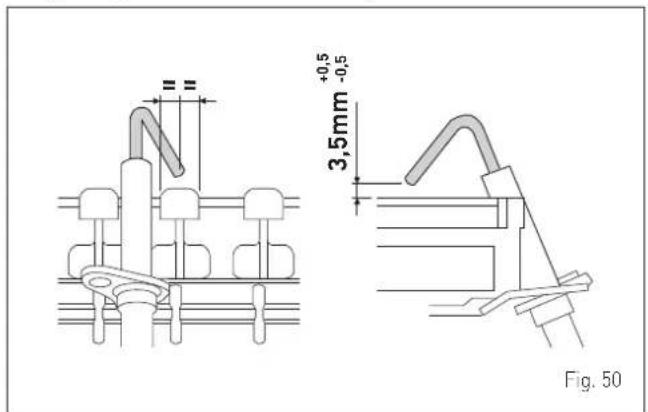

H H 3,5mm +0.5 -0.5 Fig. 50

CAUTION

The position of the electrode is essential for the correct detection of current ionization.

After having cleaned the heat exchanger and the burner:

- remove any carbon residue using a vacuum cleaner - check that the gasket and the insulation of the front panel (6) of the combustion chamber and the gasket (13) of the front panel (4) of the sealed chamber are all integral. If they are not, replace them

- refit the panels (6) and (4) securing them with fastening screws.

4.3.4 Final operations

After having cleaned the heat exchanger and the burner:

• remove any carbon residue using a vacuum cleaner
• check that the gasket and the insulation of the front panel (6) of the combustion chamber and the gasket (13) of the front panel (4) of the sealed chamber are all integral. If they are not, replace them
• refit the panels (6) and (4) securing them with fastening screws.

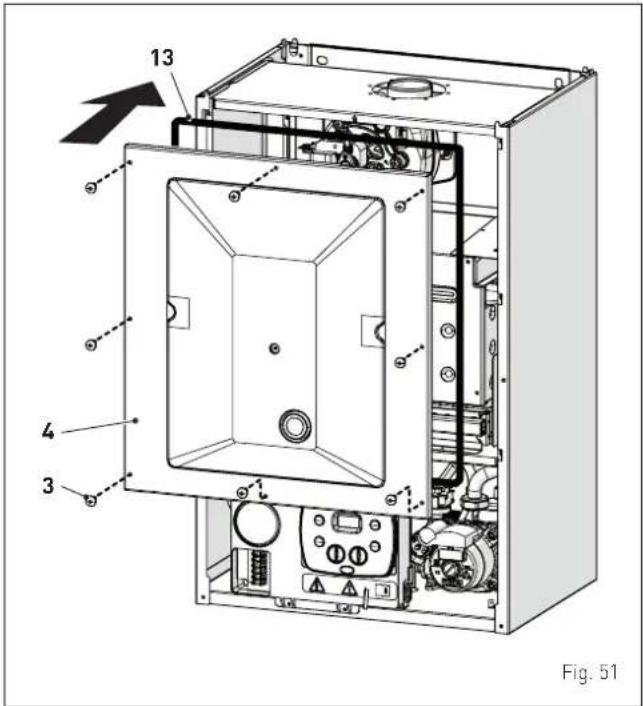

13 4 3 Fig. 51

4.4 Checks

4.4.1 Checking the smoke duct

It is recommended that the user checks that the combustion air inlet duct and smoke outlet duct are integral and airtight.

4.4.2 Checking the expansion vessel pressure

It is recommended that the expansion vessel on the water side is drained and that the prefilling pressure is not less than 1 bar. If this is not the case, pressurize it to the correct value (see section "Expansion vessel".

Once the checks described above have been completed:

• refill the boiler as described in section "REFILL operations"
• start the boiler up and carry out a smoke analysis and/or measure the combustion efficiency.
• refit the front panel securing it with the two screws which were removed previously

4.5 Unscheduled maintenance

If replacing the electronic board, the user MUST set the parameters as indicated in the table and in the sequence shown.

Type No.	Description Setting
tS 0.1		Index showing boiler power in kW2 = 40
tS 0.2		Hydraulic configuration0 = rapid1 = storage tank with thermostat or heating only2 = hot water tank with sensor3 = bithermic4=instant with solar power input
tS 0.3		Gas Type Configuration0 = G20; 1 = G31
tS 0.4		Combustion configuration0 = sealed chamber with combustion control1 = open chamber with smoke thermostat2 = low NOx

To enter "Parameter setting and display" refer to the indications provided in the specific section.

Once the parameters in the table have been set, you must carry out the "Automatic calibration procedure".

If the gas valve and/or the ignition/detection electrode and/or the fan are replaced, the user must still carry out the entire phase of "Automatic calibration procedure" described in the specific section.

4.6 Malfunction codes and possible solutions

LIST OF MALFUNCTION/FAULT ALARMS

Type No. Fault Solution
AL 01	Smoke	thermostat	- Contact the Technical Assistance Centre
AL 02		Low water pressure in system	- Restore pressure- Check for any leaks in the system
AL 04		Domestic hot water sensor fault (return sensor fault for T models)	- Check connections- Check the sensor is working
AL 05	Delivery	sensor fault	- Check connections- Check the sensor is working
AL 06	No flame detection		- Check the integrity of the electrode and check that it is not grounded- Check gas availability and pressure- Check the integrity of the gas valve and the card
AL 07		Sensor or safety thermostat intervenes	- Check the sensor or thermostat connections- Deaerate the system- Check the bleed valve- Replace the sensor or the thermostat- Check that the pump impeller is not blocked
AL 08		Fault in the flame detection circuit	- Check the integrity of the electrode and check that it is not grounded- Check the integrity of the gas valve and the card
AL 09		No water circulating in the system	- Check the rotation of the pump rotor- Check the electrical connections- Replace the pump

Type No. Fault Solution
AL 10	Auxiliary sensor fault		- Check the hydraulic configuration using "tS 0.2"- Check the electrical connection
AL 11		Gas valve modulator disconnected	- Check the electrical connection
AL 12		Domestic hot water sensor fault in tank mode	- Set the parameter tS 0.4 [Combustion configuration] to 0
AL 13		Smoke probe intervention	- Check the sensor is working- Replace the smoke probe
AL 14	Smoke probe fault		- Replace the smoke probe- Check the electrical connection of the smoke probe- Contact the Technical Assistance Centre
AL 15		Fan check cable disconnected	- Check the connection cable between the fan and the board
AL 18	Condensate level fault		- Check for any clogging in the pipe which takes the condensate to the siphon- Check that the siphon is not clogged
AL 28		Maximum number of consecutive resets reached	- Wait 1 hour and try unblocking the board again- Contact the Technical Assistance Centre
AL 30		Return sensor fault (boiler sensor fault for T models)	- Replace the return probe- Check parameters- Contact the Technical Assistance Centre
AL 37		Fault due to low network voltage	- Check the voltage- Contact your network provider
AL 40		Incorrect network frequency detected	- Contact your network provider
AL 41		Flame loss more than 6 consecutive times	- Check the ignition/detection electrode- Check the gas supply (open valve)- Check mains gas pressure
AL 42	Button	fault	- Check that buttons are working
AL 43		Open Therm communication fault	- Check the OT electric connection
AL 44		No flame valve opening time sum anomaly	- Check for the presence of water hammer on the hot water system and, if present, mount a water hammer arrestor- Check for any abnormal requests on the room thermostat- Contact the Technical Assistance Centre
AL 56		Lock for ΔT delivery/return over max limit (open vent)	- Contact the Technical Assistance Centre
AL 57		Lock for flow temperature (FT) check (open vent)	- Contact the Technical Assistance Centre
AL 62		Self-calibrating procedure is required	- Carry out the self-calibrating procedure (see the specific section)
AL 72		Incorrect positioning of the delivery sensor	- Check delivery sensor operation and position
AL 74		Second delivery sensor fault	- Check second delivery sensor operation and position
AL 77		EV2 SGV current max/min absolute limits error	- Check gas valve and board
AL 78		EV2 SGV current upper limit error	- Check gas valve and board

Type No.	Fault Solution
AL 79		EV2 SGV current lower limit error
AL 80		Fault on the valve control logic line/valve cable damaged
AL 81		Block due combustion during start-up
AL 82		Block due to numerous combustion control failures
AL 83		Irregular combustion (temporary error)
AL 84		Flow rate reduced for (presumed) low pressure on mains gas
AL 88		Internal error (board component protection)
AL 89		Unstable combustion feedback signal error
AL 90		Combustion set cannot be reached error
AL 92		System has reached maximum air correction error (at the minimum flow rate)
AL 93		Combustion set cannot be reached error
AL 95		Flame signal micro interruptions error
AL 96		Block due to clogging in smoke outlet
AL 98		SW error, board start-up
AL 99	General board error	- Contact the Technical Assistance Centre
-	-	Frequent relief valve intervention
-	-	Limited production of domestic hot water

4.6.1 Maintenance request

When it is time to perform maintenance on the boiler, "SE" shows on the display.

5E

Contact the technical assistance service to organise the necessary work.

AVERTISSEMENTS ET RÈGLES DE SÉCURITÉ

AVERTISSEMENTS

Technical diagram of an internal combustion chamber with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 11 through 16.

Fig. 2

1.6 Circuit hydraulique principal

1 2 3 4 5 6 7 8 MUGER 13 11 12 14 S 9 10 16 Fig. 3

LÉGENDE :

Isometric line drawing of a cardboard box with visible shipping containers and decorative symbols (no text or labels)

Fig. 7

Technical line drawing of a rectangular device with labeled dimensions H, L, and P (no text or symbols on the diagram itself)

Fig. 8

Description	Brava One 40 BF
L (mm) 450
P (mm) 340
H (mm) 700
Poids (kg) 36

2.3 Déplacement

Illustration of hands holding a box with a circular inset showing a disc, no text or symbols present

IL EST INTERDIT

Technical diagram of a door panel with labeled components and directional arrows indicating assembly or movement.

Fig. 11

AVERTISSEMENTS

Technical diagram of a mechanical assembly with labeled component 1 and directional arrow (no text or symbols beyond labels)

Fig. 14

Diagram of a refrigerator interior with labeled parts and directional arrows indicating mechanical or electrical components.

Fig. 19

Fig. 23

AVERTISSEMENTS

Technical diagram showing mechanical components with numbered parts and directional arrows indicating motion or assembly.

Fig. 28

Circuit sanitaire :

Two black hexagonal shapes on a white background, enclosed in a rounded rectangle (no text or symbols)

In 0.0 25

Technical diagram of an internal combustion chamber with numbered components for identification

1 Вентилятор

Technical diagram of a mechanical device with numbered components labeled 11 through 16.

Рис. 2

Рис. 4

Isometric line drawing of a cardboard box with visible internal compartments and buttons (no text or symbols)

Рис. 7

Technical line drawing of a rectangular electronic device with labeled dimensions H, L, and P (no text or symbols on the device itself)

Рис. 8

Illustration of hands opening a microwave oven with a lid and vent, showing airflow direction (no text or symbols)

Рис. 9

ЗАПРЕЩЕНО

Technical diagram of a mechanical assembly with labeled component 1 and directional arrow (no text or symbols beyond labels)

Рис. 14

Two black hexagonal shapes on a white background, enclosed in a rounded rectangle (no text or symbols)

In 0.0 25

Isometric diagram of a cardboard box with labeled components and arrows indicating movement (no text or symbols present)

2

Fondsie SME a P. S. L. Legrag - VR (Jul) - Tel: [phone]. CALDAA GAG 2. Modale 3. Modale 4. Modale 5. Modale 6. Modale 7. Modale 8. Modale 9. Modale 10. Modale 11. Modale 12. Modale 13. Modale 14. Modale 15. Modale 16. Modale 17. Modale 18. Modale 19. Modale 20. Modale 21. Modale 22. Modale 23. Modale 24. Modale 25. Modale 26. Modale 27. Modale 28. Modale 29. Modale 30. Modale 31. Modale 32. Modale 33. Modale 34. Modale 35. Modale 36. Modale 37. Modale 38. Modale 39. Modale 40. Modale 41. Modale 42. Modale 43. Modale 44. Modale 45. Modale 46. Modale 47. Modale 48. Modale 49. Modale 50. Modale 51. Modale 52. Modale 53. Modale 54. Modale 55. Modale 56. Modale 57. Modale 58. Modale 59. Modale 60. Modale 61. Modale 62. Modale 63. Modale 64. Modale 65. Modale 66. Modale 67. Modale 68. Modale 69. Modale 70. Modale 71. Modale 72. Modale 73. Modale 74. Modale 75. Modale 76. Modale 77. Modale 78. Modale 79. Modale 80. Modale 81. Modale 82. Modale 83. Modale 84. Modale 85. Modale 86. Modale 87. Modale 88. Modale 89. Modale 90. Modale 91. Modale 92. Modale 93. Modale 94. Modale 95. Modale 96. Modale 97. Modale 98. Modale 99. Modale 100. Modale

Technical line drawing of a rectangular appliance with internal components and labeled parts (no text or symbols present)

536.1

###

Technical diagram of an internal combustion chamber with numbered components for identification

1 3250000000

Technical diagram of a mechanical device with numbered components labeled 11 through 16.

536.2

RESET " Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan,

“ Debana hysema”. gh bodanam ksh, omy gjgmo hysema dcmmb3bomno, sb bs33adymol dghgouzol ghydegoss hskomwano; ob godogodbl gjgmo hysema fghdgmhyuom sghg0lsb.

5-6 3m60s000000000000000000000000000000000000000

FLM 6330000 3346000

VD 35058023700 15693700

PA 6y5000 65300 69000

Isometric line drawing of a rectangular box with internal compartments and mounting holes (no text or symbols)

636.7

Technical line drawing of a rectangular device with internal components and dimension labels H, W, D (no text or symbols beyond labels)

536.8

Illustration of hands holding a rectangular device with a circular component and a lid, showing internal components and directional arrows (no text or symbols)

Technical diagram of a device with labeled components and directional arrows indicating assembly or assembly steps.

636.11

###

sōfān lājīmānshā dāmānghān bāngfēngdās bāmānghān yābān dāgānshādāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmāngdāmān

300000000000000000000000000000000000000000000000

ජාඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩිඩී

∂ωροχω	Lj3 (θιξωσο 0 θιξωδο)
	∅ 60/100 ∅ ∅	80/125 ∅
90°-ω5ο 0.1
45°-ω5ο 0,5 0,8

ඩි/ඩාන්‍ය දාවිකාන්

Technical diagram of a mechanical assembly with labeled component 1 and directional arrow (no text or symbols beyond labels)

636.14

C12 56 C42 00305 yadmluzsunobonzol qonsgmsgds ybqos dmonblub, s6 ydgmhngyngj dzgdmordmyzshogmol zomzumolj06800:

Δαγαγαγα	φαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγα γαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαναγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγα
Brava One 40 BF	30(φαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγ αγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγιαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγα	<1 δ
Brava One 40 BF	575(Δαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαγαδος)	>1δ

C32 0305 gudmuzsamouozol (3gthjiozunyng bghmdo, bodmuggdoz gngd), gousgndnab shlgdmos gzmmob daflodgdu. dombo huzdggdo j3gdmoss dmyzdoqmo:

Diagram of a refrigerator interior with labeled parts and directional arrows indicating motion or movement

536.19

• მონსერით ნრანები (3), რომლითაც საკონტროლო კანელი (4) არის დამაცრებული
• ুষ্ঠিয়া সূশুরু (4) শুলার (a), বুষ্ঠিয়া সূশুরু দোদসমুসৃগুদার (5) পুষ্ঠিয়া দুয়নমাড়া
• Assamhogon ob fob (b) 3mmbgugmugn dorgmdsgmoudog

4 b a 3 5 5.6. 20

###

Two black diamond shapes on a white background, enclosed in a rounded rectangle (no text or symbols)

"AL" "04" - zh. hyomob lgbumboh "AL"

Technical diagram of a mechanical assembly with labeled components and part numbers

• 356186000 50700 159932000
• 3500000000000000000000000000000000000000000000000

ON 5.6. 36

• செற்றுக்கு மாய்பத் இலக்கு தூக்கு மொழானு உரமைக்கு மொழானு "வாத்தியா" செற்றுக்கு மொழானு
• φασβασγον φασμαζδύ ΟΚ ρς + γισμαρφίμ-γυμσρ, φασβασγόδον 10 ḥδόδυ δυδαζεμπάδο, 3ορχή φασμαρφίμ-γυμσρ δυδαζεμπάδον σή ασθαρφόδυ δοφμαρφόδυ λυβλυπόν Ḥγαδαζεμπάδυ χρς νοδασγασγόδο ΟΚ ρς +

Technical diagram of an open industrial machine with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical assembly with labeled components and part numbers

Technical diagram of a mechanical assembly with labeled components and part numbers

العربية

Technical diagram of an open industrial machine with numbered components and directional arrows indicating flow or movement.

13 4 3 5x6.51

4.4

4.4.1 Leszasdʒnol dʒdʒdʒdʒ

( \text{Fig.3} ) ( \text{Fig.4} ) ( \text{Fig.5} ) ( \text{Fig.6} ) ( \text{Fig.7} ) ( \text{Fig.8} ) ( \text{Fig.9} ) ( \text{Fig.10} ) ( \text{Fig.11} ) ( \text{Fig.12} ) ( \text{Fig.13} ) ( \text{Fig.14} ) ( \text{Fig.15} ) ( \text{Fig.16} ) ( \text{Fig.17} ) ( \text{Fig.18} ) ( \text{Fig.19} ) ( \text{Fig.20} ) ( \text{Fig.21} ) ( \text{Fig.22} ) ( \text{Fig.23} ) ( \text{Fig.24} ) ( \text{Fig.25} ) ( \text{Fig.26} ) ( \text{Fig.27} ) ( \text{Fig.28} ) ( \text{Fig.29} ) ( \text{Fig.30} ) ( \text{Fig.31} ) ( \text{Fig.32} ) ( \text{Fig.33} ) ( \text{Fig.34} ) ( \text{Fig.35} ) ( \text{Fig.36} ) ( \text{Fig.37} ) ( \text{Fig.38} ) ( \text{Fig.39} ) ( \text{Fig.40} ) ( \text{Fig.41} ) ( \text{Fig.42} ) ( \text{Fig.43} ) ( \text{Fig.44} ) ( \text{Fig.45} ) ( \text{Fig.46} ) ( \text{Fig.47} ) ( \text{Fig.48} ) ( \text{Fig.49} ) ( \text{Fig.50} ) ( \text{Fig.51} ) ( \text{Fig.52} ) ( \text{Fig.53} ) ( \text{Fig.54} ) ( \text{Fig.55} ) ( \text{Fig.56} ) ( \text{Fig.57} ) ( \text{Fig.58} ) ( \text{Fig.59} ) ( \text{Fig.60} ) ( \text{Fig.61} ) ( \text{Fig.62} ) ( \text{Fig.63} ) ( \text{Fig.64} ) ( \text{Fig.65} ) ( \text{Fig.66} ) ( \text{Fig.67} ) ( \text{Fig.68} ) ( \text{Fig.69} ) ( \text{Fig.70} ) ( \text{Fig.71} ) ( \text{Fig.72} ) ( \text{Fig.73} ) ( \text{Fig.74} ) ( \text{Fig.75} ) ( \text{Fig.76} ) ( \text{Fig.77} ) ( \text{Fig.78} ) ( \text{Fig.79} ) ( \text{Fig.80} ) ( \text{Fig.81} ) ( \text{Fig.82} ) ( \text{Fig.83} ) ( \text{Fig.84} ) ( \text{Fig.85} ) ( \text{Fig.86} ) ( \text{Fig.87} ) ( \text{Fig.88} ) ( \text{Fig.89} ) ( \text{Fig.90} ) ( \text{Fig.91} ) ( \text{Fig.92} ) ( \text{Fig.93} ) ( \text{Fig.94} ) ( \text{Fig.95} ) ( \text{Fig.96} ) ( \text{Fig.97} ) ( \text{Fig.98} ) ( \text{Fig.99} ) ( \text{Fig.100} (\mathbf{x}) = (x - x_{\mathrm{i}})\mathbf{x}_{\mathrm{i}} + (x_{\mathrm{j}})\mathbf{x}_{\mathrm{j}} + (x_{\mathrm{k}})\mathbf{x}_{\mathrm{k}} + (x_{\mathrm{l}})\mathbf{x}_{\mathrm{l}} + (x_{\mathrm{n}})\mathbf{x}_{\mathrm{n}} + (x_{\mathrm{o}})\mathbf{x}_{\mathrm{o}} + (x_{\mathrm{n}})\mathbf{x}_{\mathrm{n}} + (x_{\mathrm{o}})\mathbf{x}_{\mathrm{o}} + (x_{\mathrm{n}})\mathbf{x}_{\mathrm{n}} + (x_{\mathrm{o}})\mathbf{x}_{\mathrm{o}} + (x_{\mathrm{n}})\mathbf{x}_{\mathrm{n}} + (x_{\mathrm{o}})\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathbf{x}_{-n}\mathcal{T}(x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, z, w, x, y, u

( \text{நெஷாஷந்தைஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷாஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஷஸூ.

4.6 35-78d500m5000 3m00000000000000000000000000000000000

4.6.1 circuitry of a circuit with an inductor, resistors, capacitors, and conductors
