USER MANUAL

FR

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

INTRODUCTION

Please read this user manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance.

Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon will also provide important references.

⚠ WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

NOTICE: Indicates a potentially hazardous situation which, if not avoided, may result in damage to the dishwasher, the tableware, the equipment or the environment.

1 IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precations. Read all instructions before using the dishwasher! Save these operating instructions and pass them on to any future user.

• Use the dishwasher only for its intended purpose as described in this user manual. This appliance is intended for normal household use only. Do not change the specification of the appliance. The manufacturer disclaims responsibility for damage or injury caused by improper use of this appliance.
• The information in this user manual must be followed to minimize the risk of fire or explosion and to prevent property damage, personal injury or loss of life
• Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
• When loading items to be washed.

1) Locate sharp items so that they are not likely to damage the door seal, and.

2) Load sharp knives with the handles up to reduce the risk of type injuries.

- Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

- Do not touch the HEATING ELEMENT during or immediately after use.

- Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

- Do not tamper with controls.

- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

- The cup racks are designed to support cups, glasses and kitchen utensils. When the cup racks are in the dishwasher do not lean on or use the cup racks to support your body weight.

- This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipmentgrounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING:

Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children and

infirm persons away from the dishwasher when the door is open.

Consult a doctor immediately if detergent has been swallowed or inhaled.

• Do not remove the dishes from the appliance until the program is complete. Some detergent may remain on the dishes.
• Check that the detergent dispenser is empty after the completion of each wash program.
• Do not drink and play with the water in the appliance. harmful residues could be present.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• When children become old enough to operate the appliance, it is the responsibility of the parents/legal guardians to ensure the children are instructed in safe practices by qualified persons.
• Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it.

⚠ WARNING: Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

• Do not use high pressure water sprays and/or steam to clean the appliance.

• Ensure that there are no visible water leaks during and after the first use of the appliance.

• To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.

• To avoid dishwasher damage, do not allow water to remain in your dishwasher systems through extended periods of freezing.

RISK OF INJURY: To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape.

- Do not store or use flammable liquids or vapors in the area of the dishwasher, near or on the appliance.

- Under certain conditions, hydrogen gas may be produced in a hotwater system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

- Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by. Replace it immediately when it is torn, cut, swollen or there is water leakage.

RECYCLING

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal. Before disposing the dishwasher:

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance

Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.

Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by. Replace it immediately when it is torn, cut, swollen or there is water leakage.

Please keep the dishwasher package out of the reach of children after unpacking it.

WARNING!:

Risk of injury or suffocation! Ensure that any plastic wrappings, bags, small pieces etc. are disposed of safely and kept out of the reach of children.

SAVE THESE INSTRUCTIONS

2 INSTALLATION

⚠ WARNING: When installing the dishwasher, follow basic precautions, including the following: Please check the standards and local codes for placement of machine.

- Installation, maintenance and repair should be performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.

- Do not operate the appliance if damaged, malfunctioning, partially disassembled or if it has missing or broken parts.

- Before installation or service, disconnect the power supply to the work area by unplugging the unit, “tripping” the circuit breaker or removing the fuse.

- Only connect the dishwasher to the power supply when all installation and plumbing work is complete.

- Never connect the ground wire to gas lines, or hot water pipes, plumbing lines.

- Do not install or store the dishwasher where it can be exposed to below freezing temperatures or exposed to weather.

- Dishwasher must be secured to adjacent cabinetry using the brackets provided. Failure to do this may cause damage to property or bodily injury.

- Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload. The dishwasher is designed for an electrical supply

of 120 V (volts), 60 Hz (hertz), AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breakers rated for 15 amperes.

Electrical supply conductors shall be a minimum of #16 AWG copper wire rated at 75 °C (167 °F) or higher. These requirements must be met to prevent injury and machine damage. Consult a qualified electrician if in doubt.

- Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

⚠ WARNING: Danger of suffocation! Ensure that any plastic wrappings, bags, small pieces etc. are disposed of safely and kept out of the reach of children.

3 TECHNICAL SPECIFICATIONS

Labeled diagram of a multi-chamber refrigerator with numbered components for identification

Close-up of a mechanical component with a circular component and numbered label 13 (no readable text or symbols)

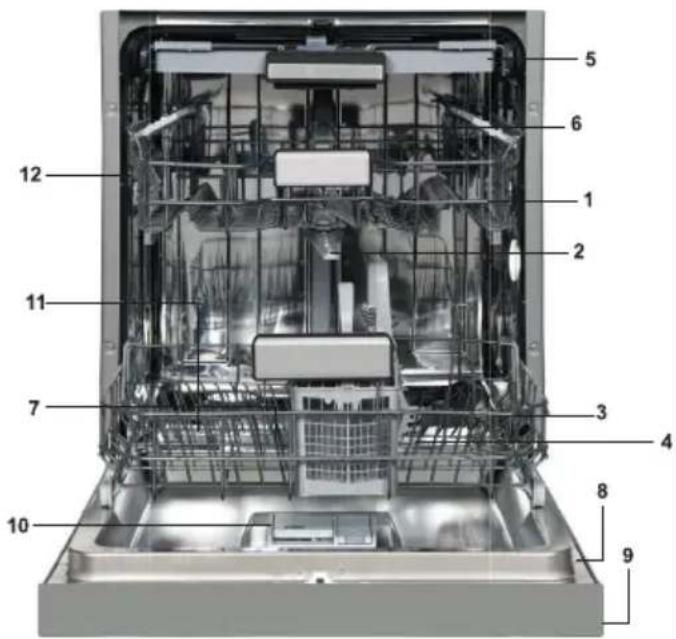

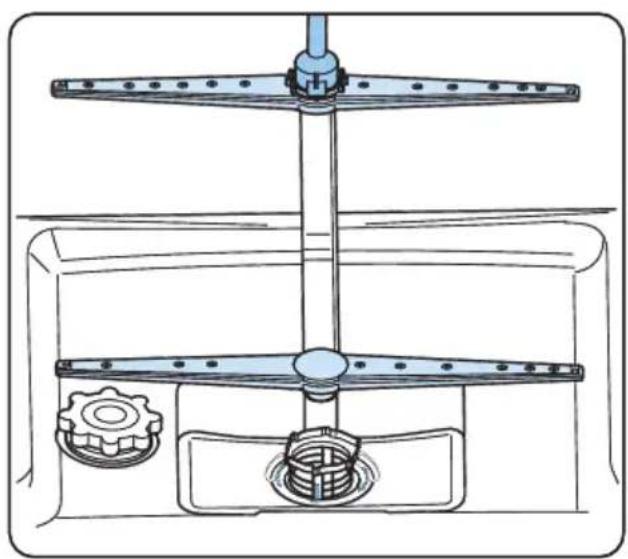

General Appearance

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. 3rd basket
6. Top nozzle
7. Filters
8. Rating plate
9. Control panel
10. Detergent and rinse-aid dispenser
11. Salt dispenser
12. Upper basket track latch

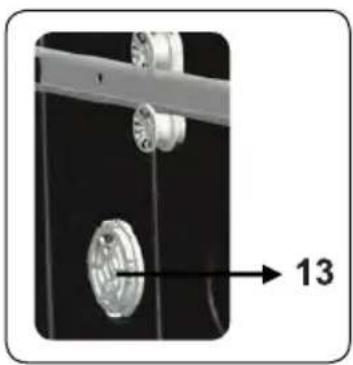

13. Drying Unit: This system provides better drying performance for your dishes.

Technical Specifications

Permissible water pressure	4.35 - 145 psi (0.3 - 10 bars)
Electrical connection	120 V (volts), 12 A (amps), 60Hz (hertz)
Total power 1400 (W)
Heater power 1100 (W)

NOTICE: Because we continually

strive to improve our products, we may change our specifications and design without prior notice. This device corresponds to the following directives: UL 749 Household Dishwasher directive.

4 BEFORE USING THE APPLIANCE

Preparing your dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment.

Salt usage (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

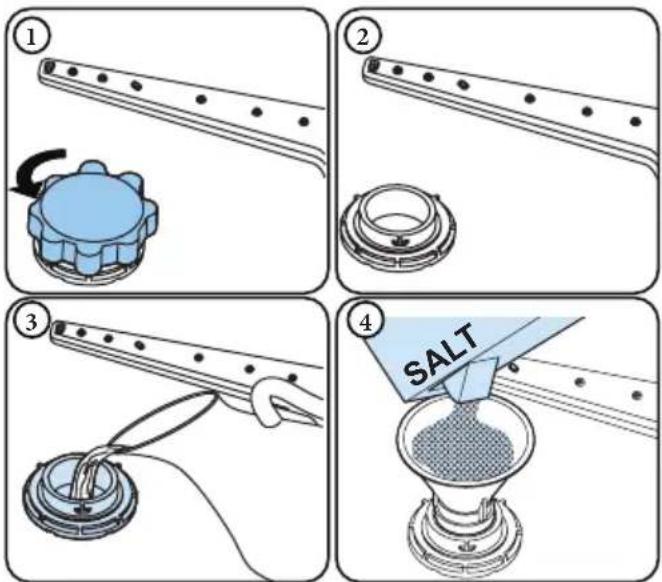

Fill the salt (IF AVAILABLE)

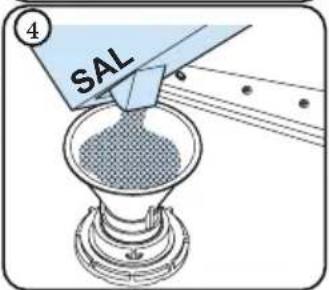

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

Test Strip

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip.	Wait (1min.)	Set the hardness level of your machine.

NOTE: The level is set to 1 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

Water Hardness Table

Level	German dH	French dF	British dE	Indicator
1 0-5	0-9 0-6 SL1 is shown on the display.
2 6-11	10-20 7-14 SL2 is shown on the display.
3 12-17	21-30 15-21 SL3 is shown on the display.
4 18-22	31-40 22-28 SL4 is shown on the display.
5 23-34	41-60 29-42 SL5 is shown on the display.
6 35-50	61-90 43-63 SL6 is shown on the display.

Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

Setting

In order to change the salt level, follow the below steps:

• Turn on the machine, and press Menu button for 3 seconds. Water hardness setting is seen first. ("SL1" is the factory setting).
• Then, press Select button and the salt level (e.g. "SL1") blinks.
• Change the level by pressing the Delay buttons.
• Press Select button to save the desired level and the new salt level will illuminate constantly.
  • Turn off the machine to exit from the settings.

Detergent usage

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaksin hard water.

See the detergent manufacturer's instructions for a further information.

Filling the detergent

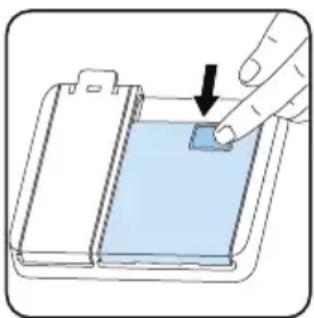

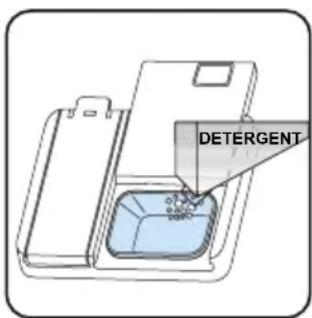

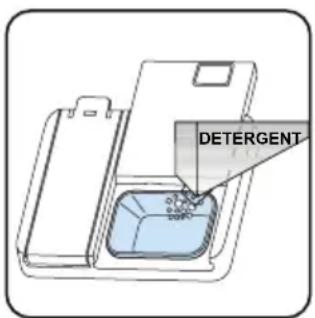

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

Illustration of a hand pressing down on a blue liquid container with a black arrow indicating the step (no text or symbols present)

DETERGENT

Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

Rinse-aid usage

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

Filling the rinse-aid and setting

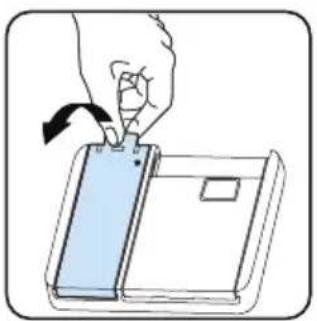

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps

• Turn on the machine and press Menu button for 3 seconds. Water hardness level is seen first. ("SL1" is the factory setting)
• Press Delay(+) button to pass Rinse aid setting. ("r:4" is the factory setting)
• Rinse aid follows water hardness setting.
• Then, press Select button and the level of Rinse aid (e.g. "r:4") blinks.
• Change the level by pressing the Delay buttons.
• Press Select button to save desired level and the new level of Rinse aid will illuminate constantly.
• Turn off the machine to exit from the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a clip into a device (no text or symbols)

Level	Brightener Dose Indicator
1	Rinse-aid not dispensed	r:1 is shown on the display.
2	1 dose is dispensed	r:2 is shown on the display.
3	2 doses are dispensed	r:3 is shown on the display.
4	3 doses are dispensed	r:4 is shown on the display.
5	4 doses are dispensed	r:5 is shown on the display.

5 LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets. The upper basket has been designed for dessert plates, salad bowls, cups and glasses. When placing long stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage. It is more appropriate to locate the thin narrow parts into the middle sections of baskets. You can place spoons among the other cutlery sets in order to prevent them from sticking to one another.

You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

WARNING: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

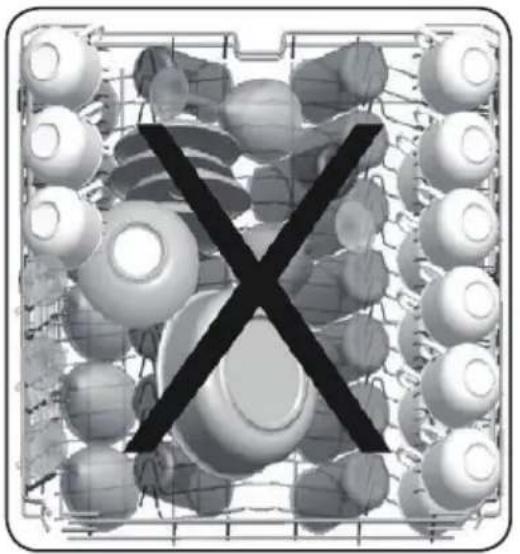

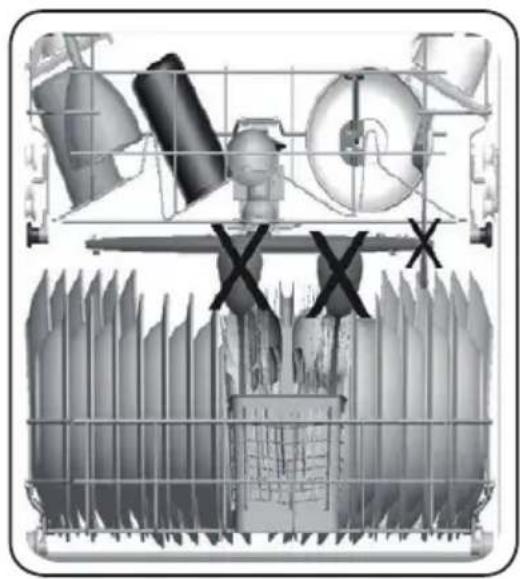

NOTE: Place all large and very dirty items in the lower rack.

WARNING: Do not put in the appliance items that can absorb water (sponges, household cloths).

NOTE: Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards (so that no water can collect).

NOTE: Dishes and cutlery should not be placed above each other.

NOTE: Do not overload your dishwasher and pay attention to manufacturer instructions regarding dishes which are appropriate for use in a dishwasher. Only with suitable dishes (mentioned in section 5) will you obtain optimal washing results with a sensible use of energy.

High temperature water and dishwasher detergent may form a chemical synthesis that can damage certain items.

WARNING: Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury.

Follow the below steps before loading dishwasher.

1. Open the door.

2. Remove coarse food leftovers from tableware.

3. Load the dishwasher.

NOTE: While the appliance is running if you open the door all functions are automatically interrupted. Once the door is closed functions will continue to work.

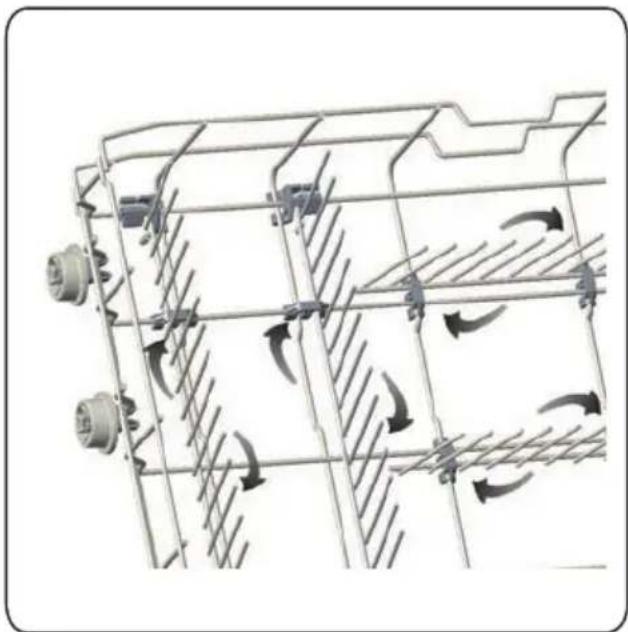

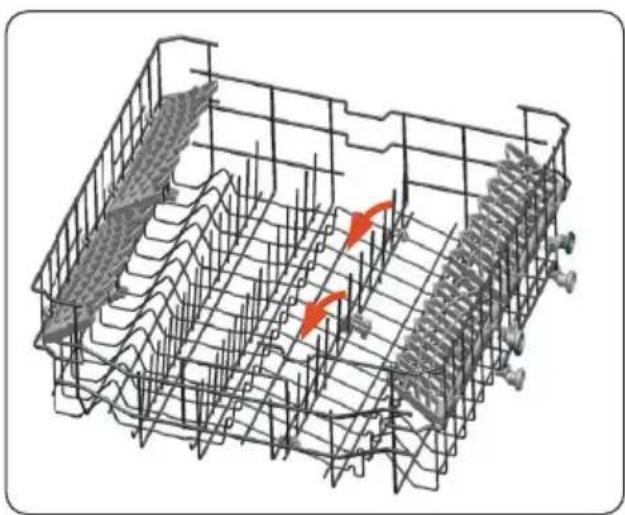

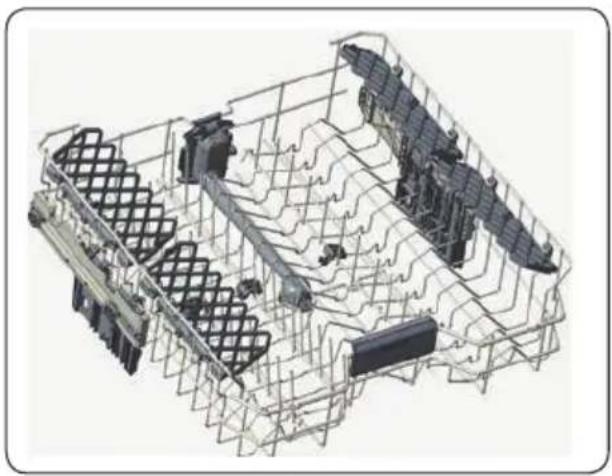

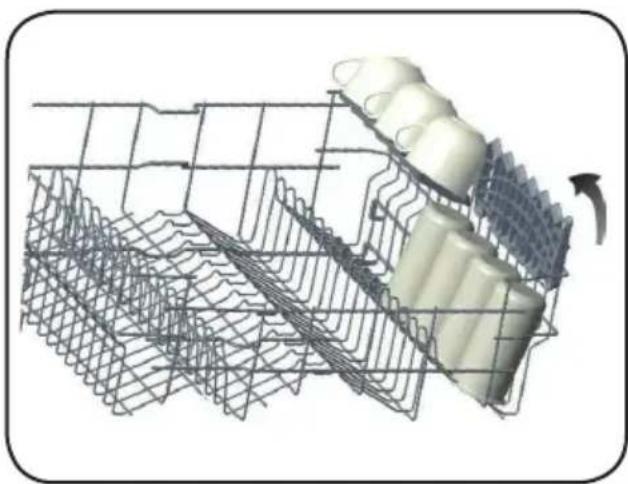

Upper Rack

Load the upper rack with dessert plates, cups, glasses etc.

3D rendered diagram of a mechanical assembly with cylindrical components and insulators, enclosed in a wire cage (no text or symbols)

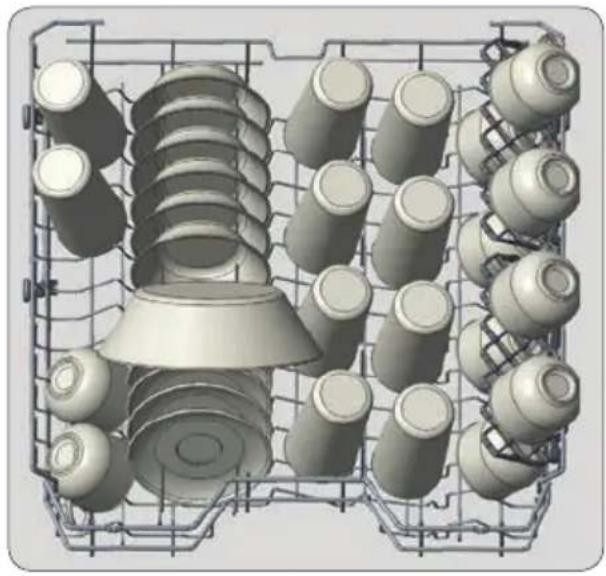

Top rack load pattern for 10 place settings.

3D technical illustration of a mechanical assembly with insulators and housing (no text or symbols)

Additional loading pattern 12 place settings

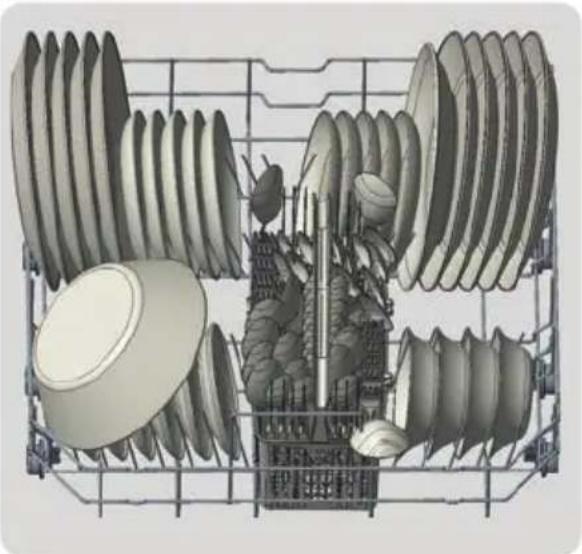

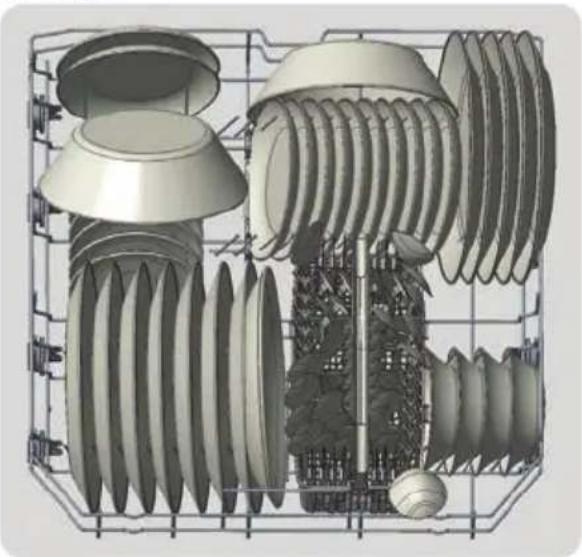

Lower Rack

You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets. The lower rack should not be used for small items such as cups, wine glasses.

3D illustration of industrial equipment with multiple cylindrical components and a central tower structure (no text or symbols)

Bottom rack load patterns for 10 place settings.

Cross-sectional illustration of a mechanical assembly with multiple helical components and internal components (no text or symbols)

Bottom rack load patterns for 12 place settings.

NOTE: Place all large and very dirty s in the lower rack.

WARNING: Large knives and other utensils with sharp tips and edges must be placed horizontally into the upper rack due to risk of injury. Other smaller knives and sharp utensils should be placed with sharp side down in the cutlery basket.

NOTE: Make sure that large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening.

Loading cutlery basket

(Model Depending)

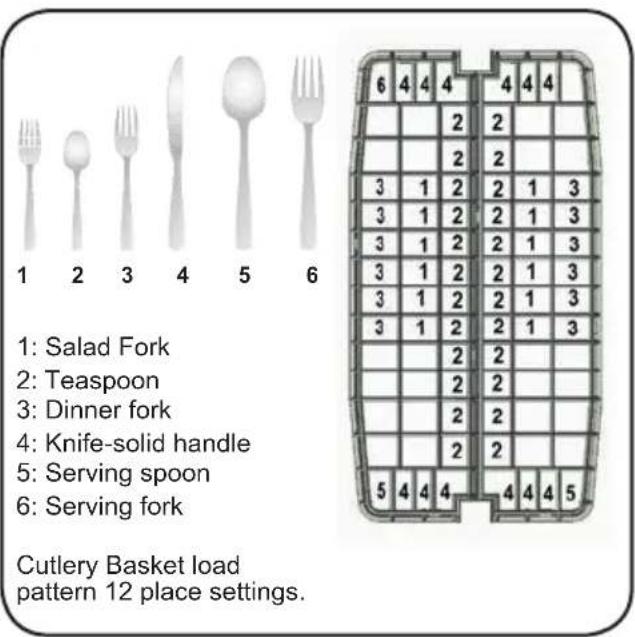

1: Salad Fork 2: Teaspoon 3: Dinner fork 4: Knife-solid handle 5: Serving spoon 6: Serving fork Cutlery Basket load pattern 12 place settings.

WARNING: Sharp cutlery may have shifted position during the wash operation and can be also wet and slippery. Carefully remove them to prevent injury.

NOTE: Small items should therefore be placed in the cutlery tray or cutlery basket (model depending). Because small items can fall through the holders from the baskets.

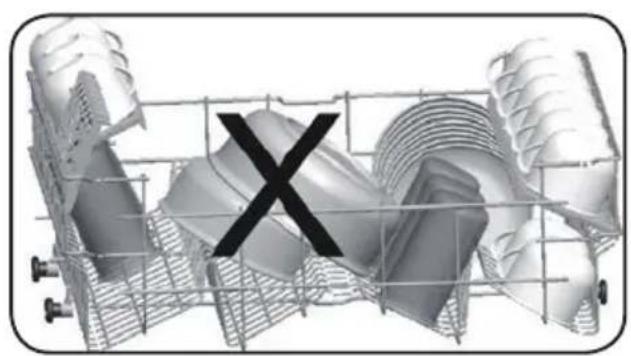

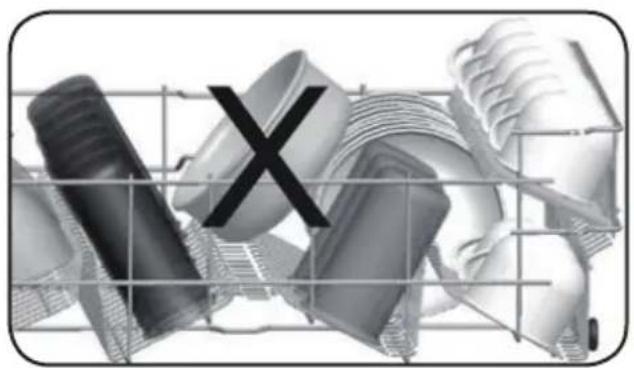

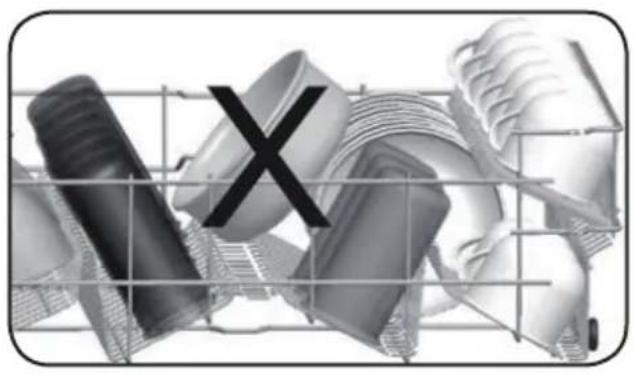

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

3D rendered image of a grid with circular objects and a large 'X' symbol overlay (no text or symbols present)

Industrial machinery diagram showing conveyor systems and a processing unit (no text or labels)

Abstract 3D rendered collage of metallic and wireframe objects with a large 'X' symbol overlay (no text or symbols present)

3D rendered mechanical components with a black 'X' symbol overlay (no text or symbols on the components themselves)

Top Basket

Rack with height adjustment

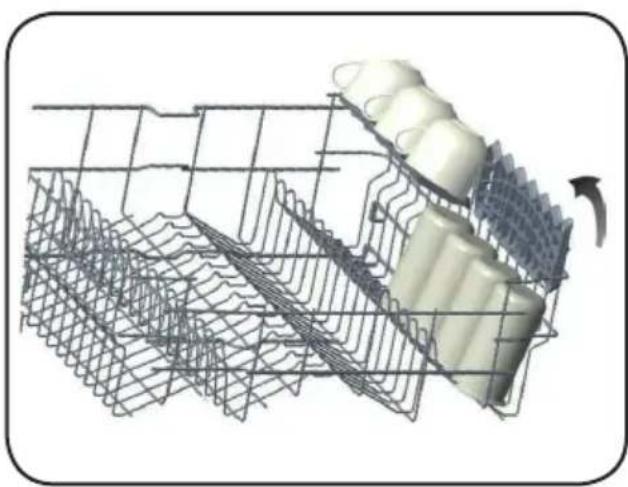

These racks are designed to increase the capacity of top basket. You can place your cups and glasses on these racks. Thanks to adjustable feature of the racks, you can place glasses of different sizes under the racks.

Height adjustment plastics mounted on the basket allow racks to be in 2 different positions.

You can also place long knives, forks and spoons on these racks horizontally for them not to block the movement of spray arms.

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

3D wire mesh structure with a cylindrical component inserted, showing internal grid patterns and an arrow indicating rotation (no text or symbols)

Top basket horizontal wire located on top basket allows you to place your plates and bowls where required. Also you can wash kitchenware such as pan or pot by closing the horizontal wire.

NOTICE: Bringing the wires to the horizontal position by holding them from the tips may cause them to bend. Therefore, it will be appropriate to bring the wires in the middle to horizontal or vertical position by holding them from their stems and pushing.

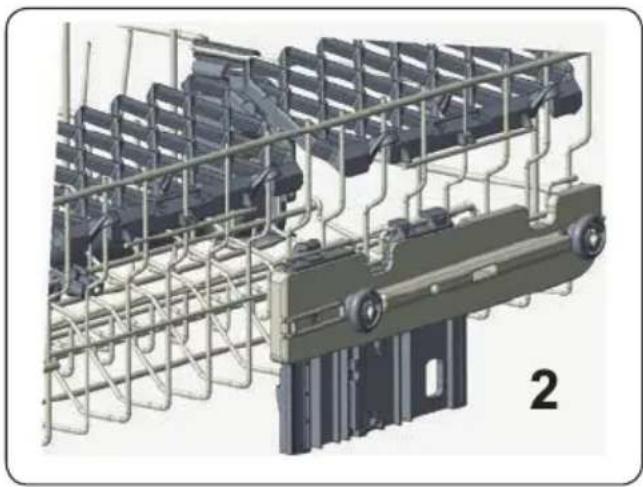

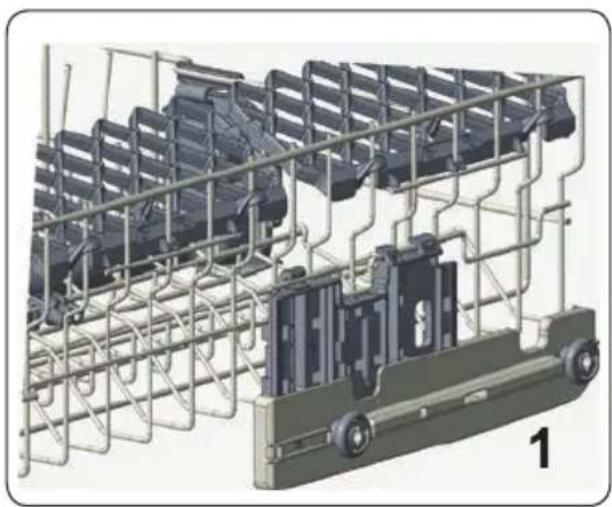

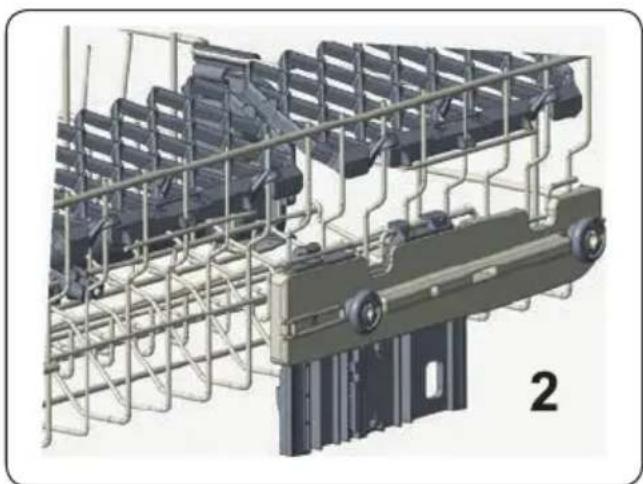

The basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it. In loaded basket adjustment mechanism, make sure that both sides are in the same position. (up or down)

NOTICE: Make sure that both levers catch in the same height position.

Height setting - when basket is filled (model depending)

The upper basket includes a mechanism which enables the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.

3D wireframe model of a mechanical assembly with no visible text or symbols

3D technical illustration of a mechanical assembly with structural framework and a vehicle chassis (no text or symbols)

3D rendering of a military vehicle chassis with mounted equipment and structural framework (no visible text or symbols)

Lower Basket Folding Racks

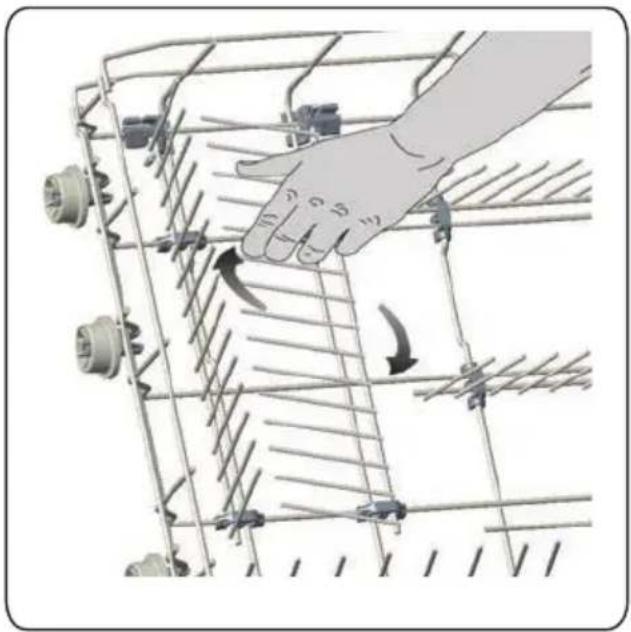

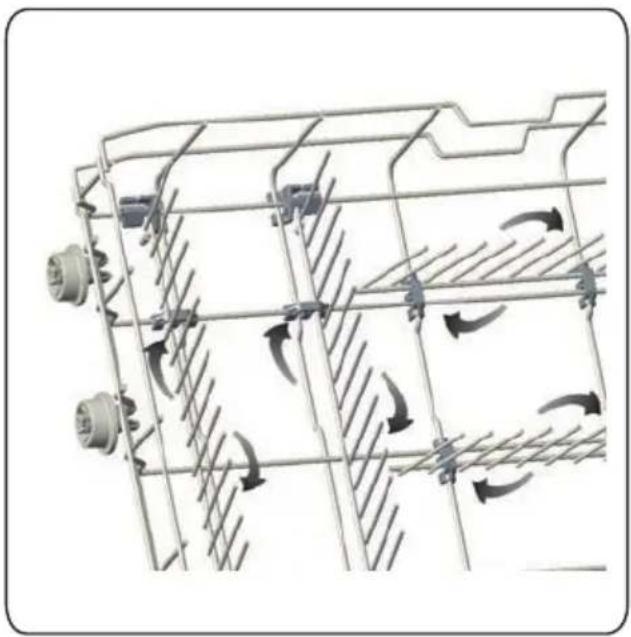

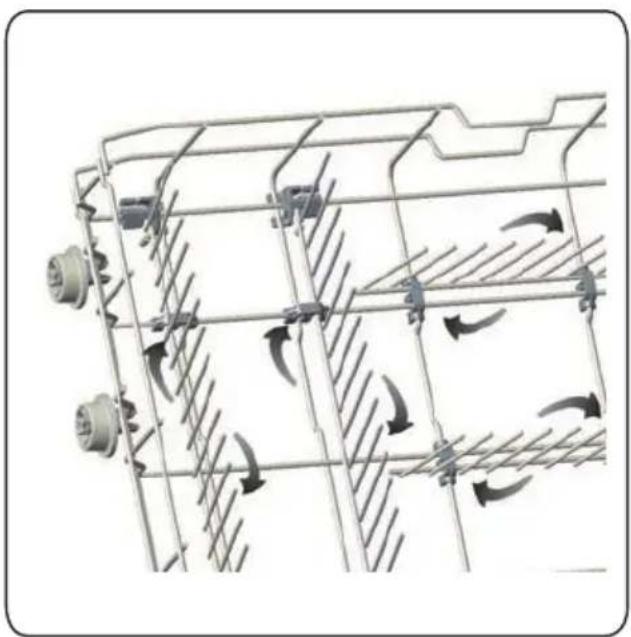

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

Illustration of a hand interacting with a grid-like structure, showing directional arrows and components (no text or symbols)

Technical diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols present)

6 PROGRAMS AND OPTIONS TABLE

Intensive		Duration (min)	Descriptions
Regular	Dirty 145		Standard program for daily, regular or typical use to completely wash a load of normally soiled dishes.
	Clean 122
Auto	Dirty 155		This program automatically adjusts the temperature and the quantity of water, the energy consumption and the program duration.
	Clean 110
Intensive Plus 165 Suitable for heavily soiled dishes with dried on food.
Pots&Pans 130 Suitable for heavily soiled dishes.
Light Wash 117 Suitable for freshly solied daily dishes.
Delicate 90 Suitable for lightly soiled delicate dishes.
Quick Wash 50			Suitable for normally soiled daily dishes with faster program.
Rinse 15 Suitable to rinse dishes that you plan to wash later.

Compatibility of Programs and Options		Options
		Half Load	Sanitize	Extra Fast	Extra Dry	Hi Temp	Silent
Programs	Regular	√	√	√	√	√	√
	Auto	√	√	√	√	√	√
	Intensive Plus	√	√	√	√	√	√
	Pots&Pans	√	√	√	√	√	√
	Light Wash	√	√	√	√	√	√
	Delicate	√	X	√	√	X	√
	Quick Wash	√	√	X	√	√	X
	Rinse	√	X	X	X	X	X

NOTE: The program duration may change according to the amount of dishes, the

water temperature, the ambient temperature and selected additional functions.

NOTE: The energy-usage label is based on the "Regular" program. This program

is the most efficient in terms of its combined energy and water consumption at cleaning normally soiled dishes.

• Only use powder detergent for short programmes.
• Short programmes do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.

7 THE CONTROL PANEL

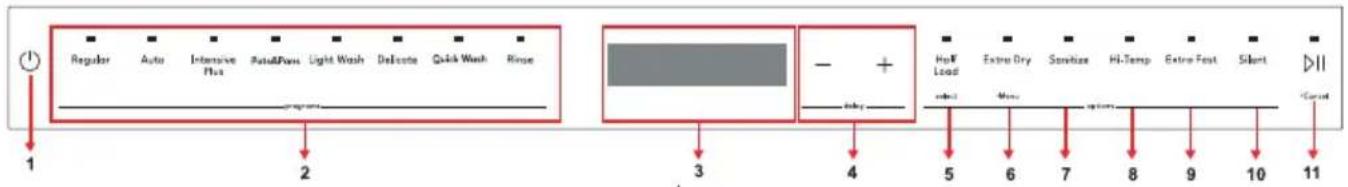

Regular Auto Intensive Plus SafePass Light Wash Delicate Quick Wash Rinse 1 2 3 4 5 6 7 8 9 10 >II - + Hot Load Extra Dry Sanfize Hi-Temp Extra Fast Silent +/- Myx option Corset

1. On/Off Button
2. Program Buttons
3. Display
4. Delay Buttons
5. Half Load Button
6. Extra Dry Button
7. Sanitize Button
8. Hi-Temp Button
9. Extra Fast Button
10. Silent Button
11. Start/Pause Button

12 13 S * 8:88 S- C+ 15 14 19 16 17 18

1. Salt Indicator (Model Dependent)

2. Rinse Aid Indicator

3. End Step Indicator

4. Sanitized Indicator

5. Delay Indicator

6. Upper Half Load Indicator

7. Lower Half Load Indicator

8. Program Time Indicator

1. On/Off Button

Turn the machine on by pressing the On/Off button.

2. Program Selection Buttons

Select a suitable program for your dishes by pressing Program buttons. For the details of the programs refer to section Program Table.

3. Display

The display shows the total time of the selected program and the remaining time during operation.

4. Delay Buttons

Press the Delay Buttons to delay the start time of a programme for 1 hour up to 24 hours. Pressing once to + button will delay the start time for 1 hour. Once you press it, display will show "1h" and display will show program duration and delay time alternately for 2 seconds. Continuing to press the button will increase the delay duration. Press the - button to decrease the delay duration. In order to start the selected program with delay, Start/Pause button(8) should be pressed and the door of the dishwasher must be closed within 4 seconds. If you turn off the machine after activating the delay time, the delayed time is cancelled

5. Half Load Button

Thanks to the half load function in your machine, you can shorten the durations of the programmes that you have selected and reduce the energy and water consumption by using half load electricity and water. There is half load option with 3 modes. When you press the half load button in user interface the indicator/indicators on the screen will be on according to your mode choice. If you press the button once the upper half load basket indicator will be visual, if you press the button twice the lower half load basket indicator will visual, and if you press the button 3 times, the upper half load basket indicator and lower half load basket indicator will be visual on the screen. After 4th press the button the indicators will be disappear. Also, if any of the half load option modes are selected, the half load button led will be on.

6. Extra Dry Button

Press the Extra Dry button to add extra drying steps to a program in order to obtain drier dishes. This option increases water temperature of the final rinse step and duration of the drying step. Extra Dry led will be on.

7. Sanitize Button

Sanitize function raises the water temperature in the final rinse. Sanitize LED will be on. NSF certified cycle and option combinations:

* Regular Cycle with Sanitize option
* Auto Cycle with Sanitize option
* Intensive Plus Cycle with Sanitize Option
* Intensive Cycle with Sanitize Option
* Daily Cycle with Sanitize Option These cycles have been designed to meet the requirements of NSF/ANSI Standard 184 for Residential Dishwashers.

8. Hi-Temp Button

When this option is selected, both the water temperature and the washing time are increased. Hi-Temp led will be on.

9. Extra Fast Button

Select the Extra Fast function to decrease the duration of a program, providing more economical water usage. Extra Fast led will be on.

10. Silent Button

Select the Silent function for a more sensitive and silent washing operation. This option reduces the sound pressure level of the washing. Silent led will be on.

11. Start/Pause Button

Open the door of your machine. Select the program and options. Press Start/Pause button. Close the door within 4 seconds, the program will start. If 4 seconds is exceeded and the door is closed, program will not start. The total time can change while the program is running depending on the ambient temperature where your machine is installed, temperature of the supply water and amount of the dishes. If the door is opened while the machine is running, the machine will switch to the standby mode. Press Start/Pause button and close the machine door within 4 seconds, then the program will resume.

12. Salt Indicator (Model Dependent)

When there is insufficient softening salt, the salt indicator turns on and you should fill up the salt chamber.

13. Rinse Aid Indicator

When the rinse aid level is low, the rinse aid indicator turns on and you should fill the rinse aid chamber.

14. End Step Indicator

When the program is completed, end step indicator will be on and the buzzer will be activated. Buzzer sounds 5 times each at 5 minutes intervals (in 0, 5, 10 and 15th minutes) in total 4 different times at the end of the program.

15. Sanitized Indicator

If the program selected with the Sanitize option is successfully sanitized, Sanitized Indicator lights up at the end of the program. If the washing cycle is interrupted or adequate water heating cannot be achieved, the Sanitized Indicator may not light.

16. Delay Indicator

When program is started with delay, the Delay Indicator will be on.

17. Upper Half Load Indicator

If you have dishes only in the upper basket, select the half load upper basket option. If it is selected, half load upper basket indicator will illuminate.

18. Lower Half Load Indicator

If you have dishes only in the lower basket, select the half load lower basket option. If it is selected, half load lower basket indicator will illuminate.

Note: If you have dishes both of in the upper and lower basket, select the half load upper basket and half load lower basket option together. If it is selected, upper half load basket indicator and lower half load basket indicator together will illuminate.

19. Programme Time Indicator

Program duration can be monitored via Program Time Indicator.

Cropped image showing labeled diagram elements with numbers and symbols, possibly from a technical or engineering schematic.

1. Changing a Programme

Follow the steps below to change a program while in operation. Open the door and press the Start/Pause Button (11). Choose a new program by pressing Program buttons (2). After program selection, press the Start/Pause button (11). After closing the door within 4 seconds, the newly selected program will resume the course of the old program. If 4 seconds is exceeded and the door is closed, program will not resume.

NOTE: Open the door slightly at first to stop a wash program before it is complete in order to avoid water spillage.

Cancelling a Programme

Follow the steps below if you would like to cancel a program while in operation. Open the door of your machine. The selected program will appear on the display. Press and hold the Start/Pause button (11) for 3 seconds. "0:01" will be shown on the display. Press Start/Pause button (11) and after closing the door of the machine within 4 seconds, the water discharge process will start and continue for 30 seconds. When the program is cancelled, buzzer will sound 5 times.

Switching the Machine Off

"0" will be shown on the display when the selected program is complete. Buzzer will also sound 5 times. You can then switch your machine off using the Power On/Off button. Disconnect the plug and turn off the water tap.

NOTE: Do not open the door before the program is complete.

NOTE: If the door of the machine is opened or the power is cut off while a program is in operation, the program will continue when the door is closed or the power returns.

NOTE: If the power is cut off during the drying process, the program will terminate. Your machine will be ready for a new program selection.

(1) 1 2 3 4 5 6 7 8 9 10 11 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Menu Settings

Press Extra Dry button (6) for 3 seconds to enter menu. Water hardness setting (e.g. SL1) is seen first. Press Delay buttons (4) to surf through menu. Then, press Half Load button (5) to enter to the levels of the setting you want to change in the menu. At this time display (3) blinks and that means this setting can be changed by pressing Delay buttons (4). Set the new level with Delay buttons (4) and press Half Load button (5) to save new level. After that display (3) will light up constantly and that means this setting level is saved. You can change another setting with these steps or exit from menu by pressing Extra Dry button (6) for 3 seconds or turning off/on.

No S	Setting Options	Description
1	Water Hardness	SL1*	Set the water hardness.
		SL2
		SL3
		SL4
		SL5
		SL6
2 Rinse Aid		r:1	Set the amount of rinse aid.
		r:2
		r:3
		r:4*
		r:5
3	Buzzer Sound Control	b:0	Set the buzzer sound level.
		b:1
		b:2
		b:3*
4	Start Programme	LP0*	Set a default programme for when the appliance switched on.
		LP1
5	Save Power Mode	SP0	Set the Save Power Mode.
		SP1*
		SP2
6	Factory Setting	FS0* Restore	changed settings to the factory settings.
		FS1

*Default setting

1. Water Hardness

To change the water hardness setting, follow the "Water Hardness Setting".

2. Rinse Aid

To change the rinse aid setting, follow the "Rinse Aid Setting".

3. Buzzer Sound Control

To change the buzzer sound control, follow the "Menu Settings". "b:3" level is the highest sound level. "b:0" level means all voices are off.

4. Start Programme

To change the start programme selection, follow the “Menu Settings”. In “LP0” level, machine turns on with Regular program. In “LP1” level, machine turns on with last selected program and option.

5. Save Power Mode

To change the save power mode setting, follow the “Menu Settings”. In “SP0” level, interior lights(if available) will always be off, the screen will turn off after 4 minutes and the machine will turn off after 15 minutes of no activity in order to save energy. In “SP1” level, interior lights will turn off after 4 minutes when the door is opened, the screen will turn off after 4 minutes and the machine will turn off after 15 minutes of no activity in order to save energy. In “SP2” level, when the machine is off position, interior lights will turn off after 4 minutes when the door is opened. When the machine is on position, interior lights is on as long as the door stays open and machine will not turn off except by pressing On/off button.

6. Factory Setting

To change the factory setting, follow the "Menu Settings". If you change the level as "FS1" in factory setting, all settings return to default setting.

Infoled 2.1 (Model Dependent)

Infoled that is positioned on the bottom side of the dishwasher shines a light on to floor to indicate the current status of the dishwasher during washing.

LED Indicator State	of the Machine
Red, continuous	The machine is running a program.
Red, flashing A program	is cancelled.
Red, flashing rapidly	The machine has a fault. Refer to section "Automatic fault warnings and what to do".
Green, continuous A	program is finished.

8 MAINTENANCE AND CLEANING

WARNING : Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap.

Your dishwasher can only be repaired by an authorized service agent. Do not try to repair your machine unless any recommendation by this manual

WARNING : All surfaces are susceptible to scratching. Contact with unsuitable cleaning agents can alter or discolor all surfaces.

WARNING : Keep the floor around your dishwasher clean and dry to prevent any possible injury. We recommend to keep your dish washer clean, empty and door cracked open to allow air to circulate in case of any extended unused time.

Dishwasher door can be damaged by abrasive cleaners, scouring pads, abrasive cloths. Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a program that runs at high temperature, and start the machine.

In case of insufficiency, use special cleansing material available in the market.

(Cleansing material produced special to machines by detergent producers.)Cleaning the seals in the machine door, - To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning the machine, Clean the filters and spray arms at least once a month.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

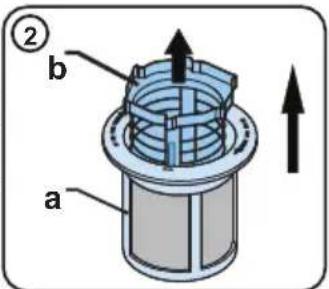

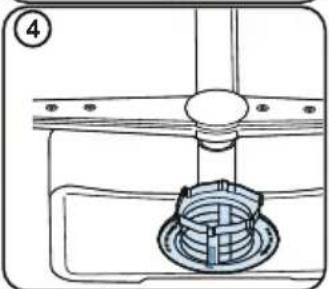

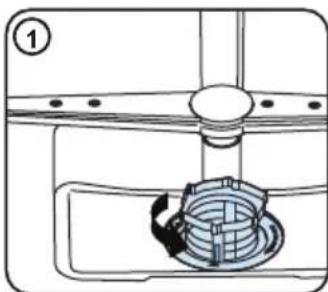

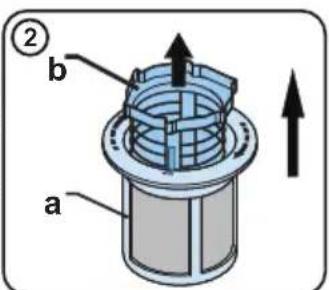

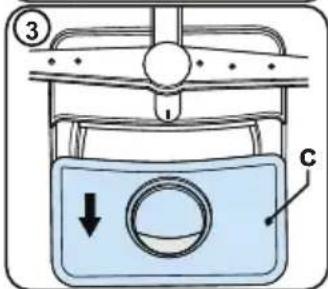

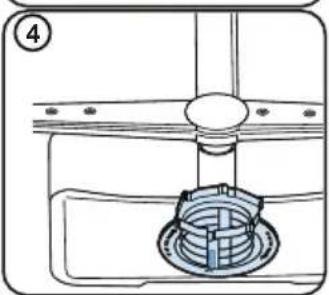

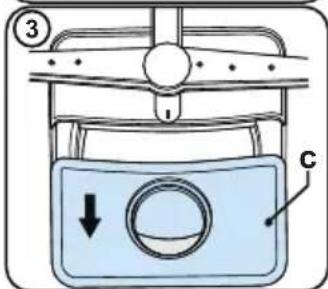

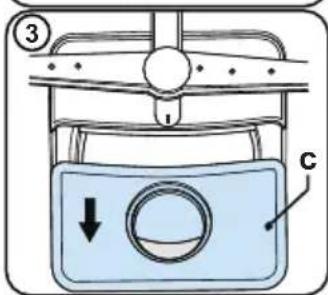

Filters Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

Filter

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic

Diagram of a mechanical assembly with a central component and a circular component, no visible text or symbols

② b a

Diagram of a car engine cylinder with labeled parts and directional arrow indicating flow or movement

Technical line drawing of a mechanical component with a central hub and base (no text or symbols)

Spray Arms

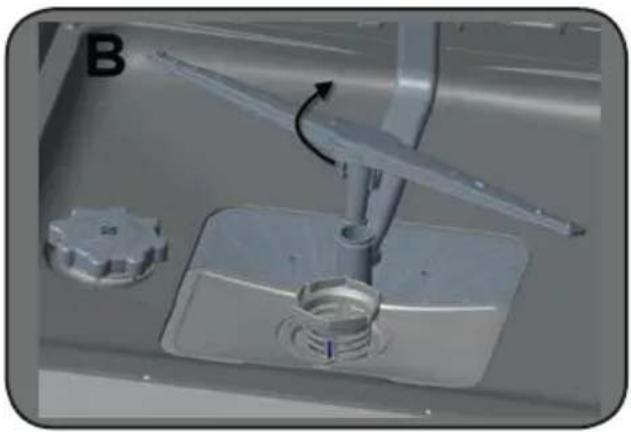

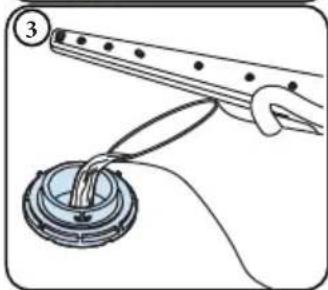

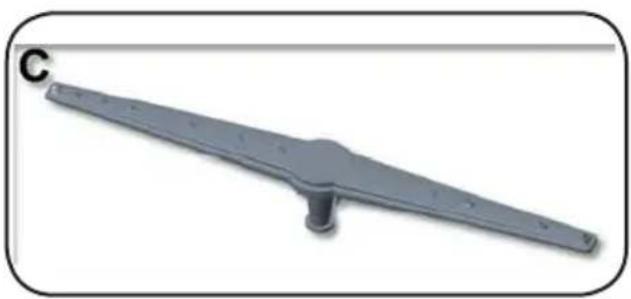

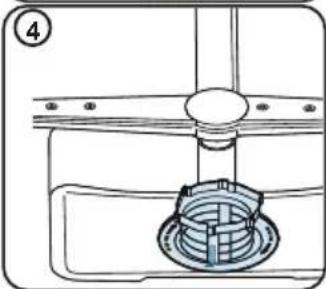

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

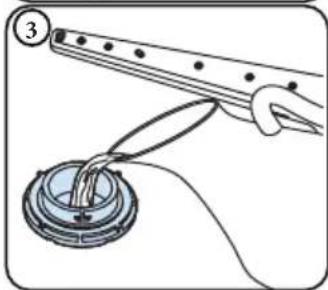

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

Cleaning The Impellers

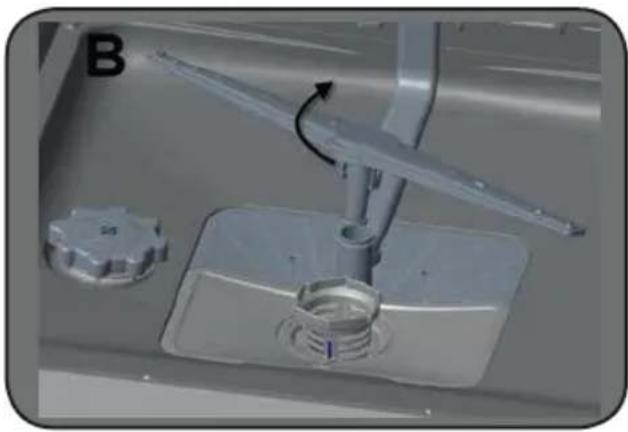

Clean the impellers at least once a week in order for the machine operates efficiently.

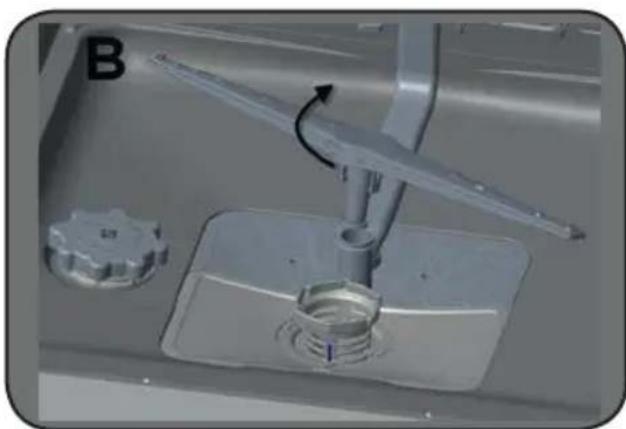

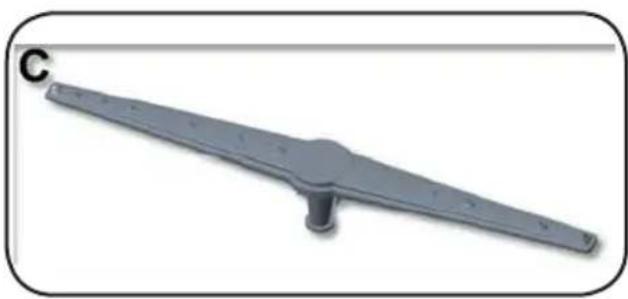

Lower Impeller

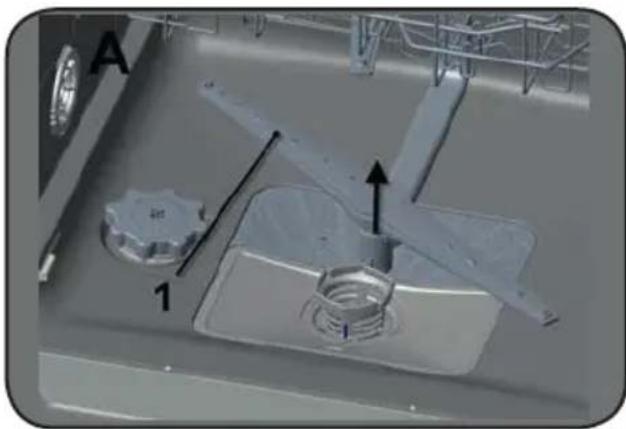

Check if the holes on the lower impeller (1 are clogged. If they are clogged, remove and clean the impeller. Pull the lower impeller up to remove it (A, B.)

3D mechanical assembly diagram showing a component with labeled parts and an arrow indicating direction (no text or symbols present)

Close-up of a mechanical component with a lever and adjustment knob (no visible text or symbols)

3D rendered image of a gray mechanical lever or support component with a cylindrical base and flange (no text or symbols visible)

Upper Impeller

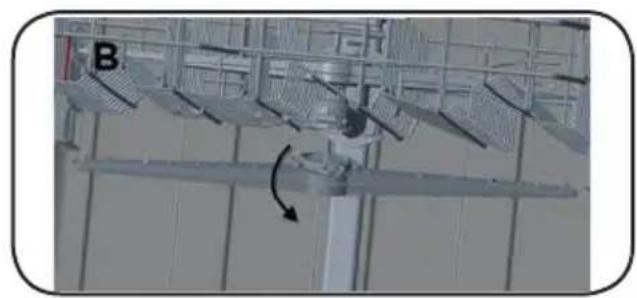

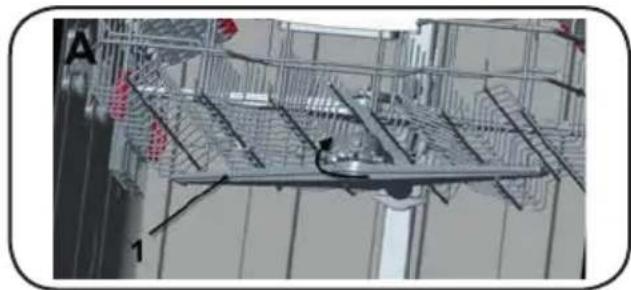

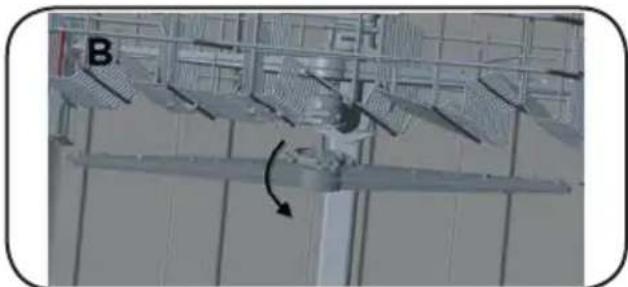

Check if the holes on the upper impeller 1 are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to remove the upper impeller (A, B) Make sure that the nut is tightened well when installing the upper impeller.

Architectural diagram of a building facade with metal grid and structural elements (no text or symbols)

Exterior view of a modern office building (no signage)

WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER?

• All items to be placed in the dishwasher should be dishwasher safe.
• Plastics with “dishwasher safe” or equivalent label can only be used in dishwashers. Plastics may lose their shape or color. Check with manufacturer for recommendations.
• Any dishes made out of wood or made out with wooden parts are not suitable for washing in dishwashers. High temperatures can cause the wood swell or crack.
  • Silver items without dishwasher safe label should not be washed in the dishwasher because high temperatures and detergent can damage your silver. Check with manufacturer for recommendations.
• Dishwasher safe silver items and stainless steel items should not come into contact, as the silver can become discolored.
• Porcelains and glassware with decorations and hand-painted utensils may lose their color and patterns due to the high temperatures. Non-decorated items are dishwasher-proof. Check with manufacturer for recommendations.
• Aluminum can turn dark in the dishwasher due to the heat, the detergent used or even just certain minerals in your water.
• Do not wash sponges or dish cloths in dishwasher.
• Do not wash any material like acrylic, copper, brass, pewter, iron, bronze or tin.
• Pots without a non-stick coating are safe to be cleaned by your dishwasher but some non-stick pots and pans can lose their coating and also sticking ability.
• Glued dishes or cutlery are not suitable for machine washing since adhesives that join materials such as plastic, wood, bone, steel, copper, tin, etc. may loosen. Remember, if there is any doubt about any aspect concerning items to be washed in the dishwasher, follow the instructions from the manufacturer of the items, or wash the items by hand.

WARNING : If in doubt, wash by hand or follow the instructions from the manufacturer of utensils, dishes, glasses or pots and pans. Do not wash items soiled with cigarette ash, candle wax, varnish, paints or chemicals since they can damage your dishwasher.

WARNING : Empty the lower rack first and then the upper rack. This will avoid water dripping from the upper rack onto dishes in the lower rack.

WARNING: In general, it is not advisable to open the door while the dishwasher is in operation. If the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door immediately following the cycle, as steam may escape.

9 TROUBLESHOOTING

FAULT POSSIBLE CAUSE	TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softener level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
FF	Water inlet system failure	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F5	Pressure system failure	Contact for service.
F3	Continuous water input	Close the tap and contact for service.
F2	Inability to discharge water	Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8	Heater error	Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
F7 Overheating	Contact for service.
F9 Divisor position	error Contact for service.
F6 Faulty heater	sensor Contact for service.
HI High voltage failure	Contact for service.

10 PRACTICAL INFORMATION

1. When the machine isn't in operation:
2. Disconnect the plug and close the tap.
3. Leave the door slightly open to prevent odour formation.
4. Select the dry option to remove water droplets.
5. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. Please see the program and consumption table for more information.
6. Rinse dirty dishes before placing them in the dishwasher.
7. Only use the Rinse program when necessary.
8. Do not place the machine near a refrigerator because it will reach high temperatures.
9. If the machine is located in an area that is at risk of freezing, close the tap, disconnect the inlet hose from the tap and drain the water inside the hose and the machine completely. Penses outside the metropolitan region.

TABLE DES MATIÈRES

1 INSTRUCTIONS IMPORTANTES DE SÉCURITÉ .....4
2 INSTALLATION 9
3 SPÉCIFICATIONS TECHNIQUES......11
4 AVANT D'UTILISER L'APPAREIL 12
5 CHARGEMENT DE VOTRE LAVE-VAISSELLE .....16
6 TABLEAU DES PROGRAMMES ET OPTIONS .....22
7 LE PANNEAU DE COMMANDE ....23
8 ENTRETIEN ET NETTOYAGE....27
9 DÉPANNAGE ....31

Labeled diagram of a multi-chamber refrigerator with numbered components for identification

Close-up of a mechanical component with a numbered label pointing to a circular component (no readable text or symbols)

Apparence générale

Diagram showing a mechanical component with a gear and a rotating arrow, no text or symbols present.

Technical line drawing of a mechanical component with a circular part and a separate circular inset (no text or symbols)

Illustration of a hand holding a ruler above a circular component with wires, no text or symbols present

④ SEL

Illustration of a hand pressing down on a blue liquid in a container (no text or symbols)

DETERGENT

Illustration of a hand inserting a card into a device (no text or symbols)

Line drawing of a hand inserting a small component into a device (no text or symbols)

3D rendering of a mechanical assembly with cylindrical components and a central conical component (no text or symbols visible)

3D technical illustration of a mechanical assembly with insulators and housing (no text or symbols)

Illustration of industrial equipment with insulators and a central platform (no text or symbols)

3D cutaway illustration of a mechanical assembly showing internal components like gears and springs (no text or labels)

Image showing a grid of 3D-rendered objects with a large 'X' symbol overlaid, likely indicating a symbolic or illustrative element.

Industrial machinery diagram showing components like fans and valves with no visible text or symbols

Abstract 3D rendered collage of mechanical parts with a central 'X' mark, no text or symbols present

3D rendered mechanical components with a black 'X' symbol overlay (no text or symbols on the components)

Panier supérieur

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

3D wire mesh structure with a cylindrical component inserted, showing internal structure and flow direction (no text or symbols)

3D wireframe model of an industrial or mechanical assembly with no visible text or symbols

3D rendering of a vehicle chassis with structural framework and wheels, no visible text or symbols

3D mechanical assembly diagram showing internal components and structural framework (no text or symbols)

Illustration of a hand interacting with a grid-like structure, showing directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols present)

6 TABLEAU DES PROGRAMMES ET OPTIONS

Regular Auto Intensive Plus Pute&Pass Light Wash Delicate Quick Wash Rings 1 2 3 4 5 6 7 8 9 10 11 Hot Load Extra Dry More Squeeze Hi-Temp Extra Heat Silent DII Current

Diagram showing two labeled components with numerical labels and directional arrows, likely representing a physical or engineering concept.

Technical diagram of a mechanical assembly with a central component and a circular base (no text or symbols)

② b a

Diagram of a car air vent with labeled components and directional arrow

Technical line drawing of a mechanical component with a central hub and internal structure (no text or symbols)

Bras de lavage

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

Nettoyage des roues

3D mechanical assembly diagram showing a component with labeled parts and directional arrows (no readable text or symbols)

Close-up of a mechanical assembly with a lever and base plate, no visible text or symbols

3D rendered image of a gray elongated mechanical component with a central protrusion and a small cylindrical base (no text or symbols)

Roue supérieure

Architectural diagram of a building facade with metal grid and structural elements (no text or symbols)

Interior view of a ceiling-mounted industrial fan or turbine assembly with visible blades and a rotating arm (no text or symbols)

QU'EST-CE QUI NE DOIT PAS ÊTRE LAVÉ DANS VOTRE LAVE-VAIS-SELLE ?

10 INFORMATIONS PRATIQUES

Labeled cutaway diagram of a multi-chamber refrigerator with numbered components for identification

Close-up of a mechanical component with a circular component and numbered label 13 (no readable text or symbols)

Aspecto general

Diagram showing a mechanical component with a rotating gear and a numbered label (1), no readable text or symbols present.

Technical line drawing of a mechanical component with a circular part and a separate circular inset (no text or symbols)

Illustration of a hand holding a tool interacting with a circular component, no text or symbols present

SAL

Illustration of a hand placing a small object onto a blue surface, with no text or symbols present.

DETERGENT

Illustration of a hand using a tool to press or adjust a device (no text or symbols visible)

Line drawing of a hand inserting a clip into a device (no text or symbols)

3D technical illustration of a mechanical assembly with cylindrical components and a central hub (no text or symbols)

3D technical illustration of a mechanical assembly with insulators and housing (no text or symbols)

3D rendering of a mechanical assembly with multiple curved components and a central shaft (no text or symbols visible)

3D cutaway illustration of industrial equipment components including insulators and gears (no text or labels)

3D rendered image of a grid with circular objects and a large 'X' symbol overlay (no text or symbols present)

Industrial machinery diagram with no visible text or symbols

Abstract 3D rendered collage of mechanical parts with a black 'X' mark overlay (no text or symbols)

3D rendered mechanical components with a black 'X' symbol overlay (no text or labels)

Cesta superior

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

3D wire mesh structure with a cylindrical component inserted, showing internal structure and flow direction (no text or symbols)

3D wireframe model of a mechanical assembly with internal components (no visible text or symbols)

3D technical illustration of a mechanical assembly with internal components and wiring (no text or symbols)

3D mechanical assembly diagram showing internal components and structural framework (no text or symbols)

Illustration of a hand interacting with a grid-like structure, showing directional arrows indicating movement or force (no text or symbols present)

Technical diagram of a mechanical or electrical assembly with rotating components and directional arrows (no text or symbols)

Cropped image showing two labeled panels with numerical data and red annotations, likely from a technical or academic document.

(1) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Ajustes del menú

Diagram of a mechanical assembly with a central component and a circular housing (no text or symbols)

② b a

Diagram of a car air vent with labeled components and directional arrow

Technical line drawing of a mechanical assembly with a central component and base (no text or symbols)

Brazos de rociado

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

3D mechanical assembly diagram showing a component with labeled parts and directional arrows (no readable text or symbols)

Close-up of a mechanical device with a lever and base plate, no visible text or symbols

3D rendered image of a mechanical lever or support component (no text or symbols visible)

3D architectural rendering of a building facade with metal grid and structural elements (no visible text or symbols)

Interior view of a building with metal shelving units and a rotating arm (no visible text or symbols)
