USER MANUAL F6DWT24SS2 Fulgor Milano

Simple line drawing of a front panel with three buttons and a button icon (no text or symbols)

F6DWT24SS2

F6DWT24FI2

To prevent accidents, which could cause serious injury or death, as well as machine damage read these instructions before installation and / or use.

CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 1

1. RECYCLING 3

3. GETTING TO KNOW YOUR DISHWASHER 4

4. LOADING THE DISHWASHER 5

4.1 UPPER RACK 8

4.2 LOWER RACK 11

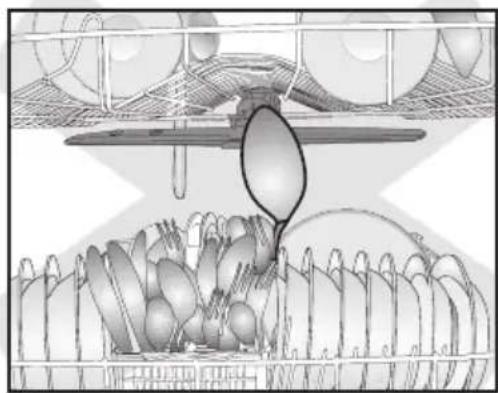

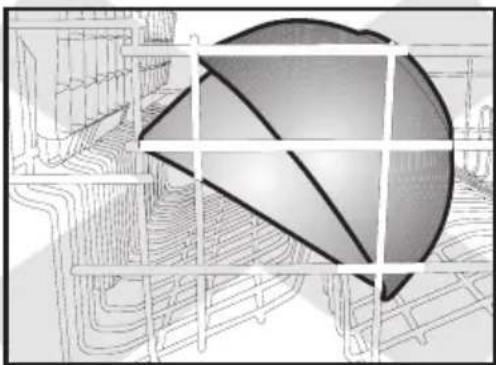

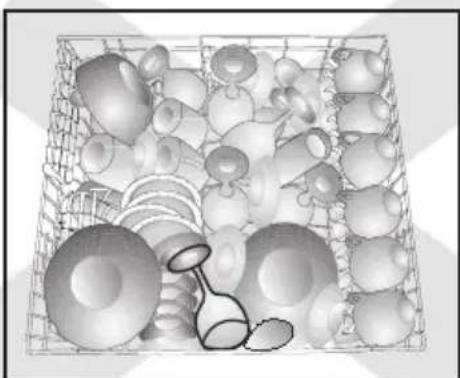

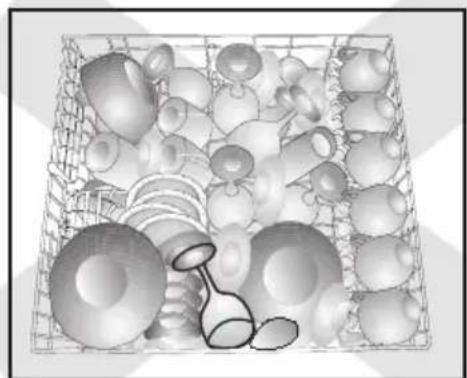

4.3 PROPER AND IMPROPER LOADING OF DISHWARE 17

5. WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER 18

6. OPERATING THE PRODUCT 19

6.1 KEYS 20

6.2 PREPARING THE MACHINE 20

6.3 PROGRAM SELECTION 20

6.4 AUXILIARY FUNCTIONS 22

6.5 SCHEDULING THE WASHING TIME 23

6.6 STARTING THE PROGRAM 24

6.7 CANCELLING THE PROGRAM 25

6.8 SALT INDICATOR (S) 25

6.9 RINSE AID INDICATOR (★)

6.10 END OF PROGRAM 25

6.11 WATER CUT-OFF WARNING 26

6.12 OVERFLOWING WARNING 26

7. DETERGENT 27

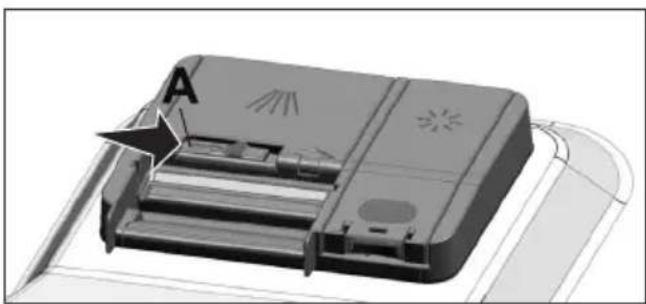

7.1 ADDING DETERGENT 27

7.2 TABLET DETERGENTS 28

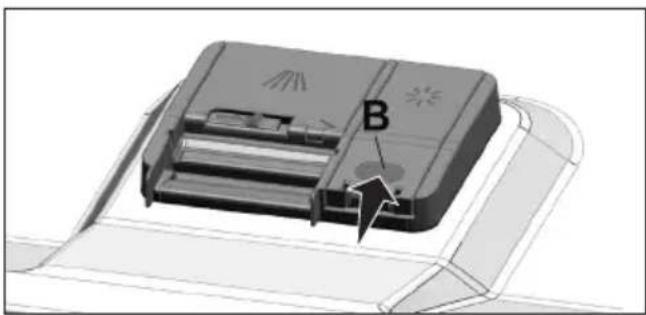

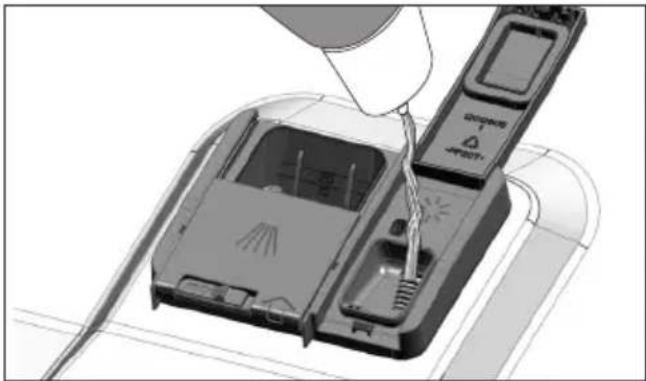

7.3 RINSE AID 29

10. CARE AND MAINTENANCE 33

10.1 CARING FOR YOUR DISHWASHER EXTERIOR 33

10.2 CARING FOR YOUR DISHWASHER INTERIOR 33

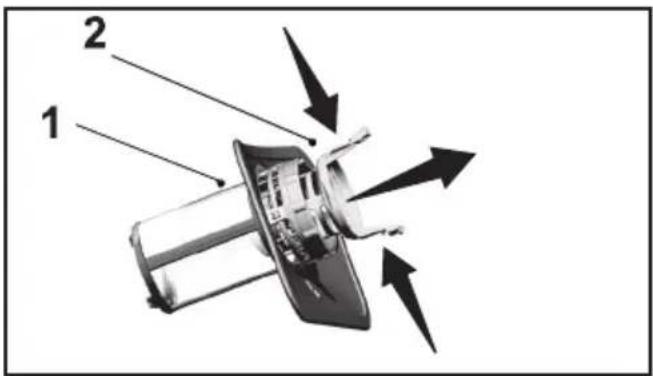

10.3 CLEANING THE FILTERS 34

10.4 CLEANING THE HOSE FILTER 35

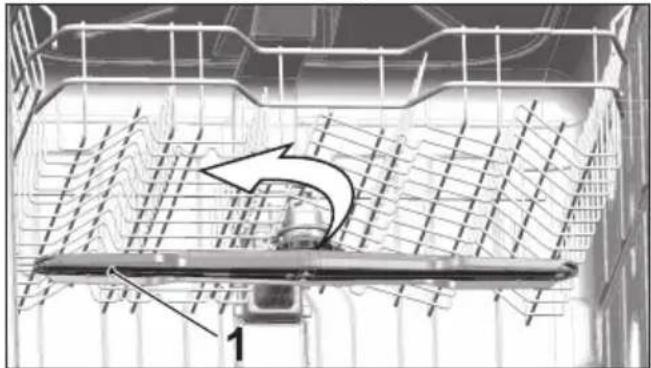

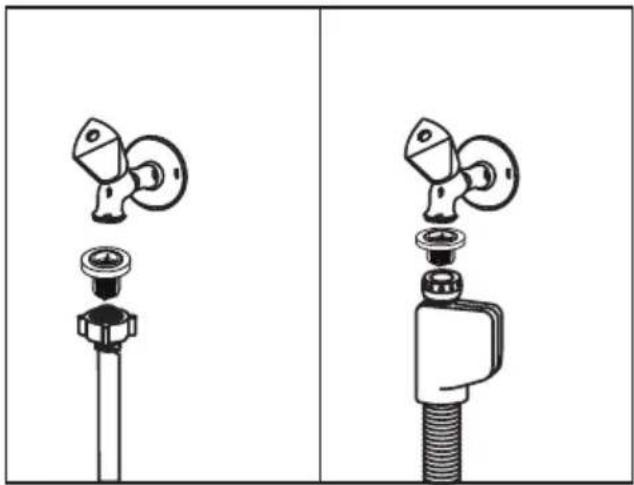

10.5 CLEANING THE WASH ARMS 35

11. TROUBLESHOOTING 36

12. TECHNICAL FEATURES 41

INTRODUCTION

Please read this user manual and particularly the safety instructions completely and carefully. They will save you time and effort and help to ensure optimum dishwasher performance. Be sure to observe all listed warnings and cautions. Look particularly for the icons with exclamation marks inside. The information icon will also provide important references.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

NOTICE: Indicates a potentially hazardous situation which, if not avoided, may result in damage to the dishwasher, the tableware, the equipment or the environment.

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher! Save these operating instructions and pass them on to any future user.

"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation." "No changes shall be made to the equipment without the manufacturer's permission as this may void the user's authority to operate the equipment"

- Use the dishwasher only for its intended purpose as described in this user manual. This appliance is intended for normal household use only.

- The manufacturer disclaims responsibility for damage or injury caused by improper use of this appliance.

- The information in this user manual must be followed to minimize the risk of fire or explosion and to prevent property damage, personal injury or loss of life.

- Do not operate your dishwasher unless all the enclosure panels are properly in place.

- Do not tamper with the controls.

- Do not abuse, sit on, stand in or on the door or dish rack of the dishwasher.

- The cup racks are designed to support cups, glasses and kitchen utensils. When the cup racks are in the dishwasher do not lean on or use the cup racks to support your body weight.

• To reduce the risk of injury, do not allow children to play in, on or near the dishwasher.
• Use only detergents or rinse aids recommended for use in a household dishwasher and keep them in a dry place out of the reach of children. Check that the detergent dispenser is empty after the completion of each wash program.
• Dishwasher detergents contain chemicals that can cause sickness and may be if they are inhaled or swallowed. Also, be careful when opening the door due to hot steam that is produced during operation. Consult a doctor immediately if detergent has been swallowed or inhaled.
• if the hot water has not been used in several weeks, we recommend running the hot water taps to remove any built up hadrogen gases.
• Do not store or use flammable liquids or vapors in the area of the dishwasher.
• When loading items to be washed, position sharp items so that they are not likely to damage the door seal and load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
• If a malfunction occurs, switch off the appliance and turn off the water supply to the dishwasher.

• Please do not attempt to carry the dishwasher by yourself in order to avoid potential injuries. Two or more people are needed to move a dishwasher.

• Before cleaning or carrying out maintenance, switch off the appliance, disconnect the power plug and turn off the water supply.
  • Repairs and technical modifications must be carried out exclusively by a Authorized technician.

• If the dishwasher is not in use for an extended period of time (i.e. vacation home), we recommend remove all items from the dishwasher, leave the door cracked open to allow air to circulate and turn off both the power and water supply to the dishwasher.
• This appliance comes with a three prong NEMA 5-15P 15A power cord. It must be connected to a Grounded and Polarized wall receptacle that has been installed and tested by an licensed electrician and that it has been installed based on all Local, State and Federal Electrical codes.

WARNING:Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

- This appliance produces ozone within the washing compartment during normal operation. Long-term exposure to ozone or exposure at elevated levels may result in respiratory problems,

especially for the infirmed, elderly and children.

• Children should not operate this machine without adult supervision.
• Be Careful to not leave the door fully open when not being loaded or unloaded to prevent someone from tripping on the unit.

WARNING: If your dishwasher is equipped with internal illumination, lamp should only be replaced by the Authorized Service Agent in case of failures that may occur on the lamp.

WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note: Nickel is a component in all stainless steel and some other metal components.

SAVE THESE INSTRUCTIONS

• Service should be performed by a qualified installer. Work by unqualified persons could be dangerous and may void the warranty.
• Do not operate the appliance if damaged, malfunctioning, partially disassembled or if it has missing or broken parts.

• Before installation or service, disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.

• For safety reasons, dishwasher must be secured to adjacent cabinetry using the brackets provided. Failure to do this may cause damage to property or bodily injury.

• Do not use any extension cord or portable outlet device to connect the dishwasher to a power supply.

2. RECYCLING

• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. Ensure that the appliance presents no danger to children while being stored for disposal.
• Remove the door lock or door of the washing compartment before disposing dishwasher so that children or small animals can not trapped inside.
• Old appliances may contain materials that can be recycled. Please contact your local recycling authority about the possibility of recycling these materials.
• Please check the water supply line periodically. It is susceptible to breakage. It becomes less flexible as time goes by. Replace it immediately when it is torn, cut, swollen or there is water leakage.
• Please keep the dishwasher package out of the reach of children after unpacking it.

WARNING: Danger of suffocation! Ensure that any plastic wrappings, bags, small pieces etc. are disposed of safely and kept out of the reach of children.

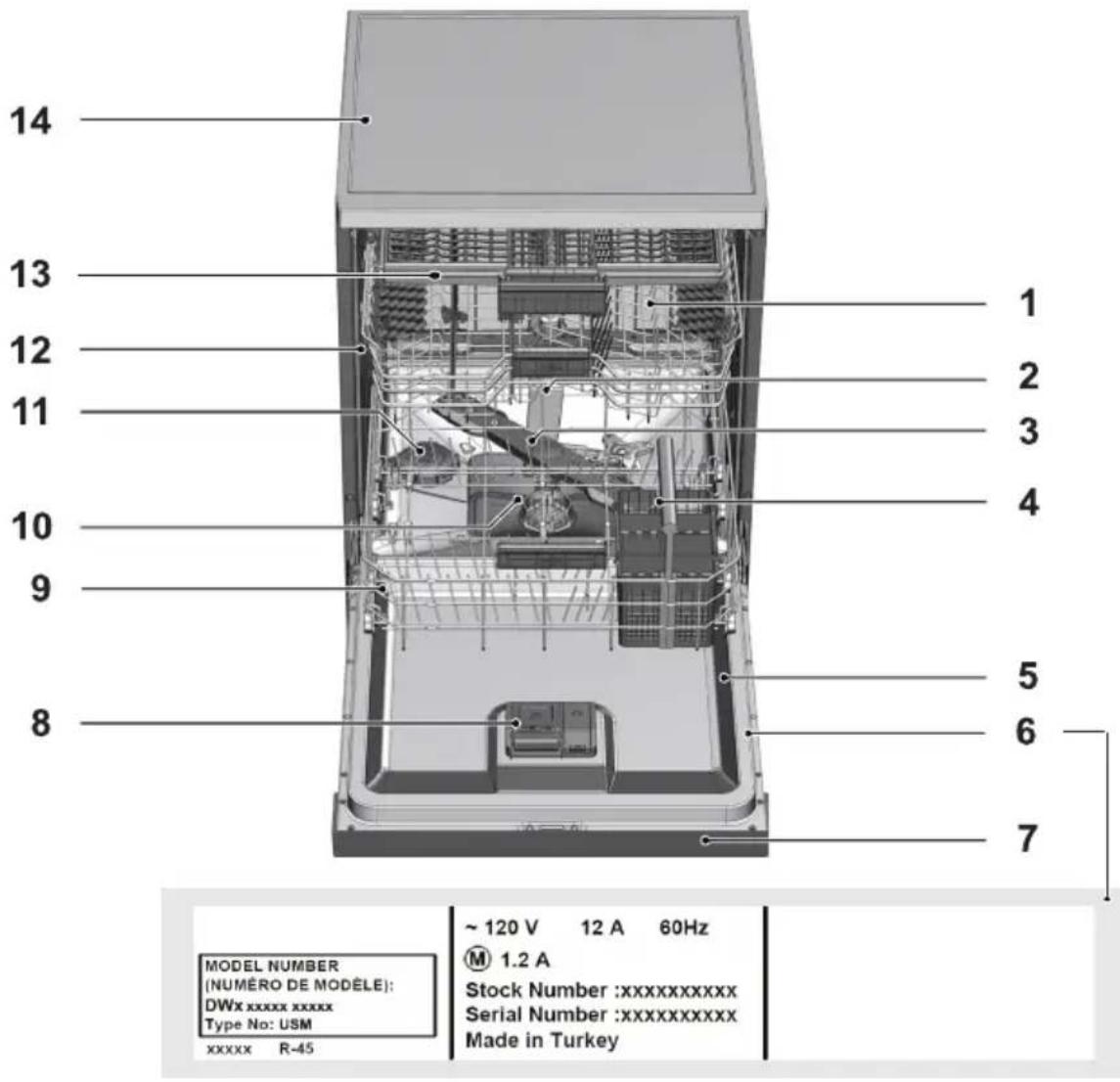

3. GETTING TO KNOW YOUR DISHWASHER

14 13 12 11 10 9 8 1 2 3 4 5 6 7 MODEL NUMBER (NUMÉRO DE MODÈLE): DWx xxxxx xxxxx Type No: USM xxxxx R-45 ~ 120 V 12 A 60Hz ① 1.2 A Stock Number :xxxxxxxxxxx Serial Number :xxxxxxxxxxx Made in Turkey

1. Upper basket
2. Upper impeller
3. Lower impeller
4. Cutlery basket
5. Door
6. Model and Serial Tag
7. Control panel
8. Detergent and rinse agent dispenser
9. Lower basket
10. Filters
11. Salt container (Select Models)
12. Upper basket rail
13. Upper cutlery basket (Select Models)
14. Tabletop (Select Models)

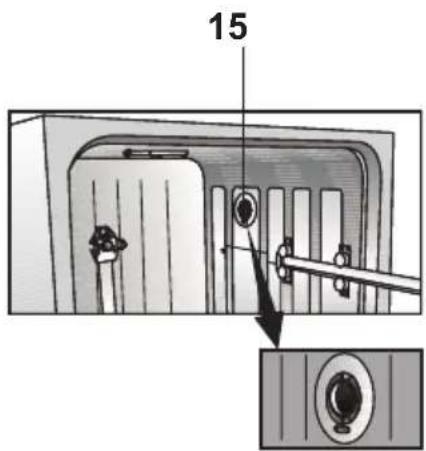

15. Turbo fan heat drying system (Select Models)

15

4. LOADING THE DISHWASHER

1. Pull the handle to open the door. If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will continue.
2. Remove coarse food leftovers from tableware.
3. Now you can load the dishwasher.

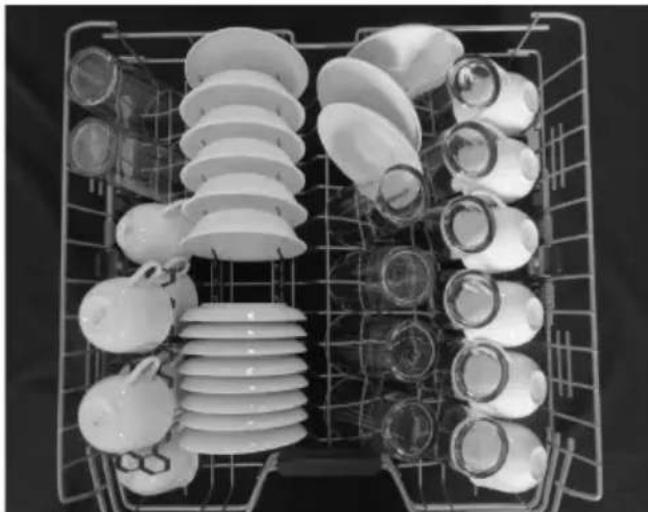

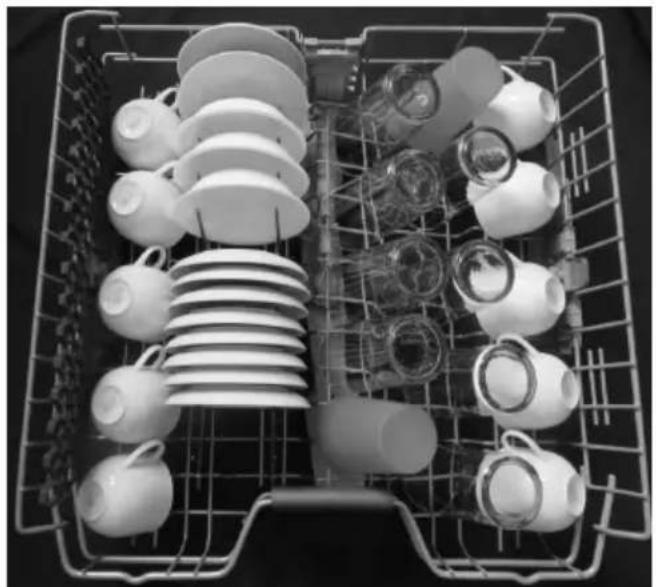

Upper rack (Standard Pattern)

Overhead view of a multi-tiered kitchen appliance with insulators and circular components arranged in a grid (no text or symbols visible)

Top rack load pattern for 12 place settings according to the AHAM DW-1 Standards

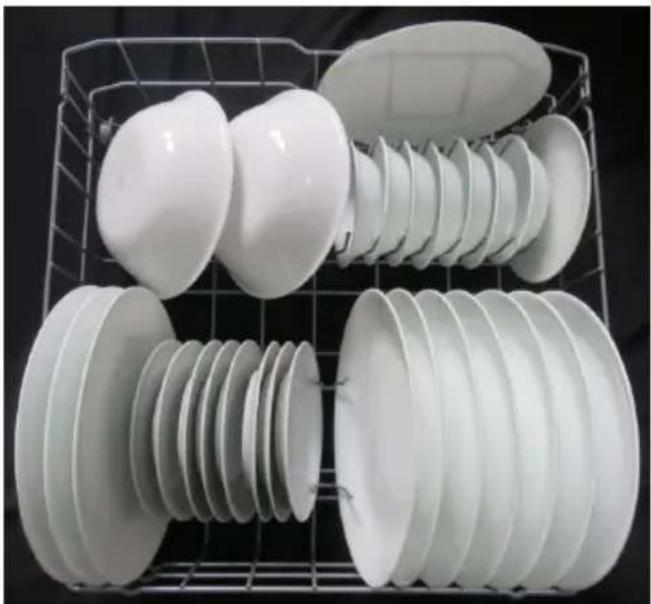

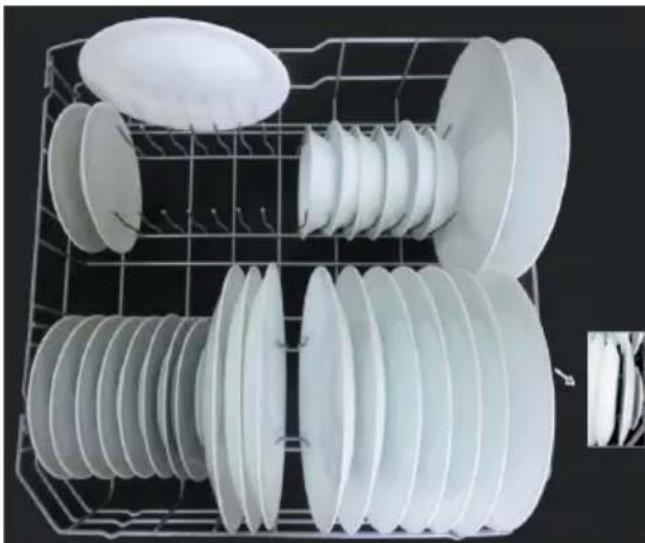

Lower rack (Standard Pattern)

Cross-sectional view of an electrical insulator assembly showing internal components and housing (no text or symbols visible)

Bottom rack load pattern for 12 place settings according to the AHAM DW-1 Standards

Upper rack (International Pattern)

Black-and-white overhead view of a cleaning fork with various kitchen utensils and containers (no text or symbols visible)

International Loading Pattern – Top rack (12 place settings)

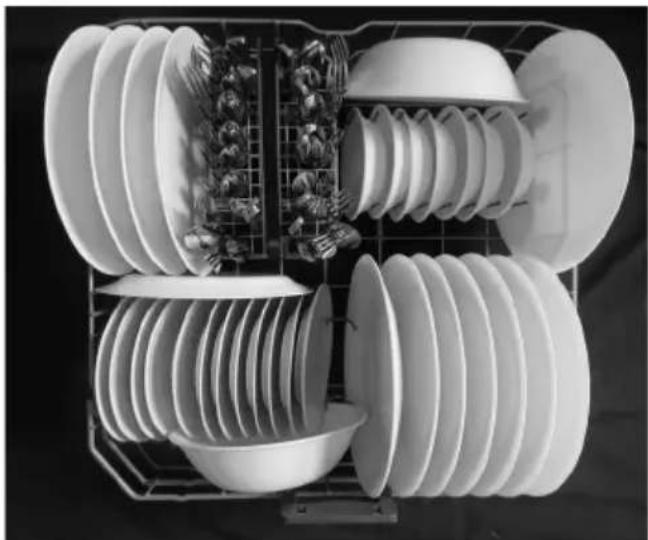

Lower rack (International Pattern)

3D rendering of white industrial insulators arranged in a grid structure (no text or symbols visible)

International Loading Pattern – Bottom rack (12 place settings)

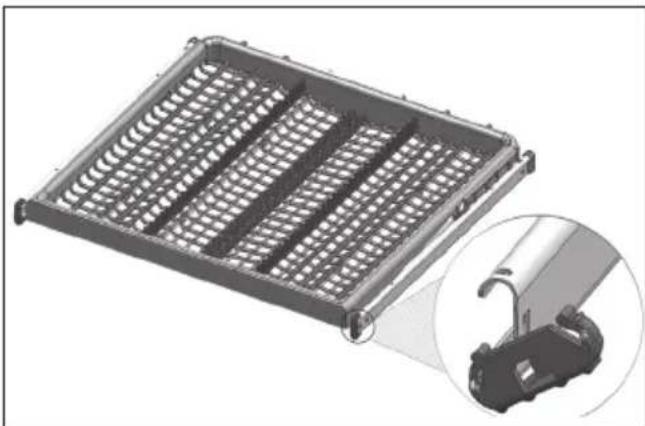

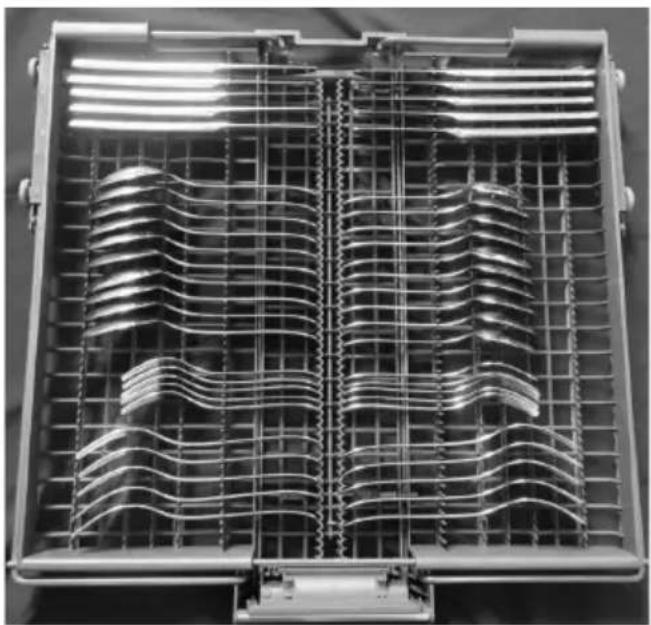

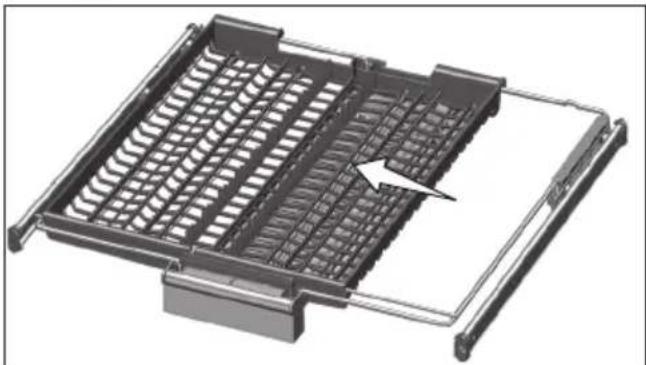

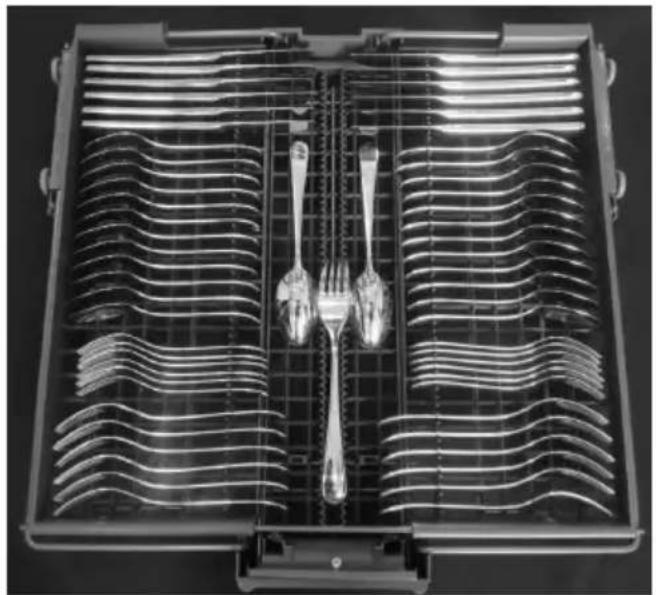

Upper cutlery basket (Select Models)

Black-and-white photo of a kitchen tray with metal plates and two fork-shaped utensils, no text or symbols visible.

International Loading Pattern – Upper cutlery basket (12 place settings)

Upper rack (Select Models)

Black-and-white photo of a multi-tiered kitchen appliance with plates, cups, and teapots arranged in a grid (no text or symbols visible)

Additional Loading Pattern – Top rack (10 place settings)

Lower rack (Select Models)

White ceramic insulator components arranged in a wire rack against a black background (no text or symbols visible)

Additional Loading Pattern – Bottom rack (10 place settings)

Upper cutlery basket (Select Models)

Close-up of a metal cooling rack with coiled insulation and mesh grid (no text or symbols visible)

International Loading Pattern – Upper cutlery basket (10 place settings)

	CAUTION:Large knives and other utensils with sharp tips and edges must be placed horizontally into the upper rack due to risk of injury. Other smaller knives and sharp utensils should be placed with sharp side down in the cutlery basket.
	CAUTION:Use extreme caution when removing knives and other sharp utensils from the dishwasher. These items may have shifted position during the wash program, and may be wet or slippery.
	CAUTION:Hot steam can escape! Danger of serious burns or other injury.
	NOTICE: 3rd basket should be removed out of the dishwasher during the tests according to AHAM DW-1.

• Your dishwasher holds a maximum of 12 place settings.
• Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards (so that no water can collect).
• Small and light items can go into the upper rack.
• Long and narrow items are placed in the middle of the racks.
• Place all large and very dirty items in the lower rack.
• Load dishes accordingly and be careful when loading glasses so they do not hit each other during the wash cycle. Also, make sure that both wash arms are not in contact with any dishware.

- Do not overload your dishwasher and pay attention to manufacturer instructions regarding dishes which are appropriate for use in for a dishwasher. Only with suitable dishes (mentioned in section 5) will you obtain optimal washing results with a sensible use of energy.

4.1 UPPER RACK

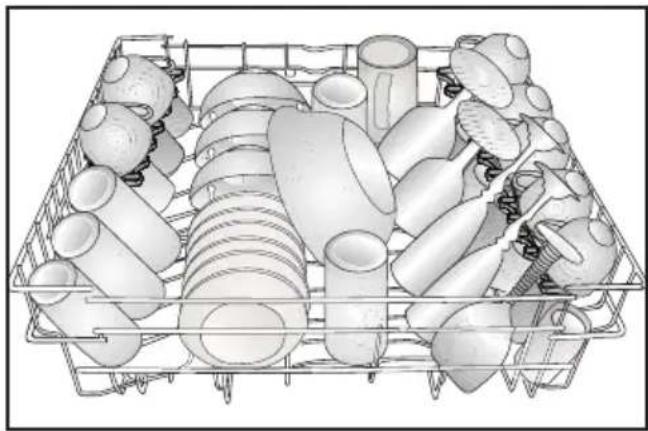

Load the upper rack with dessert plates, cups, glasses etc.

Illustration of a multi-tiered plastic container filled with various plastic components (no text or symbols visible)

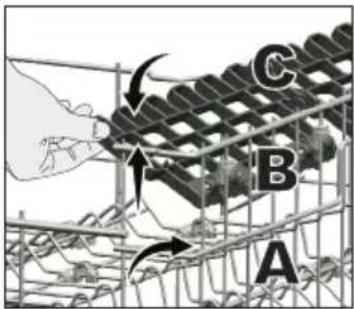

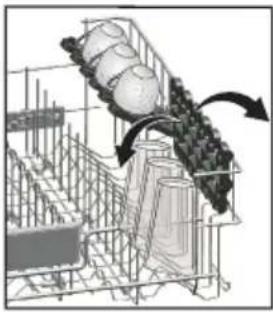

ADJUSTABLE SHELVES

(Select Models)

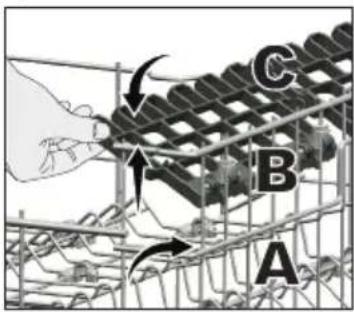

Depending on the size of the glasses and cups, the shelf height setting may be adjusted.

1. Fold the shelf upwards A.
2. Positioning at the desired height B.
3. Fold the shelf again downwards C.

Diagram of a mechanical assembly with gears and shafts, showing motion direction (no text or labels)

Diagram showing a mechanical or structural assembly with labeled components A, B, and C, including directional arrows indicating movement or force.

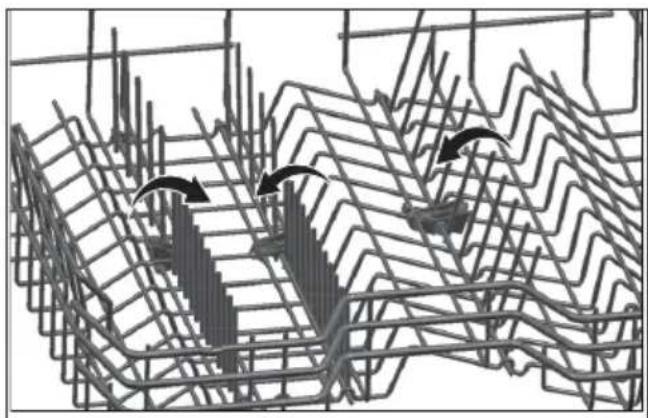

COLLAPSIBLE UPPER BASKET WIRES

(Select Models)

You can use collapsible wires when you need a larger space for your dishes in the upper basket of your machine.

To bring the collapsible wires into horizontal position, grab the wire from the middle position and push them in the direction of arrow in the figure. Place your larger dishes into the area created. To bring the wires back to vertical position, just lift them up.

3D wire mesh structure with directional arrows indicating movement or force (no text or symbols)

Bringing the wires to the horizontal position by holding them from the tips may cause them to bend. Therefore, hold the wires from their stems while bringing them to the horizontal or vertical positions.

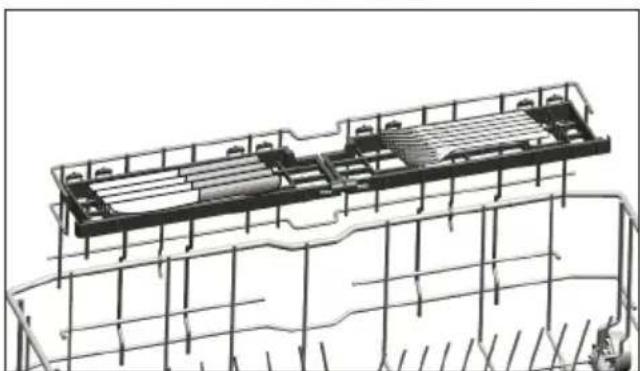

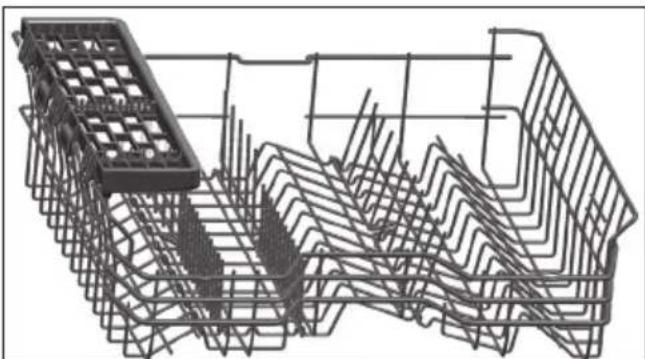

UPPER BASKET MULTIPURPOSE SERVICE RACK

(Select Models)

This accessory located at the upper basket of your machine allows you to easily wash pieces such as extra long ladles and bread knives.

3D wireframe model of a mechanical assembly with grid-like components (no text or symbols)

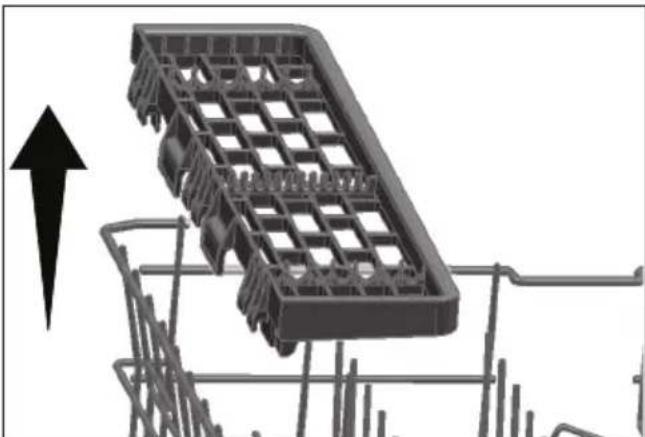

You can lift up the upper basket multipurpose service rack to remove it if you do not want to use it.

3D rendered image of a shopping cart with an upward arrow, no visible text or symbols

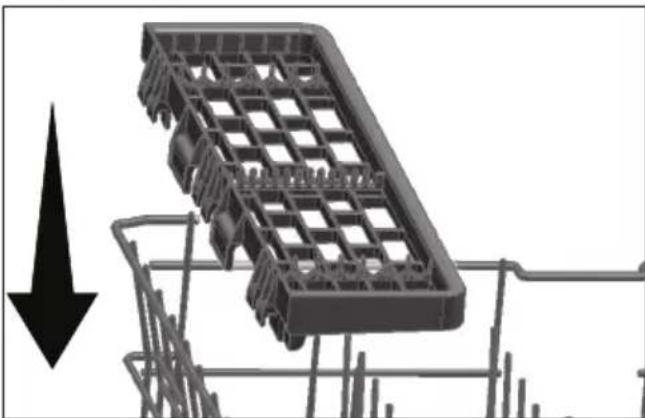

If you want to use the upper basket multipurpose service rack again, you can easily attach it to the side section of your upper basket.

3D rendered image of a shopping cart with a black downward arrow indicating price decline (no text or symbols)

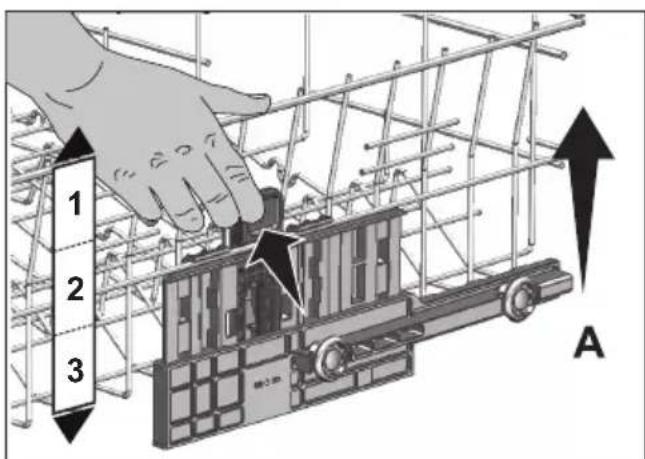

ADJUSTING THE HEIGHT OF THE UPPER BASKET

(Select Models)

The upper basket height adjustment mechanism has been designed for you to create large spaces in the lower or upper sections of your machine depending on your needs by adjusting the height in the upper or lower direction while your basket is empty or loaded.

Thanks to this mechanism, you can use your basket in three different positions, namely lower, middle and upper positions (1, 2, 3).

1. To raise your basket, hold the upper basket wires with both hands while the basket is in the lowermost position and pull them up (A).

2. You will hear a "Click" from the right and left mechanisms, indicating that the basket has reached the next level. Release the basket.

Repeat the process if the height is not sufficient.

1 2 3 A

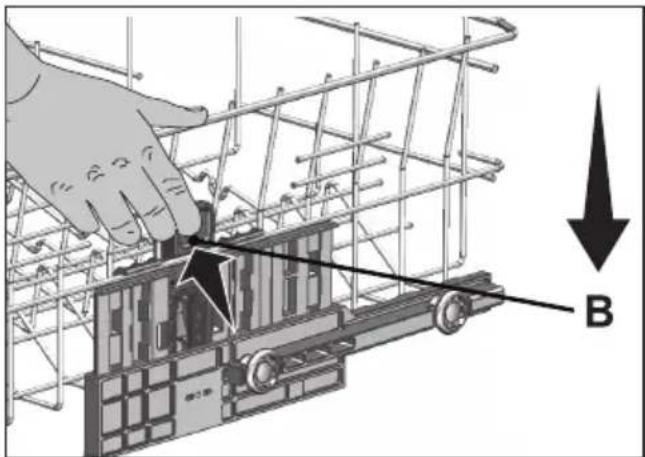

To lower the basket, while it is in the uppermost position;

1. Hold the upper basket wires with both hands, slightly lift up the basket and simultaneously push and release the latches shown in the figure (B).
2. Lower the basket from its current position to the lower one.
3. Release the basket after it has reached one level down.

Repeat the process if the height is not sufficient.

Technical diagram showing a hand operating a mechanical assembly with labeled component B and directional arrow

The movement mechanism may not function properly if the upper basket is overloaded or if the weight distribution is not balanced. In heavier conditions, there is the risk of falling one level down.

Make sure that the adjustment mechanism has the same positions on the right and left sides of the upper basket.

HEIGHT SETTING

(Select Models)

In certain models, the height setting of the upper rack may be changed using the wheels which are present at two height levels.

CAUTION:Make sure that the rack is empty. Changing the height setting while the rack contains tableware could cause the contents to dislodge, causing personal injury or damage to the tableware.

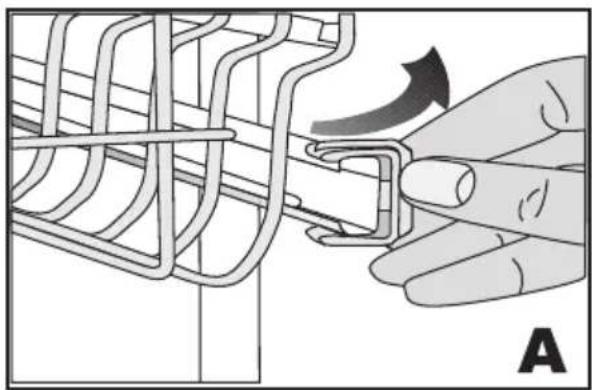

1. Release the latches on both the right and left tracks of the upper rack by turning them to the outside A.

Illustration of a hand using a tool to adjust or install a wire mesh component, labeled 'A' (no text or symbols on the diagram itself)

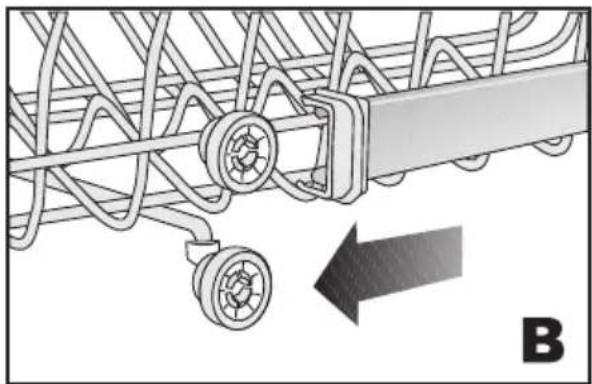

1. Pull out the rack completely B.

Mechanical assembly diagram showing a wheel and rope system with an arrow indicating direction (no text or symbols)

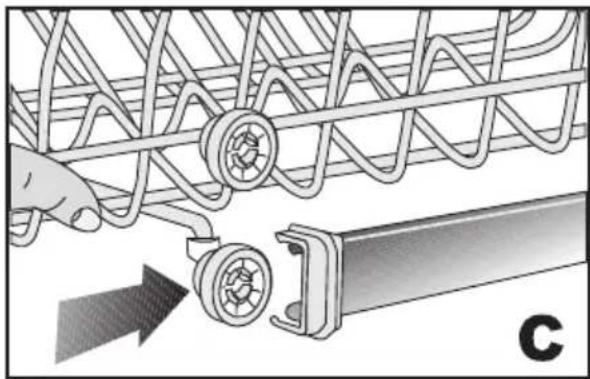

1. Place the rack into the tracks again at the desired height C.

Diagram of a mechanical assembly with coiled spring and fastener, showing directional arrow (no text or symbols)

1. Push the latches back into the correct position.

4.2 LOWER RACK

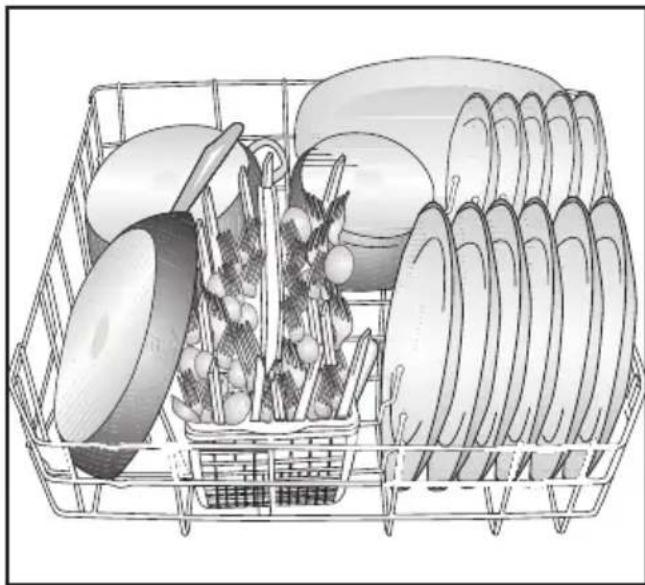

Use the lower rack for plates, bowls, pots etc.

Illustration of a grocery basket filled with various household items including cutlery, bowls, and plates (no text or symbols)

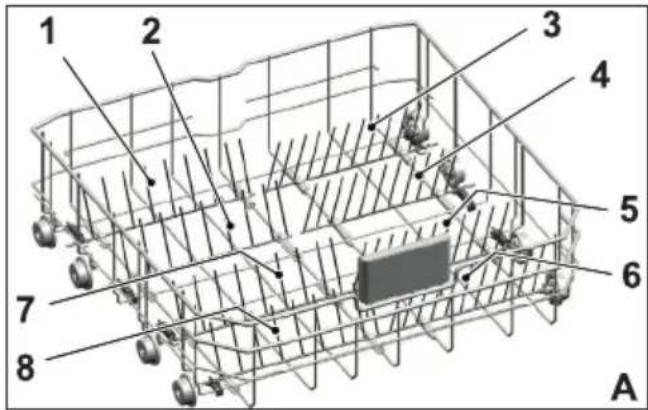

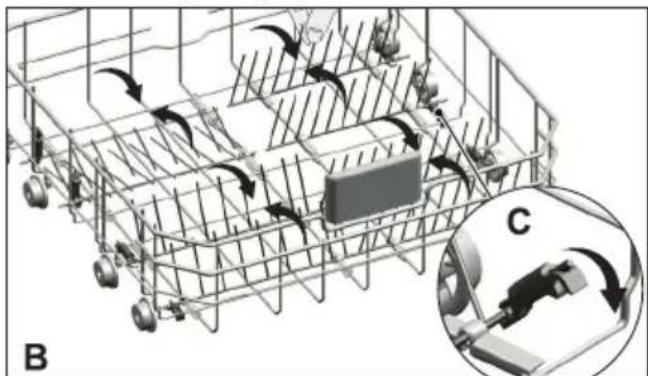

COLLAPSIBLE LOWER BASKET TINES

(Select Models)

There are foldable tines (A) located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. You can create larger spaces by folding each tines individually or all of them at once.

1 2 3 4 5 6 7 8 A

To bring the collapsible tines into horizontal position, grab the tines from mid position and push them in the directions of arrows (B). To bring the tines back to vertical position, just lift them up. Collapsible tines will click into the latch again (C).

Diagram of a multi-level industrial storage unit with internal components and directional arrows, labeled B and C (no text or symbols on the diagram itself)

Bringing the tines to the horizontal position by holding them from the tips may cause them to bend. Therefore, it will be appropriate to bring the tines in the middle to horizontal or vertical position by holding them from their stems and pushing in the direction of arrow.

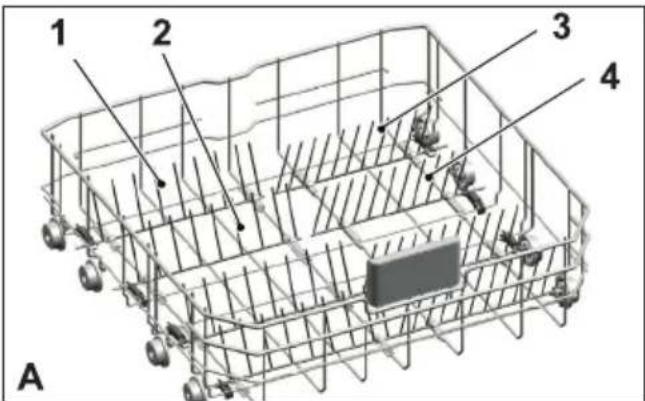

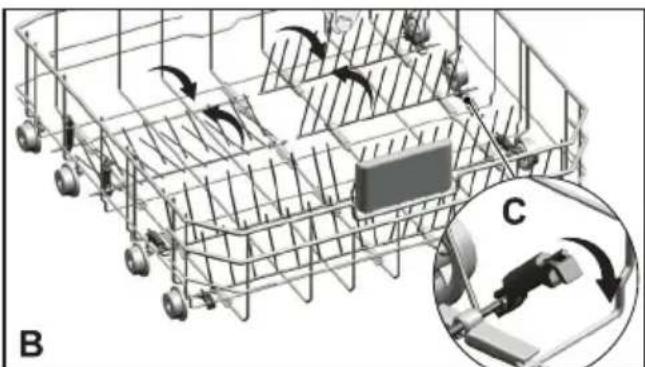

COLLAPSIBLE LOWER BASKET TINES

(Select Models)

There are foldable tines (A) located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. You can create larger spaces by folding each tines individually or all of them at once.

1 2 3 4 A

To bring the collapsible tines into horizontal position, grab the tines from mid position and push them in the directions of arrows (B). To bring the tines back to vertical position, just lift them up. Collapsible tines will click into the latch again (C).

3D wireframe diagram of a vehicle chassis with internal components and directional arrows, labeled B and C (no text or symbols on the diagram itself)

Bringing the tines to the horizontal position by holding them from the tips may cause them to bend. Therefore, it will be appropriate to bring the tines in the middle to horizontal or vertical position by holding them from their stems and pushing in the direction of arrow.

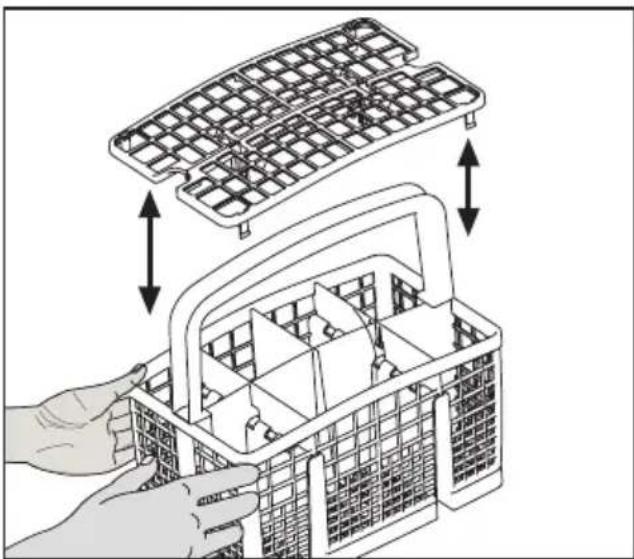

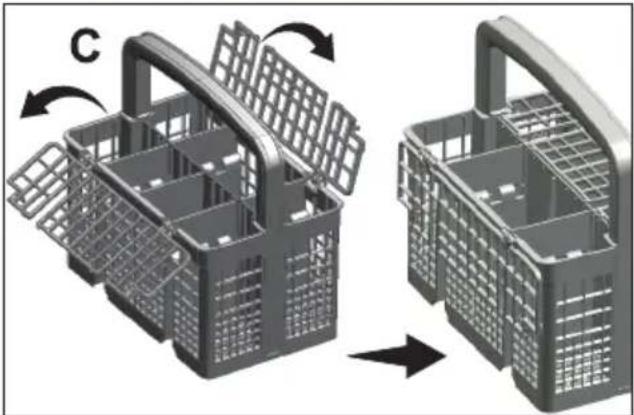

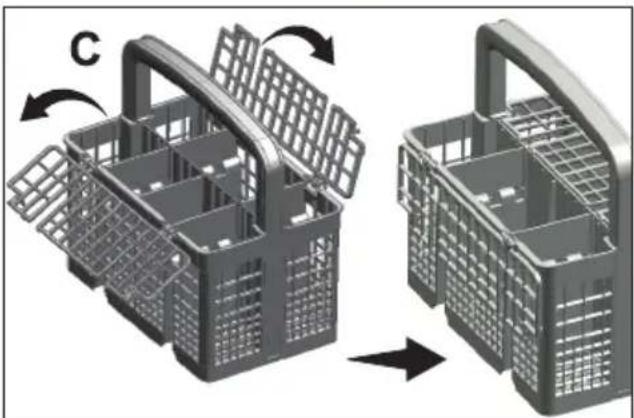

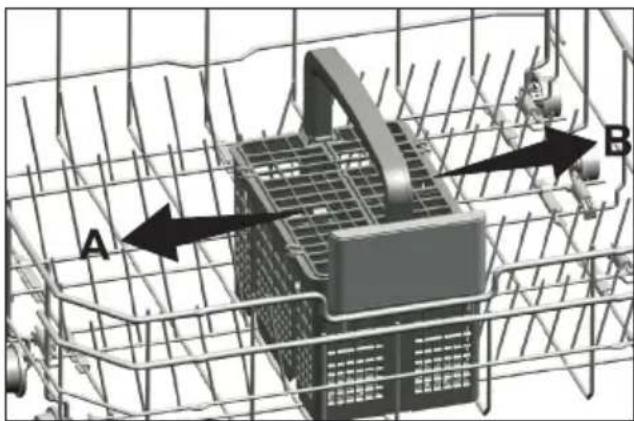

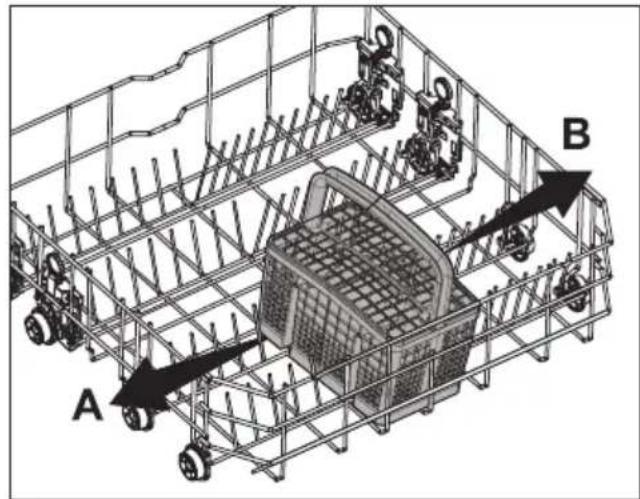

SILVERWARE BASKET

(Select Models)

Silverware basket is designed to wash your dishes such as knife, fork, spoon, etc. in an efficient manner.

Since the silverware basket can be moved (A, B), you can create more space while placing your dishes in the lower basket and free up space for your dishes of different sizes.

3D wireframe diagram of a vehicle chassis with labeled components A and B, showing structural framework and wheels (no text or symbols beyond labels)

Illustration of a hand assembling a grid-patterned plastic container with arrows indicating assembly or movement (no text or symbols present)

SILVERWARE BASKET

(Select Models)

Silverware basket is designed to wash your dishes such as knife, fork, spoon, etc. in a cleaner manner.

Since the cutlery basket can be moved (A, B), you can create a wider space while placing your dishes to the lower basket and free up space for your dishes in different sizes.

3D diagram of a mechanical or electrical component with labeled arrows A and B, no readable text or symbols present.

3D diagram of two plastic shopping baskets with internal compartments and side handles, shown in two sequential states (no text or symbols)

NOTICE: When finished, test to ensure that the spray arm can still move freely.

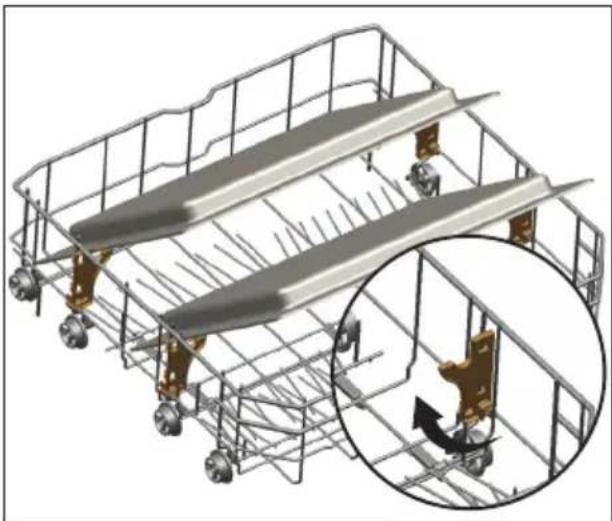

TRAY WASH SUPPORTS

(Select Models)

Use the supports to wash trays in the bottom basket.

See the Auxiliary functions section for appropriate program and function selection.

3D technical illustration of a metal scaffolding assembly with a magnified inset showing a mechanical component (no text or symbols)

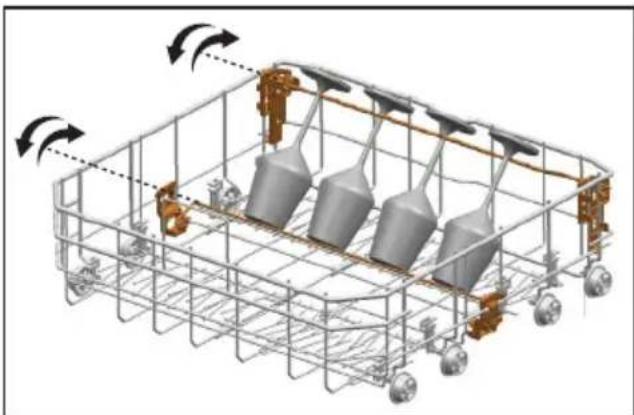

LOWER BASKET GLASS HOLDER

(Select Models)

Lower Basket Glass Holder found in the lower basket of your machine enables a safe washing for your oversized and tall glasses.

3D mechanical assembly diagram showing a multi-cylinder engine with rotating components and directional arrows (no text or symbols)

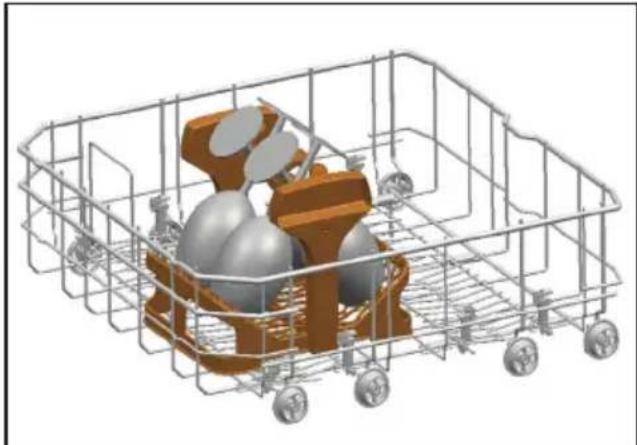

SOFTTOUCH ACCESSORY

(Select Models)

The SoftTouch Accessory found in the lower basket of your machine enables a safe washing for your fragile glasses.

3D rendered illustration of a toy car inside a wire cage, featuring metallic wheels and a transparent box (no text or symbols)

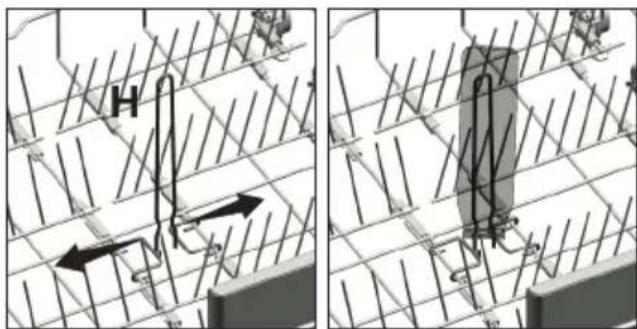

LOWER BASKET BOTTLE WIRE

(Select Models)

The bottle wire is designed for easier washing of long pieces with wide mouths. You may take out the bottle wire from the basket when not in use by pulling it out from both sides (H).

Technical diagram showing two views of a mechanical or electrical component with labeled components and directional arrows indicating motion or flow.

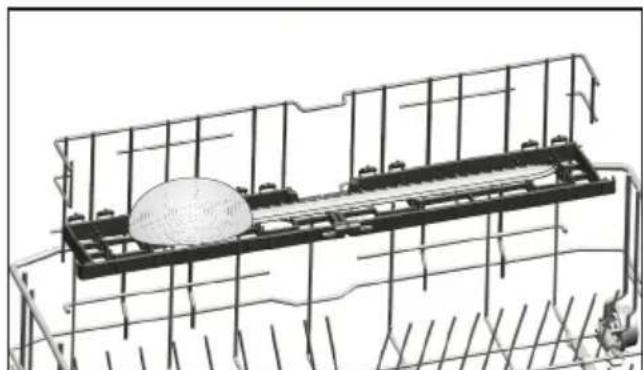

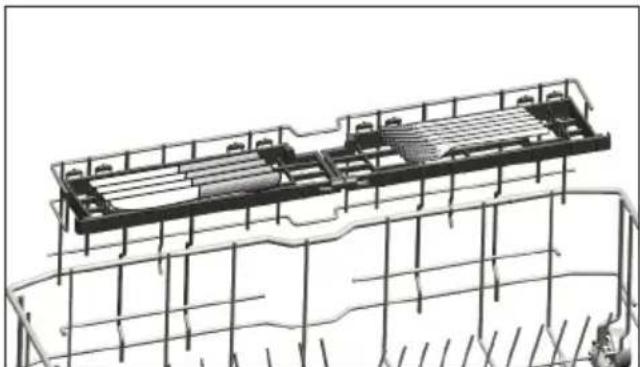

LOWER BASKET MULTIPURPOSE / HEIGHT ADJUSTABLE SERVICE RACK

(Select Models)

This accessory located at the lower basket of your machine allows you to easily wash pieces such as extra glasses, long ladles and bread knives.

Technical line drawing of a mechanical assembly with gears and a conveyor belt (no text or symbols)

Technical line drawing of a mechanical assembly with a spherical component and grid-like supports (no text or symbols)

Technical line drawing of a structural framework with grid supports and a horizontal panel (no text or symbols)

i	You may use the racks as required by moving them to lower or upper position, or close them to create a wider space in your lower basket.

Make sure that the impeller does not touch the dishes you placed on the racks.

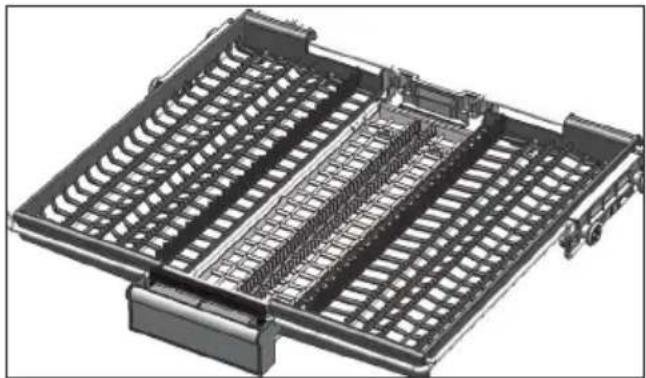

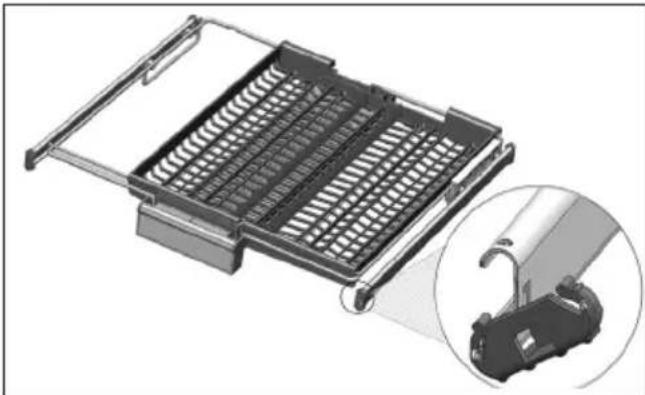

CEILING CUTLERY BASKET

(Select Models)

Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket.

3D technical illustration of a mechanical conveyor system with multiple slots and a central shaft (no text or symbols visible)

Mechanical assembly diagram showing a component with labeled parts (no readable text or symbols)

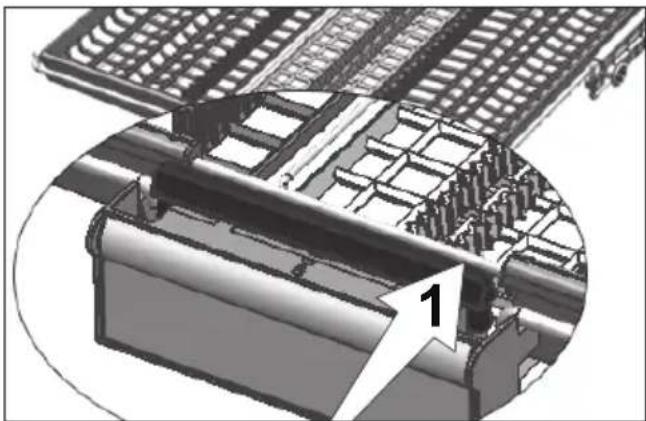

In models with partial movement feature, pushing the bar (1) on the handle enables the central tray of the basket to get to the lower position and the system gets unlocked. Thus right and left side trays can be used as moving parts.

The free space enabled by the side trays allows long parts to be loaded in the upper basket.

3D rendering of a mechanical component with grid pattern and an arrow indicating a specific section (no text or symbols)

Mechanical component diagram showing a rack with mesh structure and a magnified inset of a mechanical clamp (no text or symbols)

When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. on the tray. When the side trays lean on two side walls, the handle can be pulled to allow the central tray to rise and the system to be locked.

CEILING CUTLERY BASKET

(Select Models)

Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket..

3D rendering of a rectangular metal tray with grid pattern and an inset close-up showing a mechanical clamp (no text or symbols)

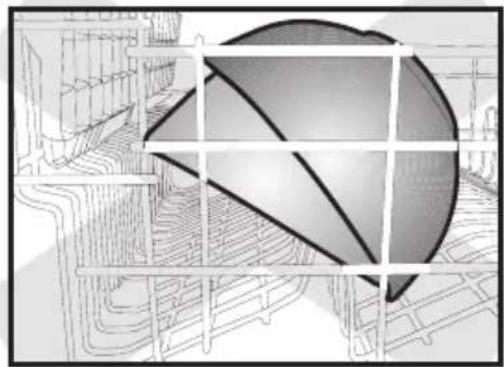

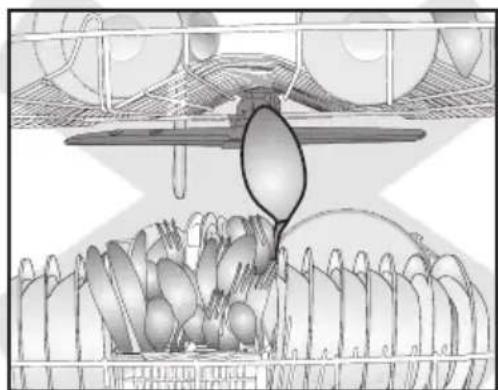

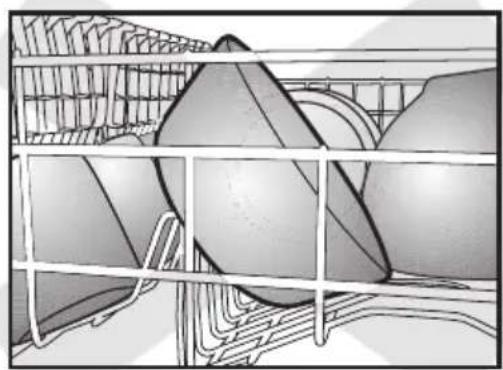

4.3 PROPER AND IMPROPER LOADING OF DISHWARE

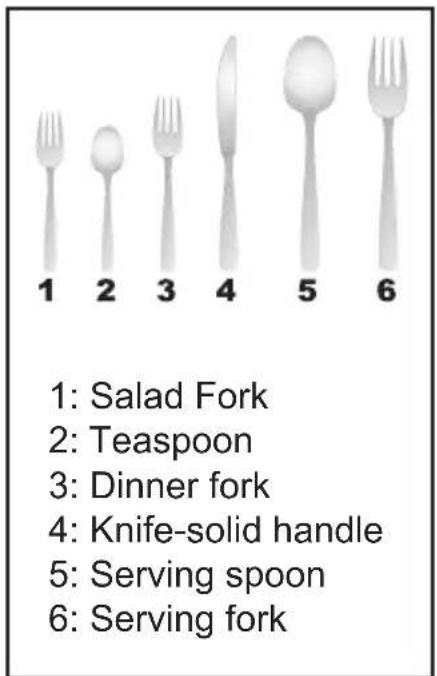

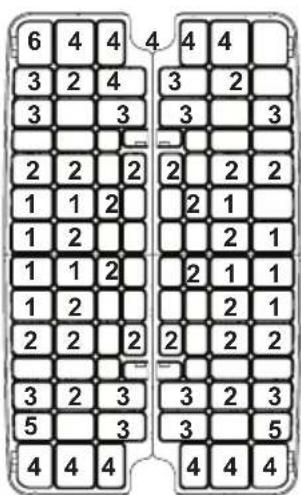

1: Salad Fork 2: Teaspoon 3: Dinner fork 4: Knife-solid handle 5: Serving spoon 6: Serving fork

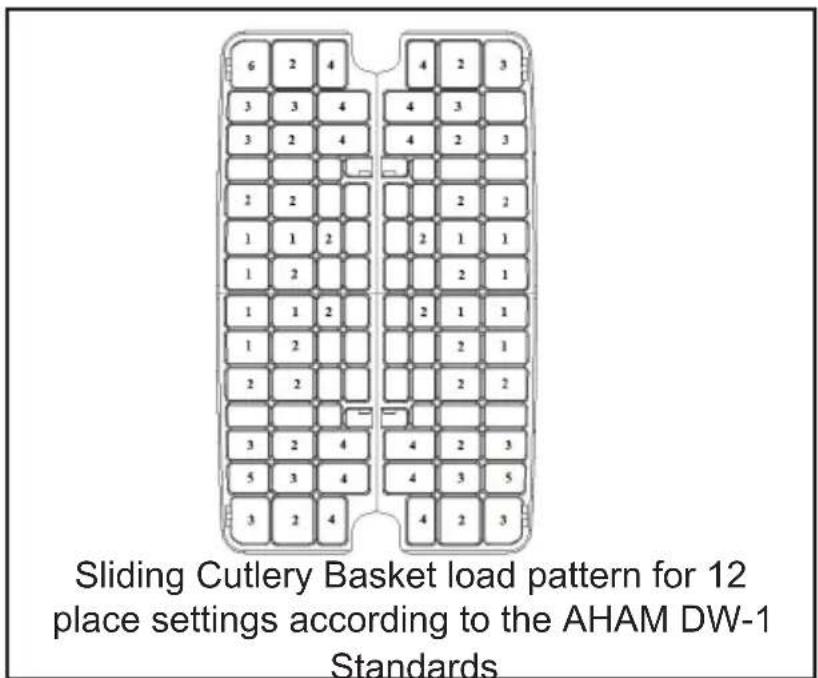

Sliding Cutlery Basket load pattern for 12 place settings according to the AHAM DW-1 Standards

- Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards (so that no water can collect).

• The movement of the spray arms must not be hindered.

- Do not overload your dishwasher.

- Only with suitable dishes (mentioned in section 5) will you obtain optimal washing results with a sensible use of energy.

Cross-sectional diagram of a mechanical or structural assembly with layered components and grid lines (no text or symbols)

incorrect incorrect

Architectural floor plan with grid overlay and abstract geometric design (no text or symbols)

Illustration of a birdhouse feeding chickens in a cage (no text or symbols)

incorrect incorrect

3D rendered illustration of a grid of spherical objects with a central object, no text or symbols present

5. WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER

• Rust-sensitive steel parts like iron and cast iron that can rust and stain other utensils and damage the interior stainless steel liner of the dishwasher and void the warranty. Do not wash copper, brass, pewter, bronze or tin.
• Cutlery with wooden or horn handles and cutlery with mother-of-pearl or porcelain handles will deteriorate over time if put in the dishwasher.
• Plastics may lose their shape or color with hot water, please follow the instructions of plastic manufacturers. Be sure that plastic items are marked “dishwasher safe”.
• Glued dishes or cutlery are not suitable for machine washing since certain adhesives may get soft or dissolve with hot water.
  • Aluminum may fade over time. Minerals in water and detergent may cause the aluminum to darken or spot.
• Sterling silver articles should not be washed in the dishwasher because they tend to discolor and become dull by dishwasher detergent.
  • Silverware and stainless steel items should not be in contact with each other. Mixing these items can cause staining. Remove and hand dry these items immediately when the program ends.
• Decorated glasses, porcelain, fine china and china with gold rims are sensitive to machine washing. They may lose their patterns and colors over time.

• Crystal and very fine glassware may become opaque (etch) losing their shine over time. You may prefer to wash them by hand.
- Do not wash sponges or dish cloths in dishwasher.
- Do not wash art and craft articles in dishwasher.
- Disposable plastics and disposable aluminum cannot withstand high temperatures; do not wash them in the dishwasher.

CAUTION: If in doubt, wash by hand or follow the instructions from the manufacturer of utensils, dishes, glasses or pots and pans.

Do not wash items soiled with cigarette ash, candle wax, varnish, paints or chemicals since they can damage your dishwasher.

NOTICE: We recommend when buying new dishware, try to choose ones that are suitable for machine washing (marked as dishwasher safe).

CARING FOR YOUR TABLE-WARE

The combination of high temperatures and dishwasher detergent may cause damage to some items if they are washed in the dishwasher. Remember, if there is any doubt about any aspect concerning items to be washed in the dishwasher, follow the instructions from the manufacturer of the items, or wash the items by hand.

6. OPERATING THE PRODUCT

NOTICE: If you do not perform any operation after switching on the machine, it will be automatically switched off within 5 seconds.

1 2 4 5 637 8 3 9 8 S S 8:88 111213 10

1. On/Off key
2. Program Selection / Program Cancel (3 seconds) key
3. Function keys & indicators
   F1 Half Load Function
   F2 Extra Rinse function
   F3 Rapid Clean Function
4. Program indicator
5. Salt indicator (Select Models)
6. (Not in use)
7. Start / Cancel indicator
8. Time Delay / Program Time indicator
9. Time Delay key
10. Time Delay indicator
11. End of Program indicator
12. (Not in use)
13. Rinse Aid indicator

6.1 KEYS

On/Off key

When you press On / Off key, indicator lights illuminate on the display for ON position. The lights turn off in OFF position.

Program Selection / Program Cancel key

Press this key until the desired program appears in the program indicator.

To cancel the running program open the door of the product. Press and hold the Program Selection / Program Cancel keys for 3 seconds. After the 3 - 2 - 1 countdown, 0:01 is displayed, close the door of the product and wait for the draining process complete. Draining is completed in 2 minutes and the machine gives an audible warning when it is completed.

Function keys

If you press any of the Function keys during program selection or time delay selection, an affirmative key signal will be heard provided that the relevant function is supported by the selected program. Function will be deemed selected when the indicator of the selected function is lit.

To cancel the selected function, keep the function key pressed until the function indicator disappears.

6.2 PREPARING THE MACHINE

1. Open the door of the dishwasher.
2. Place the dishes in accordance with the instructions in the user manual.
3. Make sure that the upper and lower Wash Arms rotate freely.
4. Put adequate amount of detergent into the detergent dispenser.

6.3 PROGRAM SELECTION

1. Press the On/Off button to turn on your machine.
2. Check the Salt and Rinse Aid indicators and add salt and/or rinse aid if needed.
3. Refer to the table of "Program Table" to determine a washing program suitable for your dishes.
4. Selected program will start when you close the door of your machine.

PROGRAM TABLE

Program number			0	1	2	3	4	5
Program name			ProCare Pots &	Pans+ Regular Wash *		Quick & Dry	Quick Wash Rinse & Hold
Wash Temperatures		(°C)	72 70 50-55 47	45 0
		(°F)	160 162 122-18	116,6 113 0
Rinse Temperatures		(°C)	70 72 61-67 71	55 0
		(°F)	140 158 142-15	160 131 0
Degree of dirtiness			-	High	Medium	Few - Medium	Few	-

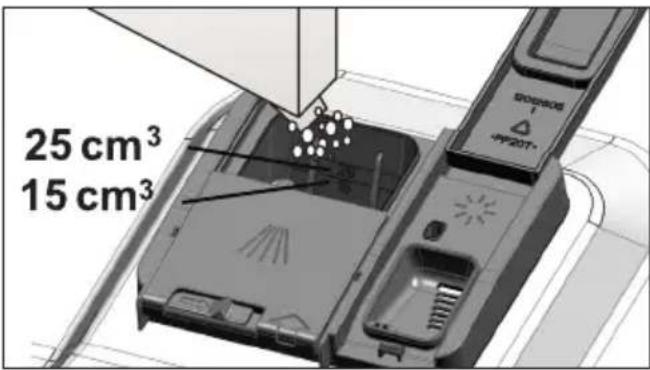

Detergent in dispenser section	15 ml		-	-	-	-	+	-
	15-25 ml		+	+	+	+	-	-
	+ 5 ml		+	+	+	+	-	-
Recommended detergent amount	Hard water	ml	40	40	25-40	25-40	15-25	-
		tsp	8	8	5-8	5-8	3-5	-
	Medium water	ml	-	40	25	25	15	-
		tsp	-	8	5	5	3	-
	Soft water	ml	-	25-40	15-25	15-25	15	-
		tsp	-	5-8	3-5	3-5	3	-
Wash			-	+	+	-	-	+
Main wash			-	+	+	+	+	-
Dry			-	+	+	+	-	-
Sanitize			-	+	+	-	-	0
Duration (minutes)			75	122 100-135	58 35 15
Water (liters)			15,2	20,2	8,8-21,2	10,4	11,6	4,2
Water (gallons)			3,80	5,34 2,32-5,60	2,70	3,10	1,10

The consumption values shown in the table were determined under standard conditions. For this reason, deviations are possible under practical conditions. * The energy-usage label is based on this program.

6.4 AUXILIARY FUNCTIONS

Washing programs of your dishwasher are designed to obtain the best cleaning effect, considering the type of the soiling, soiling degree and properties of the dishes to be washed. Auxiliary functions allow you save from time, water and power.

	Auxiliary functions may cause changes in the program duration.
	Auxiliary functions are not suitable for all washing programs. Indicator of the auxiliary function that is not compatible with the program will not be active.

Half Load function

It is used to operate the machine without loading it completely.

1. Load your dishes in the machine as you like. You can use both upper and lower racks.
2. Turn the machine on with On/Off key.
3. Select the desired program and press the Half Load key. The Half Load indicator will light on the display in the Function Selected indicator.
4. Close the door of the machine to start the program.

Extra Rinse function

Depending on the type of the detergent used, if a detergent dissolving issue is encountered it will remove the resulting stains from the dishes and enables the optimum rinsing performance.

Rapid Clean Function

It shortens the time of the washing cycle selected and decreases water consumption by enabling washing under higher pressure.

Interior Lighting

(Select Models)

Some models have interior lighting to illuminate the interior when the door is opened.

Changing the interior lighting setting

1. After turning on the machine, press Time Delay and P+ keys simultaneously. Continue to press until the countdown 3, 2, 1 is completed on the display.
2. Press P+ key to activate the L: option. The interior lighting is turned off at "L:0" option and turned on at "L:1" option. Set the desired option with the Time Delay key.
3. Turn off the machine with On/Off key to save the changes.

Automatic Detergent Detection Feature

The product has a feature to automatically detect the type of the detergent and adjust the washing programme and drying system to the best performance. If special tablet detergent is used, the programme duration can be extended by 20 minutes in order to optimize the washing and drying performance.

Notice: Automatic detergent detection feature should be deactivated during the tests according to AHAM DW-1.

To deactivate:

1. After turning on the machine, press Time Delay and P+ keys simultaneously. Keep them pressed until the countdown 3, 2, 1 is completed on the display.
2. Press P+ key to activate the a: option. Automatic detergent detection feature is disabled at "a:0" option and enabled at "a:1" option. Set the desired option by pressing the Time Delay key.
3. Turn off the machine with On/Off key to save the changes.

Floor illumination

Illuminates to show program is still running.

(Select Models)

Your machine reflects a light to the floor during the washing process. This light turns off after the washing process is complete.

Floor illumination cannot be cancelled by the user.

Changing Warning Sound Volume

1. After turning on the machine, press Time Delay and P / P+ keys simultaneously. Keep them pressed until the countdown 3, 2, 1 is completed on the display.
2. Press P / P+ key to activate the S: position.
3. Each pressing on the Time Delay key will change the warning sound volume as "S:0" off, "S:1" medium and "S:2" high.
4. Turn off the machine with On/Off key to save the changes.

Factory setting of your machine is "S:2".

6.5 SCHEDULING THE WASHING TIME

Time Delay

If an economical electricity tariff is applied in your region, you can use the Time Delay function to wash your dishes during appropriate hours. You can delay the start of the selected program until 24 hours.

1. Press the Time Delay function key after selecting the washing program and other auxiliary functions.

2. Once you press the Time Delay key, Display Information Line will show "0:30" and Time Delay indicator will start flashing.

3. Set the desired time by pressing the Time Delay key. Time will increase with increments of 30 minutes up to 6 hours and after that in 1 hour increments up to 24 hours every time you press the key.
4. Close the door of your machine after setting the Delayed Start. Once the delay time is over, the selected program will start automatically.

Changing the settings while Time Delay function is active

While the Time Delay function is activated, you cannot make changes in the washing program, auxiliary functions or the duration of delay time.

Program and auxiliary functions cannot be set/ changed after the program has started.

To cancel the Time Delay function

Open the door of the product Press and hold the Program Selection / Program Cancel keys for 3 seconds. After the 3 - 2 - 1 countdown, 0:01 is displayed, close the door of the product and wait for the draining process complete. Draining is completed in 2 minutes and the machine gives an audible warning when it is completed.

You can select and start a new program following the cancellation of Time Delay function.

Time Delay function cannot be set after the program starts.

6.6 STARTING THE PROGRAM

Close the door of your machine to start it after selecting the program and auxiliary functions.

Select Models: Your machine performs water softening depending on the hardness level of the supply water. Washing time can change while the program is running depending on the ambient temperature where your machine is installed, temperature of the supply water and amount of the dishes.

Pay attention not to open the door of the machine when it is running. There may be a rush of vapour when you open the door of your machine; be careful.

The machine will be switched off if no button is pressed within 5 seconds after opening the door while the machine is running.

After the door has been opened, if any button is pressed within 5 seconds and the door is closed, the selected program resumes; otherwise, the machine will be switched off. Open the door after the machine has been switched off, press On/Off button and close the door within 5 seconds. The program will resume washing.

The machine will remain silent in pause mode for some time in order to remove the water from the machine and on the dishes completely and to have the water softener cleaned, and then it will resume running in drying mode.

6.7 CANCELLING THE PROGRAM

Open the door of the product press and hold the Program Selection / Program Cancel keys for 3 seconds. After the 3 - 2 - 1 countdown, 0:01 is displayed, close the door of the product and wait for the draining process complete. Draining is completed in 2 minutes and the machine gives an audible warning when it is completed.

There might be residues of detergent or rinse aid in the machine and/or on the pieces being washed depending on the step the program you have cancelled was in.

Please check the salt indicator on the display to see whether there is adequate amount of softening salt in the dishwasher or not. You need to refill the salt reservoir with salt whenever salt indicator appears on the display of your machine.

Adjusting the water hardness level is explained in Water Softening System section.

6.9 RINSE AID INDICATOR

Please check the rinse aid indicator on the display to see whether there is adequate amount of rinse aid in the dishwasher or not. You need to refill the rinse aid reservoir with rinse aid whenever rinse aid indicator appears on the display of your machine.

Adjusting the amount of rinse aid

1. After turning on the machine, press Time Delay and P+ keys simultaneously. After the countdown (3, 2, 1) is displayed keep the keys pressed for a while.
2. Press P+ to move to position (P) on the display.
3. Set to the appropriate level with the Time Delay key.
4. Press On / Off key to save the setting.

No rinse aid dispensed in P:0 wash position.

1 dose of rinse aid is dispensed in P:1 position.
2 doses of rinse aid are dispensed in P:2 position.
3 doses of rinse aid are dispensed in P:3 position.
4 doses of rinse aid are dispensed in P:4 position.

6.10 END OF PROGRAM

When the program you have selected comes to an end, an audible warning signal will warn you to turn off your machine. This audible signal will warn you with certain intervals before it turns off.

End of Program indicator will light up when the washing program is over.

1. Open the door of the machine.

2. Press On/Off key to turn off your machine.

3. Close the tap.

4. Unplug the machine from the socket.

	For energy saving, the machine is automatically turned off following the completion of the program or if the program is not started.
	Leave your dishes in the machine for about 15 minutes to allow them cool down after they are washed. Your dishes will dry in a shorter time if you leave the door of your machine ajar during this period. This process will increase the drying effectiveness of your machine.

detect this and E:01 icon will flash on the Program indicator. As long as the overflowing continues safety algorithm will be active and try to discharge the water. If overflowing stops and safety is assured, E:01 icon will disappear. If E:01 does not disappear, there is a permanent fault. In this case the authorised service should be contacted.

ProCare

This program is recommended to be operated on each 1-2 months for machine cleaning and necessary hygiene. The program should be operated while the machine is empty. In order to achieve an efficient result, it is recommended to use together with special machine cleaning agents.

Do not use this program to clean dishes. As it operates in high temperatures, it is harmful for the dishes.

6.11 WATER CUT-OFF WARNING

If mains water is cut or water inlet tap is turned off the machine cannot take water in and E:02 icon will flash on the program indicator. As long as the problem continues, washing program is paused and the water inlet is checked regularly by the machine; when the water is restored E:02 icon will disappear after a while and the washing program resumes.

6.12 OVERFLOWING WARNING

If the machine intakes too much water or there is leakage at any of the components then the machine will

7. DETERGENT

You can use powder, liquid/gel or tablet detergents in the machine.

Only use in the machine the detergents produced particularly for use with dishwashers. We recommend you not to use detergents that contain chlorine and phosphate as they are harmful for the environment.

7.1 ADDING DETERGENT

Pay attention to the warnings on the detergent packaging to get better washing and drying results. Contact the manufacturer of the detergent for further questions.

Do not put solvents into the detergent dispenser. There is the risk of explosion!

Put the detergent into the detergent dispenser just before operating the machine as illustrated below.

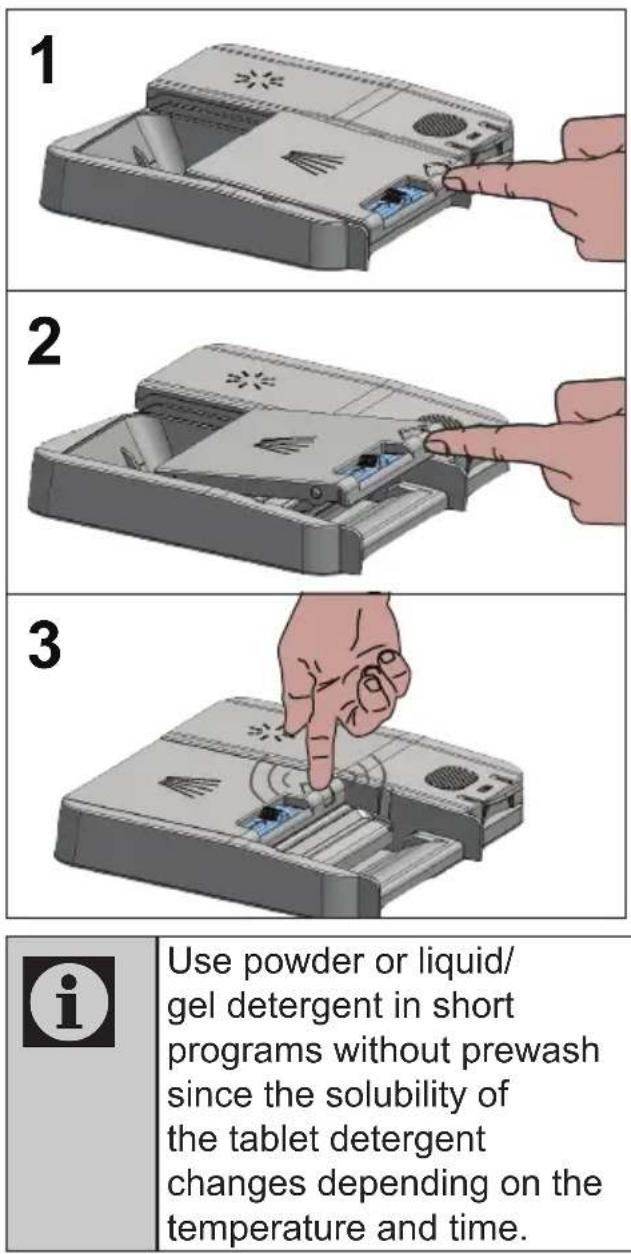

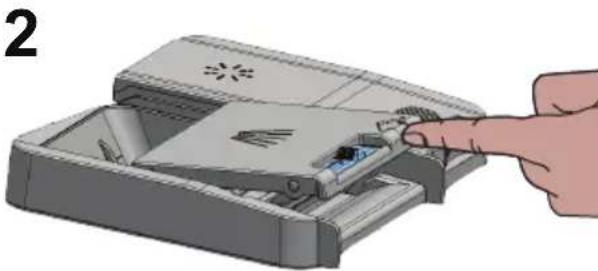

1. Push the latch to right to open the detergent dispenser lid (A).

3D rendering of a device casing with labeled component 'A' and a pencil inserted (no readable text or symbols)

1. Put suggested amount of powder, liquid/gel or tablet detergent in the reservoir.

Inside the detergent dispenser there are level markings that help you use appropriate amount of powder detergent. When brimful, detergent dispenser will contain 1.5 Ounces (45 cm³) of detergent. Fill detergent up to .5 Ounces (15 cm³) or .85 ounces (25 cm³) level marks in the detergent dispenser according to fullness of the machine and/or soiling degree of the dishes. One tablet is enough if you are using detergent tablets.

25 cm³ 15 cm³

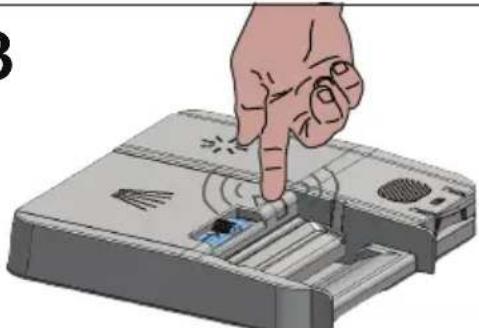

1. Push the lid of the detergent dispenser to close it. A "click" will be heard when the lid is closed.

7.2 TABLET DETERGENTS

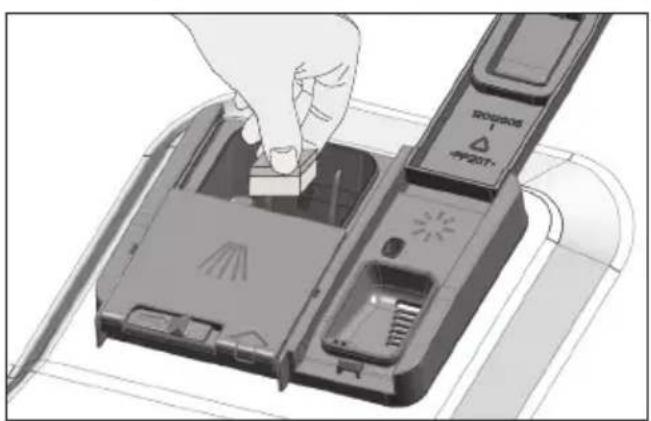

In addition to the conventional tablet detergents, there are also commercially available detergent tablets that show water softening salt and/or rinse aid effect. Some types of these detergents contain special-purpose components such as glass and stainless steel protectors. These tablets show their effects up to a certain water hardness level (59 gpg). Water softening salt and rinse aid must also be used together with the detergent if the water hardness level is above the mentioned level.

The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually.

Hand inserting a device into a device casing (no visible text or symbols)

i Observe the instructions of the detergent manufacturer on the package when using tablet detergents.

i	Contact the detergent manufacturer if your dishes are wet and/or if you notice limescale spots particularly on your glasses after the washing program is over when using a tablet detergent.

When you switch to powder detergent from tablet detergent:

1. Make sure that salt (Select Models) and rinse aid reservoirs are full.
2. Set the water hardness to the highest level and perform an empty run.
3. After the empty washing cycle, review the user manual and readjust the water hardness level so as to suit the water supply.
4. Make the appropriate rinse aid settings.

7.3 RINSE AID

The rinse aid used in dishwashers is a special combination that aims to increase drying efficiency and prevent water or lime stains on the washed items. For this reason, care must be paid to have rinse aid in the rinse aid reservoir and to use rinse aids produced specially for dishwashers only.

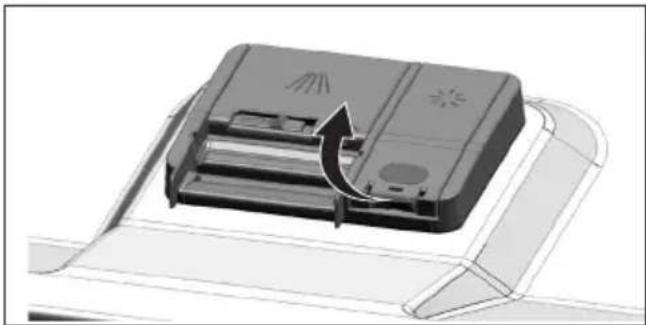

1. Open the lid of the rinse aid reservoir with the help of the latch.

3D rendering of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols)

1. Fill the reservoir until "MAX" level.

Diagram of a device being processed into a container, showing internal components and wiring (no text or symbols visible)

1. Slightly press the point (B) of the reservoir lid to close it.

3D diagram of a mechanical component with labeled part B, showing internal structure and no readable text or symbols.

1. If there are stains on tableware items after washing, level must be increased and if there is a blue trace after wiping them by hand, it must be decreased. This is set to position 3 as factory default.

The rinse aid adjustment is described under "Adjusting the amount of rinse aid" in the section for operating the machine.

Wipe clean any spilled rinse aid outside the reservoir. Rinse aid that spilled accidentally will cause foaming and it will eventually decrease washing performance.

10. CARE AND MAINTENANCE

WARNING: Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap.

WARNING: Do not repair or replace any part of the dishwasher or attempt any servicing unless specifically recommended by this manual. We recommend that the dishwasher only be repaired by an authorized service agent.

CAUTION :To avoid the possibility of slipping, keep the floor around the dishwasher clean and dry. Keep your appliance free from the accumulation of combustible materials, such as lint, rags, and chemicals. If the dishwasher is not in use for an extended period of time, we recommend you check that the baskets are empty, leave the inside of the dishwasher clean, the door cracked open to allow air to circulate, turn off both the power and water supply to the dishwasher.

10.1 CARING FOR YOUR DISHWASHER EXTERIOR

CAUTION : Possible dishwasher damage: Abrasive cleaners, scouring pads, abrasive cloths (paper towels) can damage the dishwasher decorative door.

Cleaning the control panel: Use only soft cloth that is lightly dampened with mild detergent. Clean the control panel only with a moist cloth and clear water.

Cleaning the colored doors: Use only soft cloth that is lightly dampened with mild detergent.

Cleaning the stainless steel doors: Use a soft cloth with a cleaner made for cleaning stainless steel. For the best results, apply the stainless steel cleaner to a soft cloth and wipe the surface in the direction of the grain.

Cleaning the door gasket: Regularly clean the door gasket with a damp cloth to remove food particles and other debris. Use a gentle household cleaner for the outside and the door seals, and rinse thoroughly.

10.2 CARING FOR YOUR DISHWASHER INTERIOR

NOTICE: Cleaning your dishwasher at regular intervals ensures longer product life and reduces the risk of recurring problems. Always disconnect the power to machine before cleaning.

CAUTION :When cleaning the underside of the main filter, care must be taken on the sharp outer edge to avoid the risk of cut type injuries.

10.3 CLEANING THE FILTERS

Clean the filters at least once a week in order for the machine operates efficiently. Check if food residues are left on the filters. If there are food residues on filters, take them out and clean well under running water.

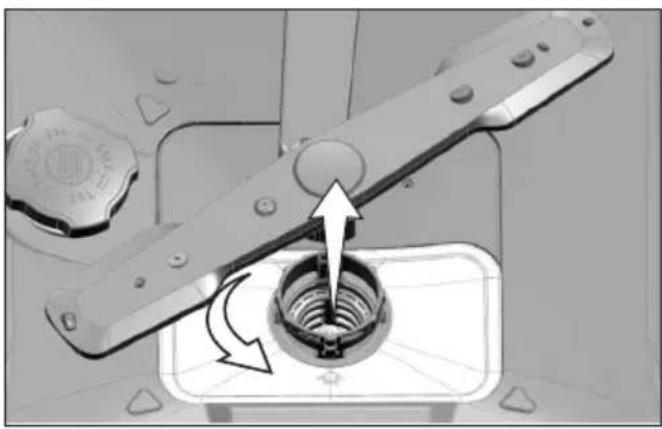

1. Turn the micro filter (1) and coarse filter (2) assembly counterclockwise and pull it out from its seating.

Mechanical assembly diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

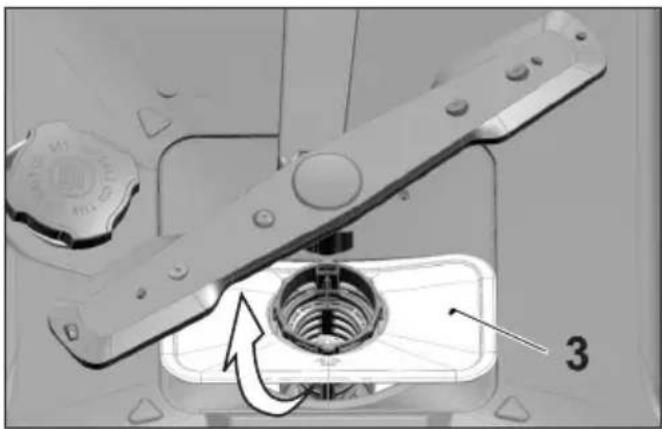

1. Pull out the metal / plastic filter (3) from the seating.

Mechanical assembly diagram showing a disassembled component with a bolt and threaded base (no text or symbols)

1. Press the two pawls on the coarse filter inwards and separate the coarse filter from the assembly.

1 2

1. Clean all three filters under tap water by means of a brush.

2. Replace the metal/plastic filter.

3. Place the coarse filter into the microfilter. Make sure that it is properly seated. Turn the coarse filter clockwise until a "click" sound is heard.

Do not use the dishwasher without filter.

Incorrect placement of the filters will reduce washing efficiency.

10.4 CLEANING THE HOSE FILTER

Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary.

1. Turn off the tap and remove the hose.

2. After taking out the filter, clean it under running tap water.

3. Place the cleaned filter back to its seat in the hose.

4. Install the hose to tap.

(Select Models)

Technical illustration of a mechanical valve assembly (no text or symbols)

10.5 CLEANING THE WASH ARMS

Clean the wash arms at least once a week in order for the machine operates efficiently.

LOWER WASH ARMS

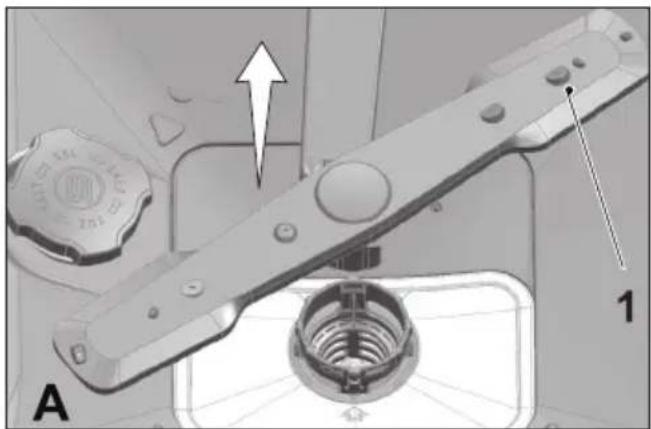

Check if the holes on the lower wash arms (1) are clogged. If they are clogged, remove and clean the impeller. Pull the lower wash arms up to remove it.

A 1

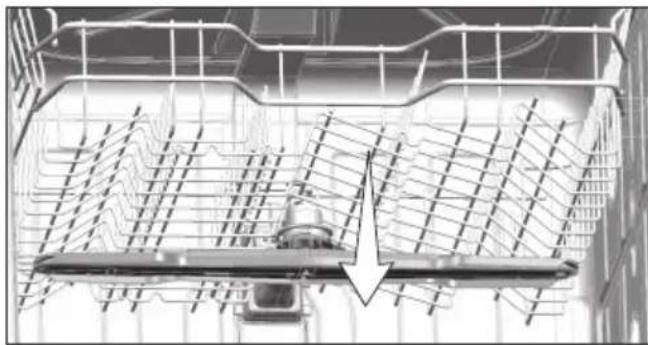

UPPER WASH ARMS

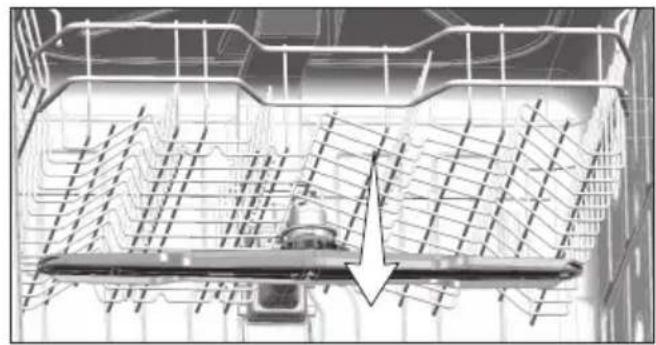

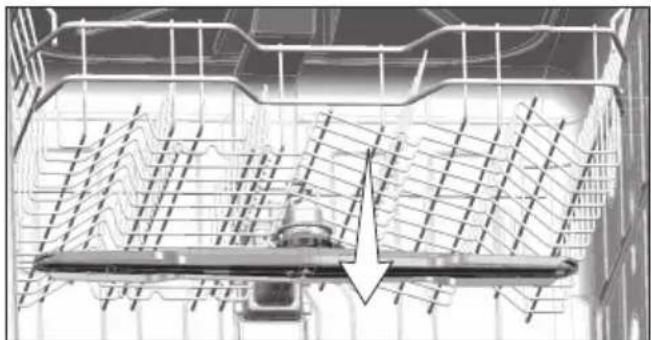

Check if the holes on the upper impeller (1) are clogged. If they are clogged, remove and clean the wash arms. Turn its nut to left to remove the upper wash arms.

Make sure that the nut is tightened well when installing the upper wash arms.

Diagram of a kitchen appliance interior showing mesh grid and labeled component '1' (no text or symbols beyond labels)

Diagram of a ship navigating a grid structure with an arrow indicating direction (no text or symbols)

11. TROUBLESHOOTING

Machine does not start.

• Power cable is unplugged. >>> Check if the power cable is plugged in.
- Circuit Breaker is blown. >>> Check the Circuit Breaker in your house.
• Water is cut. >>> Make sure that the water inlet tap is open.
- Door of the machine is open. >>> Make sure that you have closed the door of the machine.
- On / Off button is not pressed. >>> Make sure that you have turned on the machine by pressing the On / Off button.

Dishes are not washed clean

• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the user manual.
• Selected program is unsuitable. >>> Select a program with a higher temperature and cycle time.
• Wash arms are stuck. >>> Prior to starting the program, turn the lower and upper Wash arms by hand to make sure that they rotate freely.
• Wash arms holes are clogged. >>> Lower and upper Wash arms holes might be clogged with small food particles and debris. Clean the Wash arms regularly as illustrated in section “Cleaning and Care”.
• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
• Filters are installed incorrectly. >>> Check the filter system and make sure that it is installed correctly.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.
• Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
• Detergent is not sufficient. >>> If you are using powder detergent, adjust the amount of detergent according to the soiling degree of your dishes and/or program definitions. We recommend you to use tablet detergents for optimum results.
• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
• Detergent dispenser lid is left open. >>> Make sure that the detergent dispenser lid is closed tightly after adding detergent.

Dishes are not dry at the end of cycle

• Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no water will accumulate in them.
• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
  • Machine is unloaded right after the program is over. >>> Do not unload your machine right after washing process is completed. Slightly open the door and

wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket. Thus, dropping of water remained on a piece at upper basket onto the pieces at lower basket is prevented.

• Selected program is unsuitable. >>> Since rinsing temperature is low at program with short duration, drying performance will also be low. Select program with longer duration for a higher drying performance.
• Surface quality of the kitchen utensils is deteriorated. >>> Desired washing performance can not be obtained at kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. Also, water can not flow easily on deteriorated surfaces. It is not recommended to wash such kitchen utensils in dishwasher.

It is normal that drying complaints can be experienced with Teflon kitchen utensils. It is associated with the structure of Teflon. Since the surface tensions of Teflon and water are different, water droplets will remain as beads on the Teflon surface.

Stains remaining on dishes when cycle has completed.

• Selected program is unsuitable. >>> Select a program with a higher temperature and cycle time.
• Surface quality of the kitchen utensils is deteriorated. >>> Tea and coffee stains or other dye spots may not be cleaned in dishwasher when they have penetrated in deteriorated surfaces. Desired washing performance can not be obtained at kitchen utensils with deteriorated surfaces and it is not suitable to use such utensils in terms of hygiene as well. It is not recommended to wash such kitchen utensils in dishwasher.
• Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.

Lime traces remain on dishes and glassware gains a misty appearance

• Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine.
• Water hardness setting is low or salt level is insufficient >>> Measure the hardness of the supply water appropriately and check the water hardness setting.
• Salt leakage exists. >>> Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash program to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the program.

There is a different odor in the machine

A new machine has a peculiar odor. It will fade out after a couple of washing.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
• Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going to start the machine right after you have put the dishes into it, remove the remnants on the dishes and run the Prewash program without detergent every 2 days. In such cases, do not close the door of the machine completely in order to avoid odor build up in machine. You can also use commercially available odor removers or machine cleaners.

Rust, discoloration or surface deterioration occurs on dishes

• Salt leakage exists. >>> Salt may cause deterioration and oxidation on metal surfaces. Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash program to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the program.
• Salty food remnants have remained on dishes for a long time. >>> If silverware soiled with such foods will be kept waiting in machine, dirt must be removed by prewash or dishes must be washed without being kept waiting.
• Electric installation is not grounded. >>>Check if your machine is connected to the actual grounding line. Otherwise, the static electric created in the product causes arcs on the surfaces of metal items creating pores, removing the protective cover on the surface and causing discoloration.
• Intensive cleansers such as bleaches are used. >>> Protective cover on metal surfaces gets damaged and looses its efficiency in time when it gets in contact with cleansers such as bleach. Do not wash your dishes with bleach.
• Metal items particularly such as knives are used for purposes other than their intended uses. >>> Protective cover on the edges of knives may get damaged when they are used for purposes such as opening cans. Do not use metal kitchen utensils out of their intended uses.
  • Silverware are made of low quality stainless steel. >>> Corrosion on such items is inevitable; they should not be washed in dishwashers.
• Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers.

Detergent remains in detergent dispenser.

• Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent.
• Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
• Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.
• Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places. Keep it in a closed container if possible. For ease-of-storing, we recommend you to use tablet detergents.
• Wash Arm holes are clogged. >>> Lower and upper Wash Arm holes might be clogged with food remnants such as lemon pips. Clean the Wash Arm regularly as illustrated in section “Cleaning and Care”.

Decorations and ornaments on kitchen utensils are being erased.

Decorated glasses and decorated luster porcelains are not suitable for washing in the dishwasher. Manufacturers of glassware and porcelain tableware items do not recommend washing such kitchen utensils in the dishwashers either.

Dishes are scratched.

Kitchen utensils that contains or are made of aluminum should not be washed in dishwasher.

• Salt leakage exists. >>> Pay attention not to spill salt around the salt filling hole while adding salt. Spilled salt can cause scratches. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash program to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the program.
• Water hardness setting is low or salt level is insufficient >>> Measure the hardness of the supply water appropriately and check the water hardness setting.
• Dishes are not placed orderly in the machine. >>> When placing the glasses and other glassware into the basket lean them not against other dishes but the edges or racks of the basket or the glass support wire. Striking of the glasses to each other or to other dishes due to the impact of water during washing can cause breaks, or scratches on their surfaces.

A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light.

• Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
• Corrosion has occurred on glass due to soft water. >>> Measure the hardness of the supply water appropriately and check the water hardness setting. If your supply water is soft (<15 gpg), do not use salt. Choose programs that wash in higher temperatures (140-149 degress Fahrenheit). You can also use glass protective detergents that are commercially available.

Foam forms in the machine.

• Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a sponge or towel.
• Rinse aid has spilled into the machine when adding rinse aid. >>> Take care that rinse aid is not spilled in the machine when you are filling it. Clean any spilled rinse aid with the help of a tissue paper/towel.
• Lid of the rinse aid reservoir is left open. >>> Make sure that the lid of the rinse aid reservoir is closed after adding rinse aid.

Kitchen utensils are broken.

• Dishes are not placed orderly in the machine. >>> Load the dishes as described in the user manual.
• Baskets are overloaded. >>> Do not overload the baskets in excess of their capacity.

Water remains in the dishwasher at the end of the program.

• Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
• Discharge hose is clogged/blocked. >>> Check the discharge hose. If necessary, remove the discharge hose, clear the blockage and insert is as illustrated in the user manual.

If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

12. TECHNICAL FEATURES

Load capacity 14 place settings
Permissible water pressure	4.35 - 145 psi (0.3 - 10 bars)
Electrical connection 120 V (volts), 12 A (amps), 60Hz (hertz)
Total power 1400 W (watts)
Heater power 1100 W (watts)

NOTICE: Because we continually strive to improve our products, we may change our specifications and design without prior notice. This device corresponds to the following directives: UL 749 Household Dishwasher directive.

Lave-vaisselle

Simple line drawing of a front-loading washing machine (no text or symbols)

F6DWT24SS2

F6DWT24FI2

Overhead view of a kitchen appliance basket with multiple cylindrical and insulating items (no visible text or labels)

Cross-sectional diagram of a mechanical or electrical component with layered plates and internal compartments (no text or symbols visible)

Black-and-white photo of a multi-tiered kitchen appliance with plates, bowls, and utensils arranged in a grid (no text or symbols visible)

3D rendering of white industrial insulators arranged in a grid structure (no text or symbols visible)

Black-and-white photo of a kitchen cut-out box containing wavy metal plates and two fork-shaped utensils (no text or symbols visible)

Black-and-white overhead view of a kitchen appliance grid with multiple kitchen utensils and washers (no text or symbols visible)

White ceramic insulator components arranged in a wire cage (no text or symbols visible)

Metallic industrial fan or cooling unit with coiled heat sinks and grid lines (no visible text or symbols)

Illustration of a multi-tiered plastic container filled with various plastic bottles and containers (no text or symbols visible)

ÉTAGÈRES AJUSTABLES

(EN FONCTION DES MODÈLES)

Diagram of a conveyor belt system with arrows indicating motion, no visible text or symbols

A B C

TIGES RÉTRACTABLES DU PANIER SUPÉRIEUR

(EN FONCTION DES MODÈLES)

Diagram of a wire mesh structure with directional arrows indicating movement or force (no text or symbols present)

3D wireframe model of a mechanical component with grid-like structure (no text or symbols)

3D rendering of a mechanical component with an upward arrow indicator (no text or symbols)

3D rendered image of a shopping cart with a downward arrow indicating decline (no text or symbols)

RÉGLAGE DE HAUTEUR DU PANIER SUPÉRIEUR

(EN FONCTION DES MODÈLES)

Technical diagram showing a hand operating a mechanical assembly with labeled component B and directional arrow

Hand holding a wire mesh component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a wheel and shaft connected to a spring-like component, with an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with spring-loaded components and a hand interacting with it (no text or symbols present)

Illustration of a kitchen drawer containing various household appliances (no text or symbols)

TIGES RÉTRACTABLES DU PANIER INFÉRIEUR

(EN FONCTION DES MODÈLES)

3D diagram of a vehicle storage or logistics system with directional arrows and a magnified inset showing internal components (no text or symbols)

3D diagram of a vehicle storage or processing unit with internal components and directional arrows, labeled B and C (no text or symbols on the diagram itself)

Technical diagram of a vehicle storage or lifting system with labeled components A and B, showing structural elements and motion arrows.

Illustration of hands assembling a grid-patterned plastic basket (no text or symbols)

PANÍER À COUVERTS

(EN FONCTION DES MODÈLES)

3D diagram of a mechanical or structural component enclosed in a wire cage, with directional arrows labeled A and B indicating orientation (no text or symbols beyond labels)

3D illustration of two plastic shopping baskets with internal compartments and side handles, shown in two sequential states (no text or symbols)

3D technical illustration of a multi-level metal shelving unit with structural beams and wheels, showing a close-up inset of the mechanism (no text or symbols)

PORTE-VERRE DU PANIER INFÉRIEUR

(EN FONCTION DES MODÈLES)

3D diagram of a mechanical assembly with cylindrical components and rotating arms, no visible text or symbols

SOFTTOUCH ACCESSORY

(EN FONCTION DES MODÈLES)

3D rendered illustration of a shopping cart filled with toy cars and accessories (no text or symbols)

TIGE À BOUTEILLES DU PANIER INFÉRIEUR

(EN FONCTION DES MODÈLES)

Two technical diagrams showing magnetic field lines and a schematic of a conductor with labeled components (no readable text or symbols)

SUPPORT MULTIFONCTION/À HAUTEUR AJUSTABLE DU PANIER INFÉRIEUR

(EN FONCTION DES MODÈLES)

Technical line drawing of a mechanical cage with three cylindrical components and a grid-patterned tray (no text or symbols)

Technical line drawing of a mechanical assembly with a spherical component embedded in a grid frame (no text or symbols)

Technical line drawing of a structural framework with grid supports and internal components (no text or symbols)

3D rendering of a mechanical or electronic component with grid-like internal structure (no visible text or symbols)

Close-up of a mechanical assembly with a numbered component (1) and grid-like components, no visible text or symbols.

3D rendering of a mechanical component with grid pattern and an arrow indicating a specific section (no text or symbols)

Technical illustration of a mechanical device with internal grid structure and an inset close-up showing a clamp attachment (no text or symbols)

3D rendering of a metal tray with grid pattern and an inset close-up showing a mechanical clamp (no text or symbols)

4.3 CHARGEMENT CORRECT ET INCORRECT DE LA VAISSELLE

Six types of kitchen utensils arranged in descending order from fork to spoon (no text or symbols)

Illustration of a cage-like structure with internal geometric shapes (no text or symbols)

incorrect incorrect

Architectural floor plan with grid overlay and building footprints (no text or symbols)

Illustration of a feeding net with eggs and a spoon, no text or symbols present

incorrect incorrect

Black-and-white illustration of a grid filled with various small objects, including eggs and mushrooms (no text or symbols)

5. ARTICLES À NE PAS LAVER DANSVOTRELAVE-VAISSELLE

6.7 ANNULATION DU PROGRAMME

3D rendering of a device casing with labeled component A, showing internal structure and no visible text or symbols

Illustration of a hand inserting a device into a plastic tray (no text or symbols visible)

Illustration of a hand inserting a component into a device box (no text or symbols visible)

3

Hand pointing at a device with internal components (no visible text or symbols)

Illustration of a hand inserting a device into a device casing (no text or symbols visible)

Diagram of a printer or printer with a paper roll and a curved arrow indicating rotation (no text or symbols present)

Diagram of a device being processed into a device casing, showing internal components and wiring (no text or symbols visible)

3D diagram of a mechanical component with labeled part B, showing internal structure and mounting brackets (no text or symbols beyond label)

Mechanical assembly diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a rotating component with a bolt and housing (no text or symbols)

Technical illustration of a mechanical assembly with two views (left and right) showing components like a bolt, nut, and valve (no text or symbols)

10.5 NETTOYAGE DES BRAS GICLEURS

Diagram of a mechanical component inside a grid-patterned enclosure, showing internal structure and directional arrows (no text or symbols)

Diagram of a vehicle inside a container with grid lines and an arrow indicating direction (no text or symbols)

11. DÉPANNAGE

Simple line drawing of a front-loading washing machine (no text or symbols)

F6DWT24SS2

F6DWT24FI2

Overhead view of a multi-tiered kitchen appliance with insulators and glassware arranged in a grid (no text or symbols visible)

Cross-sectional view of a multi-tiered industrial or electrical equipment unit with multiple circular components and internal compartments (no visible text or symbols)

Black-and-white photo of a multi-tiered kitchen appliance with various kitchen utensils and containers (no text or symbols visible)

3D rendering of white industrial insulators arranged in a grid structure (no text or symbols visible)

Black-and-white photo of a kitchen tray with metal utensils and wavy patterns, no visible text or symbols

Black-and-white overhead view of a kitchen appliance grid with various kitchen utensils and washers (no text or symbols visible)

White ceramic plates arranged in a wire rack, no visible text or symbols

Close-up of a metal cooling rack with coiled insulation and mesh grid (no text or symbols visible)

Illustration of a wire cage filled with various plastic components (no text or symbols visible)

ESTANTES AJUSTABLES

(SEGÚN EL MODELO)

Diagram of a conveyor belt system with particles and material, showing motion direction (no text or labels)

A B C

REJILLAS DEL CANASTO SUPERIOR ABATIBLES

(SEGÚN EL MODELO)

3D wireframe diagram of a structural grid with directional arrows indicating movement or flow (no text or symbols)

3D wireframe model of a mechanical assembly with no visible text or symbols

3D model of a mechanical component with an upward arrow indicator (no text or symbols)

3D rendered image of a plastic tray with grid pattern, partially overlaid by a black downward arrow (no text or symbols)

AJUSTAR LA ALTURA DEL CANASTO SUPERIOR CARGADO (SEGÚN EL MODELO)

Technical diagram showing a hand operating a mechanical assembly with labeled component B and directional arrow

Illustration of a hand holding a wire mesh component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a wheel and spring mechanism with directional arrow (no text or symbols)

Diagram showing a hand adjusting a coiled spring and connecting rod components (no text or symbols)

Illustration of a grocery basket containing various household items including plates, utensils, and a spoon (no text or symbols)

PÚAS DEL CANASTO INFERIOR ABATIBLES

(SEGÚN EL MODELO)

3D wireframe diagram of a shopping cart with directional arrows indicating movement, and an inset showing a mechanical component labeled C (no text or symbols present)

Diagram of a shopping cart with internal components and directional arrows, labeled B and C (no text or symbols on the diagram itself)

3D wireframe diagram of a shopping cart with labeled points A and B, showing internal components and directional arrows (no text or symbols beyond labels)

Illustration of hands assembling a wire rack with grid patterns (no text or symbols)

CESTO DE LA CUBERTERÍA

(SEGÚN EL MODELO)

3D diagram of a mechanical or electrical component enclosed in a wire cage, with directional arrows labeled A and B indicating orientation (no text or symbols beyond labels)

3D illustration of two gray plastic shopping baskets with internal compartments and side handles, showing structural changes (no text or symbols)

3D technical illustration of a metal scaffolding assembly with a magnified inset showing a mechanical component (no text or symbols)

SOPORTE PARA VASOS INFERIOR (SEGÚN EL MODELO)

3D diagram of a mechanical assembly with four cylindrical components and directional arrows indicating motion (no text or symbols)

ACCESORIO SOFTTOUCH

(SEGÚN EL MODELO)

3D wireframe model of a shopping cart filled with toy cars and accessories (no text or symbols visible)

REJILLA PARA BOTELLAS DEL CANASTO INFERIOR

(SEGÚN EL MODELO)

Two technical diagrams showing magnetic field lines and a shaded rectangular region with directional arrows (no text or symbols)

REJILLA DE SERVICIO MULTIUSOS DEL CANASTO INFERIOR / DE AJUSTE DE LA ALTURA

(SEGÚN EL MODELO)

Technical line drawing of a mechanical cage with three cylindrical components and a grid-patterned tray (no text or symbols)

Technical line drawing of a mechanical assembly with a spherical component embedded in a grid frame (no text or symbols)

Technical line drawing of a structural framework with grid supports and a central panel (no text or symbols)

3D technical illustration of a mechanical assembly with grid-like components and mounting bracket (no text or symbols)

Close-up of a mechanical assembly with grid-like components and a numbered arrow pointing to component 1 (no text or symbols present)

3D rendering of a mechanical component with grid pattern and an arrow indicating a specific section (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing a hand holding a tool (no text or symbols present)

3D rendering of a rectangular metal tray with grid pattern and an inset close-up showing a mechanical clamp (no text or symbols)

4.3 FORMAS DE CARGA CORRECTAS E INCORRECTAS EN EL LAVAVAJILLAS

Six types of kitchen utensils arranged in descending order from fork to spoon (no text or symbols)

1: Tenedor de ensalada
2: Cucharilla de té
3. Tenedor de cena
4: Mango sólido de cuchillo
5: Cuchara de servir
6: Tenedor de servir

6 4 4 4 4 4 3 2 4 3 2 3 3 3 2 2 2 2 2 2 1 1 2 2 1 1 2 2 2 1 1 1 2 2 1 1 1 2 2 2 1 2 2 2 2 2 3 2 3 3 2 3 5 3 3 5 4 4 4 4 4 4

Illustration of a cage-like structure with internal geometric patterns (no text or symbols)

Architectural line drawing of a building complex with grid overlay (no text or symbols)

Diagram of an airplane wing with a large balloon above a cluster of birds (no text or symbols)

Black-and-white illustration of a grid box filled with various 3D-rendered objects, including spheres and a vase (no text or symbols)

5. COSAS QUE NO DEBEN LAVARSE EN EL LAVAVAJILLAS

3D rendering of a device casing with labeled component 'A' and internal structure (no readable text or symbols)

Hand inserting a device into a device casing (no visible text or symbols)

Diagram of a printer or printer with a paper roll and a circular button, showing no text or symbols.

Diagram of a device with an open display unit and cable, showing internal components (no text or symbols)

3D technical diagram of a mechanical component with labeled part B, showing internal structure and mounting features (no text or symbols beyond label)

Mechanical assembly diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a bolt and nut assembly with directional arrows (no text or symbols)

Technical illustration of a mechanical valve assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with labeled parts (A, 1) and an upward arrow indicating motion or force direction (no readable text or symbols beyond labels)

Diagram of a car interior with grid lines and a labeled component (no readable text or symbols)

Diagram of a train on a platform with grid lines and an arrow indicating direction (no text or symbols)
