ENGLISH Please read the instructions carefully before starting the machine.

English Technical Data /Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service 15

Scanned document page with red header and blue circular logo, containing a list of company names and a 'CUSTOM' button.

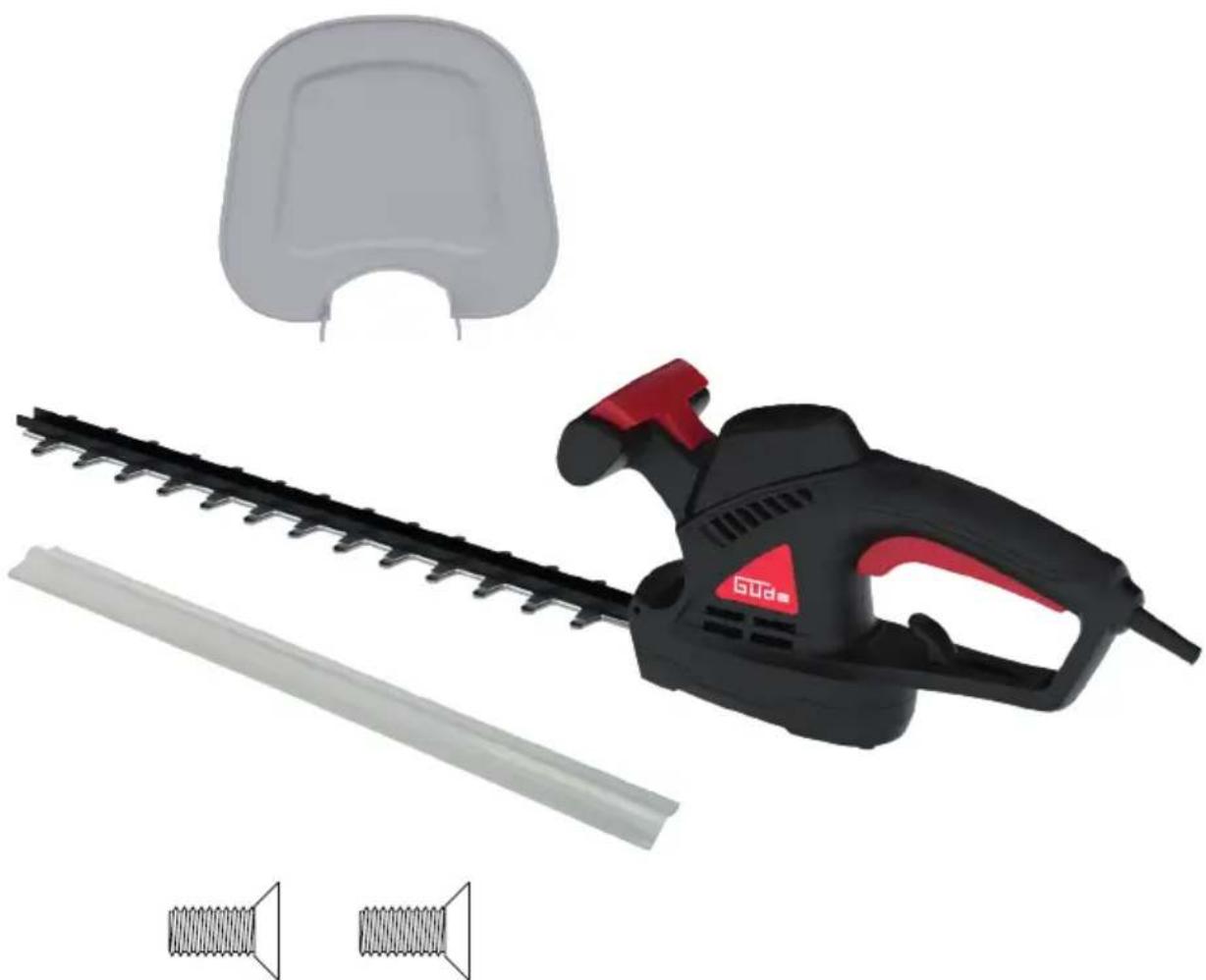

Product image of a black-and-red GUG hatched tool with a gray plastic cover and two separate screw-like components below (no text or symbols)

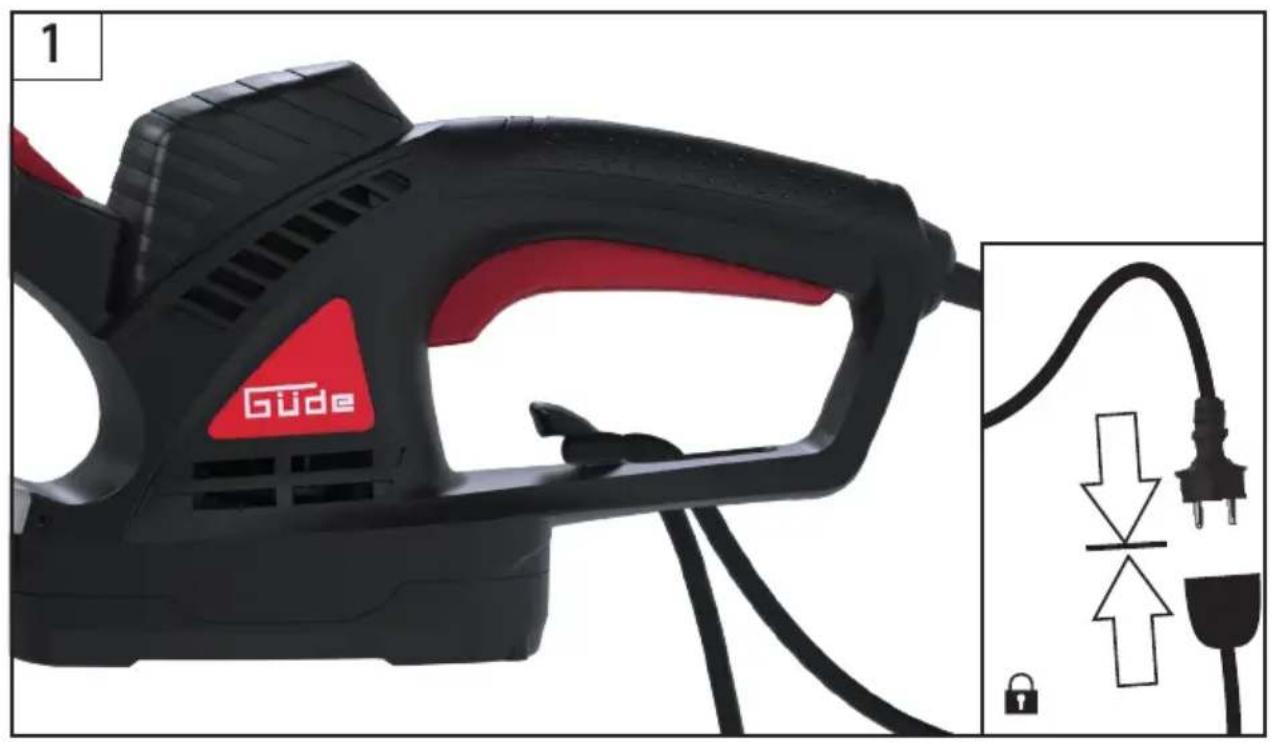

Gerätebeschreibung

EN Device description FR Description du dispositif IT Dotazione

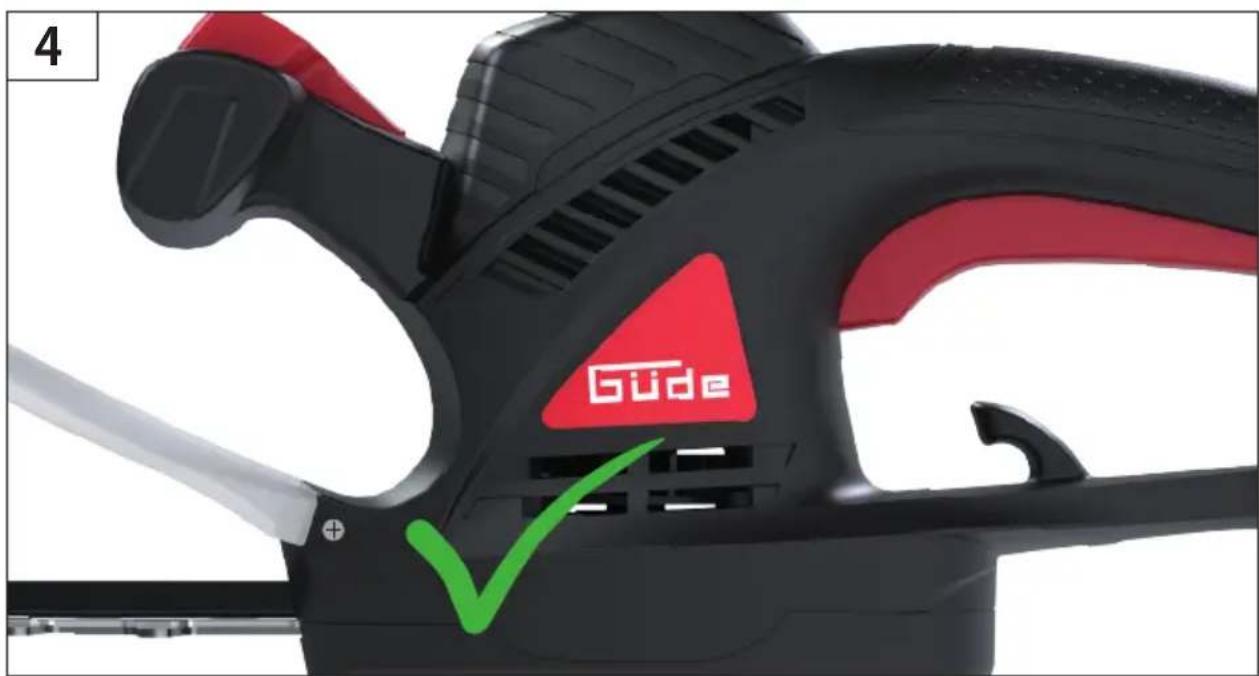

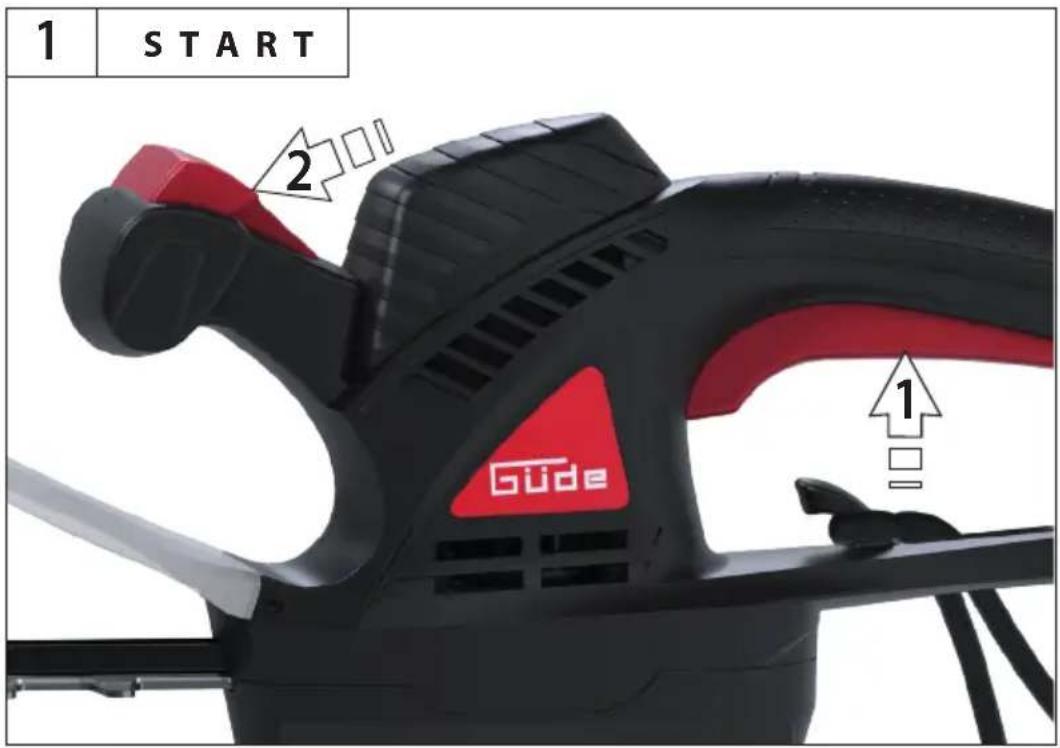

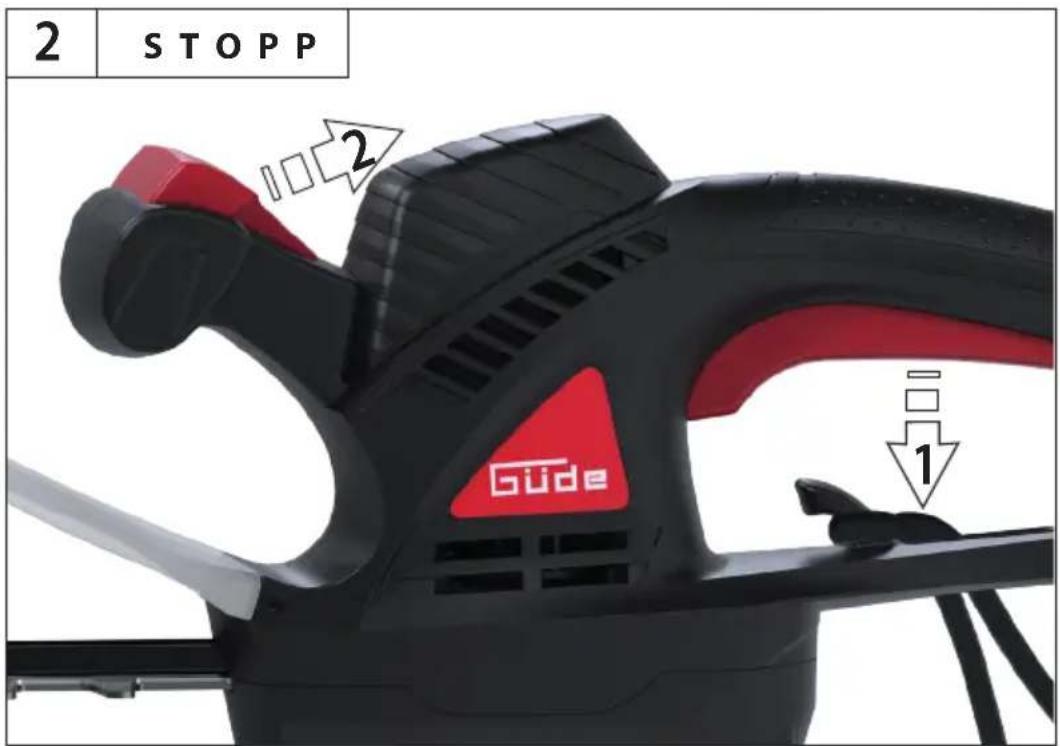

EN starting-up the device FR Mise en service IT Messa in funzione

ES Puesta en marcha NL Toestel in gebruik nemen cz Uvedení do provozu

Close-up of a black and red GUD-branded hair clip (no text or symbols visible)

Close-up of a black robotic arm holding a white tool, with a red handle and a white arrow pointing to a small object on the side (no text or symbols visible)

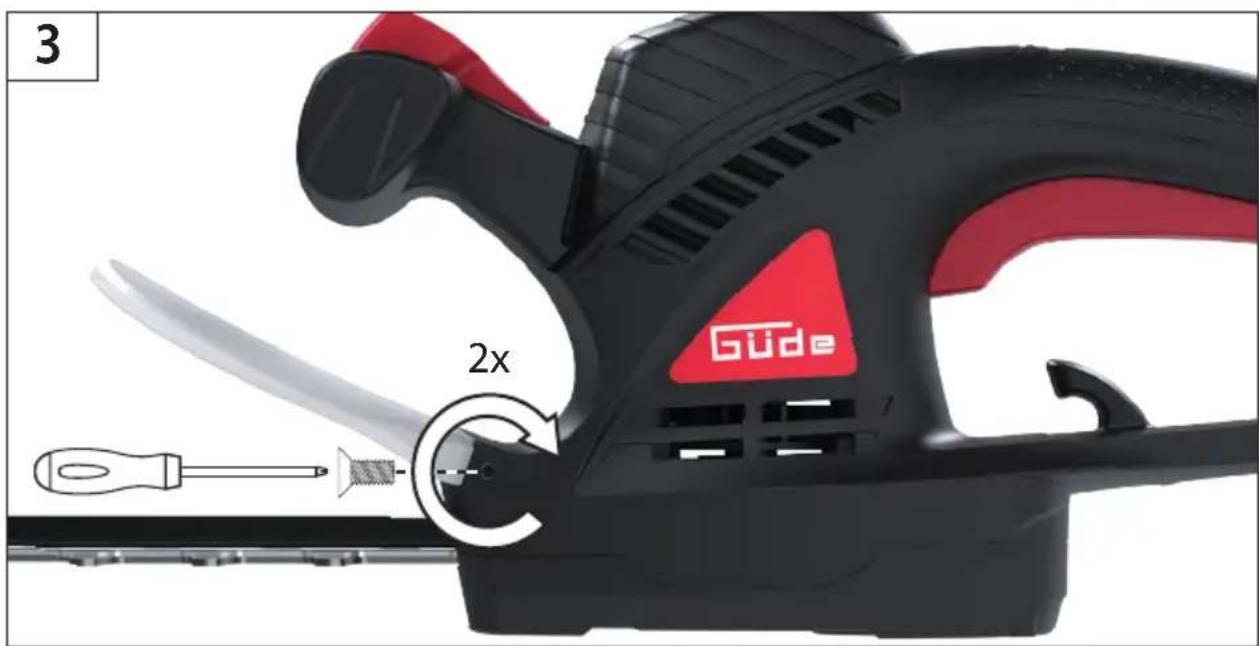

3 Gude 2x

Close-up of a black and red Gude brand motorcycle body with a green checkmark on the side (no text or symbols on the body itself)

Exterior view of a Gude electric power tool with attached plug and circuit breakers (no text or symbols visible)

Close-up of a black-handled tool with a white handle and a white arrow pointing to a grooved metal strip (no text or symbols visible)

1 START 2 Gude 1

2 STOPP Gude

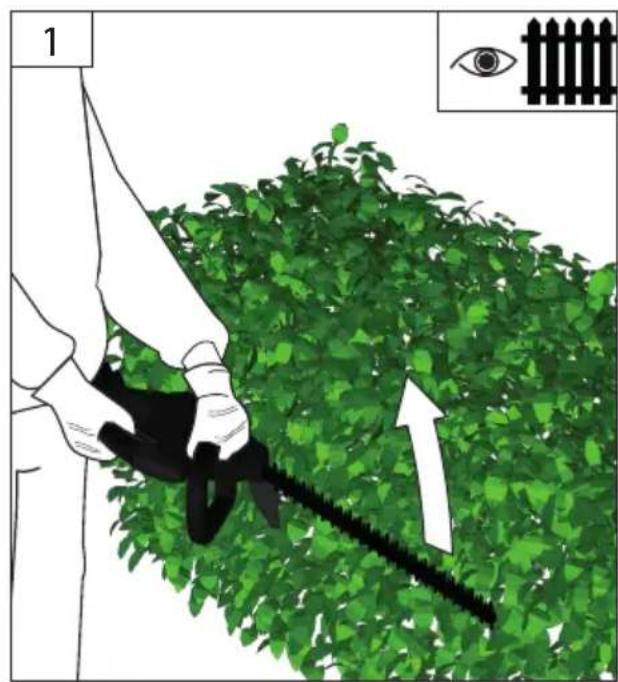

1 ↑

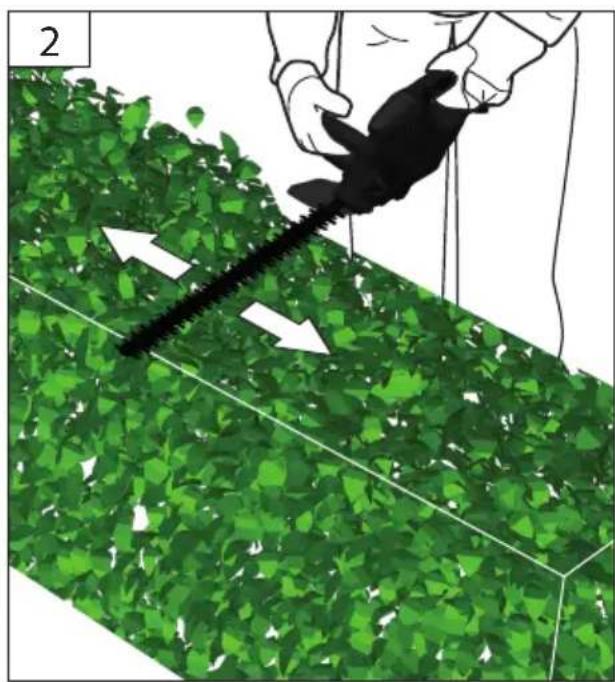

Illustration of a hand using a tool to cut a green leafy material, with white arrows indicating direction (no text or symbols)

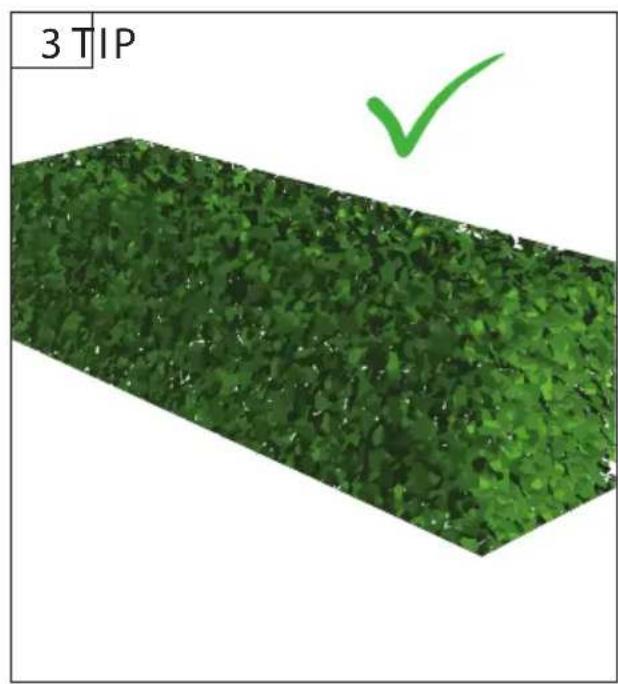

3 TIP

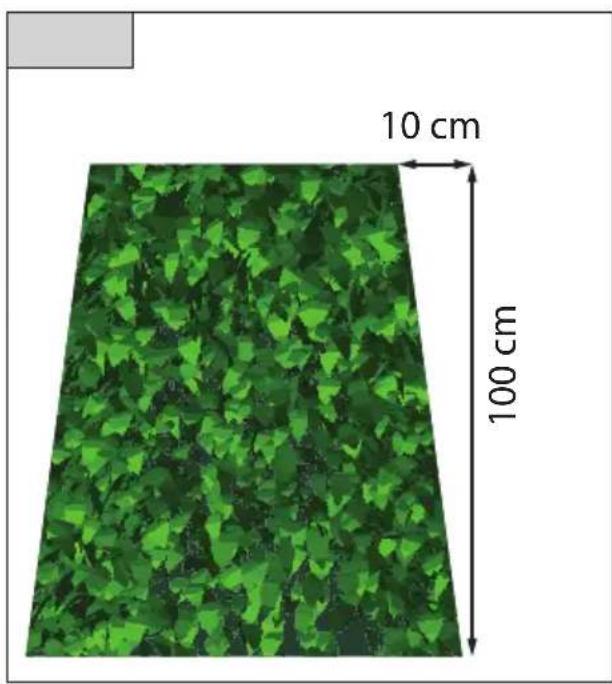

10 cm 100 cm

Illustration of a GTP brush applying liquid into a black-and-white line tool (no text or symbols)

Hand cleaning a black-and-white line edge with a red-handled tool (no text or symbols visible)

Safety warning illustration showing three circular signs (no litter, snowflake, smiley face) above a wall with a worker and a cleaning tool.

Technische Daten

Heckenschere......GEH 510-500

Artikel-Nr. 94477

Service connection....230 V\~50 Hz
Motor output....500 W
Cutting length....457 mm

Beam length 510 mm

Weight 2,3 kg

Degree of protection IPX0

□ Protection class....II

Noise and Vibration Information

Sound pressure level L_PA^1) .....89,2 dB (A)

Measured sound power level L_WA^1) .....97,2 dB (A)

Guaranteed sound power level L WA 101 dB (A)

Wear ear protectors!

Schwingungsemissonswert a_h^2) <2,5m/s²

^1) Uncertainty K=3 dB (A), ^2) Vibration=2,5 m/s ^2 , Uncertainty K=1,5 m/s ^2

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure. An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating

instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The hedge trimmer is designed for trimming shrubs and hedges in private hobby gardens

The device must not be used for crushing compost, as persons or damage to property können. The hedge trimmer is designed for trimming shrubs and hedges in private hobby gardens.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The charger may only be operated with a protective switch against stray current (RCD max. stray current 30mA).

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification : Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age : Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training : Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Observe to keep out of dangerous zone

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions!

Take the battery always out before any work on the appliance.

Cable pulling / transport prohibited

In case of cable damage or nock, immediately pull out plug from socket

Keep distance of persons Observe to keep out of dangerous zone

Protect against moisture Never expose tool to rain.

Wear eye protection! Wear ear protectors!

Wear protective gloves!

Wear safety cut through resistant shoes with safety sole and steel toe!

Wear protective clothing with cut-resistant lining!

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

General Power Tool Safety Warnings

Warning

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (cordepower tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (groundepower tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCprotected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories,

or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety instructions Hedge trimmer

- Keep parts of your body off the cutting blade. Do not remove jammed material while the blades are moving.

- When removing jammed material, make sure the appliance is off.

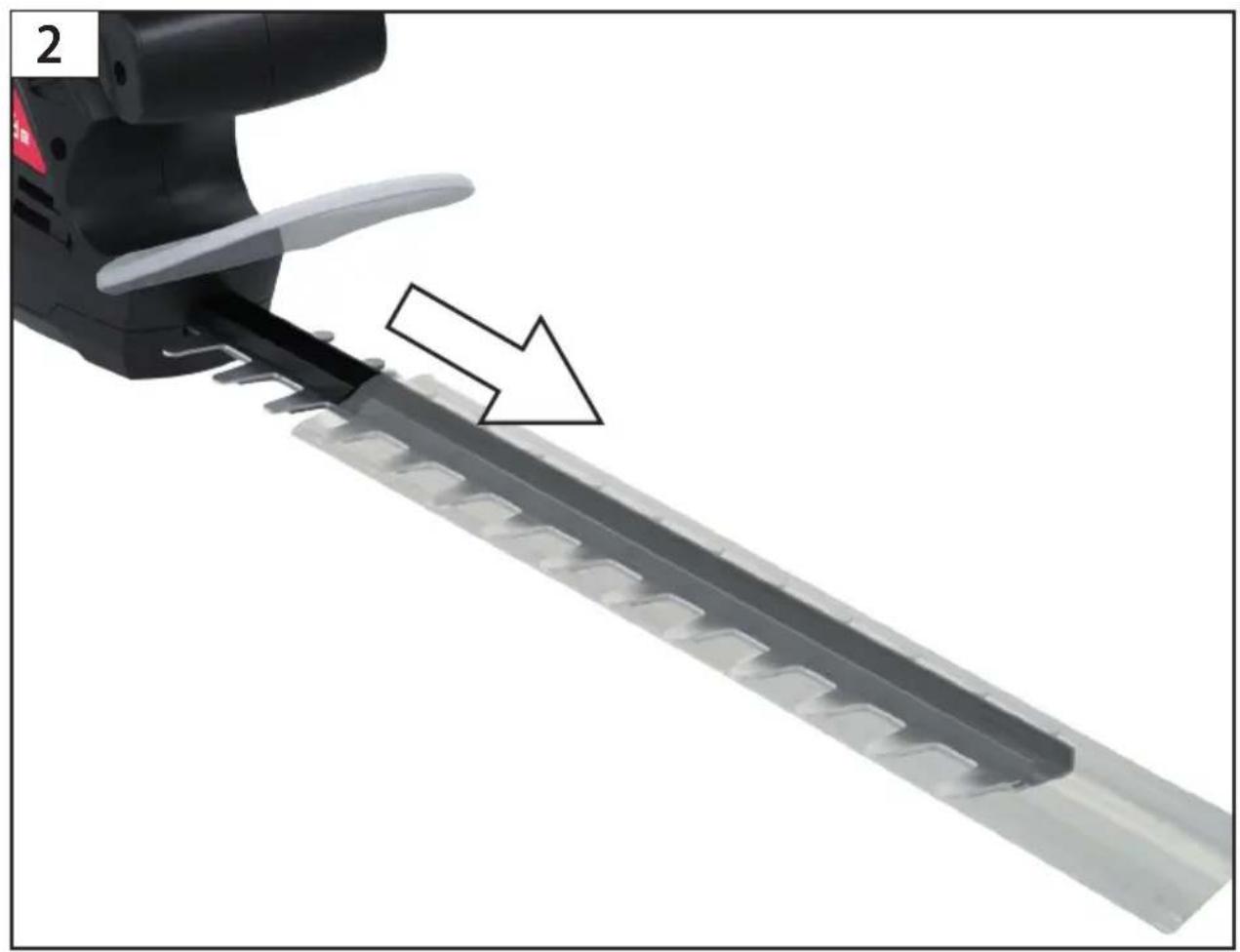

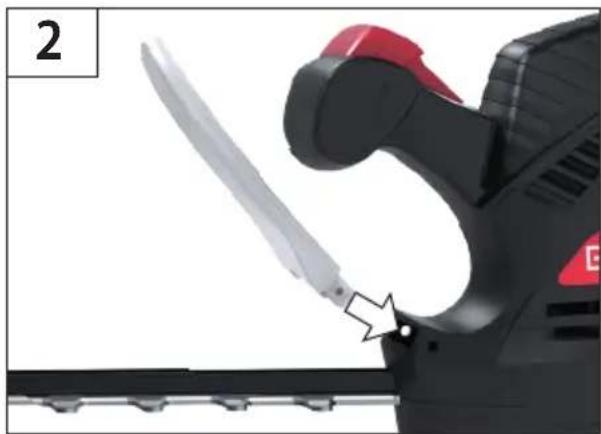

- Attach the knife protection for transport or storage. Before you start with the work, search the thicket for hidden objects such as wire fences, etc.

- Do not let children, other persons or pets near the cutting scissors.

- Do not use the cutting scissors if the cutting tool is not fitted properly or when it is damaged.

- Before adjusting the cutting scissors, make sure the knives or blades do not touch stones or debris.

- Do not cut any hard objects. This could lead to accidents and damage the cutting scissors.

- Avoid abnormal posture and do not work above shoulder height.

- Respect the system voltage!

- Do not attempt to remove shavings when the knives are moving. When removing any jammed material, make sure the cutting scissors are off and stopped. When lifting or holding the cutting scissors, do not hold the cutting knives.

CAUTION: Knives are still running for a short time after being switched off.

Putting into operation for your safety

Before carrying out any work on the machine, disconnect the plug from the socket.

⚠️ Before carrying out any work on the machine, disconnect the plug from the socket.

Before using the appliance, perform a visual inspection at all times to make sure the power cord and the plug, in particular, are not damaged on the charger.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Disposal

Waste batteries and waste electrical and electronic equipment must not be disposed of together with household waste. Waste batteries and waste elec - trical and electronic equipment must be collected and disposed of separately. Re - move used batteries, accumulators and lamps from the devices before disposing of them. Ask the local authorities or your retailer about recycling centres and collection points. Depending on local regulations, retailers may be obliged to take back used batteries and waste elec - trical and electronic equipment free of charge. Help reduce the demand for raw materials by reusing and recycling your used batteries and waste electrical and electronic equipment. Waste batteries (especially lithium-ion batteries) and wa - ste electrical and electronic equipment contain valuable, recyclable materials that can have a negative impact on the environment and your health if not dis - posed of in an environmentally friendly manner. Delete any personal data on your old device before disposing of it.

Risk of suffocation! Keep the packaging out of reach of children and dispose them as quickly as possible.

Inspection and maintenance plan

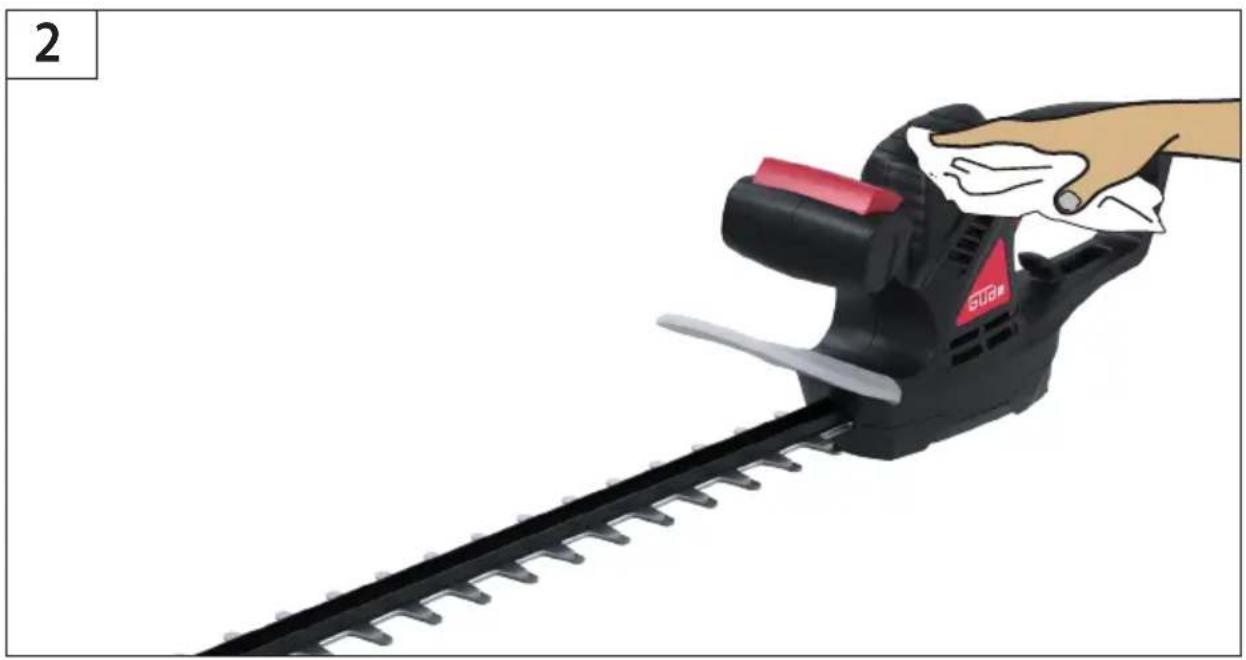

Generally Whole appliance		Regularly clean the outer partLet regularly checked by authorized workshopCheck for cracks and fissuresLet regularly sharpen
	Plastic bodyKnife/cutter bar
Before any start-up ON/OFF switchPower supply cable		Functional testFunctional test
After every take out of service	Knife/cutter bar protection Use Knife/cutter bar protection

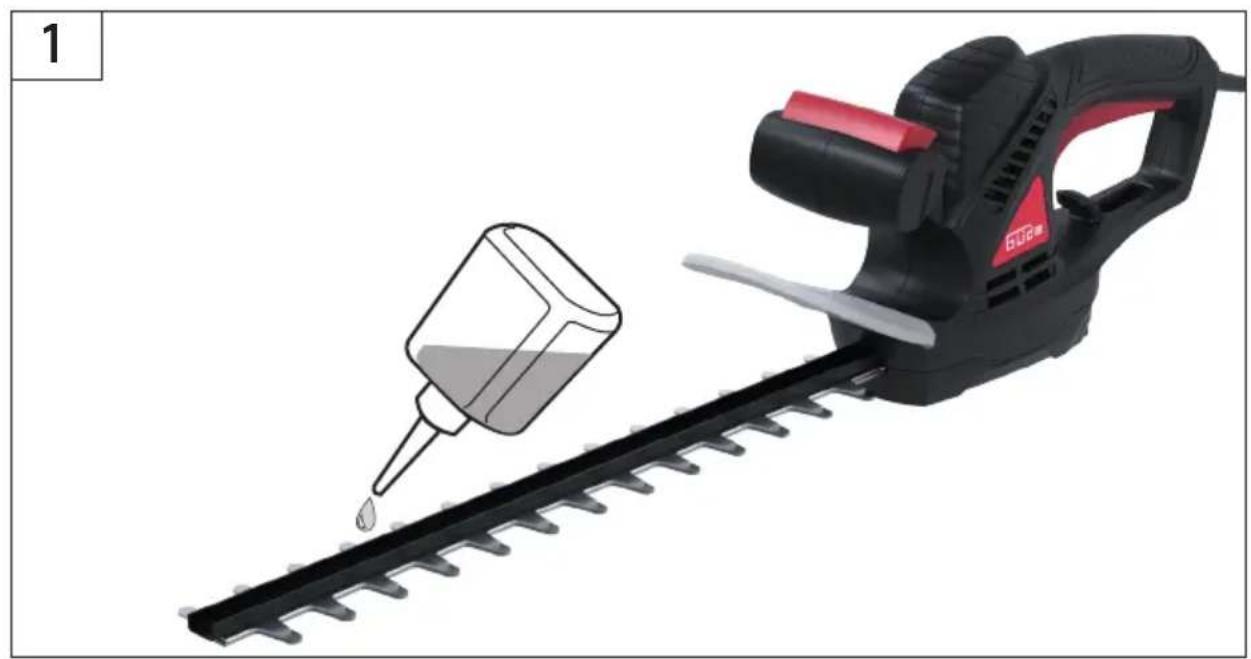

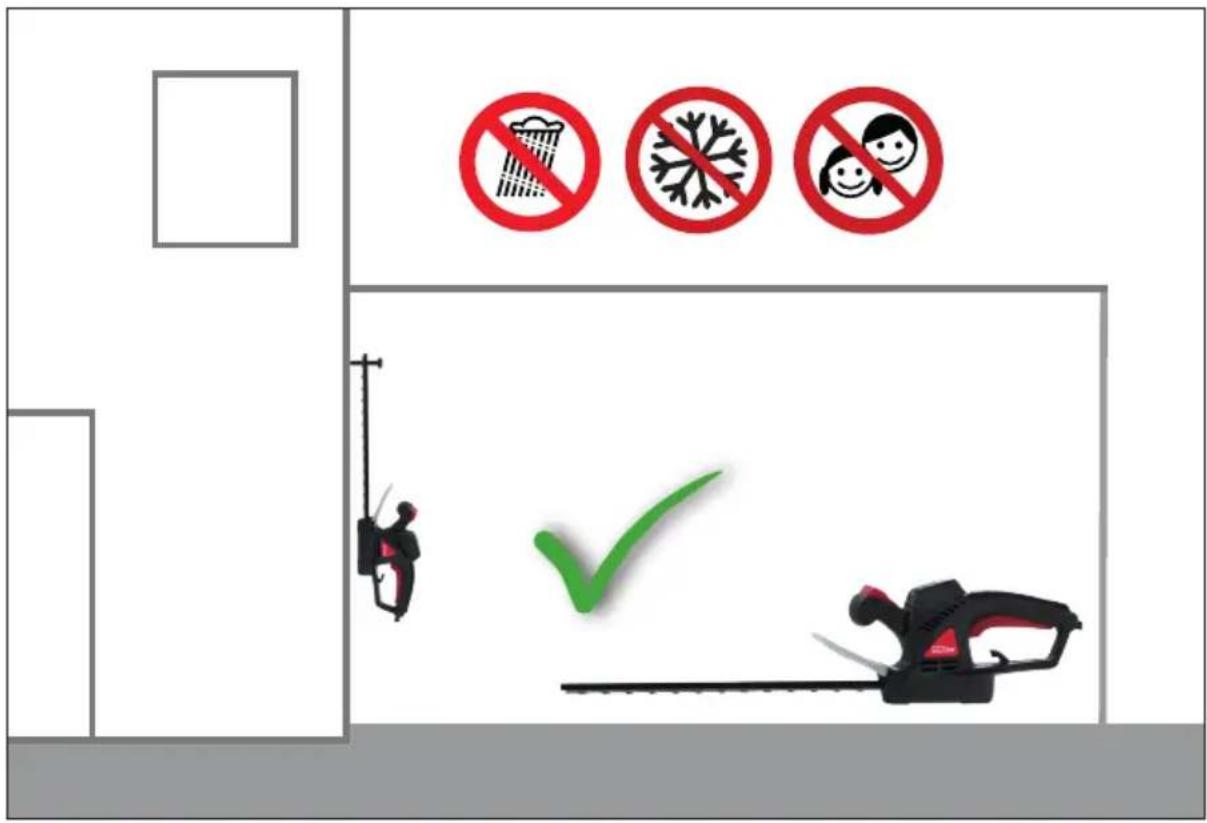

storage Whole appliance To be cleaned and the knife barslightly lubricated.To be safely stored in a cold room. Have it checked in a specialised workshop.

Failures - Causes - Removal

Failures Causes Removal
Cutting scissors not working.	Broken cableAppliance is defectiveInternal cables are defective	Consult with the customer service centreConsult with the customer service centreConsult with the customer service centre
Unsteady running, strong vibrations	Appliance is defective Consult with the customer service centre

Risk of injury if the On/Off button is pressed unintentionally.
