Product type	One-piece toilet with integrated tank and bowl
Brand	American Standard
Model	Town Square S 2851A104
Bowl shape	Elongated (Right Height)
Water consumption	1.28 gal (4.8 L) per flush
Flush type	Gravity
Dimensions (L x W x H)	Approximately 30 1/4 x 18 1/2 x 30 9/16 in (768 x 470 x 776 mm) per diagram
Flange rough-in	12 in (305 mm) from finished wall
Seat bolt spread	5 1/2 in (140 mm)
Water supply	Connection at 3 3/4 in or 9 in from centerline (suggested positions)
Bowl height	Right Height (comfort height, approximately 17-19 in)
Material	Vitreous china
Fill valve	Fluidmaster (included model, Fluidmaster replacement parts)
Flush valve	Flapper with lift chain
Seat included	Yes, Right Height elongated seat
Installation	On standard 12 in rough-in, requires wax ring and bolts
Maintenance	Clean with water and mild soap, avoid harsh detergents and chlorine cleaners inside the tank
Warranty	Limited warranty (contact customer service by country)
Country of manufacture	Not specified

Frequently Asked Questions - Town Square S 2851A104 American Standard

What is the water consumption per flush of the Town Square S 2851A104 toilet?

The toilet consumes 1.28 gallons (4.8 liters) per flush, meeting water conservation standards.

What type of seat comes with this model?

The model comes with a Right Height elongated seat for added comfort.

How to install the toilet on the existing flange?

Place the toilet bolts in the flange, install a wax ring around the outlet, then set the toilet aligning the bolts. Tighten the nuts alternately without overtightening to avoid damaging the porcelain.

How to adjust the water level in the tank?

Use the water level adjustment rod on the Fluidmaster fill valve. Turn it to raise or lower the float until the level reaches the mark indicated on the tank.

What to do if the toilet leaks at the base?

Check that the wax ring is properly installed and that the mounting nuts are tightened evenly. If the leak persists, remove the toilet and replace the wax ring.

How to clean the toilet without damaging it?

Use water and mild soap with a soft cloth. Avoid abrasive powders, scouring pads, and chlorine-containing cleaners inside the tank, as they can damage internal components.

What is the recommended distance between the wall and the flange?

The distance should be 12 inches (305 mm) from the finished wall to the centerline of the flange for a standard installation.

How to replace the Fluidmaster fill valve?

Shut off the water supply, remove the old valve by unscrewing the inside locking nut. Install the new valve following the manufacturer's instructions. Use Fluidmaster replacement parts to ensure compatibility.

What to do if the flush is slow or insufficient?

Check that the refill tube is properly attached to the overflow and that the supply valve is fully open. Clean the flow regulator if debris is blocking the flow. Ensure water pressure is at least 20 psi.

Where can I find replacement parts for this model?

Replacement parts, including Fluidmaster valves, are available at plumbing retailers. Contact American Standard customer service in the US at 800-442-1902 or Canada at 800-387-0369 for more information.

USER MANUAL Town Square S 2851A104 American Standard

INSTALLATION INSTRUCTIONS

BOULEVARD® - 1.28 gpf/4.8 Lpf One-Piece Toilet Model 2891 - Elongated Right Height® with Seat

TROPIC® - 1.28 gpf/4.8 Lpf One-Piece Toilet Model 2786 - Elongated Right Height® with Seat

TOWN SQUARE® - 1.28 gpf/4.8 Lpf One-Piece Toilet Model 2847 - Elongated Right Height® with Seat

TOWN SQUARE® S - 1.28 gpf/4.8 Lpf One-Piece Toilet Model 2851A - Elongated Right Height® with Seat

American Standard

Thank you for selecting American Standard – the benchmark of fine quality for over 140 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE! NOTE: Pictures may not exactly define contour of china and components.

RECOMMENDED TOOLS AND MATERIALS

Regular Screwdriver Wax Ring/Gasket

Adjustable Wrench Flexible Supply Tube

Putty Knife Closet Bolts

Sealant Hacksaw

Carpenters Level Tape Measure

1 REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.

NOTE: Mounting surface must be clean and level before new toilet is installed!

2 ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to closet flange centerline must be as listed below:

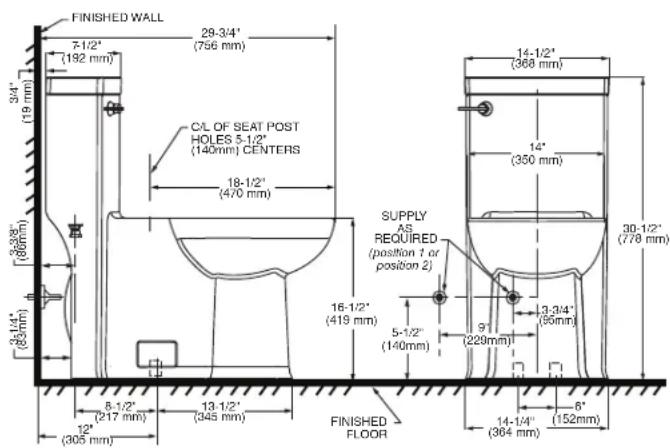

Model 2891 - BOULEVARD 1.28 gpf/ 4.8 Lpf

FINISHED WALL 7-1/2" (192 mm) 28-3/4" (756 mm) 3/4" (19 mm) CL OF SEAT POST HOLES 5-1/2" (140mm) CENTERS 18-1/2" (470 mm) 3-3/8" (86mm) 3-1/4" (85mm) 8-1/2" (217 mm) 13-1/2" (345 mm) 16-1/2" (419 mm) 5-1/2" (140mm) 9" (228mm) 3-3/4" (96mm) 30-1/2" (778 mm) FINISHED FLOOR 14-1/2" (368 mm) 14" (350 mm) 16" AS REQUIRED (position 1 or position 2) SUPPORT AS FLOOR 14-1/4" (364 mm) 8" (152mm)

IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in). First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation. The second suggested position is next to the toilet. Between these two positions, the space for the supply between wall and toilet is limited to 3-1/4". In this case, check your supply and hose dimensions.

Model 2786 - TROPIC 1.28 gpf/ 4.8 Lpf

FINISHED WALL 8-1/8" (206 mm) 3/4" (19 mm) CA. OF SEAT POST HOLES 5-1/2" (140mm) CENTERS 18-1/2" (470 mm) 2-7/8" (74mm) 3-1/2" (88 mm) 8-1/2" (217 mm) 12" (305 mm) 13-1/2" (345 mm) C/L OF OUTLET AND TOILET MT/G BOLTS FINISHED FLOOR SUPPLY AS REQUIRED (position 1) OR SUPPLY AS REQUIRED (position 2) 16-1/2" (419 mm) 5-1/2" (140mm) 14" (355 mm) 16-3/4" (424 mm) 3-3/4" (95mm) 19" (229mm) 30-1/2" (778 mm) 6" (152mm)

IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in). First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation. The second suggested position is next to the toilet. Between these two positions, the space for the supply between wall and toilet is limited to 3-1/4". In this case, check your supply and hose dimensions.

2a

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to closet flange centerline must be as listed below:

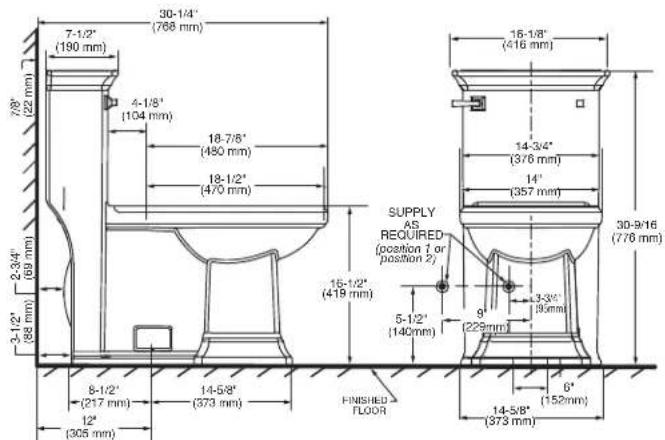

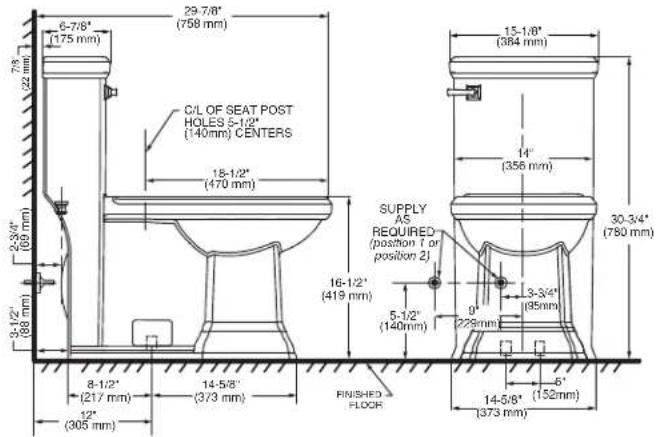

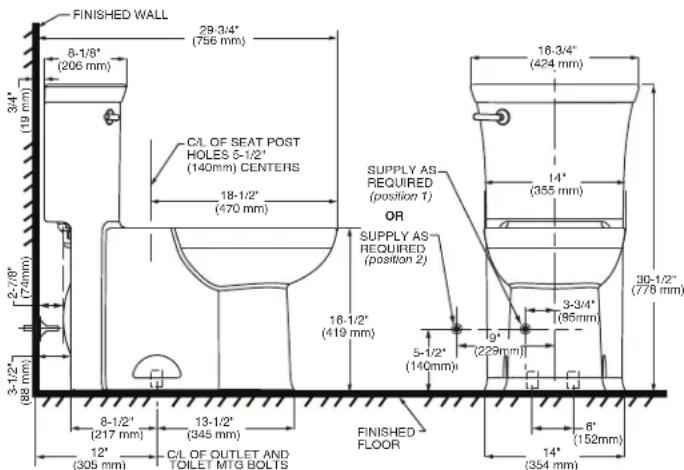

Model 2847 - TOWN SQUARE 1.28 gpf/ 4.8 Lpf Model 2851A - TOWN SQUARE S 1.28 gpf /4.8 Lpf

6-7/8" (175 mm) 29-7/8" (758 mm) C/L OF SEAT POST HOLES 5-1/2" (140mm) CENTERS 18-1/2" (470 mm) 13-1/8" (364 mm) 2-3/4" (60 mm) 3-1/2" (88 mm) 16-1/2" (419 mm) 14-5/8" (373 mm) 5-1/2" (140mm) 3-3/4" (95mm) 14-5/8" (152mm) 30-3/4" (780 mm) FINISHED FLOOR SUPPLY A5 REQUIRED (position 1 or position 2) 16-1/2" (419 mm) 5-1/2" (140mm) 229mm 5' (373 mm)

30-1/4" (768 mm) 7-1/2" (190 mm) 4-1/8" (104 mm) 18-7/8" (480 mm) 18-1/2" (470 mm) 16-1/8" (416 mm) 14-3/4" (376 mm) 14" (357 mm) 30-9/16 (776 mm) 2-3/4" (68 mm) 16-1/2" (419 mm) 5-1/2" (140mm) 3-3/4" (85mm) FINISHED FLOOR AS REQUIRED (position 1 or 'resion 2) 9" (229mm) 6" (152mm) 14-5/8" (373 mm) 8-1/2" (217 mm) 12" (305 mm)

IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in). First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation. The second suggested position is next to the toilet. Between these two positions, the space for the supply between wall and toilet is limited to 3-1/4". In this case, check your supply and hose dimensions.

3

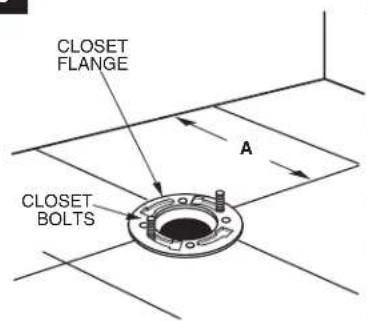

CLOSET FLANGE A CLOSET BOLTS

INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and slide into place 6" (152mm) apart and parallel to wall.

4

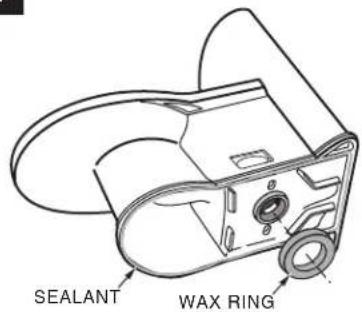

SEALANT WAX RING

INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and install wax ring evenly around waste flange (horn), with tapered end of ring facing toilet. Apply a thin bead of sealant around toilet base.

5

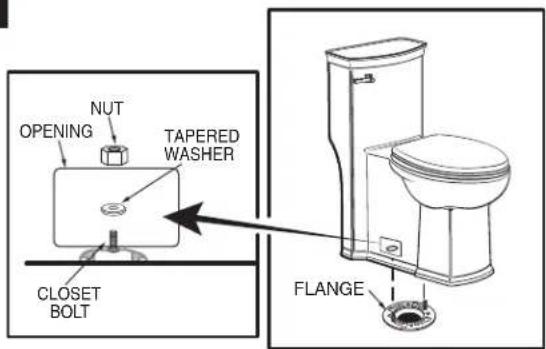

NUT OPENING TAPERED WASHER CLOSET BOLT FLANGE

a. Unplug floor waste opening and install toilet on closet flange so bolts project through mounting holes.

b. Loosely install retainer washers and nuts. Side of washers marked "THIS SIDE UP" must face up!

6

INSTALL TOILET

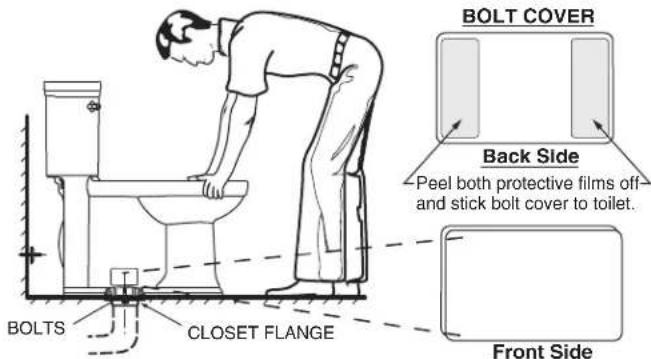

a. Position toilet squarely to wall and, with a rocking motion, press bowl down fully on wax ring and flange.

Alternately tighten nuts until toilet is firmly seated on floor.

CAUTION: DO NOT OVERTIGHTEN NUTS OR BASE MAY BE DAMAGED!

b. Install bolt covers:

1. Make sure that the bolt cover area on the toilet is clean and dry (see figure). Use a dry piece of cloth or soap and water if needed.
2. Take plastic bolt cover and peel the brown protective film off on both ends. The adhesive part is now visible and ready to be placed on the toilet (see figure).
3. Gently place the bolt cover on the toilet area (see picture) and if everything is aligned, push bolt cover firmly so it remains in place.
4. If not aligned, you can still take it off and put it back so it is aligned.
5. Repeat Step 3 for second bolt cover which is to be placed on opposite side of the toilet.
6. After 24 hours, the bolt cover adhesive has completely set off and if needed, you can remove/replace as needed. The dual lock technology is now in place.

c. Smooth off the bead of sealant around base. Remove excess sealant.

BOLT COVER Back Side Peel both protective films off- and stick bolt cover to toilet. Front Side BOLTS CLOSET FLANGE

BOLT COVER NUT CLOSET BOLT

7

INSTALL TOILET SEAT Install toilet seat in accordance with manufacturer's directions.

8a

Before continuing, determine the type of water supply connection you have from the chart below and use the appropriate assembly parts required to properly reconnect the water supply. DO NOT use plumber's putty to seal these fittings.

METAL/COPPER FLARED TUBING CONE WASHER COUPLING NUT WATER SHUT-OFF

These parts must be used as illustrated to insure water-tight connection. Use of existing coupling nut may result in water leakage. Water supply tube or pipe must extend at least 1/2" inside threaded shank of valve (does not apply to flanged tubing).

METAL FLANGED TUBING EXISTING WASHER EXISTING COUPLING NUT WATER SHUT-OFF

Use existing coupling nut and washer.

METAL SPIRAL TUBING EXISTING CONE WASHER COUPLING NUT WATER SHUT-OFF

Use existing spiral cone washer. Fluidmaster cone washer may not seal completely on spiral type supply line.

VINYL/BRAIDED CONNECTOR LOCK NUTLOCK NUT COUPLING NUT WATER SHUT-OFF

Captive cone washers already included. No additional washers needed.

CAUTION: DO NOT USE CONE WASHER WITH PLASTIC SUPPLY LINE.

CAUTION: Overtightening of LOCK NUT or COUPLING NUT could result in breakage and potential flooding.

8b

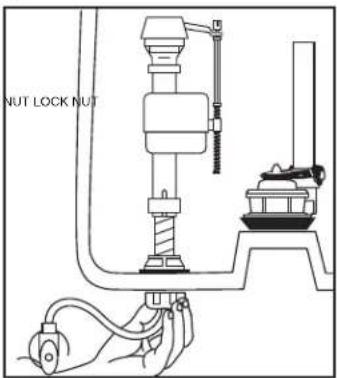

NUT LOCK NUT

With correct washers in place (see Step 8a), tighten COUPLING NUT 1/4 turn beyond hand tight.

DO NOT OVERTIGHTEN.

9

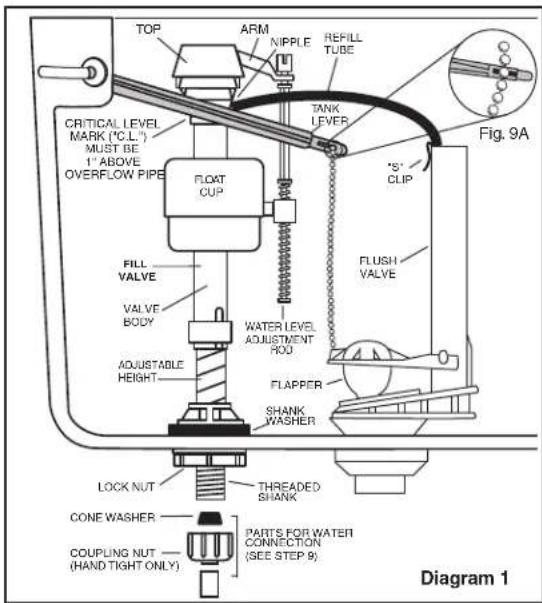

TOP ARM NIPPLE REFILL TUBE TANK LEVER Critical LEVEL MARK ("C.L") MUST BE 1" ABOVE OVERFLOW PIPE FLOAT CUP FILL VALVE VALVE BODY ADJUSTABLE HEIGHT WATER LEVEL AQUISMENT ROU FLAPPER SHANK WASHER LOCK NUT THREADED SHANK CONE WASHER COUPLING NUT —— PARTS FOR WATER CONNECTION (HAND TIGHT ONLY) Fig. 9A "S' CLIP" FLUSH VALVE Diagram 1

ADJUSTMENTS

a. Adjust water level. Water level should be adjusted to level indicated on tank by adjusting float cup.

See Step 10 for water level adjustment method.

b. If bowl fails to siphon, an adjustment may be required with the lift chain. Simply remove the bead chain from the retainment clip (see Fig. 9A) and take up slack on the chain, and reinsert on lift rod. Make sure the chain is not too taught.

10

Illustration of hands connecting a mechanical component to a spring, no text or symbols present

Turn on water supply. Submerge the FLOAT CUP under the water for 30 seconds. Adjust the water to desired level by turning WATER LEVEL ADJUSTMENT ROD and moving FLOAT CUP up or down.

11

CARE AND CLEANING

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid detergents, disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on your toilet seat. Some bathroom chemicals and cosmetics may damage the seat's finish.

WARNING: Do not use in-tank cleaners. Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any tank fitting damage caused by the use of cleaners containing chlorine (calcium hypochlorite).

12

LIFT ARM FIRST

IMPORTANT: Always clear sand and rust from system.

- Make sure water supply is off. Remove valve TOP by lifting arm and rotating top and arm 1/8 turn counterclockwise, pressing down slightly on cap.

Line drawing of a hand cleaning a faucet with water spray (no text or symbols)

- While holding a container over the uncapped VALVE to prevent splashing, turn water supply on and off a few times. Leave water supply off.

Illustration of hands using a mechanical tool to adjust a cylindrical component (no text or symbols present)

- Replace TOP by engaging lugs and rotating 1/8 turn clockwise. MAKE CERTAIN TIP IS TURNED TO THE LOCKED POSITION. VALVE MAY NOT TURN ON IF TOP IS NOT FULLY TURNED TO THE LOCKED POSITION.

Always use quality Fluidmaster repair parts when maintaining your Fluidmaster products. Fluidmaster shall not be responsible or liable for any damages caused by products used with Fluidmaster valves that were not manufactured by Fluidmaster, Inc.

TROUBLESHOOTING

IF FILL VALVE SHUTS OFF BUT CONTINUES TO LEAK SLOWLY, repeat Step 12.

IF FILL VALVE TURNS OFF AND ON DURING PERIODS OF NON-USE, it is a signal you are wasting water because:

• The end of the refill tube is inserted into overflow pipe, below water level in tank. Attach refill tube to overflow pipe using "S" clip provided.
• The flush valve is leaking because it's worn, dirty or misaligned with tank ball or flapper (replace with a new flapper).

IF FILL VALVE WON'T TURN ON OR SHUT OFF or REFILL OF TANK WATER IS SLOW after valve has been in use for some time, Fluidmaster Model 242 Replacement Seal may be needed.

Go to our website at www.fluidmaster.com for more solutions to toilet problems.

For troubleshooting information please contact:

FluidmasterInc

30800 Rancho Viejo Road

San Juan Capistrano, CA 92675

[phone] [phone]

www.fluidmaster.com

© 2001 Fluidmaster, Inc. ® Registered trademark of Fluidmaster, Inc.

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CA	USE CORRECTIVE ACTION
Does not flush	a. Water supply valve closed.	a. Open valve and allow water to fill tank.
	b. Supply line blocked.	b. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble. Also, see Fluidmaster maintenance. (see Step 12)
	c. Flush valve chain too loose or disconnected.	c. Readjust chain length as required.
	d. Sand or debris lodged in water control.	d. Shut off water supply. Remove cap and clean as per Step 12.
Poor or sluggish flush	a. Bowl water level too low.	a. Check that refill tube is connected to water control and inserted into tank overflow without being kinked or damaged.
	b. Supply valve partly closed.	b. Open supply valve fully. Be sure that proper supply tube size is used.
	c. Partially clogged trapway and/or drain pipe and/or vent.	c. Remove obstruction. Consult a plumber if necessary.
	d. Supply pressure too low.	d. Normal supply pressure must be at least 20 psi.
	e. Flush valve chain too tight, holding flush valve open.	e. Readjust chain length as needed. Review Step 9A.
Toilet leaks	a. Poor supply line connection.	a. Review Step 8a and 8b of installation procedure.
	b. Poor bowl to tank/floor connection.	b. Review Step 4 through 6 of installation procedure.
Toilet does not shut off	a. Flush valve seal leaking or deformed.	a. Clean debris from seal surface. Replace flush valve seal as needed.
	b. Sand or debris lodged in water control.	b. Shut off water supply. Remove cap and clean as per Step 12.

In the United States:

American Standard Brands

1 Centennial Ave

Piscataway, New Jersey 08854

Attention: Director of Customer Care

For residents of the United States, warranty information may also be obtained by calling the following toll free number: [phone]

www.americanstandard.com

In Canada:

AS Canada, ULC

5900 Avebury Rd.

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.americanstandard.ca

In Mexico:

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 01-800-839-1200

www.americanstandard.com.mx
