USER MANUAL Drake II C453CUF TOTO

Line drawing of a standard brick toilet with lid and side panel (no text or symbols)

TABLE OF CONTENTS

Thanks for Choosing TOTO®!	3
Before Installation	3
Common Tools Needed	3
Included Parts	3
Before Installation	4
Installation Procedure	4
Maintenance Instructions	7
Care and Cleaning	9
Warranty	10
Rough-In Dimensions	28
Replacement Parts	29

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

COMMON TOOLS NEEDED

10" adjustable wrenchCarpenter's LevelHacksawTape Measure	Hand PliersFlat ScrewdriverPutty Knife
ADDITIONAL ITEMS (NOT SUPPLIED BY TOTO):
Bowl Wax RingCloset Flange Mounting Bolts(usually 2 T-bolts, 2 metal washers and 2 nuts)Water Supply Line(typically 1/2" compression to 7/8" ballcock)Toilet Seat (TOTO SoftClose recommended)

ADDITIONAL ITEMS (NOT SUPPLIED BY TOTO):

· Bowl Wax Ring · Closet Flange Mounting Bolts (usually 2 T-bolts, 2 metal washers and 2 nuts) · Water Supply Line (typically 1/2" compression to 7/8" ballcock) · Toilet Seat (TOTO SoftClose recommended)

INCLUDED PARTS

Check to make sure you have all these parts from the package:
China Bowl with Lid Tank		Tank Lid Tank to	Bowl Gasket
a. Bolts (metal) - 2b. Washers (rubber) -2	c. Washers (metal) - 4d. Nuts (metal) -4	a. Caps (plastic) - 2 b. Base (plastic) - 2

BEFORE INSTALLATION

• Read these instructions thoroughly before beginning work.
  ■ Please leave instructions for customers. These instruction contain maintenance and warranty information.
  ■ If necessary, remove the existing toilet.

IMPORTANT!

Due to the powerful performance of our Cyclone, G-Max, E-Max and Power Gravity flushing systems, they are not specified for back-to-back installations. The only means of installing these toilets in a back-to-back situation is when the toilet drain connections incorporate a WYE fitting. Please contact your builder or contractor prior to this installation.

Technical line drawing of a symmetrical mechanical component with dashed centerlines (no text or symbols)

Double Combination WYE / 1/8 Bend YES

Pure mechanical part diagram without any text, numbers, or symbols

Double Sanitary Tee / Sanitary Cross NO

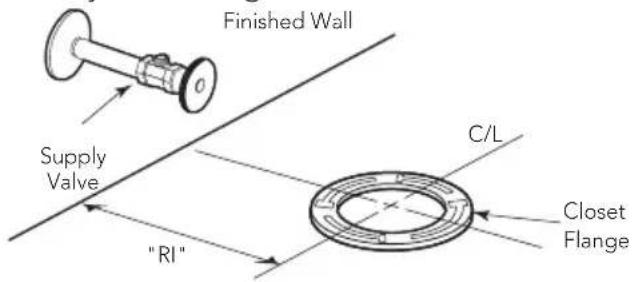

For your new TOTO toilet to fit correctly, the rough-in, the distance between the

finished wall to the center of the closet flange, must be at least 12 inches for most models. NOTE: Models with 10" rough-in have model numbers ending with ".10", for example C744EF.10.

Finished Wall Supply Valve "C/L" "RI" Closet Flange

INSTALLATION PROCEDURE

1) Clean any debris out of the closet flange and then install new mounting bolts (not supplied) into the slots of the closet flange (see Illustration 1). The head of the bolt should be inserted into the slot with its threads facing upward.

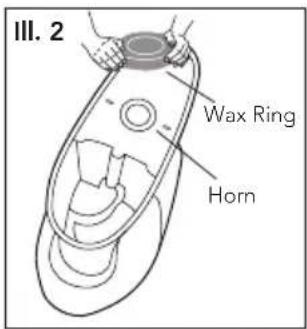

2) Carefully turn the toilet upside down onto some padding. Firmly press a new bowl wax ring (not supplied) onto the circular recess around the toilet bowl's horn (see Illustration 2). Turn the toilet upright and gently lower into position over the closet flange. With toilet properly aligned, press firmly on both sides of toilet rim to set the bowl wax ring (see Illustration 3).

CAUTION: Do not move the bowl after the bowl wax ring is set. Thread the nuts and tighten evenly until bowl is snug to closet flange. Install the bolt caps (see Illustration 3).

CAUTION: Do not over-tighten the nuts as damage to the china bowl may result.

III. 1

III. 2 Wax Ring Horn

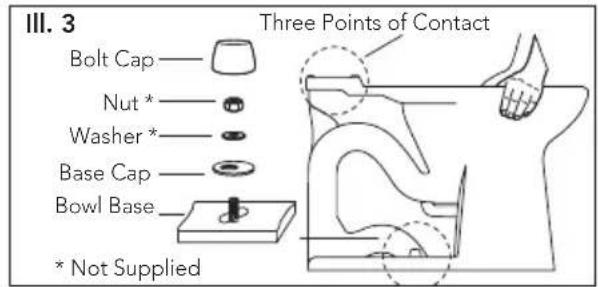

III. 3 Three Points of Contact Bolt Cap—— Nut *—— Washer *—— Base Cap—— Bowl Base—— * Not Supplied

INSTALLATION PROCEDURE

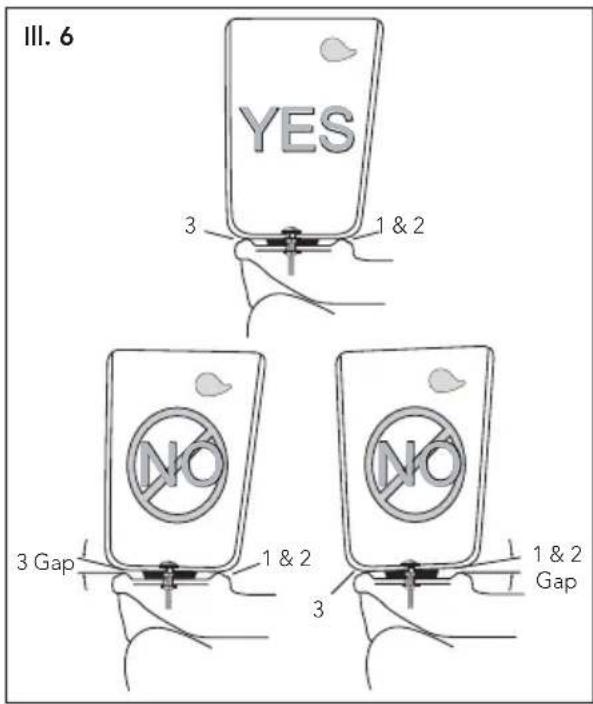

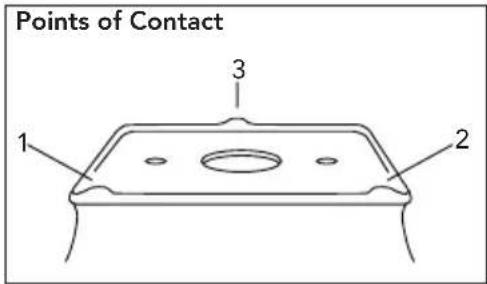

NOTE: Three Points of Contact:

The toilet bowl has three points o contact, which will actually contact the bottom of the toilet tank when properly installed. The location of these points can be seen on the bowl at the tank receiving area. The three points are front left (1), front right (2), and back center (3). Recall these three points during the Toilet Tank installation.

3) Place the tank upside down onto some padding. Inspect the smaller fill valve nut and larger flush valve nut for a secure connection (see Illustration 4). Try to tighten the nuts with your hands. If loose, tighten the nut hand tight and an additional 1/4 turn for the smaller fill valve nut and an additional 1/2 turn for the larger flush valve nut.

Place the tank-to-bowl gasket onto the flush valve nut. While pressing down, spread the gasket over the nut until the gasket touches the bottom of the tank. A slight gap between the tank bottom and the gasket is allowable.

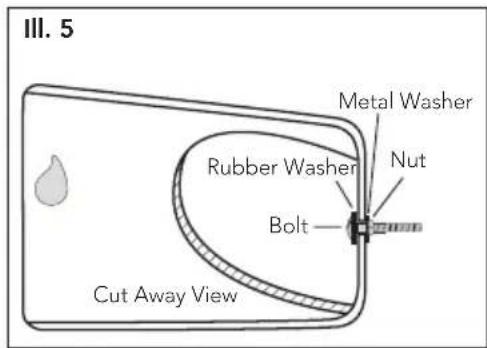

4) Lay the tank down on its back. Place a rubber washer onto a brass bolt (see Illustration 5). Reach inside the tank and position the bolt through one of the holes in the bottom of the tank. On the outside of the tank, place a metal washer and nut onto the bolt. Hold the bolt centered in the hole and tighten the nut finger tight. Turn the nut an additional 1/2 turn with a wrench. Repeat this process for the remaining hole in the tank.

Pick up the tank and carefully guide the brass bolts to align the tank with the bowl. Attach a metal washer and nut to each bolt. Tighten the nuts finger tight and inspect that the tank is level (see Illustration 6). Once level, tighten the bolts equally until the tank makes THREE POINTS OF CONTACT with the bowl.

Points of Contact 1 2 3

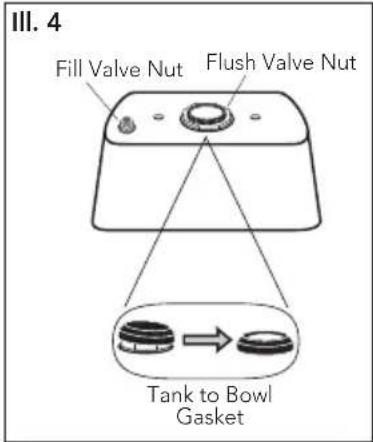

III. 4 Fill Valve Nut Flush Valve Nut Tank to Bowl Gasket

III. 5 Metal Washer Rubber Washer Nut Bolt Cut Away View

III. 6 YES 3 1 & 2 NO NO 3 Gap 1 & 2 3 1 & 2 Gap

INSTALLATION PROCEDURE

5) Flush the water supply line for a few seconds to remove any debris that may enter the new fill valve. (For new home constructions and/or additions, flush the water supply line for more than a minute to help remove any residual PVC adhesives, solder flux, and/or pipe sealants that were used for the new plumbing.) Connect the water supply line to the fill valve threads as seen at the bottom of toilet tank (see Illustration 7). Tighten this connection finger tight.

CAUTION: Avoid using a wrench to tighten the connection as you may damage the plastic threads and/or cause the fill valve to rotate inside the tank.

NOTE: The water supply pressure should be 20 to 80 psi static.

6) No ballcock / fill valve adjustments are needed. The water will automatically stop at proper level. Flush the toilet several times. Check flapper valve for proper operation. Make sure that chain is not tangled and that the flapper arm is in its proper position.

7) Install the toilet tank lid onto the toilet tank top.

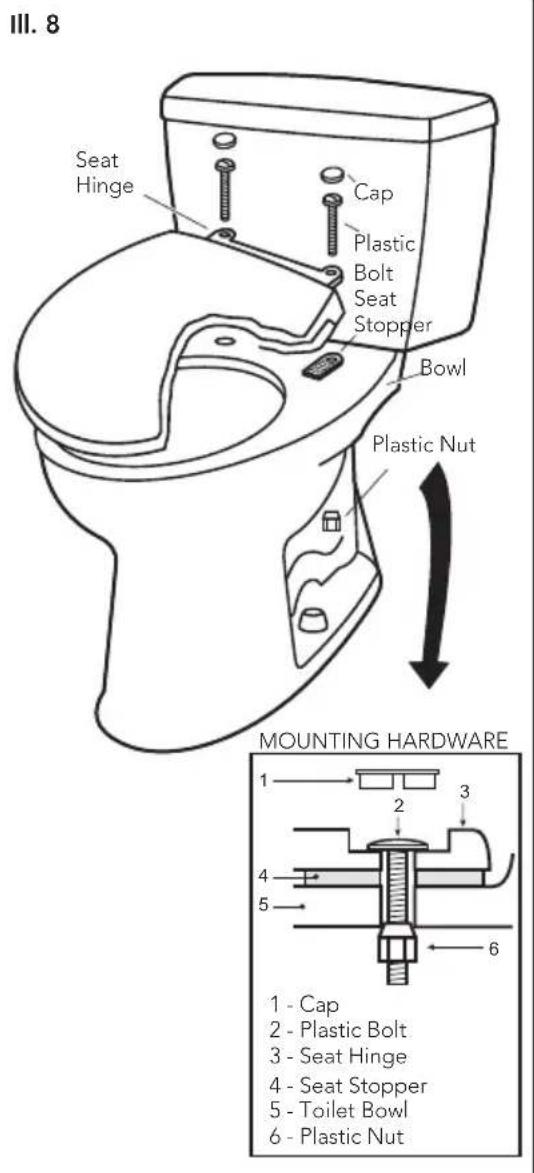

8) Install the toilet seat onto the toilet bowl using the mounting hardware in the toilet seat box. Place seat onto bowl and rotate the hinge down. Position seat stoppers under the seat hinge. Insert bolt into seat hinge and through the toilet bowl. Install plastic nut onto bolt from underneath. Tighten the bolt securely. Install the seat bolt caps.

NOTE: Tighten the seat bolt until the hinge is secure. The seat and lid will have slight side to side movement, which is normal. This freedom of movement allows the seat to SoftClose® without binding.

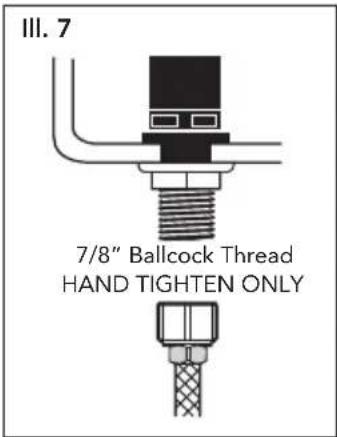

III. 7 7/8" Ballcock Thread HAND TIGHTEN ONLY

III. 8 Seat Hinge Cap Plastic Bolt Seat Stopper Bowl Plastic Nut MOUNTING HARDWARE 1 - Cap 2 - Plastic Bolt 3 - Seat Hinge 4 - Seat Stopper 5 - Toilet Bowl 6 - Plastic Nut

MAINTENTANCE INSTRUCTIONS

Fill Valve Installation Procedure

1) Shut off the water supply to the toilet.
2) Flush toilet and remove remaining water from tank with a sponge.
3) Remove the water supply connection at the fill valve.
4) Remove old fill valve and use damp sponge to clean hole in tank.
5) Place new fill valve inside tank hole.
6) Thread mounting nut onto fill valve shank and tighten the nut.

NOTE: Do not over-tighten. Be sure to install fill valve in a position that does not interfere with the trip lever operation.

7) Connect water supply to fill valve shank and hand-tighten only.

NOTE: Do not overtighten. These are plastic parts. Never use pipe dope on any water supply connection.

8) Attach refill tube to fill valve nipple and clip other end of refill tube to the overflow pipe.

9) Turn water supply ON and check for leaks outside the tank.

NOTE: As water fills the tank, water is also directed into the overflow tube via the refill tube. This additional flow of water is critical to refilling your toilet's bowl. Once the water stops filling the tank, some residual drops of water may drip from the fill valve. This is NORMAL as these drops will subside.

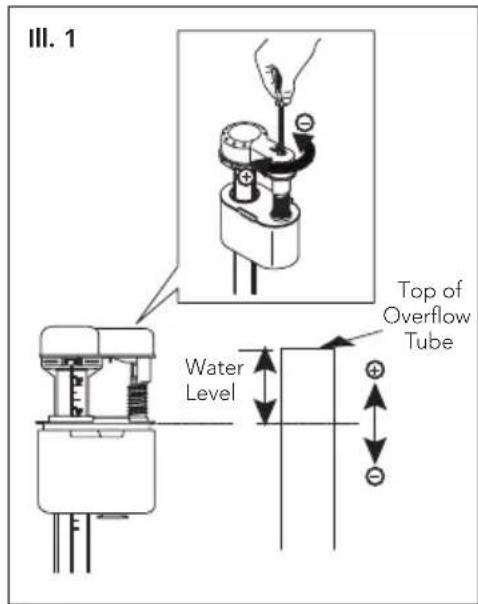

Water Level Adjustment

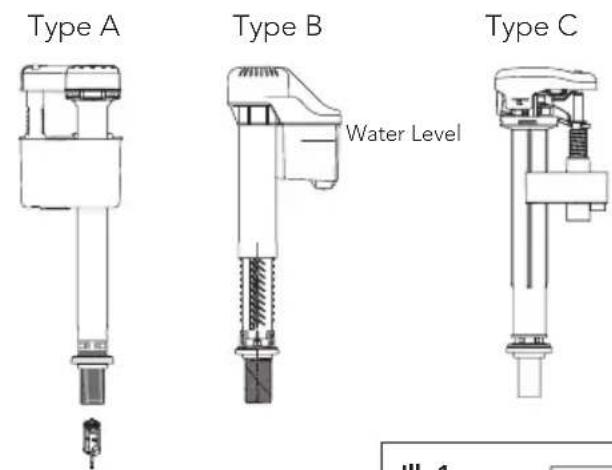

Depending on the manufacturing plant, you may have one of two of the following fill valves:

For Type A and C Fill Valve:

Refer to the water level (WL) setting marked on the inner wall of the tank. Allow the water to fill the tank. Turn the adjustment screw clockwise in the (+) direction to increase the water level height (see Illustration 1). Turn the adjustment screw counter-clockwise in the (-) direction to decrease the water level height. Flush the toilet to verify the correct water level. Adjust as necessary.

For Type B Fill Valve:

There are no water level adjustments. The fill valve has been preset at the factory.

MAINTENANCE INSTRUCTIONS

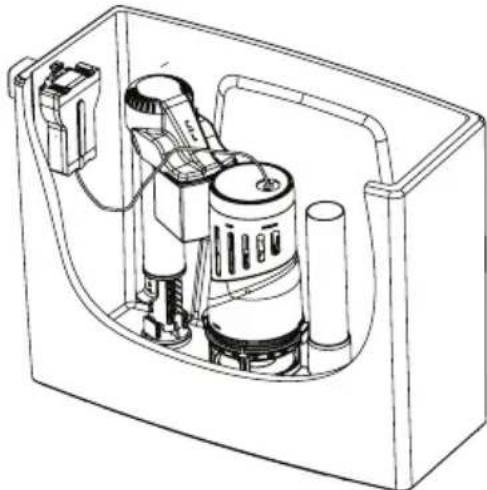

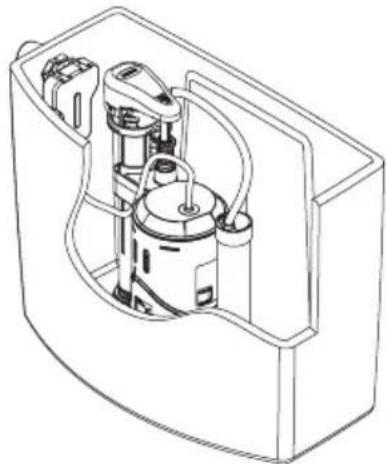

Replacing the Flush Valve (ST453U and ST403U Model Tanks)

1) Turn off water supply and flush the toilet. Remove the remaining water from tank with a sponge.
2) Remove the tank lid and place it upside down on a clean surface.

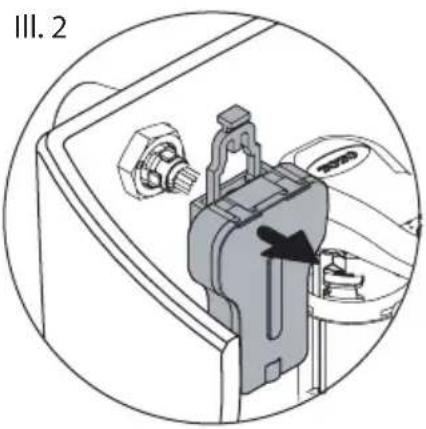

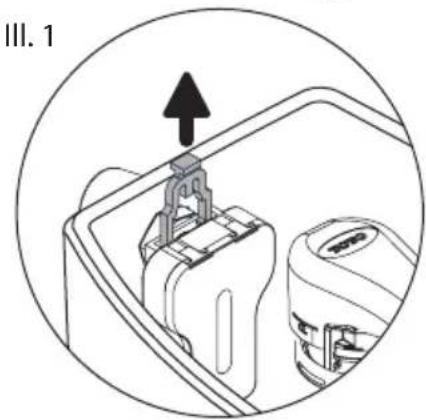

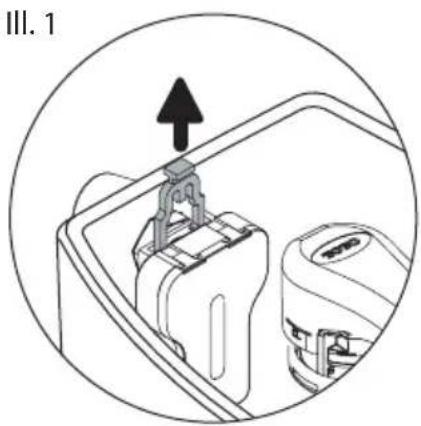

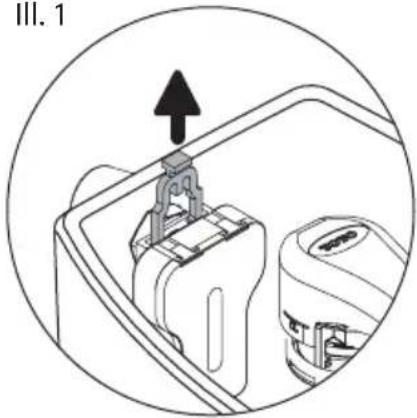

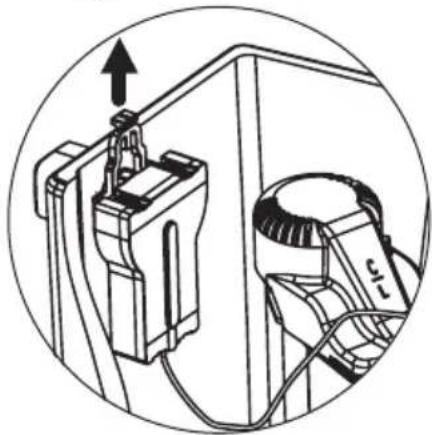

3) Pull the clip on top of trip leaver gear box as shown.

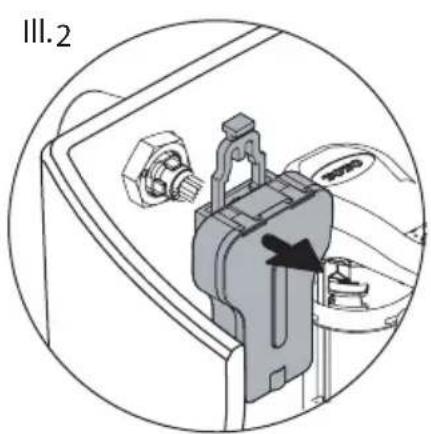

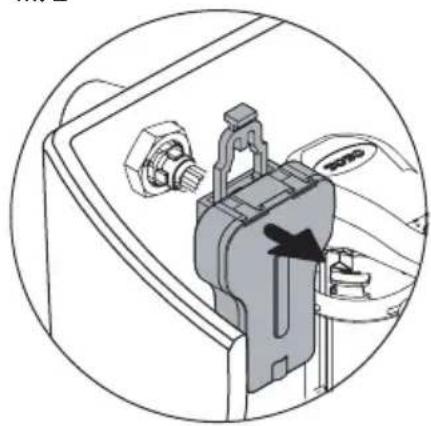

4) Pull gear box away and set on the side as shown. (see ill. 1 & ill. 2)

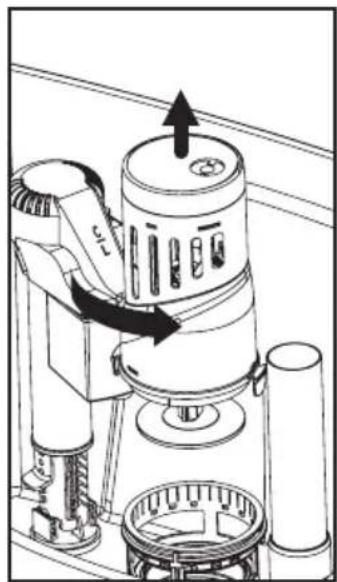

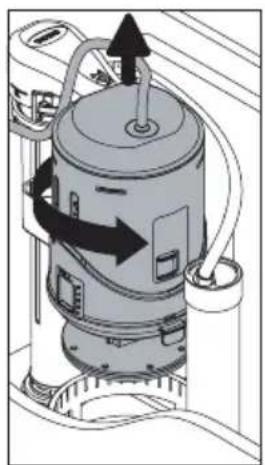

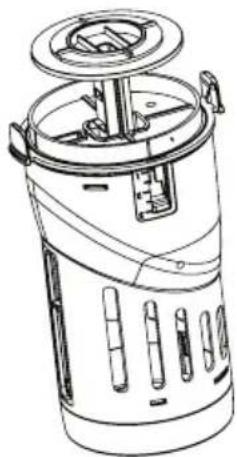

5) Rotate and pull up on the flush tower to remove it. (see ill. 3)

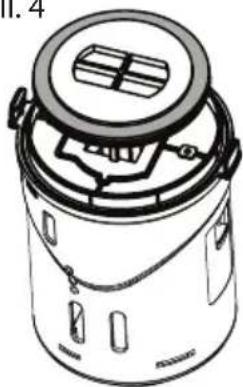

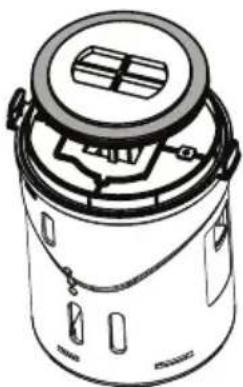

6) Remove the grey rubber seal gasket and rinse under running water to clean. (see. ill. 4)
7) Place the gasket back on the flush tower.
8) Align and place the flush tower into housing and gently press to snap and to lock into place.
9) Replace the trip lever gear box and push down on lever to lock it in place.
10) Carefully install the tank lid back on the tank.
11) Flush the toilet several times making sure the trip lever operates normally.
12) Check the water level in the tank and inspect for signs of any leakage.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a mechanical device inside a container, showing internal components and an upward arrow (no text or symbols)

III.2

Diagram of a mechanical component with a bolt and housing, enclosed in a circular frame (no text or symbols)

III. 3

Diagram of a cylindrical device with internal components and directional arrows indicating flow or movement (no text or symbols)

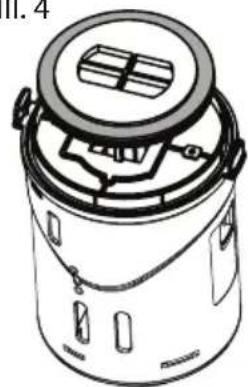

III.4

Line drawing of a cylindrical container with lid and internal compartments (no text or symbols)

MAINTENANCE INSTRUCTIONS

Replacing the Drain Valve

1) Shut off the water supply.
2) Flush the toilet to remove the water inside the tank.
3) Remove the tank lid and place somewhere safe. NOTE: Before removing anything from the tank, note the placement of the drain valve, chain and refill tube.
4) Unhook the refill tube from the overflow tube of the drain valve.

5) Unhook the chain from the trip lever.

6) Uninstall the tank (refer to the toilet installation manual).

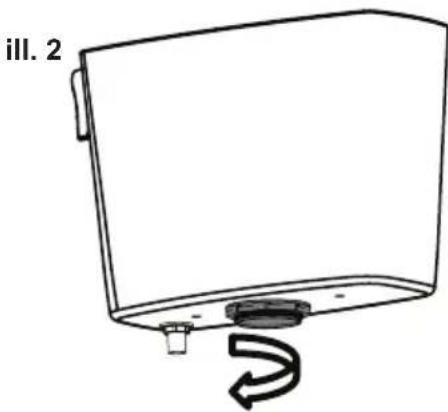

7) Remove the drain valve body from the tank.

8) Replace the drain valve in the same position as the former drain valve.

9) Hand tighten the mounting nut of the drain valve and use a wrench to tighten another 3/4 turn.

10) Reinstall the tank onto the bowl and place the chain and refill tube the same way as it was for the former drain valve.

11) Turn the water supply back.

12) Check for any leakage after the tank has been filled.

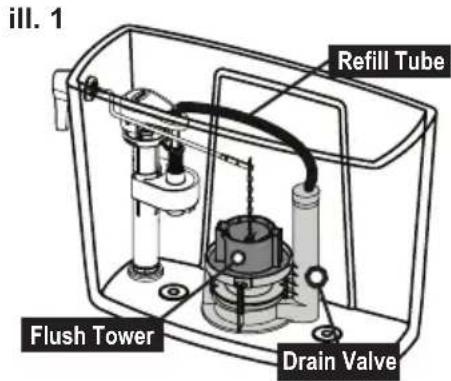

ill. 1 Refill Tube Flush Tower Drain Valve

Line drawing of a device with a button and arrow indicating rotation (no text or symbols)

CARE AND CLEANING

WARNING!

DO NOT USE IN-TANK BOWLCLEANERS.

The use of high concentration of chlorine or chlorine-related products can seriously damage fittings in the tank. This damage can cause leakage and property damage. TOTO® shall not be responsible or liable for any tank fitting failure or damage caused by the use of in-tank bowl cleaners.

WARRANTY

1. TOTO warrants its vitreous china products ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for a period of one (1) year from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.

b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product. (NOTE: Product model codes allow a maximum of 80 PSI. Check local codes or standards for requirements).
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions.
g. Tank flushing mechanisms of plastic or rubber moving parts.
h. Toilet seats of plastic, wood or metal.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
3. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

WARNING! TOTO shall not be responsible or liable for any failure of, or damage to, this Product caused by either chloramines in the treatment of public water supply or cleaners containing chlorine (calcium hypochlorite). NOTE: The use of a high concentrate chlorine or chlorine related products can seriously damage the fittings. This damage can cause leakage and serious property damage.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with threaded components and a base (no text or symbols)

Linéa de Agua

Tipo C

Technical line drawing of a mechanical clamp or actuator assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

III. 1

Diagram of a mechanical device with an upward arrow, enclosed in a circular frame (no text or symbols)

Diagram of a mechanical component with directional arrow, no visible text or symbols

III. 3

Diagram of a cylindrical device with directional arrows indicating flow or movement, no text or symbols present

III. 4

Line drawing of a cylindrical container with lid and internal compartments (no text or symbols)

Simple line drawing of a device with a scroll and directional arrow, no text or symbols present

CUIDADO Y LIMPIEZA

Pure technical line drawing of a symmetrical V-shaped mechanical component (no text or symbols)

Combinaison Double WYE / 1/8 Coude OUI

Pure technical drawing of a symmetrical mechanical component with centerlines and cross-section lines (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Diagram of a mechanical component with a valve and housing, labeled III.2 (no text or symbols on the diagram itself)

III. 3

Diagram of a cylindrical device with internal components and directional arrows indicating flow or movement (no text or symbols)

III. 4

Line drawing of a cylindrical device with lid and internal components (no text or symbols)

INSTRUCTIONS D'ENTRETIEN

Technical line drawing of a mechanical device with no visible text or symbols

III. 3

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

III.4

Line drawing of a cylindrical device with internal components and a lid (no text or symbols)

Technical line drawing of an internal combustion engine unit (no text or labels)

III. 1

Technical diagram of a mechanical device with an upward arrow and a magnified view showing internal components (no text or symbols)

INSTRUCTIONS D'ENTRETIEN

Line drawing of a device with a scroll and directional arrow, no text or symbols present

ENTRETIEN ET NETTOYAGE

AVERTISSEMENT:

ModelA B C
CST243EF	26-7/8" 1	6-1/8" 30"
CST244EF	28-3/4" 1	6-1/8" 30"
CST404CEF(G) 28	-1/2" 16-1	/8" 31-1/4"
CST403CUF(G) 28	-1/2" 16-1	/8" 31-1/4"
CST423EF(G) 26-3	/8" 16-1/8	" 33-1/2"
CST424EF(G) 28-1	/4" 16-1/8	" 33-1/2"
CST453CEF(G) 26	-1/2" 16-1	/8" 29-1/2"
CST453CUF(G) 26	-1/2" 16-1	/8" 29-1/2"
CST454CEF(G) 28	-1/2" 16-1	/8" 29-1/2"
CST454CUF(G) 28	-1/2" 16-1	/8" 29-1/2"
CST743E 26-3/8"	14-5/8" 28	-1/2"
CST743ED 26-3/8"	14-5/8"	28-1/2"
CST744EL 28" 16	-1/2" 30-1/2"
CST744ELD 28" 1	6-1/2" 30-	1/2"
CST744EF.10 28"	16-1/8" 30	-1/8"
CST744EFD.10 28"	16-1/8"	30-1/8"
CST744E(G)	27-3/4" 1	4-5/8" 28-1/2"
CST744ED(G)	27-3/4" 1	4-5/8" 28-1/2"
CST754EF(N) 28-1	/8" 16-1/8	" 32-1/2"
CST784EF	28-1/2" 1	6-1/8" 32-1/2"
CST744E(G)N	28-3/8" 1	4-5/8" 29-1/8"
CST743EN	26-5/8" 1	4-5/8" 29-1/8"
CST744ELN	28-3/8" 1	6-1/2" 31-1/8"
CST744EFN.10	28-5/8" 1	6-1/8" 30-3/4"
CST494CEMF(G)	28-3/4" 1	6-1/8" 30-1/4"

REPLACEMENT PARTS / REFACCIONES / PIÈCES DE RECHANGE

Technical line drawing of a mechanical device with a cylindrical shaft and base mount (no text or symbols)

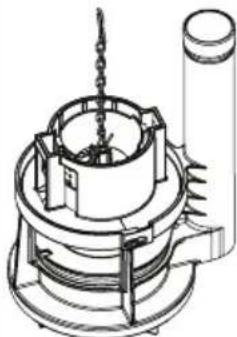

For flapper type drain valve

Model Modelo Modèle	Flapper Tapón Clapet	Fill Valve Válvula de Llenado Robinet de Remplissage (Type A or C)	Fill Valve Válvula de Llenado Robinet de Remplissage (Type B)	Flush Valve Válvula de la Cisterna Soupape de Vidange	Trip Lever Palanca de Descarga Levier de Dèclenchement
ST243E THU499S TSU53A		TSU99A.X THU252P-A THU068#XX
ST243ER THU499S TSU53A		TSU99A.X THU252P-A THU279#CP
ST424E THU499S TSU53A		TSU99A.X THU252P-A THU141N#CP
ST424S THU499S TSU53A		TSU99A.X THU252P-A THU141NXX
ST453U 9BU094 TSU53A N/A THU396 THU390#CP
ST453UR 9BU094 TSU53A N/A THU374 THU390#CP
ST454E THU499S TSU54A		TSU99A.X THU252P-A THU068#XX
ST454ER THU499S TSU54A		TSU99A.X THU252P-A THU279#XX
ST494M N/A N/A TSU09A.X		THU417 THU416#CP
ST743E(B)	THU499S TSU53A TSU99A.X THU252P-A THU068#XX
ST743ED(B)	THU499S	TSU53S	TSU99A.X	THU129P-A	THU068#XX
ST743ER(B)	THU499S	TSU53S	TSU99A.X	THU252P-A	THU279#XX
ST743S(B)	THU499S	TSU53S	TSU99A.X	THU129P-A	THU068#XX
ST743SD(B)	THU092-7	TSU53S	TSU99A.X	THU130	THU068#XX
ST743SR(B)	THU499S TSU53A TSU99A.X THU129P-A THU279#CP
ST744E	THU499S	TSU53S	TSU99A.X	THU252P-A	THU398#CP
ST744ER	THU499S	TSU53S	TSU99A.X	THU252P-A	THU398#CP
ST753E	THU499S	TSU53S	TSU99A.X	THU252P-A	THU141#XX
ST753S	THU499S	TSU53S	TSU99A.X	THU129P-3A	THU141#XX
ST754E	THU499S	TSU53S	TSU99A.X	THU252P-2A	THU141#XX
ST754S	THU499S	TSU53S	TSU99A.X	THU129P-6A	THU141#XX
ST784E	THU499S	TSU53S	TSU99A.X	THU252P-4A	THU148#XX
ST784S	THU499S	TSU53S	TSU99A.X	THU129P-4A	THU148#XX

REPLACEMENT PARTS / REFACCIONES / PIÈCES DE RECHANGE

Technical line drawing of a mechanical device with gears and a central hub (no text or symbols)

For flush tower type drain valve

Model Modelo Modèle	Drain Valve Válvula de drenaje Valve du drain	Flush Tower Torre de descarga Chasse d'eau	Seal Gasket Junta de sellado Joint d'étanchéité	Fill Valve Válvula de llenado Robinet de remplissage	Trip Lever Palanca de descarga Levier de déclenchement
ST403E THU443.15K-A THU440	THU440-A TSU53A THU458N#XX
ST403U THU467 N/A THU474 TSU53A THU466#XX
ST424ET THU443.21C-A THU440 THU407 TSU53A THU141N#CP
ST424ST THU442.21A-A THU440 THU407 TSU53A THU141N#CP
ST454ET THU445.10F-A THU440 THU407 TSU53A THU068#XX
ST454ERT THU445.10F-A THU440 THU407 TSU53A THU279#CP
ST743E(B)T THU445.10F-A THU440 THU407 TSU53A THU068#XX
ST743ED(B)T THU441.10J-A THU440 THU407 TSU53A THU068#XX
ST743ER(B)T THU445.10F-A THU440 THU407 TSU53A THU279#CP
ST743S(B)T THU443.10B-A THU440 THU407 TSU53A THU068#XX
ST743SD(B)T THU440.15H-A THU460 THU407 TSU53A THU068#XX
ST743SR(B)T THU443.10B-A THU440 THU407 TSU53A THU279#CP
ST744ET THU443.10B-A THU440 THU407 TSU53A THU398#CP
ST744ERT THU443.10B-A THU440 THU407 TSU53A THU398#CP
ST753ET THU444.10D-A THU440 THU407 TSU53A THU141#XX
ST754ET THU445.15G-A THU440 THU407 TSU53A THU141#XX
ST784ET THU444.15E-A THU440 THU407 TSU53A THU148#XX

TOTO®

TOTO ^® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU048Z-11

Rev Date: 08/16
